Amp font is an amp-component in amp which basically helps to trigger and monitor custom fonts to amp page. This chapter discusses amp-font in detail.

To work with amp-font, we need to add following javascript file −

<script async custom-element = "amp-font"
   src = "https://cdn.ampproject.org/v0/amp-font-0.1.js">
</script>

The amp-font component is used for controlling the time taken for font loading. It has a timeout attribute, which takes time in milliseconds.By default, it is 3000ms. The component allows to add/remove classes from document.documentElement or document.body depending upon whether the font required is loaded or got into an error state.

The format for amp-font tag is as shown below −

<amp-font
   layout = "nodisplay"
   font-family = "Roboto Italic"
   timeout = "2000"
   on-error-remove-class = "robotoitalic-loading"
   on-error-add-class = "robotoitalic-missing"
   on-load-remove-class = "robotoitalic-loading"
   on-load-add-class = "robotoitalic-loaded">
</amp-font>

A working example on how to use amp-font in amp pages is as shown here −

Example

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js"></script>
      <title>Google AMP - Amp Font</title>
      <link rel = "canonical" href = "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>

      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>

      <cript async custom-element = "amp-font"
         src = "https://cdn.ampproject.org/v0/amp-font-0.1.js"
      ></script>
      <style amp-custom>
         @font-face {
            font-family: 'This font is not available';
            font-style: normal;
            font-weight: 300;
            src: url(fonts/MissingFont.ttf) format('truetype');
         }
         .font-missing {
            color:red;
            font-size:25px;
         }
      </style>
   </head>
   <body>
      <h1>Google AMP - Amp Font</h1>
         <amp-font
            layout = "nodisplay"
            font-family = "Font Does Not exist"
            timeout = "2000"
            on-error-remove-class = "font-missing"
            on-error-add-class = "font-error"
            on-load-remove-class = "font-missing"
            on-load-add-class = "font-loaded">
         </amp-font>
         <p class = "font-missing">
            Example of amp-font component to show how
            attributes on-error-remove-class,
            on-error-add-class, on-load-remove-class
            and on-load-add-class works when the font
            file to be loaded does not exist.
         </p>
   </body>
</html>

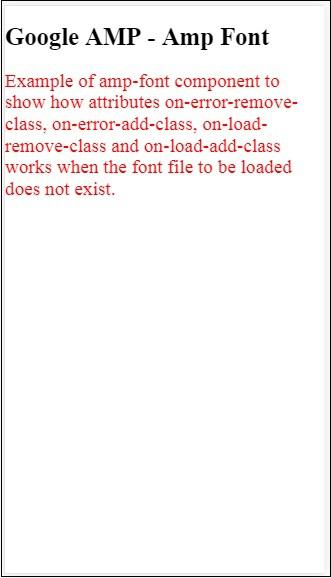

Output

The output of the sample code given above is as shown below −

Amp Font

An example of amp-font when font file loads successfully is shown here −

Example

<!doctype html>
<html amp lang = "en">
   <head>
      <meta charset = "utf-8">
      <script async src = "https://cdn.ampproject.org/v0.js"></script>
      <title>Google AMP - Amp Font</title>
      <link rel = "canonical" href = "http://example.ampproject.org/article-metadata.html">
      <meta name = "viewport" content = "width = device-width,minimum-scale = 1,initial-scale = 1">

      <style amp-boilerplate>
         body{
            -webkit-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:
            -amp-start 8s steps(1,end) 0s 1 normal both;animation:
            -amp-start 8s steps(1,end) 0s 1 normal both
         }
         @-webkit-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes
         -amp-start{from{visibility:hidden}to{visibility:visible}}
      </style>

      <noscript>
         <style amp-boilerplate>
            body{
               -webkit-animation:none;
               -moz-animation:none;
               -ms-animation:none;
               animation:none}
         </style>
      </noscript>

      <script async custom-element = "amp-font"
         src = "https://cdn.ampproject.org/v0/amp-font-0.1.js">
      </script>
      <style amp-custom>
         @font-face {
            font-family: 'This font is not available';
            font-style: normal;
            font-weight: 300;
            src: url(fonts/MissingFont.ttf)
            format('truetype');
         }
         @font-face {
            font-family: 'Roboto Italic';
            font-style: normal;
            font-weight: 300;
            src:url(fonts/Roboto-Italic.ttf) format('truetype');
         }
         .font-missing {
            color:red;
            font-size:25px;
         }
         .robotoitalic-loading {
            color: green;
         }
         .robotoitalic-loaded {
            font-size:25px;
            color: blue;
         }
         .robotoitalic-missing {
            color: red;
         }
         .robotoitalic {
            font-family: 'Roboto Italic';
         }
      </style>
   </head>
   <body>
      <h1>Google AMP - Amp Font</h1>
         <amp-font
            layout = "nodisplay"
            font-family = "Font Does Not exist"
            timeout = "2000"
            on-error-remove-class = "font-missing"
            on-error-add-class = "font-error"
            on-load-remove-class = "font-missing"
            on-load-add-class = "font-loaded">
         </amp-font>
         <p class="font-missing">
            Example of amp-font component to show
            how attributes on-error-remove-class,
            on-error-add-class, on-load-remove-class
            and on-load-add-class works when the
            font file to be loaded does not exist.
         </p>

         <amp-font
            layout = "nodisplay"
            font-family = "Roboto Italic"
            timeout = "2000"
            on-error-remove-class = "robotoitalic-
            loading"
            on-error-add-class = "robotoitalic-missing"
            on-load-remove-class = "robotoitalic-loading"
            on-load-add-class = "robotoitalic-loaded">
         </amp-font>
         <p class = "robotoitalic">
            Example of amp-font component to show how
            attributes on-error-remove-class,
            on-error-add-class, on-load-remove-class
            and on-load-add-class works when the font
            file exists and loads fine.
         </p>
   </body>
</html>

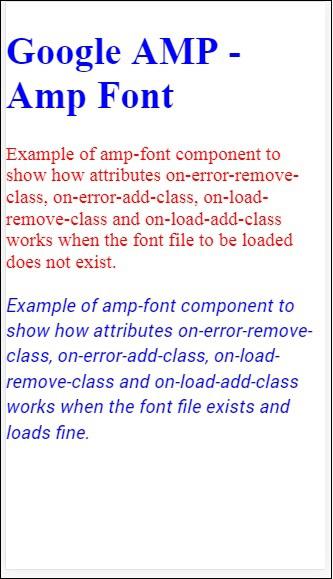

Output

The output of the sample code given above is as shown below −

Amp Font Loads

The above example shows how to work with font attributes like font-family,timeout,on-error-remove-class,on-error-add-class,on-load-remove-class,on-load-add-class.The classes decide whether there is error or success in font loading.
