Excel Charts - Introduction

In Microsoft Excel, charts are used to make a graphical representation of any set of data. A chart is a visual representation of data, in which the data is represented by symbols such as bars in a bar chart or lines in a line chart.

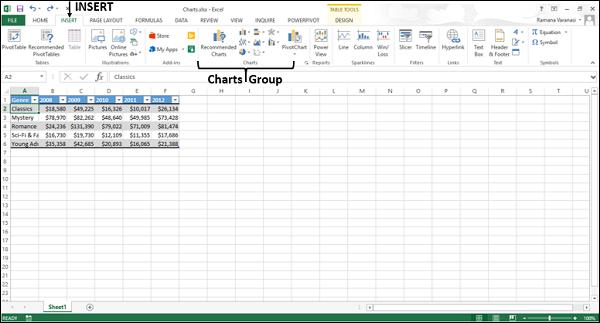

Charts Group

You can find the Charts group under the INSERT tab on the Ribbon.

The Charts group on the Ribbon looks as follows −

The Charts group is formatted in such a way that −

• Types of charts are displayed.

• The subgroups are clubbed together.

• It helps you find a chart suitable to your data with the button Recommended Charts.

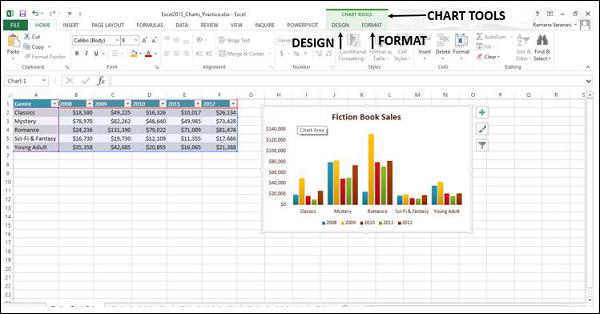

Chart Tools

When you click on a chart, a new tab Chart Tools is displayed on the ribbon. There are two tabs under CHART TOOLS −

• DESIGN
• FORMAT

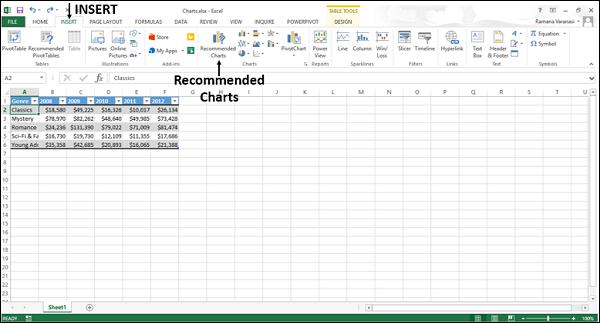

Recommended Charts

The Recommended Charts command on the Insert tab helps you to create a chart that is just right for your data.

To use Recommended charts −

Step 1 − Select the data.

Step 2 − Click Recommended Charts.

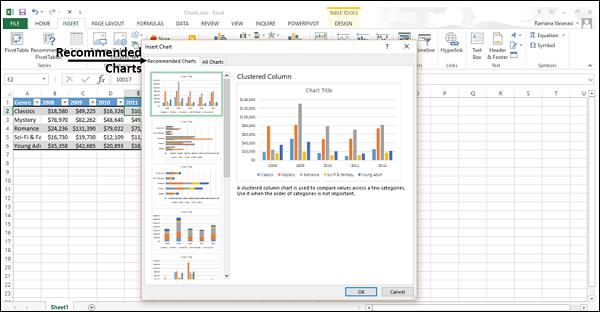

A window displaying the charts that suit your data will be displayed.
