Excel Charts - Column Chart


Advertisements

Column Charts are useful to visually compare values across a few categories or for showing data changes over a period of time.

A Column Chart typically displays the categories along the horizontal (category) axis and the values along the vertical (value) axis.

Follow the steps given to insert a column chart.

Step 1 − Arrange the data in columns or rows on the worksheet.

Step 2 − Select the data.

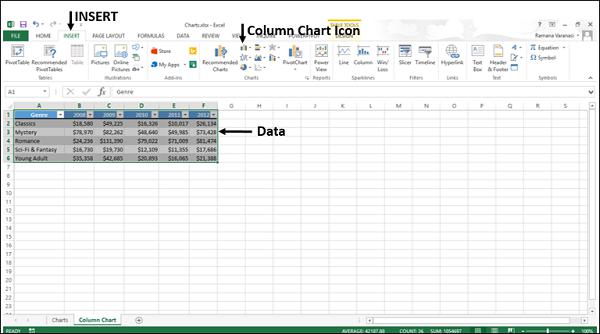

Step 3 − On the INSERT tab, in the Charts group, click the Column chart icon on the Ribbon.

Creating Charts with Insert Chart

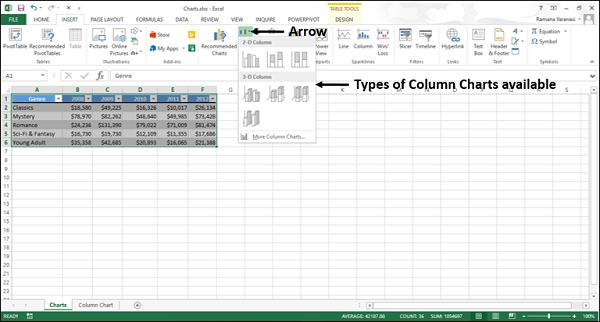

You will see the different options available for Column Charts.

A Column Chart has the following sub-types −

  • 2-D Column Charts

    • Clustered Column

    • Stacked Column

    • 100% Stacked Column

  • 3-D Column Charts

    • 3-D Clustered Column

    • 3-D Stacked Column

    • 3-D 100% Stacked Column

    • 3-D Column

Types of Column Charts

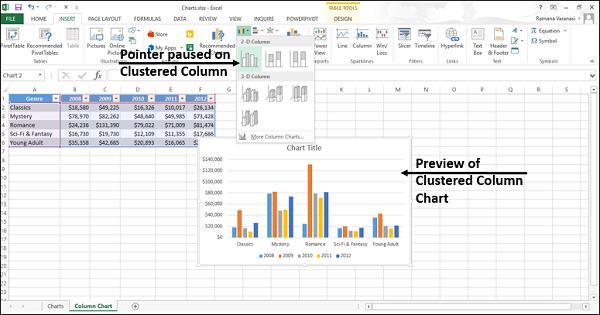

Step 4 − Point your mouse on each of the icons. You will see a preview of the chart type.

Preview of the Chart type

Step 5 − Double-click the chart type that suits your data.

In this chapter, you will understand when each of the column chart types is useful.

Clustered Column and 3-D Clustered Column

These chart types are useful to compare the values across a few categories, when the order of the categories is not important.

Remember that −

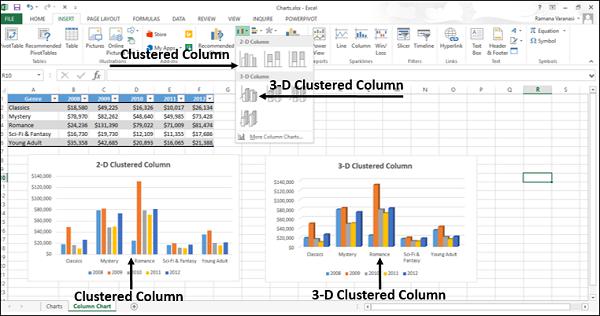

  • A Clustered Column chart shows values in 2-D rectangular columns.

  • A 3-D Clustered Column chart shows Columns in 3-D perspective, but it does not use a third value axis (depth axis).

Clustered Column and 3-D Clustered Column

You can use Clustered Column charts when you have multiple data series with categories that represent −

  • Ranges of values (e.g. item counts).

  • Specific scale arrangements (e.g. a Likert scale with entries like Strongly agree, Agree, Neutral, Disagree, Strongly disagree).

  • Names that are not in any specific order (e.g. item names, geographic names, or the names of people).

Stacked Column and 3-D Stacked Column

These charts are useful to −

  • Compare parts of a whole
  • Show how parts of a whole change over time
  • Compare parts of a whole across categories

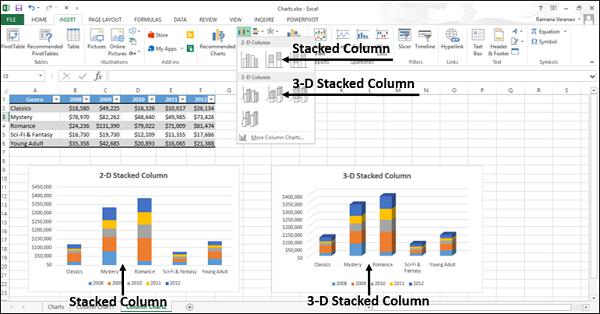

A Stacked Column chart displays values in 2-D vertical stacked rectangles. A 3-D Stacked Column chart displays the data by using a 3-D perspective, but it does not use a third value axis (depth axis).

Stacked and 3-D Stacked Column

A 100% Stacked bar shows 2-D bars that compare the percentage that each value contributes to a total across the categories.

100% Stacked Column and 3-D 100% Stacked Column

These charts are used to −

  • Compare the percentages that each value contributes to the total.

  • Check, how the percentage that each value contributes changes over time.

  • Compare the percentage that each value contributes across categories.

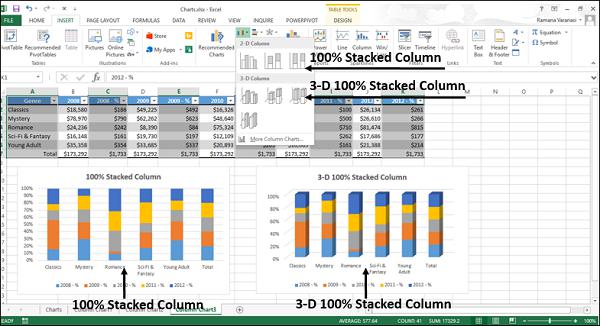

A 100% Stacked Column chart shows values in 2-D columns that are stacked to represent 100%. A 3-D 100% Stacked Column chart shows the columns using a 3-D perspective, but it does use a third value axis (depth axis).

100percent 3-D Stacked Column

You can use 100% Stacked Column charts when you have three or more data series and you want to emphasize the contributions to the whole, especially if the total is the same for each category.

3-D Column

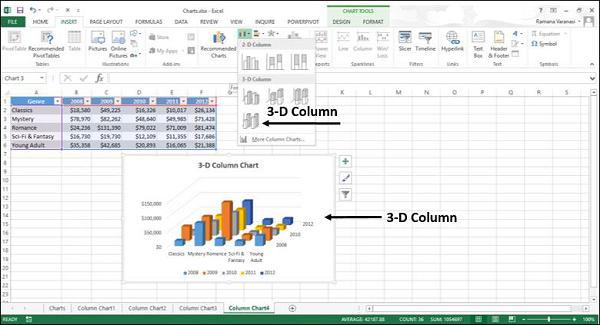

3-D Column charts use three axes that you can modify (a horizontal axis, a vertical axis, and a depth axis), and they compare data points along the horizontal and the depth axes.

3-D Column

You can use this chart when you want to compare the data across both the categories and the data series.
