In this chapter, let us learn about creating an entity data model with Database First approach.

  • The Database First Approach provides an alternative to the Code First and Model First approaches to the Entity Data Model. It creates model codes (classes, properties, DbContext etc.) from the database in the project and those classes become the link between the database and controller.

  • The Database First Approach creates the entity framework from an existing database. We use all other functionalities, such as the model/database sync and the code generation, in the same way we used them in the Model First approach.

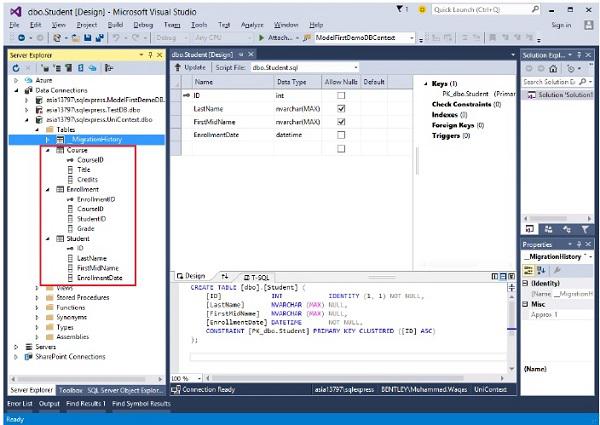

Let’s take a simple example. We already have a database which contains 3 tables as shown in the following image.

New Console Project

Step 1 − Let’s create a new console project with DatabaseFirstDemo name.

Step 2 − To create the model, first right-click on your console project in solution explorer and select Add → New Items…

Create Model

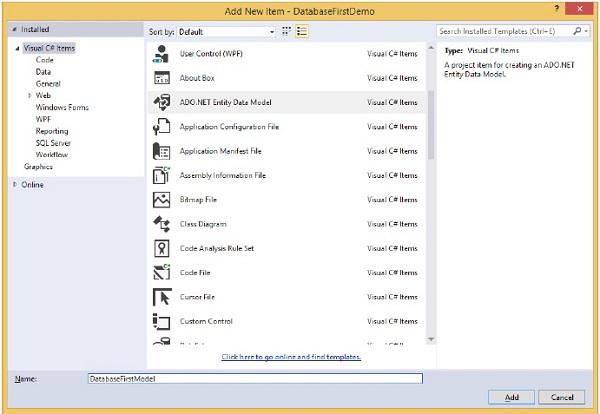

Step 3 − Select ADO.NET Entity Data Model from middle pane and enter name DatabaseFirstModel in the Name field.

Step 4 − Click Add button which will launch the Entity Data Model Wizard dialog.

Model Contents

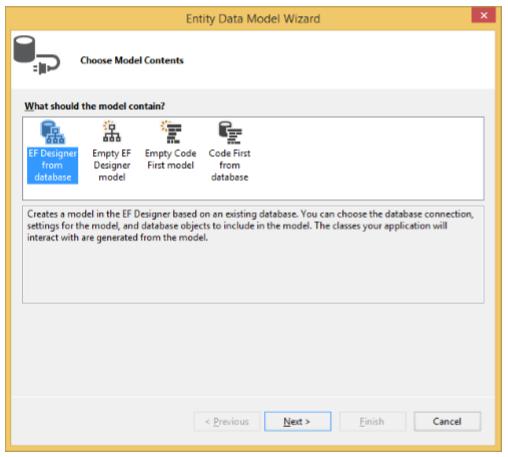

Step 5 − Select EF Designer from database and click Next button.

Entity Model Wizard

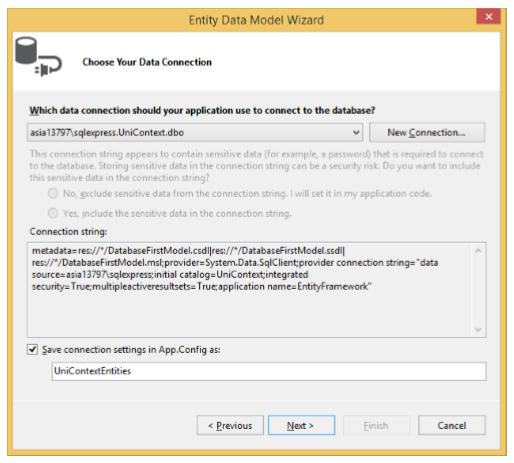

Step 6 − Select the existing database and click Next.

Existing Database

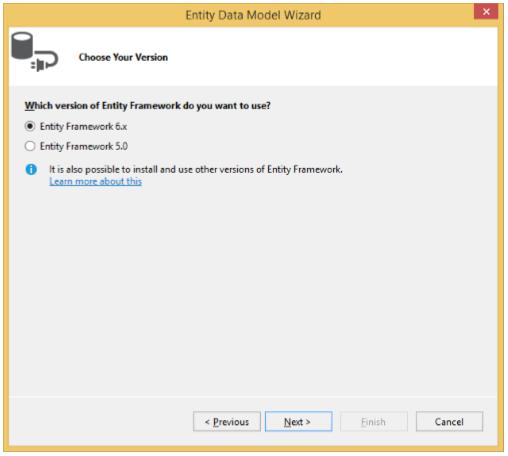

Step 7 − Choose Entity Framework 6.x and click Next.

Entity Framework

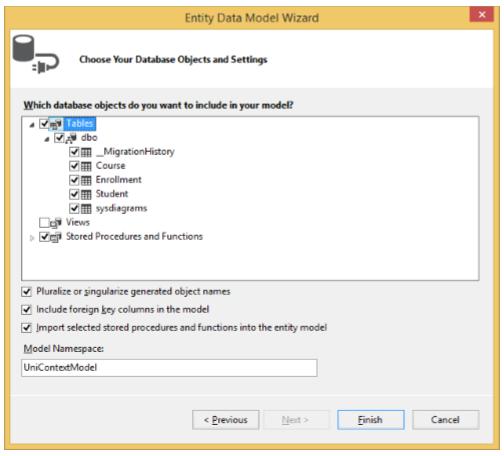

Step 8 − Select all the tables Views and stored procedure you want to include and click Finish.

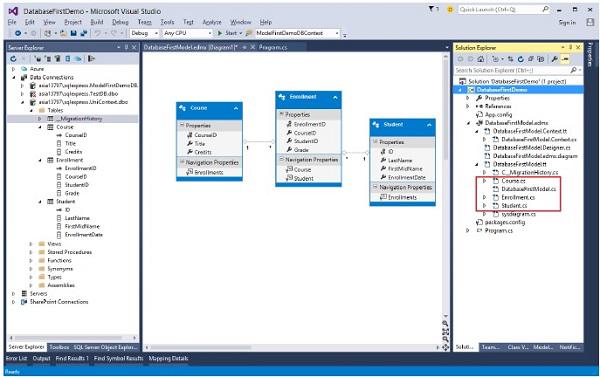

You will see that Entity model and POCO classes are generated from the database.

POCO Classes

Let us now retrieve all the students from the database by writing the following code in program.cs file.

using System;
using System.Linq;

namespace DatabaseFirstDemo {

   class Program {

      static void Main(string[] args) {

         using (var db = new UniContextEntities()) {

            var query = from b in db.Students
               orderby b.FirstMidName select b;

            Console.WriteLine("All All student in the database:");

            foreach (var item in query) {
               Console.WriteLine(item.FirstMidName +" "+ item.LastName);
            }

            Console.WriteLine("Press any key to exit...");
            Console.ReadKey();
         }
      }
   }
}

When the above program is executed, you will receive the following output −

All student in the database:
Ali Khan
Arturo   finand
Bill Gates
Carson Alexander
Gytis Barzdukas
Laura Norman
Meredith Alonso
Nino Olivetto
Peggy Justice
Yan Li
Press any key to exit...

When the above program is executed, you will see all the students’ name which were previously entered in the database.

We recommend you to execute the above example in a step-by-step manner for better understanding.
