Docker - Overview

Docker is a container management service. The keywords of Docker are develop, ship and run anywhere. The whole idea of Docker is for developers to easily develop applications, ship them into containers which can then be deployed anywhere.

The initial release of Docker was in March 2013 and since then, it has become the buzzword for modern world development, especially in the face of Agile-based projects.

Docker Overview

Features of Docker

  • Docker has the ability to reduce the size of development by providing a smaller footprint of the operating system via containers.

  • With containers, it becomes easier for teams across different units, such as development, QA and Operations to work seamlessly across applications.

  • You can deploy Docker containers anywhere, on any physical and virtual machines and even on the cloud.

  • Since Docker containers are pretty lightweight, they are very easily scalable.

Components of Docker

Docker has the following components

  • Docker for Mac − It allows one to run Docker containers on the Mac OS.

  • Docker for Linux − It allows one to run Docker containers on the Linux OS.

  • Docker for Windows − It allows one to run Docker containers on the Windows OS.

  • Docker Engine − It is used for building Docker images and creating Docker containers.

  • Docker Hub − This is the registry which is used to host various Docker images.

  • Docker Compose − This is used to define applications using multiple Docker containers.

We will discuss all these components in detail in the subsequent chapters.

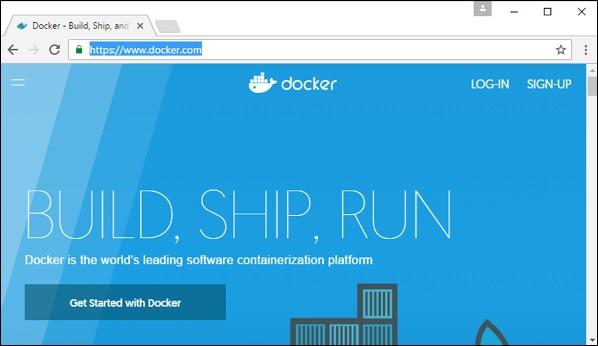

The official site for Docker is https://www.docker.com/ The site has all information and documentation about the Docker software. It also has the download links for various operating systems.

Installing Docker on Linux

To start the installation of Docker, we are going to use an Ubuntu instance. You can use Oracle Virtual Box to setup a virtual Linux instance, in case you don’t have it already.

The following screenshot shows a simple Ubuntu server which has been installed on Oracle Virtual Box. There is an OS user named demo which has been defined on the system having entire root access to the sever.

Demo Button

To install Docker, we need to follow the steps given below.

Step 1 − Before installing Docker, you first have to ensure that you have the right Linux kernel version running. Docker is only designed to run on Linux kernel version 3.8 and higher. We can do this by running the following command.

uname

This method returns the system information about the Linux system.

Syntax

uname -a

Options

a − This is used to ensure that the system information is returned.

Return Value

This method returns the following information on the Linux system −

  • kernel name
  • node name
  • kernel release
  • kernel version
  • machine
  • processor
  • hardware platform
  • operating system

Example

uname –a

Output

When we run above command, we will get the following result −

Output

From the output, we can see that the Linux kernel version is 4.2.0-27 which is higher than version 3.8, so we are good to go.

Step 2 − You need to update the OS with the latest packages, which can be done via the following command −

apt-get

This method installs packages from the Internet on to the Linux system.

Syntax

sudo apt-get update

Options

  • sudo − The sudo command is used to ensure that the command runs with root access.

  • update − The update option is used ensure that all packages are updated on the Linux system.

Return Value

None

Example

sudo apt-get update

Output

When we run the above command, we will get the following result −

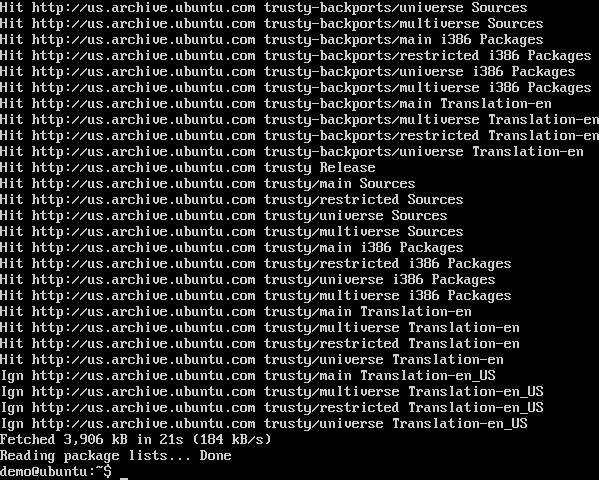

Example Output

This command will connect to the internet and download the latest system packages for Ubuntu.

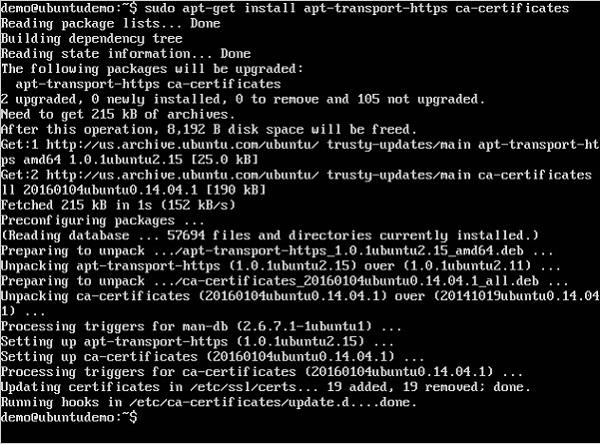

Step 3 − The next step is to install the necessary certificates that will be required to work with the Docker site later on to download the necessary Docker packages. It can be done with the following command.

sudo apt-get install apt-transport-https ca-certificates

Necessary Docker Packages

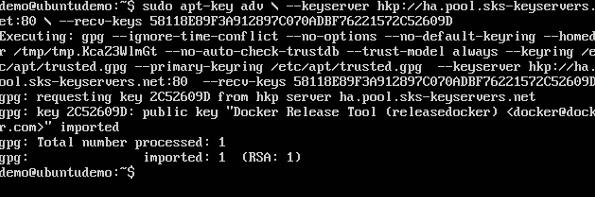

Step 4 − The next step is to add the new GPG key. This key is required to ensure that all data is encrypted when downloading the necessary packages for Docker.

The following command will download the key with the ID 58118E89F3A912897C070ADBF76221572C52609D from the keyserver hkp://ha.pool.sks-keyservers.net:80 and adds it to the adv keychain. Please note that this particular key is required to download the necessary Docker packages.

New PGP Key

Step 5 − Next, depending on the version of Ubuntu you have, you will need to add the relevant site to the docker.list for the apt package manager, so that it will be able to detect the Docker packages from the Docker site and download them accordingly.

Since our OS is Ubuntu 14.04, we will use the Repository name as “deb https://apt.dockerproject.org/repoubuntu-trusty main”.

And then, we will need to add this repository to the docker.list as mentioned above.

echo "deb https://apt.dockerproject.org/repo ubuntu-trusty main”
   | sudo tee /etc/apt/sources.list.d/docker.list

Docker List

Step 6 − Next, we issue the apt-get update command to update the packages on the Ubuntu system.

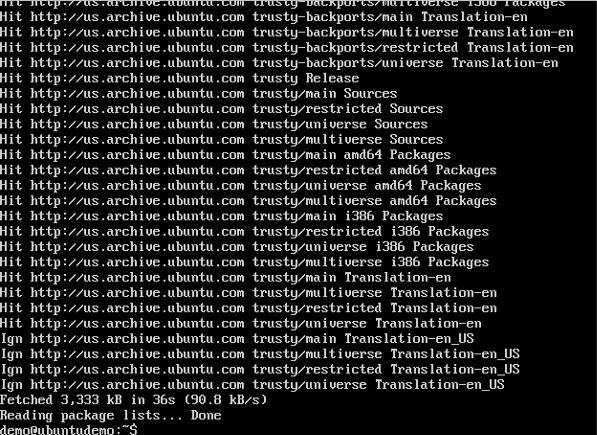

APT-GET Update Command

Step 7 − If you want to verify that the package manager is pointing to the right repository, you can do it by issuing the apt-cache command.

apt-cache policy docker-engine

In the output, you will get the link to https://apt.dockerproject.org/repo/

APT-GET Update Command

Step 8 − Issue the apt-get update command to ensure all the packages on the local system are up to date.

APT-GET Packages Updation

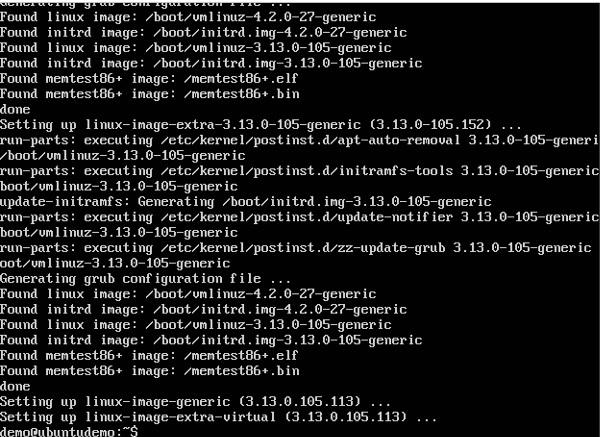

Step 9 − For Ubuntu Trusty, Wily, and Xenial, we have to install the linux-image-extra-* kernel packages, which allows one to use the aufs storage driver. This driver is used by the newer versions of Docker.

It can be done by using the following command.

sudo apt-get install linux-image-extra-$(uname -r)
   linux-image-extra-virtual

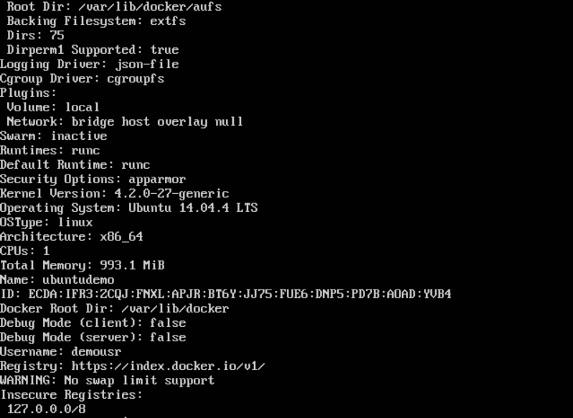

Aufs Storage Driver

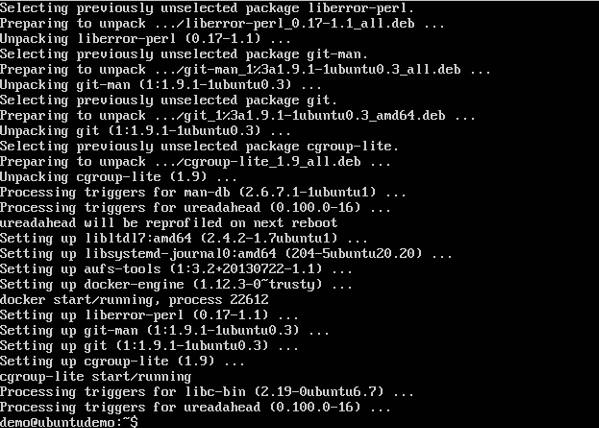

Step 10 − The final step is to install Docker and we can do this with the following command −

sudo apt-get install –y docker-engine

Here, apt-get uses the install option to download the Docker-engine image from the Docker website and get Docker installed.

The Docker-engine is the official package from the Docker Corporation for Ubuntu-based systems.

Docker-engine

In the next section, we will see how to check for the version of Docker that was installed.

Docker Version

To see the version of Docker running, you can issue the following command −

Syntax

docker version

Options

  • version − It is used to ensure the Docker command returns the Docker version installed.

Return Value

The output will provide the various details of the Docker version installed on the system.

Example

sudo docker version

Output

When we run the above program, we will get the following result −

Docker Version Output

Docker Info

To see more information on the Docker running on the system, you can issue the following command −

Syntax

docker info

Options

  • info − It is used to ensure that the Docker command returns the detailed information on the Docker service installed.

Return Value

The output will provide the various details of the Docker installed on the system such as −

  • Number of containers
  • Number of images
  • The storage driver used by Docker
  • The root directory used by Docker
  • The execution driver used by Docker

Example

sudo docker info

Output

When we run the above command, we will get the following result −

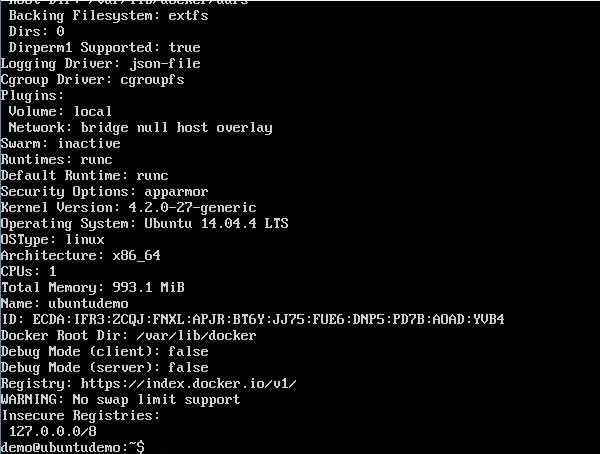

Docker Info Example Output

Docker for Windows

Docker has out-of-the-box support for Windows, but you need to have the following configuration in order to install Docker for Windows.

System Requirements

Windows OS Windows 10 64 bit
Memory 2 GB RAM (recommended)

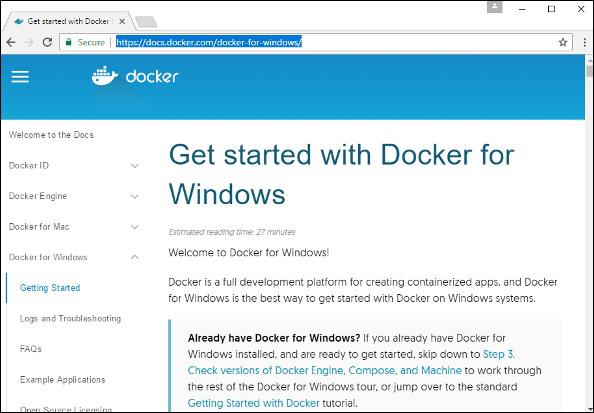

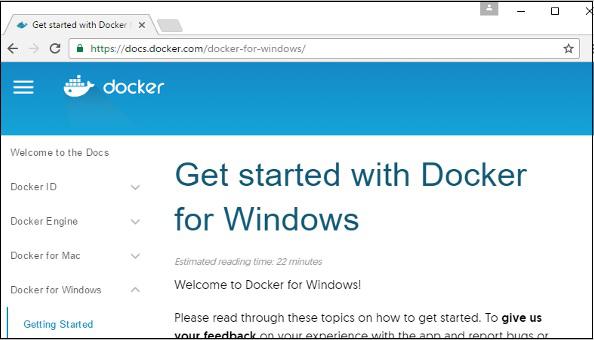

You can download Docker for Windows from − https://docs.docker.com/docker-for-windows/

Docker for Windows

Docker ToolBox

Docker ToolBox has been designed for older versions of Windows, such as Windows 8.1 and Windows 7. You need to have the following configuration in order to install Docker for Windows.

System Requirements

Windows OS Windows 7 , 8, 8.1
Memory 2 GB RAM (recommended)
Virtualization This should be enabled.

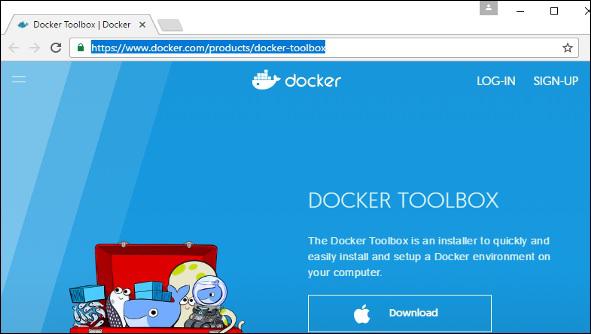

You can download Docker ToolBox from − https://www.docker.com/products/docker-toolbox

Docker Toolbox

Docker - Installation

Let’s go through the installation of each product.

Docker for Windows

Once the installer has been downloaded, double-click it to start the installer and then follow the steps given below.

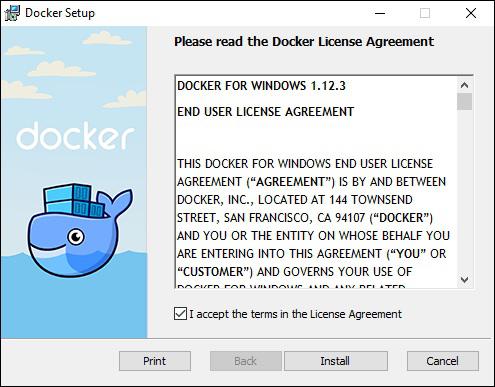

Step 1 − Click on the Agreement terms and then the Install button to proceed ahead with the installation.

Docker Setup

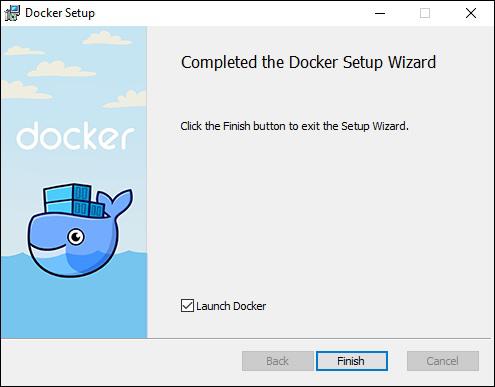

Step 2 − Once complete, click the Finish button to complete the installation.

Finish

Docker ToolBox

Once the installer has been downloaded, double-click it to start the installer and then follow the steps given below.

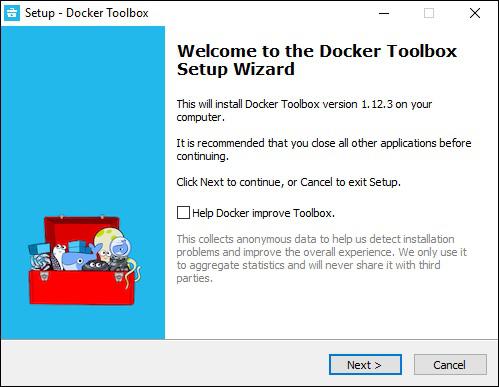

Step 1 − Click the Next button on the start screen.

Docker ToolBox Next

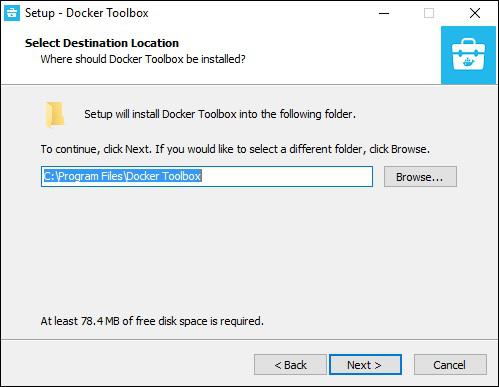

Step 2 − Keep the default location on the next screen and click the Next button.

Destination Location

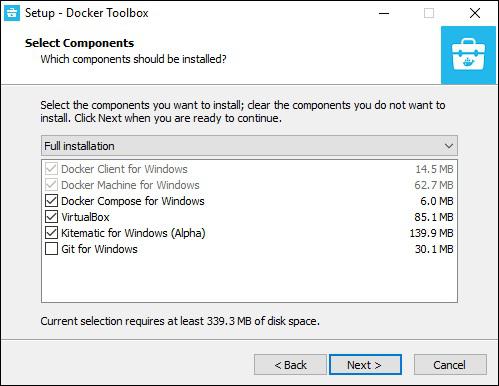

Step 3 − Keep the default components and click the Next button to proceed.

Select Components

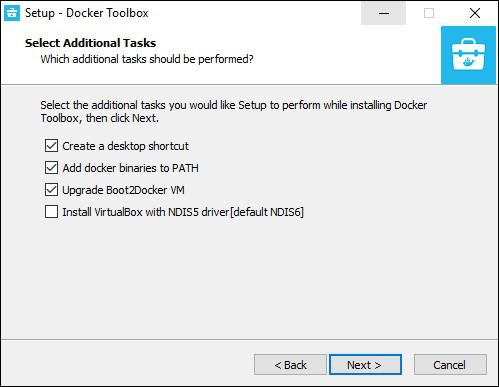

Step 4 − Keep the Additional Tasks as they are and then click the Next button.

Additional Tasks

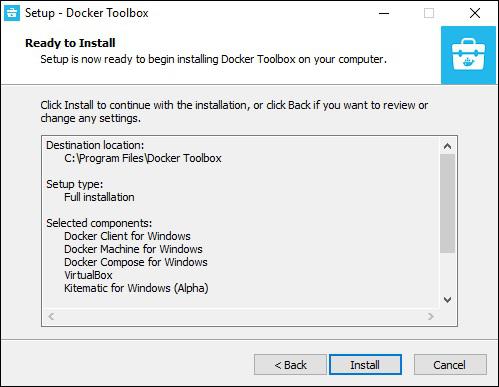

Step 5 − On the final screen, click the Install button.

Install

Working with Docker Toolbox

Let’s now look at how Docker Toolbox can be used to work with Docker containers on Windows. The first step is to launch the Docker Toolbox application for which the shortcut is created on the desktop when the installation of Docker toolbox is carried out.

Quickstart Terminal

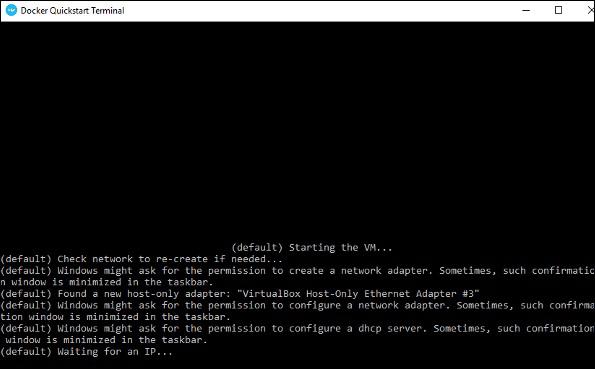

Next, you will see the configuration being carried out when Docker toolbox is launched.

Docker Toolbox Terminal

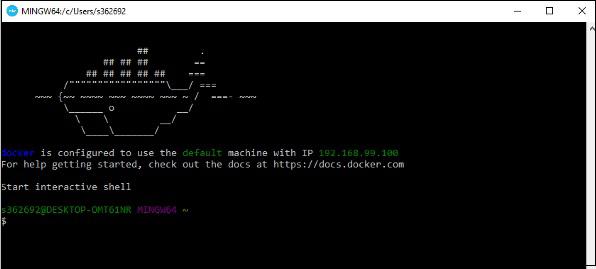

Once done, you will see Docker configured and launched. You will get an interactive shell for Docker.

Interactive Shell

To test that Docker runs properly, we can use the Docker run command to download and run a simple HelloWorld Docker container.

The working of the Docker run command is given below −

docker run

This command is used to run a command in a Docker container.

Syntax

docker run image

Options

  • Image − This is the name of the image which is used to run the container.

Return Value

The output will run the command in the desired container.

Example

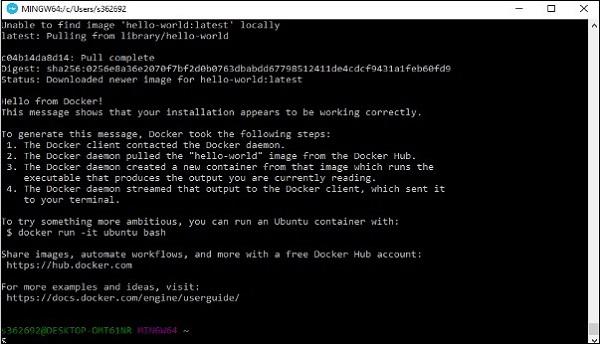

sudo docker run hello-world

This command will download the hello-world image, if it is not already present, and run the hello-world as a container.

Output

When we run the above command, we will get the following result −

Docker Container

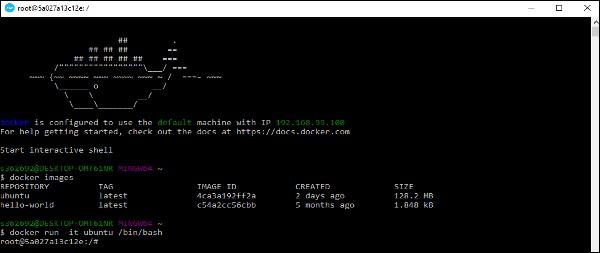

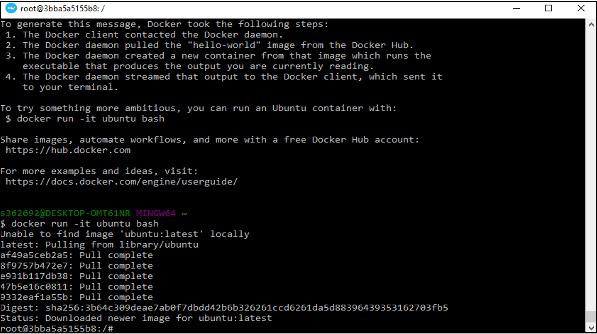

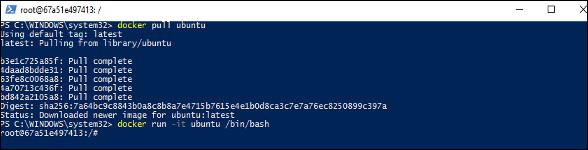

If you want to run the Ubuntu OS on Windows, you can download the Ubuntu Image using the following command −

Docker run –it ubuntu bash

Here you are telling Docker to run the command in the interactive mode via the –it option.

Ubuntu Image

In the output you can see that the Ubuntu image is downloaded and run and then you will be logged in as a root user in the Ubuntu container.

Docker - Hub

Docker Hub is a registry service on the cloud that allows you to download Docker images that are built by other communities. You can also upload your own Docker built images to Docker hub. In this chapter, we will see how to download and the use the Jenkins Docker image from Docker hub.

The official site for Docker hub is − https://www.docker.com/community-edition#/add_ons

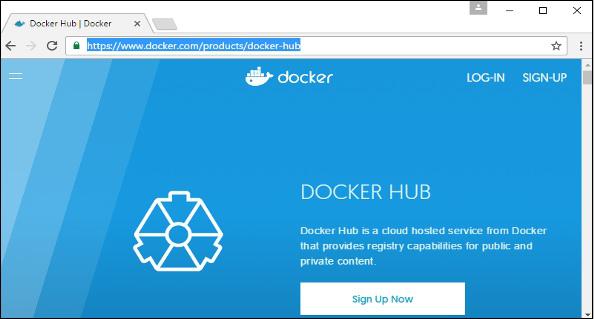

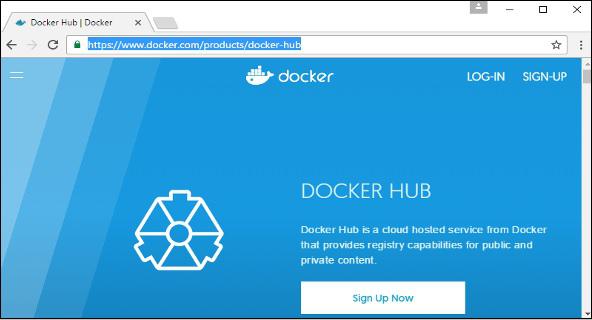

Step 1 − First you need to do a simple sign-up on Docker hub.

Docker Hub Singup

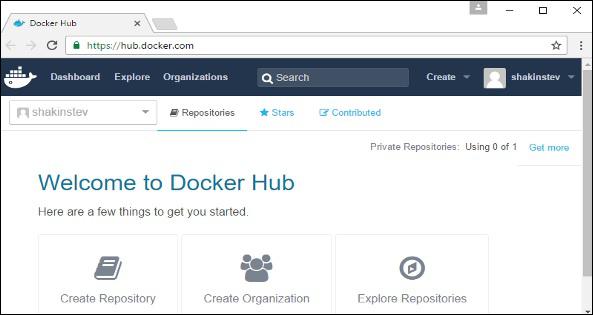

Step 2 − Once you have signed up, you will be logged into Docker Hub.

Logged into Docker Hub

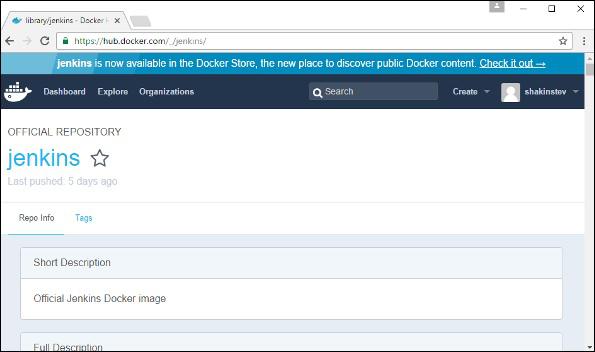

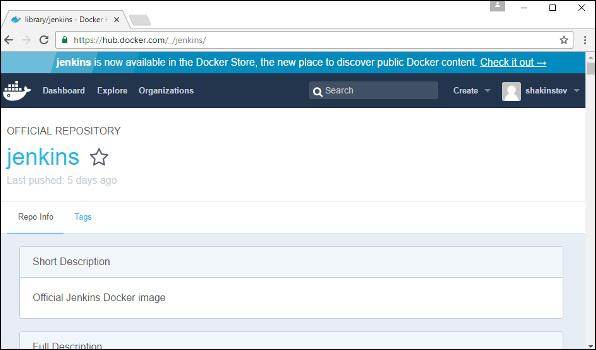

Step 3 − Next, let’s browse and find the Jenkins image.

Jenkins image

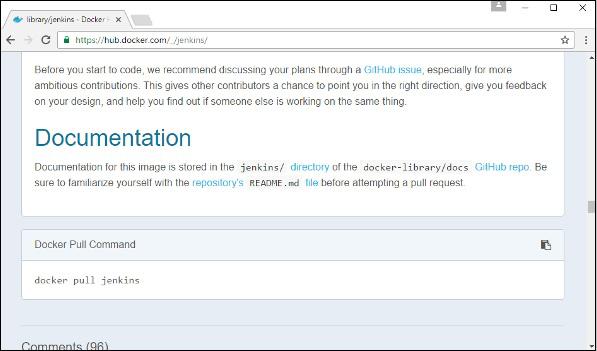

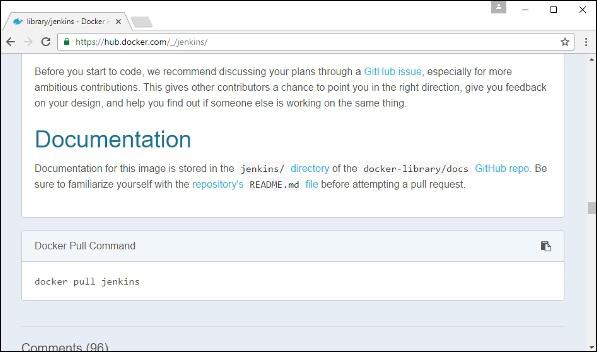

Step 4 − If you scroll down on the same page, you can see the Docker pull command. This will be used to download the Jenkins image onto the local Ubuntu server.

Pull Command

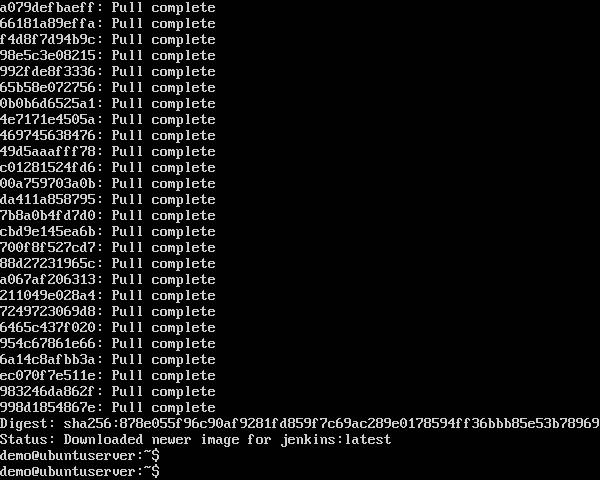

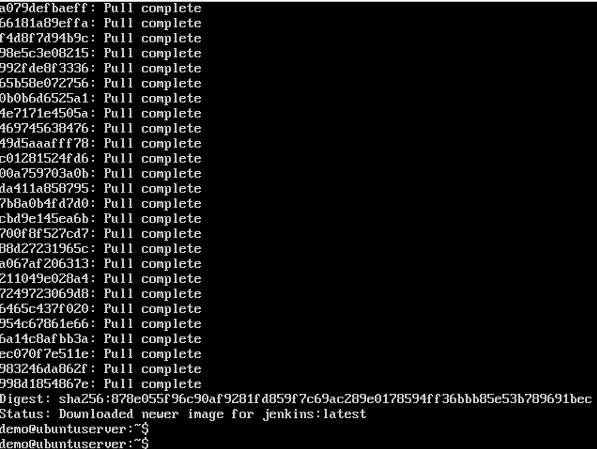

Step 5 − Now, go to the Ubuntu server and run the following command −

sudo docker pull jenkins

Ubuntu server

To run Jenkins, you need to run the following command −

sudo docker run -p 8080:8080 -p 50000:50000 jenkins

Note the following points about the above sudo command −

  • We are using the sudo command to ensure it runs with root access.

  • Here, jenkins is the name of the image we want to download from Docker hub and install on our Ubuntu machine.

  • -p is used to map the port number of the internal Docker image to our main Ubuntu server so that we can access the container accordingly.

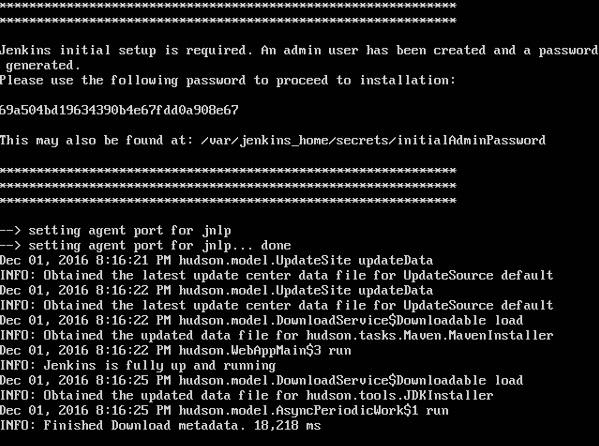

Sudo Command

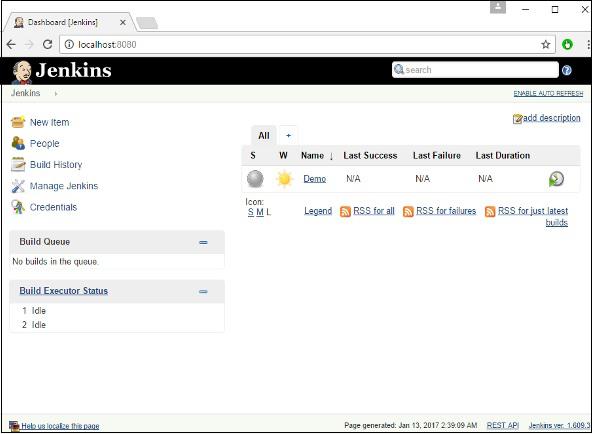

You will then have Jenkins successfully running as a container on the Ubuntu machine.

Docker - Images

In Docker, everything is based on Images. An image is a combination of a file system and parameters. Let’s take an example of the following command in Docker.

docker run hello-world
  • The Docker command is specific and tells the Docker program on the Operating System that something needs to be done.

  • The run command is used to mention that we want to create an instance of an image, which is then called a container.

  • Finally, "hello-world" represents the image from which the container is made.

Now let’s look at how we can use the CentOS image available in Docker Hub to run CentOS on our Ubuntu machine. We can do this by executing the following command on our Ubuntu machine −

sudo docker run centos –it /bin/bash

Note the following points about the above sudo command −

  • We are using the sudo command to ensure that it runs with root access.

  • Here, centos is the name of the image we want to download from Docker Hub and install on our Ubuntu machine.

  • ─it is used to mention that we want to run in interactive mode.

  • /bin/bash is used to run the bash shell once CentOS is up and running.

Displaying Docker Images

To see the list of Docker images on the system, you can issue the following command.

docker images

This command is used to display all the images currently installed on the system.

Syntax

docker images

Options

None

Return Value

The output will provide the list of images on the system.

Example

sudo docker images

Output

When we run the above command, it will produce the following result −

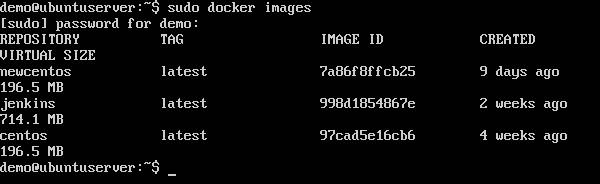

Displaying Docker Images

From the above output, you can see that the server has three images: centos, newcentos, and jenkins. Each image has the following attributes −

  • TAG − This is used to logically tag images.

  • Image ID − This is used to uniquely identify the image.

  • Created − The number of days since the image was created.

  • Virtual Size − The size of the image.

Downloading Docker Images

Images can be downloaded from Docker Hub using the Docker run command. Let’s see in detail how we can do this.

Syntax

The following syntax is used to run a command in a Docker container.

docker run image

Options

  • Image − This is the name of the image which is used to run the container.

Return Value

The output will run the command in the desired container.

Example

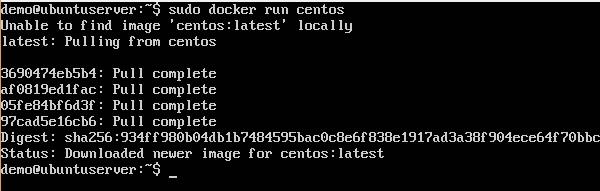

sudo docker run centos

This command will download the centos image, if it is not already present, and run the OS as a container.

Output

When we run the above command, we will get the following result −

Downloading Docker Images

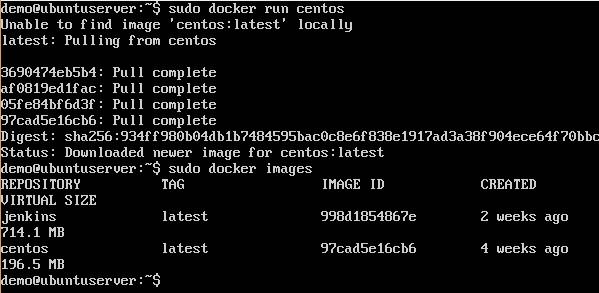

You will now see the CentOS Docker image downloaded. Now, if we run the Docker images command to see the list of images on the system, we should be able to see the centos image as well.

Centos

Removing Docker Images

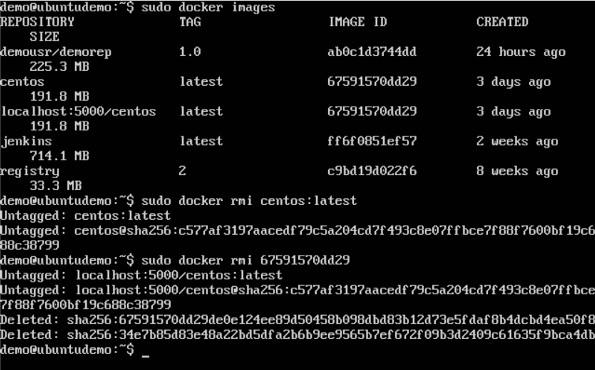

The Docker images on the system can be removed via the docker rmi command. Let’s look at this command in more detail.

docker rmi

This command is used to remove Docker images.

Syntax

docker rmi ImageID

Options

  • ImageID − This is the ID of the image which needs to be removed.

Return Value

The output will provide the Image ID of the deleted Image.

Example

sudo docker rmi 7a86f8ffcb25

Here, 7a86f8ffcb25 is the Image ID of the newcentos image.

Output

When we run the above command, it will produce the following result −

Removing Docker Images

Let’s see some more Docker commands on images.

docker images -q

This command is used to return only the Image ID’s of the images.

Syntax

docker images

Options

  • q − It tells the Docker command to return the Image ID’s only.

Return Value

The output will show only the Image ID’s of the images on the Docker host.

Example

sudo docker images -q

Output

When we run the above command, it will produce the following result −

Docker Images Q

docker inspect

This command is used see the details of an image or container.

Syntax

docker inspect Repository

Options

  • Repository − This is the name of the Image.

Return Value

The output will show detailed information on the Image.

Example

sudo docker inspect jenkins

Output

When we run the above command, it will produce the following result −

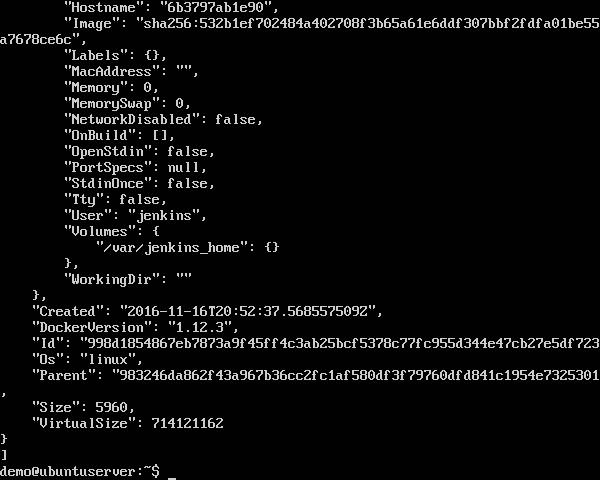

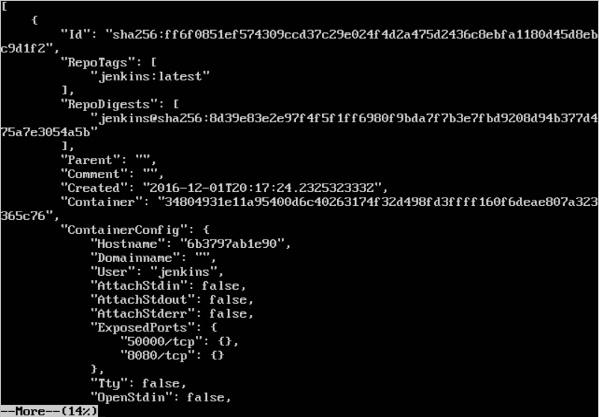

Docker Inspect

Docker - Containers

Containers are instances of Docker images that can be run using the Docker run command. The basic purpose of Docker is to run containers. Let’s discuss how to work with containers.

Running a Container

Running of containers is managed with the Docker run command. To run a container in an interactive mode, first launch the Docker container.

sudo docker run –it centos /bin/bash

Then hit Crtl+p and you will return to your OS shell.

Containers

You will then be running in the instance of the CentOS system on the Ubuntu server.

Listing of Containers

One can list all of the containers on the machine via the docker ps command. This command is used to return the currently running containers.

docker ps

Syntax

docker ps

Options

None

Return Value

The output will show the currently running containers.

Example

sudo docker ps

Output

When we run the above command, it will produce the following result −

Listing of Containers

Let’s see some more variations of the docker ps command.

docker ps -a

This command is used to list all of the containers on the system

Syntax

docker ps -a

Options

  • ─a − It tells the docker ps command to list all of the containers on the system.

Return Value

The output will show all containers.

Example

sudo docker ps -a

Output

When we run the above command, it will produce the following result −

Docker PS A

docker history

With this command, you can see all the commands that were run with an image via a container.

Syntax

docker history ImageID

Options

  • ImageID − This is the Image ID for which you want to see all the commands that were run against it.

Return Value

The output will show all the commands run against that image.

Example

sudo docker history centos

The above command will show all the commands that were run against the centos image.

Output

When we run the above command, it will produce the following result −

Docker History

Docker - Working with Containers

In this chapter, we will explore in detail what we can do with containers.

docker top

With this command, you can see the top processes within a container.

Syntax

docker top ContainerID

Options

  • ContainerID − This is the Container ID for which you want to see the top processes.

Return Value

The output will show the top-level processes within a container.

Example

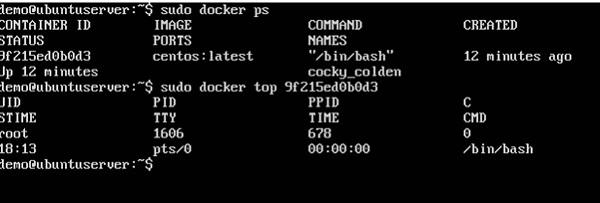

sudo docker top 9f215ed0b0d3

The above command will show the top-level processes within a container.

Output

When we run the above command, it will produce the following result −

Docker Top

docker stop

This command is used to stop a running container.

Syntax

docker stop ContainerID

Options

  • ContainerID − This is the Container ID which needs to be stopped.

Return Value

The output will give the ID of the stopped container.

Example

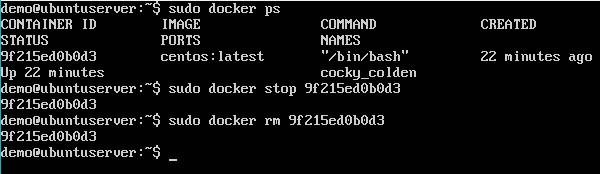

sudo docker stop 9f215ed0b0d3

The above command will stop the Docker container 9f215ed0b0d3.

Output

When we run the above command, it will produce the following result −

Docker Stop

docker rm

This command is used to delete a container.

Syntax

docker rm ContainerID

Options

  • ContainerID − This is the Container ID which needs to be removed.

Return Value

The output will give the ID of the removed container.

Example

sudo docker rm 9f215ed0b0d3

The above command will remove the Docker container 9f215ed0b0d3.

Output

When we run the above command, it will produce the following result −

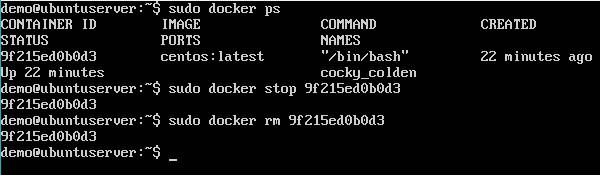

Docker RM

docker stats

This command is used to provide the statistics of a running container.

Syntax

docker stats ContainerID

Options

  • ContainerID − This is the Container ID for which the stats need to be provided.

Return Value

The output will show the CPU and Memory utilization of the Container.

Example

sudo docker stats 9f215ed0b0d3

The above command will provide CPU and memory utilization of the Container 9f215ed0b0d3.

Output

When we run the above command, it will produce the following result −

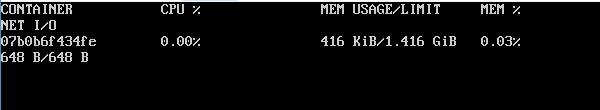

Docker Stats

docker attach

This command is used to attach to a running container.

Syntax

docker attach ContainerID

Options

  • ContainerID − This is the Container ID to which you need to attach.

Return Value

None

Example

sudo docker attach 07b0b6f434fe

The above command will attach to the Docker container 07b0b6f434fe.

Output

When we run the above command, it will produce the following result −

Docker Attach

Once you have attached to the Docker container, you can run the above command to see the process utilization in that Docker container.

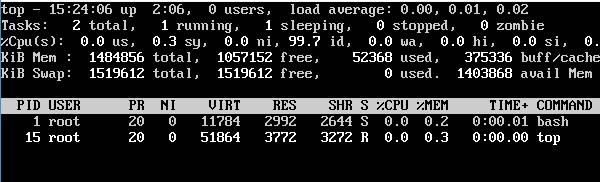

Docker Attach Container

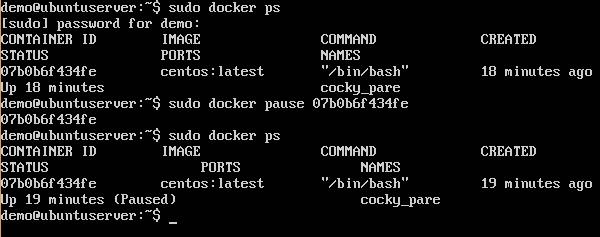

docker pause

This command is used to pause the processes in a running container.

Syntax

docker pause ContainerID

Options

  • ContainerID − This is the Container ID to which you need to pause the processes in the container.

Return Value

The ContainerID of the paused container.

Example

sudo docker pause 07b0b6f434fe

The above command will pause the processes in a running container 07b0b6f434fe.

Output

When we run the above command, it will produce the following result −

Docker Pause

docker unpause

This command is used to unpause the processes in a running container.

Syntax

docker unpause ContainerID

Options

  • ContainerID − This is the Container ID to which you need to unpause the processes in the container.

Return Value

The ContainerID of the running container.

Example

sudo docker unpause 07b0b6f434fe

The above command will unpause the processes in a running container: 07b0b6f434fe

Output

When we run the above command, it will produce the following result −

Docker Unpause

docker kill

This command is used to kill the processes in a running container.

Syntax

docker kill ContainerID

Options

  • ContainerID − This is the Container ID to which you need to kill the processes in the container.

Return Value

The ContainerID of the running container.

Example

sudo docker kill 07b0b6f434fe

The above command will kill the processes in the running container 07b0b6f434fe.

Output

When we run the above command, it will produce the following result −

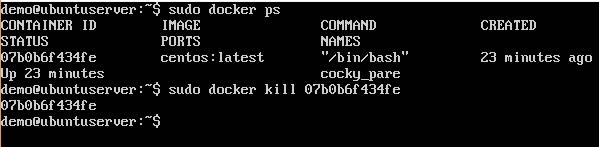

Docker Kill

Docker – Container Lifecycle

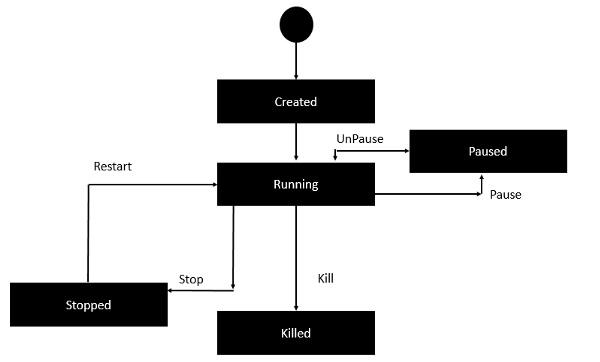

The following illustration explains the entire lifecycle of a Docker container.

Container Lifecycle
  • Initially, the Docker container will be in the created state.

  • Then the Docker container goes into the running state when the Docker run command is used.

  • The Docker kill command is used to kill an existing Docker container.

  • The Docker pause command is used to pause an existing Docker container.

  • The Docker stop command is used to pause an existing Docker container.

  • The Docker run command is used to put a container back from a stopped state to a running state.

Docker - Architecture

The following image shows the standard and traditional architecture of virtualization.

Virtualization
  • The server is the physical server that is used to host multiple virtual machines.

  • The Host OS is the base machine such as Linux or Windows.

  • The Hypervisor is either VMWare or Windows Hyper V that is used to host virtual machines.

  • You would then install multiple operating systems as virtual machines on top of the existing hypervisor as Guest OS.

  • You would then host your applications on top of each Guest OS.

The following image shows the new generation of virtualization that is enabled via Dockers. Let’s have a look at the various layers.

Various Layers
  • The server is the physical server that is used to host multiple virtual machines. So this layer remains the same.

  • The Host OS is the base machine such as Linux or Windows. So this layer remains the same.

  • Now comes the new generation which is the Docker engine. This is used to run the operating system which earlier used to be virtual machines as Docker containers.

  • All of the Apps now run as Docker containers.

The clear advantage in this architecture is that you don’t need to have extra hardware for Guest OS. Everything works as Docker containers.

Docker - Container and Hosts

The good thing about the Docker engine is that it is designed to work on various operating systems. We have already seen the installation on Windows and seen all the Docker commands on Linux systems. Now let’s see the various Docker commands on the Windows OS.

Docker Images

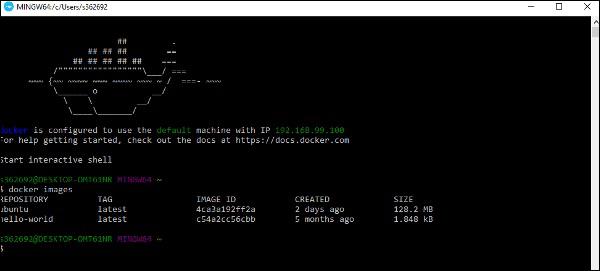

Let’s run the Docker images command on the Windows host.

Docker Images

From here, we can see that we have two images − ubuntu and hello-world.

Running a Container

Now let’s run a container in the Windows Docker host.

Running Container

We can see that by running the container, we can now run the Ubuntu container on a Windows host.

Listing All Containers

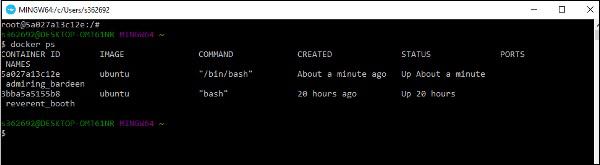

Let’s list all the containers on the Windows host.

Listing Containers

Stopping a Container

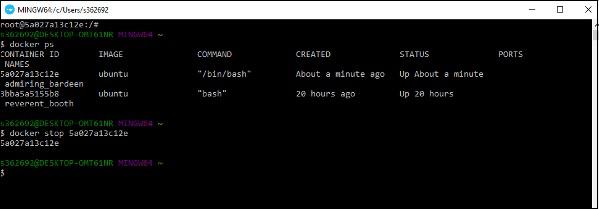

Let’s now stop a running container on the Windows host.

Stopping a Container

So you can see that the Docker engine is pretty consistent when it comes to different Docker hosts and it works on Windows in the same way it works on Linux.

Docker - Configuring

In this chapter, we will look at the different options to configure Docker.

service docker stop

This command is used to stop the Docker daemon process.

Syntax

service docker stop

Options

None

Return Value

A message showing that the Docker process has stopped.

Example

sudo service docker stop

Output

When we run the above command, it will produce the following result −

Service Docker Stop

service docker start

This command is used to start the Docker daemon process.

Syntax

service docker start

Options

None

Return Value

A message showing that the Docker process has started.

Example

sudo service docker start

Output

When we run the above command, it will produce the following result −

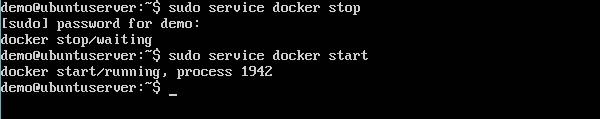

Service Docker Start

Docker - Containers and Shells

By default, when you launch a container, you will also use a shell command while launching the container as shown below. This is what we have seen in the earlier chapters when we were working with containers.

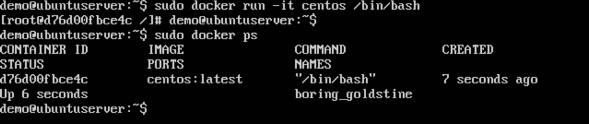

Shell Command

In the above screenshot, you can observe that we have issued the following command −

sudo docker run –it centos /bin/bash

We used this command to create a new container and then used the Ctrl+P+Q command to exit out of the container. It ensures that the container still exists even after we exit from the container.

We can verify that the container still exists with the Docker ps command. If we had to exit out of the container directly, then the container itself would be destroyed.

Now there is an easier way to attach to containers and exit them cleanly without the need of destroying them. One way of achieving this is by using the nsenter command.

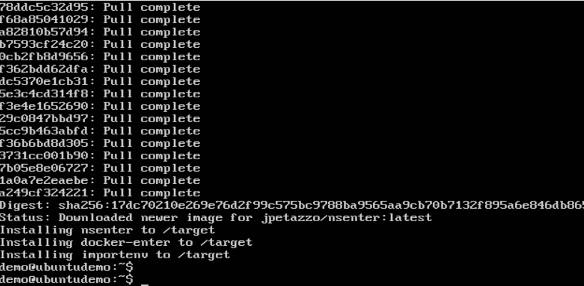

Before we run the nsenter command, you need to first install the nsenter image. It can be done by using the following command −

docker run --rm -v /usr/local/bin:/target jpetazzo/nsenter

Nsenter Image

Before we use the nsenter command, we need to get the Process ID of the container, because this is required by the nsenter command. We can get the Process ID via the Docker inspect command and filtering it via the Pid.

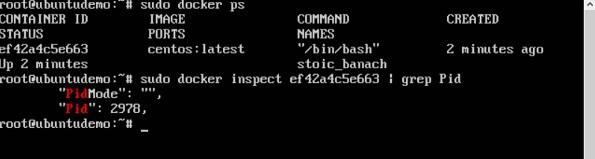

Inspect Command

As seen in the above screenshot, we have first used the docker ps command to see the running containers. We can see that there is one running container with the ID of ef42a4c5e663.

We then use the Docker inspect command to inspect the configuration of this container and then use the grep command to just filter the Process ID. And from the output, we can see that the Process ID is 2978.

Now that we have the process ID, we can proceed forward and use the nsenter command to attach to the Docker container.

nsenter

This method allows one to attach to a container without exiting the container.

Syntax

nsenter –m –u –n –p –i –t containerID command

Options

  • -u is used to mention the Uts namespace

  • -m is used to mention the mount namespace

  • -n is used to mention the network namespace

  • -p is used to mention the process namespace

  • -i s to make the container run in interactive mode.

  • -t is used to connect the I/O streams of the container to the host OS.

  • containerID − This is the ID of the container.

  • Command − This is the command to run within the container.

Return Value

None

Example

sudo nsenter –m –u –n –p –i –t 2978 /bin/bash

Output

Nsenter

From the output, we can observe the following points −

  • The prompt changes to the bash shell directly when we issue the nsenter command.

  • We then issue the exit command. Now normally if you did not use the nsenter command, the container would be destroyed. But you would notice that when we run the nsenter command, the container is still up and running.

Docker - File

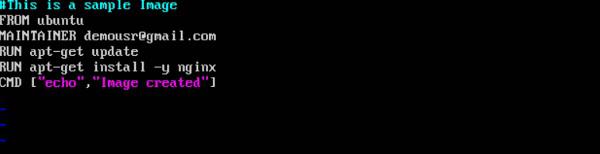

In the earlier chapters, we have seen the various Image files such as Centos which get downloaded from Docker hub from which you can spin up containers. An example is again shown below.

Docker File

If we use the Docker images command, we can see the existing images in our system. From the above screenshot, we can see that there are two images: centos and nsenter.

But Docker also gives you the capability to create your own Docker images, and it can be done with the help of Docker Files. A Docker File is a simple text file with instructions on how to build your images.

The following steps explain how you should go about creating a Docker File.

Step 1 − Create a file called Docker File and edit it using vim. Please note that the name of the file has to be "Dockerfile" with "D" as capital.

Edit Vim

Step 2 − Build your Docker File using the following instructions.

#This is a sample Image
FROM ubuntu
MAINTAINER demousr@gmail.com

RUN apt-get update
RUN apt-get install –y nginx
CMD [“echo”,”Image created”]

The following points need to be noted about the above file −

  • The first line "#This is a sample Image" is a comment. You can add comments to the Docker File with the help of the # command

  • The next line has to start with the FROM keyword. It tells docker, from which base image you want to base your image from. In our example, we are creating an image from the ubuntu image.

  • The next command is the person who is going to maintain this image. Here you specify the MAINTAINER keyword and just mention the email ID.

  • The RUN command is used to run instructions against the image. In our case, we first update our Ubuntu system and then install the nginx server on our ubuntu image.

  • The last command is used to display a message to the user.

Step 3 − Save the file. In the next chapter, we will discuss how to build the image.

Build the Image

Docker - Building Files

We created our Docker File in the last chapter. It’s now time to build the Docker File. The Docker File can be built with the following command −

docker build

Let’s learn more about this command.

docker build

This method allows the users to build their own Docker images.

Syntax

docker build  -t ImageName:TagName dir

Options

  • -t − is to mention a tag to the image

  • ImageName − This is the name you want to give to your image.

  • TagName − This is the tag you want to give to your image.

  • Dir − The directory where the Docker File is present.

Return Value

None

Example

sudo docker build –t myimage:0.1.

Here, myimage is the name we are giving to the Image and 0.1 is the tag number we are giving to our image.

Since the Docker File is in the present working directory, we used "." at the end of the command to signify the present working directory.

Output

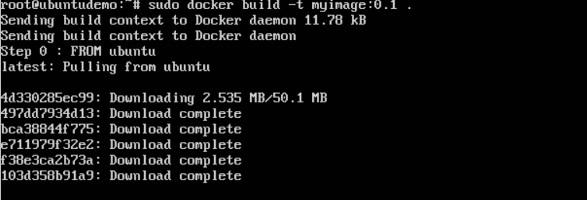

From the output, you will first see that the Ubuntu Image will be downloaded from Docker Hub, because there is no image available locally on the machine.

No Image

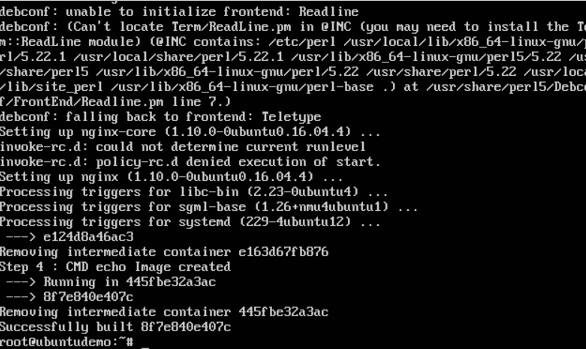

Finally, when the build is complete, all the necessary commands would have run on the image.

commands run over image

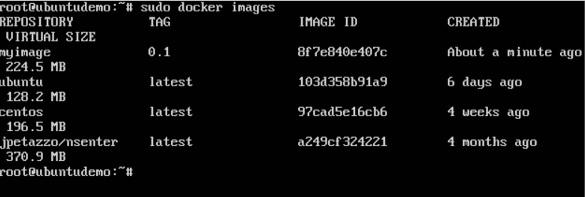

You will then see the successfully built message and the ID of the new Image. When you run the Docker images command, you would then be able to see your new image.

Built Message and ID

You can now build containers from your new Image.

Docker - Public Repositories

Public repositories can be used to host Docker images which can be used by everyone else. An example is the images which are available in Docker Hub. Most of the images such as Centos, Ubuntu, and Jenkins are all publicly available for all. We can also make our images available by publishing it to the public repository on Docker Hub.

For our example, we will use the myimage repository built in the "Building Docker Files" chapter and upload that image to Docker Hub. Let’s first review the images on our Docker host to see what we can push to the Docker registry.

Myimage

Here, we have our myimage:0.1 image which was created as a part of the “Building Docker Files” chapter. Let’s use this to upload to the Docker public repository.

The following steps explain how you can upload an image to public repository.

Step 1 − Log into Docker Hub and create your repository. This is the repository where your image will be stored. Go to https://hub.docker.com/ and log in with your credentials.

Docker Hub

Step 2 − Click the button "Create Repository" on the above screen and create a repository with the name demorep. Make sure that the visibility of the repository is public.

Demorep

Once the repository is created, make a note of the pull command which is attached to the repository.

Repository

The pull command which will be used in our repository is as follows −

docker pull demousr/demorep

Step 3 − Now go back to the Docker Host. Here we need to tag our myimage to the new repository created in Docker Hub. We can do this via the Docker tag command.

We will learn more about this tag command later in this chapter.

Step 4 − Issue the Docker login command to login into the Docker Hub repository from the command prompt. The Docker login command will prompt you for the username and password to the Docker Hub repository.

Docker Login Command

Step 5 − Once the image has been tagged, it’s now time to push the image to the Docker Hub repository. We can do this via the Docker push command. We will learn more about this command later in this chapter.

docker tag

This method allows one to tag an image to the relevant repository.

Syntax

docker tag imageID Repositoryname

Options

  • imageID − This is the ImageID which needs to be tagged to the repository.

  • Repositoryname − This is the repository name to which the ImageID needs to be tagged to.

Return Value

None

Example

sudo docker tag ab0c1d3744dd demousr/demorep:1.0

Output

A sample output of the above example is given below.

Docker Tag

docker push

This method allows one to push images to the Docker Hub.

Syntax

docker push Repositoryname

Options

  • Repositoryname − This is the repository name which needs to be pushed to the Docker Hub.

Return Value

The long ID of the repository pushed to Docker Hub.

Example

sudo docker push demousr/demorep:1.0

Output

Docker Push

If you go back to the Docker Hub page and go to your repository, you will see the tag name in the repository.

Tag Name in the Repository

Now let’s try to pull the repository we uploaded onto our Docker host. Let’s first delete the images, myimage:0.1 and demousr/demorep:1.0, from the local Docker host. Let’s use the Docker pull command to pull the repository from the Docker Hub.

Docker Pull Command

From the above screenshot, you can see that the Docker pull command has taken our new repository from the Docker Hub and placed it on our machine.

Docker - Managing Ports

In Docker, the containers themselves can have applications running on ports. When you run a container, if you want to access the application in the container via a port number, you need to map the port number of the container to the port number of the Docker host. Let’s look at an example of how this can be achieved.

In our example, we are going to download the Jenkins container from Docker Hub. We are then going to map the Jenkins port number to the port number on the Docker host.

Step 1 − First, you need to do a simple sign-up on Docker Hub.

simple Sing up

Step 2 − Once you have signed up, you will be logged into Docker Hub.

Logged Docker Hub

Step 3 − Next, let’s browse and find the Jenkins image.

Run Command

Step 4 − If you scroll down on the same page, you can see the Docker pull command. This will be used to download the Jenkins Image onto the local Ubuntu server.

Local Ubuntu Server

Step 5 − Now go to the Ubuntu server and run the command −

sudo docker pull jenkins

Inspect Image

Step 6 − To understand what ports are exposed by the container, you should use the Docker inspect command to inspect the image.

Let’s now learn more about this inspect command.

docker inspect

This method allows one to return low-level information on the container or image.

Syntax

docker inspect Container/Image

Options

  • Container/Image − The container or image to inspect

Return Value

The low-level information of the image or container in JSON format.

Example

sudo docker inspect jenkins

Output

Docker Inspect Output

The output of the inspect command gives a JSON output. If we observe the output, we can see that there is a section of "ExposedPorts" and see that there are two ports mentioned. One is the data port of 8080 and the other is the control port of 50000.

To run Jenkins and map the ports, you need to change the Docker run command and add the ‘p’ option which specifies the port mapping. So, you need to run the following command −

sudo docker run -p 8080:8080 -p 50000:50000 jenkins

The left-hand side of the port number mapping is the Docker host port to map to and the right-hand side is the Docker container port number.

When you open the browser and navigate to the Docker host on port 8080, you will see Jenkins up and running.

Unlock jenkins

Docker - Private Registries

You might have the need to have your own private repositories. You may not want to host the repositories on Docker Hub. For this, there is a repository container itself from Docker. Let’s see how we can download and use the container for registry.

Step 1 − Use the Docker run command to download the private registry. This can be done using the following command.

sudo docker run –d –p 5000:5000 –-name registry registry:2

The following points need to be noted about the above command −

  • Registry is the container managed by Docker which can be used to host private repositories.

  • The port number exposed by the container is 5000. Hence with the –p command, we are mapping the same port number to the 5000 port number on our localhost.

  • We are just tagging the registry container as “2”, to differentiate it on the Docker host.

  • The –d option is used to run the container in detached mode. This is so that the container can run in the background

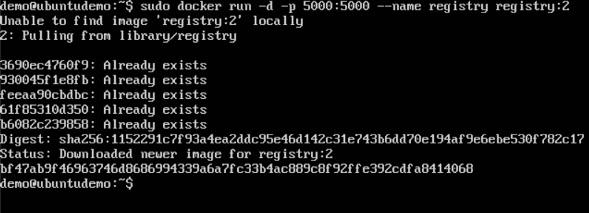

Detached Mode

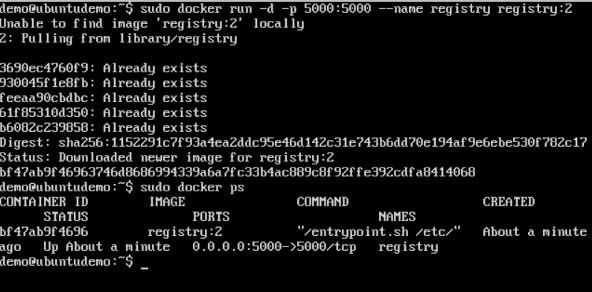

Step 2 − Let’s do a docker ps to see that the registry container is indeed running.

Docker PS

We have now confirmed that the registry container is indeed running.

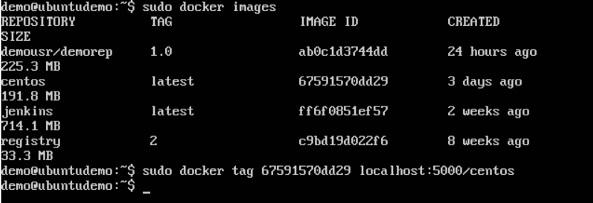

Step 3 − Now let’s tag one of our existing images so that we can push it to our local repository. In our example, since we have the centos image available locally, we are going to tag it to our private repository and add a tag name of centos.

sudo docker tag 67591570dd29 localhost:5000/centos

The following points need to be noted about the above command −

  • 67591570dd29 refers to the Image ID for the centos image.

  • localhost:5000 is the location of our private repository.

  • We are tagging the repository name as centos in our private repository.

Private Repository

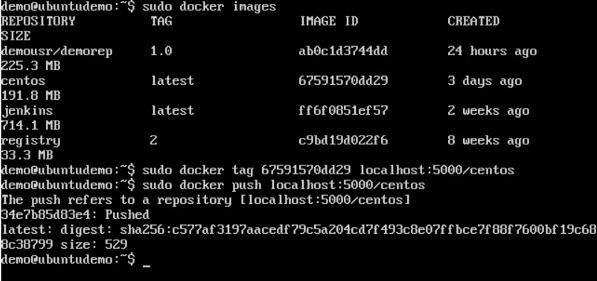

Step 4 − Now let’s use the Docker push command to push the repository to our private repository.

sudo docker push localhost:5000/centos

Here, we are pushing the centos image to the private repository hosted at localhost:5000.

Localhost

Step 5 − Now let’s delete the local images we have for centos using the docker rmi commands. We can then download the required centos image from our private repository.

sudo docker rmi centos:latest
sudo docker rmi 67591570dd29

Docker RMI Commands

Step 6 − Now that we don’t have any centos images on our local machine, we can now use the following Docker pull command to pull the centos image from our private repository.

sudo docker pull localhost:5000/centos

Here, we are pulling the centos image to the private repository hosted at localhost:5000.

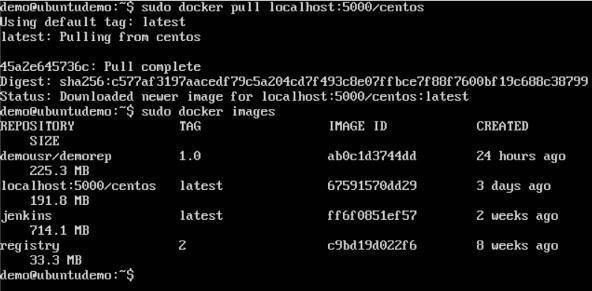

Pulling Centos Image

If you now see the images on your system, you will see the centos image as well.

Docker - Building a Web Server Docker File

We have already learnt how to use Docker File to build our own custom images. Now let’s see how we can build a web server image which can be used to build containers.

In our example, we are going to use the Apache Web Server on Ubuntu to build our image. Let’s follow the steps given below, to build our web server Docker file.

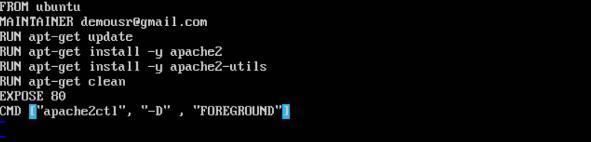

Step 1 − The first step is to build our Docker File. Let’s use vim and create a Docker File with the following information.

FROM ubuntu
RUN apt-get update
RUN apt-get install –y apache2
RUN apt-get install –y apache2-utils
RUN apt-get clean
EXPOSE 80 CMD [“apache2ctl”, “-D”, “FOREGROUND”]

The following points need to be noted about the above statements −

  • We are first creating our image to be from the Ubuntu base image.

  • Next, we are going to use the RUN command to update all the packages on the Ubuntu system.

  • Next, we use the RUN command to install apache2 on our image.

  • Next, we use the RUN command to install the necessary utility apache2 packages on our image.

  • Next, we use the RUN command to clean any unnecessary files from the system.

  • The EXPOSE command is used to expose port 80 of Apache in the container to the Docker host.

  • Finally, the CMD command is used to run apache2 in the background.

Apache2

Now that the file details have been entered, just save the file.

Step 2 − Run the Docker build command to build the Docker file. It can be done using the following command −

sudo docker build –t=”mywebserver” .

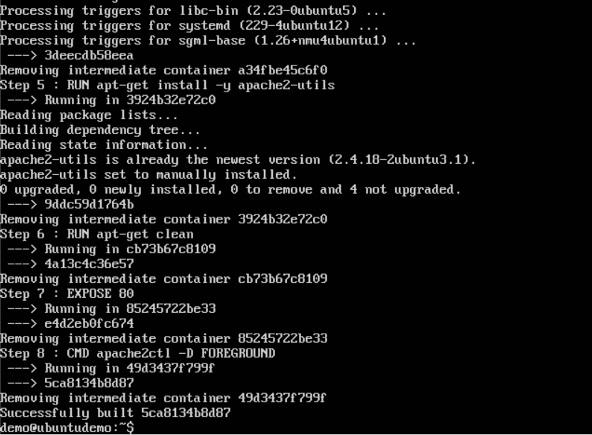

We are tagging our image as mywebserver. Once the image is built, you will get a successful message that the file has been built.

Mywebservers

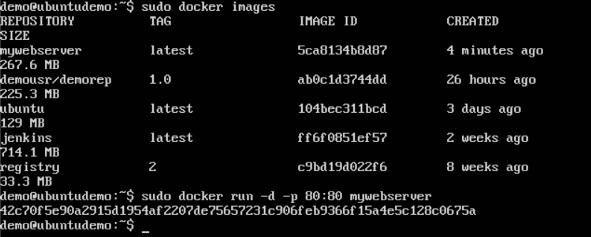

Step 3 − Now that the web server file has been built, it’s now time to create a container from the image. We can do this with the Docker run command.

sudo docker run –d –p 80:80 mywebserver

Docker Run Command

The following points need to be noted about the above command −

  • The port number exposed by the container is 80. Hence with the –p command, we are mapping the same port number to the 80 port number on our localhost.

  • The –d option is used to run the container in detached mode. This is so that the container can run in the background.

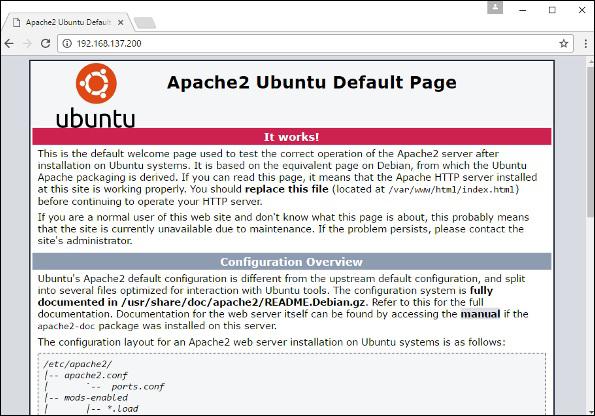

If you go to port 80 of the Docker host in your web browser, you will now see that Apache is up and running.

Apache is running

Docker - Instruction Commands

Docker has a host of instruction commands. These are commands that are put in the Docker File. Let’s look at the ones which are available.

CMD Instruction

This command is used to execute a command at runtime when the container is executed.

Syntax

CMD command param1

Options

  • command − This is the command to run when the container is launched.

  • param1 − This is the parameter entered to the command.

Return Value

The command will execute accordingly.

Example

In our example, we will enter a simple Hello World echo in our Docker File and create an image and launch a container from it.

Step 1 − Build the Docker File with the following commands −

FROM ubuntu
MAINTAINER demousr@gmail.com
CMD [“echo” , “hello world”]

Here, the CMD is just used to print hello world.

CMD

Step 2 − Build the image using the Docker build command.

Build Command

Step 3 − Run a container from the image.

Run a container

ENTRYPOINT

This command can also be used to execute commands at runtime for the container. But we can be more flexible with the ENTRYPOINT command.

Syntax

ENTRYPOINT command param1

Options

  • command − This is the command to run when the container is launched.

  • param1 − This is the parameter entered into the command.

Return Value

The command will execute accordingly.

Example

Let’s take a look at an example to understand more about ENTRYPOINT. In our example, we will enter a simple echo command in our Docker File and create an image and launch a container from it.

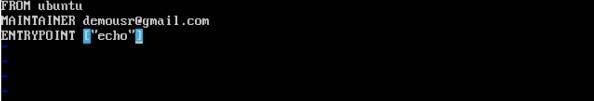

Step 1 − Build the Docker File with the following commands −

FROM ubuntu
MAINTAINER demousr@gmail.com
ENTRYPOINT [“echo”]

ENTRYPOINT

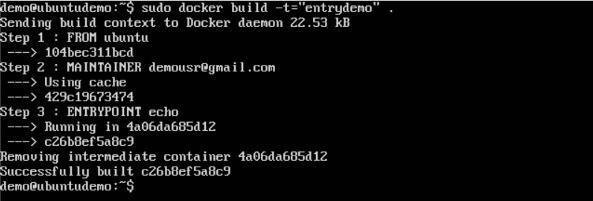

Step 2 − Build the image using the Docker build command.

Docker Build Command

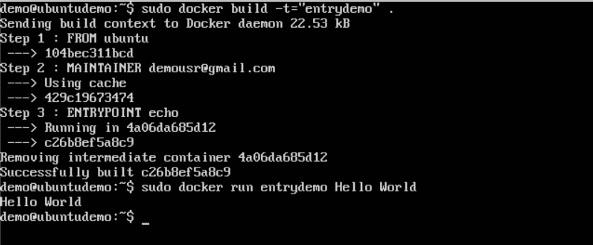

Step 3 − Run a container from the image.

Container from Image

ENV

This command is used to set environment variables in the container.

Syntax

ENV key value

Options

  • Key − This is the key for the environment variable.

  • value − This is the value for the environment variable.

Return Value

The command will execute accordingly.

Example

In our example, we will enter a simple echo command in our Docker File and create an image and launch a container from it.

Step 1 − Build the Docker File with the following commands −

FROM ubuntu
MAINTAINER demousr@gmail.com

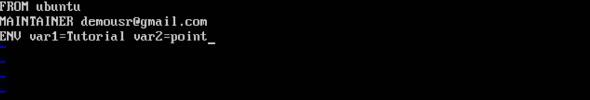

ENV var1=Tutorial var2=point

ENV

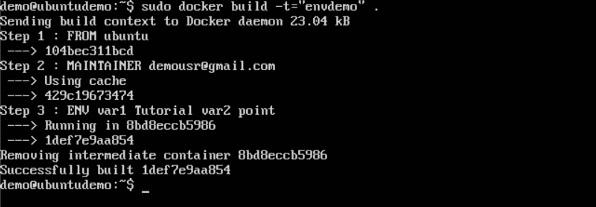

Step 2 − Build the image using the Docker build command.

ENV Build Docker Command

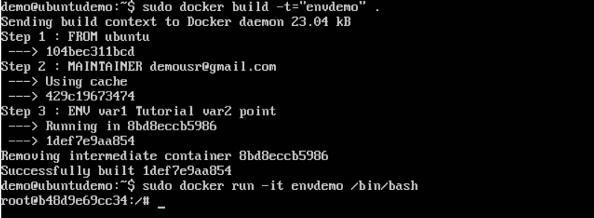

Step 3 − Run a container from the image.

ENV Run a Container

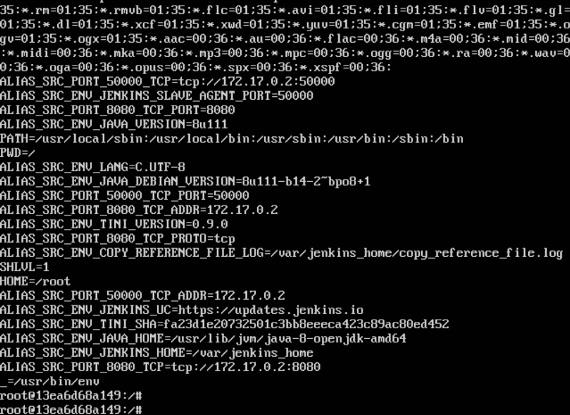

Step 4 − Finally, execute the env command to see the environment variables.

ENV Command

WORKDIR

This command is used to set the working directory of the container.

Syntax

WORKDIR dirname

Options

  • dirname − The new working directory. If the directory does not exist, it will be added.

Return Value

The command will execute accordingly.

Example

In our example, we will enter a simple echo command in our Docker File and create an image and launch a container from it.

Step 1 − Build the Docker File with the following commands −

FROM ubuntu
MAINTAINER demousr@gmail.com
WORKDIR /newtemp
CMD pwd

WORKDIR

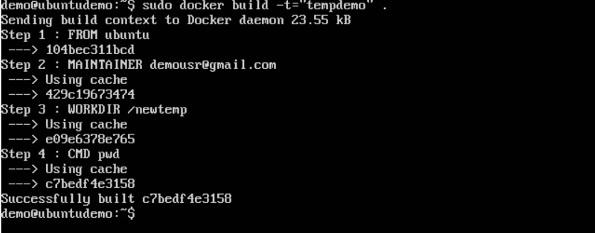

Step 2 − Build the image using the Docker build command.

Workdir Build Command

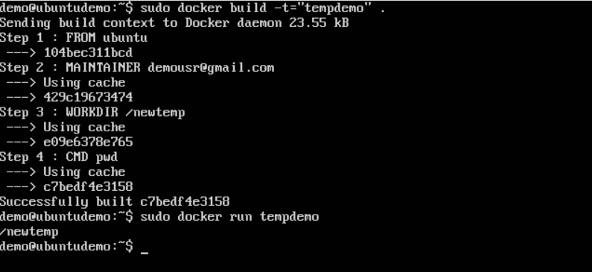

Step 3 − Run a container from the image.

WORKDIR Run Command

Docker - Container Linking

Container Linking allows multiple containers to link with each other. It is a better option than exposing ports. Let’s go step by step and learn how it works.

Step 1 − Download the Jenkins image, if it is not already present, using the Jenkins pull command.

Container Linking

Step 2 − Once the image is available, run the container, but this time, you can specify a name to the container by using the –-name option. This will be our source container.

Name Option

Step 3 − Next, it is time to launch the destination container, but this time, we will link it with our source container. For our destination container, we will use the standard Ubuntu image.

Standard Ubuntu Image

When you do a docker ps, you will see both the containers running.

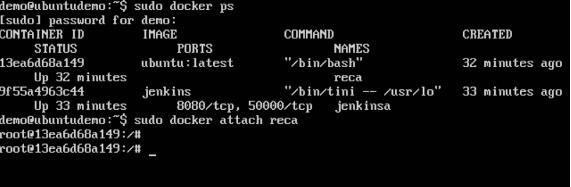

Step 4 − Now, attach to the receiving container.

Receiving Container

Then run the env command. You will notice new variables for linking with the source container.

New Variables

Source Continer

Docker - Storage

Storage Drivers

Docker has multiple storage drivers that allow one to work with the underlying storage devices. The following table shows the different storage drivers along with the technology used for the storage drivers.

Technology Storage Driver
OverlayFS overlay or overlay2
AUFS aufs
Btrfs brtfs
Device Manager devicemanager
VFS vfs
ZFS zfs

Let us now discuss some of the instances in which you would use the various storage drivers −

AUFS

  • This is a stable driver; can be used for production-ready applications.

  • It has good memory usage and is good for ensuring a smooth Docker experience for containers.

  • There is a high-write activity associated with this driver which should be considered.

  • It’s good for systems which are of Platform as a service type work.

Devicemapper

  • This is a stable driver; ensures a smooth Docker experience.

  • This driver is good for testing applications in the lab.

  • This driver is in line with the main Linux kernel functionality.

Btrfs

  • This driver is in line with the main Linux kernel functionality.

  • There is a high-write activity associated with this driver which should be considered.

  • This driver is good for instances where you maintain multiple build pools.

Ovelay

  • This is a stable driver and it is in line with the main Linux kernel functionality.

  • It has a good memory usage.

  • This driver is good for testing applications in the lab.

ZFS

  • This is a stable driver and it is good for testing applications in the lab.

  • It’s good for systems which are of Platform-as-a-Service type work.

To see the storage driver being used, issue the docker info command.

Syntax

docker info

Options

None

Return Value

The command will provide all relative information on the Docker component installed on the Docker Host.

Example

sudo docker info

Output

The following output shows that the main driver used is the aufs driver and that the root directory is stored in /var/lib/docker/aufs.

AUFS Driver

Data Volumes

In Docker, you have a separate volume that can shared across containers. These are known as data volumes. Some of the features of data volume are −

  • They are initialized when the container is created.
  • They can be shared and also reused amongst many containers.
  • Any changes to the volume itself can be made directly.
  • They exist even after the container is deleted.

Let’s look at our Jenkins container. Let’s do a docker inspect to see the details of this image. We can issue the following command to write the output of the docker inspect command to a text file and then view the file accordingly.

sudo docker inspect Jenkins > tmp.txt

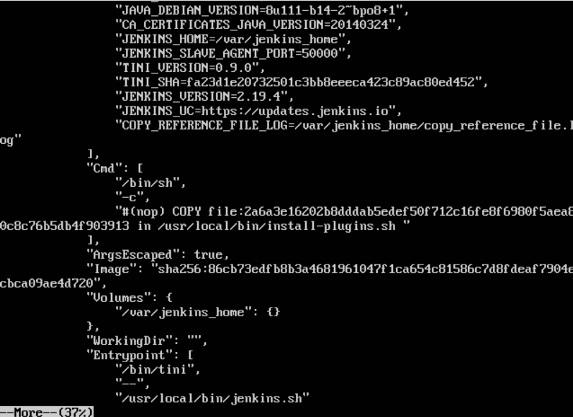

When you view the text file using the more command, you will see an entry as JENKINS_HOME=/var/Jenkins_home.

This is the mapping that is done within the container via the Jenkins image.

Data Volumes

Now suppose you wanted to map the volume in the container to a local volume, then you need to specify the –v option when launching the container. An example is shown below −

sudo docker run –d –v /home/demo:/var/jenkins_home –p 8080:8080 –p 50000:50000 jenkins

The –v option is used to map the volume in the container which is /var/jenkins_home to a location on our Docker Host which is /home/demo.

V Option

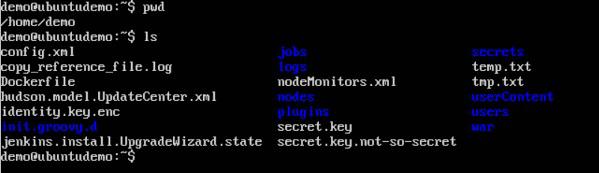

Now if you go to the /home/demo location on your Docker Host after launching your container, you will see all the container files present there.

Container Files

Changing the Storage Driver for a Container

If you wanted to change to the storage driver used for a container, you can do so when launching the container. This can be done by using the –volume-driver parameter when using the docker run command. An example is given below −

sudo docker run –d --volume-driver=flocker
   –v /home/demo:/var/jenkins_home –p 8080:8080 –p 50000:50000 jenkins

The –volume-driver option is used to specify another storage driver for the container.

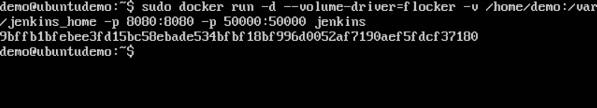

Volume Driver

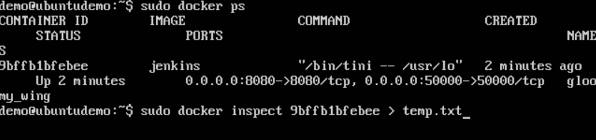

To confirm that the driver has been changed, first let’s use the docker ps command to see the running containers and get the container ID. So, issue the following command first −

sudo docker ps

Then issue a docker inspect against the container and put the output in a text file using the command.

sudo docker inspect 9bffb1bfebee > temp.txt

Docker Against Command

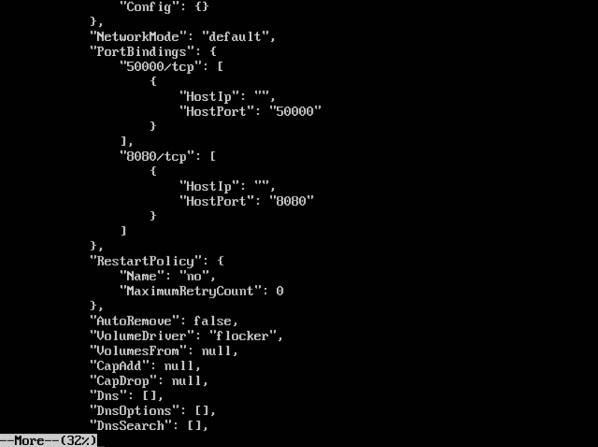

If you browse through the text file and go to the line which says VolumeDriver, you will see that the driver name has been changed.

Driver name has changed

Creating a Volume

A volume can be created beforehand using the docker command. Let’s learn more about this command.

Syntax

docker volume create –-name=volumename –-opt options

Options

  • name − This is the name of the volume which needs to be created.

  • opt − These are options you can provide while creating the volume.

Return Value

The command will output the name of the volume created.

Example

sudo docker volume create –-name = demo –opt o = size = 100m

In the above command, we are creating a volume of size 100MB and with a name of demo.

Output

The output of the above command is shown below −

Creating a Volume

Listing all the Volumes

You can also list all the docker volumes on a docker host. More details on this command is given below −

Syntax

docker volume ls

Options

None

Return Value

The command will output all the volumes on the docker host.

Example

sudo docker volume ls

Output

The output of the above command is shown below −

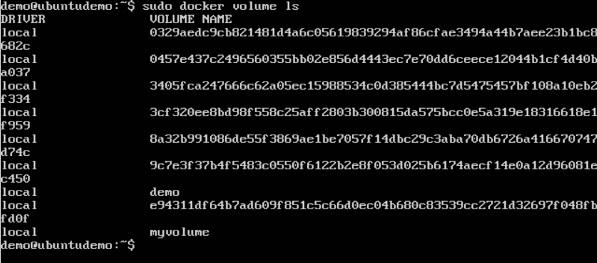

Listing All Volumes Output

Docker - Networking

Docker takes care of the networking aspects so that the containers can communicate with other containers and also with the Docker Host. If you do an ifconfig on the Docker Host, you will see the Docker Ethernet adapter. This adapter is created when Docker is installed on the Docker Host.

IFCONFIG

This is a bridge between the Docker Host and the Linux Host. Now let’s look at some commands associated with networking in Docker.

Listing All Docker Networks

This command can be used to list all the networks associated with Docker on the host.

Syntax

docker network ls

Options

None

Return Value

The command will output all the networks on the Docker Host.

Example

sudo docker network ls

Output

The output of the above command is shown below

Docker Networks

Inspecting a Docker network

If you want to see more details on the network associated with Docker, you can use the Docker network inspect command.

Syntax

docker network inspect networkname

Options

  • networkname − This is the name of the network you need to inspect.

Return Value

The command will output all the details about the network.

Example

sudo docker network inspect bridge

Output

The output of the above command is shown below −

Inspecting Docker Network

Now let’s run a container and see what happens when we inspect the network again. Let’s spin up an Ubuntu container with the following command −

sudo docker run –it ubuntu:latest /bin/bash

Run a Container in Network

Now if we inspect our network name via the following command, you will now see that the container is attached to the bridge.

sudo docker network inspect bridge

Container Attached to Bridge

Creating Your Own New Network

One can create a network in Docker before launching containers. This can be done with the following command −

Syntax

docker network create –-driver drivername name

Options

  • drivername − This is the name used for the network driver.

  • name − This is the name given to the network.

Return Value

The command will output the long ID for the new network.

Example

sudo docker network create –-driver bridge new_nw

Output

The output of the above command is shown below −

Long ID

You can now attach the new network when launching the container. So let’s spin up an Ubuntu container with the following command −

sudo docker run –it –network=new_nw ubuntu:latest /bin/bash

New Network

And now when you inspect the network via the following command, you will see the container attached to the network.

sudo docker network inspect new_nw

New NW

Docker - Setting Node.js

Node.js is a JavaScript framework that is used for developing server-side applications. It is an open source framework that is developed to run on a variety of operating systems. Since Node.js is a popular framework for development, Docker has also ensured it has support for Node.js applications.

We will now see the various steps for getting the Docker container for Node.js up and running.

Step 1 − The first step is to pull the image from Docker Hub. When you log into Docker Hub, you will be able to search and see the image for Node.js as shown below. Just type in Node in the search box and click on the node (official) link which comes up in the search results.

Pull Image from Docker Hub

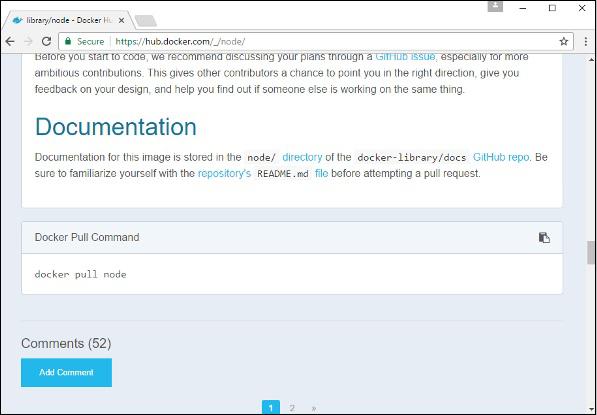

Step 2 − You will see that the Docker pull command for node in the details of the repository in Docker Hub.

Documentation

Step 3 − On the Docker Host, use the Docker pull command as shown above to download the latest node image from Docker Hub.

Latest Node Image

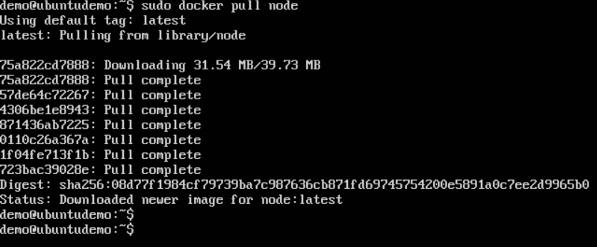

Once the pull is complete, we can then proceed with the next step.

Pull is Complete

Step 4 − On the Docker Host, let’s use the vim editor and create one Node.js example file. In this file, we will add a simple command to display “HelloWorld” to the command prompt.

Vim Editor

In the Node.js file, let’s add the following statement −

Console.log(‘Hello World’);

This will output the “Hello World” phrase when we run it through Node.js.

Hello World Phrase

Ensure that you save the file and then proceed to the next step.

Step 5 − To run our Node.js script using the Node Docker container, we need to execute the following statement −

sudo docker run –it –rm –name = HelloWorld –v “$PWD”:/usr/src/app
   –w /usr/src/app node node HelloWorld.js

The following points need to be noted about the above command −

  • The –rm option is used to remove the container after it is run.

  • We are giving a name to the container called “HelloWorld”.

  • We are mentioning to map the volume in the container which is /usr/src/app to our current present working directory. This is done so that the node container will pick up our HelloWorld.js script which is present in our working directory on the Docker Host.

  • The –w option is used to specify the working directory used by Node.js.

  • The first node option is used to specify to run the node image.

  • The second node option is used to mention to run the node command in the node container.

  • And finally we mention the name of our script.

We will then get the following output. And from the output, we can clearly see that the Node container ran as a container and executed the HelloWorld.js script.

HelloWorld JS Script

Docker - Setting MongoDB

MongoDB is a famous document-oriented database that is used by many modern-day web applications. Since MongoDB is a popular database for development, Docker has also ensured it has support for MongoDB.

We will now see the various steps for getting the Docker container for MongoDB up and running.

Step 1 − The first step is to pull the image from Docker Hub. When you log into Docker Hub, you will be able to search and see the image for Mongo as shown below. Just type in Mongo in the search box and click on the Mongo (official) link which comes up in the search results.

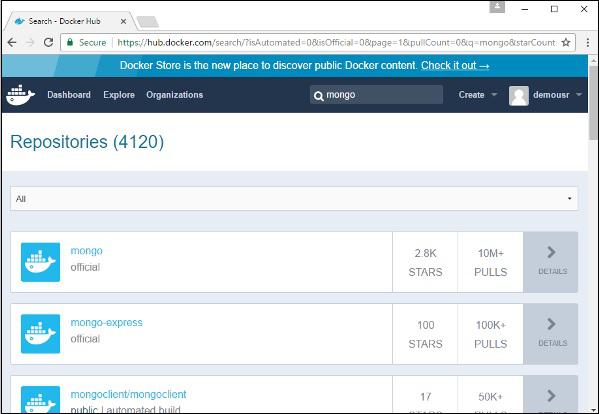

Mongo DB

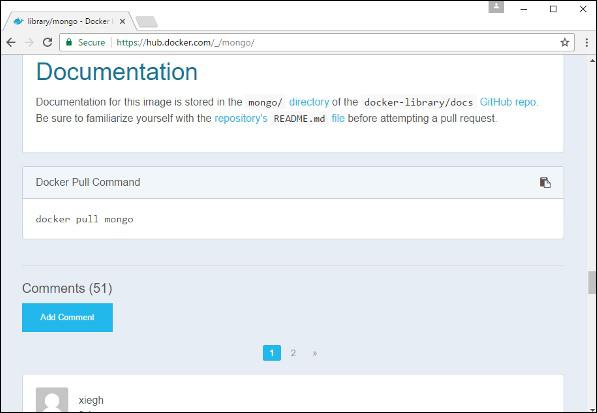

Step 2 − You will see that the Docker pull command for Mongo in the details of the repository in Docker Hub.

Docker Pull Command For MONGO

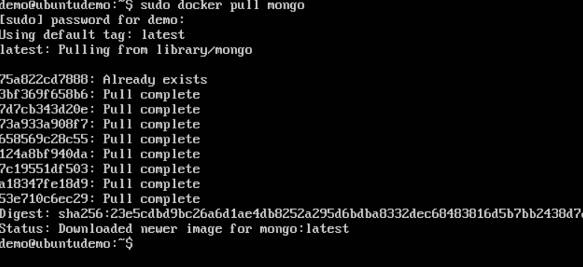

Step 3 − On the Docker Host, use the Docker pull command as shown above to download the latest Mongo image from Docker Hub.

latest Mongo Image

Pull Command MongoDB

Step 4 − Now that we have the image for Mongo, let’s first run a MongoDB container which will be our instance for MongoDB. For this, we will issue the following command −

sudo docker run -it -d mongo

The following points can be noted about the above command −

  • The –it option is used to run the container in interactive mode.

  • The –d option is used to run the container as a daemon process.

  • And finally we are creating a container from the Mongo image.

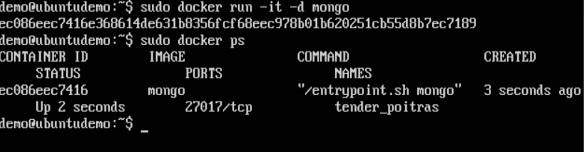

You can then issue the docker ps command to see the running containers −

MongoDB Container

Take a note of the following points −

  • The name of the container is tender_poitras. This name will be different since the name of the containers keep on changing when you spin up a container. But just make a note of the container which you have launched.

  • Next, also notice the port number it is running on. It is listening on the TCP port of 27017.

Step 5 − Now let’s spin up another container which will act as our client which will be used to connect to the MongoDB database. Let’s issue the following command for this −

sudo docker run –it –link=tender_poitras:mongo mongo /bin/bash

The following points can be noted about the above command −

  • The –it option is used to run the container in interactive mode.

  • We are now linking our new container to the already launched MongoDB server container. Here, you need to mention the name of the already launched container.

  • We are then specifying that we want to launch the Mongo container as our client and then run the bin/bash shell in our new container.

Bin Bash

You will now be in the new container.

Step 6 − Run the env command in the new container to see the details of how to connect to the MongoDB server container.

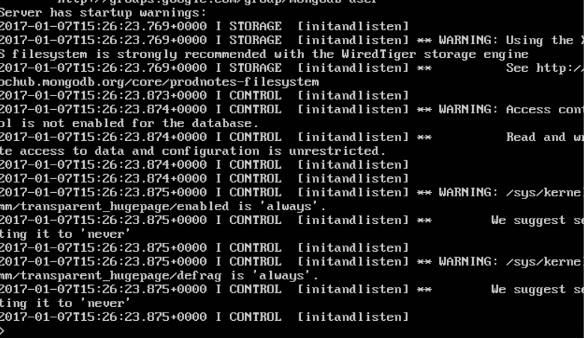

ENV Container New Command

Step 6 − Now it’s time to connect to the MongoDB server from the client container. We can do this via the following command −

mongo 172.17.0.2:27017

The following points need to be noted about the above command

  • The mongo command is the client mongo command that is used to connect to a MongoDB database.

  • The IP and port number is what you get when you use the env command.

Once you run the command, you will then be connected to the MongoDB database.

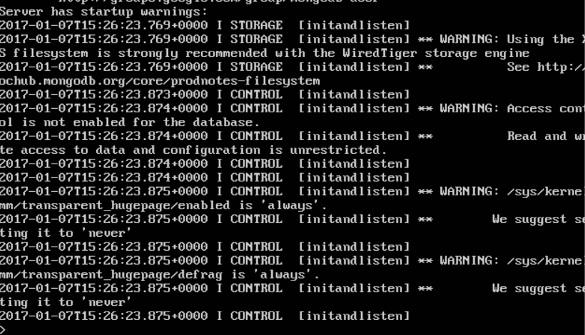

MongoDB database

You can then run any MongoDB command in the command prompt. In our example, we are running the following command −

use demo

This command is a MongoDB command which is used to switch to a database name demo. If the database is not available, it will be created.

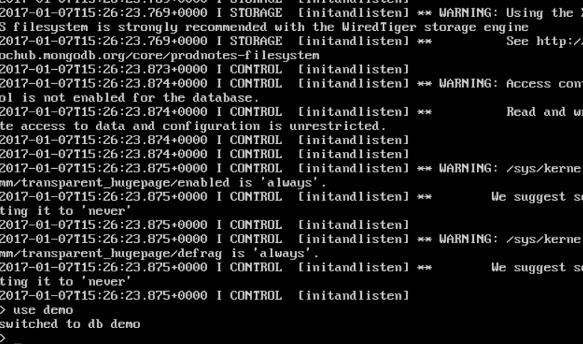

Database name DEMO

Now you have successfully created a client and server MongoDB container.

Docker - Setting NGINX

NGINX is a popular lightweight web application that is used for developing server-side applications. It is an open-source web server that is developed to run on a variety of operating systems. Since nginx is a popular web server for development, Docker has ensured that it has support for nginx.

We will now see the various steps for getting the Docker container for nginx up and running.

Step 1 − The first step is to pull the image from Docker Hub. When you log into Docker Hub, you will be able to search and see the image for nginx as shown below. Just type in nginx in the search box and click on the nginx (official) link which comes up in the search results.

NGINX Official Link

Step 2 − You will see that the Docker pull command for nginx in the details of the repository in Docker Hub.

Docker Pull Command for NGINX

Step 3 − On the Docker Host, use the Docker pull command as shown above to download the latest nginx image from Docker Hub.

NGINX Image

Step 4 − Now let’s run the nginx container via the following command.

sudo docker run –p 8080:80 –d nginx

We are exposing the port on the nginx server which is port 80 to the port 8080 on the Docker Host.

NGINX Server

Once you run the command, you will get the following output if you browse to the URL http://dockerhost:8080. This shows that the nginx container is up and running.

NGINX Container

Step 5 − Let’s look at another example where we can host a simple web page in our ngnix container. In our example, we will create a simple HelloWorld.html file and host it in our nginx container.

Let’s first create an HTML file called HelloWorld.html

HTML File

Let’s add a simple line of Hello World in the HTML file.

Simple Line Hello World

Let’s then run the following Docker command.

sudo docker run –p 8080:80 –v
   “$PWD”:/usr/share/nginx/html:ro –d nginx

The following points need to be noted about the above command −

  • We are exposing the port on the nginx server which is port 80 to the port 8080 on the Docker Host.

  • Next, we are attaching the volume on the container which is /usr/share/nginx/html to our present working directory. This is where our HelloWorld.html file is stored.

Working Directory

Now if we browse to the URL http://dockerhost:8080/HelloWorld.html we will get the following output as expected −

Output Expected

Docker - Toolbox

In the introductory chapters, we have seen the installation of Docker toolbox on Windows. The Docker toolbox is developed so that Docker containers can be run on Windows and MacOS. The site for toolbox on Windows is https://docs.docker.com/docker-for-windows/

Toolbox on Windows

For Windows, you need to have Windows 10 or Windows Server 2016 with Hyper-V enabled.

The toolbox consists of the following components −

  • Docker Engine − This is used as the base engine or Docker daemon that is used to run Docker containers.

  • Docker Machine − for running Docker machine commands.

  • Docker Compose for running Docker compose commands.

  • Kinematic − This is the Docker GUI built for Windows and Mac OS.

  • Oracle virtualbox

Let’s now discuss the different types of activities that are possible with Docker toolbox.

Running in Powershell

With Docker toolbox on Windows 10, you can now run Docker commands off powershell. If you open powershell on Windows and type in the command of Docker version, you will get all the required details about the Docker version installed.

Windows Powershell

Pulling Images and Running Containers

You can also now pull Images from Docker Hub and run containers in powershell as you would do in Linux. The following example will show in brief the downloading of the Ubuntu image and running of the container off the image.

The first step is to use the Docker pull command to pull the Ubuntu image from Docker Hub.

Pulling Images

The next step is to run the Docker image using the following run command −

docker run –it ubuntu /bin/bash

You will notice that the command is the same as it was in Linux.

Same Command

Kitematic

This is the GUI equivalent of Docker on Windows. To open this GUI, go to the taskbar and on the Docker icon, right-click and choose to open Kitematic.

Kitematic

It will prompt you to download Kitematic GUI. Once downloaded, just unzip the contents. There will be a file called Kitematic.exe. Double-click this exe file to open the GUI interface.

You will then be requested to log into Docker Hub, enter through the GUI. Just enter the required username and password and then click the Login button.

Connect to Docker Hub

Once logged in, you will be able to see all the images downloaded on the system on the left-hand side of the interface.

Images Downloaded

On the right-hand side, you will find all the images available on Docker Hub.

Let’s take an example to understand how to download the Node image from Docker Hub using Kitematic.

Step 1 − Enter the keyword of node in the search criteria.

keyword of node

Step 2 − Click the create button on official Node image. You will then see the image being downloaded.

Create Button

Once the image has been downloaded, it will then start running the Node container.

Node Container

Step 3 − If you go to the settings tab, you can drill-down to further settings options, as shown below.

  • General settings − In this tab, you can name the container, change the path settings, and delete the container.

General settings
  • Ports − Here you can see the different port mappings. If you want, you can create your own port mappings.

Ports
  • Volumes − Here you can see the different volume mappings.

Volumes
  • Advanced − It contains the advanced settings for the container.

Advanced

Docker - Setting ASP.Net

ASP.Net is the standard web development framework that is provided by Microsoft for developing server-side applications. Since ASP.Net has been around for quite a long time for development, Docker has ensured that it has support for ASP.Net.

In this chapter, we will see the various steps for getting the Docker container for ASP.Net up and running.

Prerequisites

The following steps need to be carried out first for running ASP.Net.

Step 1 − Since this can only run on Windows systems, you first need to ensure that you have either Windows 10 or Window Server 2016.

Step 2 − Next, ensure that Hyper-V is and Containers are installed on the Windows system. To install Hyper–V and Containers, you can go to Turn Windows Features ON or OFF. Then ensure the Hyper-V option and Containers is checked and click the OK button.

Windows Features

The system might require a restart after this operation.

Step 3 − Next, you need to use the following Powershell command to install the 1.13.0rc4 version of Docker. The following command will download this and store it in the temp location.

Invoke-WebRequest "https://test.docker.com/builds/Windows/x86_64/docker-1.13.0-
   rc4.zip" -OutFile "$env:TEMP\docker-1.13.0-rc4.zip" –UseBasicParsing

Destination Path

Step 4 − Next, you need to expand the archive using the following powershell command.

Expand-Archive -Path "$env:TEMP\docker-1.13.0-rc4.zip" -DestinationPath $env:ProgramFiles

Expand the Archive

Step 5 − Next, you need to add the Docker Files to the environment variable using the following powershell command.

$env:path += ";$env:ProgramFiles\Docker"

Step 6 − Next, you need to register the Docker Daemon Service using the following powershell command.

dockerd --register-service

Step 7 − Finally, you can start the docker daemon using the following command.

Start-Service Docker

Use the docker version command in powershell to verify that the docker daemon is working

Docker Version

Installing the ASP.Net Container

Let’s see how to install the ASP.Net container.

Step 1 − The first step is to pull the image from Docker Hub. When you log into Docker Hub, you will be able to search and see the image for Microsoft/aspnet as shown below. Just type in asp in the search box and click on the Microsoft/aspnet link which comes up in the search results.

Microsoft/ASPNET

Step 2 − You will see that the Docker pull command for ASP.Net in the details of the repository in Docker Hub.

Docker Pull Command for ASPNET

Step 3 − Go to Docker Host and run the Docker pull command for the microsoft/aspnet image. Note that the image is pretty large, somewhere close to 4.2 GB.

Microsoft/Aspnet Image

Step 4 − Now go to the following location https://github.com/Microsoft/aspnet-docker and download the entire Git repository.

Step 5 − Create a folder called App in your C drive. Then copy the contents from the 4.6.2/sample folder to your C drive. Go the Docker File in the sample directory and issue the following command −

docker build –t aspnet-site-new –build-arg site_root=/

The following points need to be noted about the above command −

  • It builds a new image called aspnet-site-new from the Docker File.
  • The root path is set to the localpath folder.
Localpath Folder

Step 6 − Now it’s time to run the container. It can be done using the following command −

docker run –d –p 8000:80 –name my-running-site-new aspnet-site-new

New ASPNET Site

Step 7 − You will now have IIS running in the Docker container. To find the IP Address of the Docker container, you can issue the Docker inspect command as shown below.

IIS running in the Docker container

Docker - Cloud

The Docker Cloud is a service provided by Docker in which you can carry out the following operations −

  • Nodes − You can connect the Docker Cloud to your existing cloud providers such as Azure and AWS to spin up containers on these environments.

  • Cloud Repository − Provides a place where you can store your own repositories.

  • Continuous Integration − Connect with Github and build a continuous integration pipeline.

  • Application Deployment − Deploy and scale infrastructure and containers.

  • Continuous Deployment − Can automate deployments.

Getting started

You can go to the following link to getting started with Docker Cloud − https://cloud.docker.com/

Docker Cloud

Once logged in, you will be provided with the following basic interface −

Basic Interface

Connecting to the Cloud Provider

The first step is to connect to an existing cloud provider. The following steps will show you how to connect with an Amazon Cloud provider.

Step 1 − The first step is to ensure that you have the right AWS keys. This can be taken from the aws console. Log into your aws account using the following link − https://aws.amazon.com/console/

AWS Management Console

Step 2 − Once logged in, go to the Security Credentials section. Make a note of the access keys which will be used from Docker Hub.

Security Credentials section

Step 3 − Next, you need to create a policy in aws that will allow Docker to view EC2 instances. Go to the profiles section in aws. Click the Create Policy button.

Create Policy

Step 4 − Click on ‘Create Your Own Policy’ and give the policy name as dockercloudpolicy and the policy definition as shown below.

{
   "Version": "2012-10-17",
   "Statement": [ {
      "Action": [
         "ec2:*",
         "iam:ListInstanceProfiles"
      ],
      "Effect": "Allow",
      "Resource": "*"
   } ]
}
Review Policy

Next, click the Create Policy button

Step 5 − Next, you need to create a role which will be used by Docker to spin up nodes on AWS. For this, go to the Roles section in AWS and click the Create New Role option.

Create New Role

Step 6 − Give the name for the role as dockercloud-role.

Next Step

Step 7 − On the next screen, go to ‘Role for Cross Account Access’ and select “Provide access between your account and a 3rd party AWS account".

Select Role Type

Step 8 − On the next screen, enter the following details −

  • In the Account ID field, enter the ID for the Docker Cloud service: 689684103426.
  • In the External ID field, enter your Docker Cloud username.
Account External ID

Step 9 − Then, click the Next Step button and on the next screen, attach the policy which was created in the earlier step.

Attach Policy

Step 10 − Finally, on the last screen when the role is created, make sure to copy the arn role which is created.

arn:aws:iam::085363624145:role/dockercloud-role
Create Role Name ARN

Step 11 − Now go back to Docker Cloud, select Cloud Providers, and click the plug symbol next to Amazon Web Services.

Cloud Providers

Enter the arn role and click the Save button.

AWS Credentials

Once saved, the integration with AWS would be complete.

Integration with AWS

Setting Up Nodes

Once the integration with AWS is complete, the next step is to setup a node. Go to the Nodes section in Docker Cloud. Note that the setting up of nodes will automatically setup a node cluster first.

Step 1 − Go to the Nodes section in Docker Cloud.

Nodes Section

Step 2 − Next, you can give the details of the nodes which will be setup in AWS.

Node Clusters Wizard

You can then click the Launch Node cluster which will be present at the bottom of the screen. Once the node is deployed, you will get the notification in the Node Cluster screen.

Actions

Deploying a Service

The next step after deploying a node is to deploy a service. To do this, we need to perform the following steps.

Step 1 − Go to the Services Section in Docker Cloud. Click the Create button

Services Section

Step 2 − Choose the Service which is required. In our case, let’s choose mongo.

Mongo

Step 3 − On the next screen, choose the Create & Deploy option. This will start deploying the Mongo container on your node cluster.

Create Deploy

Once deployed, you will be able to see the container in a running state.

Container in Running State

Docker - Logging

Docker has logging mechanisms in place which can be used to debug issues as and when they occur. There is logging at the daemon level and at the container level. Let’s look at the different levels of logging.

Daemon Logging

At the daemon logging level, there are four levels of logging available −

  • Debug − It details all the possible information handled by the daemon process.

  • Info − It details all the errors + Information handled by the daemon process.

  • Errors − It details all the errors handled by the daemon process.

  • Fatal − It only details all the fatal errors handled by the daemon process.

Go through the following steps to learn how to enable logging.

Step 1 − First, we need to stop the docker daemon process, if it is already running. It can be done using the following command −

sudo service docker stop

Docker Daemon Process

Step 2 − Now we need to start the docker daemon process. But this time, we need to append the –l parameter to specify the logging option. So let’s issue the following command when starting the docker daemon process.

sudo dockerd –l debug &

The following points need to be noted about the above command −

  • dockerd is the executable for the docker daemon process.

  • The –l option is used to specify the logging level. In our case, we are putting this as debug

  • & is used to come back to the command prompt after the logging has been enabled.

Points

Once you start the Docker process with logging, you will also now see the Debug Logs being sent to the console.

Debug Logs

Now, if you execute any Docker command such as docker images, the Debug information will also be sent to the console.

Docker Images Logging

Container Logging

Logging is also available at the container level. So in our example, let’s spin up an Ubuntu container first. We can do it by using the following command.

sudo docker run –it ubuntu /bin/bash

Container Logging

Now, we can use the docker log command to see the logs of the container.

Syntax

Docker logs containerID

Parameters

  • containerID − This is the ID of the container for which you need to see the logs.

Example

On our Docker Host, let’s issue the following command. Before that, you can issue some commands whilst in the container.

sudo docker logs 6bfb1271fcdd

Output

Container Logging Output

From the output, you can see that the commands executed in the container are shown in the logs.

Docker - Compose

Docker Compose is used to run multiple containers as a single service. For example, suppose you had an application which required NGNIX and MySQL, you could create one file which would start both the containers as a service without the need to start each one separately.

In this chapter, we will see how to get started with Docker Compose. Then, we will look at how to get a simple service with MySQL and NGNIX up and running using Docker Compose.

Docker Compose ─ Installation

The following steps need to be followed to get Docker Compose up and running.

Step 1 − Download the necessary files from github using the following command −

curl -L "https://github.com/docker/compose/releases/download/1.10.0-rc2/dockercompose
   -$(uname -s) -$(uname -m)" -o /home/demo/docker-compose

The above command will download the latest version of Docker Compose which at the time of writing this article is 1.10.0-rc2. It will then store it in the directory /home/demo/.

Docker Compose

Step 2 − Next, we need to provide execute privileges to the downloaded Docker Compose file, using the following command −

chmod +x /home/demo/docker-compose

Execute Privileges

We can then use the following command to see the compose version.

Syntax

docker-compose version

Parameters

  • version − This is used to specify that we want the details of the version of Docker Compose.

Output

The version details of Docker Compose will be displayed.

Example

The following example shows how to get the docker-compose version.

sudo ./docker-compose -version

Output

You will then get the following output −

Docker Compose Installation

Creating Your First Docker-Compose File

Now let’s go ahead and create our first Docker Compose file. All Docker Compose files are YAML files. You can create one using the vim editor. So execute the following command to create the compose file −

sudo vim docker-compose.yml

Compose File

Let’s take a close look at the various details of this file −

  • The database and web keyword are used to define two separate services. One will be running our mysql database and the other will be our nginx web server.

  • The image keyword is used to specify the image from dockerhub for our mysql and nginx containers

  • For the database, we are using the ports keyword to mention the ports that need to be exposed for mysql.

  • And then, we also specify the environment variables for mysql which are required to run mysql.

Now let’s run our Docker Compose file using the following command −

sudo ./docker-compose up

This command will take the docker-compose.yml file in your local directory and start building the containers.

Docker Compose YML

Once executed, all the images will start downloading and the containers will start automatically.

Start Downloading

And when you do a docker ps, you can see that the containers are indeed up and running.

Docker Compose Container

Docker - Continuous Integration

Docker has integrations with many Continuous Integrations tools, which also includes the popular CI tool known as Jenkins. Within Jenkins, you have plugins available which can be used to work with containers. So let’s quickly look at a Docker plugin available for the Jenkins tool.

Let’s go step by step and see what’s available in Jenkins for Docker containers.

Step 1 − Go to your Jenkins dashboard and click Manage Jenkins.

Manage Jenkins

Step 2 − Go to Manage Plugins.

Manage Plugins

Step 3 − Search for Docker plugins. Choose the Docker plugin and click the Install without restart button.

Install Without Restart Button

Step 4 − Once the installation is completed, go to your job in the Jenkins dashboard. In our example, we have a job called Demo.

Demo

Step 5 − In the job, when you go to the Build step, you can now see the option to start and stop containers.

Add Build step

Step 6 − As a simple example, you can choose the further option to stop containers when the build is completed. Then, click the Save button.

Stop All Containers

Now, just run your job in Jenkins. In the Console output, you will now be able to see that the command to Stop All containers has run.

Console Output

Docker - Kubernetes Architecture

Kubernetes is an orchestration framework for Docker containers which helps expose containers as services to the outside world. For example, you can have two services − One service would contain nginx and mongoDB, and another service would contain nginx and redis. Each service can have an IP or service point which can be connected by other applications. Kubernetes is then used to manage these services.

The following diagram shows in a simplistic format how Kubernetes works from an architecture point of view.

Kubernetes Architecture

The minion is the node on which all the services run. You can have many minions running at one point in time. Each minion will host one or more POD. Each POD is like hosting a service. Each POD then contains the Docker containers. Each POD can host a different set of Docker containers. The proxy is then used to control the exposing of these services to the outside world.

Kubernetes has several components in its architecture. The role of each component is explained below &mius;

  • etcd − This component is a highly available key-value store that is used for storing shared configuration and service discovery. Here the various applications will be able to connect to the services via the discovery service.

  • Flannel − This is a backend network which is required for the containers.

  • kube-apiserver − This is an API which can be used to orchestrate the Docker containers.

  • kube-controller-manager − This is used to control the Kubernetes services.

  • kube-scheduler − This is used to schedule the containers on hosts.

  • Kubelet − This is used to control the launching of containers via manifest files.

  • kube-proxy − This is used to provide network proxy services to the outside world.

Docker - Working of Kubernetes

In this chapter, we will see how to install Kubenetes via kubeadm. This is a tool which helps in the installation of Kubernetes. Let’s go step by step and learn how to install Kubernetes.

Step 1 − Ensure that the Ubuntu server version you are working on is 16.04.

Step 2 − Ensure that you generate a ssh key which can be used for ssh login. You can do this using the following command.

ssh-keygen

This will generate a key in your home folder as shown below.

Home Folder

Step 3 − Next, depending on the version of Ubuntu you have, you will need to add the relevant site to the docker.list for the apt package manager, so that it will be able to detect the Kubernetes packages from the kubernetes site and download them accordingly.

We can do it using the following commands.

curl -s https://packages.cloud.google.com/apt/doc/apt-key.gpg | apt-key add -
echo "deb http://apt.kubernetes.io/ kubernetes-xenial main” | sudo tee /etc/apt/sources.list.d/docker.list

Step 4 − We then issue an apt-get update to ensure all packages are downloaded on the Ubuntu server.

Issue APT Get Update

Step 5 − Install the Docker package as detailed in the earlier chapters.

Step 6 − Now it’s time to install kubernetes by installing the following packages −

apt-get install –y kubelet kubeadm kubectl kubernetes-cni

Install Kubenetes

Docker Package

Step 7 − Once all kubernetes packages are downloaded, it’s time to start the kubernetes controller using the following command −

kubeadm init

kubernetes Packages

Once done, you will get a successful message that the master is up and running and nodes can now join the cluster.

Advertisements
