Docker - Networking


Advertisements

Docker takes care of the networking aspects so that the containers can communicate with other containers and also with the Docker Host. If you do an ifconfig on the Docker Host, you will see the Docker Ethernet adapter. This adapter is created when Docker is installed on the Docker Host.

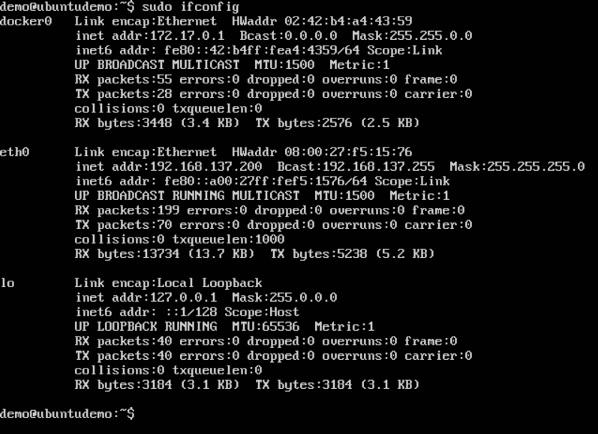

IFCONFIG

This is a bridge between the Docker Host and the Linux Host. Now let’s look at some commands associated with networking in Docker.

Listing All Docker Networks

This command can be used to list all the networks associated with Docker on the host.

Syntax

docker network ls

Options

None

Return Value

The command will output all the networks on the Docker Host.

Example

sudo docker network ls

Output

The output of the above command is shown below

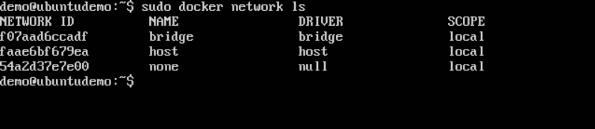

Docker Networks

Inspecting a Docker network

If you want to see more details on the network associated with Docker, you can use the Docker network inspect command.

Syntax

docker network inspect networkname

Options

  • networkname − This is the name of the network you need to inspect.

Return Value

The command will output all the details about the network.

Example

sudo docker network inspect bridge

Output

The output of the above command is shown below −

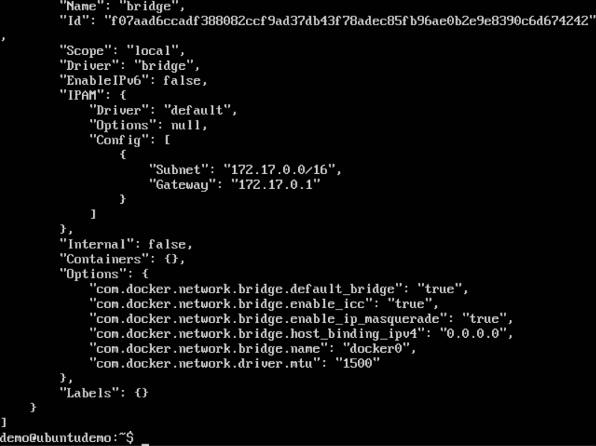

Inspecting Docker Network

Now let’s run a container and see what happens when we inspect the network again. Let’s spin up an Ubuntu container with the following command −

sudo docker run –it ubuntu:latest /bin/bash

Run a Container in Network

Now if we inspect our network name via the following command, you will now see that the container is attached to the bridge.

sudo docker network inspect bridge

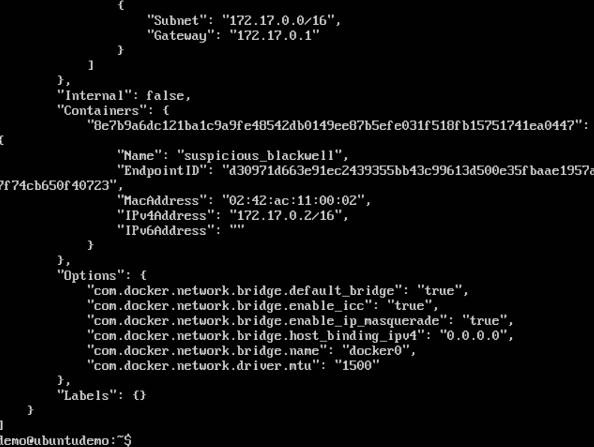

Container Attached to Bridge

Creating Your Own New Network

One can create a network in Docker before launching containers. This can be done with the following command −

Syntax

docker network create –-driver drivername name

Options

  • drivername − This is the name used for the network driver.

  • name − This is the name given to the network.

Return Value

The command will output the long ID for the new network.

Example

sudo docker network create –-driver bridge new_nw

Output

The output of the above command is shown below −

Long ID

You can now attach the new network when launching the container. So let’s spin up an Ubuntu container with the following command −

sudo docker run –it –network=new_nw ubuntu:latest /bin/bash

New Network

And now when you inspect the network via the following command, you will see the container attached to the network.

sudo docker network inspect new_nw

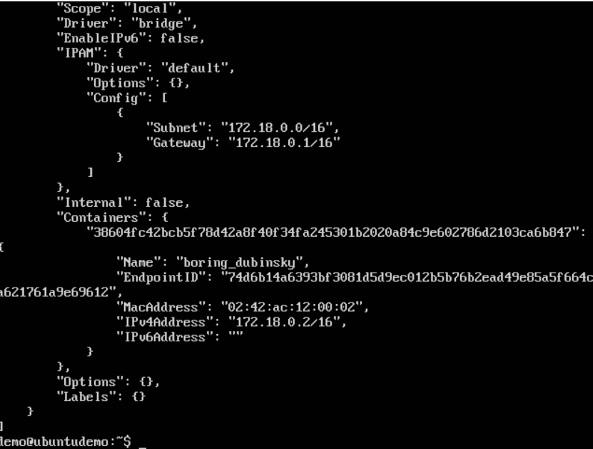

New NW
