These are the diodes which are operated on light. The word “Opto” means Light. There are types that conduction depending upon the light intensity and other types whose conduction delivers some light. Each type has got applications of their own. Let us discuss the prominent types among these ones.

Some diodes conduct according to the intensity of light falls on them. There are two main types of diodes in this category. They are Photo diodes and Solar cells.

Photo Diode

Photo diode, as the name implies, is a PN junction which works on light. The intensity of light affects the level of conduction in this diode. The photo diode has a P type material and an N-type material with an intrinsic material or a depletion region in between.

This diode is generally operated in reverse bias condition. The light when focused on the depletion region, electron-hole pairs are formed and flow of electron occurs. This conduction of electrons depends upon the intensity of light focused. The figure below shows a practical Photo diode.

Photo Diode

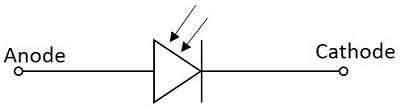

The figure below indicates the symbol for a photodiode.

Photo Diode Symbol

When the diode is connected in reverse bias, a small reverse saturation current flows due to thermally generated electron hole pairs. As the current in reverse bias flows due to minority carriers, the output voltage depends upon this reverse current. As the light intensity focused on the junction increases, the current flow due to minority carriers increase. The following figure shows the basic biasing arrangement of a photo diode.

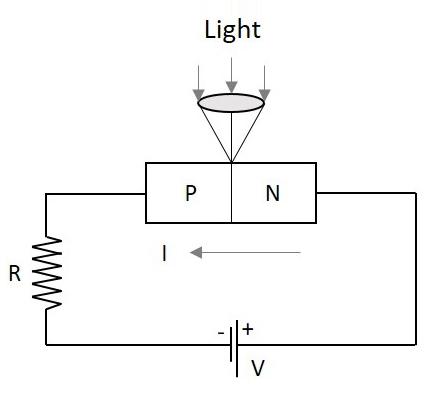

Photo Diode Biasing

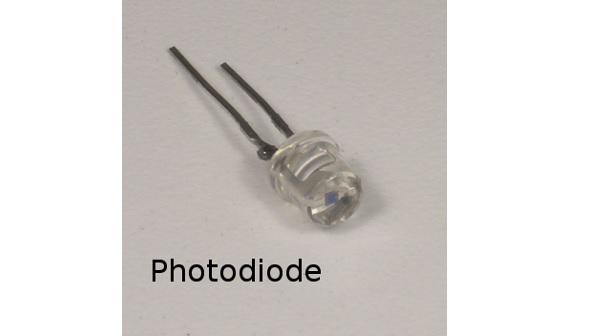

The Photo diode is encapsulated in a glass package to allow the light to fall onto it. In order to focus the light exactly on the depletion region of the diode, a lens is placed above the junction, just as illustrated above.

Even when there is no light, a small amount of current flows which is termed as Dark Current. By changing the illumination level, reverse current can be changed.

Advantages of Photo diode

Photo diode has many advantages such as −

  • Low noise
  • High gain
  • High speed operation
  • High sensitivity to light
  • Low cost
  • Small size
  • Long lifetime

Applications of Photo diode

There are many applications for photo diode such as −

  • Character detection
  • Objects can be detected (visible or invisible).
  • Used in circuits that require high stability and speed.
  • Used in Demodulation
  • Used in switching circuits
  • Used in Encoders
  • Used in optical communication equipment

Another diode of such a kind is Solar cell. It is termed as a cell though it is a diode. Let us get into the details.

Solar Cell

The light dependent diodes include Solar cell, which is a normal PN junction diode but has its conduction by the rush of photons which are converted into the flow of electrons. This is similar to a photo diode but it has another objective of converting maximum incident light into energy and storing it.

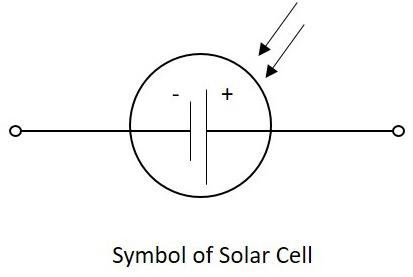

The figure below represents the symbol of a solar cell.

Solar Cell

A solar cell has its name and symbol indicating storing of energy though it is a diode. The feature of extracting more energy and storing of it is concentrated in the solar cell.

Construction of a Solar cell

A PN junction diode with an intrinsic material in the deletion region is made to encapsulate in a glass. The light is made to incident on maximum area possible with thin glass on the top so as to collect maximum light with minimum resistance.

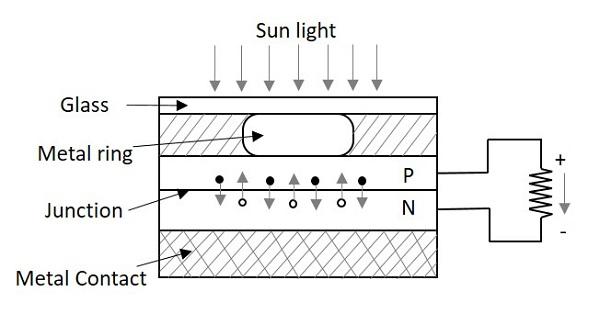

The following figure shows the construction of a Solar cell.

Solar Cell Construction

When the light is incident on the solar cell, the photons in the light collide with valence electrons. The electrons are energized to leave the parent atoms. Thus a flow of electrons is generated and this current is directly proportional to the light intensity focused onto the solar cell. This phenomenon is called as the Photo-Voltaic effect.

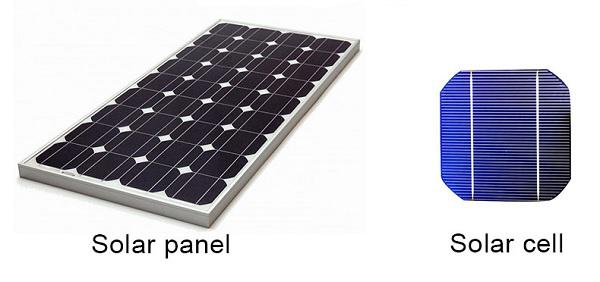

The following figure shows how a solar cell looks like and how a number of solar cells together are made to form a solar panel.

Solar Panel

Difference between a Photo diode and Solar cell

Photo Diode works faster and concentrates on switching rather than providing more power at the output. It has a low capacitance value because of this. Also the area of incidence of light energy is lesser in Photo diode, according to its applications.

A Solar cell concentrates on delivering high output energy and storing the energy. This has high capacitance value. The operation is a bit slower than photo diode. According to the purpose of the solar cell, the area of incidence of light is larger than photo diode.

Applications of Solar Cell

There are many applications for Solar cell such as −

Science and Technology

  • Used in Solar panels for Satellites
  • Used in telemetry
  • Used in Remote lighting systems etc.

Commercial Use

  • Used in Solar panels for storage of electricity
  • Used in Portable power supplies etc.
  • Used in household uses such as cooking and heating using solar energy

Electronic

  • Watches
  • Calculators
  • Electronic Toys, etc.

Some diodes emit light according to the voltage applied. There are two main types of diodes in this category. They are LEDs and Laser diodes.

LED (Light Emitting Diodes)

This one is the most popular diodes used in our daily life. This is also a normal PN junction diode except that instead of silicon and germanium, the materials like gallium arsenide, gallium arsenide phosphide are used in its construction.

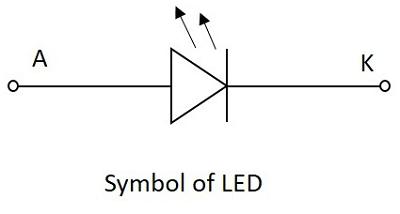

The figure below shows the symbol of a Light emitting diode.

LED

Like a normal PN junction diode, this is connected in forward bias condition so that the diode conducts. The conduction takes place in a LED when the free electrons in the conduction band combine with the holes in the valence band. This process of recombination emits light. This process is called as Electroluminescence. The color of the light emitted depends upon the gap between the energy bands.

The materials used also effect the colors like, gallium arsenide phosphide emits either red or yellow, gallium phosphide emits either red or green and gallium nitrate emits blue light. Whereas gallium arsenide emits infrared light. The LEDs for non-visible Infrared light are used mostly in remote controls.

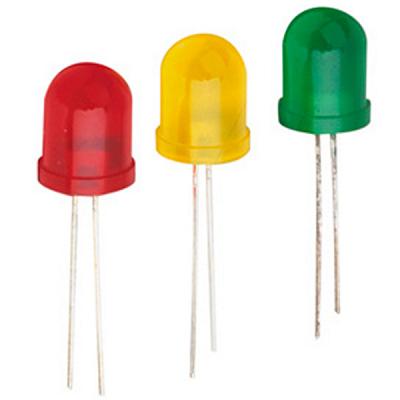

The following figure shows a how the practical LEDs of different colors looks like.

LEDs

LED in the above figure has a flat side and curved side, the lead at the flat side is made shorter than the other one, so as to indicate that the shorter one is Cathode or negative terminal and the other one is Anode or the Positive terminal.

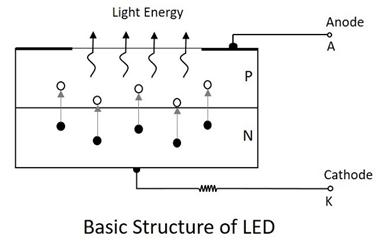

The basic structure of LED is as shown in the figure below.

LED Structure

As shown in the above figure, as the electrons jump into the holes, the energy is dissipated spontaneously in the form of light. LED is a current dependent device. The output light intensity depends upon the current through the diode.

Advantages of LED

There are many advantages of LED such as −

  • High efficiency
  • High speed
  • High reliability
  • Low heat dissipation
  • Larger life span
  • Low cost
  • Easily controlled and programmable
  • High levels of brightness and intensity
  • Low voltage and current requirements
  • Less wiring required
  • Low maintenance cost
  • No UV radiation
  • Instant Lighting effect

Applications of LED

There are many applications for LED such as −

In Displays

  • Especially used for seven segment display
  • Digital clocks
  • Microwave ovens
  • Traffic signaling
  • Display boards in railways and public places
  • Toys

In Electronic Appliances

  • Stereo tuners
  • Calculators
  • DC power supplies
  • On/Off indicators in amplifiers
  • Power indicators

Commercial Use

  • Infrared readable machines
  • Barcode readers
  • Solid state video displays

Optical Communications

  • In Optical switching applications
  • For Optical coupling where manual help is unavailable
  • Information transfer through FOC
  • Image sensing circuits
  • Burglar alarms
  • In Railway signaling techniques
  • Door and other security control systems

Just as LED has many advantages and applications, there is another important diode called Laser diode, which also has got many advanced features and scope of future. Let us discuss about Laser diode.

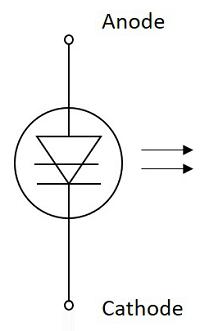

Laser Diode

Laser Diode is another popular diode for its kind. This is an optical diode which emits light but with stimulated process. The name LASER implies Light Amplification by Stimulated Emission of Radiation.

Laser Diode

Stimulated Emission

This is a PN junction diode whose action starts when a light ray is incident on it. With a light ray, when photons get incident on an atom, the atom gets excited and it reaches an upper level which can be termed as a Higher Energy Level.

The atom when shifts from the higher energy level to a Lower Energy Level, it releases two photons which are similar in characteristics to the incident photon and are in equal phase to it. This process is called as Stimulated Emission. An atom can generally stay in this excited state for 10-8 secs of time.

So, the above process sets the principle for laser diode.

Principle of Laser Diode

Whenever a photon is incident on an atom, that atom is excited from a lower energy state to a higher energy state and two photons are released in this process. Actually, an atom can generally stay at this excited state for 10-8 secs of time. So, in order to achieve amplification, during this excited process, the atom is made to be placed in another state called Meta Stable State which is below the higher energy level and above the lower energy level.

An atom can stay in this Meta stable state for 10-3 secs. While the atom gets to the lower state from this, two photons are released. If more number of atoms are there in the excited state, prior to the photons striking the atoms, then we have the Lasing Effect.

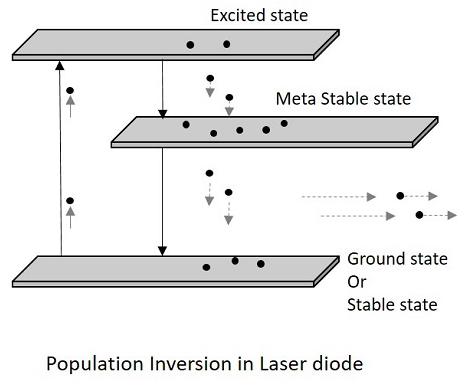

Laser Diode Principle

In this process, we have two terms to understand. Having more number of atoms at Meta Stable state than the lower energy state or ground state is called as Population inversion. Then energy that lets the atoms to send from a lower energy state to a higher energy state to achieve the population inversion, is called as Pumping. This is Optical pumping.

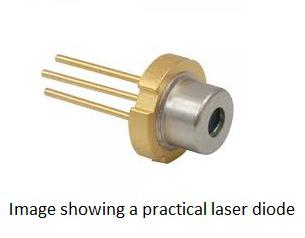

Practical Laser Diode

Advantages

There are many advantages of Laser diode such as −

  • Power used by laser diodes is much less
  • Higher ON/OFF switching speed
  • More Compact
  • Less expensive
  • They are cheaper than laser generators
  • Less chances of providing electrical shocks

Disadvantages

There are few disadvantages of Laser diode such as −

  • More divergent rays and hence quality is not so good
  • Their life time is less compared to LED.
  • Prone to damage during unstable power supplies

Applications

There are many applications of Laser diode such as −

  • Used as pump-laser and seed-laser

  • Used in optical data storage devices

  • Used in laser printers and laser fax machines

  • Used in Laser pointers

  • Used in bar-code readers

  • They are used in DVD and CD drives

  • Used in HD DVD and BLU RAY technology

  • Has many industrial purposes such as heat treating, cladding, seam welding etc.

  • Has got many uses in communication technology such as data linking and transmission.

After going through all these, let us try to understand few terms.

Component

  • The Components are the individual basic elements of electronics.
  • They have different properties with respect to their construction.
  • Every component has different applications.

Ex − Resistor, Capacitor, Diode etc.

Circuit

  • A Circuit is a network of different components
  • The components in the circuit altogether, survive an intended purpose.
  • If a circuit has to be active, should contain a power source.

Ex − clipper and clamper circuits, amplifier circuits, relay circuits etc.

Device

  • A Device is an equipment that is made up of different circuits.

  • All circuits in the device help it function to serve its purpose.

  • A device can be used for measuring signals, generating signals, controlling the outcomes or protecting the circuits and so on.

Ex − CRO, Function generator etc.

Solid State devices

Previously we used to have vacuum tubes, which work on thermionic principle and are filled with vacuum inside. They were bigger in size than today’s components. These vacuum tubes were replaced with semiconductor devices, which are also called as Solid state devices.

Active Devices

The devices (or precisely components) which can control the current flow can be termed as Active Devices.

  • They require some input power supply to get into conduction.
  • The working of these components define the behavior of the circuit.

Ex − Vacuum tubes, diodes, transistors, SCRs

Passive Devices

The devices (or precisely components) which cannot control the current flow can be termed as Passive Devices.

  • They don’t require input power supply to work.
  • The working of these components slightly alters the circuit’s behavior.

Ex − Resistor, Capacitor, Inductor etc.

Doping

The process of adding of electrons or creating holes to alter the characteristics of the semiconductor material, either by making more positive or by making more negative can be understood as Doping.

The applications of diodes include many circuits starting from clipper and clamper circuits, which will be discussed in ELECTRONIC CIRCUITS tutorial.
