Creating and Deploying using AWS Console


Advertisements

We can create Lambda function and test the same in AWS console. This chapter discusses this in detail. For this purpose, you will have to follow the steps given here and observe the respective screenshots given −

Step 1

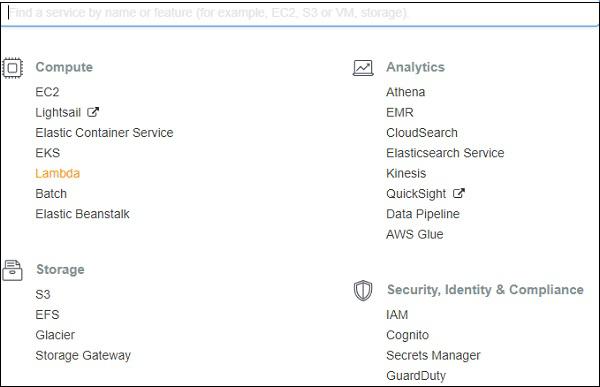

Login to AWS Console https://aws.amazon.com/console/. Now, you will be redirected to the screen where the AWS services are displayed.

AWS Services

Step 2

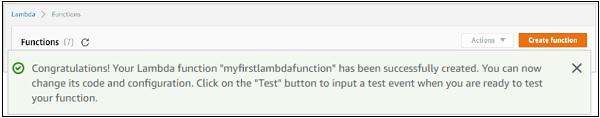

Now, click on Lambda service as highlighted above. This will redirect to create function as shown below −

Lambda Services

Step 3

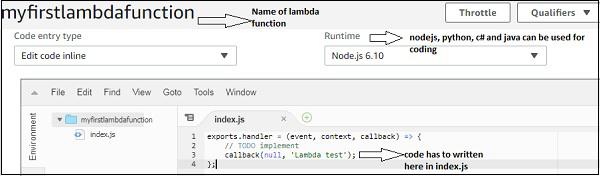

Now, click Create function and enter the details of the function. Then you can see a screen as shown below −

My First Lambda

Step 4

You can write your code by choosing the language of your choice. The code has to be written in editor if the option selected is edit code inline. The other options available are as follows −

Code Entry

Step 5

Once done you need to save the changes for which the button is given at the top right corner as shown below −

Save Button Lambda

Step 6

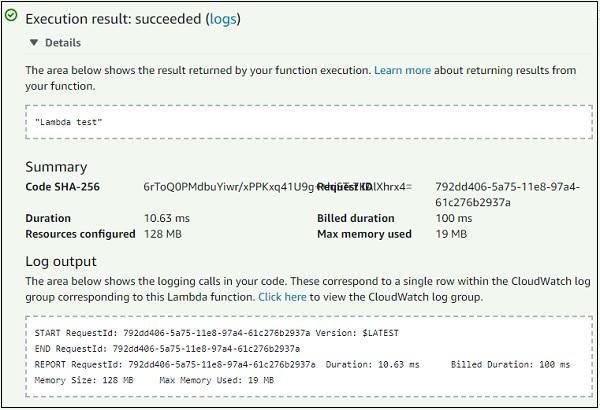

Now, click Test button. This gives all details of the execution of the Lambda function as shown below −

Test Button

Step 7

The code for index.js is as follows −

exports.handler = (event, context, callback) => {
   // TODO implement
   callback(null, 'Lambda test');
};

This will call the Callback function and the result can be error or success. On success you will see a Lambda test message; if error it will pass null.

Step 8

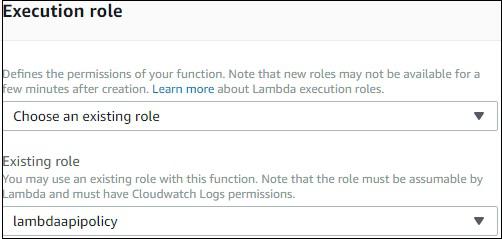

The Role details for Lambda function is a part of the configuration and is displayed as shown below −

Role Execution

Step 9

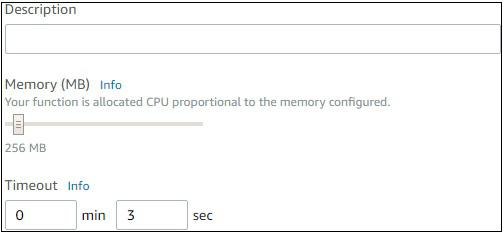

Now, you can update the role if required and save the Lambda function. Then, the memory and timeout details for lambda function are displayed as shown below −

Description

Step 10

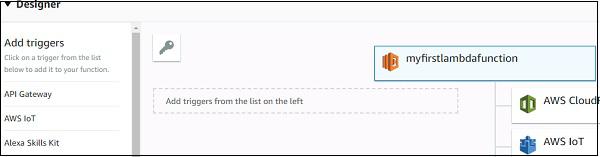

Now, we need to add trigger to the Lambda function so that it executes when the event occurs. The trigger details are displayed at the start of the AWS Lambda function screen as shown below −

Designer

From this, you can select the trigger you want your Lambda function to get triggered. When you select the trigger, the config details for the trigger has to be added.

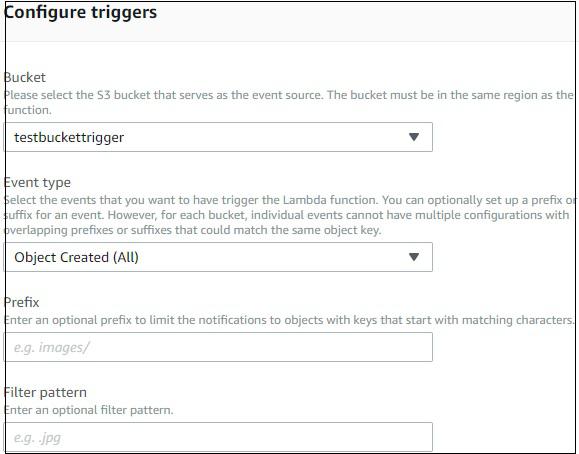

For Example, for trigger on S3 the config details to be added are as follows −

Configure Trigger

Step 11

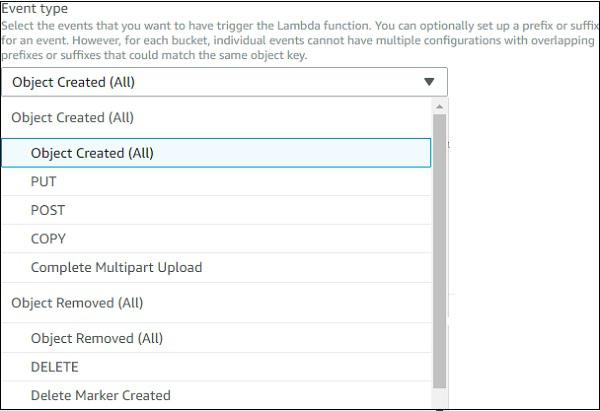

Now, select the bucket you want the trigger on. The event type has the following details −

Event Type

Step 12

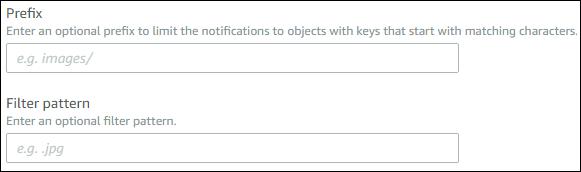

For the trigger, you can also mention the prefix type files or file pattern, the Lambda has to be trigger. The details are as shown −

Prefix

Step 13

Now, fill up the required details for the trigger and click Add button .Save the Lambda function for the trigger to get added.Saving the function deploys the details, and from now onwards anytime files are added to the S3 bucket, the Lambda will get triggered.

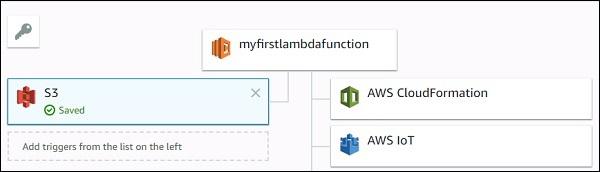

Observe the following screenshot which shows S3 trigger added to AWS Lambda −

Cloud Formation

Step 14

Now, let us use S3 sample event to test the Lambda function. The code for the same is shown here −

Amazon S3 Put Sample Event

{
   "Records": [{
      "eventVersion": "2.0",
      "eventTime": "1970-01-01T00:00:00.000Z",
      "requestParameters": {
         "ExampleIPAddress": "127.0.0.1"
      },
      "s3": {
         "configurationId": "testConfigRule",
         "object": {
            "eTag": "0123456789abcdef0123456789abcdef",
            "sequencer": "0A1B2C3D4E5F678901",
            "key": "HappyFace.jpg",
            "size": 1024
         },
         "bucket": {
            "arn": bucketarn,
            "name": "Examplebucket",
            "ownerIdentity": {
               "principalId": "Example"
            }
         },
         "s3SchemaVersion": "1.0"
      },
      "responseElements": {
         "x-amz-id-2": "Example123/5678abcdefghijklambdaisawesome/mnopqrstuvwxyzABCDEFGH",
         "x-amz-request-id": "Example123456789"
      },
      "awsRegion": "us-east-1",
      "eventName": "ObjectCreated:Put",
      "userIdentity": {
         "principalId": "Example"
      },
      "eventSource": "aws:s3"
   }]
}

You will have to use the following command to get the details of file uploaded from the S3 put event −

event.Records[0].s3.object.key     //will display the name of the file

You will have to use the following command to get the bucket name −

event.Records[0].s3.bucket.name    //will give the name of the bucket.

You will have to use the following command to get the EventName −

event.Records[0].eventName        // will display the event name

Step 15

Now, let us update AWS Lambda code to print the S3 details as shown below −

exports.lambdahandler = (event, context, callback) => {
   callback(null, "Bucket name: "+event.Records[0].s3.bucket.name+"
   File name:"+event.Records[0].s3.object.key );
};

Step 16

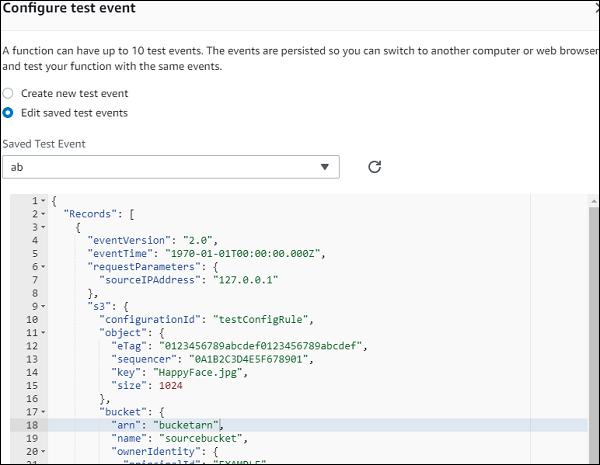

Save the changes. Click Test and enter the S3 sample event −

Configure Test

Step 17

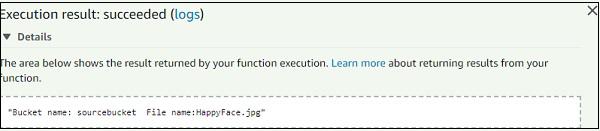

Now click Test and you can see the output as shown −

Bucket Name

Step 18

To test the trigger on S3 using S3 AWS service, upload a file in S3 bucket: test bucket trigger. Update the role used with Lambda to take S3 and SES policy(to send mail) for permissions. This will update AWS Lambda code to send mail to see the trigger working −

The updated AWS Lambda code is as shown −

var aws = require('aws-sdk');
var ses = new aws.SES({
   region: 'us-east-1'
});
exports.lambdahandler = function(event, context, callback) {
   var eParams = {
      Destination: {
         ToAddresses: ["coxxxxxxx@gmail.com"]
      },
      Message: {
         Body: {
            Text: {
               Data: "Bucket name: "+event.Records[0].s3.bucket.name+"  File name:"+event.Records[0].s3.object.key
            }
         },
         Subject: {
            Data: "S3 and AWS Lambda"
         }
      },
      Example: "coxxxxxx@gmail.com"
   };
   console.log('===SENDING EMAIL===');
   var email = ses.sendEmail(eParams, function(err, data) {
      if (err) console.log(err);
         else {
            console.log("===EMAIL SENT===");
            console.log("EMAIL CODE END");
            console.log('EMAIL: ', email);
            context.succeed(event);
            callback(null, "email is send");
         }
   });
};

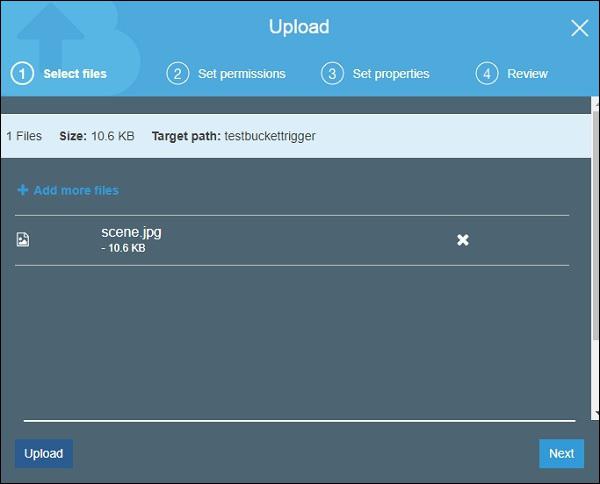

The corresponding screenshot is as shown here −

Target Path

Step 19

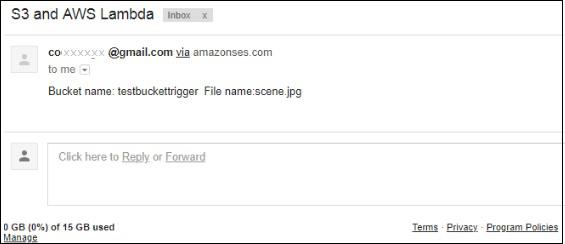

Now, upload the file and check the mail id provided in AWS Lambda code −

Mail Id
