Apache Flink - Introduction

Apache Flink is a real-time processing framework which can process streaming data. It is an open source stream processing framework for high-performance, scalable, and accurate real-time applications. It has true streaming model and does not take input data as batch or micro-batches.

Apache Flink was founded by Data Artisans company and is now developed under Apache License by Apache Flink Community. This community has over 479 contributors and 15500 + commits so far.

Ecosystem on Apache Flink

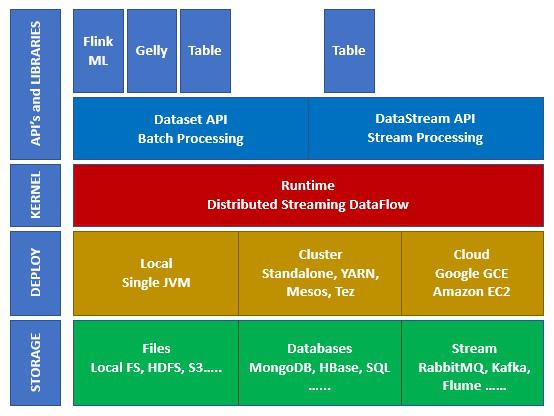

The diagram given below shows the different layers of Apache Flink Ecosystem −

Storage

Apache Flink has multiple options from where it can Read/Write data. Below is a basic storage list −

• HDFS (Hadoop Distributed File System)
• Local File System
• S3
• RDBMS (MySQL, Oracle, MS SQL etc.)
• MongoDB
• HBase
• Apache Kafka
• Apache Flume

Deploy

You can deploy Apache Fink in local mode, cluster mode or on cloud. Cluster mode can be standalone, YARN, MESOS.

On cloud, Flink can be deployed on AWS or GCP.

Kernel

This is the runtime layer, which provides distributed processing, fault tolerance, reliability, native iterative processing capability and more.

APIs & Libraries

This is the top layer and most important layer of Apache Flink. It has Dataset API, which takes care of batch processing, and Datastream API, which takes care of stream processing. There are other libraries like Flink ML (for machine learning), Gelly (for graph processing ), Tables for SQL. This layer provides diverse capabilities to Apache Flink.
