In this chapter, we will learn how to create a Flink application.

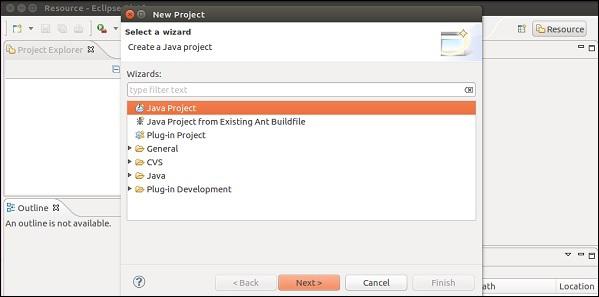

Open Eclipse IDE, click on New Project and Select Java Project.

Create Flink Application

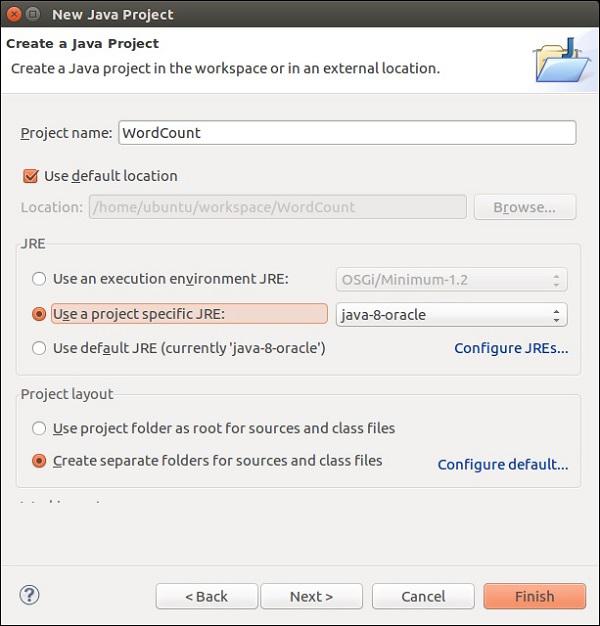

Give Project Name and click on Finish.

Create Flink Application2

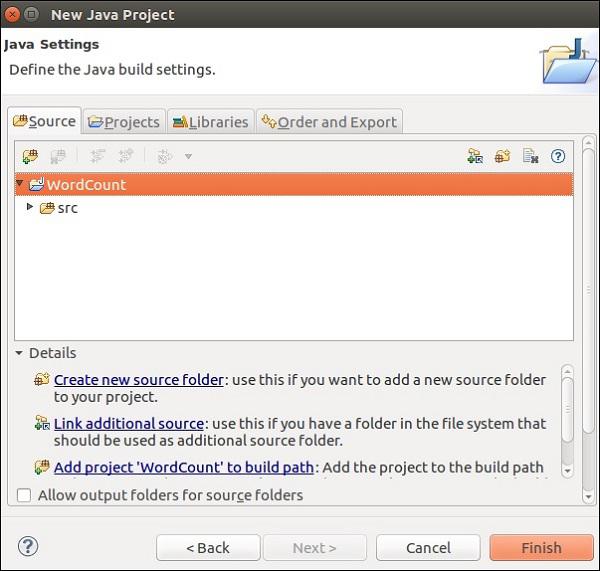

Now, click on Finish as shown in the following screenshot.

Create Flink Application3

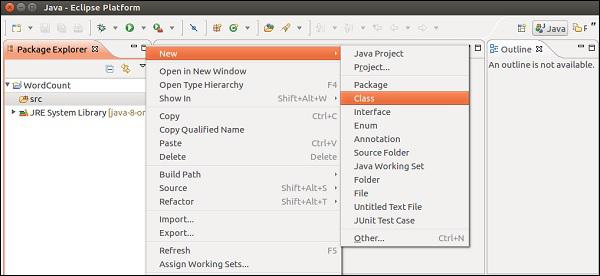

Now, right-click on src and go to New >> Class.

Create Flink Application4

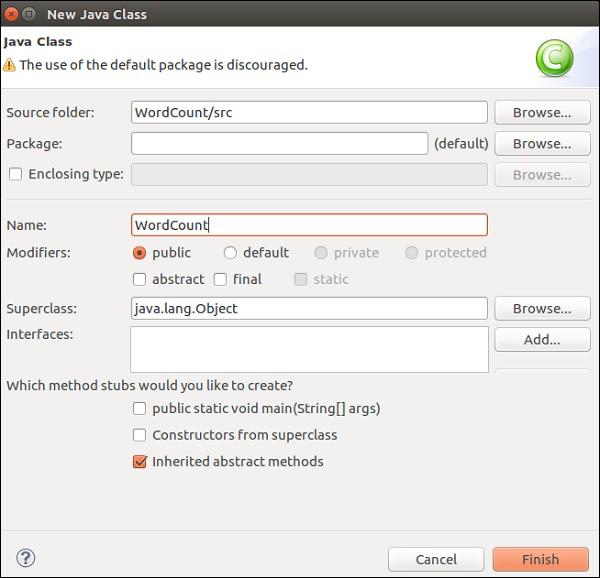

Give a class name and click on Finish.

Create Flink Application5

Copy and paste the below code in the Editor.

import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.DataSet;
import org.apache.flink.api.java.ExecutionEnvironment;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.api.java.utils.ParameterTool;
import org.apache.flink.util.Collector;
public class WordCount {

   // *************************************************************************
   // PROGRAM
   // *************************************************************************
   public static void main(String[] args) throws Exception {
      final ParameterTool params = ParameterTool.fromArgs(args);
      // set up the execution environment
      final ExecutionEnvironment env = ExecutionEnvironment.getExecutionEnvironment();
      // make parameters available in the web interface
      env.getConfig().setGlobalJobParameters(params);
      // get input data
      DataSet<String> text = env.readTextFile(params.get("input"));
      DataSet<Tuple2<String, Integer>> counts =
      // split up the lines in pairs (2-tuples) containing: (word,1)
      text.flatMap(new Tokenizer())
      // group by the tuple field "0" and sum up tuple field "1"
      .groupBy(0)
      .sum(1);
      // emit result
      if (params.has("output")) {
         counts.writeAsCsv(params.get("output"), "\n", " ");
         // execute program
         env.execute("WordCount Example");
      } else {
         System.out.println("Printing result to stdout. Use --output to specify output path.");
         counts.print();
      }
   }

   // *************************************************************************
   // USER FUNCTIONS
   // *************************************************************************
   public static final class Tokenizer implements FlatMapFunction<String, Tuple2<String, Integer>> {
      public void flatMap(String value, Collector<Tuple2<String, Integer>> out) {
         // normalize and split the line
         String[] tokens = value.toLowerCase().split("\\W+");
         // emit the pairs
         for (String token : tokens) {
            if (token.length() > 0) {
               out.collect(new Tuple2<>(token, 1));
            }
         }
      }
   }
}

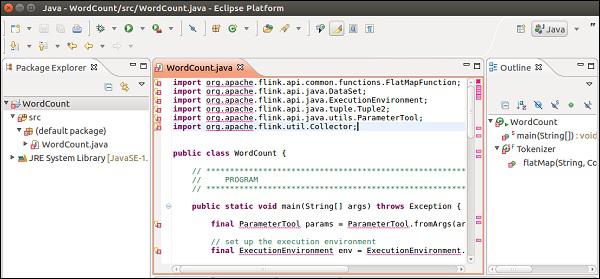

You will get many errors in the editor, because Flink libraries need to be added to this project.

Flink libraries Added

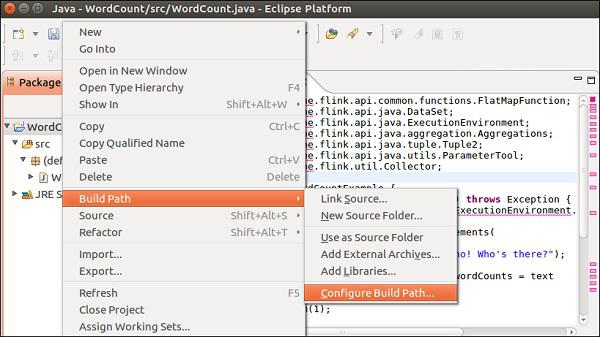

Right-click on the project >> Build Path >> Configure Build Path.

Right click Project

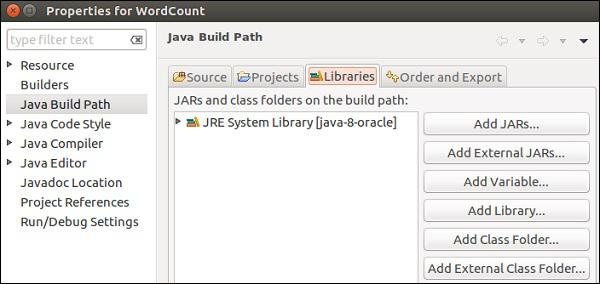

Select the Libraries tab and click on Add External JARs.

Select Libraries

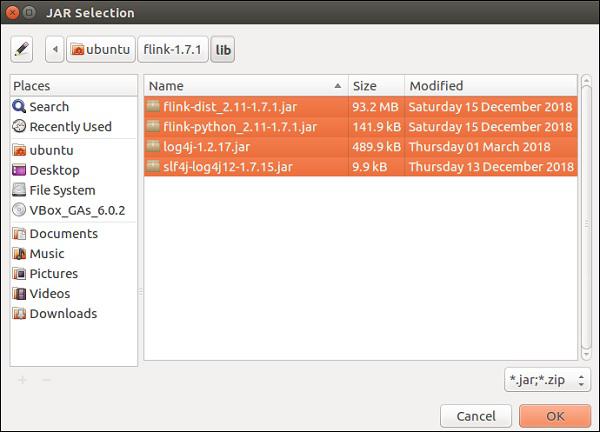

Go to Flink's lib directory, select all the 4 libraries and click on OK.

Flinks lib directory

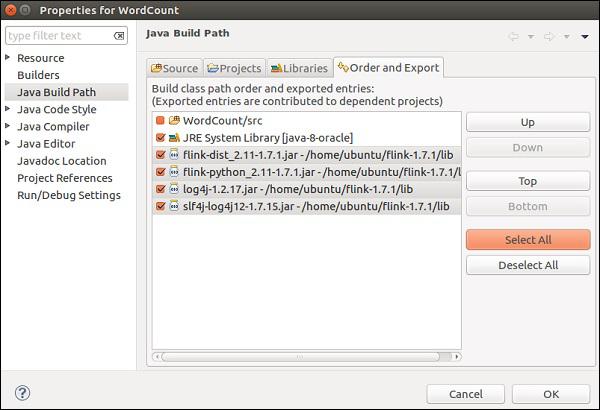

Go to the Order and Export tab, select all the libraries and click on OK.

Order and Export Tab

You will see that the errors are no more there.

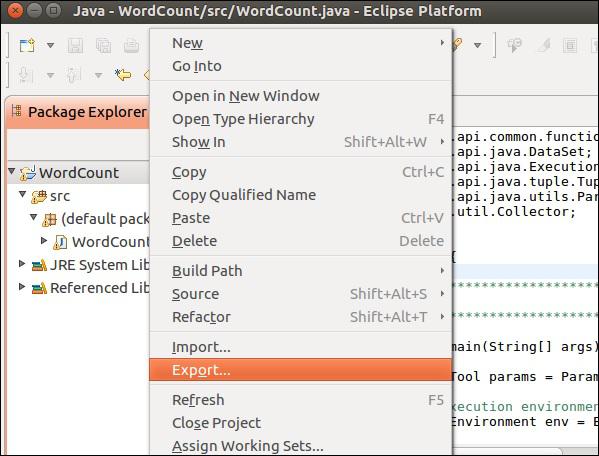

Now, let us export this application. Right-click on the project and click on Export.

Export this Application

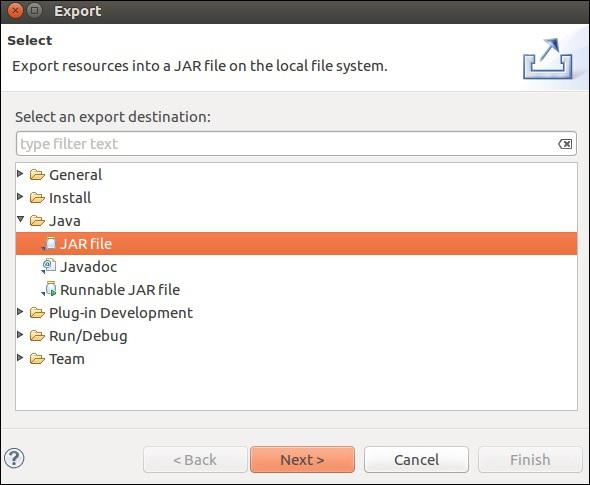

Select JAR file and click Next

Select JAR file

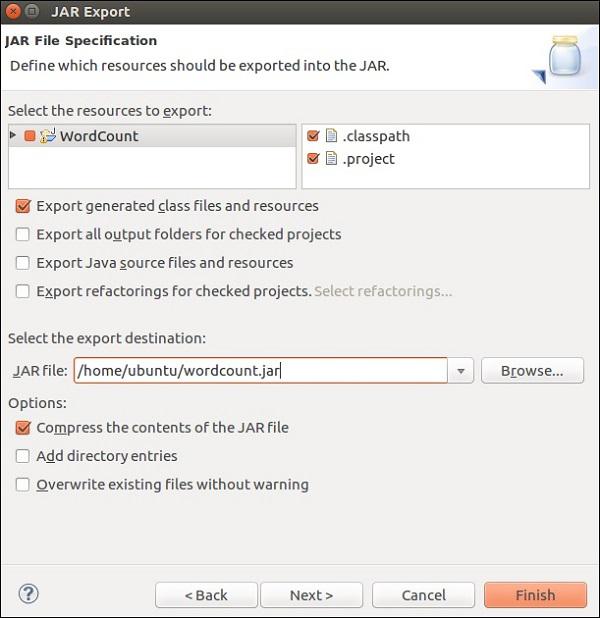

Give a destination path and click on Next

destination path

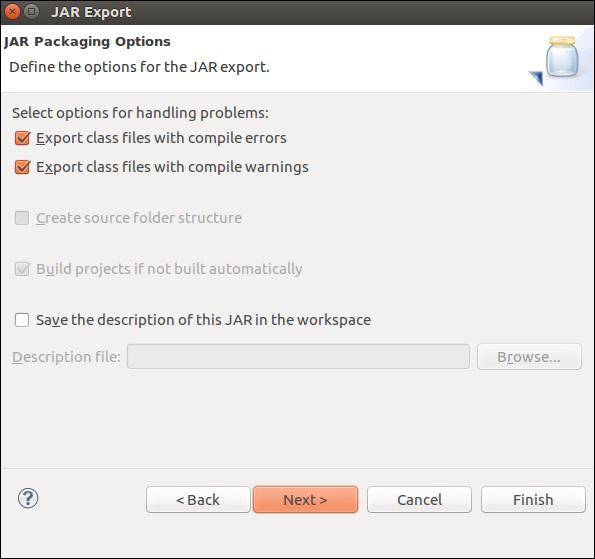

Click on Next>

Click Next

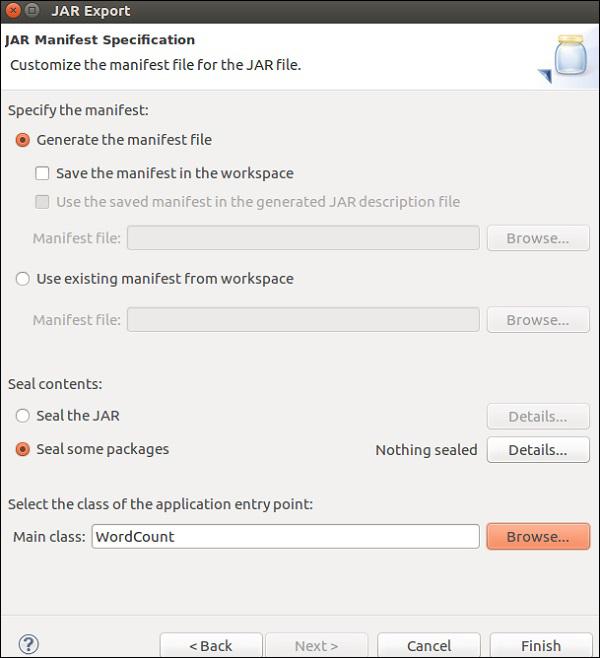

Click on Browse, select the main class (WordCount) and click Finish.

Click Finish

Note − Click OK, in case you get any warning.

Run the below command. It will further run the Flink application you just created.

./bin/flink run /home/ubuntu/wordcount.jar --input README.txt --output /home/ubuntu/output
Get Warning
