TreeMap is a visual representation of a data tree, where each node may have zero or more children, and one parent (except for the root). Each node is displayed as a rectangle, can be sized and colored according to values that we assign. Sizes and colors are valued relative to all other nodes in the graph. Following is an example of a treemap chart.

We have already seen the configurations used to draw a chart in Google Charts Configuration Syntax chapter. Now, let us see an example of a TreeMap Chart.

Configurations

We've used TreeMap class to show a TreeMap chart.

type = 'TreeMap';

Example

app.component.ts

import { Component } from '@angular/core';
@Component({
   selector: 'app-root',
   templateUrl: './app.component.html',
   styleUrls: ['./app.component.css']
})
export class AppComponent {
   title = '';
   type='TreeMap';
   data = [
      ["Global",null,0,0],
      ["America","Global",0,0],
      ["Europe","Global",0,0],
      ["Asia","Global",0,0],
      ["Australia","Global",0,0],
      ["Africa","Global",0,0],

      ["USA","America",52,31],
      ["Mexico","America",24,12],
      ["Canada","America",16,-23],

      ["France","Europe",42,-11],
      ["Germany","Europe",31,-2],
      ["Sweden","Europe",22,-13],

      ["China","Asia",36,4],
      ["Japan","Asia",20,-12],
      ["India","Asia",40,63],

      ["Egypt","Africa",21,0],
      ["Congo","Africa",10,12],
      ["Zaire","Africa",8,10],

   ];
   columnNames = ["Location", "Parent","Market trade volume (size)","Market increase/decrease (color)"];
   options = {
      minColor:"#ff7777",
      midColor:'#ffff77',
      maxColor:'#77ff77',
      headerHeight:15,
      showScale:true
   };
   width = 550;
   height = 400;
}

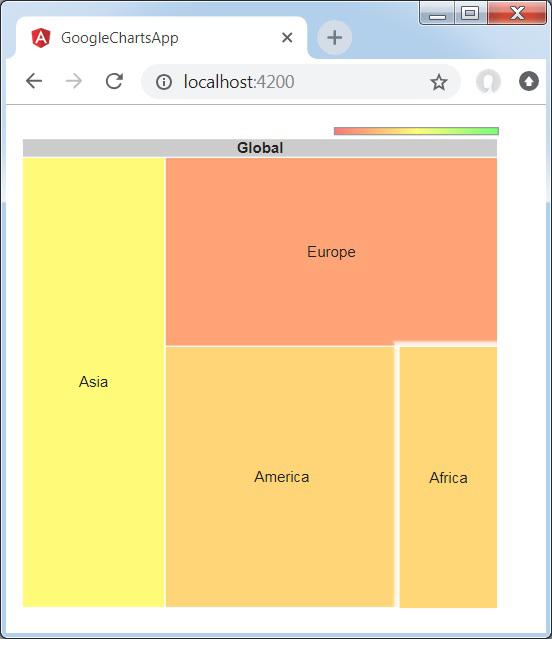

Result

Verify the result.

TreeMap Chart
