XSD - Quick Guide

XSD - Overview

XML Schema Definition, commonly known as XSD, is a way to describe precisely the XML language. XSD checks the validity of structure and vocabulary of an XML document against the grammatical rules of the appropriate XML language.

An XML document can be defined as −

• Well-formed − If the XML document adheres to all the general XML rules such as tags must be properly nested, opening and closing tags must be balanced, and empty tags must end with '/>', then it is called as well-formed.

  OR

• Valid − An XML document said to be valid when it is not only well-formed, but it also conforms to available XSD that specifies which tags it uses, what attributes those tags can contain, and which tags can occur inside other tags, among other properties.

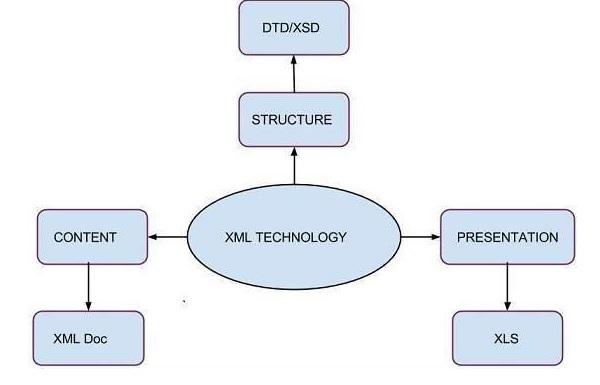

The following diagram shows how XSD is used to structure XML documents −

Here is a simple XSD code. Take a look at it.

<?xml version = "1.0"?>

<xs:schema xmlns:xs = "http://www.w3.org/2001/XMLSchema">
   targetNamespace = "http://www.howcodex.com"
   xmlns = "http://www.howcodex.com"
   elementFormDefault = "qualified">

   <xs:element name = 'class'>
      <xs:complexType>
         <xs:sequence>
            <xs:element name = 'student' type = 'StudentType' minOccurs = '0'
               maxOccurs = 'unbounded' />
         </xs:sequence>
      </xs:complexType>
   </xs:element>

   <xs:complexType name = "StudentType">
      <xs:sequence>
         <xs:element name = "firstname" type = "xs:string"/>
         <xs:element name = "lastname" type = "xs:string"/>
         <xs:element name = "nickname" type = "xs:string"/>
         <xs:element name = "marks" type = "xs:positiveInteger"/>
      </xs:sequence>
      <xs:attribute name = 'rollno' type = 'xs:positiveInteger'/>
   </xs:complexType>

</xs:schema>

Features

Here is a list of some of the popular features of XSD −

• XSDs can be extensible for future additions.
• XSD is richer and more powerful than DTD.
• XSD is written in XML.
• XSD supports data types.
• XSD supports namespaces.
• XSD is W3C recommendation.

XSD Syntax

An XML XSD is kept in a separate document and then the document can be linked to an XML document to use it.

Syntax

The basic syntax of a XSD is as follows −

<?xml version = "1.0"?>

<xs:schema xmlns:xs = "http://www.w3.org/2001/XMLSchema">
   targetNamespace = "http://www.howcodex.com"
   xmlns = "http://www.howcodex.com" elementFormDefault = "qualified">

   <xs:element name = 'class'>
      <xs:complexType>
         <xs:sequence>
            <xs:element name = 'student' type = 'StudentType' minOccurs = '0'
               maxOccurs = 'unbounded' />
         </xs:sequence>
      </xs:complexType>
   </xs:element>

   <xs:complexType name = "StudentType">
      <xs:sequence>
         <xs:element name = "firstname" type = "xs:string"/>
         <xs:element name = "lastname" type = "xs:string"/>
         <xs:element name = "nickname" type = "xs:string"/>
         <xs:element name = "marks" type = "xs:positiveInteger"/>
      </xs:sequence>
      <xs:attribute name = 'rollno' type = 'xs:positiveInteger'/>
   </xs:complexType>

</xs:schema>

<Schema> Element

Schema is the root element of XSD and it is always required.

<xs:schema xmlns:xs = "http://www.w3.org/2001/XMLSchema">

The above fragment specifies that elements and datatypes used in the schema are defined in http://www.w3.org/2001/XMLSchema namespace and these elements/data types should be prefixed with xs. It is always required.

targetNamespace = "http://www.howcodex.com"

The above fragment specifies that elements used in this schema are defined in http://www.howcodex.com namespace. It is optional.

xmlns = "http://www.howcodex.com"

The above fragment specifies that default namespace is http://www.howcodex.com.

elementFormDefault = "qualified"

The above fragment indicates that any elements declared in this schema must be namespace qualified before using them in any XML Document.It is optional.

Referencing Schema

Take a look at the following Referencing Schema −

<?xml version = "1.0"?>

<class xmlns = "http://www.howcodex.com"
   xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation = "http://www.howcodex.com student.xsd">

   <student rollno = "393">
      <firstname>Dinkar</firstname>
      <lastname>Kad</lastname>
      <nickname>Dinkar</nickname>
      <marks>85</marks>
   </student>

   <student rollno = "493">
      <firstname>Vaneet</firstname>
      <lastname>Gupta</lastname>
      <nickname>Vinni</nickname>
      <marks>95</marks>
   </student>

   <student rollno = "593">
      <firstname>Jasvir</firstname>
      <lastname>Singh</lastname>
      <nickname>Jazz</nickname>
      <marks>90</marks>
   </student>
</class>

xmlns = "http://www.howcodex.com"

The above fragment specifies default namespace declaration. This namespace is used by the schema validator check that all the elements are part of this namespace. It is optional.

xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation = "http://www.howcodex.com student.xsd">

After defining the XMLSchema-instance xsi, use schemaLocation attribute. This attribute has two values, namespace and location of XML Schema, to be used separated by a space. It is optional.

XSD - Validation

We'll use Java based XSD validator to validate students.xml against the students.xsd.

students.xml

<?xml version = "1.0"?>

<class>
   <student rollno = "393">
      <firstname>Dinkar</firstname>
      <lastname>Kad</lastname>
      <nickname>Dinkar</nickname>
      <marks>85</marks>
   </student>

   <student rollno = "493">
      <firstname>Vaneet</firstname>
      <lastname>Gupta</lastname>
      <nickname>Vinni</nickname>
      <marks>95</marks>
   </student>

   <student rollno = "593">
      <firstname>Jasvir</firstname>
      <lastname>Singh</lastname>
      <nickname>Jazz</nickname>
      <marks>90</marks>
   </student>
</class>

students.xsd

<?xml version = "1.0"?>

<xs:schema xmlns:xs = "http://www.w3.org/2001/XMLSchema">
   <xs:element name = 'class'>
      <xs:complexType>
         <xs:sequence>
             <xs:element name = 'student' type = 'StudentType' minOccurs = '0'
                maxOccurs = 'unbounded' />
         </xs:sequence>
      </xs:complexType>
   </xs:element>

   <xs:complexType name = "StudentType">
      <xs:sequence>
         <xs:element name = "firstname" type = "xs:string"/>
         <xs:element name = "lastname" type = "xs:string"/>
         <xs:element name = "nickname" type = "xs:string"/>
         <xs:element name = "marks" type = "xs:positiveInteger"/>
      </xs:sequence>
      <xs:attribute name = 'rollno' type = 'xs:positiveInteger'/>
   </xs:complexType>
</xs:schema>

XSDValidator.java

import java.io.File;
import java.io.IOException;

import javax.xml.XMLConstants;
import javax.xml.transform.stream.StreamSource;

import javax.xml.validation.Schema;
import javax.xml.validation.SchemaFactory;
import javax.xml.validation.Validator;

import org.xml.sax.SAXException;

public class XSDValidator {
   public static void main(String[] args) {
      if(args.length !=2){
         System.out.println("Usage : XSDValidator <file-name.xsd> <file-name.xml>" );
      } else {
         boolean isValid = validateXMLSchema(args[0],args[1]);

         if(isValid){
            System.out.println(args[1] + " is valid against " + args[0]);
         } else {
            System.out.println(args[1] + " is not valid against " + args[0]);
         }
      }
   }

   public static boolean validateXMLSchema(String xsdPath, String xmlPath){
      try {
         SchemaFactory factory =
            SchemaFactory.newInstance(XMLConstants.W3C_XML_SCHEMA_NS_URI);
            Schema schema = factory.newSchema(new File(xsdPath));
            Validator validator = schema.newValidator();
            validator.validate(new StreamSource(new File(xmlPath)));
      } catch (IOException e){
         System.out.println("Exception: "+e.getMessage());
         return false;
      } catch(SAXException e1){
         System.out.println("SAX Exception: "+e1.getMessage());
         return false;
      }

      return true;
   }
}

Steps to validate XML against XSD

• Copy the XSDValidator.java file to any location, say E: > java

• Copy the students.xml to same location E: > java

• Copy the students.xsd to same location E: > java

• Compile XSDValidator.java using console. Make sure you have JDK 1.5 onwards installed on your machine and classpaths are configured. For details on how to use JAVA, see JAVA Tutorial

E:\java\javac XSDValidator.java

• Execute XSDValidator with students.xsd and students.xml passed as argument.

E:\java\java XSDValidator students.xsd students.xml

Verify the output

You'll see the following result −

students.xml is valid against students.xsd

XSD - Simple Types

In this chapter, we'll see Simple Types that XSD defines.

XSD - Complex Types

Complex Element is an XML element which can contain other elements and/or attributes. We can create a complex element in two ways −

• Define a complex type and then create an element using the type attribute

• Define a complex type directly by naming

Define a Complex Type and then create an element using type attribute.

<xs:complexType name = "StudentType">
   <xs:sequence>
      <xs:element name = "firstname" type = "xs:string"/>
      <xs:element name = "lastname" type = "xs:string"/>
      <xs:element name = "nickname" type = "xs:string"/>
      <xs:element name = "marks" type = "xs:positiveInteger"/>
   </xs:sequence>
   <xs:attribute name = 'rollno' type = 'xs:positiveInteger'/>
</xs:complexType>

<xs:element name = 'student' type = 'StudentType' />

Define a Complex Type directly by naming.

<xs:element name = "student">
   <xs:complexType>
      <xs:sequence>
         <xs:element name = "firstname" type = "xs:string"/>
         <xs:element name = "lastname" type = "xs:string"/>
         <xs:element name = "nickname" type = "xs:string"/>
         <xs:element name = "marks" type = "xs:positiveInteger"/>
      </xs:sequence>
   <xs:attribute name = 'rollno' type = 'xs:positiveInteger'/>
   </xs:complexType>
<xs:element>

Following is the list of Complex Types that XSD supports.

XSD - String

String data types are used to represent characters in the XML documents.

<xs:string> data type

The <xs:string> data type can take characters, line feeds, carriage returns, and tab characters. The XML processor does not replace line feeds, carriage returns, and tab characters in the content with space and keep them intact. For example, multiple spaces or tabs are preserved during display.

<xs:string> Example

Element declaration in xsd −

<xs:element name = "name" type = "xs:string"/>

Element usage in xml −

<name>Dinkar</name>
<name>Dinkar    Kad</name>

<xs:token> data type

The <xs:token> data type is derived from <string> data type and can take characters, line feeds, carriage returns, and tab characters. XML processor will remove line feeds, tabs, carriage returns, leading and trailing spaces, and multiple spaces.

<xs:token> Example

Element declaration in xsd −

<xs:element name = "name" type = "xs:token"/>

Element usage in xml −

<name>Dinkar</name>
<name>Dinkar    Kad</name>

String Data Types

Following is the list of commonly used data types which are derived from <string> data type.

Restrictions

Following types of restrictions can be used with String data types −

• enumeration
• length
• maxLength
• minLength
• pattern
• whiteSpace

XSD - Date Time

Date and Time data types are used to represent date and time in the XML documents.

<xs:date> data type

The <xs:date> data type is used to represent date in YYYY-MM-DD format.

• YYYY − represents year

• MM − represents month

• DD − represents day

<xs:date> Example

Element declaration in XSD −

<xs:element name = "birthdate" type = "xs:date"/>

Element usage in XML −

<birthdate>1980-03-23</birthdate>

<xs:time> data type

The <xs:time> data type is used to represent time in hh:mm:ss format.

• hh − represents hours

• mm − represents minutes

• ss − represents seconds

<xs:time> Example

Element declaration in XSD −

<xs:element name = "startTime" type = "xs:time"/>

Element usage in XML −

<startTime>10:20:15</startTime>

<xs:datetime> data type

The <xs:datetime> data type is used to represent date and time in YYYY-MM-DDThh:mm:ss format.

• YYYY − represents year

• MM − represents month

• DD − represents day

• T − represents start of time section

• hh − represents hours

• mm − represents minutes

• ss − represents seconds

<xs:datetime> Example

Element declaration in XSD −

<xs:element name = "startTime" type = "xs:datetime"/>

Element usage in XML −

<startTime>1980-03-23T10:20:15</startTime>

<xs:duration> data type

The <xs:duration> data type is used to represent time interval in PnYnMnDTnHnMnS format. Each component is optional except P.

• P − represents start of date section

• nY − represents year

• nM − represents month

• nD − represents day

• T − represents start of time section

• nH − represents hours

• nM − represents minutes

• nS − represents seconds

<xs:duration> Example

Element declaration in XSD −

<xs:element name = "period" type = "xs:duration"/>

Element usage in xml to represent period of 6 years, 3 months, 10 days and 15 hours.

<period>P6Y3M10DT15H</period>

Date Data Types

Following is the list of commonly used date data types.

Restrictions

Following types of restrictions can be used with Date data types −

• enumeration
• maxExclusive
• maxInclusive
• minExclusive
• minInclusive
• pattern
• whiteSpace

XSD - Numeric Data Types

Numeric data types are used to represent numbers in XML documents.

<xs:decimal> data type

The <xs:decimal> data type is used to represent numeric values. It supports decimal numbers up to 18 digits.

<xs:decimal> Example

Element declaration in XSD −

<xs:element name = "score" type = "xs:decimal"/>

Element usage in XML −

<score>9.12</score>

<xs:integer> data type

The <xs:integer> data type is used to represent integer values.

<xs:integer> Example

Element declaration in XSD −

<xs:element name = "score" type = "xs:integer"/>

Element usage in XML −

<score>9</score>

Numeric Data Types

Following is the list of commonly used numeric data types.

Restrictions

Following types of restrictions can be used with Date data types −

• enumeration
• fractionDigits
• maxExclusive
• maxInclusive
• minExclusive
• minInclusive
• pattern
• totalDigits
• whiteSpace

XSD - Miscellaneous Data Types

XSD has a few other important data types, such as Boolean, binary, and anyURI.

<xs:boolean> data type

The <xs:boolean> data type is used to represent true, false, 1 (for true) or 0 (for false) value.

<xs:boolean> Example

Element declaration in XSD −

<xs:element name = "pass" type = "xs:boolean"/>

Element usage in XML −

<pass>false</pass>

Binary data types

The Binary data types are used to represent binary values. Two binary types are common in use.

• base64Binary − represents base64 encoded binary data

• hexBinary − represents hexadecimal encoded binary data

<xs:hexbinary> Example

Element declaration in XSD −

<xs:element name = "blob" type = "xs:hexBinary"/>

Element usage in XML −

<blob>9FEEF</blob>

<xs:anyURI> data type

The <xs:anyURI> data type is used to represent URI.

<xs:anyURI> Example

Element declaration in XSD −

<xs:attribute name = "resource" type = "xs:anyURI"/>

Element usage in XML −

<image resource = "http://www.howcodex.com/images/smiley.jpg" />

Numeric Data Types

Following is the list of commonly used numeric data types.

Restrictions

Following types of restrictions can be used with Miscellaneous data types except on boolean data type −

• enumeration
• length
• maxLength
• minLength
• pattern
• whiteSpace
