XAML - Event Handling

The general concept of events in XAML is similar to events in other popular programming languages such as .NET and C++. In XAML, all of the controls expose some events so that they can be subscribed for specific purposes.

Whenever an event takes place, the application will be notified and the program can react to them, e.g., close buttons are used to close a dialog.

There are many types of events that can be subscribed for different behaviors of an application based on the requirement of that application, but the most commonly used events are those which are related to mouse and keyboard such as,

• Click
• MouseDown
• MouseEnter
• MouseLeave
• MouseUp
• KeyDown
• KeyUp

In this chapter, we will use some of the basic and most commonly used events to understand how an event of a specific control can be linked to the code behind where the behavior will be implemented depending on what the user wants to do when a specific event occurs.

Let’s have a look at a simple example of a button click event. Given below is the XAML implementation for Button control which is created and initialized with some properties and a Click event (Click="OnClick").

<Window x:Class = "XAMLEventHandling.MainWindow"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   Title = "MainWindow" Height = "350" Width = "604">

   <Grid>
      <Button x:Name = "button1" Content = "Click" Click = "OnClick"
         Width = "150" Height = "30" HorizontalAlignment = "Center" />
   </Grid>

</Window>

Whenever this button is clicked, it will fire an OnClick event and you can add any type of behavior as a response to the Click. Let’s have a look at the OnClick event implementation which will show a message when this button is clicked.

using System;
using System.Windows;
using System.Windows.Controls;

namespace XAMLEventHandling {
   /// <summary>
      /// Interaction logic for MainWindow.xaml
   /// </summary>

   public partial class MainWindow : Window {
      public MainWindow() {
         InitializeComponent();
      }
      private void OnClick(object sender, RoutedEventArgs e) {
         MessageBox.Show("Button is clicked!");
      }
   }
}

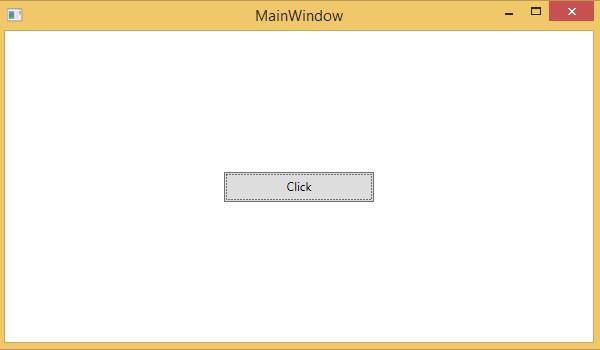

When you compile and execute the above code, it will produce the following output −

When you click on the button, the click (OnClick) event will be fired and the following message will be displayed.

Now let’s have a look at a little bit complex example where multiple events are handled.

Example

The following example contains a textbox with ContextMenu which manipulates the text within the textbox.

The following XAML code creates a TextBox, a ContextMenu, and MenuItems with some properties and events such as Checked, Unchecked, and Click.

<Window x:Class = "XAMLContextMenu.MainWindow"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   Title = "MainWindow" Height = "350" Width = "604">

   <Grid>
      <TextBox Name = "textBox1" TextWrapping = "Wrap" Margin = "10" Grid.Row = "7">
         Hi, this is XAML tutorial.
         <TextBox.ContextMenu>

            <ContextMenu>
               <MenuItem Header = "_Bold" IsCheckable = "True"
                  Checked = "Bold_Checked" Unchecked = "Bold_Unchecked" />
               <MenuItem Header = "_Italic" IsCheckable = "True"
                  Checked = "Italic_Checked" Unchecked = "Italic_Unchecked" />
               <Separator />
               <MenuItem Header = "Increase Font Size" Click = "IncreaseFont_Click" />
               <MenuItem Header = "_Decrease Font Size" Click = "DecreaseFont_Click" />
            </ContextMenu>

         </TextBox.ContextMenu>
      </TextBox>
   </Grid>

</Window>

Here is the implementation in C# for the different events which will be fired whenever a menu item is checked, unchecked, or clicked.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;

namespace XAMLContextMenu {
   /// <summary>
      /// Interaction logic for MainWindow.xaml
   /// </summary>

   public partial class MainWindow : Window {
      public MainWindow() {
         InitializeComponent();
      }
      private void Bold_Checked(object sender, RoutedEventArgs e) {
         textBox1.FontWeight = FontWeights.Bold;
      }
      private void Bold_Unchecked(object sender, RoutedEventArgs e) {
         textBox1.FontWeight = FontWeights.Normal;
      }
      private void Italic_Checked(object sender, RoutedEventArgs e) {
         textBox1.FontStyle = FontStyles.Italic;
      }
      private void Italic_Unchecked(object sender, RoutedEventArgs e) {
         textBox1.FontStyle = FontStyles.Normal;
      }
      private void IncreaseFont_Click(object sender, RoutedEventArgs e) {
         if (textBox1.FontSize < 18) {
            textBox1.FontSize += 2;
         }
      }
      private void DecreaseFont_Click(object sender, RoutedEventArgs e) {
         if (textBox1.FontSize > 10) {
            textBox1.FontSize -= 2;
         }
      }
   }
}

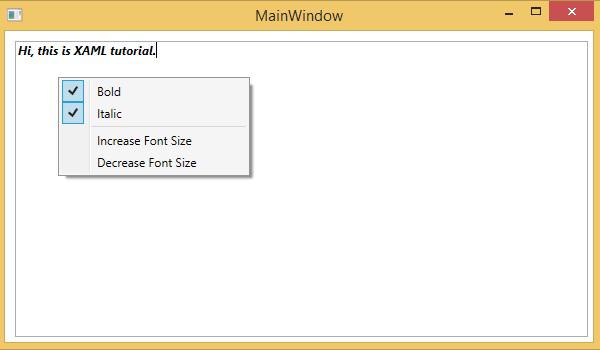

When you compile and execute the above code, it will produce the following output −

We recommend you to execute the above example code and experiment with some other events.
