Telecom Billing - Invoice Generation


Advertisements

Most of the billing systems generate structured ASCII text containing the information content of the bill. The bill data for each bill is written initially to either database or flat text files. The format of the data at this stage is the same, regardless of how the data is to be processed.

This bill data can then be processed by one of a number of formatting engines to produce output in the desired form. For example, paper, CD-ROM, etc.

There are Billing Systems available, which provide internal Bill Formatting tools. If a billing system does not provide capable tool to generate formatted bills, then there are third party tools available like DOC1, which is one of the most commonly used tools.

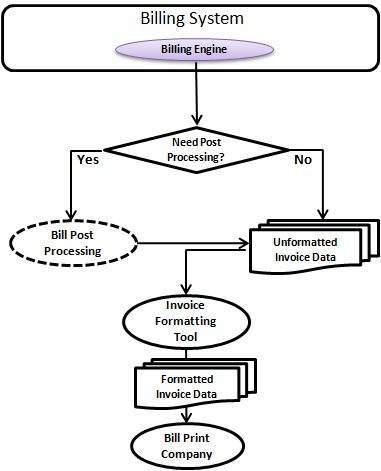

Here is a typical diagram showing the flow of bill formatting −

Bill Formatting

Following is the snapshot of a bill data taken from Convergy's Infinys Billing System −

DOCSTART_85
DOCTYPE BILL
GENEVAVERSION 5.0
BILLSTYLE 1
BILLTYPE 1
BILLTEMPLATE 85
BILLSEQ 1
BILLVERSION 1
ACCCURRENCYCODE BEF
BILLLANGID 2
BILLLANGNAME English (US)
BILLLANGLOCALE us
PAYMETHODID 1
FORMATREQ A30001001/0001
COPYBILLNUM 0
BILLPURPOSE 1
ADDRESSNAME Dr D Jackson
POSITION Project Manager
DEPARTMENT Recruitment
ADDRESS1 12 South Street
ADDRESS2 Detroit
ADDRESS3 Michigan
ZIPCODE 12345
COUNTRY United States
BSTARTACCFADDR
ACCFADDR_1 United States
ACCFADDR_2 Michigan
ACCFADDR_3 12345
ACCFADDR_4 12 South Street
ACCFADDR_5 Detroit
ACCFADDR_6 Dr D Jackson
BENDACCFADDR
CUSTOMERREF C30001
CUSTOMERTYPE Standard
ACCTAXSTATUS Exclusive
INVOICINGCONAME Invoicing company for English (US)
INVOICINGCOADDRESS1 Company House
INVOICINGCOADDRESS2 Atlanta
INVOICINGCOVATREG taxref000576
ACCOUNTNO A30001001
BENDBFPAYSUMMARY
BALOUT 0.00
CHARGES 142.00
NEWBAL 142.00
BSTARTBFPAYDETAILS
ACCDEPPREVTOT 0.00
ACCDEPCHANGE 0.00
ACCDEPCURRTOT 0.00
BENDBFPAYDETAILS
BENDBFSTATEMENT
BILLREF A30001001@0001
BILLDATE 02/20/99
NEXTBILLDATE 03/20/99
BSTARTPAYMENTDUEINFO
PAYMENTDUEDATE 03/04/99
DEBTSTARTDATE 02/25/99
PAYMENTTERMDESC Payment due 7 days after the bill date
PAYMENTDUEDAYS 7
BENDPAYMENTDUEINFO
GIROREF 34
GIROACCOUNT 404 7800
OCRREF 1300010019
OCRSORTCODE V6344047800
GIROAMOUNT 142.00
OCRAMOUNT 000142000
INVOICEACTUALDATE 02/25/99
INVOICETAXDATE 02/25/99
INVOICESTART 01/03/99
INVOICEEND 02/19/99
TAXTYPE 1,2.00,
TENDTAXTYPE
INVTOTALTAX 2.00
BENDTAXDETAILS
INVTOTAL 142.00
INVTOTALROUNDED 142.00
TOTALSAVE -11.00
PERIODEND 02/25/99
POINTSBALANCE 0
POINTSEARNED 0
POINTSREDEEMED 0
POINTSADJUST 0
NEWPOINTSBALANCE 0
DOCEND

Bill data consists of succession of lines of ASCII text. Each line takes the form −

TAGNAME tagvalue

TAGNAME and tag value are separated by a tag separator (tagsep) of a space. The tagvalue can be either a single value or a list of values separated by delimiters (sep). The delimiter used is a comma unless specified.

Bill Post Processor

A Billing Engine may not be able to generate all the information required in the bill or there may be a requirement to perform some special calculation on the data provided in the invoice. This is called Bill Post Processing and usually done by a custom component called Bill Post Processor (BPP).

A BPP can be written in your preferred programming language, which reads a raw invoice file and performs required modification into this file before passing it for the final formatting.

There is none billing systems available which provide out-of-the-box BPP functionality because requirements vary operator to operator and this process can not be standardized. At most, billing system can provide a plug-in point to plug your custom BPP along with Billing Engine.

DOC1 Bill Formatter

DOC1 is very famous Bill Formatter tool available from PitneyBowes Company, which helps in bill formatting into PDF or Post Script files.

As mentioned above, the output of the Billing Engine is structured ASCII text containing the information content of the bill. A mapping is established between source invoice file tags generated by the billing system and tags required by DOC1. DOC1 requires fixed length tags as shown below.

The following is a hypothetical sample from the invoice file provided −

ACCOUNTNO ACC0010000
ACCUMBONUSPOINTS_1 BON0050100
ACCUMBONUSPOINTS_2 BON0050100
ACCUMBONUSPOINTS_3 BON0050100
ACCUMBONUSPOINTS_4 BON0050100
ACCUMBONUSPOINTS_5 BON0050100
ADDRESS1 ACC0030000
ADDRESS2 ACC0040000
ADDRESS3 ACC0050000
ADDRESS4 ACC0060000
ADDRESS5 ACC0070000
ADDRESSNAME ACC0020000
BUSINESSNAME ACC0120000
TSTARTADJ ADJ0000000
..........

Now using the above translations, a final file would be generated for DOC1 and DOC1 will take care of generating final invoice using the information provided.

Some modifications can also be performed at DOC1 level, but it does not provide much flexibility to modify the invoice. You can try latest version, which can help you much more the expectations.

Final Invoice Generation

Once all the accounts are billed and invoices are formatted using either internal or external bill formatter, these invoices are sent to the Bill Print Company for final printing.

If an operator is using Electronic e-mail facility to send a bill to their customer, then a copy of the same bill can be sent to e-mail system to send it to the end customer.

Tier 1 operators (having 20-30 million or more customer base) usually outsource this task including bill distribution.

What is Next?

After generating invoices, they are sent to the end customers. Now, it is time to collect revenue from the customer. We would discuss revenue collection process after one chapter.

Before we proceed further, let us cover Credit Control Part, which is very important and should be covered before revenue collection.
