SymPy - Plotting


Advertisements

SymPy uses Matplotlib library as a backend to render 2-D and 3-D plots of mathematical functions. Ensure that Matplotlib is available in current Python installation. If not, install the same using following command −

pip install matplotlib

Plotting support is defined in sympy.plotting module. Following functions are present in plotting module −

  • plot − 2D line plots

  • plot3d − 3D line plots

  • plot_parametric − 2D parametric plots

  • plot3d_parametric − 3D parametric plots

The plot() function returns an instance of Plot class. A plot figure may have one or more SymPy expressions. Although it is capable of using Matplotlib as backend, other backends such as texplot, pyglet or Google charts API may also be used.

plot(expr, range, kwargs)

where expr is any valid symPy expression. If not mentioned, range uses default as (-10, 10).

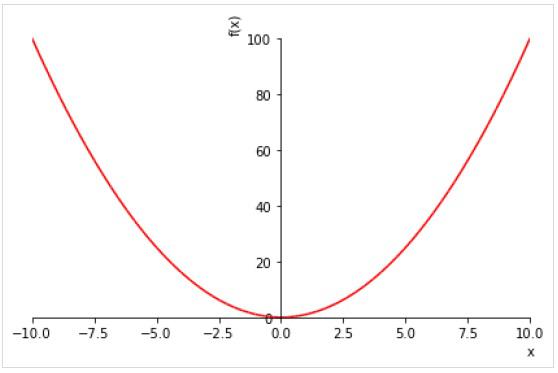

Following example plots values of x2 for each value in range(-10,10) −

>>> from sympy.plotting import plot
>>> from sympy import *
>>> x=Symbol('x')
>>> plot(x**2, line_color='red')
Range Tuple

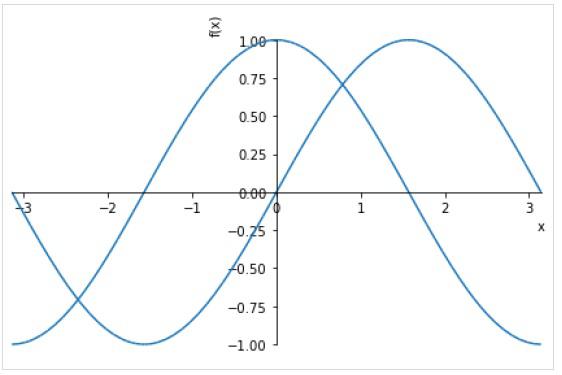

To draw multiple plots for same range, give multiple expressions prior to the range tuple.

>>> plot( sin(x),cos(x), (x, -pi, pi))
Separate Range

You can also specify separate range for each expression.

plot((expr1, range1), (expr2, range2))

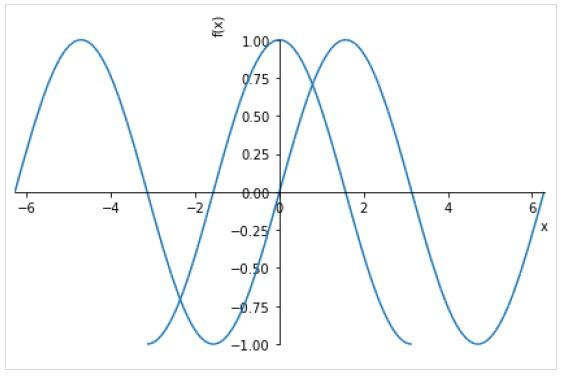

Following figure plots sin(x) and cos(x) over different ranges.

>>> plot( (sin(x),(x, -2*pi, 2*pi)),(cos(x), (x, -pi, pi)))
Plot Function

Following optional keyword arguments may be specified in plot() function.

  • line_color − specifies color of the plot line.

  • title − a string to be displayed as title

  • xlabel − a string to be displayed as label for X axis

  • ylabel − a string to be displayed as label for y axis

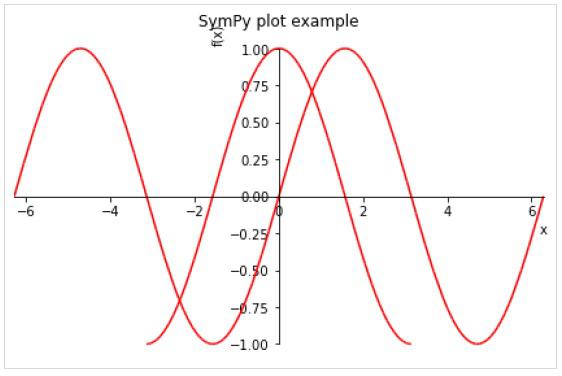

>>> plot( (sin(x),(x, -2*pi, 2*pi)),(cos(x), (x, -pi, pi)), line_color='red', title='SymPy plot example')
Three Dimensional Plot

The plot3d() function renders a three dimensional plot.

plot3d(expr, xrange, yrange, kwargs)

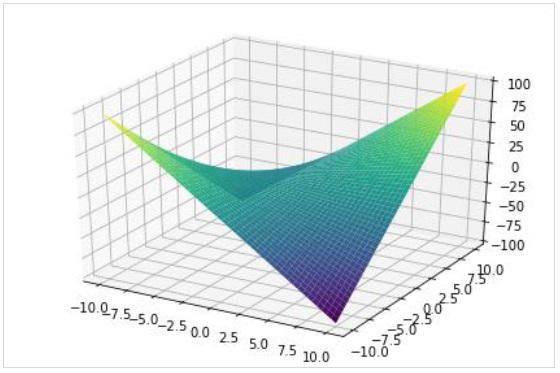

Following example draws a 3D surface plot −

>>> from sympy.plotting import plot3d
>>> x,y=symbols('x y')
>>> plot3d(x*y, (x, -10,10), (y, -10,10))
2D Plot

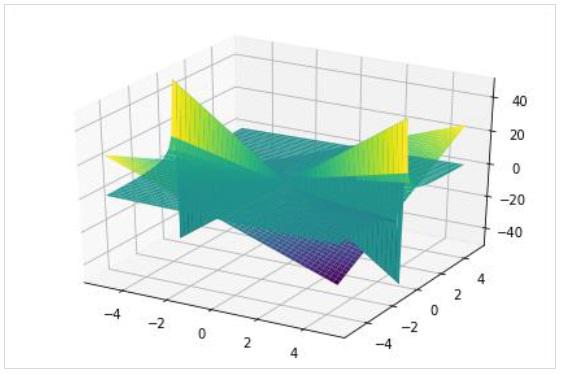

As in 2D plot, a three dimensional plot can also have multiple plots each with different range.

>>> plot3d(x*y, x/y, (x, -5, 5), (y, -5, 5))
3 Dimensional Parametric Line Plot

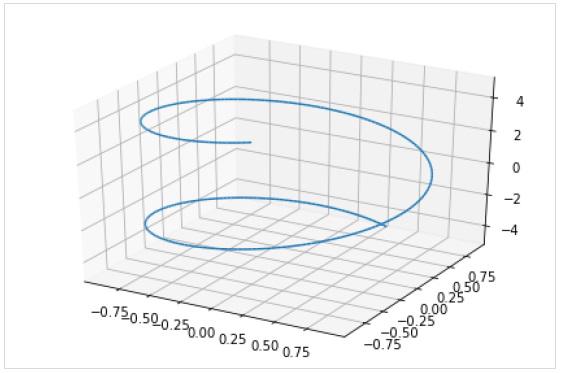

The plot3d_parametric_line() function renders a 3 dimensional parametric line plot.

>>> from sympy.plotting import plot3d_parametric_line
>>> plot3d_parametric_line(cos(x), sin(x), x, (x, -5, 5))
Parametric Surface Plot

To draw a parametric surface plot, use plot3d_parametric_surface() function.

plot3d_parametric_surface(xexpr, yexpr, zexpr, rangex, rangey, kwargs)

>>> from sympy.plotting import plot3d_parametric_surface
>>> plot3d_parametric_surface(cos(x+y), sin(x-y), x-y, (x, -5, 5), (y, -5, 5))
Plot 3D Parametric Surface Function
