Struts 2 - Database Access

Create Action

The action class has the properties corresponding to the columns in the database table. We have user, password and name as String attributes. In the action method, we use the user and password parameters to check if the user exists, if so, we display the user name in the next screen.

If the user has entered wrong information, we send them to the login screen again.

Following is the content of LoginAction.java file −

package com.howcodex.struts2;

import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.PreparedStatement;
import java.sql.ResultSet;

import com.opensymphony.xwork2.ActionSupport;

public class LoginAction extends ActionSupport {

   private String user;
   private String password;
   private String name;

   public String execute() {
      String ret = ERROR;
      Connection conn = null;

      try {
         String URL = "jdbc:mysql://localhost/struts_tutorial";
         Class.forName("com.mysql.jdbc.Driver");
         conn = DriverManager.getConnection(URL, "root", "root123");
         String sql = "SELECT name FROM login WHERE";
         sql+=" user = ? AND password = ?";
         PreparedStatement ps = conn.prepareStatement(sql);
         ps.setString(1, user);
         ps.setString(2, password);
         ResultSet rs = ps.executeQuery();

         while (rs.next()) {
            name = rs.getString(1);
            ret = SUCCESS;
         }
      } catch (Exception e) {
         ret = ERROR;
      } finally {
         if (conn != null) {
            try {
               conn.close();
            } catch (Exception e) {
            }
         }
      }
      return ret;
   }

   public String getUser() {
      return user;
   }

   public void setUser(String user) {
      this.user = user;
   }

   public String getPassword() {
      return password;
   }

   public void setPassword(String password) {
      this.password = password;
   }

   public String getName() {
      return name;
   }

   public void setName(String name) {
      this.name = name;
   }
}

Create Main Page

Now, let us create a JSP file index.jsp to collect the username and password. This username and password will be checked against the database.

<%@ page language = "java" contentType = "text/html; charset = ISO-8859-1"
   pageEncoding = "ISO-8859-1"%>
<%@ taglib prefix = "s" uri = "/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
   "http://www.w3.org/TR/html4/loose.dtd">

<html>
   <head>
      <title>Login</title>
   </head>

   <body>
      <form action = "loginaction" method = "post">
         User:<br/><input type = "text" name = "user"/><br/>
         Password:<br/><input type = "password" name = "password"/><br/>
         <input type = "submit" value = "Login"/>
      </form>
   </body>
</html>

Create Views

Now let us create success.jsp file which will be invoked in case action returns SUCCESS, but we will have another view file in case of an ERROR is returned from the action.

<%@ page contentType = "text/html; charset = UTF-8" %>
<%@ taglib prefix = "s" uri = "/struts-tags" %>

<html>
   <head>
      <title>Successful Login</title>
   </head>

   <body>
      Hello World, <s:property value = "name"/>
   </body>
</html>

Following will be the view file error.jsp in case of an ERROR is returned from the action.

<%@ page contentType = "text/html; charset = UTF-8" %>
<%@ taglib prefix = "s" uri = "/struts-tags" %>

<html>
   <head>
      <title>Invalid User Name or Password</title>
   </head>

   <body>
      Wrong user name or password provided.
   </body>
</html>

Configuration Files

Finally, let us put everything together using the struts.xml configuration file as follows −

<?xml version = "1.0" Encoding = "UTF-8"?>
<!DOCTYPE struts PUBLIC
   "-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
   "http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>
   <constant name = "struts.devMode" value = "true" />
   <package name = "helloworld" extends = "struts-default">

      <action name = "loginaction"
         class = "com.howcodex.struts2.LoginAction"
         method = "execute">
         <result name = "success">/success.jsp</result>
         <result name = "error">/error.jsp</result>
      </action>

   </package>
</struts>

Following is the content of web.xml file −

<?xml version = "1.0" Encoding = "UTF-8"?>
<web-app xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
   xmlns = "http://java.sun.com/xml/ns/javaee"
   xmlns:web = "http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
   xsi:schemaLocation = "http://java.sun.com/xml/ns/javaee
   http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
   id = "WebApp_ID" version = "3.0">

   <display-name>Struts 2</display-name>

   <welcome-file-list>
      <welcome-file>index.jsp</welcome-file>
   </welcome-file-list>

   <filter>
      <filter-name>struts2</filter-name>
      <filter-class>
         org.apache.struts2.dispatcher.FilterDispatcher
      </filter-class>
   </filter>

   <filter-mapping>
      <filter-name>struts2</filter-name>
      <url-pattern>/*</url-pattern>
   </filter-mapping>
</web-app>

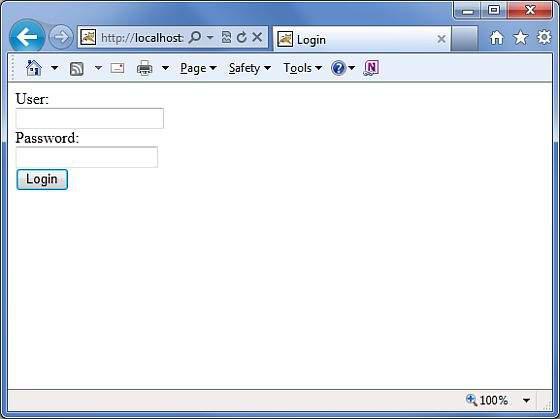

Now, right click on the project name and click Export > WAR File to create a War file. Then deploy this WAR in the Tomcat's webapps directory. Finally, start Tomcat server and try to access URL http://localhost:8080/HelloWorldStruts2/index.jsp. This will produce the following screen −

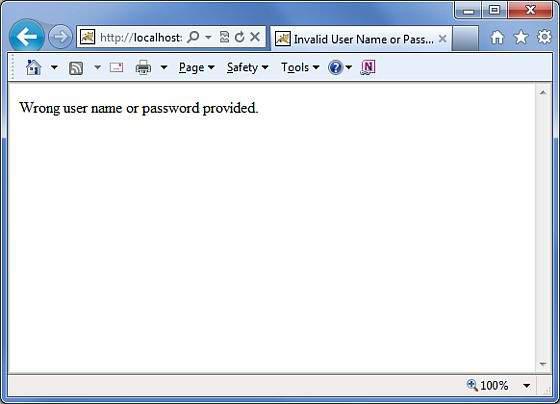

Enter a wrong user name and password. You should see the next page.

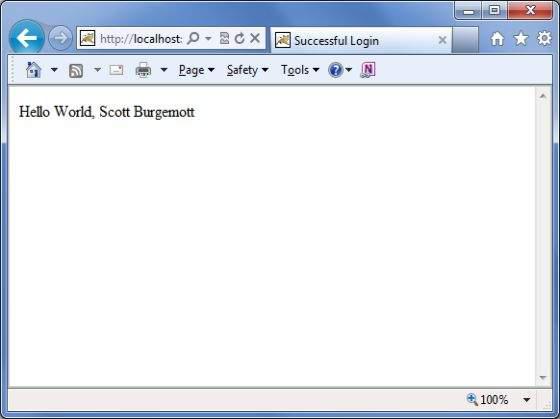

Now enter scott as user name and navy as password. You should see the next page.
