Spring MVC - Hidden Field Example

Step	Description
1	Create a project with a name HelloWeb under a package com.howcodex as explained in the Spring MVC - Hello World chapter.
2	Create Java classes Student, StudentController under the com.howcodex package.
3	Create view files student.jsp, result.jsp under the jsp sub-folder.
4	The final step is to create the content of the source and configuration files and export the application as explained below.

Student.java

package com.howcodex;

public class Student {
   private Integer age;
   private String name;
   private Integer id;

   public void setAge(Integer age) {
      this.age = age;
   }
   public Integer getAge() {
      return age;
   }

   public void setName(String name) {
      this.name = name;
   }
   public String getName() {
      return name;
   }

   public void setId(Integer id) {
      this.id = id;
   }
   public Integer getId() {
      return id;
   }
}

StudentController.java

package com.howcodex;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;
import org.springframework.ui.ModelMap;

@Controller
public class StudentController {

   @RequestMapping(value = "/student", method = RequestMethod.GET)
   public ModelAndView student() {
      return new ModelAndView("student", "command", new Student());
   }

   @RequestMapping(value = "/addStudent", method = RequestMethod.POST)
   public String addStudent(@ModelAttribute("SpringWeb")Student student,
      ModelMap model) {
      model.addAttribute("name", student.getName());
      model.addAttribute("age", student.getAge());
      model.addAttribute("id", student.getId());

      return "result";
   }
}

Here, for the first service method student(), we have passed a blank Studentobject in the ModelAndView object with the name "command", because the spring framework expects an object with the name "command", if you are using <form:form> tags in your JSP file. So, when the student() method is called, it returns the student.jsp view.

The second service method addStudent() will be called against a POST method on the HelloWeb/addStudent URL. You will prepare your model object based on the submitted information. Finally, a "result" view will be returned from the service method, which will result in rendering result.jsp

student.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Student Information</h2>
      <form:form method = "POST" action = "/HelloWeb/addStudent">
         <table>
            <tr>
              <td><form:label path = "name">Name</form:label></td>
              <td><form:input path = "name" /></td>
            </tr>
            <tr>
              <td><form:label path = "age">Age</form:label></td>
              <td><form:input path = "age" /></td>
            </tr>
            <tr>
              <td>< </td>
              <td><form:hidden path = "id" value = "1" /></td>
            </tr>
            <tr>
              <td colspan = "2">
                  <input type = "submit" value = "Submit"/>
              </td>
            </tr>
         </table>
      </form:form>
   </body>
</html>

Here, we are using the <form:hidden /> tag to render a HTML hidden field.

For example −

<form:hidden path = "id" value = "1"/>

It will render following HTML content.

<input id = "id" name = "id" type = "hidden" value = "1"/>

result.jsp

<%@taglib uri = "http://www.springframework.org/tags/form" prefix = "form"%>
<html>
   <head>
      <title>Spring MVC Form Handling</title>
   </head>
   <body>

      <h2>Submitted Student Information</h2>
      <table>
         <tr>
            <td>Name</td>
            <td>${name}</td>
         </tr>
         <tr>
            <td>Age</td>
            <td>${age}</td>
         </tr>
         <tr>
            <td>ID</td>
            <td>${id}</td>
         </tr>
      </table>
   </body>
</html>

Once you are done with creating source and configuration files, export your application. Right click on your application and use Export → WAR File option and save your HelloWeb.war file in Tomcat's webapps folder.

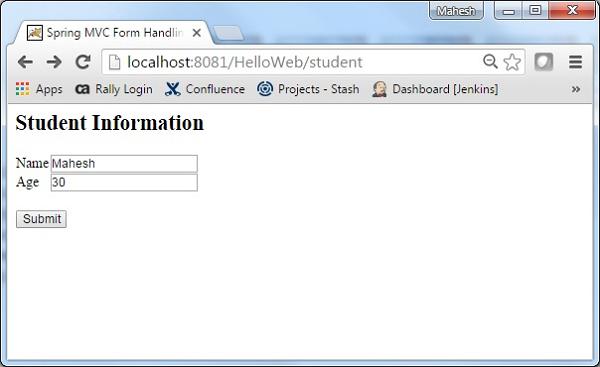

Now start your Tomcat server and make sure you are able to access other webpages from webapps folder using a standard browser. Try a URL – http://localhost:8080/HelloWeb/student and we will see the following screen, if everything is fine with the Spring Web Application.

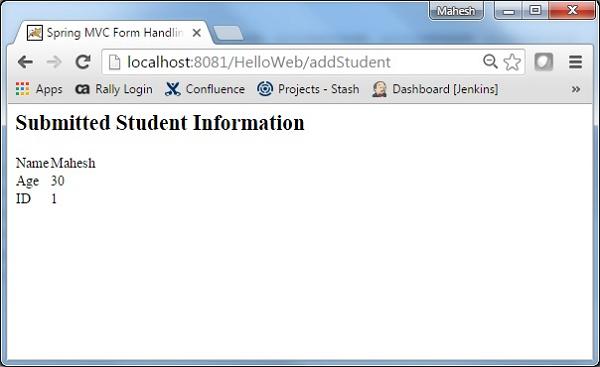

After submitting the required information, click on the submit button to submit the form. We will see the following screen, if everything is fine with your Spring Web Application.
