SAP Scripts - Control Commands


Advertisements

In SAPscript, you can use control commands to control the output formatting handled by the SAPscript composer. The composer converts the text from the form displayed in the editor to the form used for printing.

Control commands are placed in the text editor in the same way as the normal line of text. Following structure is used for control commands −

  • Control commands are entered in paragraph format /:

  • You should enter only one control command in each line.

  • Control commands are entered in text.

  • You have to ensure that Control Command and its parameters doesn’t take more than one line.

  • When a control command contains an error, the line containing the control command is considered as the comment line and it is not printed.

Following are the common Control commands that can be used in SAPscript −

Explicit Page Break: NEW-PAGE

You can use this control command to force a page break in the text at any point.

Example

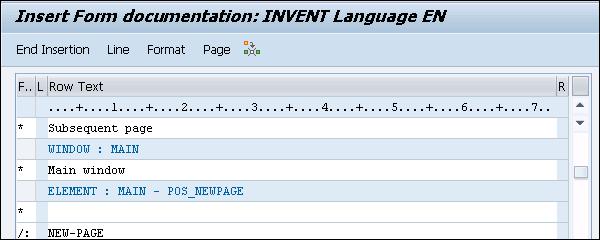

/: NEW-PAGE [page_name]

New Page

Note that there shouldn’t be any implicit page break occurrences within the blank lines, otherwise an unexpected blank page may be printed.

Preventing Page Breaks: PROTECT

With this page protect control command, you can print a complete paragraph on one page.

Main Window: NEW-WINDOW

This control command is used when one of the main window fills up. Then, the next main window on that page is taken.

Following are some other common Control commands that you can use in SAPscript for controlling the output −

  • SET DATE MASK − To format the Date Fields

  • DEFINE − To assign a Value to a Text Symbol

  • SET TIME MASK − To format Time Fields

  • SET COUNTRY − Country Dependent Formatting

  • SET SIGN − To position the Leading Sign

  • RESET − To initialize Numbered Paragraphs

  • TOP − To set a Header Text in the Main Window

  • BOTTOM − To set a Footer Text in the Main Window

  • IF − To add a conditional Text

  • STYLE − To change the Style

  • INCLUDE − To include other texts

Example

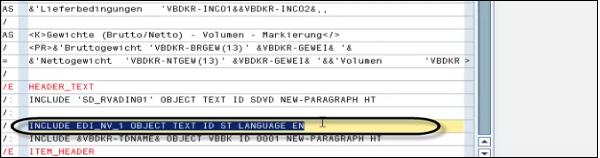

INCLUDE MYTEXT OBJECT TEXT ID ST

INCLUDE name OBJECT name ID name PARAGRAPH name LANGUAGE name

Main Window
