SAP Lumira - Connecting SAP HANA Views


Advertisements

You can connect to SAP HANA Modeling Views in SAP Lumira. This can be done in the following two ways −

  • Connect to SAP HANA
  • Download from SAP HANA

Connect to SAP HANA

step 1 − Go to File → New

Connect Sap Hana Step1

Step 2 − It will show you all the HANA Modeling Views that have been recently used. Click the Next command button after selecting the option "Connect to SAP HANA". This will allow you to access the data in read mode and you can visualize the data in the form of charts.

You should know the details of HANA system i.e. Host Name, Port Number, User Name and Password.

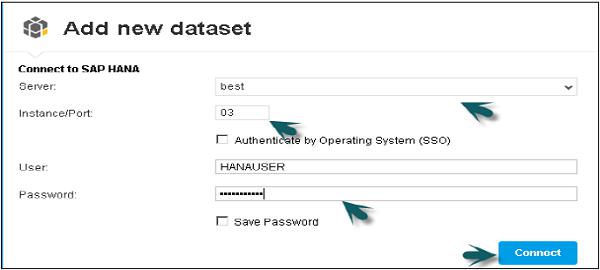

Step 3 − Click the Connect button.

Connect Sap Hana Step3

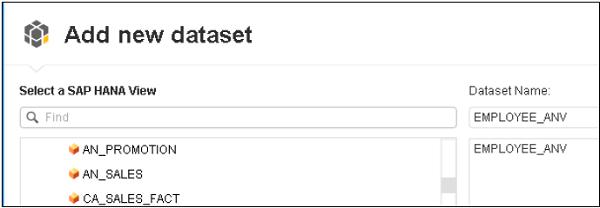

Step 4 − Select a SAP HANA view and then Click Next.

Connect Sap Hana Step4

Step 5 − Select Measures and Dimensions you want to add to the data set and click the Create option.

Connect Sap Hana Step5

Step 6 − The data will be added to the Prepare tab.
