SAP CCA - Overview

A Cost center is defined as a component in an organization that adds to the cost and indirectly adds to the profit of the organization. Examples include Marketing and Customer Service.

A company can classify business unit as profit center, cost center or an investment center. The simple and straightforward division in an organization can be classified as cost center as cost is easy to measure.

To create a cost center in system, you need to define a cost center hierarchical structure. The structure of a Cost center and its characteristics depend on the accounting objective and on the system, you want to use to maintain accounting.

Use of a Cost Center

Following are the key uses to create cost centers and performing cost center accounting in an organization −

  • Cost center is used to align overhead costs with activities performed in an organization. It is possible to assign different activity type to a cost center.

  • You perform cost center accounting to manage cost in the organization and to check profitability of each functional area and decision-making data.

  • You can manage and analyze the overhead cost in an organization and verify if they are incurred in the organization activities.

  • When you plan costs at cost center, this allows you to check the cost efficiency at the point when costs are incurred in the organization.

  • You can directly assign the cost-to-cost centers for products, services, and market segments, which are involved in performing these activities.

You have to implement Cost Center Accounting with Financial Accounting, which includes General Ledger (G/L), Accounts Payable (AP) and Account Receivable (AR). To implement Cost Center Accounting with Finance Accounting, you need to create company code, Chart of Accounts COA’s in Financial Accounting.

Key Features of Cost Center

The key features of Cost Center are −

  • Actual Cost Accounting − You can transfer actual cost from other components like Material Management MM, Asset Accounting AA, etc. and you can also record other actual cost in the system.

  • Actual Cost Allocation − There are different methods that you can use to record actual cost. Actual cost can be distinguished as per transaction-based allocation and period based allocation.

  • Plan cost allocation − You can also plan the actual cost allocations for the cost centers.

  • Activity Accounting − This is used to calculate the operating cost. For a cost center and activity, output defines the target cost of cost center.

Hierarchy of Cost Center

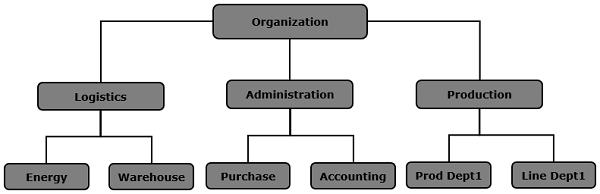

In the following illustration, you can see cost center hierarchy. At the top, you have organization, which is further divided as per the functional areas. Each Functional area is further divided into sub-areas and can be further divided as per the activities performed.

Hierarchy of Cost Center

SAP CCA - Activity Types

Activity type is defined as activity performed in Cost Center within controlling area. For each cost center, you perform the following activities −

Activities performed by the Cost Center

  • Costs are debited to products when they use the activities of the Cost Center.

  • In Cost Center Accounting, to plan and allocate the activities, the system records quantities that are measured in activity units.

  • Each activity in a Cost Center contains activity types and the costs can be allocated to these activity types.

  • When you create the activity types, prices of these can be entered manually or this can be calculated in the system as per the costs allocated.

  • The cost planning, allocation and control can be performed while defining activity or can also be performed at Cost Center.

Setting up Activity Types

To create an activity type, follow the given steps −

Step 1 − Use the T-Code: KL01

KL01

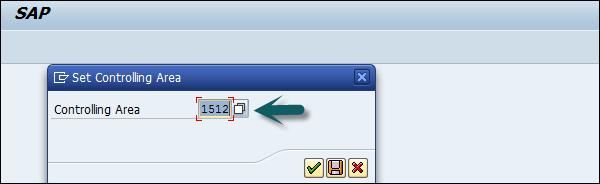

Step 2 − In the next window, you have to select Controlling Area.

  • Enter the name Activity Type
  • Validity Date
  • Click Master data
Select Controlling Area

Step 3 − Go to Master data and you can see different tabs in next window. Go to basic tab and enter the following details.

  • Activity Name
  • Description
  • Activity Unit
  • CCtr Categories

Activity type category − You can select from the following options.

Master Data

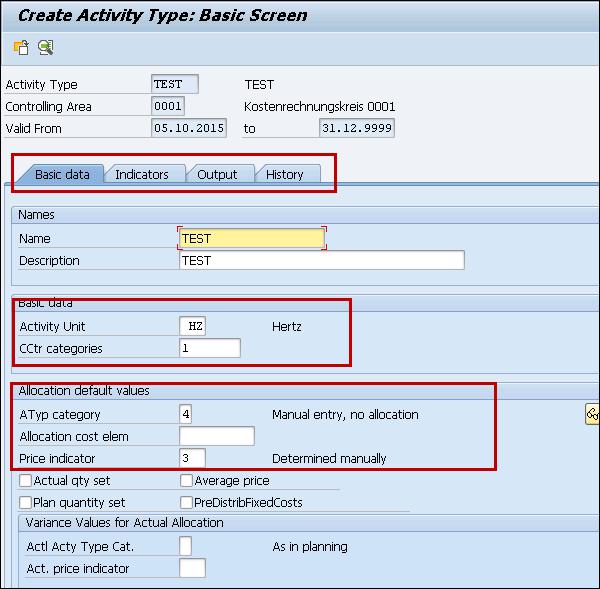

Step 4 − Enter the details in other fields as shown below.

Create Activity Type

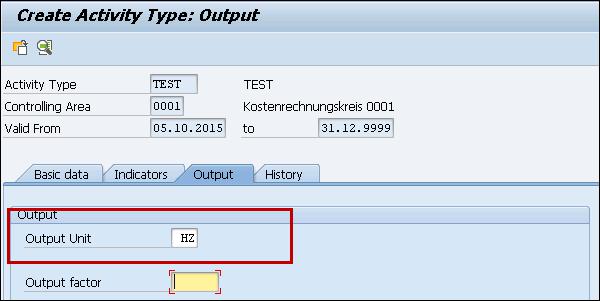

Step 5 − Go to the Output tab to define the output unit.

Output Tab

Step 6 − Once you define all the fields, click the save button at the top.

Activity Type Created

Assign rates for an activity

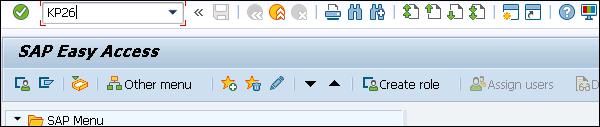

Step 1 − If you want to assign the Rates for an activity type & Cost Center in the combination, you can use T-Code: KP26

KP26

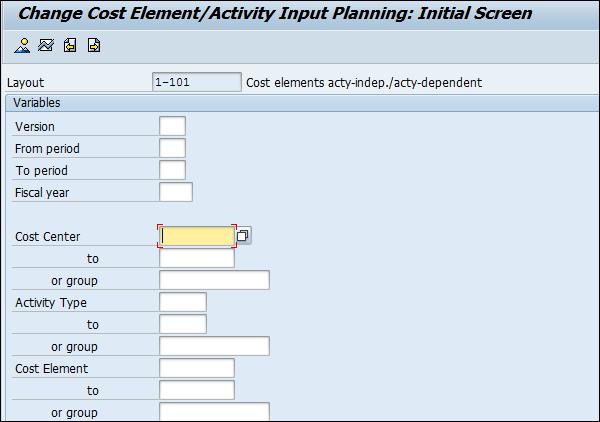

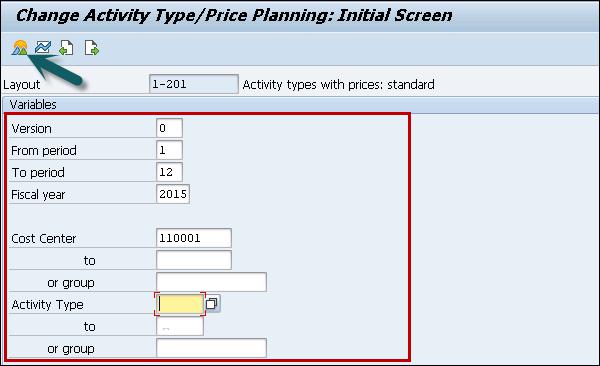

Step 2 − In next screen, you have to enter the following details.

  • Enter version as 0 from period 1 and to period as 12
  • Fiscal Year
  • Enter the cost center,
  • Activity type
Change Activity Type

Step 3 − Next go to the Overview screen at the top to assign hourly rate.

Enter per hour Rate under Fixed price and set value as 2 for distribution key and plan price indicator as 3.

You can use this combination of activity type and Cost Center while creating work centers to be assigned.

SAP CCA - Master Data

In SAP system, you use Cost Center to determine the structure of your organization. Master data in Cost Center remains same for longer time periods. In order to find out errors in Cost Center, you need to execute Cost Center planning that generates area reports. It is necessary to keep master data same to perform these analysis.

You can maintain master data in SAP system manually or move from the external system. To load the master data, you can use following processes −

  • External data from Functional modules
  • External data from BAPI’s

In SAP system, you generally have two types of data −

Transaction data

Transaction data keeps on changing in system and is stored in line item tables.

Master data

You can use the following functions to create or change the master data −

  • Cost Center
  • Cost Elements
  • Activity Types
  • Key Figures
  • Resources

For each of the above objects, you can perform multiple functions in SAP system. The following functions are available −

Master Data Elements Functions
Cost Center Create, Change, Display, Delete and Display Changes
Cost Elements Create, Change, Display, Delete and Display Changes
Activity Types Create, Change, Display, Delete and Display Changes
Key Figures Create, Change, Delete and Display
Business Processes Create, Change, Delete and Display

Cost Center

Cost center in accounting is used to differentiate between different activities and for differentiated controlling of costs arising in an organization. Each cost center is assigned with different activity types and each activity type shows the specific activities in cost center.

Cost centers can be further combined into Cost Center groups and they can be used to create Cost Center hierarchies by combining responsibility area and other factors. To create a Cost Center, you have to first define Cost Center hierarchical structure.

Cost Elements

Cost Element is known as cost relevant item in Chart of Accounts. In SAP Cost Center Accounting, you have the following Cost elements −

Primary Cost Elements

A Primary cost element is defined as elements for which General Ledger Account G/L exists in Finance Accounting FI.

Common primary cost element includes −

  • Personnel Costs
  • Material Costs

Secondary Cost Elements

These elements are maintained in Cost Accounting. To create a secondary cost element, the system first checks already existing accounts in Financial Accounting and if an account exists, then secondary cost element cannot be created.

Cost element for Order settlement is a common example of secondary cost element.

Cost Element Category Types

Cost element category is used to define if you can post to cost element directly or not. When you post a fixed amount to a cost element by mentioning account number, it is called direct posting. In direct posting, you can post directly to all primary cost elements by specifying the account number.

When you cannot enter account number with posting transaction and the system determines the account at the time of posting it automatically, is known as indirect posting.

Maintaining Cost Element Master data

In SAP system, cost element master data is maintained using time based dependencies. There are different time-based dependencies in a SAP system −

Time-independent fields(I) Fisco-year based fields(Y) Period-based fields(P) Day-based fields(D)
Description Cost element charactersistics None Default account assignment
Name Cost element category
Record quality indicator
Unit of measure

Statistical Key Figures

Statistical key figures can be defined manually or you can transfer it automatically from the information system of SAP system application.

Key figures can be defined as −

  • Fixed values − All the key figures that you define as fixed values are available for positing in full fiscal year.

  • Total values − Key figures defined as total values are available only for posting in the defined period.

Resources

Resources are used to perform quantity-based cost planning for cost centers, orders and WBS element. In SAP system as per the available data, you can select from the following resource types −

  • Type R for overhead cost controlling
  • Type M represents for Material type
  • Type B refers to base planning objects

The structure of resource master data contains the following fields −

  • Resource key
  • Purchasing organization
  • Resource type
  • Validity period of the resource
  • Plant
  • Resource units
  • Cost element
  • Resource name
  • Material
  • Base object costing

SAP CCA - Cost Center Groups

You can divide cost center in cost center groups. In system, it should have at least one group that contains all cost centers and represents the entire business organization. This cost center group is described as the standard hierarchy. You can assign more cost center groups to the standard hierarchy.

Note − In standard hierarchy, you can only assign each cost center to one group.

Create Cost Center Group

To create a cost center group −

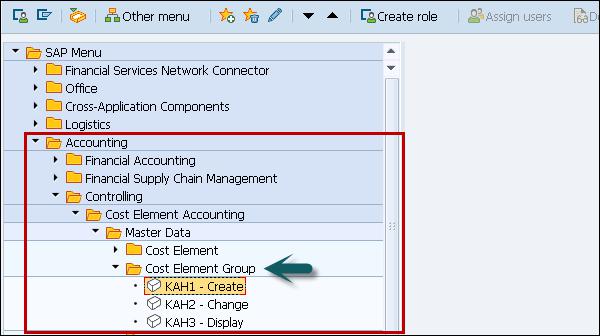

Step 1 − Navigate to Accounting → Controlling → Cost Center Accounting → Master Data → Cost Element Groups → Create/Change/Display

KAH1 Create

While creating a new group, it is possible to use an existing group as a template. The template group can belong to the same Controlling Area or COA.

Enter the name of new group. The highest node contains the group names entered. The existing structure is appended to the highest node. This means that every change to the original automatically affects the copy.

You can create your groups successively in the group structure display.

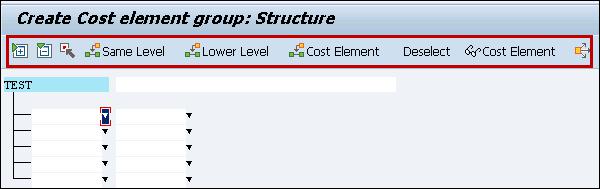

Step 2 − Choose the node that you want to extend the group, and select from Insert at same level or Insert at lower level.

Structure

You can create your groups successively in the group structure display.

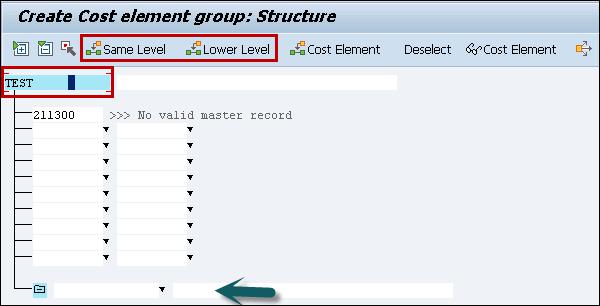

Step 3 − Choose the node from which you want to extend the group. Click insert at same level or Insert at lower level.

Create Group

Step 4 − Enter the name and description for the new subgroup.

Subgroup

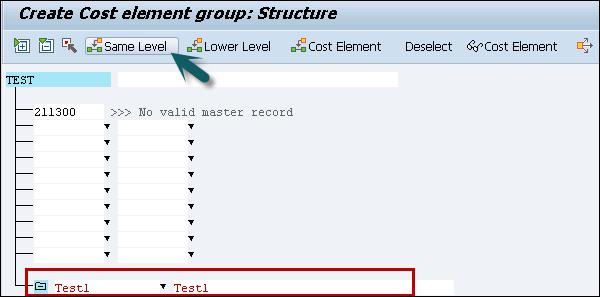

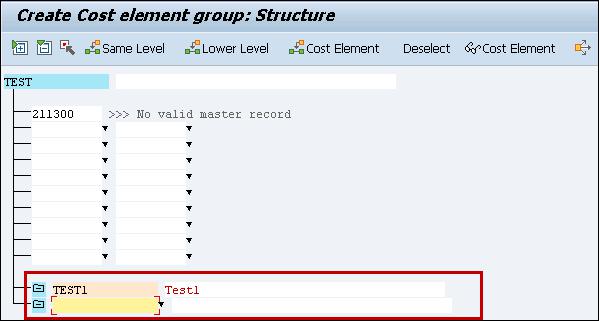

When you select the sub group and click same level, a new subgroup is created as shown below −

Select Subgroup

This is how you can define cost elements groups and hierarchy in system.

Step 5 − To save the hierarchy, click the save button at the top.

Saved

SAP CCA - Creating a Cost Center

In this chapter, we will learn how to create Cost Center.

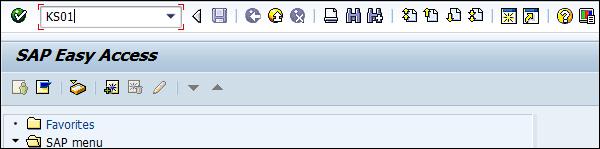

Step 1 − To create Cost Center, you can use T-code: KS01.

KS01

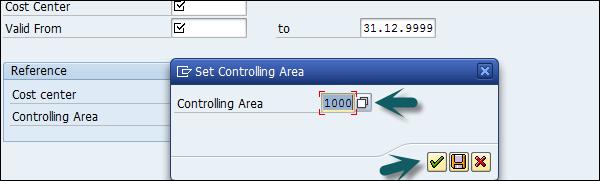

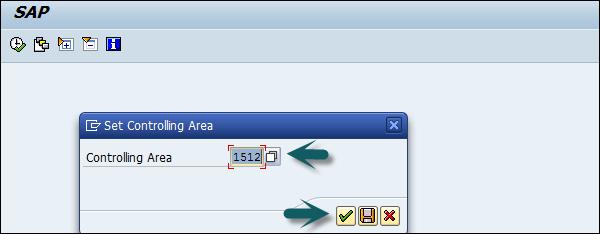

Step 2 − Enter the Controlling Area in the next screen and click the tick mark icon.

Controlling Area

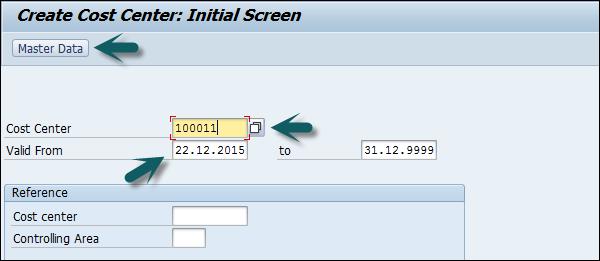

Step 3 − A new window will open. Enter the following details and click Master Data.

  • New cost center number.
  • Validity dates of the new cost center. You can also create a new cost center with a reference.
Data Master

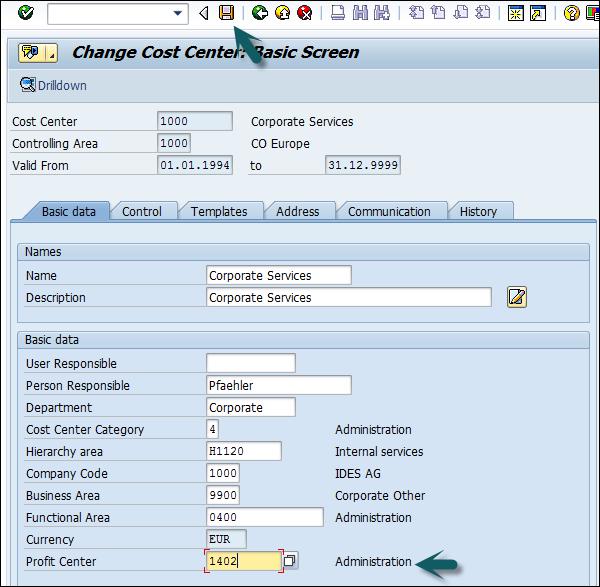

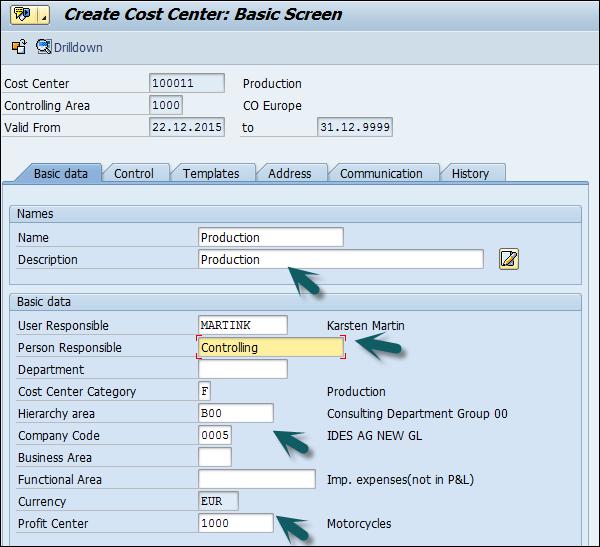

Step 4 − Once you click master data, a new window will open. Enter the following details in basic data tab −

  • Enter the name of the new cost center
  • Enter a description for the new cost center
  • Enter the User and Person Responsible
  • Cost Center Category
  • Hierarchy area
  • Company Code
  • Profit Center
Basic Data tab

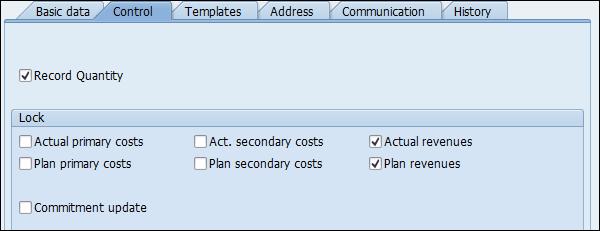

Step 5 − Next, under the Control tab, select the correct indicators.

Control Tab

Step 6 − Click the save icon at the top.

Save

SAP CCA - Cost Center Posting

To post to a cost center, follow the given steps.

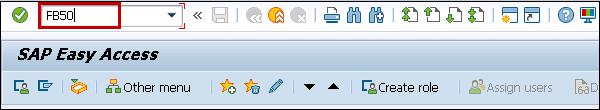

Step 1 − Use T-code: FB50

FB50

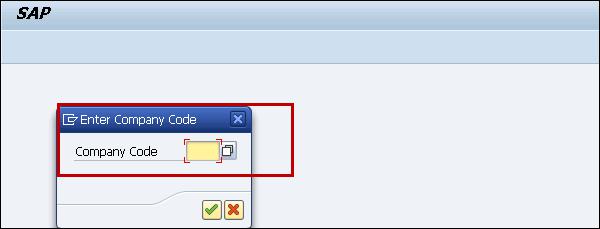

Step 2 − Select the company code for which you want to post.

Company Post

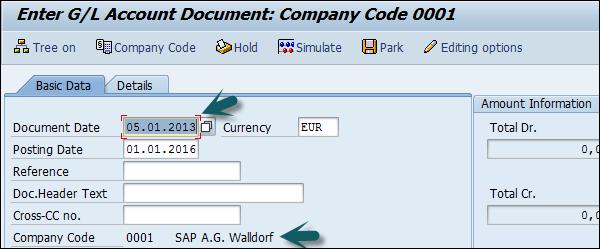

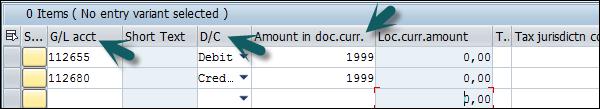

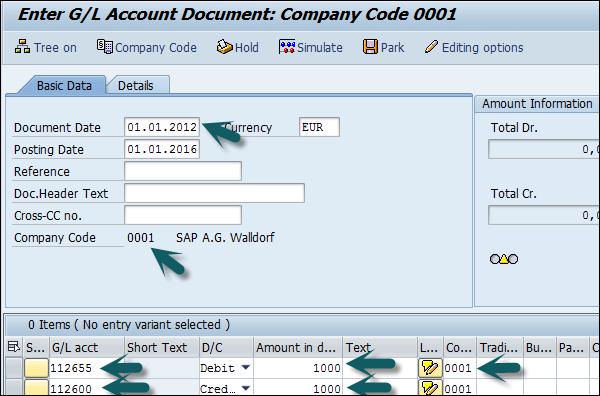

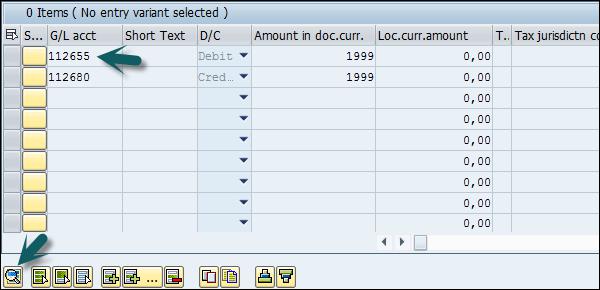

Step 3 − Enter the following details.

  • Document date
  • Company code
  • G/L Account for the Debit Entry which is to be posted to the Cost Center
  • Debit Amount
  • Cost Center in which the Amount is to be posted
  • G/L Account for Credit Entry
  • Credit Amount
Details

Press the save button at the top to post this cost center.

SAP CCA - Linking Order Reason

In Cost Center determination, you can link a cost center to order reason.

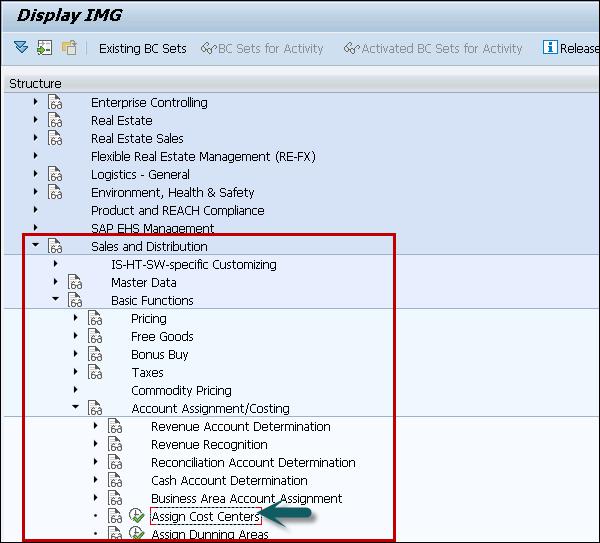

Step 1 − To link a cost center, you can use T-Code: OVF3 or navigate to SPRO → IMG → Sales and Distribution → Basic Functions → Account Assignment & Costing → Assign Cost Centers.

OVF3

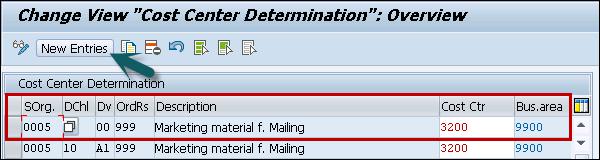

Step 2 − To create a new entry for cost center determination, click New Entries.

Cost Center Determination

Step 3 − In the next window, you have the following fields to enter −

  • SOrg
  • Distribution Channel
  • Division

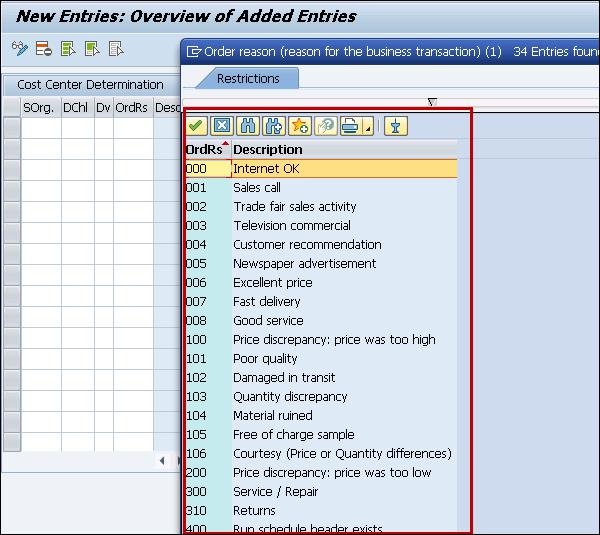

  • Order Reason: You can select from the following order reason types −
Internet OK

Select all the fields and click the save icon at the top.

SAP CCA - Internal Order

SAP CCA - Internal Order monitors the parts of the costs and in few cases, the revenues of the organization.

The following are the key features −

  • You can create an internal order to monitor the costs of a time-restricted job or the costs for the production of activities.

  • Internal orders can also be used for the long-term monitoring of costs.

  • Investment cost related to fixed assets are monitored using Investment orders.

  • Period-related accrual calculation between expenses in FI and the costing-based costs debited in Cost Accounting are monitored using Accrual orders.

  • Costs and revenues incurred for activities for external partners or for internal activities that do not form part of the core business for your organization are monitored using order with revenues.

Creating Internal Order in SAP CCA

To create internal order in SAP CCA, follow the steps given below −

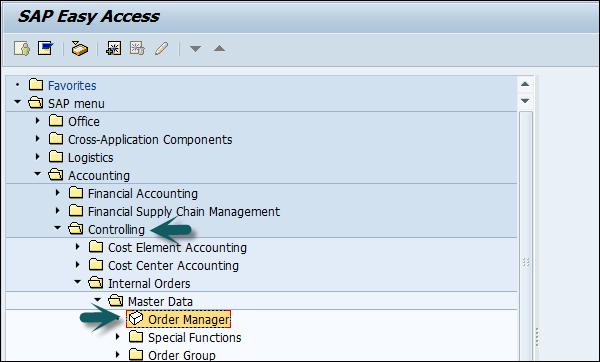

Step 1 − Use T-code: KO04 or Go to Accounting → Controlling → Internal Orders → Master Data → Order Manager.

KO04

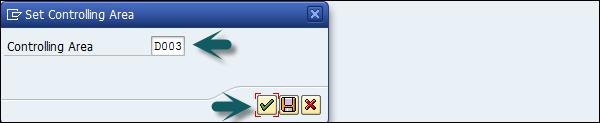

Step 2 − In the next screen, enter the controlling area as shown below.

Control Area

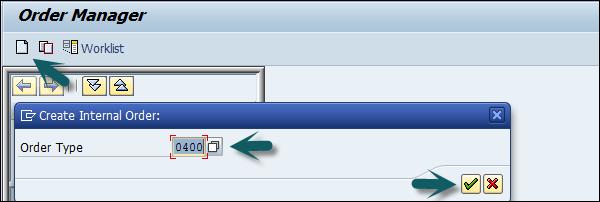

Step 3 − Click the Create button at the top to create a new internal order and enter the order type.

New Internal Order

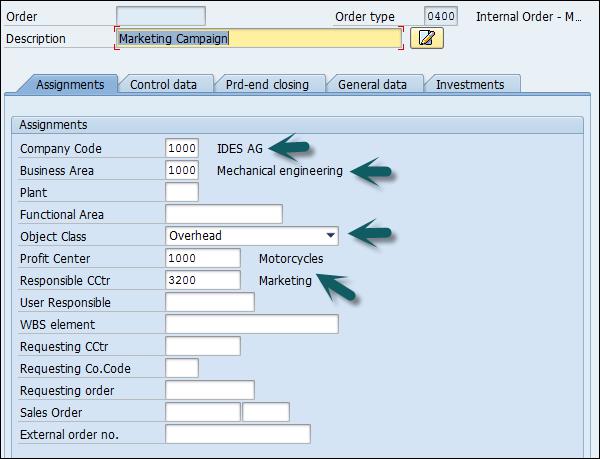

Step 4 − A new window will open; enter the following details.

  • Company Code
  • Business area
  • Object Class of the Order
  • Profit Center
  • Cost Center responsible for the internal order
New Window

Step 5 − After entering the above details, click the save button at the top to create the internal order.

Created Internal Order

SAP CCA - Settlement of IO

An internal order is used as an interim collector of costs and is used for planning, monitoring, and controlling processes needed. When the job has been completed, you settle the costs to one or more receivers like cost centers, fixed assets, etc.

Settlement of IO to Cost Centers

We will see how to perform settlement of IO to Cost Centers.

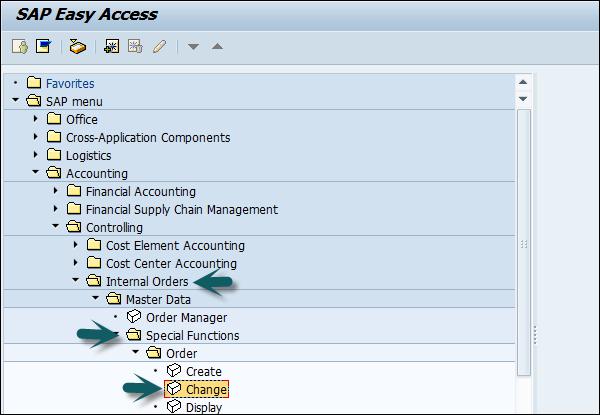

Step 1 − Use T-code: KO02 or Go to Accounting → Controlling → Internal Orders → Master Data → Special Functions → Change.

Change

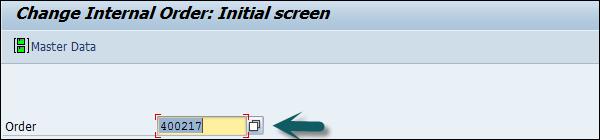

Step 2 − A new window will open, enter the Order number for which the settlement is to be done.

Change Internal Order Number

Step 3 − Click the Settlement rule button at the top.

Settlement Rule

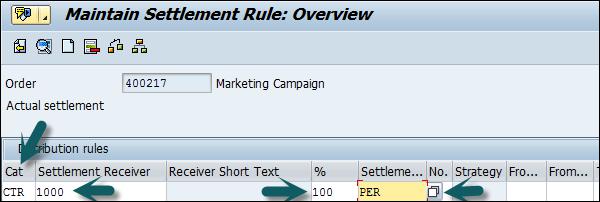

Step 4 − Enter the following details.

  • Category Column enter 'CTR' for cost center.
  • Settlement receiver Column, enter the Cost Center in which the Order is to be settled.
  • Enter the percentage amount which is to be settled.
  • Settlement type, Enter 'PER' for periodic settlement.
Maintain Settlement Rule

Step 5 − Click the save button at the top to save the settlement rule and come back to main screen.

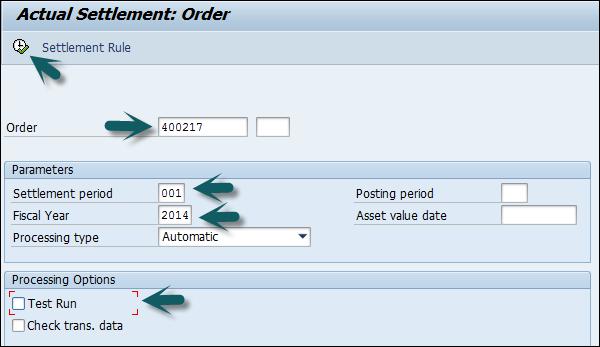

Step 6 − Enter the T-code: KO88 and enter the following details.

  • Order for which the settlement rule is maintained
  • Period for settlement
  • Fiscal Year
  • Uncheck the Test Run

Step 7 − Click the Execute Button to run the settlement.

Execute Button

A new window will open with Settlement display message. Click the Continue button to complete the process.

SAP CCA - Profit Center

SAP CCA-Profit center is used for managing internal controlling. When you are dividing your company into profit centers, it allows you to delegate responsibilities to the decentralized units and allows you to treat those as separate companies in a company. It also allows you to calculate key figures in cost accounting like- ROI, Cash flow, etc.

Profit Center is a part of Enterprise Controlling module and is integrated with new General Ledger Accounting.

Key Features of SAP CCA Profit Center

  • Profit Center Accounting is used to determine profit for internal areas of responsibility.

  • It lets you determine profits and losses using either period accounting or the costof-sales approach.

  • It allows you to analyze fixed assets by profit center, thus using them as investment centers. This makes it possible to expand profit centers to investment centers.

Why do we create Profit Center?

The main aim of creating a Profit Center in Controlling is to analyze the cost of a product line or a business unit.

You can also generate profit and loss accounts according to Profit Center and also generate balance sheets however Profit center should only be used for internal reporting purposes.

The key components of a profit center includes- name of the profit center, the controlling area under which it is assigned, time period, person responsible for the profit center, standard hierarchy, etc.

To create a Profit Center, follow the steps given below −

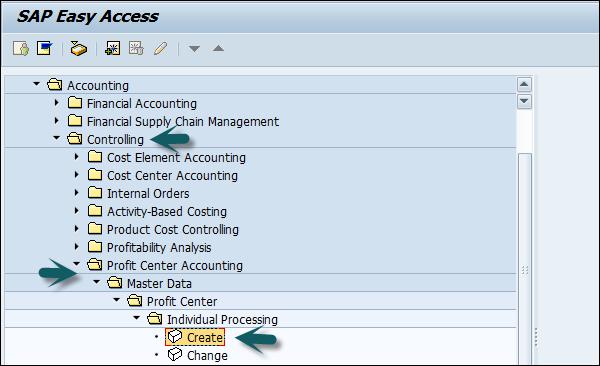

Step 1 − Use T-code: KE51 or go to Accounting → Controlling → Profit Center Accounting → Master Data → Profit Center → Individual Processing → Create.

Create

Step 2 − In the next screen, enter the controlling area in which profit center is to be created and click the tick mark icon.

Profit Center

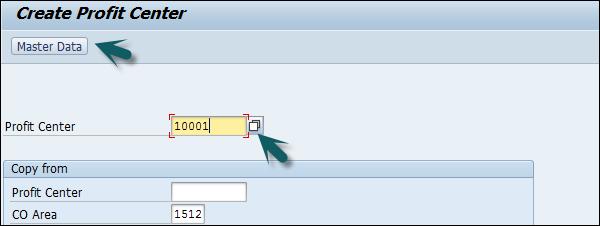

Step 3 − In the next screen, enter the unique profit center ID and click Master Data.

Profit Center Id

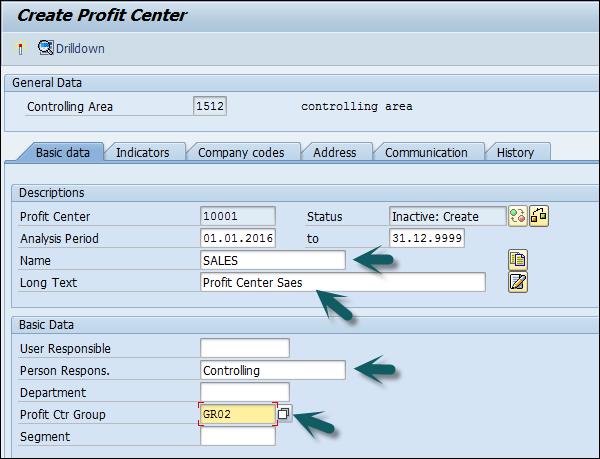

Step 4 − A new window will open, enter the following details.

  • Profit center name and short description of the profit center.
  • Person responsible for the profit center.
  • Profit center group for which the profit center belongs.
Create Profit Center

Step 5 − Click the save icon at the top to create the profit center in inactive mode. To activate the profit center, click the icon as shown below.

Click Icon

Create Profit Center Group

To create Profit Center Group −

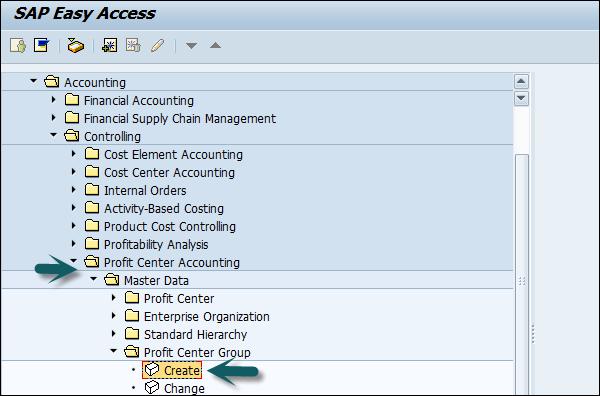

Step 1 − Use T-code: KCH1 or go to Accounting → Controlling → Profit Center Accounting → Master Data → Profit Center Group → Create.

Profit Center Group

Step 2 − Enter the Controlling Area in which the profit center is to be created.

Profit Center Created

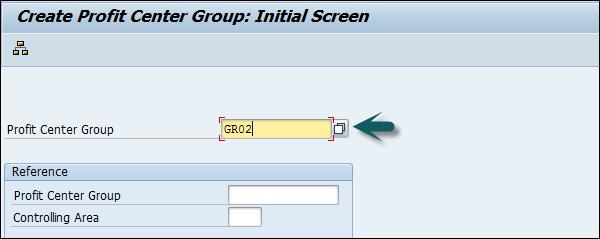

Step 3 − Enter the Unique Profit Center Group Id as shown below and press Enter.

Unique Profit Center

Step 4 − Enter the short description for the profit center group and click the save icon at the top.

Saved

SAP CCA - Postings to Profit Center

To make posting to Profit center, follow the steps given below −

Step 1 − Use T-Code: FB50 and enter the following details.

Document date and Company code.

Company Code.jpg

Step 2 − Enter the line items.

Line Items

Step 3 − After entering the line items, select the debit line item and click the detail item button given below.

Entering Line Items

A new window will open. Enter the Profit center and click the save icon at the top.

SAP CCA - Profit Center Standard Hierarchy

SAP CCA - Profit center standard hierarchy contains all the profit centers in a controlling area. If you want to create/change the structure of standard hierarchy, it can be done at two places −

  • In the Profit Center Accounting
  • In Customizing for Profit Center Accounting

Creating Profit Center Standard Hierarchy

To create Profit Center Standard Hierarchy −

Step 1 − Use T-code: KCH1 or go to Accounting → Controlling → Profit Center Accounting → Master Data → Standard Hierarchy → Create.

KCH1

Step 2 − In the next screen, enter the Controlling area for which you want to create a Standard hierarchy.

Create Standard Hierarchy

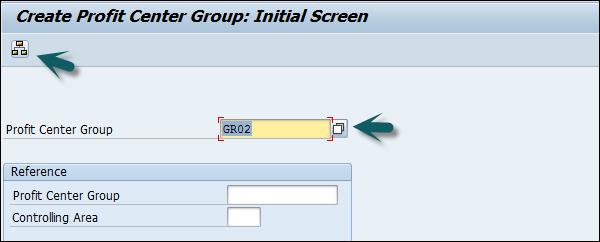

Step 3 − Enter the Profit Center Group and click the hierarchy icon at the top. Enter the sub nodes of Profit Center Standard Hierarchy.

Create Profit Center Group

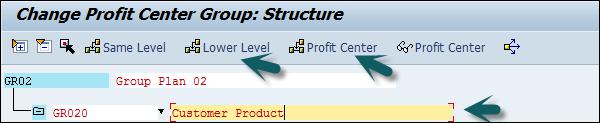

Step 4 − Click Lower lever button to create a Hierarchy. Click Profit center to assign Profit Center group.

Assign Profit Center Group

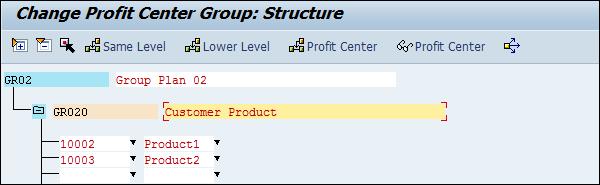

Assigning Profit Center Group

Step 5 − Click the save button at the top and you will get a confirmation message.

Saved

Assignment of Cost Centers to Profit Center

You can assign cost centers to profit center in an organization to reflect all the primary costs from Financial Accounting and all secondary allocations to profit centers in Cost Center Accounting.

When you assign a cost center to profit center, you assign all the assets of cost center to the profit center.

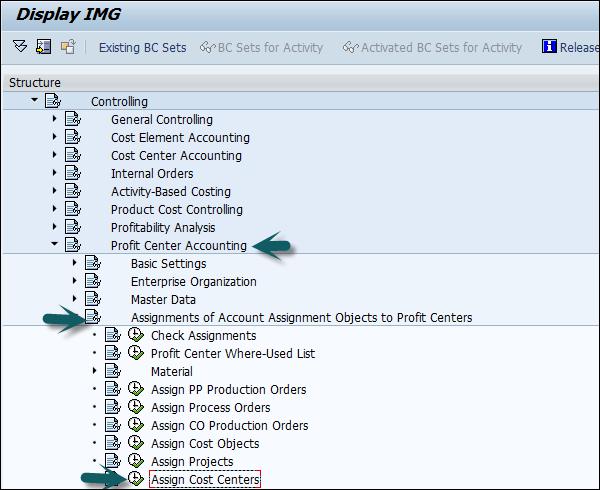

Step 1 − To assign Cost Center to profit center, navigate to SPRO → SAP Reference IMG → Controlling → Profit Center Accounting → Assignments of Account Assignment objects to Profit Center → Assign Cost Centers → Execute.

Profit Center Accounting

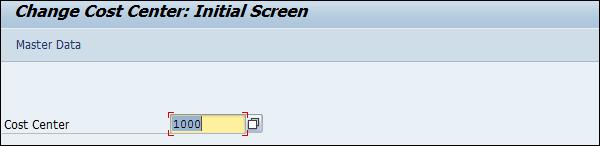

Step 2 − Enter the Cost center to be assigned to Profit center.

Cost Center

Step 3 − In the next screen, enter the profit center to which cost center is assigned and click the save icon at the top.

Cost Center Assigned

Assigning Materials to Profit Center

Assignment of material to profit center provides you with default values for sales order and manufacturing orders. The assignment of material is applicable for one plant or you can assign materials by changing material master record directly in the system.

To assign material master to Profit Center −

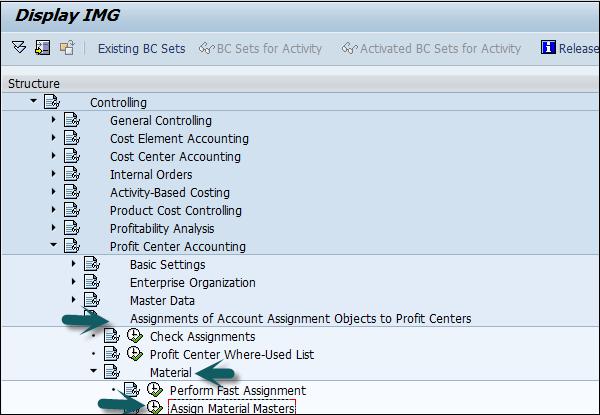

Step 1 − Go to SPRO → SAP Reference IMG → Controlling → Profit Center Accounting → Assignments of Account Assignment objects to Profit Center → Material → Assign Material Masters → Execute

Assign Material Masters

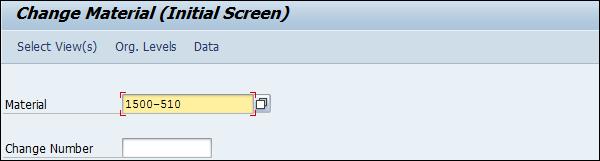

Step 2 − A new window will open, enter the material Id for which profit center is to be assigned and press Enter.

Material Id

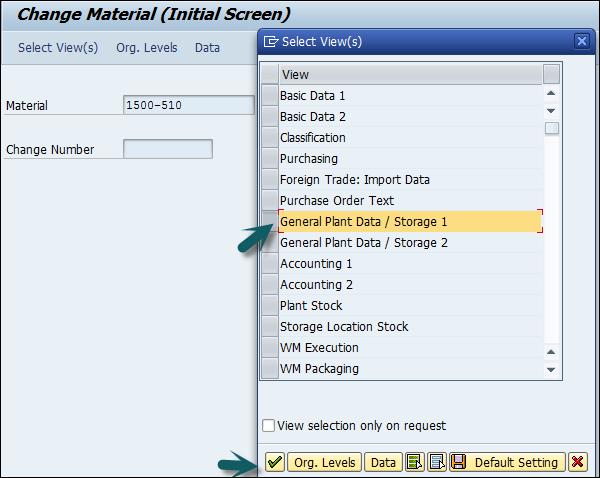

Step 3 − Select view of material master.

View Material Master

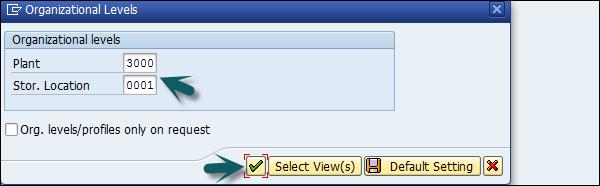

Step 4 − A new window will open, enter the following details.

Organizational Levels

A new window will open. Enter the Profit Center and click the save icon at the top.

SAP CCA - Compare CO, PC, IO

Following are the key differences between Cost Center, Profit Center, and Internal Order.

Cost Center

A Cost center is defined as a component in an organization that adds to the cost and indirectly adds to the profit of the organization. Examples include Marketing and Customer Service.

A company can classify business unit as profit center, cost center or an investment center. The simple and straightforward division in an organization can be classified as cost center as cost is easy to measure.

To create a cost center in system, you need to define a cost center hierarchical structure. The structure of a Cost center and its characteristics depend on the accounting objective and on the system you want to use to maintain accounting.

Features of a Cost Center

  • Cost center is used to align overhead costs with activities performed in an organization. It is possible to assign different activity type to a cost center.

  • You perform cost center accounting to manage cost in the organization and to check profitability of each functional area and decision-making data.

  • You can manage and analyze the overhead cost in an organization and verify if they are incurred in the organization activities.

  • When you plan costs at cost center, this allows you to check the cost efficiency at the point when costs are incurred in the organization.

  • You can directly assign the cost-to-cost centers for products, services, and market segments, which are involved in performing these activities.

Profit Center

SAP CCA-Profit center is used for managing internal controlling. When you are dividing your company into profit centers, it allows you to delegate responsibilities to the decentralized units and allows you to treat those as separate companies in a company. It also allows you to calculate key figures in cost accounting like- ROI, Cash flow, etc.

Profit Center is a part of Enterprise Controlling module and is integrated with new General Ledger Accounting.

Features of a Profit Center

  • Profit Center Accounting is used to determine profit for internal areas of responsibility.

  • It lets you determine profits and losses using either period accounting or the costof-sales approach.

  • It allows you to analyze fixed assets by profit center, thus using them as investment centers. This makes it possible to expand profit centers to investment centers.

Internal Order

SAP CCA - Internal Order monitors the parts of the costs and in few cases, the revenues of the organization.

Features of an Internal Order

  • You can create an internal order to monitor the costs of a time-restricted job or the costs for the production of activities.

  • Internal orders can also be used for the long-term monitoring of costs.

  • Investment cost related to fixed assets are monitored using Investment orders.

  • Period-related accrual calculation between expenses in FI and the costing-based costs debited in Cost Accounting are monitored using Accrual orders.

  • Costs and revenues incurred for activities for external partners or for internal activities that do not form part of the core business for your organization are monitored using order with revenues.

SAP CCA - Planning

In SAP system, Cost Center Planning is used to maintain figures for cost, prices and key figures for cost center in defined period of planning. It is a part of business planning process and is required for standard costing.

You perform Cost Center planning to achieve following functions −

  • To Plan the structure
  • To control and monitor business growth
  • To perform target comparison-plan/actual or target/actual
  • Cost center planning covers following planning area
  • Cost Element
  • Primary Cost
  • Secondary Cost
  • Revenue
  • Activity Type
  • Statistical Key Figures

To see details about Cost Center planning in SAP system −

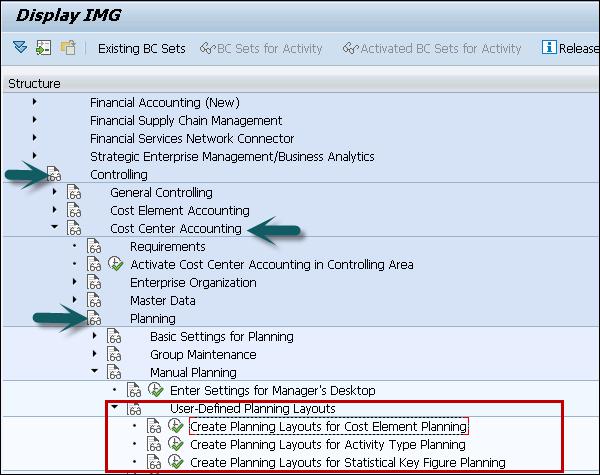

Step 1 − Navigate to SPRO → IMG → Controlling → Cost Center Accounting → Planning → Manual Planning → User Defined Planning Layouts.

Planning

To perform manual cost planning, SAP system contains different planner profiles for the various planning areas. In planner profile, you can collect planning layouts grouped according to various criteria.

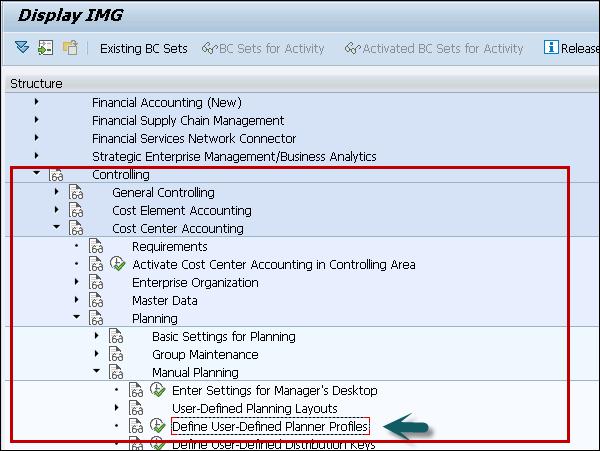

Step 2 − To perform planning and to create planner profiles in SAP system, navigate to SPRO → IMG → Controlling → Cost Center Accounting → Planning → Manual Planning → Define User Defined Planner Profiles

Defined Planner Profile

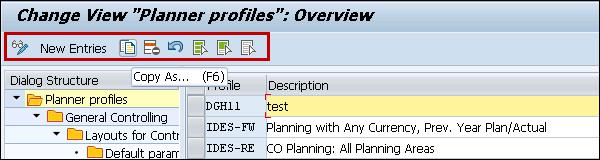

Step 3 − To create a new profile, click New Entries. To copy an existing profile, click the Copy As option.

Planning New Entries

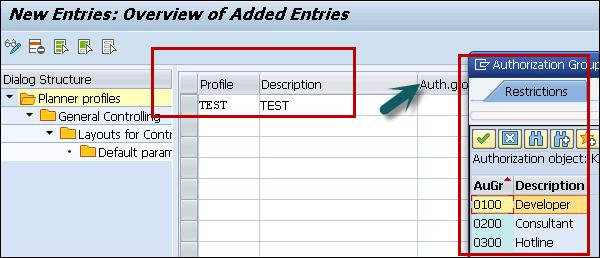

Step 4 − In the next window, you have enter Profile name, Description, and Authorization Group.

Overview Planning

To save the profile, click the save button at the top.

SAP CCA - Period-End Closing

Period-end closing is the work carried out at the end of a period as a part of cost controlling. To perform period end closing, it is required to transfer the data from other SAP Components. You should perform all the posting in Finance Accounting.

Example

All invoices should be created and posted in Finance Accounting as a part of Sales and Distribution.

You use reconciliation posting to perform reconciliation between Finance Accounting and Controlling by doing relevant allocations in FI.

As part of period-closing, following activities are performed −

  • Periodic reposting
  • Accrual cost calculation
  • Pre-distribution of fixed costs
  • Transfer of statistical key figures from the LIS
  • Overhead calculation
  • Periodic allocations
  • Variance calculation
  • Actual price calculation

SAP CCA - Accrual Calculation

You allocate operating expenses differently in cost accounting as compared to Finance accounting. You can distribute irregular occurring expenses as per cost origin, on the months in which they are incurred. Hence, you can avoid all irregularities within cost accounting. Cost allocated in this way is known as Accrual cost.

Accrual calculation can be performed in the following way −

  • Accruals in the Controlling component based on the costs posted.
  • Accruals in the Financial Accounting component (FI) using recurring entries.

In order to perform the accrual calculation in plan or actual from the Cost Center Accounting menu −

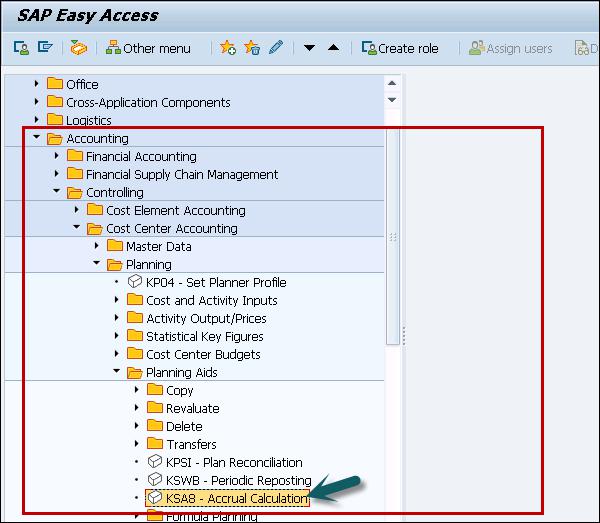

Step 1 − Navigate to Accounting → Controlling → Cost Center Accounting → Planning → Planning Aids → Accrual calculation.

Accrual Calculation

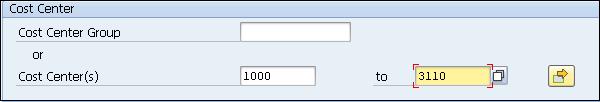

Step 2 − In the next window, enter the fiscal year and the posting period. It is possible to calculate accruals for −

  • An individual cost center
  • A cost center group
  • All Cost centers
  • Enter the version

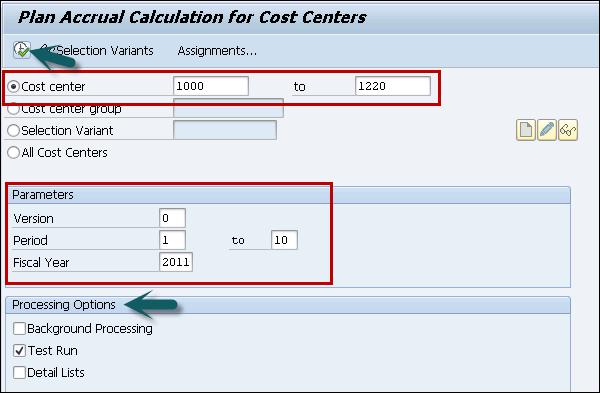

Under Processing options, select from the following −

  • Background Processing
  • Test Run
  • Detailed Lists
Processing Option

When you do not select option of background processing, accrual calculation are done online and system displays the values calculated for the accrual cost elements. When there is large amount of data it is suggested to perform accrual run in the background processing.

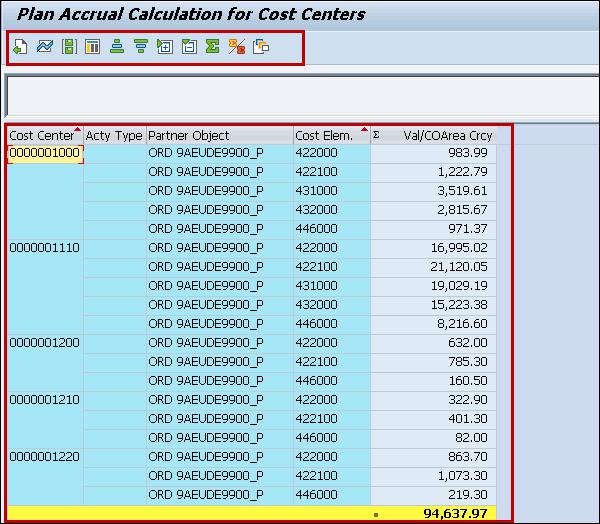

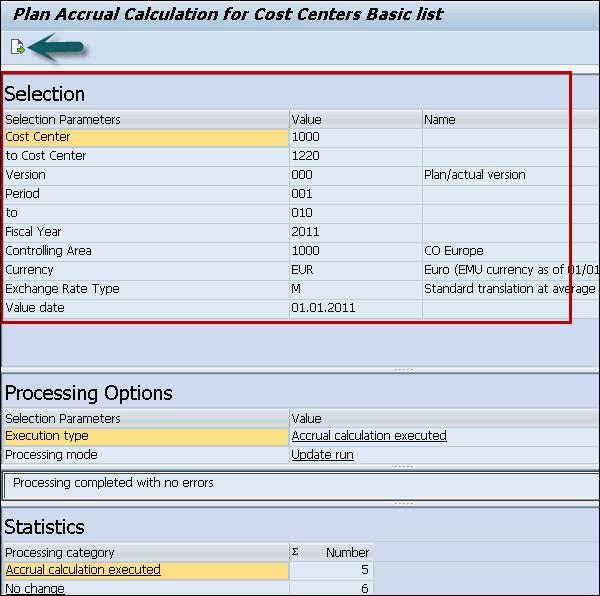

Results are displayed as shown below −

Plan Accrual Calculation

Step 3 − Click the Arrow mark to perform the calculations.

Perform Calculation

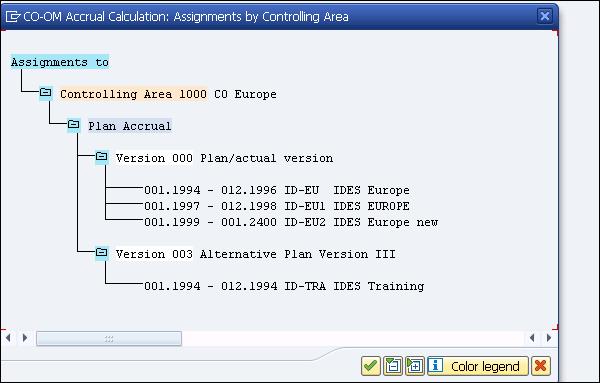

Step 4 − Now to display controlling area, overhead structure assignments, choose Start of the navigation path and go to → Assignments.

Assignments

You will see the following screen.

Screen

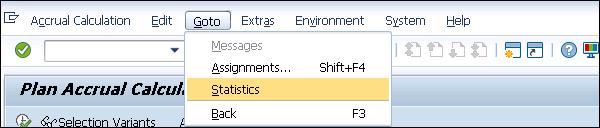

Step 5 − When the accrual calculation is done, errors can be checked by going to Statistics.

Statistics

Step 6 − When you reverse an accrual calculation, you can reset target = actual credit postings and the accrual overhead rates.

You perform Accrual reversal for −

  • Cost Center
  • Cost Center Group
  • All Cost Centers
  • Fiscal year Period

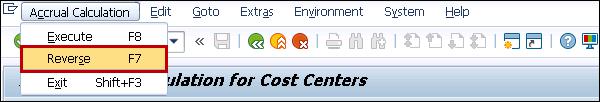

Step 7 − Go to Accrual Calculation → Reverse

Accrual Calculations

Reverse

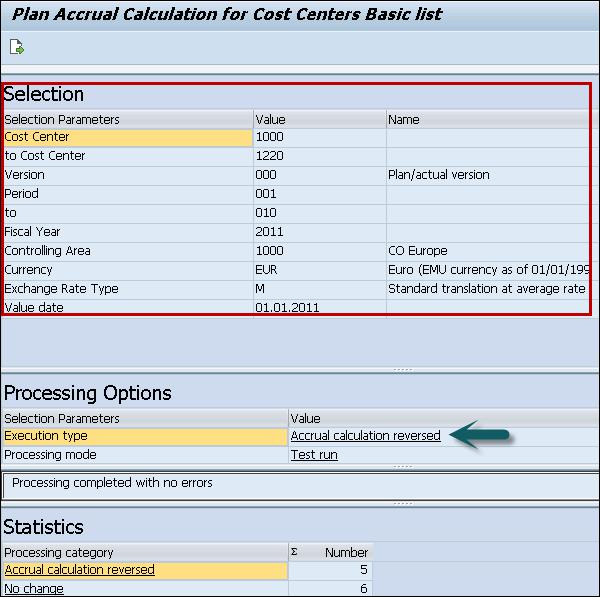

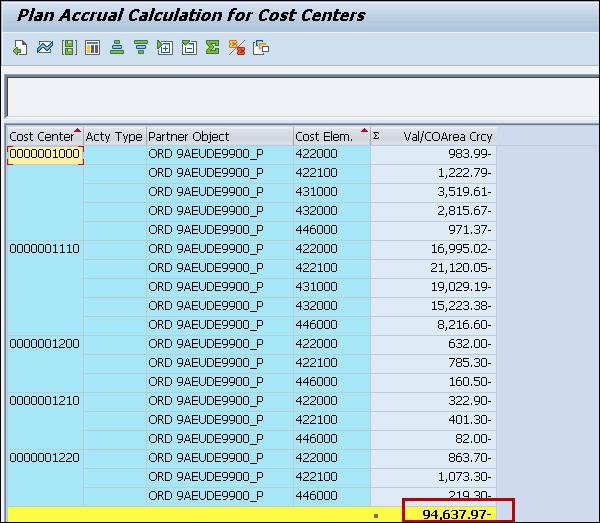

When you click the arrow mark at the top, you will see accrual reversal and the value is displayed with a –ve sign as shown below.

Accrual Reversal

SAP CCA - Schedule Manager

You can perform different periodic in SAP system on regular basis- weekly, monthly, yearly, etc. One of the common task is period-end closing. These tasks involve the processing of a large number of individual objects and they are supported by the individual components of the Schedule Manager. To perform these tasks, you define the variables in Schedule Manager and this reduces the work that is required to perform these tasks.

You can define the following variables in Schedule Manager −

  • Defining Global Variables for the Task List and Flow Definition
  • Defining Selection Variables
  • Specifying Selection Variables in the Program Variants
  • Specifying Selection Variables for Flow Definitions With Parallel Branches

Scheduler in Scheduler Manager

You can use the Scheduler to execute and monitor complex business processes, such as period-end closing. If you have the corresponding authorization, you can define task lists.

In the structure tree, you can create the business transactions (Task) that, for example, make up period-end closing. You can schedule these tasks in the daily overview, and if required, the system executes them.

Creating a Task List in Scheduler

In SAP Schedule Manager, you can use task list as the basis of the scheduler. In Task list, you can arrange tasks or task groups into a chronological structure.

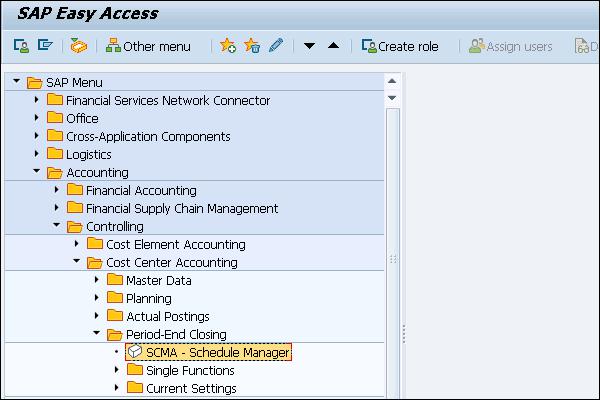

Step 1 − To open Scheduler Manager, navigate to Accounting → Controlling → Cost Center Accounting → Period End Closing → Scheduler Manager.

Schedule Manager

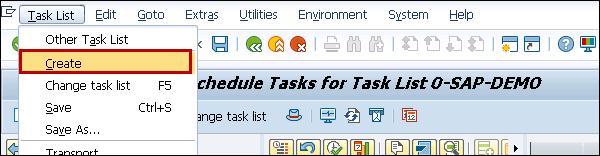

Step 2 − Go to Task list → Create

Task List

Step 3 − Enter the name for the new task list. Choose Insert.

New Task List

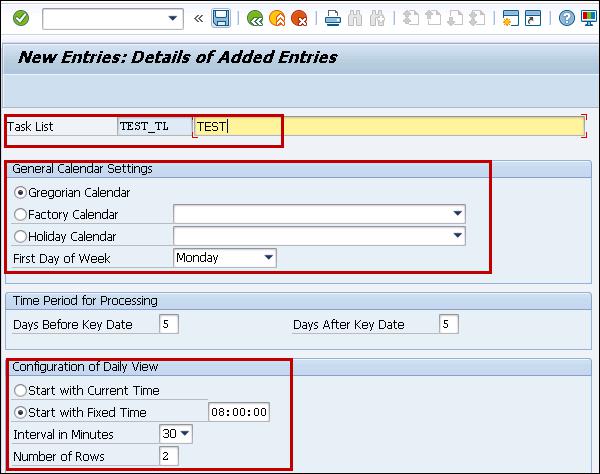

Step 4 − You can see a new screen appears. Enter a description and the display format for the daily and monthly overviews.

To save the values, click the Save button

New Screen

If you want to complete a process in Schedule Manager, you can split the process into parts. These can be added or deleted in the task list.

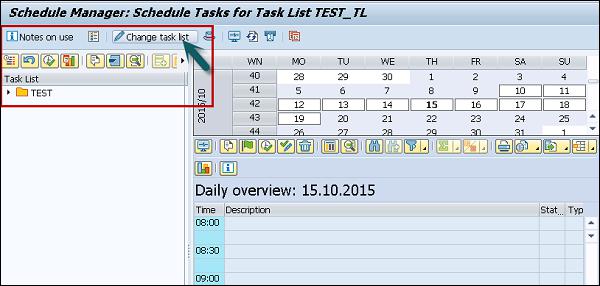

Step 5 − To insert tasks/ task groups in Task list, click Change Task list.

Change Task List

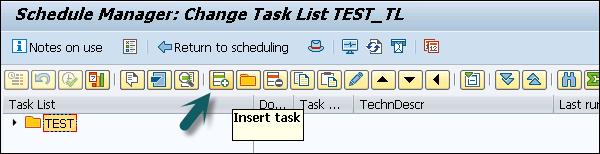

Step 6 − Next, select the highest node under which you want to create new task/task group.

Right-click to choose Insert task or click the Insert task button.

Insert Tasks

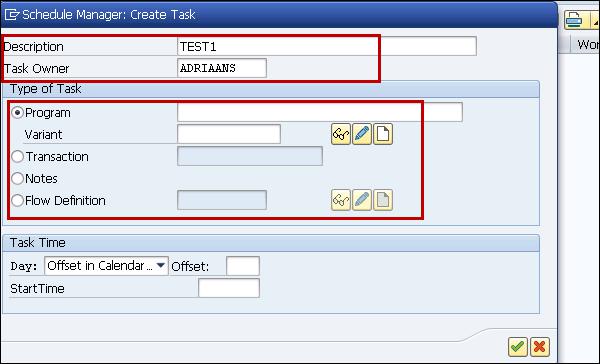

Step 7 − In the next window, you have to enter the task details. You can also select a different description for the task/task group.

Select the task type and the Task Owner.

Task Owner

To save the task / task group, click the save button.

How to Change / Delete task?

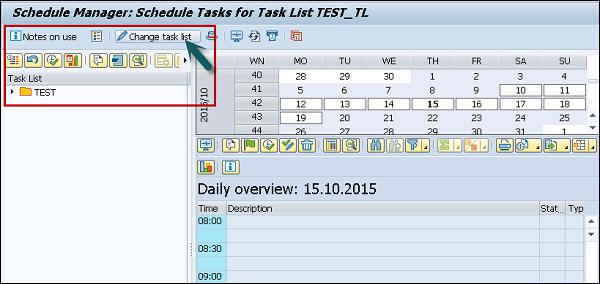

Step 1 − Click the Change task list at the top.

Step 2 − To delete a task, right click → Select Change/delete. Save the changes.

Delete Tasks

SAP CCA - Variance Calculation

When actual cost on cost center is different from target cost or planning was over/under, you can see a variance in controlling component. Using Variance calculation, you can analyze the actual balance and to find variance of actual cost from target cost with different activity types.

To perform variance calculation, follow the given steps.

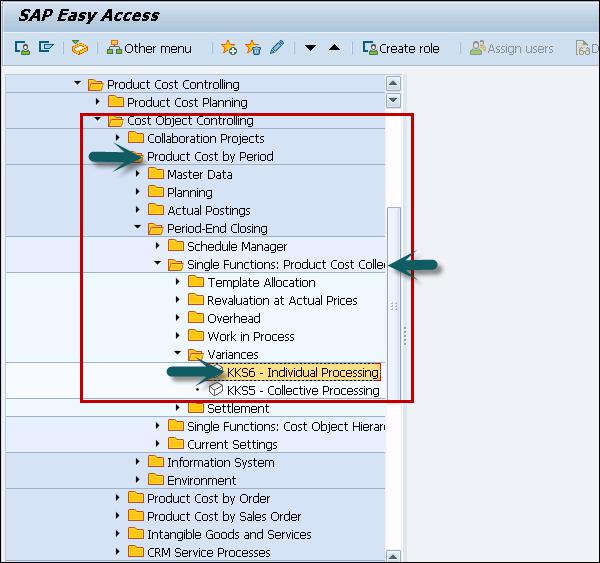

Step 1 − Navigate to Accounting → Controlling → Product Cost Controlling → Cost Object Controlling → Product Cost by Period or Product Cost by Order → Period-End Closing → Single Functions: Product Cost Collector → Single Functions: Cost Object Hierarchy → Variances → Individual Processing or Collective Processing.

Individual Processing

Step 2 − If you want to calculate the variances for a single cost object hierarchy, you have to select the option - Individual Processing and to calculate the variances for all cost object hierarchies in a controlling area, you have to select Collective Processing.

Step 3 − Next, define whether you want to calculate the variances for all target cost versions or only for a particular target cost version.

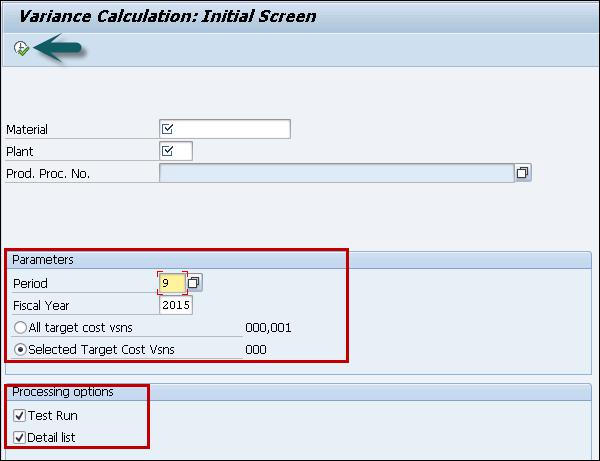

Step 4 − You can select the option- Selected target cost versions and specify the target cost version under → Extras → Set versions.

Parameters

Step 5 − Set the indicators for processing options. Click the Execute button at the top. The system calculates the variances.

When you select Detail list under Processing options, the system displays Variance Calculation List.

SAP CCA - Year-End Closing

In year-end closing, you can transfer carry forward to first period of next fiscal year and this is performed for each Controlling under SAP system.

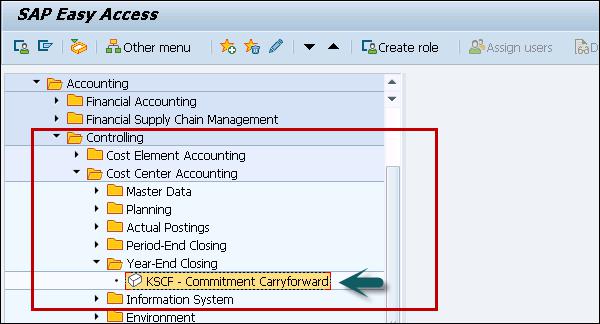

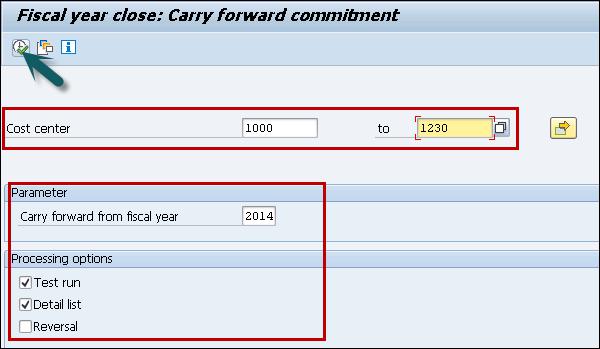

Step 1 − To carry forward a commitment, navigate to Accounting → Controlling → Cost Center Accounting → Year end Closing → Commitment Carry Forward.

Individual Process

Step 2 − In the next window, you have to enter cost center.

Under processing option, you can choose from the following indicators −

  • Test run − Test run allows the system to carry forward the commitment, but does not update the results.

  • Detail lists − When you select detail list, the system displays the results of the commitment carried forward.

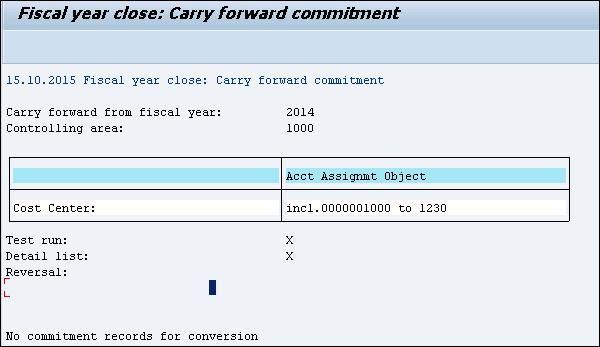

When you select the Detail list and Test run, this allows you to check the results of the test run.

You can use Reversal indicator to ensure that data that has been already carry forward will not be reversed again or not.

Carry forward Commitment

When you have large amount of data to process, you should use the background processing. This means you can process data at times of minimal system usage.

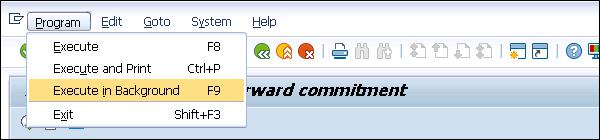

Step 3 − To perform background processing, go to Program → Execute in Background.

Execute in Background

When you click the execute button while selecting detail and test run option, result will be displayed as shown below −

Fiscal Year Close

SAP CCA - Product Costing

SAP CCA – Product Costing module is used to find the value of internal cost of products. It is also used for profitability and management accounting for production.

While configuring Product Costing, it involves two areas for setting −

  • Product Cost Planning
  • Cost Object Controlling

The basics of Product Costing is Cost Center Planning. The goal of cost center planning is to plan total dollars and quantities in each Cost Center in a plant.

Step 1T-code: KP06 and enter the controlling area. Cost Center dollars are planned by Activity-Type and cost element. You can also enter the variable and fixed dollar amounts.

Step 2 − You can plan all costs in production cost centers where they will end up through allocations, or you can plan costs where they are incurred and use plan assessments and distributions to allocate.

Change Cost Element

Step 2 − To define cost center activity quantities, use T-code: KP26.

You can also manually enter an activity rate based on last year's actual values. Note that if you enter an activity rate instead of using the system to calculate a rate, you lose the opportunity to review actual vs. plan and see dollar and unit variances.

It is a best practice to plan activity quantities based on practical installed capacity, which accounts for downtime. If you plan at full capacity, plan activity rates will be underestimated.

Example

Let us say we are using Product Costing to value our inventory in a cookie baking shop. This will help us value our cookies (finished good), frosting (semi-finished good), and baking items like eggs, milk, and sugar (raw materials).

In order to calculate costs, we need to come up with rates for each activity, such as mixing baking items, oven baking, and cookie cooling. Since a rate is a dollar per unit, we can either come up with a rate based on previous year's actual rates, or enter our total costs and total units.

SAP CCA - Profitability Analysis

SAP COPA is used to analyze the market segments classified as products, customers, sales area, business area, etc.

SAP CO Profitability Analysis (CO-PA) is used for the evaluation of Market segments, which is classified according to products, customers, and orders.

  • or any combination of these
  • or Strategic business units such as sales organizations
  • or business areas, with reference to company's profit
  • or contribution margin.

The following two types of Profitability Analysis are supported −

  • Costing-based Profitability Analysis − It is used to group the costs and revenues as per the value fields. It is used to ensure that you access at all times to a complete, short-term profitability report.

  • Account-based Profitability Analysis − It is used to provide you with a profitability report that is permanently reconciled with financial accounting. It is mainly used for getting information related to sales, marketing, product management, and corporate planning departments to support internal accounting and decision-making.

Key Components in SAP CO-PA

The key components in SAP CO-PA are as follows −

Actual Posting

It allows you to transfer sales orders and billing documents from the Sales and Distribution application component to CO-PA in real time.

You can also transfer costs from cost centers, orders and projects, as well as costs and revenues from direct postings or settle costs from CO to profitability segment.

Information System

It allows you to analyze existing data from a profitability standpoint using drilldown function in the reporting tool. It allows you to navigate through a multidimensional data cube using different functions like drilldown or switching hierarchies.

The system displays data in either value fields or accounts, depending on the currently active type of Profitability Analysis and the type to which the report structure is assigned.

Planning

This allows you to create a sales and profit plan. Whereas both types of Profitability Analysis can receive actual data in parallel, there is no common source of planning data. Consequently, you always plan either in accounts (account-based CO-PA) or in value fields (costing-based CO-PA).

The manual planning function allows you to define planning screens for your organization. With this you can display reference data in planning, calculate formulas, create forecasts, and more. You can perform planning at any level of detail.

For example, you can plan at a higher level, and have this data distributed top-down automatically. In automatic planning, you can copy and revaluate actual or planning data for a large number of profitability segments at once.

SAP CCA - Information System

Using information system functions, one can perform standard recurring evaluations. As per the requirement, you can create special reports for unique situations.

With background processing, you can carry out all the reports in background and this is very useful when you are dealing with huge volumes of data.

Using Information system, you can perform the following functions −

  • Report Call up
  • Report Processing
  • Creating special reports with report painter

SAP CCA - Standard Reports

There are various standard reports that exist in the system for Cost Center Accounting.

  • 1VK Library − This contains report related to cost accounting and is based on full costs.

  • 1GK Library − This contains reports for cost accounting systems based on marginal costs.

  • 1AB library − This is used to maintain the reports for variance analyses.

  • 1 RU library − This is used to maintain summary reports related to overall cost center accounting process.

Price Reports

Price reports in Cost Center accounting are available for Activity-Types and for activity based costing. Under Activity-Based Costing, price report are used to provide an overview of the process prices for each business process.

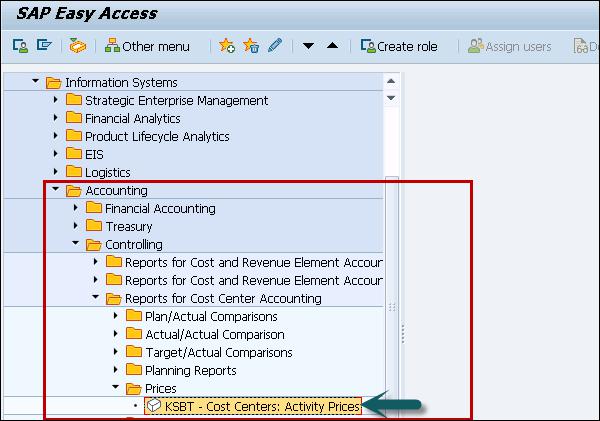

Step 1 − To execute price report online, navigate to Information Systems → Accounting → Controlling → Reports for Cost Center Accounting → Prices

Prices

Step 2 − In the next window, you have to select the options under which you want the data in the report.

Step 3 − Enter a cost center, a cost center interval, or a cost center group. You can select either of the value as below.

Cost Center Interval

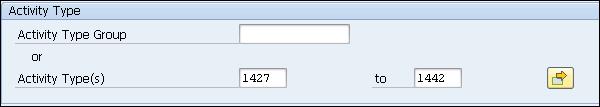

Step 4 − Enter an activity type, an activity type interval, or an activity type group.

Activity Type

Step 5 − In selection parameters, enter the following details.

  • Version
  • Fiscal year
  • Period from and to

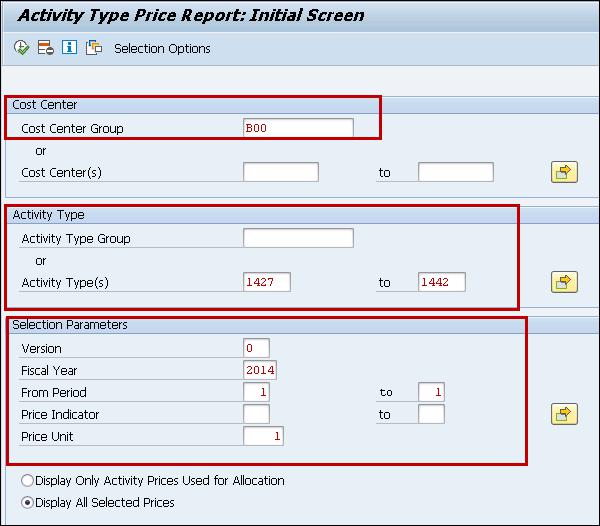

To run the report, click the Execute button.

Run Report

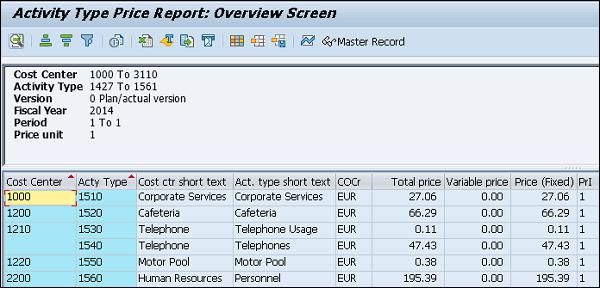

Step 6 − When you click the Execute button, Price report is displayed as per selection criteria.

Activity Type Price Report

Line Item Report

You can use the following line item reports −

  • Actual line item report − You can display line item reports for archived actual costs.

  • Plan line item report − This report is used to update plan line items.

  • Commitment line item report − This report is used in both Cost Center Accounting and in Overhead Orders.

CO line item report for reconciliation ledger

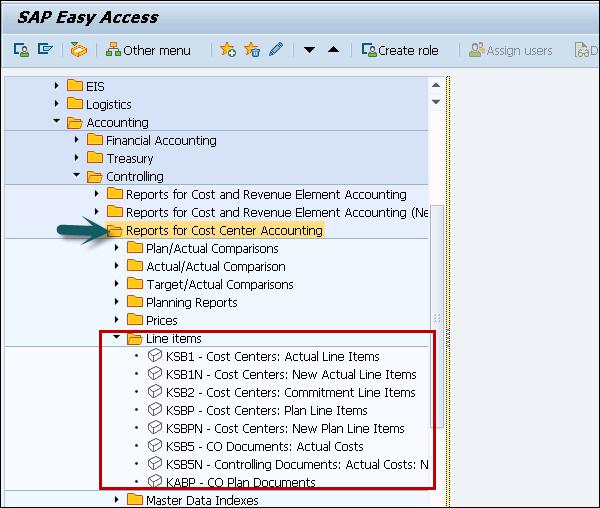

Step 1 − To execute a line item report, navigate to Information Systems → Accounting → Controlling → Reports for Cost Center Accounting → Line Items.

Step 2 − Select Line Items/ Actual/ Commitment.

Commitment

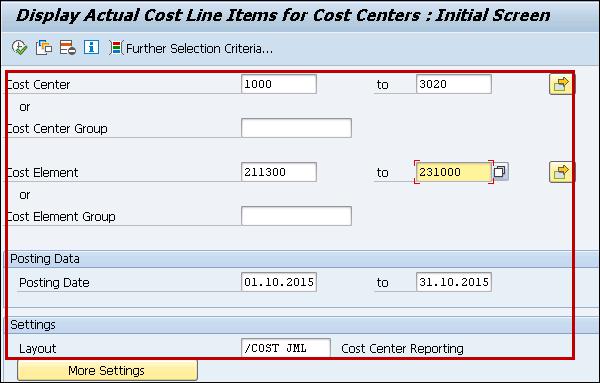

Step 3 − In the next window, you have to select an object cost element/ cost element interval/a cost element group. Enter the Posting date and Cost Element.

Cost Element Group

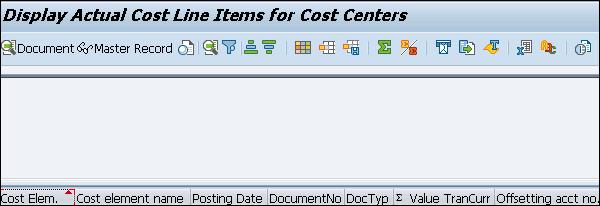

Step 4 − Click the Execute button to display the report.

Display to Report

Cost Element Reports

This report is used to perform a comparison of the figures in internal and external accounting, display the costs incurred for each object class, and see the cost flows between company codes.

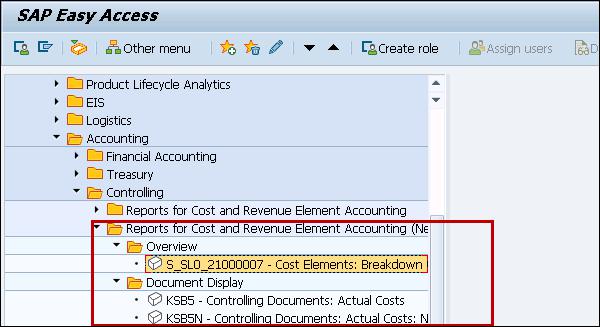

Step 1 − Navigate to Information Systems → Accounting → Controlling → Reports for Cost and Element Accounting.

Reports for Cost

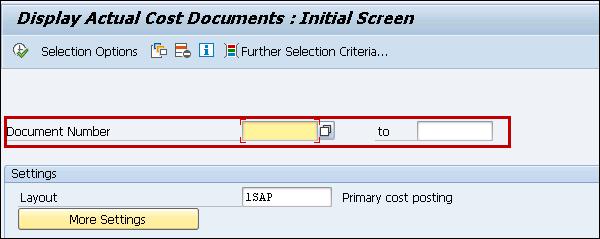

Step 2 − In the next screen, you have to select the document number as shown below.

Select the Document

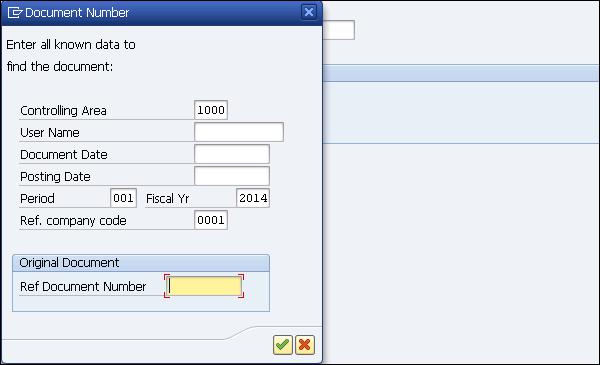

Step 3 − You can enter the document number directly or other fields if the document number is not available. Click the execute button.

Document Number

SAP CCA - Important Tables

Important Tables in SAP CO
AUSP Characteristic Values MANDT / OBJEK / ATINN / ATZHL / MAFID / KLART / ADZHL
CO-KBAS Overhead Cost Controlling
A132 Price per Cost Center MANDT / KAPPL / KSCHL / KOKRS / VERSN / RESRC / KOSTL / DATBI
A136 Price per Controlling Area MANDT / KAPPL / KSCHL / KOKRS / VERSN / RESRC / DATBI
A137 Price per Country / Region MANDT / KAPPL / KSCHL / KOKRS / VERSN / RESRC / LAND1 / REGIO / DATBI
COSC CO Objects: Assignment of Original Costing Sheets MANDT / OBJNR / SCTYP / VERSN / GJAHR
CSSK Cost Center / Cost Element MANDT / VERSN / KOKRS / GJAHR / KOSTL / KSTAR
CSSL Cost Center / Activity Type MANDT / KOKRS / KOSTL / LSTAR / GJAHR
KAPS CO Period Locks MANDT / KOKRS / GJAHR / VERSN / VRGNG / PERBL
COKBASCORE Overhead Cost Controlling: General Services
CSKA Cost Elements (Data Dependent on Chart of Accounts) MANDT / KTOPL / KSTAR
CSKB Cost Elements (Data Dependent on Controlling Area) MANDT / KOKRS / KSTAR / DATBI
CSKS Cost Center Master Data MANDT / KOKRS / KOSTL / DATBI
CSLA Activity Master MANDT / KOKRS / LSTAR / DATBI
CO-OM (KACC) Overhead Cost Controlling
COBK CO Object: Document Header MANDT / KOKRS / BELNR
COEJ CO Object: Line Items (by Fiscal Year) MANDT / KOKRS / BELNR / BUZEI / PERBL
COEJL CO Object: Line Items for Activity Types (by Fiscal Yr) MANDT / KOKRS / BELNR / BUZEI / PERBL
COEJR CO Object: Line Items for SKF (by Fiscal Year) MANDT / KOKRS / BELNR / BUZEI / PERBL
COEJT CO Object: Line Items for Prices (by Fiscal Year) MANDT / KOKRS / BELNR / BUZEI / PERBL
COEP CO Object: Line Items (by Period) MANDT / KOKRS / BELNR / BUZEI
COEPL CO Object: Line Items for SKF (by Period) MANDT / KOKRS / BELNR / BUZEI
COEPR CO Object: Line Items for SKF (by Period) MANDT / KOKRS / BELNR / BUZEI
COEPT CO Object: Line Items for Prices (by Period) MANDT / KOKRS / BELNR / BUZEI
COKA CO Object: Control Data for Cost Elements MANDT / OBJNR / GJAHR / KSTAR / HRKFT
COKL CO Object: Control Data for Activity Types MANDT / LEDNR / OBJNR / GJAHR / VERSN
COKP CO Object: Control Data for Primary Planning MANDT / LEDNR / OBJNR / GJAHR / WRTTP / VERSN / KSTAR / HRKFT / VRGNG / VBUND / PARGB / BEKNZ / TWAER
COKR CO Object: Control Data for Statistical Key Figures MANDT / LEDNR / OBJNR / GJAHR / WRTTP / VERSN / STAGR / HRKFT / VRGNG
COKS CO Object: Control Data for Secondary Planning MANDT / LEDNR / OBJNR / GJAHR / WRTTP / VERSN / KSTAR / HRKFT / VRGNG / PAROB / USPOB / BEKNZ / TWAER
CO-OM-CEL (KKAL) Cost Element Accounting (Reconciliation Ledger)
COFI01 Object Table for Reconciliation Ledger COFIT MANDT / OBJNR
COFI02 Transaction Dependent Fields for Reconciliation Ledger MANDT / OBJNR
COFIP Single Plan Items for Reconciliation Ledger RCLNT / GL_SIRID
COFIS Actual Line Items for Reconciliation Ledger RCLNT / GL_SIRID
CO-OM-CCA Cost Center Accounting (Cost Accounting Planning)
A138 Price per Company Code MANDT / KAPPL / KSCHL / KOKRS / VERSN / RESRC / BUKRS / GSBER / DATBI
A139 Price per Profit Center MANDT / KAPPL / KSCHL / KOKRS / VERSN / RESRC / PRCTR / DATBI
CO-OMOPA(KABR) Overhead Orders: Application Development R/3 Cost Accounting Settlement
AUAA Settlement Document: Receiver Segment MANDT / BELNR / LFDNR
AUAB Settlement Document: Distribution Rules MANDT / BELNR / BUREG / LFDNR
AUAI Settlement Rules per Depreciation Area MANDT / BELNR / LFDNR / AFABE
AUAK Document Header for Settlement MANDT / BELNR
AUAO Document Segment: CO Objects to be Settled MANDT / BELNR / LFDNR
AUAV Document Segment: Transactions MANDT / BELNR / LFDNR
COBRA Settlement Rule for Order Settlement MANDT / OBJNR
COBRB Distribution Rules Settlement Rule Order Settlement MANDT / OBJNR / BUREG / LFDNR
CO-OM-OPA (KAUF) Overhead Orders: Cost Accounting Orders
AUFK Order Master Data MANDT / AUFNR
AUFLAY0 Entity Table: Order Layouts MANDT / LAYOUT
EC-PCA (KE1) Profit Center Accounting
CEPC Profit Center Master Data Table MANDT / PRCTR / DATBI / KOKRS
CEPCT Texts for Profit Center Master Data MANDT / SPRAS / PRCTR / DATBI / KOKRS
CEPC_BUKRS Assignment of Profit Center to a Company Code MANDT / KOKRS / PRCTR / BUKRS
GLPCA EC-PCA: Actual Line Items RCLNT / GL_SIRID
GLPCC EC-PCA: Transaction Attributes MANDT / OBJNR
GLPCO EC-PCA: Object Table for Account Assignment Element MANDT / OBJNR
GLPCP EC-PCA: Plan Line Items RCLNT / GL_SIRID
EC-PCA BS (KE1C) PCA Basic Settings: Customizing for Profit Center Accounting
A141 Dependent on Material and Receiver Profit Center MANDT / KAPPL / KSCHL / KOKRS / WERKS / MATNR / PPRCTR / DATBI
A142 Dependent on Material MANDT / KAPPL / KSCHL / WERKS / MATNR / DATBI
A143 Dependent on Material Group MANDT / KAPPL / KSCHL / WERKS / MATKL / DATBI

SAP CCA - Job Responsibilities

Following are the job responsibilities of a SAP CCA Consultant −

  • SAP implementation and support experience of 3 to 7 years with highest education ICWA/CA preferred.

  • Person should have hands on experience in SAP Controlling.

  • Worked on SAP Controlling with hands on experience in Product costing, Order costing, Cost center accounting, CO- PA Profitability Analysis, Month and Year end activities like period end Closing, Year-end closing, Standard reports in CO, etc.

  • Hands-on experience in areas of COPA, Product Costing and Profit Center Accounting.

  • Should possess Cross-functional knowledge and integration points to Production, sales and purchasing.

Advertisements
