HANA Optimized InfoCubes

When you use SAP BW on HANA, you can create your existing InfoCubes to HANA Optimized InfoCubes. When InfoCubes are moved to HANA database, they become column-based tables and act like BWA Indexed InfoCubes.

When SAP HANA optimized InfoCubes are used, characteristics and key figures are assigned to dimensions. To improve the system performance, Surrogate IDs (SIDs) are used in fact tables.

When you convert standard InfoCubes to HANA optimized InfoCubes, the layout changes at the time of conversion and it has to be adjusted manually.

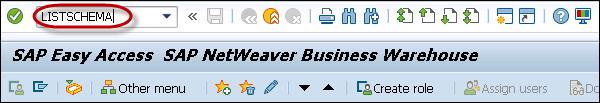

To view InfoCubes in the BW system, you can use Transaction: LISTSCHEMA

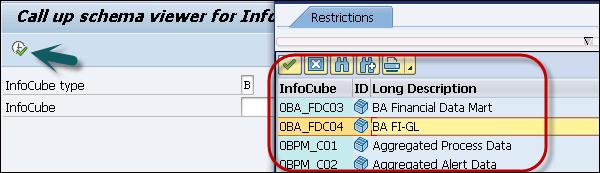

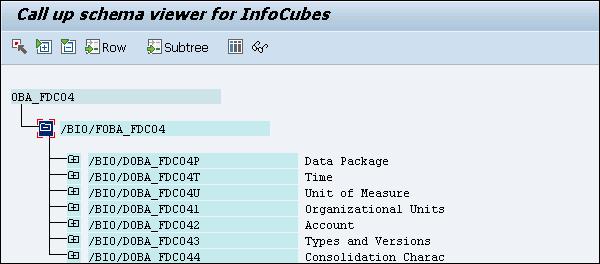

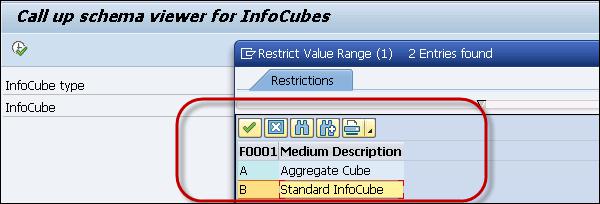

You can select your InfoCube and check the various dimension tables. Select InfoCube type −

• Aggregate Cube
• Standard InfoCube

There are two ways to convert standard InfoCube to HANA optimized InfoCube.

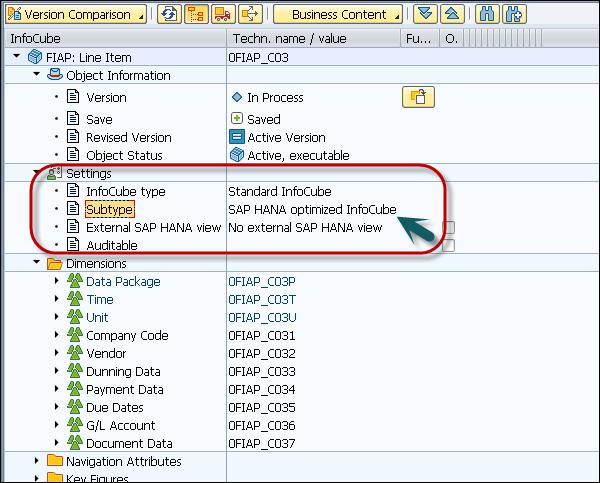

Go to InfoCube and click to open the editing screen. Select Conversion to SAP HANA optimized checkbox. You can also check this property under InfoCube properties → Subtype. Open InfoCube and you can see the subtype as HANA optimized InfoCube.

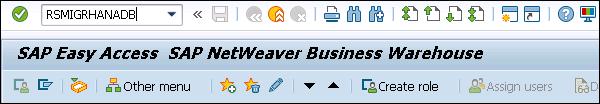

You can also call Transaction RSMIGRHANADB in BW system. This transaction will directly open the screen to convert objects to HANA optimized objects.

You can select the object type and enter the name of the object. In the following screen, I have selected a standard InfoCube to convert to HANA Optimized InfoCube.

You can also select an option to view the logs after conversion.

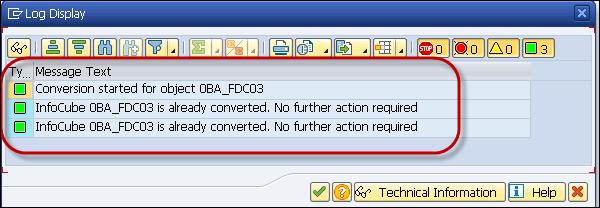

When the selected object is already HANA optimized object, or conversion is done, you will get the message as shown in the following screenshot.
