PhantomJS - Network Monitoring


Advertisements

With help of PhantomJS, we can monitor the network and validate the behavior and performance of a particular webpage. There are callbacks in PhantomJS, i.e., onResourceRequested and onResourceReceived, which help in monitoring the traffic for a given page.

Example

The following example shows how you can use PhantomJS to monitor traffic for a given page.

function createHAR(address, title, startTime, resources) {

   // this function formats the data which is coming from
      onresourcerequest and onresourcereceived
   var entries = [];

   resources.forEach(function (resource) {
      var request = resource.request, startReply = resource.startReply,
         endReply = resource.endReply;

      if (!request || !startReply || !endReply) {
         return;
      }

      // Exclude Data URI from HAR file because
      // they aren't included in specification
      if (request.url.match(/(^data:image\/.*)/i)) {
         return;
      }
      entries.push ({
         startedDateTime: request.time.toISOString(),
         time: endReply.time - request.time,

         request: {
            method: request.method,
            url: request.url,
            httpVersion: "HTTP/1.1",
            cookies: [], headers: request.headers,
            queryString: [],
            headersSize: -1,
            bodySize: -1
         },
         response: {
            status: endReply.status,
            statusText: endReply.statusText,
            httpVersion: "HTTP/1.1",
            cookies: [],
            headers: endReply.headers,
            redirectURL: "",
            headersSize: -1,
            bodySize: startReply.bodySize,

            content: {
               size: startReply.bodySize,
               mimeType: endReply.contentType
            }
         },
         cache: {},
         timings: {
            blocked: 0,
            dns: -1,
            connect: -1,
            send: 0,
            wait: startReply.time - request.time,
            receive: endReply.time - startReply.time,
            ssl: -1
         },
         pageref: address
      });
   });
   return {
      log: {
         version: '1.2', creator: {
            name: "PhantomJS",
            version: phantom.version.major + '.' + phantom.version.minor +
               '.' + phantom.version.patch
         },
         pages: [{
            startedDateTime: startTime.toISOString(),
            id: address,
            title: title,

            pageTimings: {
               onLoad: page.endTime - page.startTime
            }
         }],
         entries: entries
      }
   };
}
var page = require('webpage').create(), system = require('system');
var fs = require('fs');

if (system.args.length === 1) {
   console.log('Usage: netsniff.js <some URL>');
   phantom.exit(1);
} else {
   page.address = system.args[1];
   page.resources = [];

   page.onLoadStarted = function () {  // called when page is loaded
      page.startTime = new Date();
   };
   page.onResourceRequested = function (req) {
      // called when any files are requested from given page url
      page.resources[req.id] = {
         request: req,
         startReply: null,
         endReply: null
      };
   };
   page.onResourceReceived = function (res) {
      //called when any files are received.
      if (res.stage === 'start') {
         page.resources[res.id].startReply = res;
      }
      if (res.stage === 'end') {
         page.resources[res.id].endReply = res;
      }
   };
   page.open(page.address, function (status) {  // open given page url
      var har;

      if (status !== 'success') {
         console.log('FAIL to load the address');
         phantom.exit(1);
      } else {
         page.endTime = new Date();

         page.title = page.evaluate(function () { // gets the page title
            return document.title;
         });
         har = createHAR(page.address, page.title, page.startTime, page.resources);

         // calls the function createHAR with page url, starttime, and page resources.
         // console.log(JSON.stringify(har, undefined, 4));
         fs.write('log.txt', JSON.stringify(har, undefined, 4), 'w');

         // logs are collected in log.txt file.
         phantom.exit();
      }
   });
}

Example of log.txt given to HAR preview

{
   "log": {
      "version": "1.2",
      "creator": {
         "name": "PhantomJS",
         "version": "2.1.1"
      },
      "pages": [
         {
            "startedDateTime": "2017-05-21T13:41:21.824Z",
            "id": "http://www.sample.com",
            "title": "Free Sample Products – Sample.com &Gt; Free Samples,
               Free Product Samples, Product Test Marketing",
            "pageTimings": {
               "onLoad": 11081
            }
         }
      ],
      "entries": [
         {
            "startedDateTime": "2017-05-21T13:41:21.815Z",
            "time": 1999,

            "request": {
               "method": "GET",
               "url": "http://www.sample.com/",
               "httpVersion": "HTTP/1.1",
               "cookies": [],

               "headers": [
                  {
                     "name": "Accept",
                     "value": "text/html,application/xhtml+xml,
                        application/xml;q = 0.9,*/*;q = 0.8"
                  },

                  {
                     "name": "User-Agent",
                     "value": "Mozilla/5.0 (Windows NT 6.2; WOW64) AppleWebKit/538.1
                        (KHTML, like Gecko) PhantomJS/2.1.1 Safari/538.1"
                  }
               ],

               "queryString": [],
               "headersSize": -1,
               "bodySize": -1
            },
            "response": {
               "status": 301,
               "statusText": "Moved Permanently",
               "httpVersion": "HTTP/1.1",
               "cookies": [],

               "headers": [
                  {
                     "name": "Date",
                     "value": "Sun, 21 May 2017 13:41:25 GMT"
                  },

                  {
                     "name": "Server",
                     "value": "Apache/2.2.14 (Ubuntu)"
                  },

                  {
                     "name": "Location",
                     "value": "http://sample.com//"
                  },

                  {
                     "name": "Vary",
                     "value": "Accept-Encoding"
                  },

                  {
                     "name": "Content-Encoding",
                     "value": "gzip"
                  },

                  {
                     "name": "Keep-Alive",
                     "value": "timeout = 15, max = 100"
                  },

                  {
                     "name": "Connection",
                     "value": "Keep-Alive"
                  },

                  {
                     "name": "Content-Type",
                     "value": "text/html; charset = iso-8859-1"
                  }
               ],
               "redirectURL": "",
               "headersSize": -1,
               "bodySize": 307,

               "content": {
                  "size": 307,
                  "mimeType": "text/html; charset = iso-8859-1"
               }
            },

            "cache": {},
            "timings": {
               "blocked": 0,
               "dns": -1,
               "connect": -1,
               "send": 0,
               "wait": 1999,
               "receive": 0,
               "ssl": -1
            },
            "pageref": "http://www.sample.com"
         },
      ]
      {
         "startedDateTime": "2017-05-21T13:41:24.898Z",
         "time": 885,

         "request": {
            "method": "GET",
            "url": "http://sample.com/",
            "httpVersion": "HTTP/1.1",
            "cookies": [],

            "headers": [
               {
                  "name": "Accept",
                  "value": "text/html,application/xhtml+xml,
                     application/xml;q = 0.9,*/*;q = 0.8"
               },

               {
                  "name": "User-Agent",
                  "value": "Mozilla/5.0 (Windows NT 6.2; WOW64) AppleWebKit/538.1
                     (KHTML, like Gecko) PhantomJS/2.1.1 Safari/538.1"
               }
            ],
            "queryString": [],
            "headersSize": -1,
            "bodySize": -1
         },
         "response": {
            "status": 200,
            "statusText": "OK",
            "httpVersion": "HTTP/1.1",
            "cookies": [],

            "headers": [
               {
                  "name": "Date",
                  "value": "Sun, 21 May 2017 13:41:27 GMT"
               },

               {
                  "name": "Server",
                  "value": "Apache/2.2.14 (Ubuntu)"
               },

               {
                  "name": "X-Powered-By",
                  "value": "PHP/5.3.2-1ubuntu4.29"
               },

               {
                  "name": "X-Pingback",
                  "value": "http://sample.com/xmlrpc.php"
               },

               {
                  "name": "Link",
                  "value": "<http://sample.com/wp-json/>;
                     rel = \"https://api.w.org/\", <http://wp.me/P6Jj5H-4>;
                     rel = shortlink"
               },

               {
                  "name": "Vary",
                  "value": "Accept-Encoding"
               },

               {
                  "name": "Content-Encoding",
                  "value": "gzip"
               },

               {
                  "name": "Keep-Alive",
                  "value": "timeout = 15, max = 99"
               },

               {
                  "name": "Connection",
                  "value": "Keep-Alive"
               },

               {
                  "name": "Content-Type",
                  "value": "text/html; charset = UTF-8"
               }
            ],

            "redirectURL": "",
            "headersSize": -1,
            "bodySize": 1969,

            "content": {
               "size": 1969,
               "mimeType": "text/html; charset = UTF-8"
            }
         },

         "cache": {},
         "timings": {
            "blocked": 0,
            "dns": -1,
            "connect": -1,
            "send": 0,
            "wait": 869,
            "receive": 16,
            "ssl": -1
         },

         "pageref": http://www.sample.com
      },

      {
         "startedDateTime": "2017-05-21T13:41:25.767Z",
         "time": 388,

         "request": {
            "method": "GET",
            "url": "http://sample.com/wpcontent/themes/samplecom/style.css",
            "httpVersion": "HTTP/1.1",
            "cookies": [],

            "headers": [
               {
                  "name": "Accept",
                  "value": "text/css,*/*;q = 0.1"
               },

               {
                  "name": "Referer",
                  "value": "http://sample.com/"
               },

               {
                  "name": "User-Agent",
                  "value": "Mozilla/5.0 (Windows NT 6.2; WOW64) AppleWebKit/538.1
                     (KHTML, like Gecko) PhantomJS/2.1.1 Safari/538.1"
               }
            ],

            "queryString": [],
            "headersSize": -1,
            "bodySize": -1
         },

         "response": {
            "status": 200,
            "statusText": "OK",
            "httpVersion": "HTTP/1.1",
            "cookies": [],

            "headers": [
               {
                  "name": "Date",
                  "value": "Sun, 21 May 2017 13:41:27 GMT"
               },

               {
                  "name": "Server",
                  "value": "Apache/2.2.14 (Ubuntu)"
               },

               {
                  "name": "Last-Modified",
                  "value": "Fri, 22 Apr 2011 00:32:22 GMT"
               },

               {
                  "name": "ETag",
                  "value": "\"e1d7-1836-4a176fdbbd180\""
               },

               {
                  "name": "Accept-Ranges",
                  "value": "bytes"
               },

               {
                  "name": "Vary",
                  "value": "Accept-Encoding"
               },

               {
                  "name": "Content-Encoding",
                  "value": "gzip"
               },

               {
                  "name": "Keep-Alive",
                  "value": "timeout = 15, max = 98"
               },

               {
                  "name": "Connection",
                  "value": "Keep-Alive"
               },

               {
                  "name": "Content-Type",
                  "value": "text/css"
               }
            ],

            "redirectURL": "",
            "headersSize": -1,
            "bodySize": 3174,

            "content": {
               "size": 3174,
               "mimeType": "text/css"
            }
         },

         "cache": {},
         "timings": {
            "blocked": 0,
            "dns": -1,
            "connect": -1,
            "send": 0,
            "wait": 388,
            "receive": 0,
            "ssl": -1
         },

         "pageref": "http://www.sample.com"
      }
   }
}

Output

The above program generates the following output.

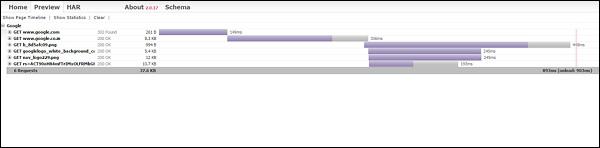

Har Preview

All the logs are collected in a .txt file and later, the same is converted as above using the HAR preview, for example, (http://www.softwareishard.com/har/viewer/)
