PDFBox - Overview

The Portable Document Format (PDF) is a file format that helps to present data in a manner that is independent of Application software, hardware, and operating systems.

Each PDF file holds description of a fixed-layout flat document, including the text, fonts, graphics, and other information needed to display it.

There are several libraries available to create and manipulate PDF documents through programs, such as −

Adobe PDF Library − This library provides API in languages such as C++, .NET and Java and using this we can edit, view print and extract text from PDF documents.
Formatting Objects Processor − Open-source print formatter driven by XSL Formatting Objects and an output independent formatter. The primary output target is PDF.
iText − This library provides API in languages such as Java, C#, and other .NET languages and using this library we can create and manipulate PDF, RTF and HTML documents.
JasperReports − This is a Java reporting tool which generates reports in PDF document including Microsoft Excel, RTF, ODT, comma-separated values and XML files.

What is a PDFBox

Apache PDFBox is an open-source Java library that supports the development and conversion of PDF documents. Using this library, you can develop Java programs that create, convert and manipulate PDF documents.

In addition to this, PDFBox also includes a command line utility for performing various operations over PDF using the available Jar file.

Features of PDFBox

Following are the notable features of PDFBox −

Extract Text − Using PDFBox, you can extract Unicode text from PDF files.
Split & Merge − Using PDFBox, you can divide a single PDF file into multiple files, and merge them back as a single file.
Fill Forms − Using PDFBox, you can fill the form data in a document.
Print − Using PDFBox, you can print a PDF file using the standard Java printing API.
Save as Image − Using PDFBox, you can save PDFs as image files, such as PNG or JPEG.
Create PDFs − Using PDFBox, you can create a new PDF file by creating Java programs and, you can also include images and fonts.
Signing− Using PDFBox, you can add digital signatures to the PDF files.

Applications of PDFBox

The following are the applications of PDFBox −

Apache Nutch − Apache Nutch is an open-source web-search software. It builds on Apache Lucene, adding web-specifics, such as a crawler, a link-graph database, parsers for HTML and other document formats, etc.
Apache Tika − Apache Tika is a toolkit for detecting and extracting metadata and structured text content from various documents using existing parser libraries.

Components of PDFBox

The following are the four main components of PDFBox −

PDFBox − This is the main part of the PDFBox. This contains the classes and interfaces related to content extraction and manipulation.
FontBox − This contains the classes and interfaces related to font, and using these classes we can modify the font of the text of the PDF document.
XmpBox − This contains the classes and interfaces that handle XMP metadata.
Preflight − This component is used to verify the PDF files against the PDF/A-1b standard.

PDFBox - Environment

Installing PDFBox

Following are the steps to download Apache PDFBox −

Step 1 − Open the homepage of Apache PDFBox by clicking on the following link − https://pdfbox.apache.org/

Step 2 − The above link will direct you to the homepage as shown in the following screenshot −

Step 3 − Now, click on the Downloads link highlighted in the above screenshot. On clicking, you will be directed to the downloads page of PDFBox as shown in the following screenshot.

Step 4 − In the Downloads page, you will have links for PDFBox. Click on the respective link for the latest release. For instance, we are opting for PDFBox 2.0.1 and on clicking this, you will be directed to the required jar files as shown in the following screenshot.

Step 5 − Download the jar files pdfbox-2.0.1.jar, fontbox-2.0.1.jar, preflight-2.0.1.jar, xmpbox-2.0.1.jar and, pdfbox-tools-2.0.1.jar.

Eclipse Installation

After downloading the required jar files, you have to embed these JAR files to your Eclipse environment. You can do this by setting the Build path to these JAR files and by using pom.xml.

Setting Build Path

Following are the steps to install PDFBox in Eclipse −

Step 1 − Ensure that you have installed Eclipse in your system. If not, download and install Eclipse in your system.

Step 2 − Open Eclipse, click on File, New, and Open a new project as shown in the following screenshot.

Step 3 − On selecting the project, you will get New Project wizard. In this wizard, select Java project and proceed by clicking Next button as shown in the following screenshot.

Step 4 − On proceeding forward, you will be directed to the New Java Project wizard. Create a new project and click on Next as shown in the following screenshot.

Step 5 − After creating a new project, right click on it; select Build Path and click on Configure Build Path… as shown in the following screenshot.

Step 6 − On clicking on the Build Path option you will be directed to the Java Build Path wizard. Select the Add External JARs as shown in the following screenshot.

Step 7 − Select the jar files fontbox-2.0.1.jar, pdfbox-2.0.1.jar, pdfbox-tools-2.0.1.jar, preflight-2.0.1.jar, xmpbox-2.0.1.jar as shown in the following screenshot.

Step 8 − On clicking the Open button in the above screenshot, those files will be added to your library as shown in the following screenshot.

Step 9 − On clicking OK, you will successfully add the required JAR files to the current project and you can verify these added libraries by expanding the Referenced Libraries as shown in the following screenshot.

Using pom.xml

Convert the project into maven project and add the following contents to its pom.xml.

<project xmlns="https://maven.apache.org/POM/4.0.0"
   xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="https://maven.apache.org/POM/4.0.0
   https://maven.apache.org/xsd/maven-4.0.0.xsd">
   <modelVersion>4.0.0</modelVersion>
   <groupId>my_project</groupId>
   <artifactId>my_project</artifactId>
   <version>0.0.1-SNAPSHOT</version>

   <build>
      <sourceDirectory>src</sourceDirectory>
      <plugins>
         <plugin>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>3.3</version>
            <configuration>
               <source>1.8</source>
               <target>1.8</target>
            </configuration>
         </plugin>
      </plugins>
   </build>

   <dependencies>
      <dependency>
         <groupId>org.apache.pdfbox</groupId>
         <artifactId>pdfbox</artifactId>
         <version>2.0.1</version>
      </dependency>

      <dependency>
         <groupId>org.apache.pdfbox</groupId>
         <artifactId>fontbox</artifactId>
         <version>2.0.0</version>
      </dependency>

      <dependency>
         <groupId>org.apache.pdfbox</groupId>
         <artifactId>jempbox</artifactId>
         <version>1.8.11</version>
      </dependency>

      <dependency>
         <groupId>org.apache.pdfbox</groupId>
         <artifactId>xmpbox</artifactId>
         <version>2.0.0</version>
      </dependency>

      <dependency>
         <groupId>org.apache.pdfbox</groupId>
         <artifactId>preflight</artifactId>
         <version>2.0.0</version>
      </dependency>

      <dependency>
         <groupId>org.apache.pdfbox</groupId>
         <artifactId>pdfbox-tools</artifactId>
         <version>2.0.0</version>
      </dependency>

   </dependencies>

</project>

PDFBox - Creating a PDF Document

Let us now understand how to create a PDF document using the PDFBox library.

Creating an Empty PDF Document

You can create an empty PDF Document by instantiating the PDDocument class. You can save the document in your desired location using the Save() method.

Following are the steps to create an empty PDF document.

Step 1: Creating an Empty Document

The PDDocument class that belongs to the package org.apache.pdfbox.pdmodel, is an In-memory representation of the PDFDocument. Therefore, by instantiating this class, you can create an empty PDFDocument as shown in the following code block.

PDDocument document = new PDDocument();

Step 2: Saving the Document

After creating the document, you need to save this document in the desired path, you can do so using the Save() method of the PDDocument class. This method accepts a string value, representing the path where you want to store the document, as a parameter. Following is the prototype of the save() method of the PDDocument class.

document.save("Path");

Step 3: Closing the Document

When your task is completed, at the end, you need to close the PDDocument object using the close () method. Following is the prototype of the close() method of PDDocument class.

document.close();

Example

This example demonstrates the creation of a PDF Document. Here, we will create a Java program to generate a PDF document named my_doc.pdf and save it in the path C:/PdfBox_Examples/. Save this code in a file with name Document_Creation.java.

import java.io.IOException;
import org.apache.pdfbox.pdmodel.PDDocument;

public class Document_Creation {

   public static void main (String args[]) throws IOException {

      //Creating PDF document object
      PDDocument document = new PDDocument();

      //Saving the document
      document.save("C:/PdfBox_Examples/my_doc.pdf");

      System.out.println("PDF created");

      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac Document_Creation.java
java Document_Creation

Upon execution, the above program creates a PDF document displaying the following message.

PDF created

If you verify the specified path, you can find the created PDF document as shown below.

Since this is an empty document, if you try to open this document, this gives you a prompt displaying an error message as shown in the following screenshot.

PDFBox - Adding Pages

In the previous chapter, we have seen how to create a PDF document. After creating a PDF document, you need to add pages to it. Let us now understand how to add pages in a PDF document.

Adding Pages to a PDF Document

You can create an empty page by instantiating the PDPage class and add it to the PDF document using the addPage() method of the PDDocument class.

Following are the steps to create an empty document and add pages to it.

Step 1: Creating an Empty Document

Create an empty PDF document by instantiating the PDDocument class as shown below.

PDDocument document = new PDDocument();

Step 2: Creating a Blank Page

The PDPage class represents a page in the PDF document therefore, you can create an empty page by instantiating this class as shown in the following code block.

PDPage my_page = new PDPage();

Step 3: Adding Page to the Document

You can add a page to the PDF document using the addPage() method of the PDDocument class. To this method you need to pass the PDPage object as a parameter.

Therefore, add the blank page created in the previous step to the PDDocument object as shown in the following code block.

document.addPage(my_page);

In this way you can add as many pages as you want to a PDF document.

Step 4: Saving the Document

After adding all the pages, save the PDF document using the save() method of the PDDocument class as shown in the following code block.

document.save("Path");

Step 5: Closing the Document

Finally close the document using the close() method of the PDDocument class as shown below.

document.close();

Example

This example demonstrates how to create a PDF Document and add pages to it. Here we will create a PDF Document named my_doc.pdf and further add 10 blank pages to it, and save it in the path C:/PdfBox_Examples/. Save this code in a file with name Adding_pages.java.

package document;

import java.io.IOException;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDPage;

public class Adding_Pages {

   public static void main(String args[]) throws IOException {

      //Creating PDF document object
      PDDocument document = new PDDocument();

      for (int i=0; i<10; i++) {
         //Creating a blank page
         PDPage blankPage = new PDPage();

         //Adding the blank page to the document
         document.addPage( blankPage );
      }

      //Saving the document
      document.save("C:/PdfBox_Examples/my_doc.pdf");
      System.out.println("PDF created");

      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands −

javac Adding_pages.java
java Adding_pages

Upon execution, the above program creates a PDF document with blank pages displaying the following message −

PDF created

If you verify the specified path, you can find the created PDF document as shown in the following screenshot.

PDFBox - Loading a Document

In the previous examples, you have seen how to create a new document and add pages to it. This chapter teaches you how to load a PDF document that already exists in your system, and perform some operations on it.

Loading an Existing PDF Document

The load() method of the PDDocument class is used to load an existing PDF document. Follow the steps given below to load an existing PDF document.

Step 1: Loading an Existing PDF Document

Load an existing PDF document using the static method load() of the PDDocument class. This method accepts a file object as a parameter, since this is a static method you can invoke it using class name as shown below.

File file = new File("path of the document")
PDDocument.load(file);

Step 2: Perform the Required Operations

Perform the required operations such as adding pages adding text, adding images to the loaded document.

Step 3: Saving the Document

After adding all the pages, save the PDF document using the save() method of the PDDocument class as shown in the following code block.

document.save("Path");

Step 4: Closing the Document

Finally close the document using the close() method of the PDDocument class as shown below.

document.close();

Example

Suppose we have a PDF document which contains a single page, in the path, C:/PdfBox_Examples/ as shown in the following screenshot.

This example demonstrates how to load an existing PDF Document. Here, we will load the PDF document sample.pdf shown above, add a page to it, and save it in the same path with the same name.

Step 1 − Save this code in a file with name LoadingExistingDocument.java.

import java.io.File;
import java.io.IOException;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDPage;
public class LoadingExistingDocument {

   public static void main(String args[]) throws IOException {

      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/sample.pdf");
      PDDocument document = PDDocument.load(file);

      System.out.println("PDF loaded");

      //Adding a blank page to the document
      document.addPage(new PDPage());

      //Saving the document
      document.save("C:/PdfBox_Examples/sample.pdf");

      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands

javac LoadingExistingDocument.java
java LoadingExistingDocument

Upon execution, the above program loads the specified PDF document and adds a blank page to it displaying the following message.

PDF loaded

If you verify the specified path, you can find an additional page added to the specified PDF document as shown below.

PDFBox - Removing Pages

Let us now learn how to remove pages from a PDF document.

Removing Pages from an Existing Document

You can remove a page from an existing PDF document using the removePage() method of the PDDocument class.

Step 1: Loading an Existing PDF Document

File file = new File("path of the document")
PDDocument.load(file);

Step 2: Listing the Number of Pages

You can list the number of pages that exists in the PDF document using the getNumberOfPages() method as shown below.

int noOfPages= document.getNumberOfPages();
System.out.print(noOfPages);

Step 3: Removing the Page

You can remove a page from the PDF document using the removePage() method of the PDDocument class. To this method, you need to pass the index of the page that is to be deleted.

While specifying the index for the pages in a PDF document, keep in mind that indexing of these pages starts from zero, i.e., if you want to delete the 1^st page then the index value needs to be 0.

document.removePage(2);

Step 4: Saving the Document

After removing the page, save the PDF document using the save() method of the PDDocument class as shown in the following code block.

document.save("Path");

Step 5: Closing the Document

Finally, close the document using the close() method of the PDDocument class as shown below.

document.close();

Example

Suppose, we have a PDF document with name sample.pdf and it contains three empty pages as shown below.

This example demonstrates how to remove pages from an existing PDF document. Here, we will load the above specified PDF document named sample.pdf, remove a page from it, and save it in the path C:/PdfBox_Examples/. Save this code in a file with name Removing_pages.java.

import java.io.File;
import java.io.IOException;

import org.apache.pdfbox.pdmodel.PDDocument;

public class RemovingPages {

   public static void main(String args[]) throws IOException {

      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/sample.pdf");
      PDDocument document = PDDocument.load(file);

      //Listing the number of existing pages
      int noOfPages= document.getNumberOfPages();
      System.out.print(noOfPages);

      //Removing the pages
      document.removePage(2);

      System.out.println("page removed");

      //Saving the document
      document.save("C:/PdfBox_Examples/sample.pdf");

      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac RemovingPages.java
java RemovingPages

Upon execution, the above program creates a PDF document with blank pages displaying the following message.

3
page removed

If you verify the specified path, you can find that the required page was deleted and only two pages remained in the document as shown below.

PDFBox - Document Properties

Like other files, a PDF document also has document properties. These properties are key-value pairs. Each property gives particular information about the document.

Following are the properties of a PDF document −

S.No.	Property & Description
1	File This property holds the name of the file.
2	Title Using this property, you can set the title for the document.
3	Author Using this property, you can set the name of the author for the document.
4	Subject Using this property, you can specify the subject of the PDF document.
5	Keywords Using this property, you can list the keywords with which we can search the document.
6	Created Using this property, you can set the date created for the document.
7	Modified Using this property, you can set the date modified for the document.
8	Application Using this property, you can set the Application of the document.

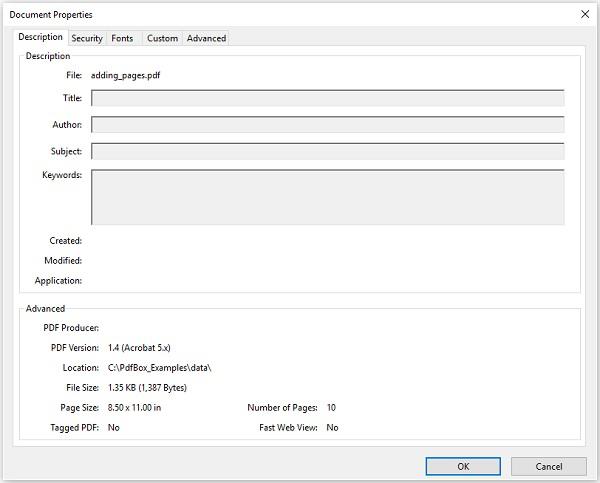

Following is a screenshot of the document properties table of a PDF document.

Setting the Document Properties

PDFBox provides you a class named PDDocumentInformation. This class has a set of setter and getter methods.

The setter methods of this class are used to set values to various properties of a document and getter methods which are used to retrieve these values.

Following are the setter methods of the PDDocumentInformation class.

S.No.	Method & Description
1	setAuthor(String author) This method is used to set the value for the property of the PDF document named Author.
2	setTitle(String title) This method is used to set the value for the property of the PDF document named Title.
3	setCreator(String creator) This method is used to set the value for the property of the PDF document named Creator.
4	setSubject(String subject) This method is used to set the value for the property of the PDF document named Subject.
5	setCreationDate(Calendar date) This method is used to set the value for the property of the PDF document named CreationDate.
6	setModificationDate(Calendar date) This method is used to set the value for the property of the PDF document named ModificationDate.
7	setKeywords(String keywords list) This method is used to set the value for the property of the PDF document named Keywords.

Example

PDFBox provides a class called PDDocumentInformation and this class provides various methods. These methods can set various properties to the document and retrieve them.

This example demonstrates how to add properties such as Author, Title, Date, and Subject to a PDF document. Here, we will create a PDF document named doc_attributes.pdf, add various attributes to it, and save it in the path C:/PdfBox_Examples/. Save this code in a file with name AddingAttributes.java.

import java.io.IOException;
import java.util.Calendar;
import java.util.GregorianCalendar;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDDocumentInformation;
import org.apache.pdfbox.pdmodel.PDPage;

public class AddingDocumentAttributes {
   public static void main(String args[]) throws IOException {

      //Creating PDF document object
      PDDocument document = new PDDocument();

      //Creating a blank page
      PDPage blankPage = new PDPage();

      //Adding the blank page to the document
      document.addPage( blankPage );

      //Creating the PDDocumentInformation object
      PDDocumentInformation pdd = document.getDocumentInformation();

      //Setting the author of the document
      pdd.setAuthor("Howcodex");

      // Setting the title of the document
      pdd.setTitle("Sample document");

      //Setting the creator of the document
      pdd.setCreator("PDF Examples");

      //Setting the subject of the document
      pdd.setSubject("Example document");

      //Setting the created date of the document
      Calendar date = new GregorianCalendar();
      date.set(2015, 11, 5);
      pdd.setCreationDate(date);
      //Setting the modified date of the document
      date.set(2016, 6, 5);
      pdd.setModificationDate(date);

      //Setting keywords for the document
      pdd.setKeywords("sample, first example, my pdf");

      //Saving the document
      document.save("C:/PdfBox_Examples/doc_attributes.pdf");

      System.out.println("Properties added successfully ");

      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac AddingAttributes.java
java AddingAttributes

Upon execution, the above program adds all the specified attributes to the document displaying the following message.

Properties added successfully

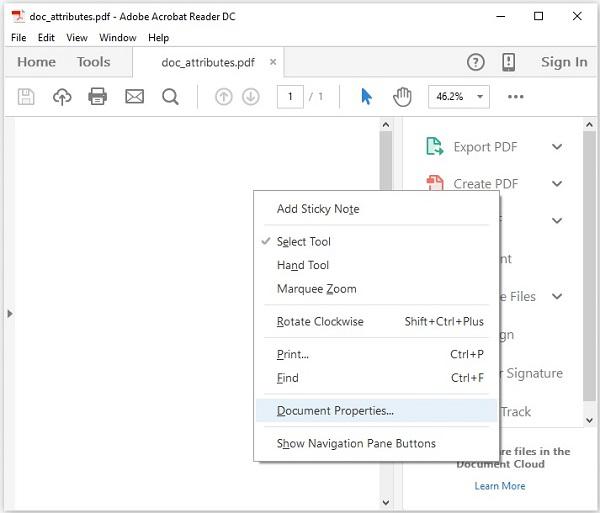

Now, if you visit the given path you can find the PDF created in it. Right click on the document and select the document properties option as shown below.

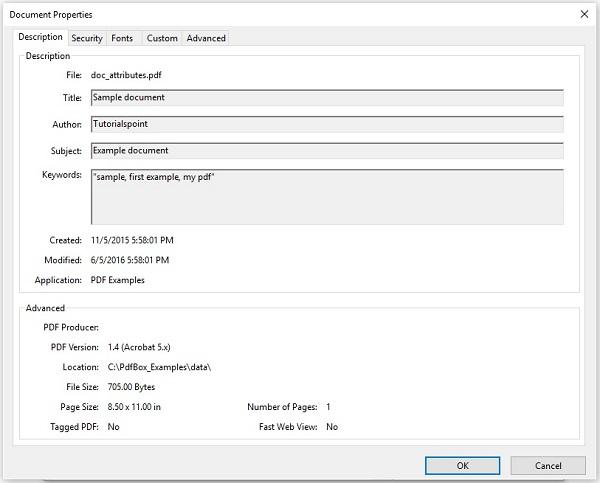

This will give you the document properties window and here you can observe all the properties of the document were set to specified values.

Retrieving the Document Properties

You can retrieve the properties of a document using the getter methods provided by the PDDocumentInformation class.

Following are the getter methods of the PDDocumentInformation class.

S.No.	Method & Description
1	getAuthor() This method is used to retrieve the value for the property of the PDF document named Author.
2	getTitle() This method is used to retrieve the value for the property of the PDF document named Title.
3	getCreator() This method is used to retrieve the value for the property of the PDF document named Creator.
4	getSubject() This method is used to retrieve the value for the property of the PDF document named Subject.
5	getCreationDate() This method is used to retrieve the value for the property of the PDF document named CreationDate.
6	getModificationDate() This method is used to retrieve the value for the property of the PDF document named ModificationDate.
7	getKeywords() This method is used to retrieve the value for the property of the PDF document named Keywords.

Example

This example demonstrates how to retrieve the properties of an existing PDF document. Here, we will create a Java program and load the PDF document named doc_attributes.pdf, which is saved in the path C:/PdfBox_Examples/, and retrieve its properties. Save this code in a file with name RetrivingDocumentAttributes.java.

import java.io.File;
import java.io.IOException;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDDocumentInformation;

public class RetrivingDocumentAttributes {
   public static void main(String args[]) throws IOException {

      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/doc_attributes.pdf")
      PDDocument document = PDDocument.load(file);
      //Getting the PDDocumentInformation object
      PDDocumentInformation pdd = document.getDocumentInformation();

      //Retrieving the info of a PDF document
      System.out.println("Author of the document is :"+ pdd.getAuthor());
      System.out.println("Title of the document is :"+ pdd.getTitle());
      System.out.println("Subject of the document is :"+ pdd.getSubject());

      System.out.println("Creator of the document is :"+ pdd.getCreator());
      System.out.println("Creation date of the document is :"+ pdd.getCreationDate());
      System.out.println("Modification date of the document is :"+
         pdd.getModificationDate());
      System.out.println("Keywords of the document are :"+ pdd.getKeywords());

      //Closing the document
      document.close();
   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac RetrivingDocumentAttributes.java
java RetrivingDocumentAttributes

Upon execution, the above program retrieves all the attributes of the document and displays them as shown below.

Author of the document is :Howcodex
Title of the document is :Sample document
Subject of the document is :Example document
Creator of the document is :PDF Examples
Creation date of the document is :11/5/2015
Modification date of the document is :6/5/2016
Keywords of the document are :sample, first example, my pdf

PDFBox - Adding Text

In the previous chapter, we discussed how to add pages to a PDF document. In this chapter, we will discuss how to add text to an existing PDF document.

Adding Text to an Existing PDF Document

You can add contents to a document using the PDFBox library, this provides you a class named PDPageContentStream which contains the required methods to insert text, images, and other types of contents in a page of a PDFDocument.

Following are the steps to create an empty document and add contents to a page in it.

Step 1: Loading an Existing Document

You can load an existing document using the load() method of the PDDocument class. Therefore, instantiate this class and load the required document as shown below.

File file = new File("Path of the document");
PDDocument doc = document.load(file);

Step 2: Getting the Required Page

You can get the required page in a document using the getPage() method. Retrieve the object of the required page by passing its index to this method as shown below.

PDPage page = doc.getPage(1);

Step 3: Preparing the Content Stream

You can insert various kinds of data elements using the object of the class PDPageContentStream. You need to pass the document object and the page object to the constructor of this class therefore, instantiate this class by passing these two objects created in the previous steps as shown below.

PDPageContentStream contentStream = new PDPageContentStream(doc, page);

Step 4: Beginning the Text

While inserting text in a PDF document, you can specify the start and end points of the text using the beginText() and endText() methods of the PDPageContentStream class as shown below.

contentStream.beginText();
………………………..
code to add text content
………………………..
contentStream.endText();

Therefore, begin the text using the beginText() method as shown below.

contentStream.beginText();

Step 5: Setting the Position of the Text

Using the newLineAtOffset() method, you can set the position on the content stream in the page.

//Setting the position for the line
contentStream.newLineAtOffset(25, 700);

Step 6: Setting the Font

You can set the font of the text to the required style using the setFont() method of the PDPageContentStream class as shown below. To this method you need to pass the type and size of the font.

contentStream.setFont( font_type, font_size );

Step 7: Inserting the Text

You can insert the text into the page using the ShowText() method of the PDPageContentStream class as shown below. This method accepts the required text in the form of string.

contentStream.showText(text);

Step 8: Ending the Text

After inserting the text, you need to end the text using the endText() method of the PDPageContentStream class as shown below.

contentStream.endText();

Step 9: Closing the PDPageContentStream

Close the PDPageContentStream object using the close() method as shown below.

contentstream.close();

Step 10: Saving the Document

After adding the required content, save the PDF document using the save() method of the PDDocument class as shown in the following code block.

doc.save("Path");

Step 11: Closing the Document

Finally, close the document using the close() method of the PDDocument class as shown below.

doc.close();

Example

This example demonstrates how to add contents to a page in a document. Here, we will create a Java program to load the PDF document named my_doc.pdf, which is saved in the path C:/PdfBox_Examples/, and add some text to it. Save this code in a file with name AddingContent.java.

import java.io.File;
import java.io.IOException;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDPage;
import org.apache.pdfbox.pdmodel.PDPageContentStream;
import org.apache.pdfbox.pdmodel.font.PDType1Font;

public class AddingContent {
   public static void main (String args[]) throws IOException {

      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/my_doc.pdf");
      PDDocument document = PDDocument.load(file);

      //Retrieving the pages of the document
      PDPage page = document.getPage(1);
      PDPageContentStream contentStream = new PDPageContentStream(document, page);

      //Begin the Content stream
      contentStream.beginText();

      //Setting the font to the Content stream
      contentStream.setFont(PDType1Font.TIMES_ROMAN, 12);

      //Setting the position for the line
      contentStream.newLineAtOffset(25, 500);

      String text = "This is the sample document and we are adding content to it.";

      //Adding text in the form of string
      contentStream.showText(text);

      //Ending the content stream
      contentStream.endText();

      System.out.println("Content added");

      //Closing the content stream
      contentStream.close();

      //Saving the document
      document.save(new File("C:/PdfBox_Examples/new.pdf"));

      //Closing the document
      document.close();
   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac AddingContent.java
java AddingContent

Upon execution, the above program adds the given text to the document and displays the following message.

Content added

If you verify the PDF Document new.pdf in the specified path, you can observe that the given content is added to the document as shown below.

PDFBox - Adding Multiple Lines

In the example provided in the previous chapter we discussed how to add text to a page in a PDF but through this program, you can only add the text that would fit in a single line. If you try to add more content, all the text that exceeds the line space will not be displayed.

For example, if you execute the above program in the previous chapter by passing the following string only a part of it will be displayed.

String text = "This is an example of adding text to a page in the pdf document. we can
   add as many lines as we want like this using the showText() method of the
   ContentStream class";

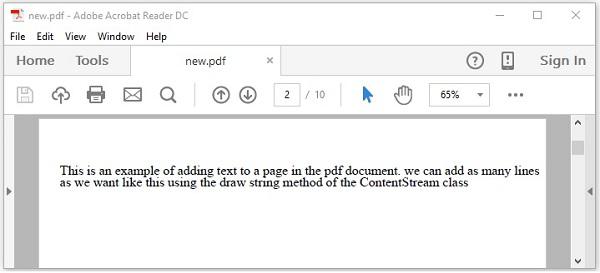

Replace the string text of the example in the previous chapter with the above mentioned string and execute it. Upon execution, you will receive the following output.

If you observe the output carefully, you can notice that only a part of the string is displayed.

In order to add multiple lines to a PDF you need to set the leading using the setLeading() method and shift to new line using newline() method after finishing each line.

Steps

Following are the steps to create an empty document and add contents to a page in it.

Step 1: Loading an Existing Document

You can load an existing document using the load() method of the PDDocument class. Therefore, instantiate this class and load the required document as shown below.

File file = new File("Path of the document");
PDDocument doc = PDDocument.load(file);

Step 2: Getting the Required Page

You can get the required page in a document using the getPage() method. Retrieve the object of the required page by passing its index to this method as shown below.

PDPage page = doc.getPage(1);

Step 3: Preparing the Content stream

You can insert various kinds of data elements using the object of the class named PDPageContentStream. You need to pass the document object and the page object to the constructor of this class therefore, instantiate this class by passing these two objects created in the previous steps as shown below.

PDPageContentStream contentStream = new PDPageContentStream(doc, page);

Step 4: Beginning the Text

While inserting text in a PDF document, you can specify the start and end points of the text using the beginText() and endText() methods of the PDPageContentStream class as shown below.

contentStream.beginText();
………………………..
code to add text content
………………………..
contentStream.endText();

Therefore, begin the text using the beginText() method as shown below.

contentStream.beginText();

Step 5: Setting the Position of the Text

Using the newLineAtOffset() method, you can set the position on the content stream in the page.

//Setting the position for the line
contentStream.newLineAtOffset(25, 700);

Step 6: Setting the Font

You can set the font of the text to the required style using the setFont() method of the PDPageContentStream class as shown below to this method you need to pass the type and size of the font.

contentStream.setFont( font_type, font_size );

Step 7: Setting the Text Leading

You can set the text leading using the setLeading() method as shown below.

contentStream.setLeading(14.5f);

Step 8: Inserting Multiple Strings Using newline()

You can insert multiple strings using the ShowText() method of the PDPageContentStream class, by dividing each of them using the newline() method as shown below.

contentStream. ShowText(text1);
contentStream.newLine();
contentStream. ShowText(text2);

Step 9: Ending the Text

After inserting the text, you need to end the text using the endText() method of the PDPageContentStream class as shown below.

contentStream.endText();

Step 10: Closing the PDPageContentStream

Close the PDPageContentStream object using the close() method as shown below.

contentstream.close();

Step 11: Saving the Document

After adding the required content, save the PDF document using the save() method of the PDDocument class as shown in the following code block.

doc.save("Path");

Step 12: Closing the Document

Finally, close the document using the close() method of the PDDocument class as shown below.

doc.close();

Example

This example demonstrates how to add multiple lines in a PDF using PDFBox. Save this program in a file with name AddMultipleLines.java.

import java.io.File;
import java.io.IOException;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDPage;
import org.apache.pdfbox.pdmodel.PDPageContentStream;
import org.apache.pdfbox.pdmodel.font.PDType1Font;

public class AddMultipleLines {
   public static void main(String args[]) throws IOException {

      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/my_pdf.pdf");
      PDDocument doc = document.load(file);

      //Creating a PDF Document
      PDPage page = doc.getPage(1);

      PDPageContentStream contentStream = new PDPageContentStream(doc, page);

      //Begin the Content stream
      contentStream.beginText();

      //Setting the font to the Content stream
      contentStream.setFont( PDType1Font.TIMES_ROMAN, 16 );

      //Setting the leading
      contentStream.setLeading(14.5f);

      //Setting the position for the line
      contentStream.newLineAtOffset(25, 725);

      String text1 = "This is an example of adding text to a page in the pdf document.
         we can add as many lines";
      String text2 = "as we want like this using the ShowText()  method of the
         ContentStream class";

      //Adding text in the form of string
      contentStream. ShowText(text1);
      contentStream.newLine();
      contentStream. ShowText(text2);
      //Ending the content stream
      contentStream.endText();

      System.out.println("Content added");

      //Closing the content stream
      contentStream.close();

      //Saving the document
      doc.save(new File("C:/PdfBox_Examples/new.pdf"));

      //Closing the document
      doc.close();
   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac AddMultipleLines.java
java AddMultipleLines

Upon execution, the above program adds the given text to the document and displays the following message.

Content added

If you verify the PDF Document new.pdf in the specified path, you can observe that the given content is added to the document in multiple lines as shown below.

PDFBox - Reading Text

In the previous chapter, we have seen how to add text to an existing PDF document. In this chapter, we will discuss how to read text from an existing PDF document.

Extracting Text from an Existing PDF Document

Extracting text is one of the main features of the PDF box library. You can extract text using the getText() method of the PDFTextStripper class. This class extracts all the text from the given PDF document.

Following are the steps to extract text from an existing PDF document.

Step 1: Loading an Existing PDF Document

File file = new File("path of the document")
PDDocument document = PDDocument.load(file);

Step 2: Instantiate the PDFTextStripper Class

The PDFTextStripper class provides methods to retrieve text from a PDF document therefore, instantiate this class as shown below.

PDFTextStripper pdfStripper = new PDFTextStripper();

Step 3: Retrieving the Text

You can read/retrieve the contents of a page from the PDF document using the getText() method of the PDFTextStripper class. To this method you need to pass the document object as a parameter. This method retrieves the text in a given document and returns it in the form of a String object.

String text = pdfStripper.getText(document);

Step 4: Closing the Document

Finally, close the document using the close() method of the PDDocument class as shown below.

document.close();

Example

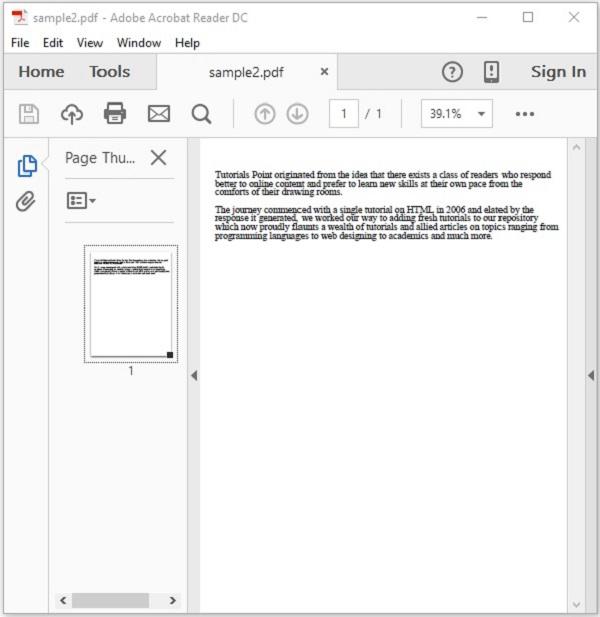

Suppose, we have a PDF document with some text in it as shown below.

This example demonstrates how to read text from the above mentioned PDF document. Here, we will create a Java program and load a PDF document named new.pdf, which is saved in the path C:/PdfBox_Examples/. Save this code in a file with name ReadingText.java.

import java.io.File;
import java.io.IOException;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.text.PDFTextStripper;
public class ReadingText {

   public static void main(String args[]) throws IOException {

      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/new.pdf");
      PDDocument document = PDDocument.load(file);

      //Instantiate PDFTextStripper class
      PDFTextStripper pdfStripper = new PDFTextStripper();

      //Retrieving text from PDF document
      String text = pdfStripper.getText(document);
      System.out.println(text);

      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac ReadingText.java
java ReadingText

Upon execution, the above program retrieves the text from the given PDF document and displays it as shown below.

This is an example of adding text to a page in the pdf document. we can add as many lines
as we want like this using the ShowText() method of the ContentStream class.

PDFBox - Inserting Image

In the previous chapter, we have seen how to extract text from an existing PDF document. In this chapter, we will discuss how to insert image to a PDF document.

Inserting Image to a PDF Document

You can insert an image into a PDF document using the createFromFile() and drawImage() methods of the classes PDImageXObject and PDPageContentStream respectively.

Following are the steps to extract text from an existing PDF document.

Step 1: Loading an Existing PDF Document

File file = new File("path of the document")
PDDocument doc = PDDocument.load(file);

Step 2: Retrieving a Page

Select a page in the PDF document and retrieve its page object using the getPage() method as shown below.

PDPage page = doc.getPage(0);

Step 3: Creating PDImageXObject object

The class PDImageXObject in PDFBox library represents an image. It provides all the required methods to perform operations related to an image, such as, inserting an image, setting its height, setting its width etc.

We can create an object of this class using the method createFromFile(). To this method, we need to pass the path of the image which we want to add in the form of a string and the document object to which the image needs to be added.

PDImageXObject pdImage = PDImageXObject.createFromFile("C:/logo.png", doc);

Step 4: Preparing the Content Stream

PDPageContentStream contentStream = new PDPageContentStream(doc, page);

Step 5: Drawing the Image in the PDF Document

You can insert an image in the PDF document using the drawImage() method. To this method, you need to add the image object created in the above step and the required dimensions of the image (width and height) as shown below.

contentstream.drawImage(pdImage, 70, 250);

Step 6: Closing the PDPageContentStream

Close the PDPageContentStream object using the close() method as shown below.

contentstream.close();

Step 7: Saving the Document

After adding the required content, save the PDF document using the save() method of the PDDocument class as shown in the following code block.

doc.save("Path");

Step 8: Closing the Document

Finally, close the document using the close() method of the PDDocument class as shown below.

doc.close();

Example

Suppose we have a PDF document named sample.pdf, in the path C:/PdfBox_Examples/ with empty pages as shown below.

This example demonstrates how to add image to a blank page of the above mentioned PDF document. Here, we will load the PDF document named sample.pdf and add image to it. Save this code in a file with name InsertingImage.java.

import java.io.File;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDPage;
import org.apache.pdfbox.pdmodel.PDPageContentStream;
import org.apache.pdfbox.pdmodel.graphics.image.PDImageXObject;

public class InsertingImage {

   public static void main(String args[]) throws Exception {
      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/sample.pdf");
      PDDocument doc = PDDocument.load(file);

      //Retrieving the page
      PDPage page = doc.getPage(0);

      //Creating PDImageXObject object
      PDImageXObject pdImage = PDImageXObject.createFromFile("C:/PdfBox_Examples/logo.png",doc);

      //creating the PDPageContentStream object
      PDPageContentStream contents = new PDPageContentStream(doc, page);

      //Drawing the image in the PDF document
      contents.drawImage(pdImage, 70, 250);

      System.out.println("Image inserted");

      //Closing the PDPageContentStream object
      contents.close();

      //Saving the document
      doc.save("C:/PdfBox_Examples/sample.pdf");

      //Closing the document
      doc.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac InsertingImage.java
java InsertingImage

Upon execution, the above program inserts an image into the specified page of the given PDF document displaying the following message.

Image inserted

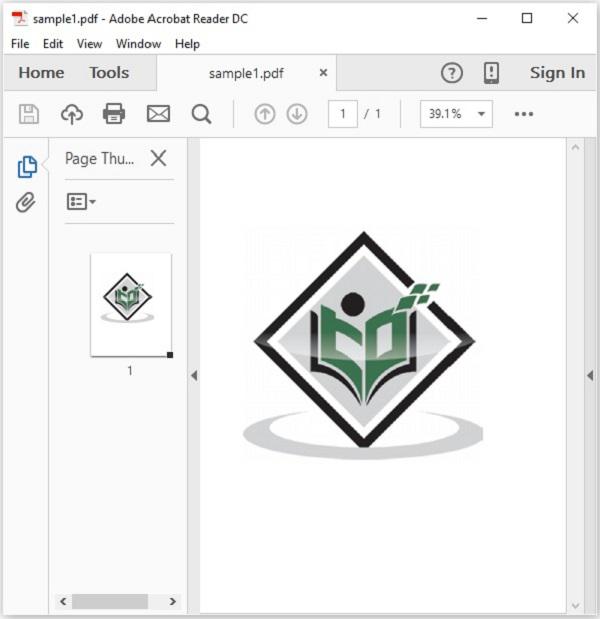

If you verify the document sample.pdf, you can observe that an image is inserted in it as shown below.

PDFBox - Encrypting a PDF Document

In the previous chapter, we have seen how to insert an image in a PDF document. In this chapter, we will discuss how to encrypt a PDF document.

Encrypting a PDF Document

You can encrypt a PDF document using the methods provided by StandardProtectionPolicy and AccessPermission classes.

The AccessPermission class is used to protect the PDF Document by assigning access permissions to it. Using this class, you can restrict users from performing the following operations.

Print the document
Modify the content of the document
Copy or extract content of the document
Add or modify annotations
Fill in interactive form fields
Extract text and graphics for accessibility to visually impaired people
Assemble the document
Print in degraded quality

The StandardProtectionPolicy class is used to add a password based protection to a document.

Following are the steps to encrypt an existing PDF document.

Step 1: Loading an Existing PDF Document

File file = new File("path of the document")
PDDocument document = PDDocument.load(file);

Step 2: Creating Access Permission Object

Instantiate the AccessPermission class as shown below.

AccessPermission accessPermission = new AccessPermission();

Step 3: Creating StandardProtectionPolicy Object

Instantiate the StandardProtectionPolicy class by passing the owner password, user password, and the AccessPermission object as shown below.

StandardProtectionPolicy spp = new StandardProtectionPolicy("1234","1234",accessPermission);

Step 4: Setting the Length of the Encryption Key

Set the encryption key length using the setEncryptionKeyLength() method as shown below.

spp.setEncryptionKeyLength(128);

Step 5: Setting the Permissions

Set the permissions using the setPermissions() method of the StandardProtectionPolicy class. This method accepts an AccessPermission object as a parameter.

spp.setPermissions(accessPermission);

Step 6: Protecting the Document

You can protect your document using the protect() method of the PDDocument class as shown below. Pass the StandardProtectionPolicy object as a parameter to this method.

document.protect(spp);

Step 7: Saving the Document

After adding the required content save the PDF document using the save() method of the PDDocument class as shown in the following code block.

document.save("Path");

Step 8: Closing the Document

Finally, close the document using close() method of PDDocument class as shown below.

document.close();

Example

Suppose, we have a PDF document named sample.pdf, in the path C:/PdfBox_Examples/ with empty pages as shown below.

This example demonstrates how to encrypt the above mentioned PDF document. Here, we will load the PDF document named sample.pdf and encrypt it. Save this code in a file with name EncriptingPDF.java.

import java.io.File;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.encryption.AccessPermission;
import org.apache.pdfbox.pdmodel.encryption.StandardProtectionPolicy;
public class EncriptingPDF {

   public static void main(String args[]) throws Exception {
      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/sample.pdf");
      PDDocument document = PDDocument.load(file);

      //Creating access permission object
      AccessPermission ap = new AccessPermission();

      //Creating StandardProtectionPolicy object
      StandardProtectionPolicy spp = new StandardProtectionPolicy("1234", "1234", ap);

      //Setting the length of the encryption key
      spp.setEncryptionKeyLength(128);

      //Setting the access permissions
      spp.setPermissions(ap);

      //Protecting the document
      document.protect(spp);

      System.out.println("Document encrypted");

      //Saving the document
      document.save("C:/PdfBox_Examples/sample.pdf");
      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac EncriptingPDF.java
java EncriptingPDF

Upon execution, the above program encrypts the given PDF document displaying the following message.

Document encrypted

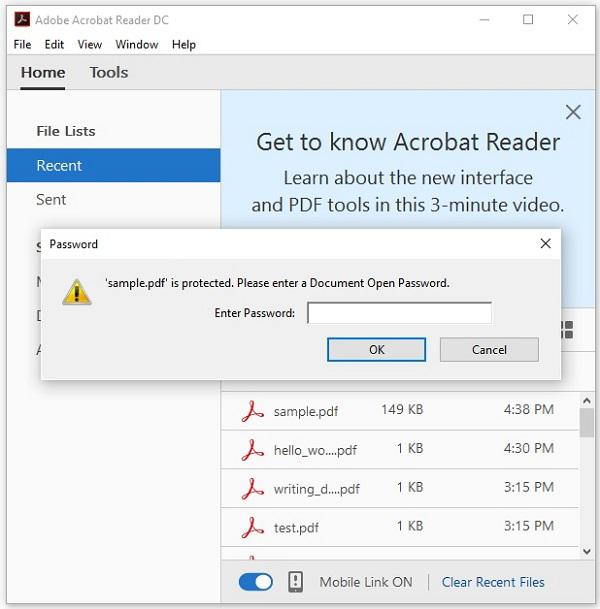

If you try to open the document sample.pdf, you cannot, since it is encrypted. Instead, it prompts to type the password to open the document as shown below.

PDFBox - JavaScript in PDF Document

In the previous chapter, we have learnt how to insert image into a PDF document. In this chapter, we will discuss how to add JavaScript to a PDF document.

Adding JavaScript to a PDF Document

You can add JavaScript actions to a PDF document using the PDActionJavaScript class. This represents a JavaScript action.

Following are the steps to add JavaScript actions to an existing PDF document.

Step 1: Loading an Existing PDF Document

File file = new File("path of the document")
PDDocument document = PDDocument.load(file);

Step 2: Creating the PDActionJavaScript Object

Instantiate the PDActionJavaScript object as shown below. To the constructor of this class, pass the required JavaScript in the form of String as shown below.

String javaScript = "app.alert( {cMsg: 'this is an example', nIcon: 3,"
   + " nType: 0,cTitle: 'PDFBox Javascript example' } );";
PDActionJavaScript PDAjavascript = new PDActionJavaScript(javaScript);

Step 3: Embedding Java script in the Document

Embed the required string to the PDF document as shown below.

document.getDocumentCatalog().setOpenAction(PDAjavascript);

Step 4: Saving the Document

After adding the required content save the PDF document using the save() method of the PDDocument class as shown in the following code block.

document.save("Path");

Step 5: Closing the Document

Finally, close the document using close() method of the PDDocument class as shown below.

document.close();

Example

Suppose, we have a PDF document named sample.pdf, in the path C:/PdfBox_Examples/ with empty pages as shown below.

This example demonstrates how to embed JavaScript in the above mentioned PDF document. Here, we will load the PDF document named sample.pdf and embed JavaScript in it. Save this code in a file with name AddJavaScript.java.

import java.io.File;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.interactive.action.PDActionJavaScript;

public class AddJavaScript {

   public static void main(String args[]) throws Exception {

      //Loading an existing file
      File file = new File("C:/PdfBox_Examples/new.pdf");
      PDDocument document = PDDocument.load(file);

      String javaScript = "app.alert( {cMsg: 'this is an example', nIcon: 3,"
         + " nType: 0, cTitle: 'PDFBox Javascript example’} );";

      //Creating PDActionJavaScript object
      PDActionJavaScript PDAjavascript = new PDActionJavaScript(javaScript);

      //Embedding java script
      document.getDocumentCatalog().setOpenAction(PDAjavascript);

      //Saving the document
      document.save( new File("C:/PdfBox_Examples/new.pdf") );
      System.out.println("Data added to the given PDF");

      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac AddJavaScript.java
java AddJavaScript

Upon execution, the above program embeds JavaScript in the given PDF document displaying the following message.

Data added to the given PDF

If you try to open the document new.pdf it will display an alert message as shown below.

PDFBox - Splitting a PDF Document

In the previous chapter, we have seen how to add JavaScript to a PDF document. Let us now learn how to split a given PDF document into multiple documents.

Splitting the Pages in a PDF Document

You can split the given PDF document in to multiple PDF documents using the class named Splitter. This class is used to split the given PDF document into several other documents.

Following are the steps to split an existing PDF document

Step 1: Loading an Existing PDF Document

File file = new File("path of the document")
PDDocument document = PDDocument.load(file);

Step 2: Instantiate the Splitter Class

The class named Splitter contains the methods to split the given PDF document therefore, instantiate this class as shown below.

Splitter splitter = new Splitter();

Step 3: Splitting the PDF Document

You can split the given document using the Split() method of the Splitter class this class. This method accepts an object of the PDDocument class as a parameter.

List<PDDocument> Pages = splitter.split(document);

The split() method splits each page of the given document as an individual document and returns all these in the form of a list.

Step 4: Creating an Iterator Object

In order to traverse through the list of documents you need to get an iterator object of the list acquired in the above step, you need to get the iterator object of the list using the listIterator() method as shown below.

Iterator<PDDocument> iterator = Pages.listIterator();

Step 5: Closing the Document

Finally, close the document using close() method of PDDocument class as shown below.

document.close();

Example

Suppose, there is a PDF document with name sample.pdf in the path C:\PdfBox_Examples\ and this document contains two pages — one page containing image and another page containing text as shown below.

This example demonstrates how to split the above mentioned PDF document. Here, we will split the PDF document named sample.pdf into two different documents sample1.pdf and sample2.pdf. Save this code in a file with name SplitPages.java.

import org.apache.pdfbox.multipdf.Splitter;
import org.apache.pdfbox.pdmodel.PDDocument;

import java.io.File;
import java.io.IOException;
import java.util.List;
import java.util.Iterator;

public class SplitPages {
   public static void main(String[] args) throws IOException {

      //Loading an existing PDF document
      File file = new File("C:/PdfBox_Examples/sample.pdf");
      PDDocument document = PDDocument.load(file);

      //Instantiating Splitter class
      Splitter splitter = new Splitter();

      //splitting the pages of a PDF document
      List<PDDocument> Pages = splitter.split(document);

      //Creating an iterator
      Iterator<PDDocument> iterator = Pages.listIterator();

      //Saving each page as an individual document
      int i = 1;
      while(iterator.hasNext()) {
         PDDocument pd = iterator.next();
         pd.save("C:/PdfBox_Examples/sample"+ i++ +".pdf");
      }
      System.out.println("Multiple PDF’s created");
      document.close();
   }
}

Compile and execute the saved Java file from the command prompt using the following commands

javac SplitPages.java
java SplitPages

Upon execution, the above program encrypts the given PDF document displaying the following message.

Multiple PDF’s created

If you verify the given path, you can observe that multiple PDFs were created with names sample1 and sample2 as shown below.

PDFBox - Merging Multiple PDF Documents

In the previous chapter, we have seen how to split a given PDF document into multiple documents. Let us now learn how to merge multiple PDF documents as a single document.

Merging Multiple PDF Documents

You can merge multiple PDF documents into a single PDF document using the class named PDFMergerUtility class, this class provides methods to merge two or more PDF documents in to a single PDF document.

Following are the steps to merge multiple PDF documents.

Step 1: Instantiating the PDFMergerUtility class

Instantiate the merge utility class as shown below.

PDFMergerUtility PDFmerger = new PDFMergerUtility();

Step 2: Setting the destination file

Set the destination files using the setDestinationFileName() method as shown below.

PDFmerger.setDestinationFileName("C:/PdfBox_Examples/data1/merged.pdf");

Step 3: Setting the source files

Set the source files using the addSource() method as shown below.

File file = new File("path of the document")
PDFmerger.addSource(file);

Step 4: Merging the documents

Merge the documents using the mergeDocuments() method of the PDFmerger class as shown below.

PDFmerger.mergeDocuments();

Example

Suppose, we have two PDF documents — sample1.pdf and sample2.pdf, in the path C:\PdfBox_Examples\ as shown below.

This example demonstrates how to merge the above PDF documents. Here, we will merge the PDF documents named sample1.pdf and sample2.pdf in to a single PDF document merged.pdf. Save this code in a file with name MergePDFs.java.

import org.apache.pdfbox.multipdf.PDFMergerUtility;
import java.io.File;
import java.io.IOException;
public class MergePDFs {
   public static void main(String[] args) throws IOException {
      File file1 = new File("C:\\EXAMPLES\\Demo1.pdf");
      File file2 = new File("C:\\EXAMPLES\\Demo2.pdf");

      //Instantiating PDFMergerUtility class
      PDFMergerUtility PDFmerger = new PDFMergerUtility();

      //Setting the destination file
      PDFmerger.setDestinationFileName("C:\\Examples\\merged.pdf");

      //adding the source files
      PDFmerger.addSource(file1);
      PDFmerger.addSource(file2);

      //Merging the two documents
      PDFmerger.mergeDocuments();
      System.out.println("Documents merged");
   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac MergePDFs.java
java MergePDFs

Upon execution, the above program encrypts the given PDF document displaying the following message.

Documents merged

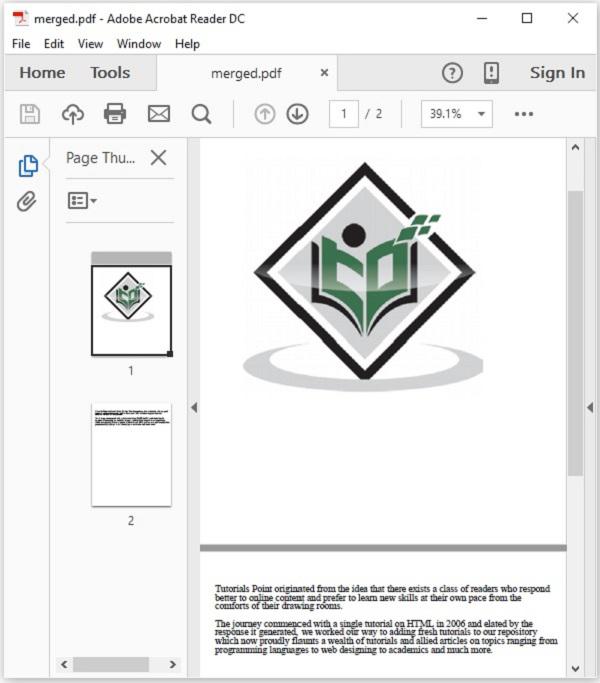

If you verify the given path, you can observe that a PDF document with name merged.pdf is created and this contains the pages of both the source documents as shown below.

PDFBox - Extracting Image

In the previous chapter, we have seen how to merge multiple PDF documents. In this chapter, we will understand how to extract an image from a page of a PDF document.

Generating an Image from a PDF Document

PDFBox library provides you a class named PDFRenderer which renders a PDF document into an AWT BufferedImage.

Following are the steps to generate an image from a PDF document.

Step 1: Loading an Existing PDF Document

File file = new File("path of the document")
PDDocument document = PDDocument.load(file);

Step 2: Instantiating the PDFRenderer Class

The class named PDFRenderer renders a PDF document into an AWT BufferedImage. Therefore, you need to instantiate this class as shown below. The constructor of this class accepts a document object; pass the document object created in the previous step as shown below.

PDFRenderer renderer = new PDFRenderer(document);

Step 3: Rendering Image from the PDF Document

You can render the image in a particular page using the method renderImage() of the Renderer class, to this method you need to pass the index of the page where you have the image that is to be rendered.

BufferedImage image = renderer.renderImage(0);

Step 4: Writing the Image to a File

You can write the image rendered in the previous step to a file using the write() method. To this method, you need to pass three parameters −

The rendered image object.
String representing the type of the image (jpg or png).
File object to which you need to save the extracted image.

ImageIO.write(image, "JPEG", new File("C:/PdfBox_Examples/myimage.jpg"));

Step 5: Closing the Document

Finally, close the document using the close() method of the PDDocument class as shown below.

document.close();

Example

Suppose, we have a PDF document — sample.pdf in the path C:\PdfBox_Examples\ and this contains an image in its first page as shown below.

This example demonstrates how to convert the above PDF document into an image file. Here, we will retrieve the image in the 1st page of the PDF document and save it as myimage.jpg. Save this code as PdfToImage.java

import java.awt.image.BufferedImage;
import java.io.File;

import javax.imageio.ImageIO;
import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.rendering.PDFRenderer;
public class PdfToImage {

   public static void main(String args[]) throws Exception {

      //Loading an existing PDF document
      File file = new File("C:/PdfBox_Examples/sample.pdf");
      PDDocument document = PDDocument.load(file);

      //Instantiating the PDFRenderer class
      PDFRenderer renderer = new PDFRenderer(document);

      //Rendering an image from the PDF document
      BufferedImage image = renderer.renderImage(0);

      //Writing the image to a file
      ImageIO.write(image, "JPEG", new File("C:/PdfBox_Examples/myimage.jpg"));

      System.out.println("Image created");

      //Closing the document
      document.close();

   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac PdfToImage.java
java PdfToImage

Upon execution, the above program retrieves the image in the given PDF document displaying the following message.

Image created

If you verify the given path, you can observe that the image is generated and saved as myimage.jpg as shown below.

PDFBox - Adding Rectangles

This chapter teaches you how to create color boxes in a page of a PDF document.

Creating Boxes in a PDF Document

You can add rectangular boxes in a PDF page using the addRect() method of the PDPageContentStream class.

Following are the steps to create rectangular shapes in a page of a PDF document.

Step 1: Loading an Existing PDF Document

File file = new File("path of the document")
PDDocument document = PDDocument.load(file);

Step 2: Getting the Page Object

You need to retrieve the PDPage object of the required page where you want to add rectangles using the getPage() method of the PDDocument class. To this method you need to pass the index of the page where you want to add rectangles.

PDPage page = document.getPage(0);

Step 3: Preparing the Content Stream

PDPageContentStream contentStream = new PDPageContentStream(document, page);

Step 4: Setting the Non-stroking Color

You can set the non-stroking color to the rectangle using the setNonStrokingColor() method of the class PDPageContentStream. To this method, you need to pass the required color as a parameter as shown below.

contentStream.setNonStrokingColor(Color.DARK_GRAY);

Step 5: Drawing the rectangle

Draw the rectangle with required dimensions using the addRect() method. To this method, you need to pass the dimensions of the rectangle that is to be added as shown below.

contentStream.addRect(200, 650, 100, 100);

Step 6: Filling the Rectangle

The fill() method of the PDPageContentStream class fills the path between the specified dimensions with the required color as shown below.

contentStream.fill();

Step 7: Closing the Document

Finally close the document using close() method of the PDDocument class as shown below.

document.close();

Example

Suppose we have a PDF document named blankpage.pdf in the path C:\PdfBox_Examples\ and this contains a single blank page as shown below.

This example demonstrates how to create/insert rectangles in a PDF document. Here, we will create a box in a Blank PDF. Save this code as AddRectangles.java.

import java.awt.Color;
import java.io.File;

import org.apache.pdfbox.pdmodel.PDDocument;
import org.apache.pdfbox.pdmodel.PDPage;
import org.apache.pdfbox.pdmodel.PDPageContentStream;
public class ShowColorBoxes {

   public static void main(String args[]) throws Exception {

      //Loading an existing document
      File file = new File("C:/PdfBox_Examples/BlankPage.pdf");
      PDDocument document = PDDocument.load(file);

      //Retrieving a page of the PDF Document
      PDPage page = document.getPage(0);

      //Instantiating the PDPageContentStream class
      PDPageContentStream contentStream = new PDPageContentStream(document, page);

      //Setting the non stroking color
      contentStream.setNonStrokingColor(Color.DARK_GRAY);

      //Drawing a rectangle
      contentStream.addRect(200, 650, 100, 100);

      //Drawing a rectangle
      contentStream.fill();

      System.out.println("rectangle added");

      //Closing the ContentStream object
      contentStream.close();

      //Saving the document
      File file1 = new File("C:/PdfBox_Examples/colorbox.pdf");
      document.save(file1);

      //Closing the document
      document.close();
   }
}

Compile and execute the saved Java file from the command prompt using the following commands.

javac AddRectangles.java
java AddRectangles

Upon execution, the above program creates a rectangle in a PDF document displaying the following image.

Rectangle created

If you verify the given path and open the saved document — colorbox.pdf, you can observe that a box is inserted in it as shown below.

Previous Page Print Page
