Natural Language Toolkit - Parsing

Parsing and its relevance in NLP

The word ‘Parsing’ whose origin is from Latin word ‘pars’ (which means ‘part’), is used to draw exact meaning or dictionary meaning from the text. It is also called Syntactic analysis or syntax analysis. Comparing the rules of formal grammar, syntax analysis checks the text for meaningfulness. The sentence like “Give me hot ice-cream”, for example, would be rejected by parser or syntactic analyzer.

In this sense, we can define parsing or syntactic analysis or syntax analysis as follows −

It may be defined as the process of analyzing the strings of symbols in natural language conforming to the rules of formal grammar.

We can understand the relevance of parsing in NLP with the help of following points −

• Parser is used to report any syntax error.

• It helps to recover from commonly occurring error so that the processing of the remainder of program can be continued.

• Parse tree is created with the help of a parser.

• Parser is used to create symbol table, which plays an important role in NLP.

• Parser is also used to produce intermediate representations (IR).

Deep Vs Shallow Parsing

Various types of parsers

As discussed, a parser is basically a procedural interpretation of grammar. It finds an optimal tree for the given sentence after searching through the space of a variety of trees. Let us see some of the available parsers below −

Recursive descent parser

Recursive descent parsing is one of the most straightforward forms of parsing. Following are some important points about recursive descent parser −

• It follows a top down process.

• It attempts to verify that the syntax of the input stream is correct or not.

• It reads the input sentence from left to right.

• One necessary operation for recursive descent parser is to read characters from the input stream and matching them with the terminals from the grammar.

Shift-reduce parser

Following are some important points about shift-reduce parser −

• It follows a simple bottom-up process.

• It tries to find a sequence of words and phrases that correspond to the right-hand side of a grammar production and replaces them with the left-hand side of the production.

• The above attempt to find a sequence of word continues until the whole sentence is reduced.

• In other simple words, shift-reduce parser starts with the input symbol and tries to construct the parser tree up to the start symbol.

Chart parser

Following are some important points about chart parser −

• It is mainly useful or suitable for ambiguous grammars, including grammars of natural languages.

• It applies dynamic programing to the parsing problems.

• Because of dynamic programing, partial hypothesized results are stored in a structure called a ‘chart’.

• The ‘chart’ can also be re-used.

Regexp parser

Regexp parsing is one of the mostly used parsing technique. Following are some important points about Regexp parser −

• As the name implies, it uses a regular expression defined in the form of grammar on top of a POS-tagged string.

• It basically uses these regular expressions to parse the input sentences and generate a parse tree out of this.

Example

Following is a working example of Regexp Parser −

import nltk
sentence = [
   ("a", "DT"),
   ("clever", "JJ"),
   ("fox","NN"),
   ("was","VBP"),
   ("jumping","VBP"),
   ("over","IN"),
   ("the","DT"),
   ("wall","NN")
]
grammar = "NP:{<DT>?<JJ>*<NN>}"
Reg_parser = nltk.RegexpParser(grammar)
Reg_parser.parse(sentence)
Output = Reg_parser.parse(sentence)

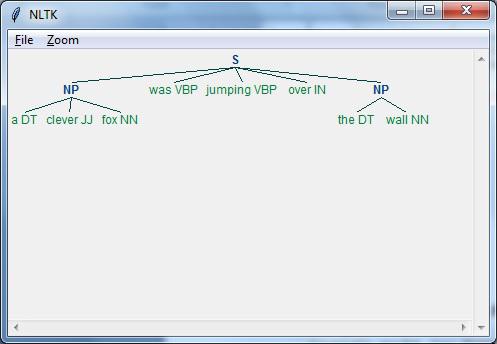

Output.draw()

Output

Dependency Parsing

Dependency Parsing (DP), a modern parsing mechanism, whose main concept is that each linguistic unit i.e. words relates to each other by a direct link. These direct links are actually ‘dependencies’ in linguistic. For example, the following diagram shows dependency grammar for the sentence “John can hit the ball”.

NLTK Package

We have following the two ways to do dependency parsing with NLTK −

Probabilistic, projective dependency parser

This is the first way we can do dependency parsing with NLTK. But this parser has the restriction of training with a limited set of training data.

Stanford parser

This is another way we can do dependency parsing with NLTK. Stanford parser is a state-of-the-art dependency parser. NLTK has a wrapper around it. To use it we need to download following two things −

The Stanford CoreNLP parser.

Language model for desired language. For example, English language model.

Example

Once you downloaded the model, we can use it through NLTK as follows −

from nltk.parse.stanford import StanfordDependencyParser
path_jar = 'path_to/stanford-parser-full-2014-08-27/stanford-parser.jar'
path_models_jar = 'path_to/stanford-parser-full-2014-08-27/stanford-parser-3.4.1-models.jar'
dep_parser = StanfordDependencyParser(
   path_to_jar = path_jar, path_to_models_jar = path_models_jar
)
result = dep_parser.raw_parse('I shot an elephant in my sleep')
depndency = result.next()
list(dependency.triples())

Output

[
   ((u'shot', u'VBD'), u'nsubj', (u'I', u'PRP')),
   ((u'shot', u'VBD'), u'dobj', (u'elephant', u'NN')),
   ((u'elephant', u'NN'), u'det', (u'an', u'DT')),
   ((u'shot', u'VBD'), u'prep', (u'in', u'IN')),
   ((u'in', u'IN'), u'pobj', (u'sleep', u'NN')),
   ((u'sleep', u'NN'), u'poss', (u'my', u'PRP$'))
]
