MuleSoft - Creating First Mule Application

In this chapter we are going to create our first Mule application in MuleSoft’s Anypoint Studio. For creating it, first we need to launch Anypoint Studio.

Launching Anypoint Studio

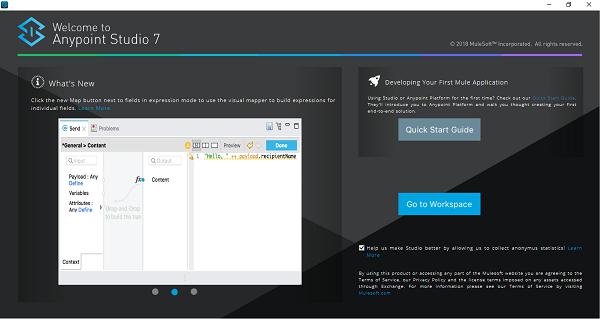

Click on Anypoint Studio to launch it. If you are launching it for first time, then you will see the following window −

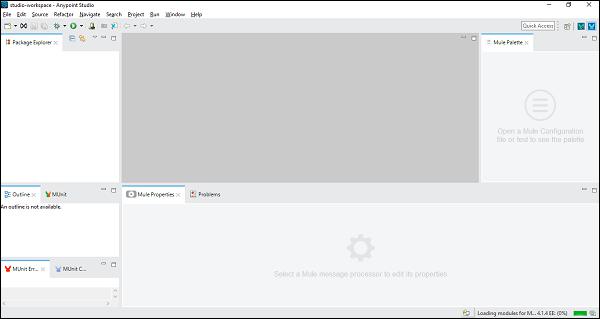

User Interface of Anypoint Studio

Once you Click on the Go to Workspace button, it will lead you to the user interface of Anypoint Studio as follows −

Steps for Creating Mule Application

In order to create your Mule application, follow the below steps −

Creating New Project

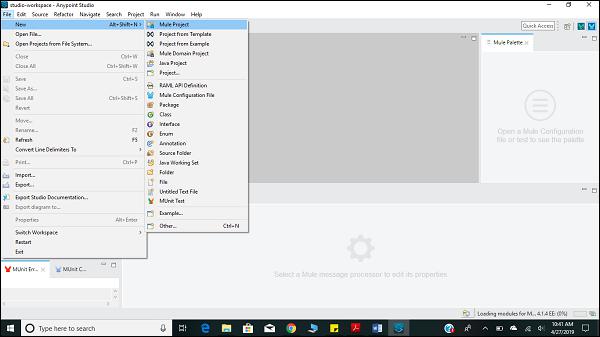

The very first step for creating Mule application is to create a new project. It can be done by following the path FILE → NEW → Mule Project as shown below −

Naming the Project

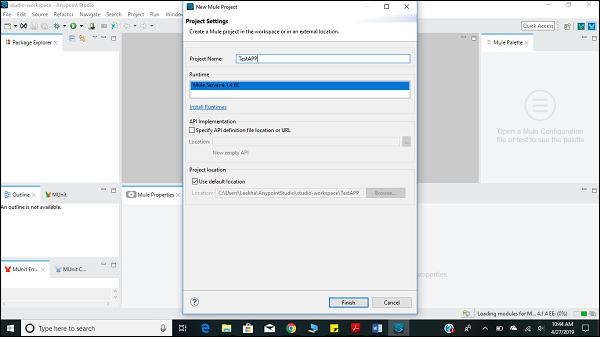

After clicking on the new Mule Project, as described above, it will open a new window asking for the project name and other specifications. Give the name of the Project, ‘TestAPP1’ and then click on the finish button.

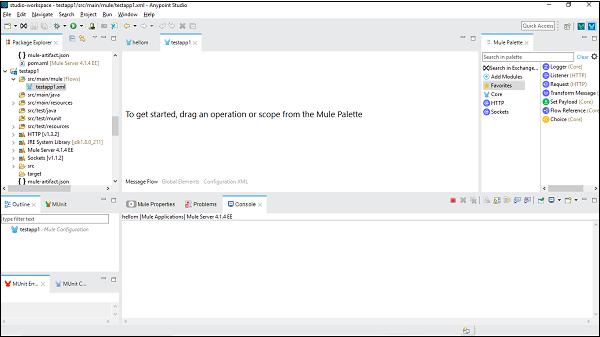

Once you click on the Finish Button, it will open the workspace built for your MuleProject namely ‘TestAPP1’. You can see all the Editors and Views described in the previous chapter.

Configuring the Connector

Here, we are going to build a simple Mule application for HTTP Listener. For this, we need to drag the HTTP Listener connector from Mule Palette and drop it to the workspace as shown below −

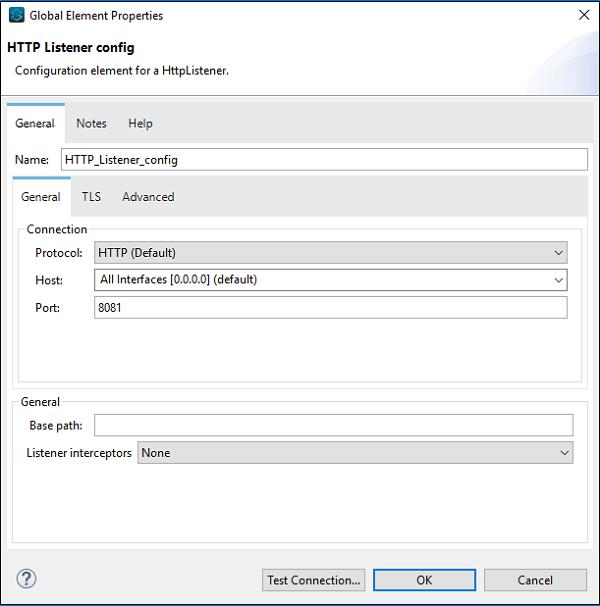

Now, we need to configure it. Click on the green color + sign after Connector configuration under Basic Settings as shown above.

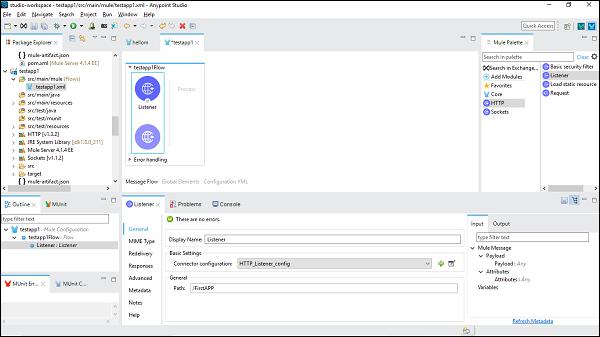

On clicking ok, it will take you back on HTTP Listener property page. Now we need to provide the path under General Tab. In this particular example, we have provided /FirstAPP as path name.

Configuring Set Payload Connector

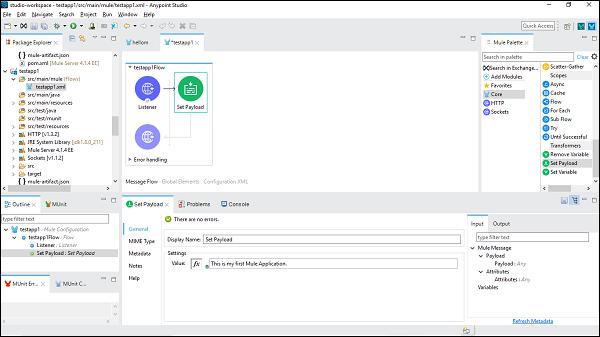

Now, we need to take a Set Payload connector. We also need to give its value under Settings tab as follows −

This is my first Mule Application, is the name provided in this example.

Running Mule Application

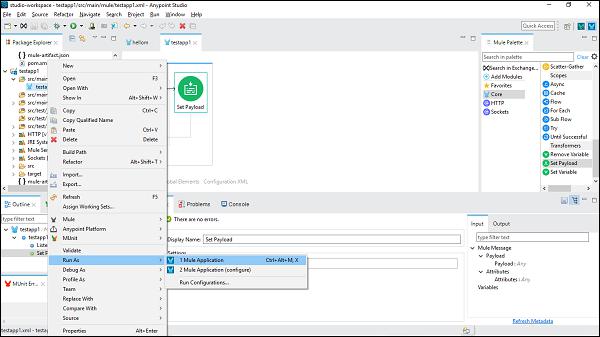

Now, save it and click Run as Mule Application as shown below −

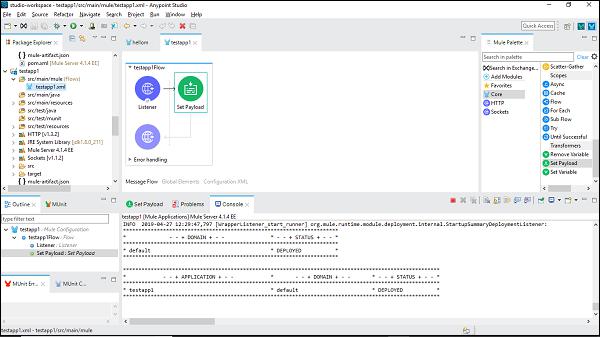

We can check it under Console which deploys the application as follows −

It shows that you have successfully built your first Mule Application.

Verifying Mule Application

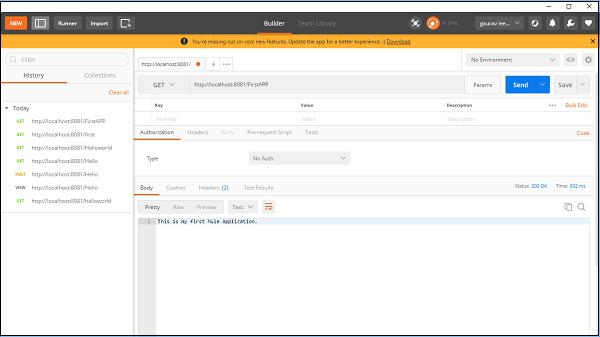

Now, we need to test whether our app is running or not. Go to POSTMAN, a Chrome app and enter the Url: http:/localhost:8081. It shows the message we have provided while building Mule application as shown below −
