Lucene - Search Operation


Advertisements

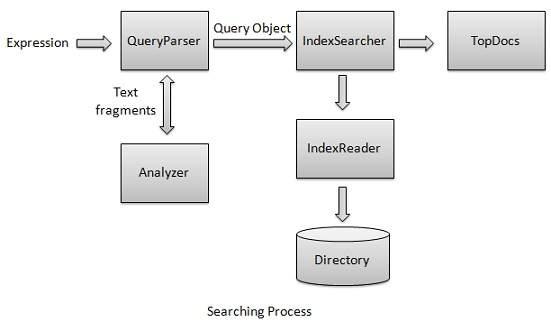

The process of searching is one of the core functionalities provided by Lucene. Following diagram illustrates the process and its use. IndexSearcher is one of the core components of the searching process.

Searching Process

We first create Directory(s) containing indexes and then pass it to IndexSearcher which opens the Directory using IndexReader. Then we create a Query with a Term and make a search using IndexSearcher by passing the Query to the searcher. IndexSearcher returns a TopDocs object which contains the search details along with document ID(s) of the Document which is the result of the search operation.

We will now show you a step-wise approach and help you understand the indexing process using a basic example.

Create a QueryParser

QueryParser class parses the user entered input into Lucene understandable format query. Follow these steps to create a QueryParser −

Step 1 − Create object of QueryParser.

Step 2 − Initialize the QueryParser object created with a standard analyzer having version information and index name on which this query is to be run.

QueryParser queryParser;

public Searcher(String indexDirectoryPath) throws IOException {

   queryParser = new QueryParser(Version.LUCENE_36,
      LuceneConstants.CONTENTS,
      new StandardAnalyzer(Version.LUCENE_36));
}

Create a IndexSearcher

IndexSearcher class acts as a core component which searcher indexes created during indexing process. Follow these steps to create a IndexSearcher −

Step 1 − Create object of IndexSearcher.

Step 2 − Create a Lucene directory which should point to location where indexes are to be stored.

Step 3 − Initialize the IndexSearcher object created with the index directory.

IndexSearcher indexSearcher;

public Searcher(String indexDirectoryPath) throws IOException {
   Directory indexDirectory =
      FSDirectory.open(new File(indexDirectoryPath));
   indexSearcher = new IndexSearcher(indexDirectory);
}

Make search

Follow these steps to make search −

Step 1 − Create a Query object by parsing the search expression through QueryParser.

Step 2 − Make search by calling the IndexSearcher.search() method.

Query query;

public TopDocs search( String searchQuery) throws IOException, ParseException {
   query = queryParser.parse(searchQuery);
   return indexSearcher.search(query, LuceneConstants.MAX_SEARCH);
}

Get the Document

The following program shows how to get the document.

public Document getDocument(ScoreDoc scoreDoc)
   throws CorruptIndexException, IOException {
   return indexSearcher.doc(scoreDoc.doc);
}

Close IndexSearcher

The following program shows how to close the IndexSearcher.

public void close() throws IOException {
   indexSearcher.close();
}

Example Application

Let us create a test Lucene application to test searching process.

Step Description
1

Create a project with a name LuceneFirstApplication under a package com.howcodex.lucene as explained in the Lucene - First Application chapter. You can also use the project created in Lucene - First Application chapter as such for this chapter to understand the searching process.

2

Create LuceneConstants.java,TextFileFilter.java and Searcher.java as explained in the Lucene - First Application chapter. Keep the rest of the files unchanged.

3

Create LuceneTester.java as mentioned below.

4

Clean and Build the application to make sure business logic is working as per the requirements.

LuceneConstants.java

This class is used to provide various constants to be used across the sample application.

package com.howcodex.lucene;

public class LuceneConstants {
   public static final String CONTENTS = "contents";
   public static final String FILE_NAME = "filename";
   public static final String FILE_PATH = "filepath";
   public static final int MAX_SEARCH = 10;
}

TextFileFilter.java

This class is used as a .txt file filter.

package com.howcodex.lucene;

import java.io.File;
import java.io.FileFilter;

public class TextFileFilter implements FileFilter {

   @Override
   public boolean accept(File pathname) {
      return pathname.getName().toLowerCase().endsWith(".txt");
   }
}

Searcher.java

This class is used to read the indexes made on raw data and searches data using the Lucene library.

package com.howcodex.lucene;

import java.io.File;
import java.io.IOException;

import org.apache.lucene.analysis.standard.StandardAnalyzer;
import org.apache.lucene.document.Document;
import org.apache.lucene.index.CorruptIndexException;
import org.apache.lucene.queryParser.ParseException;
import org.apache.lucene.queryParser.QueryParser;
import org.apache.lucene.search.IndexSearcher;
import org.apache.lucene.search.Query;
import org.apache.lucene.search.ScoreDoc;
import org.apache.lucene.search.TopDocs;
import org.apache.lucene.store.Directory;
import org.apache.lucene.store.FSDirectory;
import org.apache.lucene.util.Version;

public class Searcher {

   IndexSearcher indexSearcher;
   QueryParser queryParser;
   Query query;

   public Searcher(String indexDirectoryPath) throws IOException {
      Directory indexDirectory =
         FSDirectory.open(new File(indexDirectoryPath));
      indexSearcher = new IndexSearcher(indexDirectory);
      queryParser = new QueryParser(Version.LUCENE_36,
         LuceneConstants.CONTENTS,
         new StandardAnalyzer(Version.LUCENE_36));
   }

   public TopDocs search( String searchQuery)
      throws IOException, ParseException {
      query = queryParser.parse(searchQuery);
      return indexSearcher.search(query, LuceneConstants.MAX_SEARCH);
   }

   public Document getDocument(ScoreDoc scoreDoc)
      throws CorruptIndexException, IOException {
      return indexSearcher.doc(scoreDoc.doc);
   }

   public void close() throws IOException {
      indexSearcher.close();
   }
}

LuceneTester.java

This class is used to test the searching capability of the Lucene library.

package com.howcodex.lucene;

import java.io.IOException;

import org.apache.lucene.document.Document;
import org.apache.lucene.queryParser.ParseException;
import org.apache.lucene.search.ScoreDoc;
import org.apache.lucene.search.TopDocs;

public class LuceneTester {

   String indexDir = "E:\\Lucene\\Index";
   String dataDir = "E:\\Lucene\\Data";
   Searcher searcher;

   public static void main(String[] args) {
      LuceneTester tester;
      try {
         tester = new LuceneTester();
         tester.search("Mohan");
      } catch (IOException e) {
         e.printStackTrace();
      } catch (ParseException e) {
         e.printStackTrace();
      }
   }

   private void search(String searchQuery) throws IOException, ParseException {
      searcher = new Searcher(indexDir);
      long startTime = System.currentTimeMillis();
      TopDocs hits = searcher.search(searchQuery);
      long endTime = System.currentTimeMillis();

      System.out.println(hits.totalHits +
         " documents found. Time :" + (endTime - startTime) +" ms");
      for(ScoreDoc scoreDoc : hits.scoreDocs) {
         Document doc = searcher.getDocument(scoreDoc);
         System.out.println("File: "+ doc.get(LuceneConstants.FILE_PATH));
      }
      searcher.close();
   }
}

Data & Index Directory Creation

We have used 10 text files named record1.txt to record10.txt containing names and other details of the students and put them in the directory E:\Lucene\Data. Test Data. An index directory path should be created as E:\Lucene\Index. After running the indexing program in the chapter Lucene - Indexing Process, you can see the list of index files created in that folder.

Running the Program

Once you are done with the creation of the source, the raw data, the data directory, the index directory and the indexes, you can proceed by compiling and running your program. To do this, keep LuceneTester.Java file tab active and use either the Run option available in the Eclipse IDE or use Ctrl + F11 to compile and run your LuceneTesterapplication. If your application runs successfully, it will print the following message in Eclipse IDE's console −

1 documents found. Time :29 ms
File: E:\Lucene\Data\record4.txt
