Keras - Quick Guide
Keras - Introduction
Deep learning is one of the major subfield of machine learning framework. Machine learning is the study of design of algorithms, inspired from the model of human brain. Deep learning is becoming more popular in data science fields like robotics, artificial intelligence(AI), audio & video recognition and image recognition. Artificial neural network is the core of deep learning methodologies. Deep learning is supported by various libraries such as Theano, TensorFlow, Caffe, Mxnet etc., Keras is one of the most powerful and easy to use python library, which is built on top of popular deep learning libraries like TensorFlow, Theano, etc., for creating deep learning models.
Overview of Keras
Keras runs on top of open source machine libraries like TensorFlow, Theano or Cognitive Toolkit (CNTK). Theano is a python library used for fast numerical computation tasks. TensorFlow is the most famous symbolic math library used for creating neural networks and deep learning models. TensorFlow is very flexible and the primary benefit is distributed computing. CNTK is deep learning framework developed by Microsoft. It uses libraries such as Python, C#, C++ or standalone machine learning toolkits. Theano and TensorFlow are very powerful libraries but difficult to understand for creating neural networks.
Keras is based on minimal structure that provides a clean and easy way to create deep learning models based on TensorFlow or Theano. Keras is designed to quickly define deep learning models. Well, Keras is an optimal choice for deep learning applications.
Features
Keras leverages various optimization techniques to make high level neural network API easier and more performant. It supports the following features −
Consistent, simple and extensible API.
Minimal structure - easy to achieve the result without any frills.
It supports multiple platforms and backends.
It is user friendly framework which runs on both CPU and GPU.
Highly scalability of computation.
Benefits
Keras is highly powerful and dynamic framework and comes up with the following advantages −
Larger community support.
Easy to test.
Keras neural networks are written in Python which makes things simpler.
Keras supports both convolution and recurrent networks.
Deep learning models are discrete components, so that, you can combine into many ways.
Keras - Installation
This chapter explains about how to install Keras on your machine. Before moving to installation, let us go through the basic requirements of Keras.
Prerequisites
You must satisfy the following requirements −
- Any kind of OS (Windows, Linux or Mac)
- Python version 3.5 or higher.
Python
Keras is python based neural network library so python must be installed on your machine. If python is properly installed on your machine, then open your terminal and type python, you could see the response similar as specified below,
Python 3.6.5 (v3.6.5:f59c0932b4, Mar 28 2018, 17:00:18)
[MSC v.1900 64 bit (AMD64)] on win32
Type "help", "copyright", "credits" or "license" for more information.
>>>
As of now the latest version is ‘3.7.2’. If Python is not installed, then visit the official python link - www.python.org and download the latest version based on your OS and install it immediately on your system.
Keras Installation Steps
Keras installation is quite easy. Follow below steps to properly install Keras on your system.
Step 1: Create virtual environment
Virtualenv is used to manage Python packages for different projects. This will be helpful to avoid breaking the packages installed in the other environments. So, it is always recommended to use a virtual environment while developing Python applications.
Linux/Mac OS
Linux or mac OS users, go to your project root directory and type the below command to create virtual environment,
python3 -m venv kerasenv
After executing the above command, “kerasenv” directory is created with bin,lib and include folders in your installation location.
Windows
Windows user can use the below command,
py -m venv keras
Step 2: Activate the environment
This step will configure python and pip executables in your shell path.
Linux/Mac OS
Now we have created a virtual environment named “kerasvenv”. Move to the folder and type the below command,
$ cd kerasvenv kerasvenv $ source bin/activate
Windows
Windows users move inside the “kerasenv” folder and type the below command,
.\env\Scripts\activate
Step 3: Python libraries
Keras depends on the following python libraries.
- Numpy
- Pandas
- Scikit-learn
- Matplotlib
- Scipy
- Seaborn
Hopefully, you have installed all the above libraries on your system. If these libraries are not installed, then use the below command to install one by one.
numpy
pip install numpy
you could see the following response,
Collecting numpy
Downloading
https://files.pythonhosted.org/packages/cf/a4/d5387a74204542a60ad1baa84cd2d3353c330e59be8cf2d47c0b11d3cde8/
numpy-3.1.1-cp36-cp36m-macosx_10_6_intel.
macosx_10_9_intel.macosx_10_9_x86_64.
macosx_10_10_intel.macosx_10_10_x86_64.whl (14.4MB)
|████████████████████████████████| 14.4MB 2.8MB/s
pandas
pip install pandas
We could see the following response,
Collecting pandas
Downloading
https://files.pythonhosted.org/packages/cf/a4/d5387a74204542a60ad1baa84cd2d3353c330e59be8cf2d47c0b11d3cde8/
pandas-3.1.1-cp36-cp36m-macosx_10_6_intel.
macosx_10_9_intel.macosx_10_9_x86_64.
macosx_10_10_intel.macosx_10_10_x86_64.whl (14.4MB)
|████████████████████████████████| 14.4MB 2.8MB/s
matplotlib
pip install matplotlib
We could see the following response,
Collecting matplotlib
Downloading
https://files.pythonhosted.org/packages/cf/a4/d5387a74204542a60ad1baa84cd2d3353c330e59be8cf2d47c0b11d3cde8/
matplotlib-3.1.1-cp36-cp36m-macosx_10_6_intel.
macosx_10_9_intel.macosx_10_9_x86_64.
macosx_10_10_intel.macosx_10_10_x86_64.whl (14.4MB)
|████████████████████████████████| 14.4MB 2.8MB/s
scipy
pip install scipy
We could see the following response,
Collecting scipy
Downloading
https://files.pythonhosted.org/packages/cf/a4/d5387a74204542a60ad1baa84cd2d3353c330e59be8cf2d47c0b11d3cde8
/scipy-3.1.1-cp36-cp36m-macosx_10_6_intel.
macosx_10_9_intel.macosx_10_9_x86_64.
macosx_10_10_intel.macosx_10_10_x86_64.whl (14.4MB)
|████████████████████████████████| 14.4MB 2.8MB/s
scikit-learn
It is an open source machine learning library. It is used for classification, regression and clustering algorithms. Before moving to the installation, it requires the following −
- Python version 3.5 or higher
- NumPy version 1.11.0 or higher
- SciPy version 0.17.0 or higher
- joblib 0.11 or higher.
Now, we install scikit-learn using the below command −
pip install -U scikit-learn
Seaborn
Seaborn is an amazing library that allows you to easily visualize your data. Use the below command to install −
pip pip install seaborninstall -U scikit-learn
You could see the message similar as specified below −
Collecting seaborn
Downloading
https://files.pythonhosted.org/packages/a8/76/220ba4420459d9c4c9c9587c6ce607bf56c25b3d3d2de62056efe482dadc
/seaborn-0.9.0-py3-none-any.whl (208kB) 100%
|████████████████████████████████| 215kB 4.0MB/s
Requirement already satisfied: numpy> = 1.9.3 in
./lib/python3.7/site-packages (from seaborn) (1.17.0)
Collecting pandas> = 0.15.2 (from seaborn)
Downloading
https://files.pythonhosted.org/packages/39/b7/441375a152f3f9929ff8bc2915218ff1a063a59d7137ae0546db616749f9/
pandas-0.25.0-cp37-cp37m-macosx_10_9_x86_64.
macosx_10_10_x86_64.whl (10.1MB) 100%
|████████████████████████████████| 10.1MB 1.8MB/s
Requirement already satisfied: scipy>=0.14.0 in
./lib/python3.7/site-packages (from seaborn) (1.3.0)
Collecting matplotlib> = 1.4.3 (from seaborn)
Downloading
https://files.pythonhosted.org/packages/c3/8b/af9e0984f
5c0df06d3fab0bf396eb09cbf05f8452de4e9502b182f59c33b/
matplotlib-3.1.1-cp37-cp37m-macosx_10_6_intel.
macosx_10_9_intel.macosx_10_9_x86_64
.macosx_10_10_intel.macosx_10_10_x86_64.whl (14.4MB) 100%
|████████████████████████████████| 14.4MB 1.4MB/s
......................................
......................................
Successfully installed cycler-0.10.0 kiwisolver-1.1.0
matplotlib-3.1.1 pandas-0.25.0 pyparsing-2.4.2
python-dateutil-2.8.0 pytz-2019.2 seaborn-0.9.0
Keras Installation Using Python
As of now, we have completed basic requirements for the installtion of Kera. Now, install the Keras using same procedure as specified below −
pip install keras
Quit virtual environment
After finishing all your changes in your project, then simply run the below command to quit the environment −
deactivate
Anaconda Cloud
We believe that you have installed anaconda cloud on your machine. If anaconda is not installed, then visit the official link, www.anaconda.com/distribution and choose download based on your OS.
Create a new conda environment
Launch anaconda prompt, this will open base Anaconda environment. Let us create a new conda environment. This process is similar to virtualenv. Type the below command in your conda terminal −
conda create --name PythonCPU
If you want, you can create and install modules using GPU also. In this tutorial, we follow CPU instructions.
Activate conda environment
To activate the environment, use the below command −
activate PythonCPU
Install spyder
Spyder is an IDE for executing python applications. Let us install this IDE in our conda environment using the below command −
conda install spyder
Install python libraries
We have already known the python libraries numpy, pandas, etc., needed for keras. You can install all the modules by using the below syntax −
Syntax
conda install -c anaconda <module-name>
For example, you want to install pandas −
conda install -c anaconda pandas
Like the same method, try it yourself to install the remaining modules.
Install Keras
Now, everything looks good so you can start keras installation using the below command −
conda install -c anaconda keras
Launch spyder
Finally, launch spyder in your conda terminal using the below command −
spyder
To ensure everything was installed correctly, import all the modules, it will add everything and if anything went wrong, you will get module not found error message.
Keras - Backend Configuration
This chapter explains Keras backend implementations TensorFlow and Theano in detail. Let us go through each implementation one by one.
TensorFlow
TensorFlow is an open source machine learning library used for numerical computational tasks developed by Google. Keras is a high level API built on top of TensorFlow or Theano. We know already how to install TensorFlow using pip.
If it is not installed, you can install using the below command −
pip install TensorFlow
Once we execute keras, we could see the configuration file is located at your home directory inside and go to .keras/keras.json.
keras.json
{
"image_data_format": "channels_last",
"epsilon": 1e-07, "floatx": "float32", "backend": "tensorflow"
}
Here,
image_data_format represent the data format.
epsilon represents numeric constant. It is used to avoid DivideByZero error.
floatx represent the default data type float32. You can also change it to float16 or float64 using set_floatx() method.
image_data_format represent the data format.
Suppose, if the file is not created then move to the location and create using the below steps −
> cd home
> mkdir .keras
> vi keras.json
Remember, you should specify .keras as its folder name and add the above configuration inside keras.json file. We can perform some pre-defined operations to know backend functions.
Theano
Theano is an open source deep learning library that allows you to evaluate multi-dimensional arrays effectively. We can easily install using the below command −
pip install theano
By default, keras uses TensorFlow backend. If you want to change backend configuration from TensorFlow to Theano, just change the backend = theano in keras.json file. It is described below −
keras.json
{
"image_data_format": "channels_last",
"epsilon": 1e-07,
"floatx": "float32",
"backend": "theano"
}
Now save your file, restart your terminal and start keras, your backend will be changed.
>>> import keras as k
using theano backend.
Keras - Overview of Deep learning
Deep learning is an evolving subfield of machine learning. Deep learning involves analyzing the input in layer by layer manner, where each layer progressively extracts higher level information about the input.
Let us take a simple scenario of analyzing an image. Let us assume that your input image is divided up into a rectangular grid of pixels. Now, the first layer abstracts the pixels. The second layer understands the edges in the image. The Next layer constructs nodes from the edges. Then, the next would find branches from the nodes. Finally, the output layer will detect the full object. Here, the feature extraction process goes from the output of one layer into the input of the next subsequent layer.
By using this approach, we can process huge amount of features, which makes deep learning a very powerful tool. Deep learning algorithms are also useful for the analysis of unstructured data. Let us go through the basics of deep learning in this chapter.
Artificial Neural Networks
The most popular and primary approach of deep learning is using “Artificial neural network” (ANN). They are inspired from the model of human brain, which is the most complex organ of our body. The human brain is made up of more than 90 billion tiny cells called “Neurons”. Neurons are inter-connected through nerve fiber called “axons” and “Dendrites”. The main role of axon is to transmit information from one neuron to another to which it is connected.
Similarly, the main role of dendrites is to receive the information being transmitted by the axons of another neuron to which it is connected. Each neuron processes a small information and then passes the result to another neuron and this process continues. This is the basic method used by our human brain to process huge about of information like speech, visual, etc., and extract useful information from it.
Based on this model, the first Artificial Neural Network (ANN) was invented by psychologist Frank Rosenblatt, in the year of 1958. ANNs are made up of multiple nodes which is similar to neurons. Nodes are tightly interconnected and organized into different hidden layers. The input layer receives the input data and the data goes through one or more hidden layers sequentially and finally the output layer predict something useful about the input data. For example, the input may be an image and the output may be the thing identified in the image, say a “Cat”.

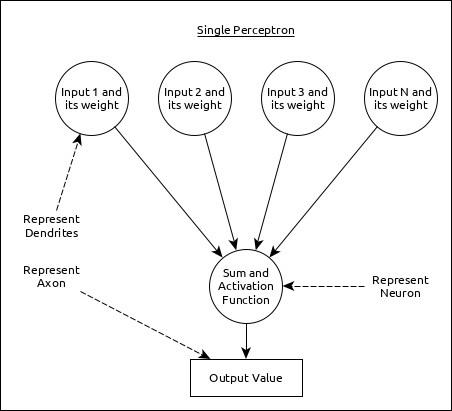

A single neuron (called as perceptron in ANN) can be represented as below −
Here,
Multiple input along with weight represents dendrites.
Sum of input along with activation function represents neurons. Sum actually means computed value of all inputs and activation function represent a function, which modify the Sum value into 0, 1 or 0 to 1.
Actual output represent axon and the output will be received by neuron in next layer.
Let us understand different types of artificial neural networks in this section.

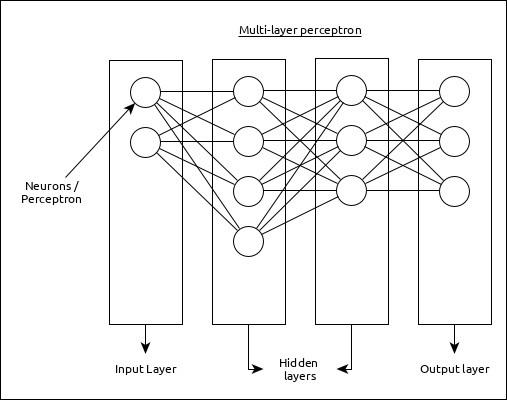

Multi-Layer Perceptron

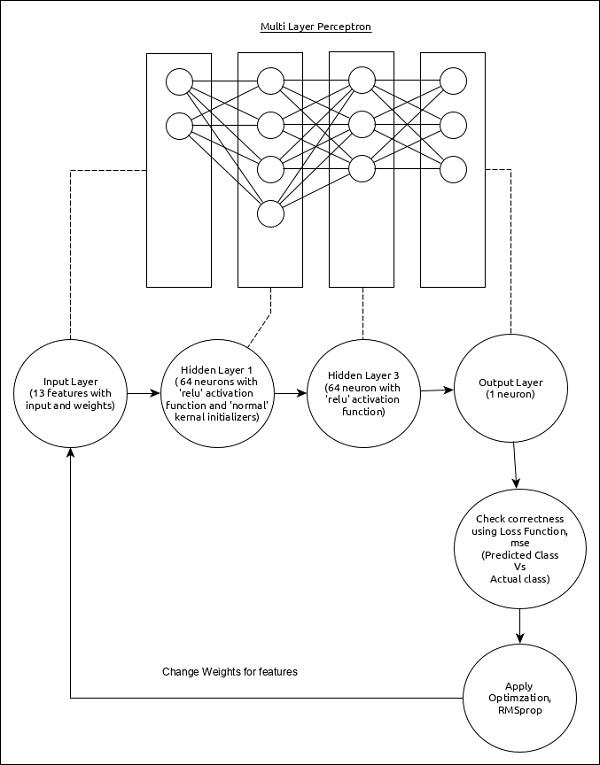

Multi-Layer perceptron is the simplest form of ANN. It consists of a single input layer, one or more hidden layer and finally an output layer. A layer consists of a collection of perceptron. Input layer is basically one or more features of the input data. Every hidden layer consists of one or more neurons and process certain aspect of the feature and send the processed information into the next hidden layer. The output layer process receives the data from last hidden layer and finally output the result.
Convolutional Neural Network (CNN)
Convolutional neural network is one of the most popular ANN. It is widely used in the fields of image and video recognition. It is based on the concept of convolution, a mathematical concept. It is almost similar to multi-layer perceptron except it contains series of convolution layer and pooling layer before the fully connected hidden neuron layer. It has three important layers −
Convolution layer − It is the primary building block and perform computational tasks based on convolution function.
Pooling layer − It is arranged next to convolution layer and is used to reduce the size of inputs by removing unnecessary information so computation can be performed faster.
Fully connected layer − It is arranged to next to series of convolution and pooling layer and classify input into various categories.

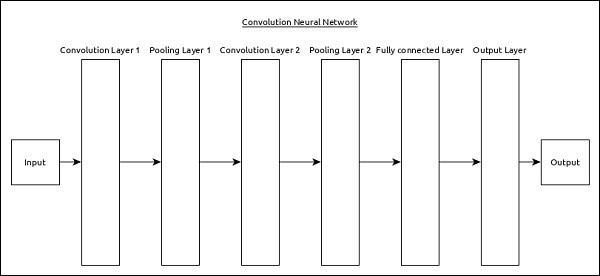

A simple CNN can be represented as below −
Here,
2 series of Convolution and pooling layer is used and it receives and process the input (e.g. image).
A single fully connected layer is used and it is used to output the data (e.g. classification of image)
Recurrent Neural Network (RNN)
Recurrent Neural Networks (RNN) are useful to address the flaw in other ANN models. Well, Most of the ANN doesn’t remember the steps from previous situations and learned to make decisions based on context in training. Meanwhile, RNN stores the past information and all its decisions are taken from what it has learnt from the past.
This approach is mainly useful in image classification. Sometimes, we may need to look into the future to fix the past. In this case bidirectional RNN is helpful to learn from the past and predict the future. For example, we have handwritten samples in multiple inputs. Suppose, we have confusion in one input then we need to check again other inputs to recognize the correct context which takes the decision from the past.
Workflow of ANN
Let us first understand the different phases of deep learning and then, learn how Keras helps in the process of deep learning.
Collect required data
Deep learning requires lot of input data to successfully learn and predict the result. So, first collect as much data as possible.
Analyze data
Analyze the data and acquire a good understanding of the data. The better understanding of the data is required to select the correct ANN algorithm.
Choose an algorithm (model)
Choose an algorithm, which will best fit for the type of learning process (e.g image classification, text processing, etc.,) and the available input data. Algorithm is represented by Model in Keras. Algorithm includes one or more layers. Each layers in ANN can be represented by Keras Layer in Keras.
Prepare data − Process, filter and select only the required information from the data.
Split data − Split the data into training and test data set. Test data will be used to evaluate the prediction of the algorithm / Model (once the machine learn) and to cross check the efficiency of the learning process.
Compile the model − Compile the algorithm / model, so that, it can be used further to learn by training and finally do to prediction. This step requires us to choose loss function and Optimizer. loss function and Optimizer are used in learning phase to find the error (deviation from actual output) and do optimization so that the error will be minimized.
Fit the model − The actual learning process will be done in this phase using the training data set.
Predict result for unknown value − Predict the output for the unknown input data (other than existing training and test data)
Evaluate model − Evaluate the model by predicting the output for test data and cross-comparing the prediction with actual result of the test data.
Freeze, Modify or choose new algorithm − Check whether the evaluation of the model is successful. If yes, save the algorithm for future prediction purpose. If not, then modify or choose new algorithm / model and finally, again train, predict and evaluate the model. Repeat the process until the best algorithm (model) is found.

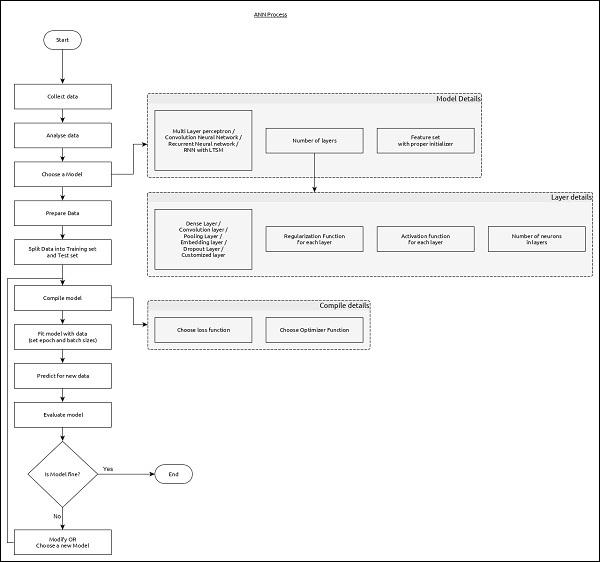

The above steps can be represented using below flow chart −
Keras - Deep learning
Keras provides a complete framework to create any type of neural networks. Keras is innovative as well as very easy to learn. It supports simple neural network to very large and complex neural network model. Let us understand the architecture of Keras framework and how Keras helps in deep learning in this chapter.
Architecture of Keras
Keras API can be divided into three main categories −
In Keras, every ANN is represented by Keras Models. In turn, every Keras Model is composition of Keras Layers and represents ANN layers like input, hidden layer, output layers, convolution layer, pooling layer, etc., Keras model and layer access Keras modules for activation function, loss function, regularization function, etc., Using Keras model, Keras Layer, and Keras modules, any ANN algorithm (CNN, RNN, etc.,) can be represented in a simple and efficient manner.

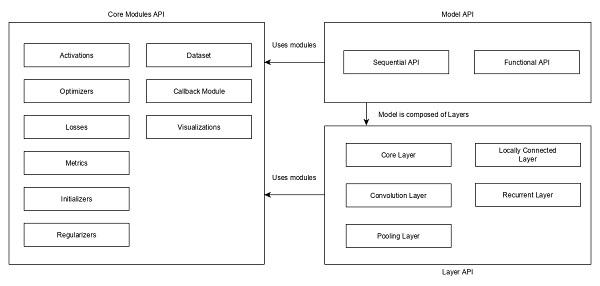

The following diagram depicts the relationship between model, layer and core modules −
Let us see the overview of Keras models, Keras layers and Keras modules.
Model
Keras Models are of two types as mentioned below −
Sequential Model − Sequential model is basically a linear composition of Keras Layers. Sequential model is easy, minimal as well as has the ability to represent nearly all available neural networks.
A simple sequential model is as follows −
from keras.models import Sequential
from keras.layers import Dense, Activation
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,)))
Where,
Line 1 imports Sequential model from Keras models
Line 2 imports Dense layer and Activation module
Line 4 create a new sequential model using Sequential API
Line 5 adds a dense layer (Dense API) with relu activation (using Activation module) function.
Sequential model exposes Model class to create customized models as well. We can use sub-classing concept to create our own complex model.
Functional API − Functional API is basically used to create complex models.
Layer
Each Keras layer in the Keras model represent the corresponding layer (input layer, hidden layer and output layer) in the actual proposed neural network model. Keras provides a lot of pre-build layers so that any complex neural network can be easily created. Some of the important Keras layers are specified below,
- Core Layers
- Convolution Layers
- Pooling Layers
- Recurrent Layers

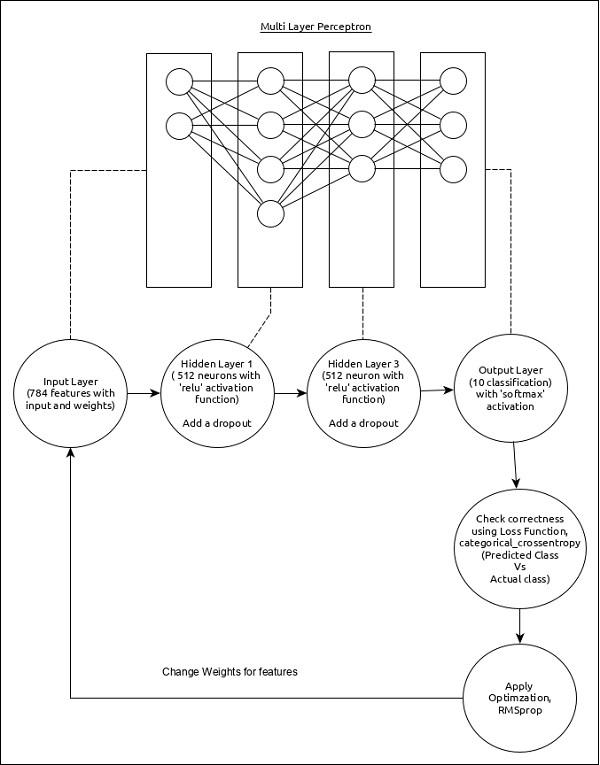

A simple python code to represent a neural network model using sequential model is as follows −
from keras.models import Sequential
from keras.layers import Dense, Activation, Dropout model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,)))
model.add(Dropout(0.2))
model.add(Dense(512, activation = 'relu')) model.add(Dropout(0.2))
model.add(Dense(num_classes, activation = 'softmax'))
Where,
Line 1 imports Sequential model from Keras models
Line 2 imports Dense layer and Activation module
Line 4 create a new sequential model using Sequential API
Line 5 adds a dense layer (Dense API) with relu activation (using Activation module) function.
Line 6 adds a dropout layer (Dropout API) to handle over-fitting.
Line 7 adds another dense layer (Dense API) with relu activation (using Activation module) function.
Line 8 adds another dropout layer (Dropout API) to handle over-fitting.
Line 9 adds final dense layer (Dense API) with softmax activation (using Activation module) function.
Keras also provides options to create our own customized layers. Customized layer can be created by sub-classing the Keras.Layer class and it is similar to sub-classing Keras models.
Core Modules
Keras also provides a lot of built-in neural network related functions to properly create the Keras model and Keras layers. Some of the function are as follows −
Activations module − Activation function is an important concept in ANN and activation modules provides many activation function like softmax, relu, etc.,
Loss module − Loss module provides loss functions like mean_squared_error, mean_absolute_error, poisson, etc.,
Optimizer module − Optimizer module provides optimizer function like adam, sgd, etc.,
Regularizers − Regularizer module provides functions like L1 regularizer, L2 regularizer, etc.,
Let us learn Keras modules in detail in the upcoming chapter.
Keras - Modules
As we learned earlier, Keras modules contains pre-defined classes, functions and variables which are useful for deep learning algorithm. Let us learn the modules provided by Keras in this chapter.
Available modules
Let us first see the list of modules available in the Keras.
Initializers − Provides a list of initializers function. We can learn it in details in Keras layer chapter. during model creation phase of machine learning.
Regularizers − Provides a list of regularizers function. We can learn it in details in Keras Layers chapter.
Constraints − Provides a list of constraints function. We can learn it in details in Keras Layers chapter.
Activations − Provides a list of activator function. We can learn it in details in Keras Layers chapter.
Losses − Provides a list of loss function. We can learn it in details in Model Training chapter.
Metrics − Provides a list of metrics function. We can learn it in details in Model Training chapter.
Optimizers − Provides a list of optimizer function. We can learn it in details in Model Training chapter.
Callback − Provides a list of callback function. We can use it during the training process to print the intermediate data as well as to stop the training itself (EarlyStopping method) based on some condition.
Text processing − Provides functions to convert text into NumPy array suitable for machine learning. We can use it in data preparation phase of machine learning.
Image processing − Provides functions to convert images into NumPy array suitable for machine learning. We can use it in data preparation phase of machine learning.
Sequence processing − Provides functions to generate time based data from the given input data. We can use it in data preparation phase of machine learning.
Backend − Provides function of the backend library like TensorFlow and Theano.
Utilities − Provides lot of utility function useful in deep learning.
Let us see backend module and utils model in this chapter.
backend module
backend module is used for keras backend operations. By default, keras runs on top of TensorFlow backend. If you want, you can switch to other backends like Theano or CNTK. Defualt backend configuration is defined inside your root directory under .keras/keras.json file.
Keras backend module can be imported using below code
>>> from keras import backend as k
If we are using default backend TensorFlow, then the below function returns TensorFlow based information as specified below −
>>> k.backend()
'tensorflow'
>>> k.epsilon()
1e-07
>>> k.image_data_format()
'channels_last'
>>> k.floatx()
'float32'
Let us understand some of the significant backend functions used for data analysis in brief −
get_uid()
It is the identifier for the default graph. It is defined below −
>>> k.get_uid(prefix='')
1
>>> k.get_uid(prefix='') 2
reset_uids
It is used resets the uid value.
>>> k.reset_uids()
Now, again execute the get_uid(). This will be reset and change again to 1.
>>> k.get_uid(prefix='')
1
placeholder
It is used instantiates a placeholder tensor. Simple placeholder to hold 3-D shape is shown below −
>>> data = k.placeholder(shape = (1,3,3))
>>> data
<tf.Tensor 'Placeholder_9:0' shape = (1, 3, 3) dtype = float32>
If you use int_shape(), it will show the shape.
>>> k.int_shape(data) (1, 3, 3)
dot
It is used to multiply two tensors. Consider a and b are two tensors and c will be the outcome of multiply of ab. Assume a shape is (4,2) and b shape is (2,3). It is defined below,
>>> a = k.placeholder(shape = (4,2))
>>> b = k.placeholder(shape = (2,3))
>>> c = k.dot(a,b)
>>> c
<tf.Tensor 'MatMul_3:0' shape = (4, 3) dtype = float32>
>>>
ones
It is used to initialize all as one value.
>>> res = k.ones(shape = (2,2))
#print the value
>>> k.eval(res)
array([[1., 1.], [1., 1.]], dtype = float32)
batch_dot
It is used to perform the product of two data in batches. Input dimension must be 2 or higher. It is shown below −
>>> a_batch = k.ones(shape = (2,3))
>>> b_batch = k.ones(shape = (3,2))
>>> c_batch = k.batch_dot(a_batch,b_batch)
>>> c_batch
<tf.Tensor 'ExpandDims:0' shape = (2, 1) dtype = float32>
variable
It is used to initializes a variable. Let us perform simple transpose operation in this variable.
>>> data = k.variable([[10,20,30,40],[50,60,70,80]])
#variable initialized here
>>> result = k.transpose(data)
>>> print(result)
Tensor("transpose_6:0", shape = (4, 2), dtype = float32)
>>> print(k.eval(result))
[[10. 50.]
[20. 60.]
[30. 70.]
[40. 80.]]
If you want to access from numpy −
>>> data = np.array([[10,20,30,40],[50,60,70,80]])
>>> print(np.transpose(data))
[[10 50]
[20 60]
[30 70]
[40 80]]
>>> res = k.variable(value = data)
>>> print(res)
<tf.Variable 'Variable_7:0' shape = (2, 4) dtype = float32_ref>
is_sparse(tensor)
It is used to check whether the tensor is sparse or not.
>>> a = k.placeholder((2, 2), sparse=True)
>>> print(a) SparseTensor(indices =
Tensor("Placeholder_8:0",
shape = (?, 2), dtype = int64),
values = Tensor("Placeholder_7:0", shape = (?,),
dtype = float32), dense_shape = Tensor("Const:0", shape = (2,), dtype = int64))
>>> print(k.is_sparse(a)) True
to_dense()
It is used to converts sparse into dense.
>>> b = k.to_dense(a)
>>> print(b) Tensor("SparseToDense:0", shape = (2, 2), dtype = float32)
>>> print(k.is_sparse(b)) False
random_uniform_variable
It is used to initialize using uniform distribution concept.
k.random_uniform_variable(shape, mean, scale)
Here,
shape − denotes the rows and columns in the format of tuples.
mean − mean of uniform distribution.
scale − standard deviation of uniform distribution.
Let us have a look at the below example usage −
>>> a = k.random_uniform_variable(shape = (2, 3), low=0, high = 1)
>>> b = k. random_uniform_variable(shape = (3,2), low = 0, high = 1)
>>> c = k.dot(a, b)
>>> k.int_shape(c)
(2, 2)
utils module
utils provides useful utilities function for deep learning. Some of the methods provided by the utils module is as follows −
HDF5Matrix
It is used to represent the input data in HDF5 format.
from keras.utils import HDF5Matrix data = HDF5Matrix('data.hdf5', 'data')
to_categorical
It is used to convert class vector into binary class matrix.
>>> from keras.utils import to_categorical
>>> labels = [0, 1, 2, 3, 4, 5, 6, 7, 8, 9]
>>> to_categorical(labels)
array([[1., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
[0., 1., 0., 0., 0., 0., 0., 0., 0., 0.],
[0., 0., 1., 0., 0., 0., 0., 0., 0., 0.],
[0., 0., 0., 1., 0., 0., 0., 0., 0., 0.],
[0., 0., 0., 0., 1., 0., 0., 0., 0., 0.],
[0., 0., 0., 0., 0., 1., 0., 0., 0., 0.],
[0., 0., 0., 0., 0., 0., 1., 0., 0., 0.],
[0., 0., 0., 0., 0., 0., 0., 1., 0., 0.],
[0., 0., 0., 0., 0., 0., 0., 0., 1., 0.],
[0., 0., 0., 0., 0., 0., 0., 0., 0., 1.]], dtype = float32)
>>> from keras.utils import normalize
>>> normalize([1, 2, 3, 4, 5])
array([[0.13483997, 0.26967994, 0.40451992, 0.53935989, 0.67419986]])
print_summary
It is used to print the summary of the model.
from keras.utils import print_summary print_summary(model)
plot_model
It is used to create the model representation in dot format and save it to file.
from keras.utils import plot_model
plot_model(model,to_file = 'image.png')
This plot_model will generate an image to understand the performance of model.
Keras - Layers
As learned earlier, Keras layers are the primary building block of Keras models. Each layer receives input information, do some computation and finally output the transformed information. The output of one layer will flow into the next layer as its input. Let us learn complete details about layers in this chapter.
Introduction
A Keras layer requires shape of the input (input_shape) to understand the structure of the input data, initializer to set the weight for each input and finally activators to transform the output to make it non-linear. In between, constraints restricts and specify the range in which the weight of input data to be generated and regularizer will try to optimize the layer (and the model) by dynamically applying the penalties on the weights during optimization process.
To summarise, Keras layer requires below minimum details to create a complete layer.
- Shape of the input data
- Number of neurons / units in the layer
- Initializers
- Regularizers
- Constraints
- Activations
Let us understand the basic concept in the next chapter. Before understanding the basic concept, let us create a simple Keras layer using Sequential model API to get the idea of how Keras model and layer works.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
from keras import regularizers
from keras import constraints
model = Sequential()
model.add(Dense(32, input_shape=(16,), kernel_initializer = 'he_uniform',
kernel_regularizer = None, kernel_constraint = 'MaxNorm', activation = 'relu'))
model.add(Dense(16, activation = 'relu'))
model.add(Dense(8))
where,
Line 1-5 imports the necessary modules.
Line 7 creates a new model using Sequential API.
Line 9 creates a new Dense layer and add it into the model. Dense is an entry level layer provided by Keras, which accepts the number of neurons or units (32) as its required parameter. If the layer is first layer, then we need to provide Input Shape, (16,) as well. Otherwise, the output of the previous layer will be used as input of the next layer. All other parameters are optional.
First parameter represents the number of units (neurons).
input_shape represent the shape of input data.
kernel_initializer represent initializer to be used. he_uniform function is set as value.
kernel_regularizer represent regularizer to be used. None is set as value.
kernel_constraint represent constraint to be used. MaxNorm function is set as value.
activation represent activation to be used. relu function is set as value.
Line 10 creates second Dense layer with 16 units and set relu as the activation function.
Line 11 creates final Dense layer with 8 units.
Basic Concept of Layers
Let us understand the basic concept of layer as well as how Keras supports each concept.
Input shape
In machine learning, all type of input data like text, images or videos will be first converted into array of numbers and then feed into the algorithm. Input numbers may be single dimensional array, two dimensional array (matrix) or multi-dimensional array. We can specify the dimensional information using shape, a tuple of integers. For example, (4,2) represent matrix with four rows and two columns.
>>> import numpy as np
>>> shape = (4, 2)
>>> input = np.zeros(shape)
>>> print(input)
[
[0. 0.]
[0. 0.]
[0. 0.]
[0. 0.]
]
>>>
Similarly, (3,4,2) three dimensional matrix having three collections of 4x2 matrix (two rows and four columns).
>>> import numpy as np
>>> shape = (3, 4, 2)
>>> input = np.zeros(shape)
>>> print(input)
[
[[0. 0.] [0. 0.] [0. 0.] [0. 0.]]
[[0. 0.] [0. 0.] [0. 0.] [0. 0.]]
[[0. 0.] [0. 0.] [0. 0.] [0. 0.]]
]
>>>
To create the first layer of the model (or input layer of the model), shape of the input data should be specified.
Initializers
In Machine Learning, weight will be assigned to all input data. Initializers module provides different functions to set these initial weight. Some of the Keras Initializer function are as follows −
Zeros
Generates 0 for all input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.Zeros()
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
Where, kernel_initializer represent the initializer for kernel of the model.
Ones
Generates 1 for all input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.Ones()
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
Constant
Generates a constant value (say, 5) specified by the user for all input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.Constant(value = 0) model.add(
Dense(512, activation = 'relu', input_shape = (784,), kernel_initializer = my_init)
)
where, value represent the constant value
RandomNormal
Generates value using normal distribution of input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.RandomNormal(mean=0.0,
stddev = 0.05, seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
where,
mean represent the mean of the random values to generate
stddev represent the standard deviation of the random values to generate
seed represent the values to generate random number
RandomUniform
Generates value using uniform distribution of input data.
from keras import initializers
my_init = initializers.RandomUniform(minval = -0.05, maxval = 0.05, seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
where,
TruncatedNormal
Generates value using truncated normal distribution of input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.TruncatedNormal(mean = 0.0, stddev = 0.05, seed = None
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
VarianceScaling
Generates value based on the input shape and output shape of the layer along with the specified scale.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.VarianceScaling(
scale = 1.0, mode = 'fan_in', distribution = 'normal', seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
skernel_initializer = my_init))
where,
scale represent the scaling factor
mode represent any one of fan_in, fan_out and fan_avg values
distribution represent either of normal or uniform
VarianceScaling
It finds the stddev value for normal distribution using below formula and then find the weights using normal distribution,
stddev = sqrt(scale / n)
where n represent,
number of input units for mode = fan_in
number of out units for mode = fan_out
average number of input and output units for mode = fan_avg
Similarly, it finds the limit for uniform distribution using below formula and then find the weights using uniform distribution,
limit = sqrt(3 * scale / n)
lecun_normal
Generates value using lecun normal distribution of input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.RandomUniform(minval = -0.05, maxval = 0.05, seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
It finds the stddev using the below formula and then apply normal distribution
stddev = sqrt(1 / fan_in)
where, fan_in represent the number of input units.
lecun_uniform
Generates value using lecun uniform distribution of input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.lecun_uniform(seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
It finds the limit using the below formula and then apply uniform distribution
limit = sqrt(3 / fan_in)
where,
glorot_normal
Generates value using glorot normal distribution of input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.glorot_normal(seed=None) model.add(
Dense(512, activation = 'relu', input_shape = (784,), kernel_initializer = my_init)
)
It finds the stddev using the below formula and then apply normal distribution
stddev = sqrt(2 / (fan_in + fan_out))
where,
glorot_uniform
Generates value using glorot uniform distribution of input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.glorot_uniform(seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
It finds the limit using the below formula and then apply uniform distribution
limit = sqrt(6 / (fan_in + fan_out))
where,
he_normal
Generates value using he normal distribution of input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.RandomUniform(minval = -0.05, maxval = 0.05, seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
It finds the stddev using the below formula and then apply normal distribution.
stddev = sqrt(2 / fan_in)
where, fan_in represent the number of input units.
he_uniform
Generates value using he uniform distribution of input data.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.he_normal(seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
It finds the limit using the below formula and then apply uniform distribution.
limit = sqrt(6 / fan_in)
where, fan_in represent the number of input units.
Orthogonal
Generates a random orthogonal matrix.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.Orthogonal(gain = 1.0, seed = None)
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init))
where, gain represent the multiplication factor of the matrix.
Identity
Generates identity matrix.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.Identity(gain = 1.0) model.add(
Dense(512, activation = 'relu', input_shape = (784,), kernel_initializer = my_init)
)
Constraints
In machine learning, a constraint will be set on the parameter (weight) during optimization phase. <>Constraints module provides different functions to set the constraint on the layer. Some of the constraint functions are as follows.
NonNeg
Constrains weights to be non-negative.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import initializers
my_init = initializers.Identity(gain = 1.0) model.add(
Dense(512, activation = 'relu', input_shape = (784,),
kernel_initializer = my_init)
)
where, kernel_constraint represent the constraint to be used in the layer.
UnitNorm
Constrains weights to be unit norm.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import constraints
my_constrain = constraints.UnitNorm(axis = 0)
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_constraint = my_constrain))
MaxNorm
Constrains weight to norm less than or equals to the given value.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import constraints
my_constrain = constraints.MaxNorm(max_value = 2, axis = 0)
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_constraint = my_constrain))
where,
max_value represent the upper bound
axis represent the dimension in which the constraint to be applied. e.g. in Shape (2,3,4) axis 0 denotes first dimension, 1 denotes second dimension and 2 denotes third dimension
MinMaxNorm
Constrains weights to be norm between specified minimum and maximum values.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import constraints
my_constrain = constraints.MinMaxNorm(min_value = 0.0, max_value = 1.0, rate = 1.0, axis = 0)
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_constraint = my_constrain))
where, rate represent the rate at which the weight constrain is applied.
Regularizers
In machine learning, regularizers are used in the optimization phase. It applies some penalties on the layer parameter during optimization. Keras regularization module provides below functions to set penalties on the layer. Regularization applies per-layer basis only.
L1 Regularizer
It provides L1 based regularization.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import regularizers
my_regularizer = regularizers.l1(0.)
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_regularizer = my_regularizer))
where, kernel_regularizer represent the rate at which the weight constrain is applied.
L2 Regularizer
It provides L2 based regularization.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import regularizers
my_regularizer = regularizers.l2(0.)
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_regularizer = my_regularizer))
L1 and L2 Regularizer
It provides both L1 and L2 based regularization.
from keras.models import Sequential
from keras.layers import Activation, Dense
from keras import regularizers
my_regularizer = regularizers.l2(0.)
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,),
kernel_regularizer = my_regularizer))
Activations
In machine learning, activation function is a special function used to find whether a specific neuron is activated or not. Basically, the activation function does a nonlinear transformation of the input data and thus enable the neurons to learn better. Output of a neuron depends on the activation function.
As you recall the concept of single perception, the output of a perceptron (neuron) is simply the result of the activation function, which accepts the summation of all input multiplied with its corresponding weight plus overall bias, if any available.
result = Activation(SUMOF(input * weight) + bias)
So, activation function plays an important role in the successful learning of the model. Keras provides a lot of activation function in the activations module. Let us learn all the activations available in the module.
linear
Applies Linear function. Does nothing.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'linear', input_shape = (784,)))
Where, activation refers the activation function of the layer. It can be specified simply by the name of the function and the layer will use corresponding activators.
elu
Applies Exponential linear unit.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'elu', input_shape = (784,)))
selu
Applies Scaled exponential linear unit.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'selu', input_shape = (784,)))
relu
Applies Rectified Linear Unit.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,)))
softmax
Applies Softmax function.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'softmax', input_shape = (784,)))
softplus
Applies Softplus function.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'softplus', input_shape = (784,)))
softsign
Applies Softsign function.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'softsign', input_shape = (784,)))
tanh
Applies Hyperbolic tangent function.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'tanh', input_shape = (784,)))
sigmoid
Applies Sigmoid function.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'sigmoid', input_shape = (784,)))
hard_sigmoid
Applies Hard Sigmoid function.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'hard_sigmoid', input_shape = (784,)))
exponential
Applies exponential function.
from keras.models import Sequential
from keras.layers import Activation, Dense
model = Sequential()
model.add(Dense(512, activation = 'exponential', input_shape = (784,)))
| Sr.No |
Layers & Description |
| 1 |
Dense Layer
Dense layer is the regular deeply connected neural network layer.
|
| 2 |
Dropout Layers
Dropout is one of the important concept in the machine learning.
|
| 3 |
Flatten Layers
Flatten is used to flatten the input.
|
| 4 |
Reshape Layers
Reshape is used to change the shape of the input.
|
| 5 |
Permute Layers
Permute is also used to change the shape of the input using pattern.
|
| 6 |
RepeatVector Layers
RepeatVector is used to repeat the input for set number, n of times.
|
| 7 |
Lambda Layers
Lambda is used to transform the input data using an expression or function.
|
| 8 |
Convolution Layers
Keras contains a lot of layers for creating Convolution based ANN, popularly called as Convolution Neural Network (CNN).
|
| 9 |
Pooling Layer
It is used to perform max pooling operations on temporal data.
|
| 10 |
Locally connected layer
Locally connected layers are similar to Conv1D layer but the difference is Conv1D layer weights are shared but here weights are unshared.
|
| 11 |
Merge Layer
It is used to merge a list of inputs.
|
| 12 |
Embedding Layer
It performs embedding operations in input layer.
|
Keras - Customized Layer
Keras allows to create our own customized layer. Once a new layer is created, it can be used in any model without any restriction. Let us learn how to create new layer in this chapter.
Keras provides a base layer class, Layer which can sub-classed to create our own customized layer. Let us create a simple layer which will find weight based on normal distribution and then do the basic computation of finding the summation of the product of input and its weight during training.
Step 1: Import the necessary module
First, let us import the necessary modules −
from keras import backend as K
from keras.layers import Layer
Here,
Step 2: Define a layer class
Let us create a new class, MyCustomLayer by sub-classing Layer class −
class MyCustomLayer(Layer):
...
Step 3: Initialize the layer class
Let us initialize our new class as specified below −
def __init__(self, output_dim, **kwargs):
self.output_dim = output_dim
super(MyCustomLayer, self).__init__(**kwargs)
Here,
Step 4: Implement build method
build is the main method and its only purpose is to build the layer properly. It can do anything related to the inner working of the layer. Once the custom functionality is done, we can call the base class build function. Our custom build function is as follows −
def build(self, input_shape):
self.kernel = self.add_weight(name = 'kernel',
shape = (input_shape[1], self.output_dim),
initializer = 'normal', trainable = True)
super(MyCustomLayer, self).build(input_shape)
Here,
Line 1 defines the build method with one argument, input_shape. Shape of the input data is referred by input_shape.
Line 2 creates the weight corresponding to input shape and set it in the kernel. It is our custom functionality of the layer. It creates the weight using ‘normal’ initializer.
Line 6 calls the base class, build method.
Step 5: Implement call method
call method does the exact working of the layer during training process.
Our custom call method is as follows
def call(self, input_data):
return K.dot(input_data, self.kernel)
Here,
Line 1 defines the call method with one argument, input_data. input_data is the input data for our layer.
Line 2 return the dot product of the input data, input_data and our layer’s kernel, self.kernel
Step 6: Implement compute_output_shape method
def compute_output_shape(self, input_shape): return (input_shape[0], self.output_dim)
Here,
Implementing the build, call and compute_output_shape completes the creating a customized layer. The final and complete code is as follows
from keras import backend as K from keras.layers import Layer
class MyCustomLayer(Layer):
def __init__(self, output_dim, **kwargs):
self.output_dim = output_dim
super(MyCustomLayer, self).__init__(**kwargs)
def build(self, input_shape): self.kernel =
self.add_weight(name = 'kernel',
shape = (input_shape[1], self.output_dim),
initializer = 'normal', trainable = True)
super(MyCustomLayer, self).build(input_shape) #
Be sure to call this at the end
def call(self, input_data): return K.dot(input_data, self.kernel)
def compute_output_shape(self, input_shape): return (input_shape[0], self.output_dim)
Using our customized layer
Let us create a simple model using our customized layer as specified below −
from keras.models import Sequential
from keras.layers import Dense
model = Sequential()
model.add(MyCustomLayer(32, input_shape = (16,)))
model.add(Dense(8, activation = 'softmax')) model.summary()
Here,
Running the application will print the model summary as below −
Model: "sequential_1"
_________________________________________________________________
Layer (type) Output Shape Param
#================================================================
my_custom_layer_1 (MyCustomL (None, 32) 512
_________________________________________________________________
dense_1 (Dense) (None, 8) 264
=================================================================
Total params: 776
Trainable params: 776
Non-trainable params: 0
_________________________________________________________________
Keras - Models
As learned earlier, Keras model represents the actual neural network model. Keras provides a two mode to create the model, simple and easy to use Sequential API as well as more flexible and advanced Functional API. Let us learn now to create model using both Sequential and Functional API in this chapter.
Sequential
The core idea of Sequential API is simply arranging the Keras layers in a sequential order and so, it is called Sequential API. Most of the ANN also has layers in sequential order and the data flows from one layer to another layer in the given order until the data finally reaches the output layer.
A ANN model can be created by simply calling Sequential() API as specified below −
from keras.models import Sequential
model = Sequential()
Add layers
To add a layer, simply create a layer using Keras layer API and then pass the layer through add() function as specified below −
from keras.models import Sequential
model = Sequential()
input_layer = Dense(32, input_shape=(8,)) model.add(input_layer)
hidden_layer = Dense(64, activation='relu'); model.add(hidden_layer)
output_layer = Dense(8)
model.add(output_layer)
Here, we have created one input layer, one hidden layer and one output layer.
Access the model
Keras provides few methods to get the model information like layers, input data and output data. They are as follows −
>>> layers = model.layers
>>> layers
[
<keras.layers.core.Dense object at 0x000002C8C888B8D0>,
<keras.layers.core.Dense object at 0x000002C8C888B7B8>
<keras.layers.core.Dense object at 0x 000002C8C888B898>
]
>>> inputs = model.inputs
>>> inputs
[<tf.Tensor 'dense_13_input:0' shape=(?, 8) dtype=float32>]
>>> outputs = model.outputs
>>> outputs
<tf.Tensor 'dense_15/BiasAdd:0' shape=(?, 8) dtype=float32>]
Serialize the model
Keras provides methods to serialize the model into object as well as json and load it again later. They are as follows −
config = model.get_config()
new_model = Sequential.from_config(config)
>>> json_string = model.to_json()
>>> json_string '{"class_name": "Sequential", "config":
{"name": "sequential_10", "layers":
[{"class_name": "Dense", "config":
{"name": "dense_13", "trainable": true, "batch_input_shape":
[null, 8], "dtype": "float32", "units": 32, "activation": "linear",
"use_bias": true, "kernel_initializer":
{"class_name": "Vari anceScaling", "config":
{"scale": 1.0, "mode": "fan_avg", "distribution": "uniform", "seed": null}},
"bias_initializer": {"class_name": "Zeros", "conf
ig": {}}, "kernel_regularizer": null, "bias_regularizer": null,
"activity_regularizer": null, "kernel_constraint": null, "bias_constraint": null}},
{" class_name": "Dense", "config": {"name": "dense_14", "trainable": true,
"dtype": "float32", "units": 64, "activation": "relu", "use_bias": true,
"kern el_initializer": {"class_name": "VarianceScaling", "config":
{"scale": 1.0, "mode": "fan_avg", "distribution": "uniform", "seed": null}},
"bias_initia lizer": {"class_name": "Zeros",
"config": {}}, "kernel_regularizer": null, "bias_regularizer": null,
"activity_regularizer": null, "kernel_constraint" : null, "bias_constraint": null}},
{"class_name": "Dense", "config": {"name": "dense_15", "trainable": true,
"dtype": "float32", "units": 8, "activation": "linear", "use_bias": true,
"kernel_initializer": {"class_name": "VarianceScaling", "config":
{"scale": 1.0, "mode": "fan_avg", "distribution": " uniform", "seed": null}},
"bias_initializer": {"class_name": "Zeros", "config": {}},
"kernel_regularizer": null, "bias_regularizer": null, "activity_r egularizer":
null, "kernel_constraint": null, "bias_constraint":
null}}]}, "keras_version": "2.2.5", "backend": "tensorflow"}'
>>>
from keras.models import model_from_json
new_model = model_from_json(json_string)
>>> yaml_string = model.to_yaml()
>>> yaml_string 'backend: tensorflow\nclass_name:
Sequential\nconfig:\n layers:\n - class_name: Dense\n config:\n
activation: linear\n activity_regular izer: null\n batch_input_shape:
!!python/tuple\n - null\n - 8\n bias_constraint: null\n bias_initializer:\n
class_name : Zeros\n config: {}\n bias_regularizer: null\n dtype:
float32\n kernel_constraint: null\n
kernel_initializer:\n cla ss_name: VarianceScaling\n config:\n
distribution: uniform\n mode: fan_avg\n
scale: 1.0\n seed: null\n kernel_regularizer: null\n name: dense_13\n
trainable: true\n units: 32\n
use_bias: true\n - class_name: Dense\n config:\n activation: relu\n activity_regularizer: null\n
bias_constraint: null\n bias_initializer:\n class_name: Zeros\n
config : {}\n bias_regularizer: null\n dtype: float32\n
kernel_constraint: null\n kernel_initializer:\n class_name: VarianceScalin g\n
config:\n distribution: uniform\n mode: fan_avg\n scale: 1.0\n
seed: null\n kernel_regularizer: nu ll\n name: dense_14\n trainable: true\n
units: 64\n use_bias: true\n - class_name: Dense\n config:\n
activation: linear\n activity_regularizer: null\n
bias_constraint: null\n bias_initializer:\n
class_name: Zeros\n config: {}\n bias_regu larizer: null\n
dtype: float32\n kernel_constraint: null\n
kernel_initializer:\n class_name: VarianceScaling\n config:\n
distribution: uniform\n mode: fan_avg\n
scale: 1.0\n seed: null\n kernel_regularizer: null\n name: dense _15\n
trainable: true\n units: 8\n
use_bias: true\n name: sequential_10\nkeras_version: 2.2.5\n'
>>>
from keras.models import model_from_yaml
new_model = model_from_yaml(yaml_string)
Summarise the model
Understanding the model is very important phase to properly use it for training and prediction purposes. Keras provides a simple method, summary to get the full information about the model and its layers.
A summary of the model created in the previous section is as follows −
>>> model.summary() Model: "sequential_10"
_________________________________________________________________
Layer (type) Output Shape Param
#================================================================
dense_13 (Dense) (None, 32) 288
_________________________________________________________________
dense_14 (Dense) (None, 64) 2112
_________________________________________________________________
dense_15 (Dense) (None, 8) 520
=================================================================
Total params: 2,920
Trainable params: 2,920
Non-trainable params: 0
_________________________________________________________________
>>>
Train and Predict the model
Model provides function for training, evaluation and prediction process. They are as follows −
compile − Configure the learning process of the model
fit − Train the model using the training data
evaluate − Evaluate the model using the test data
predict − Predict the results for new input.
Functional API
Sequential API is used to create models layer-by-layer. Functional API is an alternative approach of creating more complex models. Functional model, you can define multiple input or output that share layers. First, we create an instance for model and connecting to the layers to access input and output to the model. This section explains about functional model in brief.
Create a model
Import an input layer using the below module −
>>> from keras.layers import Input
Now, create an input layer specifying input dimension shape for the model using the below code −
>>> data = Input(shape=(2,3))
Define layer for the input using the below module −
>>> from keras.layers import Dense
Add Dense layer for the input using the below line of code −
>>> layer = Dense(2)(data)
>>> print(layer)
Tensor("dense_1/add:0", shape =(?, 2, 2), dtype = float32)
Define model using the below module −
from keras.models import Model
Create a model in functional way by specifying both input and output layer −
model = Model(inputs = data, outputs = layer)
The complete code to create a simple model is shown below −
from keras.layers import Input
from keras.models import Model
from keras.layers import Dense
data = Input(shape=(2,3))
layer = Dense(2)(data) model =
Model(inputs=data,outputs=layer) model.summary()
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_2 (InputLayer) (None, 2, 3) 0
_________________________________________________________________
dense_2 (Dense) (None, 2, 2) 8
=================================================================
Total params: 8
Trainable params: 8
Non-trainable params: 0
_________________________________________________________________
Keras - Model Compilation
Previously, we studied the basics of how to create model using Sequential and Functional API. This chapter explains about how to compile the model. The compilation is the final step in creating a model. Once the compilation is done, we can move on to training phase.
Let us learn few concepts required to better understand the compilation process.
Loss
In machine learning, Loss function is used to find error or deviation in the learning process. Keras requires loss function during model compilation process.
Keras provides quite a few loss function in the losses module and they are as follows −
- mean_squared_error
- mean_absolute_error
- mean_absolute_percentage_error
- mean_squared_logarithmic_error
- squared_hinge
- hinge
- categorical_hinge
- logcosh
- huber_loss
- categorical_crossentropy
- sparse_categorical_crossentropy
- binary_crossentropy
- kullback_leibler_divergence
- poisson
- cosine_proximity
- is_categorical_crossentropy
All above loss function accepts two arguments −
Import the losses module before using loss function as specified below −
from keras import losses
Optimizer
In machine learning, Optimization is an important process which optimize the input weights by comparing the prediction and the loss function. Keras provides quite a few optimizer as a module, optimizers and they are as follows:
SGD − Stochastic gradient descent optimizer.
keras.optimizers.SGD(learning_rate = 0.01, momentum = 0.0, nesterov = False)
RMSprop − RMSProp optimizer.
keras.optimizers.RMSprop(learning_rate = 0.001, rho = 0.9)
Adagrad − Adagrad optimizer.
keras.optimizers.Adagrad(learning_rate = 0.01)
Adadelta − Adadelta optimizer.
keras.optimizers.Adadelta(learning_rate = 1.0, rho = 0.95)
Adam − Adam optimizer.
keras.optimizers.Adam(
learning_rate = 0.001, beta_1 = 0.9, beta_2 = 0.999, amsgrad = False
)
Adamax − Adamax optimizer from Adam.
keras.optimizers.Adamax(learning_rate = 0.002, beta_1 = 0.9, beta_2 = 0.999)
Nadam − Nesterov Adam optimizer.
keras.optimizers.Nadam(learning_rate = 0.002, beta_1 = 0.9, beta_2 = 0.999)
Import the optimizers module before using optimizers as specified below −
from keras import optimizers
Metrics
In machine learning, Metrics is used to evaluate the performance of your model. It is similar to loss function, but not used in training process. Keras provides quite a few metrics as a module, metrics and they are as follows
- accuracy
- binary_accuracy
- categorical_accuracy
- sparse_categorical_accuracy
- top_k_categorical_accuracy
- sparse_top_k_categorical_accuracy
- cosine_proximity
- clone_metric
Similar to loss function, metrics also accepts below two arguments −
Import the metrics module before using metrics as specified below −
from keras import metrics
Compile the model
Keras model provides a method, compile() to compile the model. The argument and default value of the compile() method is as follows
compile(
optimizer,
loss = None,
metrics = None,
loss_weights = None,
sample_weight_mode = None,
weighted_metrics = None,
target_tensors = None
)
The important arguments are as follows −
- loss function
- Optimizer
- metrics
A sample code to compile the mode is as follows −
from keras import losses
from keras import optimizers
from keras import metrics
model.compile(loss = 'mean_squared_error',
optimizer = 'sgd', metrics = [metrics.categorical_accuracy])
where,
Model Training
Models are trained by NumPy arrays using fit(). The main purpose of this fit function is used to evaluate your model on training. This can be also used for graphing model performance. It has the following syntax −
model.fit(X, y, epochs = , batch_size = )
Here,
X, y − It is a tuple to evaluate your data.
epochs − no of times the model is needed to be evaluated during training.
batch_size − training instances.
Let us take a simple example of numpy random data to use this concept.
Create data
Let us create a random data using numpy for x and y with the help of below mentioned command −
import numpy as np
x_train = np.random.random((100,4,8))
y_train = np.random.random((100,10))
Now, create random validation data,
x_val = np.random.random((100,4,8))
y_val = np.random.random((100,10))
Create model
Let us create simple sequential model −
from keras.models import Sequential model = Sequential()
Add layers
Create layers to add model −
from keras.layers import LSTM, Dense
# add a sequence of vectors of dimension 16
model.add(LSTM(16, return_sequences = True))
model.add(Dense(10, activation = 'softmax'))
compile model
Now model is defined. You can compile using the below command −
model.compile(
loss = 'categorical_crossentropy', optimizer = 'sgd', metrics = ['accuracy']
)
Apply fit()
Now we apply fit() function to train our data −
model.fit(x_train, y_train, batch_size = 32, epochs = 5, validation_data = (x_val, y_val))
Create a Multi-Layer Perceptron ANN
We have learned to create, compile and train the Keras models.
Let us apply our learning and create a simple MPL based ANN.
Dataset module
Before creating a model, we need to choose a problem, need to collect the required data and convert the data to NumPy array. Once data is collected, we can prepare the model and train it by using the collected data. Data collection is one of the most difficult phase of machine learning. Keras provides a special module, datasets to download the online machine learning data for training purposes. It fetches the data from online server, process the data and return the data as training and test set. Let us check the data provided by Keras dataset module. The data available in the module are as follows,
- CIFAR10 small image classification
- CIFAR100 small image classification
- IMDB Movie reviews sentiment classification
- Reuters newswire topics classification
- MNIST database of handwritten digits
- Fashion-MNIST database of fashion articles
- Boston housing price regression dataset
Let us use the MNIST database of handwritten digits (or minst) as our input. minst is a collection of 60,000, 28x28 grayscale images. It contains 10 digits. It also contains 10,000 test images.
Below code can be used to load the dataset −
from keras.datasets import mnist
(x_train, y_train), (x_test, y_test) = mnist.load_data()
where
Line 1 imports minst from the keras dataset module.
Line 3 calls the load_data function, which will fetch the data from online server and return the data as 2 tuples, First tuple, (x_train, y_train) represent the training data with shape, (number_sample, 28, 28) and its digit label with shape, (number_samples, ). Second tuple, (x_test, y_test) represent test data with same shape.
Other dataset can also be fetched using similar API and every API returns similar data as well except the shape of the data. The shape of the data depends on the type of data.
Create a model
Let us choose a simple multi-layer perceptron (MLP) as represented below and try to create the model using Keras.
The core features of the model are as follows −
Input layer consists of 784 values (28 x 28 = 784).
First hidden layer, Dense consists of 512 neurons and ‘relu’ activation function.
Second hidden layer, Dropout has 0.2 as its value.
Third hidden layer, again Dense consists of 512 neurons and ‘relu’ activation function.
Fourth hidden layer, Dropout has 0.2 as its value.
Fifth and final layer consists of 10 neurons and ‘softmax’ activation function.
Use categorical_crossentropy as loss function.
Use RMSprop() as Optimizer.
Use accuracy as metrics.
Use 128 as batch size.
Use 20 as epochs.
Step 1 − Import the modules
Let us import the necessary modules.
import keras
from keras.datasets import mnist
from keras.models import Sequential
from keras.layers import Dense, Dropout
from keras.optimizers import RMSprop
import numpy as np
Step 2 − Load data
Let us import the mnist dataset.
(x_train, y_train), (x_test, y_test) = mnist.load_data()
Step 3 − Process the data
Let us change the dataset according to our model, so that it can be feed into our model.
x_train = x_train.reshape(60000, 784)
x_test = x_test.reshape(10000, 784)
x_train = x_train.astype('float32')
x_test = x_test.astype('float32')
x_train /= 255
x_test /= 255
y_train = keras.utils.to_categorical(y_train, 10)
y_test = keras.utils.to_categorical(y_test, 10)
Where
reshape is used to reshape the input from (28, 28) tuple to (784, )
to_categorical is used to convert vector to binary matrix
Step 4 − Create the model
Let us create the actual model.
model = Sequential()
model.add(Dense(512, activation = 'relu', input_shape = (784,)))
model.add(Dropout(0.2))
model.add(Dense(512, activation = 'relu'))
model.add(Dropout(0.2))
model.add(Dense(10, activation = 'softmax'))
Step 5 − Compile the model
Let us compile the model using selected loss function, optimizer and metrics.
model.compile(loss = 'categorical_crossentropy',
optimizer = RMSprop(),
metrics = ['accuracy'])
Step 6 − Train the model
Let us train the model using fit() method.
history = model.fit(
x_train, y_train,
batch_size = 128,
epochs = 20,
verbose = 1,
validation_data = (x_test, y_test)
)
Final thoughts
We have created the model, loaded the data and also trained the data to the model. We still need to evaluate the model and predict output for unknown input, which we learn in upcoming chapter.
import keras
from keras.datasets import mnist
from keras.models import Sequential
from keras.layers import Dense, Dropout
from keras.optimizers import RMSprop
import numpy as np
(x_train, y_train), (x_test, y_test) = mnist.load_data()
x_train = x_train.reshape(60000, 784)
x_test = x_test.reshape(10000, 784)
x_train = x_train.astype('float32')
x_test = x_test.astype('float32')
x_train /= 255
x_test /= 255
y_train = keras.utils.to_categorical(y_train, 10)
y_test = keras.utils.to_categorical(y_test, 10)
model = Sequential()
model.add(Dense(512, activation='relu', input_shape = (784,)))
model.add(Dropout(0.2))
model.add(Dense(512, activation = 'relu')) model.add(Dropout(0.2))
model.add(Dense(10, activation = 'softmax'))
model.compile(loss = 'categorical_crossentropy',
optimizer = RMSprop(),
metrics = ['accuracy'])
history = model.fit(x_train, y_train,
batch_size = 128, epochs = 20, verbose = 1, validation_data = (x_test, y_test))
Executing the application will give the below content as output −
Train on 60000 samples, validate on 10000 samples Epoch 1/20
60000/60000 [==============================] - 7s 118us/step - loss: 0.2453
- acc: 0.9236 - val_loss: 0.1004 - val_acc: 0.9675 Epoch 2/20
60000/60000 [==============================] - 7s 110us/step - loss: 0.1023
- acc: 0.9693 - val_loss: 0.0797 - val_acc: 0.9761 Epoch 3/20
60000/60000 [==============================] - 7s 110us/step - loss: 0.0744
- acc: 0.9770 - val_loss: 0.0727 - val_acc: 0.9791 Epoch 4/20
60000/60000 [==============================] - 7s 110us/step - loss: 0.0599
- acc: 0.9823 - val_loss: 0.0704 - val_acc: 0.9801 Epoch 5/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0504
- acc: 0.9853 - val_loss: 0.0714 - val_acc: 0.9817 Epoch 6/20
60000/60000 [==============================] - 7s 111us/step - loss: 0.0438
- acc: 0.9868 - val_loss: 0.0845 - val_acc: 0.9809 Epoch 7/20
60000/60000 [==============================] - 7s 114us/step - loss: 0.0391
- acc: 0.9887 - val_loss: 0.0823 - val_acc: 0.9802 Epoch 8/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0364
- acc: 0.9892 - val_loss: 0.0818 - val_acc: 0.9830 Epoch 9/20
60000/60000 [==============================] - 7s 113us/step - loss: 0.0308
- acc: 0.9905 - val_loss: 0.0833 - val_acc: 0.9829 Epoch 10/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0289
- acc: 0.9917 - val_loss: 0.0947 - val_acc: 0.9815 Epoch 11/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0279
- acc: 0.9921 - val_loss: 0.0818 - val_acc: 0.9831 Epoch 12/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0260
- acc: 0.9927 - val_loss: 0.0945 - val_acc: 0.9819 Epoch 13/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0257
- acc: 0.9931 - val_loss: 0.0952 - val_acc: 0.9836 Epoch 14/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0229
- acc: 0.9937 - val_loss: 0.0924 - val_acc: 0.9832 Epoch 15/20
60000/60000 [==============================] - 7s 115us/step - loss: 0.0235
- acc: 0.9937 - val_loss: 0.1004 - val_acc: 0.9823 Epoch 16/20
60000/60000 [==============================] - 7s 113us/step - loss: 0.0214
- acc: 0.9941 - val_loss: 0.0991 - val_acc: 0.9847 Epoch 17/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0219
- acc: 0.9943 - val_loss: 0.1044 - val_acc: 0.9837 Epoch 18/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0190
- acc: 0.9952 - val_loss: 0.1129 - val_acc: 0.9836 Epoch 19/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0197
- acc: 0.9953 - val_loss: 0.0981 - val_acc: 0.9841 Epoch 20/20
60000/60000 [==============================] - 7s 112us/step - loss: 0.0198
- acc: 0.9950 - val_loss: 0.1215 - val_acc: 0.9828
Keras - Model Evaluation and Model Prediction
This chapter deals with the model evaluation and model prediction in Keras.
Let us begin by understanding the model evaluation.
Model Evaluation
Evaluation is a process during development of the model to check whether the model is best fit for the given problem and corresponding data. Keras model provides a function, evaluate which does the evaluation of the model. It has three main arguments,
- Test data
- Test data label
- verbose - true or false
Let us evaluate the model, which we created in the previous chapter using test data.
score = model.evaluate(x_test, y_test, verbose = 0)
print('Test loss:', score[0])
print('Test accuracy:', score[1])
Executing the above code will output the below information.
0
The test accuracy is 98.28%. We have created a best model to identify the handwriting digits. On the positive side, we can still scope to improve our model.
Model Prediction
Prediction is the final step and our expected outcome of the model generation. Keras provides a method, predict to get the prediction of the trained model. The signature of the predict method is as follows,
predict(
x,
batch_size = None,
verbose = 0,
steps = None,
callbacks = None,
max_queue_size = 10,
workers = 1,
use_multiprocessing = False
)
Here, all arguments are optional except the first argument, which refers the unknown input data. The shape should be maintained to get the proper prediction.
Let us do prediction for our MPL model created in previous chapter using below code −
pred = model.predict(x_test)
pred = np.argmax(pred, axis = 1)[:5]
label = np.argmax(y_test,axis = 1)[:5]
print(pred)
print(label)
Here,
Line 1 call the predict function using test data.
Line 2 gets the first five prediction
Line 3 gets the first five labels of the test data.
Line 5 - 6 prints the prediction and actual label.
The output of the above application is as follows −
[7 2 1 0 4]
[7 2 1 0 4]
The output of both array is identical and it indicate that our model predicts correctly the first five images.
Keras - Convolution Neural Network
Let us modify the model from MPL to Convolution Neural Network (CNN) for our earlier digit identification problem.
CNN can be represented as below −
The core features of the model are as follows −
Input layer consists of (1, 8, 28) values.
First layer, Conv2D consists of 32 filters and ‘relu’ activation function with kernel size, (3,3).
Second layer, Conv2D consists of 64 filters and ‘relu’ activation function with kernel size, (3,3).
Thrid layer, MaxPooling has pool size of (2, 2).
Fifth layer, Flatten is used to flatten all its input into single dimension.
Sixth layer, Dense consists of 128 neurons and ‘relu’ activation function.
Seventh layer, Dropout has 0.5 as its value.
Eighth and final layer consists of 10 neurons and ‘softmax’ activation function.
Use categorical_crossentropy as loss function.
Use Adadelta() as Optimizer.
Use accuracy as metrics.
Use 128 as batch size.
Use 20 as epochs.
Step 1 − Import the modules
Let us import the necessary modules.
import keras
from keras.datasets import mnist
from keras.models import Sequential
from keras.layers import Dense, Dropout, Flatten
from keras.layers import Conv2D, MaxPooling2D
from keras import backend as K
import numpy as np
Step 2 − Load data
Let us import the mnist dataset.
(x_train, y_train), (x_test, y_test) = mnist.load_data()
Step 3 − Process the data
Let us change the dataset according to our model, so that it can be feed into our model.
img_rows, img_cols = 28, 28
if K.image_data_format() == 'channels_first':
x_train = x_train.reshape(x_train.shape[0], 1, img_rows, img_cols)
x_test = x_test.reshape(x_test.shape[0], 1, img_rows, img_cols)
input_shape = (1, img_rows, img_cols)
else:
x_train = x_train.reshape(x_train.shape[0], img_rows, img_cols, 1)
x_test = x_test.reshape(x_test.shape[0], img_rows, img_cols, 1)
input_shape = (img_rows, img_cols, 1)
x_train = x_train.astype('float32')
x_test = x_test.astype('float32')
x_train /= 255
x_test /= 255
y_train = keras.utils.to_categorical(y_train, 10)
y_test = keras.utils.to_categorical(y_test, 10)
The data processing is similar to MPL model except the shape of the input data and image format configuration.
Step 4 − Create the model
Let us create tha actual model.
model = Sequential()
model.add(Conv2D(32, kernel_size = (3, 3),
activation = 'relu', input_shape = input_shape))
model.add(Conv2D(64, (3, 3), activation = 'relu'))
model.add(MaxPooling2D(pool_size = (2, 2)))
model.add(Dropout(0.25)) model.add(Flatten())
model.add(Dense(128, activation = 'relu'))
model.add(Dropout(0.5))
model.add(Dense(10, activation = 'softmax'))
Step 5 − Compile the model
Let us compile the model using selected loss function, optimizer and metrics.
model.compile(loss = keras.losses.categorical_crossentropy,
optimizer = keras.optimizers.Adadelta(), metrics = ['accuracy'])
Step 6 − Train the model
Let us train the model using fit() method.
model.fit(
x_train, y_train,
batch_size = 128,
epochs = 12,
verbose = 1,
validation_data = (x_test, y_test)
)
Executing the application will output the below information −
Train on 60000 samples, validate on 10000 samples Epoch 1/12
60000/60000 [==============================] - 84s 1ms/step - loss: 0.2687
- acc: 0.9173 - val_loss: 0.0549 - val_acc: 0.9827 Epoch 2/12
60000/60000 [==============================] - 86s 1ms/step - loss: 0.0899
- acc: 0.9737 - val_loss: 0.0452 - val_acc: 0.9845 Epoch 3/12
60000/60000 [==============================] - 83s 1ms/step - loss: 0.0666
- acc: 0.9804 - val_loss: 0.0362 - val_acc: 0.9879 Epoch 4/12
60000/60000 [==============================] - 81s 1ms/step - loss: 0.0564
- acc: 0.9830 - val_loss: 0.0336 - val_acc: 0.9890 Epoch 5/12
60000/60000 [==============================] - 86s 1ms/step - loss: 0.0472
- acc: 0.9861 - val_loss: 0.0312 - val_acc: 0.9901 Epoch 6/12
60000/60000 [==============================] - 83s 1ms/step - loss: 0.0414
- acc: 0.9877 - val_loss: 0.0306 - val_acc: 0.9902 Epoch 7/12
60000/60000 [==============================] - 89s 1ms/step - loss: 0.0375
-acc: 0.9883 - val_loss: 0.0281 - val_acc: 0.9906 Epoch 8/12
60000/60000 [==============================] - 91s 2ms/step - loss: 0.0339
- acc: 0.9893 - val_loss: 0.0280 - val_acc: 0.9912 Epoch 9/12
60000/60000 [==============================] - 89s 1ms/step - loss: 0.0325
- acc: 0.9901 - val_loss: 0.0260 - val_acc: 0.9909 Epoch 10/12
60000/60000 [==============================] - 89s 1ms/step - loss: 0.0284
- acc: 0.9910 - val_loss: 0.0250 - val_acc: 0.9919 Epoch 11/12
60000/60000 [==============================] - 86s 1ms/step - loss: 0.0287
- acc: 0.9907 - val_loss: 0.0264 - val_acc: 0.9916 Epoch 12/12
60000/60000 [==============================] - 86s 1ms/step - loss: 0.0265
- acc: 0.9920 - val_loss: 0.0249 - val_acc: 0.9922
Step 7 − Evaluate the model
Let us evaluate the model using test data.
score = model.evaluate(x_test, y_test, verbose = 0)
print('Test loss:', score[0])
print('Test accuracy:', score[1])
Executing the above code will output the below information −
Test loss: 0.024936060590433316
Test accuracy: 0.9922
The test accuracy is 99.22%. We have created a best model to identify the handwriting digits.
Step 8 − Predict
Finally, predict the digit from images as below −
pred = model.predict(x_test)
pred = np.argmax(pred, axis = 1)[:5]
label = np.argmax(y_test,axis = 1)[:5]
print(pred)
print(label)
The output of the above application is as follows −
[7 2 1 0 4]
[7 2 1 0 4]
The output of both array is identical and it indicate our model correctly predicts the first five images.
Keras - Regression Prediction using MPL
In this chapter, let us write a simple MPL based ANN to do regression prediction. Till now, we have only done the classification based prediction. Now, we will try to predict the next possible value by analyzing the previous (continuous) values and its influencing factors.
The Regression MPL can be represented as below −
The core features of the model are as follows −
Input layer consists of (13,) values.
First layer, Dense consists of 64 units and ‘relu’ activation function with ‘normal’ kernel initializer.
Second layer, Dense consists of 64 units and ‘relu’ activation function.
Output layer, Dense consists of 1 unit.
Use mse as loss function.
Use RMSprop as Optimizer.
Use accuracy as metrics.
Use 128 as batch size.
Use 500 as epochs.
Step 1 − Import the modules
Let us import the necessary modules.
import keras
from keras.datasets import boston_housing
from keras.models import Sequential
from keras.layers import Dense
from keras.optimizers import RMSprop
from keras.callbacks import EarlyStopping
from sklearn import preprocessing
from sklearn.preprocessing import scale
Step 2 − Load data
Let us import the Boston housing dataset.
(x_train, y_train), (x_test, y_test) = boston_housing.load_data()
Here,
boston_housing is a dataset provided by Keras. It represents a collection of housing information in Boston area, each having 13 features.
Step 3 − Process the data
Let us change the dataset according to our model, so that, we can feed into our model. The data can be changed using below code −
x_train_scaled = preprocessing.scale(x_train)
scaler = preprocessing.StandardScaler().fit(x_train)
x_test_scaled = scaler.transform(x_test)
Here, we have normalized the training data using sklearn.preprocessing.scale function. preprocessing.StandardScaler().fit function returns a scalar with the normalized mean and standard deviation of the training data, which we can apply to the test data using scalar.transform function. This will normalize the test data as well with the same setting as that of training data.
Step 4 − Create the model
Let us create the actual model.
model = Sequential()
model.add(Dense(64, kernel_initializer = 'normal', activation = 'relu',
input_shape = (13,)))
model.add(Dense(64, activation = 'relu')) model.add(Dense(1))
Step 5 − Compile the model
Let us compile the model using selected loss function, optimizer and metrics.
model.compile(
loss = 'mse',
optimizer = RMSprop(),
metrics = ['mean_absolute_error']
)
Step 6 − Train the model
Let us train the model using fit() method.
history = model.fit(
x_train_scaled, y_train,
batch_size=128,
epochs = 500,
verbose = 1,
validation_split = 0.2,
callbacks = [EarlyStopping(monitor = 'val_loss', patience = 20)]
)
Here, we have used callback function, EarlyStopping. The purpose of this callback is to monitor the loss value during each epoch and compare it with previous epoch loss value to find the improvement in the training. If there is no improvement for the patience times, then the whole process will be stopped.
Executing the application will give the below information as output −
Train on 323 samples, validate on 81 samples Epoch 1/500 2019-09-24 01:07:03.889046: I
tensorflow/core/platform/cpu_feature_guard.cc:142]
Your CPU supports instructions that this
TensorFlow binary was not co mpiled to use: AVX2 323/323
[==============================] - 0s 515us/step - loss: 562.3129
- mean_absolute_error: 21.8575 - val_loss: 621.6523 - val_mean_absolute_erro
r: 23.1730 Epoch 2/500
323/323 [==============================] - 0s 11us/step - loss: 545.1666
- mean_absolute_error: 21.4887 - val_loss: 605.1341 - val_mean_absolute_error
: 22.8293 Epoch 3/500
323/323 [==============================] - 0s 12us/step - loss: 528.9944
- mean_absolute_error: 21.1328 - val_loss: 588.6594 - val_mean_absolute_error
: 22.4799 Epoch 4/500
323/323 [==============================] - 0s 12us/step - loss: 512.2739
- mean_absolute_error: 20.7658 - val_loss: 570.3772 - val_mean_absolute_error
: 22.0853 Epoch 5/500
323/323 [==============================] - 0s 9us/step - loss: 493.9775
- mean_absolute_error: 20.3506 - val_loss: 550.9548 - val_mean_absolute_error: 21.6547
..........
..........
..........
Epoch 143/500
323/323 [==============================] - 0s 15us/step - loss: 8.1004
- mean_absolute_error: 2.0002 - val_loss: 14.6286 - val_mean_absolute_error:
2. 5904 Epoch 144/500
323/323 [==============================] - 0s 19us/step - loss: 8.0300
- mean_absolute_error: 1.9683 - val_loss: 14.5949 - val_mean_absolute_error:
2. 5843 Epoch 145/500
323/323 [==============================] - 0s 12us/step - loss: 7.8704
- mean_absolute_error: 1.9313 - val_loss: 14.3770 - val_mean_absolute_error: 2. 4996
Step 7 − Evaluate the model
Let us evaluate the model using test data.
score = model.evaluate(x_test_scaled, y_test, verbose = 0)
print('Test loss:', score[0])
print('Test accuracy:', score[1])
Executing the above code will output the below information −
Test loss: 21.928471583946077 Test accuracy: 2.9599233234629914
Step 8 − Predict
Finally, predict using test data as below −
prediction = model.predict(x_test_scaled)
print(prediction.flatten())
print(y_test)
The output of the above application is as follows −
[ 7.5612316 17.583357 21.09344 31.859276 25.055613 18.673872 26.600405 22.403967 19.060272 22.264952
17.4191 17.00466 15.58924 41.624374 20.220217 18.985565 26.419338 19.837091 19.946192 36.43445
12.278508 16.330965 20.701359 14.345301 21.741161 25.050423 31.046402 27.738455 9.959419 20.93039
20.069063 14.518344 33.20235 24.735163 18.7274 9.148898 15.781284 18.556862 18.692865 26.045074
27.954073 28.106823 15.272034 40.879818 29.33896 23.714525 26.427515 16.483374 22.518442 22.425386
33.94826 18.831465 13.2501955 15.537227 34.639984 27.468002 13.474407 48.134598 34.39617
22.8503124.042334 17.747198 14.7837715 18.187277 23.655672 22.364983 13.858193 22.710032 14.371148
7.1272087 35.960033 28.247292 25.3014 14.477208 25.306196 17.891165 20.193708 23.585173 34.690193
12.200583 20.102983 38.45882 14.741723 14.408362 17.67158 18.418497 21.151712 21.157492 22.693687
29.809034 19.366991 20.072294 25.880817 40.814568 34.64087 19.43741 36.2591 50.73806 26.968863 43.91787
32.54908 20.248306 ] [ 7.2 18.8 19. 27. 22.2 24.5 31.2 22.9 20.5 23.2 18.6 14.5 17.8 50. 20.8 24.3 24.2
19.8 19.1 22.7 12. 10.2 20. 18.5 20.9 23. 27.5 30.1 9.5 22. 21.2 14.1 33.1 23.4 20.1 7.4 15.4 23.8 20.1
24.5 33. 28.4 14.1 46.7 32.5 29.6 28.4 19.8 20.2 25. 35.4 20.3 9.7 14.5 34.9 26.6 7.2 50. 32.4 21.6 29.8
13.1 27.5 21.2 23.1 21.9 13. 23.2 8.1 5.6 21.7 29.6 19.6 7. 26.4 18.9 20.9 28.1 35.4 10.2 24.3 43.1 17.6
15.4 16.2 27.1 21.4 21.5 22.4 25. 16.6 18.6 22. 42.8 35.1 21.5 36. 21.9 24.1 50. 26.7 25. ]
The output of both array have around 10-30% difference and it indicate our model predicts with reasonable range.
Keras - Time Series Prediction using LSTM RNN
In this chapter, let us write a simple Long Short Term Memory (LSTM) based RNN to do sequence analysis. A sequence is a set of values where each value corresponds to a particular instance of time. Let us consider a simple example of reading a sentence. Reading and understanding a sentence involves reading the word in the given order and trying to understand each word and its meaning in the given context and finally understanding the sentence in a positive or negative sentiment.
Here, the words are considered as values, and first value corresponds to first word, second value corresponds to second word, etc., and the order will be strictly maintained. Sequence Analysis is used frequently in natural language processing to find the sentiment analysis of the given text.
Let us create a LSTM model to analyze the IMDB movie reviews and find its positive/negative sentiment.
The model for the sequence analysis can be represented as below −
The core features of the model are as follows −
Input layer using Embedding layer with 128 features.
First layer, Dense consists of 128 units with normal dropout and recurrent dropout set to 0.2.
Output layer, Dense consists of 1 unit and ‘sigmoid’ activation function.
Use binary_crossentropy as loss function.
Use adam as Optimizer.
Use accuracy as metrics.
Use 32 as batch size.
Use 15 as epochs.
Use 80 as the maximum length of the word.
Use 2000 as the maximum number of word in a given sentence.
Step 1: Import the modules
Let us import the necessary modules.
from keras.preprocessing import sequence
from keras.models import Sequential
from keras.layers import Dense, Embedding
from keras.layers import LSTM
from keras.datasets import imdb
Step 2: Load data
Let us import the imdb dataset.
(x_train, y_train), (x_test, y_test) = imdb.load_data(num_words = 2000)
Here,
Step 3: Process the data
Let us change the dataset according to our model, so that it can be fed into our model. The data can be changed using the below code −
x_train = sequence.pad_sequences(x_train, maxlen=80)
x_test = sequence.pad_sequences(x_test, maxlen=80)
Here,
sequence.pad_sequences convert the list of input data with shape, (data) into 2D NumPy array of shape (data, timesteps). Basically, it adds timesteps concept into the given data. It generates the timesteps of length, maxlen.
Step 4: Create the model
Let us create the actual model.
model = Sequential()
model.add(Embedding(2000, 128))
model.add(LSTM(128, dropout = 0.2, recurrent_dropout = 0.2))
model.add(Dense(1, activation = 'sigmoid'))
Here,
We have used Embedding layer as input layer and then added the LSTM layer. Finally, a Dense layer is used as output layer.
Step 5: Compile the model
Let us compile the model using selected loss function, optimizer and metrics.
model.compile(loss = 'binary_crossentropy',
optimizer = 'adam', metrics = ['accuracy'])
Step 6: Train the model
LLet us train the model using fit() method.
model.fit(
x_train, y_train,
batch_size = 32,
epochs = 15,
validation_data = (x_test, y_test)
)
Executing the application will output the below information −
Epoch 1/15 2019-09-24 01:19:01.151247: I
tensorflow/core/platform/cpu_feature_guard.cc:142]
Your CPU supports instructions that this
TensorFlow binary was not co mpiled to use: AVX2
25000/25000 [==============================] - 101s 4ms/step - loss: 0.4707
- acc: 0.7716 - val_loss: 0.3769 - val_acc: 0.8349 Epoch 2/15
25000/25000 [==============================] - 95s 4ms/step - loss: 0.3058
- acc: 0.8756 - val_loss: 0.3763 - val_acc: 0.8350 Epoch 3/15
25000/25000 [==============================] - 91s 4ms/step - loss: 0.2100
- acc: 0.9178 - val_loss: 0.5065 - val_acc: 0.8110 Epoch 4/15
25000/25000 [==============================] - 90s 4ms/step - loss: 0.1394
- acc: 0.9495 - val_loss: 0.6046 - val_acc: 0.8146 Epoch 5/15
25000/25000 [==============================] - 90s 4ms/step - loss: 0.0973
- acc: 0.9652 - val_loss: 0.5969 - val_acc: 0.8147 Epoch 6/15
25000/25000 [==============================] - 98s 4ms/step - loss: 0.0759
- acc: 0.9730 - val_loss: 0.6368 - val_acc: 0.8208 Epoch 7/15
25000/25000 [==============================] - 95s 4ms/step - loss: 0.0578
- acc: 0.9811 - val_loss: 0.6657 - val_acc: 0.8184 Epoch 8/15
25000/25000 [==============================] - 97s 4ms/step - loss: 0.0448
- acc: 0.9850 - val_loss: 0.7452 - val_acc: 0.8136 Epoch 9/15
25000/25000 [==============================] - 95s 4ms/step - loss: 0.0324
- acc: 0.9894 - val_loss: 0.7616 - val_acc: 0.8162Epoch 10/15
25000/25000 [==============================] - 100s 4ms/step - loss: 0.0247
- acc: 0.9922 - val_loss: 0.9654 - val_acc: 0.8148 Epoch 11/15
25000/25000 [==============================] - 99s 4ms/step - loss: 0.0169
- acc: 0.9946 - val_loss: 1.0013 - val_acc: 0.8104 Epoch 12/15
25000/25000 [==============================] - 90s 4ms/step - loss: 0.0154
- acc: 0.9948 - val_loss: 1.0316 - val_acc: 0.8100 Epoch 13/15
25000/25000 [==============================] - 89s 4ms/step - loss: 0.0113
- acc: 0.9963 - val_loss: 1.1138 - val_acc: 0.8108 Epoch 14/15
25000/25000 [==============================] - 89s 4ms/step - loss: 0.0106
- acc: 0.9971 - val_loss: 1.0538 - val_acc: 0.8102 Epoch 15/15
25000/25000 [==============================] - 89s 4ms/step - loss: 0.0090
- acc: 0.9972 - val_loss: 1.1453 - val_acc: 0.8129
25000/25000 [==============================] - 10s 390us/step
Step 7 − Evaluate the model
Let us evaluate the model using test data.
score, acc = model.evaluate(x_test, y_test, batch_size = 32)
print('Test score:', score)
print('Test accuracy:', acc)
Executing the above code will output the below information −
Test score: 1.145306069601178
Test accuracy: 0.81292
Keras - Applications
Keras applications module is used to provide pre-trained model for deep neural networks. Keras models are used for prediction, feature extraction and fine tuning. This chapter explains about Keras applications in detail.
Pre-trained models
Trained model consists of two parts model Architecture and model Weights. Model weights are large file so we have to download and extract the feature from ImageNet database. Some of the popular pre-trained models are listed below,
- ResNet
- VGG16
- MobileNet
- InceptionResNetV2
- InceptionV3
Loading a model
Keras pre-trained models can be easily loaded as specified below −
import keras
import numpy as np
from keras.applications import vgg16, inception_v3, resnet50, mobilenet
#Load the VGG model
vgg_model = vgg16.VGG16(weights = 'imagenet')
#Load the Inception_V3 model
inception_model = inception_v3.InceptionV3(weights = 'imagenet')
#Load the ResNet50 model
resnet_model = resnet50.ResNet50(weights = 'imagenet')
#Load the MobileNet model mobilenet_model = mobilenet.MobileNet(weights = 'imagenet')
Once the model is loaded, we can immediately use it for prediction purpose. Let us check each pre-trained model in the upcoming chapters.
Real Time Prediction using ResNet Model
ResNet is a pre-trained model. It is trained using ImageNet. ResNet model weights pre-trained on ImageNet. It has the following syntax −
keras.applications.resnet.ResNet50 (
include_top = True,
weights = 'imagenet',
input_tensor = None,
input_shape = None,
pooling = None,
classes = 1000
)
Here,
include_top refers the fully-connected layer at the top of the network.
weights refer pre-training on ImageNet.
input_tensor refers optional Keras tensor to use as image input for the model.
input_shape refers optional shape tuple. The default input size for this model is 224x224.
classes refer optional number of classes to classify images.
Let us understand the model by writing a simple example −
Step 1: import the modules
Let us load the necessary modules as specified below −
>>> import PIL
>>> from keras.preprocessing.image import load_img
>>> from keras.preprocessing.image import img_to_array
>>> from keras.applications.imagenet_utils import decode_predictions
>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> from keras.applications.resnet50 import ResNet50
>>> from keras.applications import resnet50
Step 2: Select an input
Let us choose an input image, Lotus as specified below −
>>> filename = 'banana.jpg'
>>> ## load an image in PIL format
>>> original = load_img(filename, target_size = (224, 224))
>>> print('PIL image size',original.size)
PIL image size (224, 224)
>>> plt.imshow(original)
<matplotlib.image.AxesImage object at 0x1304756d8>
>>> plt.show()
Here, we have loaded an image (banana.jpg) and displayed it.
Step 3: Convert images into NumPy array
Let us convert our input, Banana into NumPy array, so that it can be passed into the model for the purpose of prediction.
>>> #convert the PIL image to a numpy array
>>> numpy_image = img_to_array(original)
>>> plt.imshow(np.uint8(numpy_image))
<matplotlib.image.AxesImage object at 0x130475ac8>
>>> print('numpy array size',numpy_image.shape)
numpy array size (224, 224, 3)
>>> # Convert the image / images into batch format
>>> image_batch = np.expand_dims(numpy_image, axis = 0)
>>> print('image batch size', image_batch.shape)
image batch size (1, 224, 224, 3)
>>>
Step 4: Model prediction
Let us feed our input into the model to get the predictions
>>> prepare the image for the resnet50 model >>>
>>> processed_image = resnet50.preprocess_input(image_batch.copy())
>>> # create resnet model
>>>resnet_model = resnet50.ResNet50(weights = 'imagenet')
>>> Downloavding data from https://github.com/fchollet/deep-learning-models/releas
es/download/v0.2/resnet50_weights_tf_dim_ordering_tf_kernels.h5
102858752/102853048 [==============================] - 33s 0us/step
>>> # get the predicted probabilities for each class
>>> predictions = resnet_model.predict(processed_image)
>>> # convert the probabilities to class labels
>>> label = decode_predictions(predictions)
Downloading data from https://storage.googleapis.com/download.tensorflow.org/
data/imagenet_class_index.json
40960/35363 [==================================] - 0s 0us/step
>>> print(label)
Output
[
[
('n07753592', 'banana', 0.99229723),
('n03532672', 'hook', 0.0014551596),
('n03970156', 'plunger', 0.0010738898),
('n07753113', 'fig', 0.0009359837) ,
('n03109150', 'corkscrew', 0.00028538404)
]
]
Here, the model predicted the images as banana correctly.
Keras - Pre-Trained Models
In this chapter, we will learn about the pre-trained models in Keras. Let us begin with VGG16.
VGG16
VGG16 is another pre-trained model. It is also trained using ImageNet. The syntax to load the model is as follows −
keras.applications.vgg16.VGG16(
include_top = True,
weights = 'imagenet',
input_tensor = None,
input_shape = None,
pooling = None,
classes = 1000
)
The default input size for this model is 224x224.
MobileNetV2
MobileNetV2 is another pre-trained model. It is also trained uing ImageNet.
The syntax to load the model is as follows −
keras.applications.mobilenet_v2.MobileNetV2 (
input_shape = None,
alpha = 1.0,
include_top = True,
weights = 'imagenet',
input_tensor = None,
pooling = None,
classes = 1000
)
Here,
alpha controls the width of the network. If the value is below 1, decreases the number of filters in each layer. If the value is above 1, increases the number of filters in each layer. If alpha = 1, default number of filters from the paper are used at each layer.
The default input size for this model is 224x224.
InceptionResNetV2
InceptionResNetV2 is another pre-trained model. It is also trained using ImageNet. The syntax to load the model is as follows −
keras.applications.inception_resnet_v2.InceptionResNetV2 (
include_top = True,
weights = 'imagenet',
input_tensor = None,
input_shape = None,
pooling = None,
classes = 1000)
This model and can be built both with ‘channels_first’ data format (channels, height, width) or ‘channels_last’ data format (height, width, channels).
The default input size for this model is 299x299.
InceptionV3
InceptionV3 is another pre-trained model. It is also trained uing ImageNet. The syntax to load the model is as follows −
keras.applications.inception_v3.InceptionV3 (
include_top = True,
weights = 'imagenet',
input_tensor = None,
input_shape = None,
pooling = None,
classes = 1000
)
Here,
The default input size for this model is 299x299.
Conclusion
Keras is very simple, extensible and easy to implement neural network API, which can be used to build deep learning applications with high level abstraction. Keras is an optimal choice for deep leaning models.
