In a pie chart, the arc length of each sector is proportional to the quantity that it represents. This chapter demonstrates — how we can use JFreeChart to create Pie Chart from a given set of business data.

Business data

The following example depicts mobile sale with the help of a pie chart. Following is a list of different mobile brands and their sale (units per day).

S.No Mobile Brands Sales (UNITS per day)
1 Iphone 5S 20
2 Samsung Grand 20
3 MOTO G 40
4 Nokia Lumia 10

AWT Based Application

Following is the code to create a Pie Chart by using the above given information. This code helps you to embed a pie chart in any AWT based application.

import javax.swing.JPanel;

import org.jfree.chart.ChartFactory;
import org.jfree.chart.ChartPanel;
import org.jfree.chart.JFreeChart;
import org.jfree.data.general.DefaultPieDataset;
import org.jfree.data.general.PieDataset;
import org.jfree.ui.ApplicationFrame;
import org.jfree.ui.RefineryUtilities;

public class PieChart_AWT extends ApplicationFrame {

   public PieChart_AWT( String title ) {
      super( title );
      setContentPane(createDemoPanel( ));
   }

   private static PieDataset createDataset( ) {
      DefaultPieDataset dataset = new DefaultPieDataset( );
      dataset.setValue( "IPhone 5s" , new Double( 20 ) );
      dataset.setValue( "SamSung Grand" , new Double( 20 ) );
      dataset.setValue( "MotoG" , new Double( 40 ) );
      dataset.setValue( "Nokia Lumia" , new Double( 10 ) );
      return dataset;
   }

   private static JFreeChart createChart( PieDataset dataset ) {
      JFreeChart chart = ChartFactory.createPieChart(
         "Mobile Sales",   // chart title
         dataset,          // data
         true,             // include legend
         true,
         false);

      return chart;
   }

   public static JPanel createDemoPanel( ) {
      JFreeChart chart = createChart(createDataset( ) );
      return new ChartPanel( chart );
   }

   public static void main( String[ ] args ) {
      PieChart_AWT demo = new PieChart_AWT( "Mobile Sales" );
      demo.setSize( 560 , 367 );
      RefineryUtilities.centerFrameOnScreen( demo );
      demo.setVisible( true );
   }
}

Let us keep the above Java code in PieChart_AWT.java file, and then compile and run it from the command prompted as −

$javac PieChart_AWT.java
$java PieChart_AWT

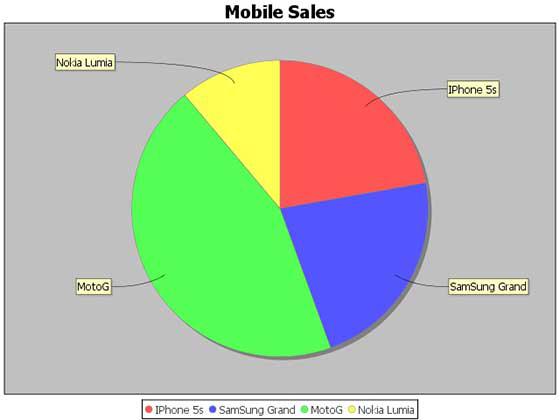

If everything is fine, it will compile and run to generate the following Pie Graph −

JFreeChart Pie Chart

If you do not need to embed your chart in any application, then you can create chart images at command prompt. JFreeChart allows you to save chart images in either JPG or PNG formats.

JPEG Image Creation

Let us re-write the above example to generate a JPEG image from a command line. Following are the two APIs provided by JFreeChart library, which you can use to generate either PNG or JPEG image as per your requirement.

  • saveChartAsPNG() − API to save image in PNG format.

  • saveChartAsJPEG() − API to save image in JPEG format.

import java.io.*;

import org.jfree.chart.ChartUtilities;
import org.jfree.chart.ChartFactory;
import org.jfree.chart.JFreeChart;
import org.jfree.data.general.DefaultPieDataset;

public class PieChart {

   public static void main( String[ ] args ) throws Exception {
      DefaultPieDataset dataset = new DefaultPieDataset( );
      dataset.setValue("IPhone 5s", new Double( 20 ) );
      dataset.setValue("SamSung Grand", new Double( 20 ) );
      dataset.setValue("MotoG", new Double( 40 ) );
      dataset.setValue("Nokia Lumia", new Double( 10 ) );

      JFreeChart chart = ChartFactory.createPieChart(
         "Mobile Sales",   // chart title
         dataset,          // data
         true,             // include legend
         true,
         false);

      int width = 640;   /* Width of the image */
      int height = 480;  /* Height of the image */
      File pieChart = new File( "PieChart.jpeg" );
      ChartUtilities.saveChartAsJPEG( pieChart , chart , width , height );
   }
}

Let us keep the above Java code in PieChart.java file, and then compile and run it from the command prompted as −

$javac PieChart.java
$java PieChart

If everything is fine, it will compile and run to create a JPEG image file named PieChart.jpeg in your current directory.
