JDB - Introduction

Debugging is a technical procedure to find and remove bugs or defects in a program and get expected results. Debugging includes testing and monitoring. It is very complex when the subunits of a program are tightly coupled. We can debug a program using the debugger tools that follow the prescribed APIs. A debugger allows you to step through every aspect of a code, inspect all the elements, and remove errors, if any.

Debugging Techniques

There are different kinds of techniques to debug a Java program. The old method of debugging is by using print statements at the end of every segment which will print the trace statements on the console. Take a look at the following code.

pubic class Add
{
   public static void main(String ar[])
   {
      int a=ar[0];
      system.out.println("A : " +a);
      int b=ar[1];
      system.out.println("B : " +b);
      int c = a + b;
      system.out.println("C = a + b : " +c);
   }
}

Here, we have a program that adds two numbers and prints the output. Notice that at each step, we have introduced a print statement that prints the state of the program on the console. This is the traditional approach to debug a program.

In addition, we have advanced concepts that can be used to debug a program such as:

  • stepping
  • breakpoints, and
  • exceptions or watchpoints.

Types of Debugging

We can debug a program using various methods:

  • Using Java bytecode (compiled version of Java code)
  • Using comments inside the programs
  • Attaching class to a running program
  • Remote debugging
  • Debugging on demand
  • Optimized code debugging

Java Debuggers

Here are some examples of Java debuggers that are available in the market:

  • IDEs such as Eclipse, Netbeans, etc. contain their own debuggers (Visual cafe, Borland, JBuilder)
  • Standalone debugger GUIs (such as Jikes, Java platform debugger, and JProbe)
  • Command-line debugger (Sun’s JDB)
  • Notepad or VI driven (stack trace)

This tutorial covers how to use the command-line debugger, jdb.

JDB

The Java debugger (JDB) is a tool for Java classes to debug a program in command line. It implements the Java Platform Debugger Architecture. It helps in detecting and fixing bugs in a Java program using Java Debug Interface (JDI).

JDB in JDK

The following architecture defines the role of JDB in JDK. It contains mainly three units:

  • Java Virtual Machine Tool Interface (JVM TI)
  • Java Debug Wiring Pool (JDWP)
  • Java Debugger Interface (JDI)
JDB Architecture

JVM TI

It is a native programming interface implemented by VM. It provides ways to inspect and debug the state of the application running on the VM. It allows an implementer (VM Implementer) that can be enclosed easily into the debugging architecture. It also uses a third-party channel called JDWP for communication.

JDWP

It defines the format of information and the requests that pass in between the debuggee process and the debugger front end. The primary purpose of having a JDWP is to allow the debuggee and the debugger to communicate when they run under separate VMs or in separate platforms.

JDI

It is a high-level Java interface implemented as front end. It defines the variable information at user code level. It is recommended to use a JDI layer for all debugger development. It uses JDWP for communication with the debuggee JVM.

JDB - Installation

This chapter explains how to install JDB on Windows and Linux based systems. JDB is a part of JDK. Therefore, JDK installation is enough for using JDB in command prompt.

System Requirements

Here are the system requirements for installing JDB:

JDK Java SE 2 JDK 1.5 or above
Memory 1 GB RAM (recommended)
Disk Space No minimum requirement
Operating System Version Windows XP or above, Linux

Follow the simple steps given below to install JDB on your system.

Step 1: Verifying Java Installation

First of all, you need to have Java Software Development Kit (SDK) installed on your system. To verify this, execute any of the two commands depending on the platform you are working on.

If the Java installation has been done properly, then it displays the current version and specifications of Java installation. A sample output is given in the following table.

Platform Command Sample Output
Windows

Open command console and type:

\>java –version

Java version "1.7.0_60"

Java (TM) SE Run Time Environment (build 1.7.0_60-b19)

Java Hotspot (TM) 64-bit Server VM (build 24.60-b09,mixed mode)

Linux

Open command terminal and type:

$java –version

java version "1.7.0_25"

Open JDK Runtime Environment (rhel-2.3.10.4.el6_4-x86_64)

Open JDK 64-Bit Server VM (build 23.7-b01, mixed mode)

We assume the readers of this tutorial have Java SDK version 1.7.0_60 installed on their system. In case you do not have Java SDK, download its current version from the link http://www.oracle.com/technetwork/java/javase/downloads/index.html and install it.

Step 2: Setting Up Java Environment

Set the environment variable JAVA_HOME to point to the base directory location where Java is installed on your machine. For example,

Platform Description
Windows set JAVA_HOME to C:\ProgramFiles\java\jdk1.7.0_60
Linux export JAVA_HOME=/usr/local/java

Append the full path of Java compiler location to the System Path.

Platform Description
Windows Append the String "C:\Program Files\Java\jdk1.7.0_60\bin" at the end of the system variable PATH.
Linux export PATH=$PATH:$JAVA_HOME/bin/

Execute the command java -version from the command prompt as explained above.

Step 3: Verifying JDB Installation

Verify the JDB version as follows:

Platform Command Sample Output
Windows

Open command console and type:

\>jdb –version

This is JDB version 1.6 (Java SE version 1.7.0_60)
Linux

Open command terminal and type:

$jdb –version

This is JDB version 1.6 (Java SE version 1.7.0_60)

JDB - Syntax

This chapter explains the syntax of JDB command. The syntax contains four sections listed as follows:

  • JDB
  • option
  • class
  • arguments

Syntax

The syntax of JDB is as follows.

jdb [ options ] [ class ] [ arguments ]

JDB

It calls jdb.exe from the Java Development Kit.

Options

These include the command line options used to debug a Java program in an efficient way. The JDB launcher accepts all the options (such as -D, -classpath, and -X) and some additional advanced options such as (-attach, -listen, -launch, etc.).

Class

It is the class name on which you want to perform debugging operations.

Arguments

These are the input values given to a program at runtime. For example, arg[0], arg[1] to the main() method.

In the above four segments, options is the most important one.

JDB - Options

This chapter describes the important options available in JDB that are submitted as arguments with the jdb command.

Options

The following table contains a list of options accepted by JDB:

Name Description
-help Displays the help message and lists the related options.
-sourcepath Uses the given path for source files if path is not specified, then it takes the default path “.”, i.e., the current directory.
-attach Attaches the debugger to the running VM by specifying the running VM address.
-listen Waits for the running VM to connect using standard connector.
-listenany Waits for the running VM to connect using any address.
-launch Launches the debugged application immediately up on startup job.
-listconnectors Lists the connectors available in this VM.
-connect Connects to the target VM using named connector with listed argument values.
-dbgtrace Prints information for debugging jdb.
-tclient Runs the application in Java Hotspot VM (client).
-tserver Runs the application in Java Hotspot VM (server).
-Joption Passes the option to the Java virtual machine used to run JDB.

Using Options with Commands

The following commands show how to use some of the above options:

-help

The following command gets -help on using JDB.

\>jdb -help

-attach

The following command attaches the debugger to a specified VM (port number:1099).

\> jdb -attach 1099

-listen

The following command makes the JDB process running on the current VM wait using standard connector (VM in 8008).

\>jdb -listen 8088

-listenany

The following command makes the JDB process running on the current VM wait using any connector (VM in currently running port).

\>jdb –listenany

-tclient

The following command executes the application in Java Hotspot(™) VM(client).

\>jdb –tclient

-tserver

The following command executes the application in Java Hotspot(™) VM(server).

\>jdb -tserver

JDB - Session

This chapter describes how to start a JDB session in different ways. JDB launch is the frequently used technique to start a JDB session.

There are two different ways to start a JDB session:

  • Starting JDB session by adding class (main class name) to it.
  • Adding JDB to running JVM to start session.

Start a Session by Adding Class

The following command starts a JDB session:

Syntax

\>jdb <classname>

Example

Let us assume we have a class named TestClass. The following command starts a JDB session from the TestClass.

\>jdb TestClass

If you follow this command, it starts a new Java VM with any specified parameters. Thereafter it loads the class and stops it before executing the first statement of the class.

Start a Session by Adding JDB to a Running JVM

Given below is the syntax and example to start a JDB session by adding the JDB to a running JVM.

Syntax

The following syntax is for JDB session:

-agentlib:jdwp=transport=dt_shmem,address=,server=y,suspend=n

Example

Let us assume the main class name is TestClass and JVM allows the JDB to connect it later. The following is the command to add JDB to JVM:

\>java
-agentlib:jdwp=transport=dt_shmem,address=jdbconn,server=y,suspend=n TestClass

Now you can attach the JDB to the JVM with the following command:

\> jdb -attach jdbconn

Note: Here, the TestClass is not added to the JDB command, because JDB is connected to the running VM instead of launching a new one.

JDB - Basic Commands

This chapter takes you through the basic commands of JDB. After launching a session, these commands are used for debugging a program.

The following is the list of commands used for debugging.

Name Description
help or ? The most important JDB command; it displays a list of recognized commands with a brief description.
run After starting JDB and setting the necessary breakpoints, you can use this command to start execution and debug an application.
cont Continues execution of the debugged application after a breakpoint, exception, or step.
print Displays Java objects and primitive values.
dump For primitive values, this command is identical to print. For objects, it prints the current value of each field defined in the object. Static and instance fields are included.
threads Lists the threads that are currently running.
thread Selects a thread to be the current thread.
where Dumps the stack of the current thread.

Example

Let us assume we have a sample class called Add for the following examples:

Add.java

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      Add ob = new Add();
      int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

Compile this class Add.java using the following command:

\>javac Add.java

Run

This command executes the main class file, which is added to JDB for debugging. Execute the following commands to run the Add class.

\>jdb Add
initializing jdb …
>run

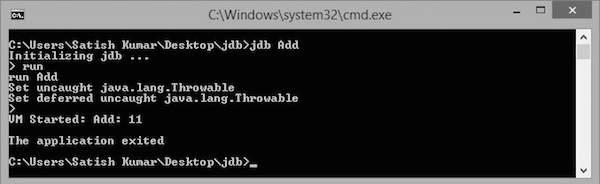

On executing these commands, you get to see the following output:

Basic Commands

JDB - Breakpoints

This chapter explains the concept of breakpoints and how to set breakpoints in a program. A breakpoint introduces an explicit stop or pause in the execution of a program at a particular line of code while debugging. It is useful to acquire knowledge about variables in the program in its execution.

Syntax

The following command sets up a breakpoint at a particular line number:

> stop at <class name>:<Line no>

The following command sets up a breakpoint on a particular method or on a particular variable:

> stop in <class name>:< Method name | Variable name>

Example

The following example shows how to set up a breakpoint in a class.

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      Add ob = new Add();
      int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

Save the above file as Add.java. Compile this file using the following command:

\>javac Add.java

Debugging

Let us take an example for debugging. Here, we start the debugging process by setting up a breakpoint on main(). Given below are the steps to be followed in the debugging process:

Step 1: Start a JDB Session

The following command starts a JDB session on the Add class for debugging:

\> jdb Add

Step 2: Set a Breakpoint

The following command sets up a breakpoint on the main() method of Add class.

> stop in Add.main

If the breakpoint is set successfully, you get to see the following output:

Deferring breakpoint Add.main.
It will set after the class is loaded.
>

Step 3: Start Debugging

The following command starts execution of the class Add:

> run Add

If you run this command, you get to see the following output. In this output, you find that the execution stops at the breakpoint position, that is at the main() function.

Breakpoints

The execution stops at the first line of the main method, that is at "int a=5, b=6;" or Line no: 11 in the code. You can observe this information in the output.

Step 4: Continue Execution

The following command continues the program execution:

cont

It gives you the remaining execution part and output as follows:

> Add:11
The application exited
\>

JDB - Stepping

This chapter explains how to use the concept of Stepping in debugging a program. Stepping is the debugger feature that lets you execute the code by stepping through line by line. Using this, you can examine each line of the code to ensure they are behaving as intended.

The following commands are used in the stepping process:

  • step: steps to the next line of execution
  • list: examines where you are in the code
  • cont: continues the remaining execution

Example

The following example uses the Add class that we have used in the previous chapter:

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      Add ob = new Add();
      int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

Save the above file as Add.java. Compile this file using the following command:

\>javac Add.java

Let us assume that the breakpoint is set on the main() method of the Add class. The following steps show how to apply stepping in the Add class.

Step 1: Execute the Job

The following command starts executing the class named Add.

> run Add

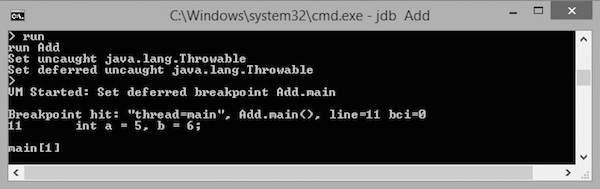

If you execute this command, you get to see the following output. In this output, you can find that the execution stops at the breakpoint position, i.e., at the main() method.

Stepping1

The execution stops at the first line of the main method, that is at "int a=5, b=6;" or Line no: 11 in the code. You can observe this information in the output.

Step 2: Step through the Code

The following command steps the execution to the next line.

main[1] step

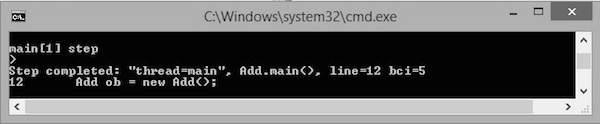

Now the execution steps to Line no: 12. You get to see the following output.

Stepping2

Step 3: List the Code

The following command lists the code:

main[1] list

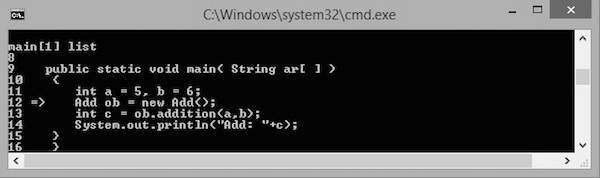

You get the following output. List command is used to let you know the line in the code up to which the program control has reached. Notice the arrow mark => in the following screenshot that shows the current position of the program control.

Stepping3

Step 4: Continue Execution

The following command continues to execute the code:

main[1] cont

This command continues executing the remaining lines of the code. The output is as shown below:

> Add:11
The application exited
\>

Generally, there are three types of stepping:

  • Step Into
  • Step Over
  • Step Out

Step Into

Using this command, you can step to the next line of the code. If the next line of the code is a function call, then it enters the function by driving the control at the top line of the function.

In the following code, the arrow mark defines the controller in the code.

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      -> Add ob = new Add();
      int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

If you use the step into command, the controller moves to the next line, i.e., "int c = ob.addition(a,b);". At this line, there is a function call addition(int, int) hence the controller moves to the topmost line of the addition function with the arrow mark as shown below:

public class Add
{
   public int addition( int x, int y)
   -> {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      Add ob = new Add();
      int c = ob.addition(a,b);
   System.out.println("Add: "+c);
   }
}

Step Over

Step Over also executes the next line. But if the next line is a function call, it executes that function in the background and returns the result.

Let us take an example. In the following code, the arrow mark defines the control in the code.

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      -> Add ob = new Add();
      int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

If you use the step over command, the control moves to the next line, i.e., "int c = ob.addition(a,b);". In this line, there is a function call addition(int, int) hence the function execution is done in the background and the result is returned to the current line with the arrow mark as shown below:

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      Add ob = new Add();
      -> int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

Step Out

Step Out executes the next line. If the next line is a function call, it skips that and the function execution continues with the remaining lines of the code.

Let us take an example. In the following code, the arrow mark defines the controller in the code.

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      -> Add ob = new Add();
      int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

If you use the step out command, the controller moves to the next line, i.e., "int c = ob.addition(a,b);". In this line, there is a function call addition(int, int) hence the function execution is skipped and the remaining execution continues with the arrow mark as shown below:

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      Add ob = new Add();
      -> int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

JDB - Exception

This chapter explains how to handle the exception class using JDB. Generally, whenever a program raises an exception without a catch statement, then the VM prints the exception line, the cause of the exception, and exits. If the exception has been raised with a catch statement, then the exception is handled by the catch statement. Here, the VM prints the output with the cause of exception.

When the class that raises the exception is running under JDB, it also throws the uncaught exception. That exception can be handled using the catch command.

Example

Let us take an example of the class JdbException:

public class JdbException
{
   public static void main(String ar[]) throws Exception
   {
      int a=8, b=0;
      System.out.println("Welcome");
      System.out.println("Ex: "+(a/b));
   }
}

Save the above file with the name JdbException.java. Compile this file using the following command:

\>javac JdbException.java

Follow the steps given below to handle the exception.

Step 1: Run the Class

The following command executes the class named JdbException as follows:

\>jdb JdbException
>run

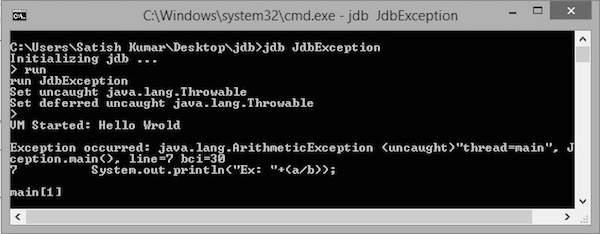

This JdbException class contains an exception, hence you get to see the following output:

Exception1

Step 2: Catch the Exception

The following command catches the exception:

mian[1] catch java.lang.ArithmeticException

It will give you the following output:

Set all java.lang.ArithmeticException

Step 3: Continue Execution

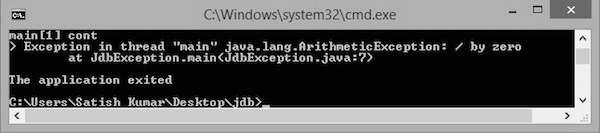

The following command continues the execution. Now the catch handles the arithmetic exception as follows:

Exception2

JDB - In Eclipse

This chapter explains how to use JDB in Eclipse. Before proceeding further, you need to install Eclipse Indigo. Follow the steps given below to install Eclipse Indigo on your system.

Step 1: Download and Install Eclipse

You can download Eclipse from the following link: http://www.eclipse.org/downloads/packages/eclipse-ide-java-ee-developers/indigosr2

Step 2: Create a New Project and a New Class

  • Create a new Java project by following the options File-> New -> Java project.
  • Name it as “sampledebug”.
  • Create a new class by right clicking on the samplebebug project.
  • Select options ->new -> class
  • Name it as “Add.java”

Add.java

public class Add
{
   public int addition( int x, int y)
   {
      int z = x+y;
      return z;
   }
   public static void main( String ar[ ] )
   {
      int a = 5, b = 6;
      Add ob = new Add();
      int c = ob.addition(a,b);
      System.out.println("Add: "+c);
   }
}

Step 3: Open the Debug Perspective

Follow the instructions given below to open the debug perspective.

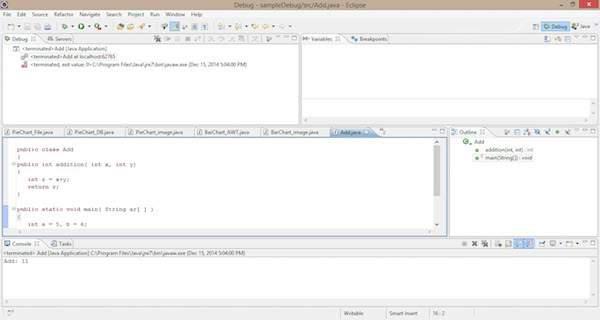

On the Eclipse IDE, go to Window -> Open perspective -> Debug. Now you get the debug perspective for the program Add.java. You get to see the following window.

Debug Perspective

Sections in Debug Perspective

The sections in the Debug perspective are as follows:

Coding Section

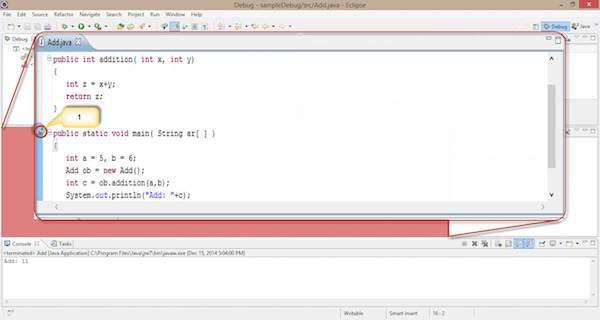

Java code is displayed in this section. It is the code you want to debug, that is, Add.java. Here we can add a breakpoint on a line by double clicking in front of the line. You find the blue bubble with an arrow symbol to point out the breakpoint of that line. See the following screenshot; you can find the selected area with a red circle pointed as “1”.

  1. Double click here. You can set the breakpoint for this line.
Code Section

Breakpoint Section

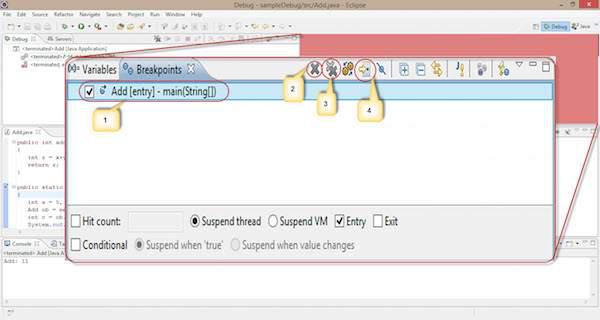

This section defines the list of breakpoints that are set to the program code. Here we can add, delete, find, and manage the breakpoints. The following screenshot shows the breakpoint section.

Breakpoint Section

Observe the following options in the given screenshot:

  1. Using the check box in the left, we can select or deselect a breakpoint. Here, we use one breakpoint, i.e., Add class-main() method.

  2. The single cross icon “X” is used to delete the selected breakpoint.

  3. The double cross icon “XX” is used to delete all the breakpoints in your code.

  4. The arrow pointer is used to point to the code where the selected breakpoint is applied.

The remaining functionalities in the breakpoint section are as follows:

  • Hitcount : It shows how many times the control hits this breakpoint. It is used for recursive logic.

  • Suspend thread : We can suspend the current thread by selecting it.

  • Suspend VM : We can suspend the VM by selecting it.

Debug Section

This section is used for the process of debugging. It contains options that are used in debugging.

Start debugging : Follow the instructions given below to start debugging.

Right click on the code -> click Debug as -> click 1 Java application.

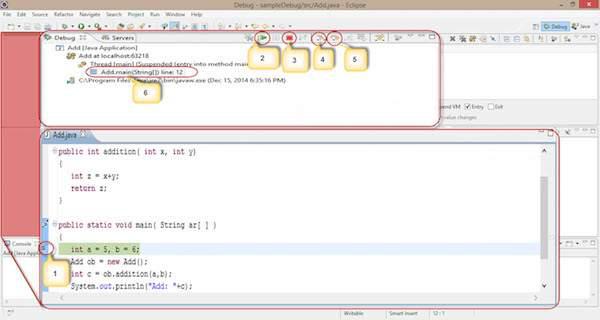

The process of debugging starts as shown in the following screenshot. It contains some selected options, highlighted using numeric digits.

  1. We apply a breakpoint on the Add class main() method. When we start debugging, the controller gets stuck at the first line of the main() method.

  2. It is used to Resume the debugging process and skip the current breakpoint. It works similar to the cont command in the JDB command line.

  3. It is used to stop the debugging process.

  4. It works similar to the step in process in the JDB command line. It is used for moving the control to the next line, i.e., point “1” moves to the next line.

  5. It works similar to the step over process in the JDB command line.

  6. It is used to see on which line the breakpoint is applied.

Debug Section

Follow the given steps and sections to debug your code in eclipse IDE. By default, every IDE contains this debugging process.

Advertisements
