In JavaFX, we can develop GUI applications, web applications and graphical applications. In such applications, whenever a user interacts with the application (nodes), an event is said to have been occurred.

For example, clicking on a button, moving the mouse, entering a character through keyboard, selecting an item from list, scrolling the page are the activities that causes an event to happen.

Types of Events

The events can be broadly classified into the following two categories −

  • Foreground Events − Those events which require the direct interaction of a user. They are generated as consequences of a person interacting with the graphical components in a Graphical User Interface. For example, clicking on a button, moving the mouse, entering a character through keyboard, selecting an item from list, scrolling the page, etc.

  • Background Events − Those events that require the interaction of end user are known as background events. The operating system interruptions, hardware or software failure, timer expiry, operation completion are the example of background events.

Events in JavaFX

JavaFX provides support to handle a wide varieties of events. The class named Event of the package javafx.event is the base class for an event.

An instance of any of its subclass is an event. JavaFX provides a wide variety of events. Some of them are are listed below.

  • Mouse Event − This is an input event that occurs when a mouse is clicked. It is represented by the class named MouseEvent. It includes actions like mouse clicked, mouse pressed, mouse released, mouse moved, mouse entered target, mouse exited target, etc.

  • Key Event − This is an input event that indicates the key stroke occurred on a node. It is represented by the class named KeyEvent. This event includes actions like key pressed, key released and key typed.

  • Drag Event − This is an input event which occurs when the mouse is dragged. It is represented by the class named DragEvent. It includes actions like drag entered, drag dropped, drag entered target, drag exited target, drag over, etc.

  • Window Event − This is an event related to window showing/hiding actions. It is represented by the class named WindowEvent. It includes actions like window hiding, window shown, window hidden, window showing, etc.

Event Handling

Event Handling is the mechanism that controls the event and decides what should happen, if an event occurs. This mechanism has the code which is known as an event handler that is executed when an event occurs.

JavaFX provides handlers and filters to handle events. In JavaFX every event has −

  • Target − The node on which an event occurred. A target can be a window, scene, and a node.

  • Source − The source from which the event is generated will be the source of the event. In the above scenario, mouse is the source of the event.

  • Type − Type of the occurred event; in case of mouse event – mouse pressed, mouse released are the type of events.

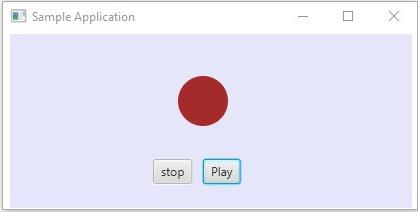

Assume that we have an application which has a Circle, Stop and Play Buttons inserted using a group object as follows −

Sample Application

If you click on the play button, the source will be the mouse, the target node will be the play button and the type of the event generated is the mouse click.

Phases of Event Handling in JavaFX

Whenever an event is generated, JavaFX undergoes the following phases.

Route Construction

Whenever an event is generated, the default/initial route of the event is determined by construction of an Event Dispatch chain. It is the path from the stage to the source Node.

Following is the event dispatch chain for the event generated, when we click on the play button in the above scenario.

Play Button

Event Capturing Phase

After the construction of the event dispatch chain, the root node of the application dispatches the event. This event travels to all nodes in the dispatch chain (from top to bottom). If any of these nodes has a filter registered for the generated event, it will be executed. If none of the nodes in the dispatch chain has a filter for the event generated, then it is passed to the target node and finally the target node processes the event.

Event Bubbling Phase

In the event bubbling phase, the event is travelled from the target node to the stage node (bottom to top). If any of the nodes in the event dispatch chain has a handler registered for the generated event, it will be executed. If none of these nodes have handlers to handle the event, then the event reaches the root node and finally the process will be completed.

Event Handlers and Filters

Event filters and handlers are those which contains application logic to process an event. A node can register to more than one handler/filter. In case of parent–child nodes, you can provide a common filter/handler to the parents, which is processed as default for all the child nodes.

As mentioned above, during the event, processing is a filter that is executed and during the event bubbling phase, a handler is executed. All the handlers and filters implement the interface EventHandler of the package javafx.event.

Adding and Removing Event Filter

To add an event filter to a node, you need to register this filter using the method addEventFilter() of the Node class.

//Creating the mouse event handler
EventHandler<MouseEvent> eventHandler = new EventHandler<MouseEvent>() {
   @Override
   public void handle(MouseEvent e) {
      System.out.println("Hello World");
      circle.setFill(Color.DARKSLATEBLUE);
   }
};
//Adding event Filter
Circle.addEventFilter(MouseEvent.MOUSE_CLICKED, eventHandler);

In the same way, you can remove a filter using the method removeEventFilter() as shown below −

circle.removeEventFilter(MouseEvent.MOUSE_CLICKED, eventHandler);

Event Handling Example

Following is an example demonstrating the event handling in JavaFX using the event filters. Save this code in a file with name EventFiltersExample.java.

import javafx.application.Application;
import static javafx.application.Application.launch;
import javafx.event.EventHandler;

import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.input.MouseEvent;
import javafx.scene.paint.Color;
import javafx.scene.shape.Circle;

import javafx.scene.text.Font;
import javafx.scene.text.FontWeight;
import javafx.scene.text.Text;
import javafx.stage.Stage;

public class EventFiltersExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(300.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(25.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Setting the text
      Text text = new Text("Click on the circle to change its color");

      //Setting the font of the text
      text.setFont(Font.font(null, FontWeight.BOLD, 15));

      //Setting the color of the text
      text.setFill(Color.CRIMSON);

      //setting the position of the text
      text.setX(150);
      text.setY(50);

      //Creating the mouse event handler
      EventHandler<MouseEvent> eventHandler = new EventHandler<MouseEvent>() {
         @Override
         public void handle(MouseEvent e) {
            System.out.println("Hello World");
            circle.setFill(Color.DARKSLATEBLUE);
         }
      };
      //Registering the event filter
      circle.addEventFilter(MouseEvent.MOUSE_CLICKED, eventHandler);

      //Creating a Group object
      Group root = new Group(circle, text);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting the fill color to the scene
      scene.setFill(Color.LAVENDER);

      //Setting title to the Stage
      stage.setTitle("Event Filters Example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

Compile and execute the saved java file from the command prompt using the following commands.

javac EventFiltersExample.java
java EventFiltersExample

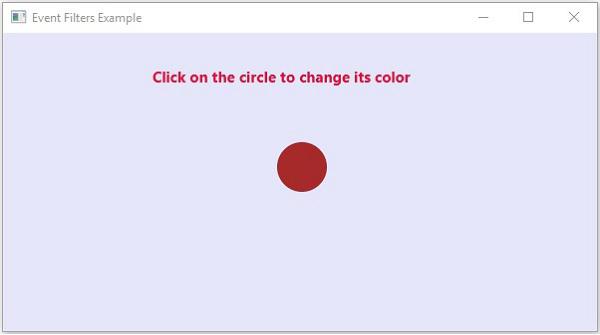

On executing, the above program generates a JavaFX window as shown below.

Change Color

Adding and Removing Event Handlers

To add an event handler to a node, you need to register this handler using the method addEventHandler() of the Node class as shown below.

//Creating the mouse event handler
EventHandler<javafx.scene.input.MouseEvent> eventHandler =
   new EventHandler<javafx.scene.input.MouseEvent>() {

   @Override
   public void handle(javafx.scene.input.MouseEvent e) {
      System.out.println("Hello World");
      circle.setFill(Color.DARKSLATEBLUE);
   }
};
//Adding the event handler
circle.addEventHandler(javafx.scene.input.MouseEvent.MOUSE_CLICKED, eventHandler);

In the same way, you can remove an event handler using the method removeEventHandler() as shown below −

circle.removeEventHandler(MouseEvent.MOUSE_CLICKED, eventHandler);

Example

The following program is an example demonstrating the event handling in JavaFX using the event handlers.

Save this code in a file with name EventHandlersExample.java.

import javafx.animation.RotateTransition;
import javafx.application.Application;
import javafx.event.EventHandler;

import javafx.scene.Group;
import javafx.scene.PerspectiveCamera;
import javafx.scene.Scene;
import javafx.scene.control.TextField;
import javafx.scene.input.KeyEvent;
import javafx.scene.paint.Color;
import javafx.scene.paint.PhongMaterial;

import javafx.scene.shape.Box;
import javafx.scene.text.Font;
import javafx.scene.text.FontWeight;
import javafx.scene.text.Text;
import javafx.scene.transform.Rotate;
import javafx.stage.Stage;
import javafx.util.Duration;

public class EventHandlersExample extends Application {

   @Override
   public void start(Stage stage) {
      //Drawing a Box
      Box box = new Box();

      //Setting the properties of the Box
      box.setWidth(150.0);
      box.setHeight(150.0);
      box.setDepth(100.0);

      //Setting the position of the box
      box.setTranslateX(350);
      box.setTranslateY(150);
      box.setTranslateZ(50);

      //Setting the text
      Text text = new Text("Type any letter to rotate the box,
         and click on the box to stop the rotation");

      //Setting the font of the text
      text.setFont(Font.font(null, FontWeight.BOLD, 15));

      //Setting the color of the text
      text.setFill(Color.CRIMSON);

      //setting the position of the text
      text.setX(20);
      text.setY(50);

      //Setting the material of the box
      PhongMaterial material = new PhongMaterial();
      material.setDiffuseColor(Color.DARKSLATEBLUE);

      //Setting the diffuse color material to box
      box.setMaterial(material);

      //Setting the rotation animation to the box
      RotateTransition rotateTransition = new RotateTransition();

      //Setting the duration for the transition
      rotateTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      rotateTransition.setNode(box);

      //Setting the axis of the rotation
      rotateTransition.setAxis(Rotate.Y_AXIS);

      //Setting the angle of the rotation
      rotateTransition.setByAngle(360);

      //Setting the cycle count for the transition
      rotateTransition.setCycleCount(50);

      //Setting auto reverse value to false
      rotateTransition.setAutoReverse(false);

      //Creating a text filed
      TextField textField = new TextField();

      //Setting the position of the text field
      textField.setLayoutX(50);
      textField.setLayoutY(100);

      //Handling the key typed event
      EventHandler<KeyEvent> eventHandlerTextField = new EventHandler<KeyEvent>() {
         @Override
         public void handle(KeyEvent event) {
            //Playing the animation
            rotateTransition.play();
         }
      };
      //Adding an event handler to the text feld
      textField.addEventHandler(KeyEvent.KEY_TYPED, eventHandlerTextField);

      //Handling the mouse clicked event(on box)
      EventHandler<javafx.scene.input.MouseEvent> eventHandlerBox =
         new EventHandler<javafx.scene.input.MouseEvent>() {

         @Override
         public void handle(javafx.scene.input.MouseEvent e) {
            rotateTransition.stop();
         }
      };
      //Adding the event handler to the box
      box.addEventHandler(javafx.scene.input.MouseEvent.MOUSE_CLICKED, eventHandlerBox);

      //Creating a Group object
      Group root = new Group(box, textField, text);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);

      //Setting camera
      PerspectiveCamera camera = new PerspectiveCamera(false);
      camera.setTranslateX(0);
      camera.setTranslateY(0);
      camera.setTranslateZ(0);
      scene.setCamera(camera);

      //Setting title to the Stage
      stage.setTitle("Event Handlers Example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

Compile and execute the saved java file from the command prompt using the following commands.

javac EventHandlersExample.java
java EventHandlersExample

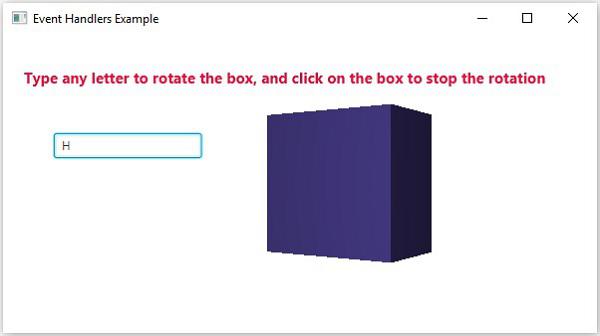

On executing, the above program generates a JavaFX window displaying a text field and a 3D box as shown below −

Text Field

Here, if you type a letter in the text field, the 3D box starts rotating along the x axis. If you click on the box again the rotation stops.

Using Convenience Methods for Event Handling

Some of the classes in JavaFX define event handler properties. By setting the values to these properties using their respective setter methods, you can register to an event handler. These methods are known as convenience methods.

Most of these methods exist in the classes like Node, Scene, Window, etc., and they are available to all their sub classes.

For example, to add a mouse event listener to a button, you can use the convenience method setOnMouseClicked() as shown below.

playButton.setOnMouseClicked((new EventHandler<MouseEvent>() {
   public void handle(MouseEvent event) {
      System.out.println("Hello World");
      pathTransition.play();
   }
}));

Example

The following program is an example that demonstrates the event handling in JavaFX using the convenience methods.

Save this code in a file with the name ConvinienceMethodsExample.java.

import javafx.animation.PathTransition;
import javafx.application.Application;
import static javafx.application.Application.launch;
import javafx.event.EventHandler;

import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.input.MouseEvent;
import javafx.scene.paint.Color;

import javafx.scene.shape.Circle;
import javafx.scene.shape.LineTo;
import javafx.scene.shape.MoveTo;
import javafx.scene.shape.Path;
import javafx.stage.Stage;
import javafx.util.Duration;

public class ConvinienceMethodsExample extends Application {
   @Override
   public void start(Stage stage) {
      //Drawing a Circle
      Circle circle = new Circle();

      //Setting the position of the circle
      circle.setCenterX(300.0f);
      circle.setCenterY(135.0f);

      //Setting the radius of the circle
      circle.setRadius(25.0f);

      //Setting the color of the circle
      circle.setFill(Color.BROWN);

      //Setting the stroke width of the circle
      circle.setStrokeWidth(20);

      //Creating a Path
      Path path = new Path();

      //Moving to the staring point
      MoveTo moveTo = new MoveTo(208, 71);

      //Creating 1st line
      LineTo line1 = new LineTo(421, 161);

      //Creating 2nd line
      LineTo line2 = new LineTo(226,232);

      //Creating 3rd line
      LineTo line3 = new LineTo(332,52);

      //Creating 4th line
      LineTo line4 = new LineTo(369, 250);

      //Creating 5th line
      LineTo line5 = new LineTo(208, 71);

      //Adding all the elements to the path
      path.getElements().add(moveTo);
      path.getElements().addAll(line1, line2, line3, line4, line5);

      //Creating the path transition
      PathTransition pathTransition = new PathTransition();

      //Setting the duration of the transition
      pathTransition.setDuration(Duration.millis(1000));

      //Setting the node for the transition
      pathTransition.setNode(circle);

      //Setting the path for the transition
      pathTransition.setPath(path);

      //Setting the orientation of the path
      pathTransition.setOrientation(
         PathTransition.OrientationType.ORTHOGONAL_TO_TAN GENT);

      //Setting the cycle count for the transition
      pathTransition.setCycleCount(50);

      //Setting auto reverse value to true
      pathTransition.setAutoReverse(false);

      //Creating play button
      Button playButton = new Button("Play");
      playButton.setLayoutX(300);
      playButton.setLayoutY(250);

      circle.setOnMouseClicked (new EventHandler<javafx.scene.input.MouseEvent>() {
         @Override
         public void handle(javafx.scene.input.MouseEvent e) {
            System.out.println("Hello World");
            circle.setFill(Color.DARKSLATEBLUE);
         }
      });
      playButton.setOnMouseClicked((new EventHandler<MouseEvent>() {
         public void handle(MouseEvent event) {
            System.out.println("Hello World");
            pathTransition.play();
         }
      }));

      //Creating stop button
      Button stopButton = new Button("stop");
      stopButton.setLayoutX(250);
      stopButton.setLayoutY(250);

      stopButton.setOnMouseClicked((new EventHandler<MouseEvent>() {
         public void handle(MouseEvent event) {
            System.out.println("Hello World");
            pathTransition.stop();
         }
      }));
      //Creating a Group object
      Group root = new Group(circle, playButton, stopButton);

      //Creating a scene object
      Scene scene = new Scene(root, 600, 300);
      scene.setFill(Color.LAVENDER);

      //Setting title to the Stage
      stage.setTitle("Convenience Methods Example");

      //Adding scene to the stage
      stage.setScene(scene);

      //Displaying the contents of the stage
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

Compile and execute the saved java file from the command prompt using the following commands.

javac ConvinienceMethodsExample.java
java ConvinienceMethodsExample

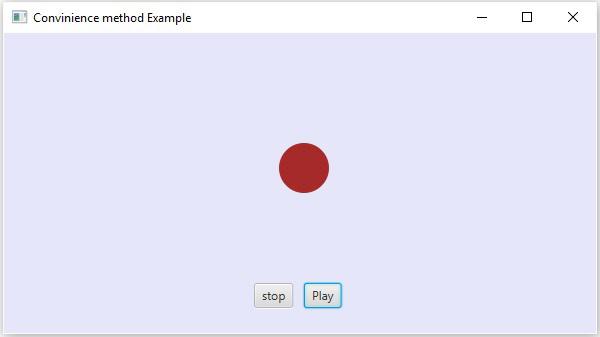

On executing, the above program generates a JavaFX window as shown below. Here click on the play button to start the animation and click on the stop button to stop the animation.

Convinience Method
Advertisements
