Java DIP - Prewitt Operator
Prewitt operator is used for edge detection in an image. It detects two types of edges: vertical edges and horizontal edges.
We use OpenCV function filter2D to apply Prewitt operator to images. It can be found under Imgproc package. Its syntax is given below −
filter2D(src, dst, depth , kernel, anchor, delta, BORDER_DEFAULT );
The function arguments are described below −
| Sr.No. |
Argument & Description |
| 1 |
src
It is source image.
|
| 2 |
dst
It is destination image.
|
| 3 |
depth
It is the depth of dst. A negative value (such as -1) indicates that the depth is the same as the source.
|
| 4 |
kernel
It is the kernel to be scanned through the image.
|
| 5 |
anchor
It is the position of the anchor relative to its kernel. The location Point (-1, -1) indicates the center by default.
|
| 6 |
delta
It is a value to be added to each pixel during the convolution. By default it is 0.
|
| 7 |
BORDER_DEFAULT
We let this value by default.
|
Apart from the filter2D method, there are other methods provide by the Imgproc class. They are described briefly −
| Sr.No. |
Method & Description |
| 1 |
cvtColor(Mat src, Mat dst, int code, int dstCn)
It converts an image from one color space to another.
|
| 2 |
dilate(Mat src, Mat dst, Mat kernel)
It dilates an image by using a specific structuring element.
|
| 3 |
equalizeHist(Mat src, Mat dst)
It equalizes the histogram of a grayscale image.
|
| 4 |
filter2D(Mat src, Mat dst, int depth, Mat kernel, Point anchor, double delta)
It convolves an image with the kernel.
|
| 5 |
GaussianBlur(Mat src, Mat dst, Size ksize, double sigmaX)
It blurs an image using a Gaussian filter.
|
| 6 |
integral(Mat src, Mat sum)
It calculates the integral of an image.
|
Example
The following example demonstrates the use of Imgproc class to apply Prewitt operator to an image of Grayscale.
import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.highgui.Highgui;
import org.opencv.imgproc.Imgproc;
public class convolution {
public static void main( String[] args ) {
try {
int kernelSize = 9;
System.loadLibrary( Core.NATIVE_LIBRARY_NAME );
Mat source = Highgui.imread("grayscale.jpg", Highgui.CV_LOAD_IMAGE_GRAYSCALE);
Mat destination = new Mat(source.rows(),source.cols(),source.type());
Mat kernel = new Mat(kernelSize,kernelSize, CvType.CV_32F) {
{
put(0,0,-1);
put(0,1,0);
put(0,2,1);
put(1,0-1);
put(1,1,0);
put(1,2,1);
put(2,0,-1);
put(2,1,0);
put(2,2,1);
}
};
Imgproc.filter2D(source, destination, -1, kernel);
Highgui.imwrite("output.jpg", destination);
} catch (Exception e) {
System.out.println("Error: " + e.getMessage());
}
}
}
Output
When you execute the given code, the following output is seen −
Original Image
This original image is convolved with the Prewitt operator of vertical edges as given below −

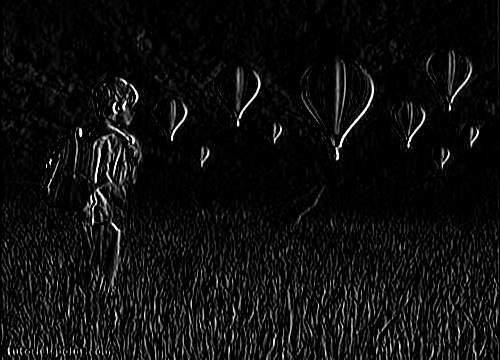

Vertical direction
Convolved Image(Vertical Direction)
This original image has also been convolved with the Prewitt operator of horizontal edges, which is given below −
Horizontal Direction
Convolved Image(Horizontal Direction)
