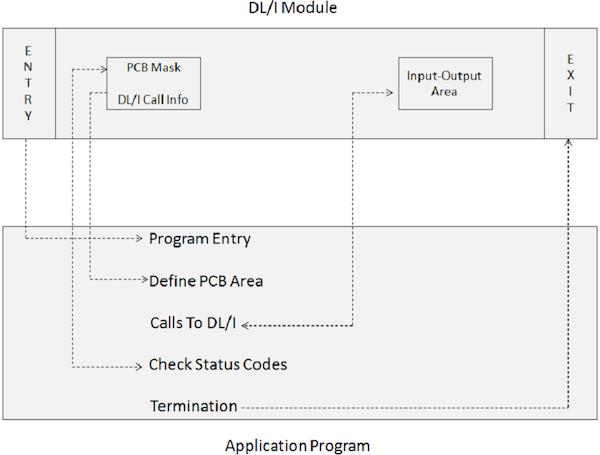

An application program which includes DL/I calls cannot execute directly. Instead, a JCL is required to trigger the IMS DL/I batch module. The batch initialization module in IMS is DFSRRC00. The application program and the DL/I module execute together. The following diagram shows the structure of an application program which includes DL/I calls to access a database.

DL Module

The application program interfaces with IMS DL/I modules via the following program elements −

  • An ENTRY statement specifies that the PCBs are utilized by the program.

  • A PCB-mask co-relates with the information preserved in the pre-constructed PCB which receives return information from the IMS.

  • An Input-Output Area is used for passing data segments to and from the IMS database.

  • Calls to DL/I specify the processing functions such as fetch, insert, delete, replace, etc.

  • Check Status Codes is used to check the SQL return code of the processing option specified to inform whether the operation was successful or not.

  • A Terminate statement is used to end the processing of the application program which includes the DL/I.

Segments Layout

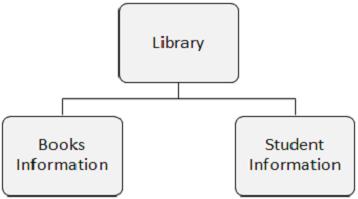

As of now, we learnt that the IMS consists of segments which are used in high-level programming languages to access data. Consider the following IMS database structure of a Library which we have seen earlier and here we see the layout of its segments in COBOL −

Layout

01 LIBRARY-SEGMENT.
   05 BOOK-ID        PIC X(5).
   05 ISSUE-DATE     PIC X(10).
   05 RETURN-DATE    PIC X(10).
   05 STUDENT-ID     PIC A(25).

01 BOOK-SEGMENT.
   05 BOOK-ID        PIC X(5).
   05 BOOK-NAME      PIC A(30).
   05 AUTHOR         PIC A(25).

01 STUDENT-SEGMENT.
   05 STUDENT-ID     PIC X(5).
   05 STUDENT-NAME   PIC A(25).
   05 DIVISION       PIC X(10).

Application Program Overview

The structure of an IMS application program is different from that of a Non-IMS application program. An IMS program cannot be executed directly; rather it is always called as a subroutine. An IMS application program consists of Program Specification Blocks to provide a view of the IMS database.

The application program and the PSBs linked to that program are loaded when we execute an application program which includes IMS DL/I modules. Then the CALL requests triggered by the application programs are executed by the IMS module.

IMS Services

The following IMS services are used by the application program −

  • Accessing database records
  • Issuing IMS commands
  • Issuing IMS service calls
  • Checkpoint calls
  • Sync calls
  • Sending or receiving messages from online user terminals
