HSQLDB is a relational database management system implemented in pure Java. You can easily embed this database to your application using JDBC. Or you can use the operations separately.

Prerequisites

Follow the prerequisite software installations for HSQLDB.

Verify Java Installation

Since HSQLDB is a relational database management system implemented in pure Java, you must install JDK (Java Development Kit) software before installing HSQLDB. If you already have JDK installation in your system, then try the following command to verify the Java version.

java –version

If JDK is successfully installed in your system, you will get the following output.

java version "1.8.0_91"
Java(TM) SE Runtime Environment (build 1.8.0_91-b14)
Java HotSpot(TM) 64-Bit Server VM (build 25.91-b14, mixed mode)

If you don’t have JDK installed in your system, then visit the following link to Install JDK.

HSQLDB Installation

Following are the steps to install HSQLDB.

Step 1 − Download HSQLDB bundle

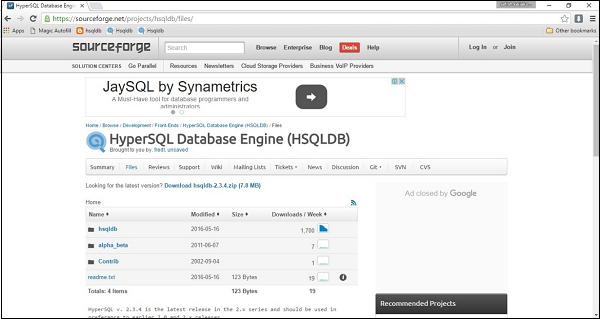

Download the latest version of HSQLDB database from the following link https://sourceforge.net/projects/hsqldb/files/. Once you click the link, you will get the following screenshot.

Download HsqlDB

Click HSQLDB and the download will start immediately. Finally, you will get the zip file named hsqldb-2.3.4.zip.

Step 2 − Extract the HSQLDB zip file

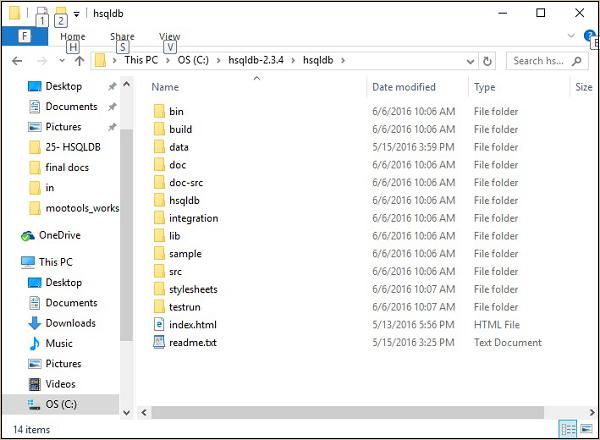

Extract the zip file and place it into the C:\ directory. After extraction, you will get a file structure as shown in the following screenshot.

Extract HsqlDB

Step 3 − Create a default database

There is no default database for HSQLDB, therefore, you need to create a database for HSQLDB. Let us create a properties file named server.properties which defines a new database named demodb. Take a look at the following database server properties.

server.database.0 = file:hsqldb/demodb
server.dbname.0 = testdb

Place this server.properties file into HSQLDB home directory that is C:\hsqldb- 2.3.4\hsqldb\.

Now execute the following command on command prompt.

\>cd C:\hsqldb-2.3.4\hsqldb
hsqldb>java -classpath lib/hsqldb.jar org.hsqldb.server.Server

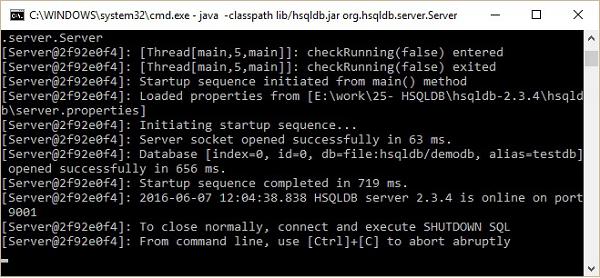

After execution of the above command, you will receive the server status as shown in the following screenshot.

Default Database

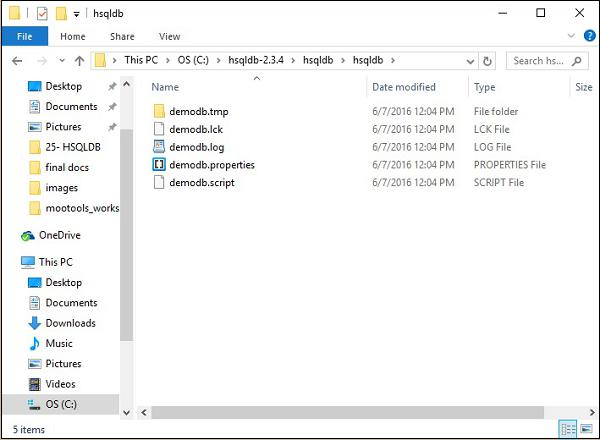

Later, you will get to find the following folder structure of the hsqldb directory in the HSQLDB home directory that is C:\hsqldb-2.3.4\hsqldb. Those files are temp file, lck file, log file, properties file, and script file of demodb database created by HSQLDB database server.

Create Database

Step 4 − Start the database server

Once you are done creating a database, you have to start the database by using the following command.

\>cd C:\hsqldb-2.3.4\hsqldb
hsqldb>java -classpath lib/hsqldb.jar org.hsqldb.server.Server --database.0
file:hsqldb/demodb --dbname.0 testdb

After execution of the above command, you get the following status.

Start Database Server

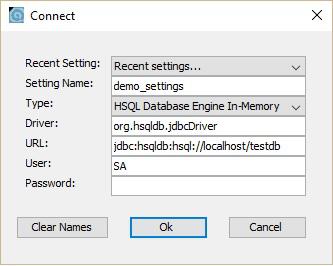

Now, you can open the database home screen that is runManagerSwing.bat from C:\hsqldb-2.3.4\hsqldb\bin location. This bat file will open the GUI file for HSQLDB database. Before that it will ask you for database settings through a dialog box. Take a look at the following screenshot. In this dialog box, enter the Setting Name, URL as shown above and click Ok.

Run ManagerSwing

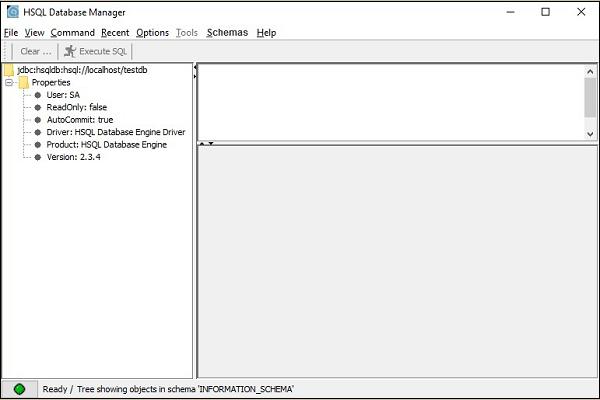

You will get the GUI screen of HSQLDB database as shown in the following screenshot.

Hsql Database
