GWT Highcharts - Scatter Chart


Advertisements

Following is an example of a basic scatter chart.

We have already seen the configuration used to draw a chart in Highcharts Configuration Syntax chapter.

An example of a basic scatter chart is given below.

Configurations

Let us now see the additional configurations/steps taken.

series

Configure the chart type to be scatter based. series.type decides the series type for the chart. Here, the default value is "line".

chart.addSeries(chart.createSeries()
   .setName("Observations")
   .setType(Type.SCATTER)
   .setPoints(new Number[] {
      1, 1.5, 2.8, 3.5, 3.9, 4.2
   })
);

Example

HelloWorld.java

package com.howcodex.client;

import org.moxieapps.gwt.highcharts.client.Chart;
import org.moxieapps.gwt.highcharts.client.Series.Type;

import com.google.gwt.core.client.EntryPoint;
import com.google.gwt.user.client.ui.RootPanel;

public class HelloWorld implements EntryPoint {
   public void onModuleLoad() {
      final Chart chart = new Chart()
         .setChartTitleText("Scatter plot");

      chart.getXAxis()
         .setMin(-0.5)
         .setMax(5.5);

      chart.getYAxis()
         .setMin(0);

      chart.addSeries(chart.createSeries()
         .setName("Observations")
         .setType(Type.SCATTER)
         .setPoints(new Number[] {
            1, 1.5, 2.8, 3.5, 3.9, 4.2
         })
      );
      RootPanel.get().add(chart);
   }
}

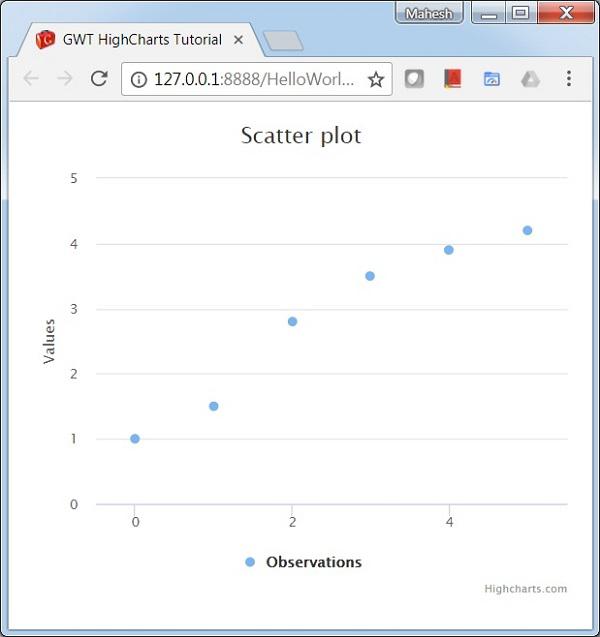

Result

Verify the result.

Scatter Chart
