Foundation - Overview

What is Foundation?

Foundation is one of the advanced front-end frameworks for designing beautiful responsive websites. It works on all types of devices and provides you with HTML, CSS and JavaScript plugins.

Foundation began as an internal style guide, built by ZURB in 2008. ZURB is a product design company in Campbell, California. It released Foundation 2.0 as open source in October 2011. The latest version of Foundation is 6.1.1, released in December 2015.

Why Use Foundation?

  • It provides faster development by using Sass compiler, which works much faster than default compiler.

  • It enriches your website with pricing tables, switches, joyride, range sliders, lightbox and many more.

  • It comes with development package like Grunt and Libsass for faster coding and control.

  • Foundation for sites provides you with HTML, CSS and JS to quickly build websites.

  • Email framework provides you with responsive HTML emails, which can be read on any device.

  • Foundation for Apps allows you to build fully responsive web apps.

Features

  • It has powerful grid system and some useful UI components and cool JavaScript plugins.

  • It provides responsive design, which serves all types of devices.

  • It is optimized for mobile devices and truly supports mobile first approach.

  • It provides HTML templates, which are customizable and extensible.

Advantages

  • It is easy to learn, once you have the basic understanding of HTML and CSS.

  • You can use Foundation freely as it is an open source.

  • It provides you a bunch of templates, which helps you in start developing the website right away.

  • Foundation supports preprocessors like SASS and Compass, which makes development faster.

Disadvantages

  • Because of the popularity of the Twitter Bootstrap, the community support for Twitter Bootstrap is better than Foundation.

  • It may take some time for beginners to learn and take advantage of the preprocessor support.

  • Lack of wider support like QA sites and forums for fixing issues.

  • Foundation has less themes compared to others.

Foundation - Installation

In this chapter, we will discuss about how to install and use Foundation on website.

Download the Foundation

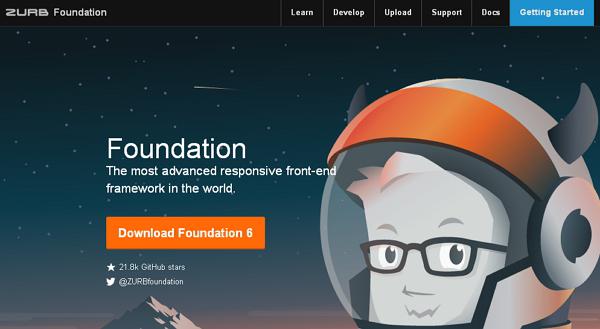

When you open the link foundation.zurb.com, you will see a screen as shown below −

Foundation Installation

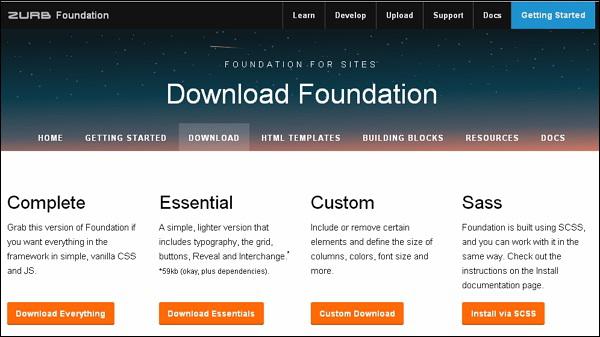

Click the Download Foundation 6 button, you will be redirected to another page.

Here you can see four buttons −

Foundation Installation
  • Download Everything − You can download this version of Foundation, if you wish to have everything in the framework i.e. vanilla CSS and JS.

  • Download Essentials − It will download the simple version which includes the grid, buttons, typography etc.

  • Custom Download − This will download the custom library for Foundation, it includes elements and define size of columns, font size, color etc.

  • Install via SCSS − This will redirect you to the documentation page to install Foundation for sites.

You can click the Download Everything button to get everything in the framework i.e. CSS and JS. As the files consist all things in the framework so every time you don't need to include separate files for individual functionality. At the time of writing this tutorial, the latest version (Foundation 6) was downloaded.

File Structure

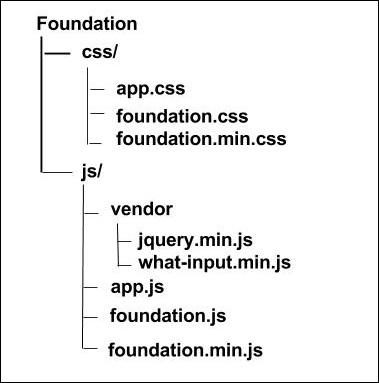

Once Foundation is downloaded, extract the ZIP file, and you will see the following file/directory structure −

Foundation Installation

As you can see, there are compiled CSS and JS (foundation.*), as well as compiled and minified CSS and JS (foundation.min.*).

We are using the CDN versions of the library throughout this tutorial.

HTML Template

A basic HTML template using Foundation is as shown below −

<!DOCTYPE html>
<html>
   <head>
      <title>Foundation Template</title>
      <meta name = "viewport" content = "width = device-width, initial-scale = 1">

      <link rel="stylesheet" href="https://cdn.jsdelivr.net/npm/foundation-sites@6.5.1/dist/css/foundation.min.css" integrity="sha256-1mcRjtAxlSjp6XJBgrBeeCORfBp/ppyX4tsvpQVCcpA= sha384-b5S5X654rX3Wo6z5/hnQ4GBmKuIJKMPwrJXn52ypjztlnDK2w9+9hSMBz/asy9Gw sha512-M1VveR2JGzpgWHb0elGqPTltHK3xbvu3Brgjfg4cg5ZNtyyApxw/45yHYsZ/rCVbfoO5MSZxB241wWq642jLtA==" crossorigin="anonymous">

      <!-- Compressed JavaScript -->
      <script src="https://cdnjs.cloudflare.com/ajax/libs/foundation/6.0.1/js/vendor/jquery.min.js"></script>
      <script src="https://cdn.jsdelivr.net/npm/foundation-sites@6.5.1/dist/js/foundation.min.js" integrity="sha256-WUKHnLrIrx8dew//IpSEmPN/NT3DGAEmIePQYIEJLLs= sha384-53StQWuVbn6figscdDC3xV00aYCPEz3srBdV/QGSXw3f19og3Tq2wTRe0vJqRTEO sha512-X9O+2f1ty1rzBJOC8AXBnuNUdyJg0m8xMKmbt9I3Vu/UOWmSg5zG+dtnje4wAZrKtkopz/PEDClHZ1LXx5IeOw==" crossorigin="anonymous"></script>

   </head>

   <body>
      <h1>Hello, world!</h1>
   </body>
</html>

The following sections describe the above code in detail.

HTML5 doctype

Foundation consists of certain HTML elements and CSS properties that require the use of the HTML5 doctype. Therefore, the following code for HTML5 doctype should be included at the beginning of all your projects using Foundation.

<!DOCTYPE html>
<html>
   ....
</html>

Mobile First

It helps to be responsive to mobile devices. You need to include the viewport meta tag to the <head> element, to ensure proper rendering and touch zooming on mobile devices.

<meta name = "viewport" content = "width = device-width, initial-scale = 1">
  • width property controls the width of the device. Setting it to device-width will make sure that it is rendered across various devices (mobiles, desktops, tablets...) properly.

  • initial-scale = 1.0 ensures that when loaded, your web page will be rendered at a 1:1 scale, and no zooming will be applied out of the box.

Initialization of components

The jQuery script is required in Foundation for components like modals and dropdown.

<script src = "https://cdnjs.cloudflare.com/ajax/libs/foundation/6.0.1/js/foundation.min.js">
</script>
<script src = "https://cdnjs.cloudflare.com/ajax/libs/foundation/6.0.1/js/vendor/jquery.min.js">
</script>

Output

Let us carry out the following steps to see how the above given code works −

  • Save the above given html code firstexample.html file.

  • Open this HTML file in a browser, an output is displayed as shown below.

Foundation - Starter Projects

You can start with your project development with some available templates which can be installed through Yeti Launch or Foundation CLI. You can start with the new project by using these templates by using Gulp build system for the processing of the Sass, JavaScript, copying files etc.

Basic Template

The basic template is something like SASS template, which includes the flat directory structure and compiles only SASS files and it is good to have this simple template while using only SASS. You can use the basic template by using Yeti Launch or using Foundation CLI using the following command −

$ foundation new --framework sites --template basic

To set up this, first run the npm install, bower install and use the npm start command to run it. You can also download the template files from the Github.

ZURB Template

It is a combination of CSS/SCSS, JavaScript, Handlebars template, markup structure, image compression and uses SASS processing. You can use the ZURB template by using Yeti Launch or using Foundation CLI using the below command −

$ foundation new --framework sites --template zurb

To run this template, follow the same steps specified in the basic template. You can also download the template files from the Github.

Asset Copying

You can copy the content in the src/assets folder using Gulp in which assets will be your project folder. Important thing here is, the SASS files, JavaScript files and images will not come under this asset copying process, as they will be having their own process to copy the content.

Page Compilation

You can create HTML pages under three folders namely pages, layouts and partials which resides inside the src/ directory. You can use the Panini flat file compiler that creates layouts for pages by using templates, pages, HTML partials. This process can be done by using Handlebars templating language.

SASS Compilation

You can compile the SASS to CSS using Libsass and the main SASS file will be stored under src/assets/scss/app.scss and also newly created SASS partials will be stored under this folder itself. The output of CSS will be like normal CSS, which is in the nested style. You can compress the CSS with clean-css and removes the unused CSS from the stylesheet using UnCSS.

JavaScript Compilation

The JavaScript files will be stored under src/assets/js folder along with Foundation and all dependencies are tied together into app.js file. The files will be tied together as specified in the below order −

  • Dependencies of Foundation.
  • Files will be stored under src/assets/js folder.
  • The files are bundled into one file called app.js.

Image Compression

By default, all images will be stored under assets/img folder under dist folder. You can compress the images while building for production using gulp-imagemin which supports JPEG, PNG, SVG and GIF files.

BrowserSync

You can create a BrowserSync server which is synchronized browser testing available at http://localhost:8000 and able to see the compiled templates using this URL. While your server is running, the page refreshes automatically when you save the file and you could see the changes made to the page in real time as you work.

Foundation - Kitchen Sink

Description

It includes the Foundation elements to work with the web applications smoothly. The following table lists some of the Foundation components −

Sr.No. Component & Description
1 Accordion

Accordions contain vertical tabs which are used on websites to expand and collapse large amount of data.

2 Accordion Menu

It displays the collapsible menu with accordion effects.

3 Badge

Badges are similar to labels, which are used to highlight the information such as important notes and messages.

4 Breadcrumbs

It specifies the current location for a site within navigational hierarchy.

5 Buttons

Foundation supports standard buttons with different styles.

6 Callout

Callout is an element, which can be used to place the content inside.

7 Close Button

It is used to dismiss the alert box.

8 Drilldown Menu

Drilldown menu changes the nested lists into vertical drilldown menu.

9 Dropdown Menu

Dropdown menu is used for displaying links in a list format.

10 Dropdown Pane

Dropdown pane displays the content when you click the button.

11 Flex Video

It is used to create video objects in the web pages.

12 Float Classes

It is used to add utility classes to HTML elements.

13 Forms

It is used to create form layout to collect user input.

14 Label

Labels are inline styles, which define a label for an input element.

15 Media Object

It is used to add media objects such as images, video, blog comments etc. Which can be placed left or right of the content block.

16 Menu

It provides access to different modes in the website.

17 Pagination

It is a type of navigation that divides the content into a series of related pages.

18 Slider

It specifies the range of values by dragging a handle.

19 Switch

It is used to switch between on and off state.

20 Table

It represents the data in rows and columns format.

21 Tabs

It is a navigation based tab that displays the content into different panes without leaving the page.

22 Thumbnail

It styles the images in thumbnail shape.

23 Title Bar

It is used to display the current screen used by the user with other menu items.

24 Tooltip

It is small pop-up box that describes the information when you hover the mouse on the link.

25 Top Bar

It is used to create navigation header in the website.

26 Orbit

It is an easy and powerful slider that swipes the elements using the orbit class.

Foundation - Global Styles

In this chapter, we will study about Global Styles. The global CSS of Foundation framework includes useful resets that makes sure styling is consistent across browsers.

Font Sizing

The font size of the browser style sheet is set to 100% by default. The default font size is set to 16 pixels. Depending on font size, grid size is calculated. To have distinct base font size and unaffected grid breakpoints, set $rem-base to $global-font-size value, which must be in pixels.

Colors

Interactive elements like links and buttons use default shade of blue which comes from SASS variable $primary-color. Components can also have colors such as: secondary, alert, success and warning. For more information check here.

SASS Reference

Variables

The following table lists the SASS variables, which are used to customize the default styles of components in your project _settings.scss.

Sr.No. Name & Description Type Default Value
1

$global-width

It represents the site's global width. Used to determine the grid's row width.

Number rem-calc(1200)
2

$global-font-size

It represents the font size applied to <html> and <body>. It is set 100% by default and the user's browser settings value will be inherited.

Number 100%
3

$global-lineheight

It represents all types of default line height. $global-lineheight is 24px while $global-font-size set to 16px.

Number 1.5
4

$primary-color

It gives color to the interactive components such as links and buttons.

Color #2199e8
5

$secondary-color

It is used with components, which support .secondary class.

Color #777
6

$success-color

It represents the positive status or action when used with .success class.

Color #3adb76
7

$warning-color

It represents a caution status or action when used with .warning class.

Color #ffae00
8

$alert-color

It represents a negative status or action when used with .alert class.

Color #ec5840
9

$light-gray

It is used for light gray UI items.

Color #e6e6e6
10

$medium-gray

It is used for medium gray UI items.

Color #cacaca
11

$dark-gray

It is used for dark gray UI items.

Color #8a8a8a
12

$black

It is used for black UI items.

Color #0a0a0a
13

$white

It is used for white UI items.

Color #fefefe
14

$body-background

It represents the background color of the body.

Color $white
15

$body-font-color

It represents the text color of the body.

Color $black
16

$body-font-family

It represents the list of fonts of the body.

List 'Helvetica Neue', Helvetica, Roboto, Arial, sans-serif
17

$body-antialiased

Antialiased type is enabled by setting this attribute to true using the CSS properties -webkit-font-smoothing and -moz-osx-font-smoothing.

Boolean true
18

$global-margin

It represents the global margin value on components.

Number 1rem
19

$global-padding

It represents global padding value on components.

Number 1rem
20

$global-margin

It represents global margin value used between components.

Number 1rem
21

$global-weight-normal

It represents global font weight for normal type.

Keyword or Number normal
22

$global-weight-bold

It represents global font weight for bold type.

Keyword or Number bold
23

$global-radius

It represents the global value of all elements which has a border radius.

Number 0
24

$global-text-direction

It sets the text direction of the CSS to ltr or rtl

ltr

Foundation - Sass

SASS helps to make the code more flexible and customizable in Foundation.

Compatibility

To install SASS based version for foundation, Ruby should be installed on Windows. Foundation can be compiled with Ruby SASS and libsass. We recommend node-sass 3.4.2+ version to compile SASS.

Autoprefixer Required

Autoprefixer handles SASS files. gulp-autoprefixer is used to build the process. The following autoprefixer setting is used to get proper browser support.

autoprefixer ({
   browsers: ['last 2 versions', 'ie >= 9', 'and_chr >= 2.3']
});

Loading the Framework

We can install the framework files using NPM. Using command line interface (CLI), we can compile the Sass files. Following is the command to load the framework −

npm install foundation-sites --save

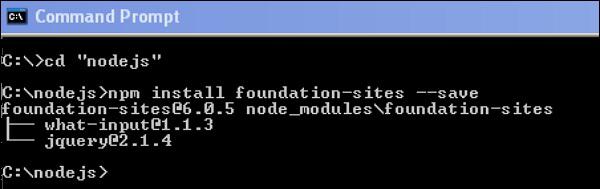

After running the above command line code, you will get the following lines −

Foundation sass

Compiling Manually

Framework files can be added as an import path depending upon on your build process, but the path will be the same packages_folder/foundation-sites/scss. The @import statement is included at the top of the foundation-sites.scss file. The next line in the given code is explained in the Adjusting CSS Output section.

@import 'foundation';
@include foundation-everything;

Using Compiled CSS

You can include the pre-compiled CSS files. There are two types of CSS files, i.e. minified and unminified. Minified version is used for production and the unminified version is used to directly edit the framework CSS.

<link rel = "stylesheet" href = "node_modules/foundation-sites/dist/foundation-sites.css">
<link rel = "stylesheet" href = "node_modules/foundation-sites/dist/foundation-sites.min.css">

Adjusting CSS Output

For various components, Foundation output consist of many classes. It is used to control the CSS output of the framework. Add the following single line of code to include all the components at once.

@include foundation-everything;

The following is the list of the components imported when you write the above code in your scss file. The components which are not necessary can be commented. You can view the below given code lines in the Your_folder_name/node_modules/foundation-sites/scss/foundation.scss file.

@import 'foundation';

@import 'grid/grid';
@import 'typography/typography';
@import 'forms/forms';
@import 'components/visibility';
@import 'components/float';
@import 'components/button';
@import 'components/button-group';
@import 'components/accordion-menu';
@import 'components/accordion';
@import 'components/badge';
@import 'components/breadcrumbs';
@import 'components/callout';
@import 'components/close-button';
@import 'components/drilldown';
...
...
...
//so on....

The Settings File

A settings file is included in the entire foundation project i.e. _settings.scss. If you are using Yeti Launch or the CLI to create a Foundation for Sites project, you can find the settings file under src/assets/scss/.

We have installed Foundation using npm, hence you can find the settings file included under your_folder_name/node_modules/foundation-sites/scss/settings/_settings.scss. You can move this into your own Sass files to work with.

You can write your own CSS, if you are not able to customize with variables. Following is a set of variables, which change the default styling of buttons.

$button-padding: 0.85em 1em;
$button-margin: 0 $global-margin $global-margin 0;
$button-fill: solid;
$button-background: $primary-color;
$button-background-hover: scale-color($button-background, $lightness: -15%);
$button-color: #fff;
$button-color-alt: #000;
$button-radius: $global-radius;

$button-sizes: (
   tiny: 0.6rem,
   small: 0.75rem,
   default: 0.9rem,
   large: 1.25rem,
);
$button-opacity-disabled: 0.25;

Foundation - JavaScript

In this chapter, we will study about JavaScript. It is easy to set up JavaScript in Foundation; only thing you require is jQuery.

JavaScript Installing

You can use ZIP download, package manager, or CDN to get Foundation JavaScript file. In your code you can provide links to jQuery and Foundation as <script> tags, placed before the closing <body> and check that Foundation is loaded after jQuery. For more information click here.

File Structure

When you install Foundation through command line, Foundation plugins downloads as individual files such as foundation.tabs.js, foundation.dropdownMenu.js, foundation.slider.js and so on. All these files are combined into foundation.js, which provides all the plugins at one time. If you wish to use some plugin, first foundation.core.js should be loaded.

For instance −

<script src = "js/jquery.min.js"></script>
<script src = "js/foundation.core.js"></script>
<script src = "js/foundation.tabs.js"></script>

Certain plugins may require particular utility libraries, which come with Foundation installation. You can study in detail about specific plugin requirements in the next chapter JavaScript Utilities.

Loading individual files creates network overhead, specifically for mobile users. For faster page loading, use of grunt or gulp is recommended.

Initializing

The foundation() function is used to initialize all the Foundation plugin at one time.

For instance −

(document).foundation();

Using Plugins

Using data attributes, plugins are connected to HTML elements as they match the plugins’ name. A single HTML element can have only one plugin at a time, although the majority of the plugins can be nested within other ones. For instance, tooltip link is created by adding data-tooltip. For more information click here.

Configuring Plugins

Plugins can be customized by using its configuration settings. For instance, you can set the speed of the accordion slides up and down. The plugin settings can be globally changed using the plugin's DEFAULTS property. For more information click here.

Adding Plugins after Page Load

When new HTML is added to the DOM, any of the plugins on those elements will not be initialized by default. You can check for new plugins by re-calling the .foundation() function.

For instance −

$.ajax('assets/partials/kitten-carousel.html', function(data) {
   $('#kitten-carousel'</span>).html(data).foundation();
});

Programmatic Use

In JavaScript, plugins can be created programmatically and each plugin is global Foundation object's class, with a constructor which takes two parameters such as an element and an object.

var $accordion = new Foundation.Accordion($('#accordion'), {
   slideSpeed: 600, multiExpand: true
});

Majority of the plugins are provided with public API, which lets you manipulate it via JavaScript. You can look through the documentations of plugin to study the available functions and methods can be invoked easily.

For instance −

$('.tooltip').foundation('destroy');
// this will destroy all Tooltips on the page.

$('#reveal').foundation('open');
// this will open a Reveal modal with id `reveal`.

$('[data-tabs]').eq(0).foundation('selectTab', $('#example'));
// this will change the first Tabs on the page to whatever panel you choose.
  • You are allowed to choose any jQuery selector and if the selector holds multiple plugins, then they all will have identical chosen method called.

  • Arguments can be passed just like passing arguments to JavaScript.

  • Methods that are prefixed with underscore(_) are considered as a portion of internal API, meaning, that without warning they can break, change or even disappear.

Events

Whenever a specific function finishes, DOM triggers an event. For instance, whenever tabs are changed, it can be listened and create a return response to it. Each plugin can trigger list of events, which will be documented in plugin's documentation. In Foundation 6, callback plugins are removed and must be taken as event listeners.

For instance −

$('[data-tabs]').on('change.zf.tabs', function() {
   console.log('Tabs are changed!');
});

Foundation - JavaScript Utilities

Foundation includes JavaScript utilities that are used to add common functionalities. It is very helpful and easy to use. This JavaScript utilities library can be found in the folder Your_folder_name/node_modules/foundation-sites/js

Box

  • Foundation.Box library consists of a couple of methods.

  • The js/foundation.util.box.js is the script filename, which can be included while writing the code.

  • Either jQuery objects or plain JavaScript elements can be pass to both methods.

var dims = Foundation.Box.GetDimensions(element);

The returned object specifies the dimension of the element as −

{
   height: 54,
   width: 521,
   offset: {
      left: 198,
      top: 1047
   },

   parentDims: {
      height: ...    //The same format is share for parentDims and windowDims as the element dimensions.
   },

   windowDims: {
      height: ...
   }
}
  • Function ImNotTouchingYou is included.

  • Based on the passed element, a Boolean value is returned, which is either a conflict with edge of the window or optional or a parent element.

  • The two options specified in the line given below i.e. leftAndRightOnly, topAndBottomOnly is used to identify the collision on only one axis.

var clear = Foundation.Box.ImNotTouchingYou (
   element [, parent, leftAndRightOnly, topAndBottomOnly]);

Keyboard

  • There are many methods in Foundation.Keyboard, which helps to make the keyboard event interaction easy.

  • The js/foundation.util.keyboard.js is the script filename, which can be included while writing the code.

  • The object Foundation.Keyboard.keys consist key/value pairs, which keys are used in the framework more frequently.

  • Whenever the key is pressed then Foundation.Keyboard.parseKey is called to get a string. This helps to manage your own keyboard inputs.

The following code is used to find all focusable elements within the given $element. Therefore, there is no need of writing any function and selector by you.

var focusable = Foundation.Keyboard.findFocusable($('#content'));
  • The handleKey function is a main function of this library.

  • This method is used to handle the keyboard event; it can be called whenever any plugin is registered with the utility.

Foundation.Keyboard.register('pluginName', {
   'TAB': 'next'
});

...//in event callback
Foundation.Keyboard.handleKey(event, 'pluginName', {
   next: function(){
      //do stuff
   }
});

The Foundation.Keyboard.register function can be called when you want to use your own key bindings.

MediaQuery

  • MediaQuery library is a backbone of all responsive CSS technique.

  • The js/foundation.util.mediaQuery.js is the script filename, which can be included while writing the code.

  • The Foundation.MediaQuery.atLeast('large') is used to check if the screen is at least as wide as a breakpoint.

  • The Foundation.MediaQuery.get('medium') gets the media query of a breakpoint.

  • The Foundation.MediaQuery.queries are an array of media queries, Foundation uses for breakpoints.

  • The Foundation.MediaQuery.current is a string of the current breakpoint size.

Foundation.MediaQuery.get('medium');
Foundation.MediaQuery.atLeast('large');
Foundation.MediaQuery.queries;
Foundation.MediaQuery.current;

The following code broadcasts the media query change on the window.

$(window).on('changed.zf.mediaquery', function(event, newSize, oldSize){});

Motion & Move

  • Foundation.Motion javascript is similar to Motion UI library, which is included in the Foundation 6. It is used to create custom CSS transitions and animations.

  • The js/foundation.util.motion.js is the script filename, which can be included while writing the code.

  • Foundation.Move is used to make CSS3 backed animation simple and elegant.

  • requestAnimationFrame(); method tells the browser to perform an animation; it requests that your animation function be called before the browser performs the next repaint.

Foundation.Move(durationInMS, $element, function() {
   //animation logic
});

When the animation is completed, finished.zf.animate is fired.

Timer & Images Loaded

Orbit uses both, the function timer and the image loaded. The js/foundation.util.timerAndImageLoader.js is the script filename, which can be included while writing the code.

var timer = new Foundation.Timer($element, {duration: ms, infinite: bool}, callback);

The image-loaded method runs a callback function in your jQuery collection when images are completely loaded.

Foundation.onImagesLoaded($images, callback);

Touch

  • The methods are used for adding pseudo drag events and swipe to elements.

  • The js/foundation.util.touch.js is the script filename, which can be included while writing the code.

  • The addTouch method is used to bind elements to touch events in the Slider plugin for mobile devices.

  • The spotSwipe method binds the elements to swipe events in the Orbit plugin for mobile devices.

$('selector').addTouch().on('mousemove', handleDrag);

$('selector').spotSwipe().on('swipeleft', handleLeftSwipe);

Triggers

  • It triggers the specified event for the selected elements.

  • The js/foundation.util.triggers.js is the script filename, which can be included while writing the code.

  • The triggers are utilized in many Foundation plugin.

$('selector').on('open.zf.trigger', handleOpen);
$('selector').on('close.zf.trigger', handleClose);
$('selector').on('toggle.zf.trigger', handleToggle);

The following two methods are used in this library i.e. resize and scroll.

  • The resize() method triggers the resize event when a resize event occurs.

  • The scroll() method triggers the scroll event when a scroll event occurs.

$('#someId').on('scrollme.zf.trigger', handleScroll);
$('#someId').on('resizeme.zf.trigger', handleResize);

Miscellaneous

  • Foundation contains few features in the core library, which are used in many places.

  • The js/foundation.core.js is the script filename, which can be included while writing the code.

  • Foundation.GetYoDigits([number, namespace]) returns a random base-36 uid with namespacing. It returns the string length of 6 characters long by default.

  • Foundation.getFnName(fn) returns a JavaScript function name.

  • Foundation.transitionend occurs when CSS transition is completed.

Foundation - Media Queries

Media queries are CSS3 module that include media features such as width, height, color and displays the content as per the specified screen resolution.

Foundation uses the following media queries to create breakdown ranges −

  • Small − Used for any screen.

  • Medium − It is used for screens of 640 pixels and wider.

  • Large − It is used for screens of 1024 pixels and wider.

You can change the screen size by using the breakpoint classes. For instance, you can use .small-6 class for small sized screens and .medium-4 class for medium sized screens as shown in the following code snippet −

<div class = "row">
   <div class = "small-6 medium-4 columns"></div>
   <div class = "small-6 medium-8 columns"></div>
</div>

Changing the Breakpoints

You can change the breakpoints, if your application uses SASS version of Foundation. You can place the breakpoints name under the $breakpoints variable in the settings file as shown below −

$breakpoints: (
   small: 0px,
   medium: 640px,
   large: 1024px,
   xlarge: 1200px,
   xxlarge: 1440px,
);

You can change the breakpoints classes in the settings file by modifying the $breakpoint-classes variable. If you want to use .large class in the CSS, then add it to the end of the list as shown below −

$breakpoints-classes: (small medium large);

Suppose, you want to use .xlarge class in the CSS, and then add this class to the end of the list as shown below −

$breakpoints-classes: (small medium large xlarge);

SASS

The Breakpoint Mixin

  • You can write the media queries by using breakpoint() mixin along with @include.

  • Use the down or only keywords along with the breakpoint value to change the behavior of the media query as shown in the following code format −

.class_name {
   // code for medium screens and smaller
   @include breakpoint(medium down) { }

   // code for medium screens only
   @include breakpoint(medium only) { }
}

You can use three media queries portrait, landscape and retina for device orientation or pixel density and they are not width based media queries.

Breakpoint Function

  • You can use the functionality of breakpoint() mixin by using the internal function.

  • The breakpoint() functionality can be used directly to write own media queries −

@media screen and #{breakpoint(medium)} {
   // code for medium screens and up styles
}

JavaScript

Working with Media Queries

  • The Foundation JavaScript provides the MediaQuery.current function to access current breakpoint name on the Foundation.MediaQuery object as specified below −

Foundation.MediaQuery.current
  • The MediaQuery.current function displays small, medium, large as current breakpoint names.

  • You can get the media query of breakpoint using the MediaQuery.get function as shown below −

Foundation.MediaQuery.get('small')

Sass Reference

Variables

The following table lists the SASS variables, which can be used to customize the default styles of the component −

Sr.No. Name & Description Type Default Value
1

$breakpoints

It is a breakpoint name which can be used to write the media queries by using breakpoint() mixin.

Map

small: 0px

medium: 640px

large: 1024px

xlarge: 1200px

xxlarge: 1440px

2

$breakpoint-classes

You can change the CSS class output by modifying the $breakpoint-classes variable.

List small medium large

Mixins

Mixins creates a group of styles to build your CSS class structure for the Foundation components.

BREAKPOINT

It uses breakpoint() mixin to create media queries and includes the following activities −

  • If string is passed, then mixin searches the string in the $breakpoints map and creates the media query.

  • If you are using pixel value, then convert it to em value using $rem-base.

  • If rem value is passed, then it changes its unit to em.

  • If you are using em value, then it can be used as it is.

The following table specifies the parameter used by the breakpoint −

Sr.No. Name & Description Type Default Value
1

$value

It is processes the values by using breakpoint name, px, rem or em values.

keyword or number None

Functions

BREAKPOINT

It uses breakpoint() mixin to create media queries with matching input value.

The following table specifies the possible input value used by the breakpoint −

Sr.No. Name & Description Type Default Value
1

$val

It processes the values by using breakpoint name, px, rem or em values.

keyword or number small

JavaScript Reference

Functions

There are two types of functions −

  • .atLeast − It checks the screen. It must be wide at least as a breakpoint.

  • .get − It is used to get the media query of the breakpoint.

The following table specifies the parameter used by above functions −

Sr.No. Name & Description Type
1

size

It checks and gets the name of the breakpoint for the specified functions respectively.

String

Foundation - The Grid

Description

Foundation grid system scales up to 12 columns through the page. Grid systems are used to create page layouts through a series of rows and columns that house your content.

Grid Options

The following table tells briefly about how the Foundation grid system works in multiple devices.

Small devices Phones(<640px) Medium devices Tablets(>=640px) Large devices Laptops & Desktops(>=1200px)
Grid behavior Horizontal at all times Collapsed to start, horizontal above breakpoints Collapsed to start, horizontal above breakpoints
Class prefix .small-* .medium-* .large-*
Number of columns 12 12 12
Nestable Yes Yes Yes
Offsets Yes Yes Yes
Column ordering Yes Yes Yes

Basic Structure of a Foundation Grid

The following is the basic structure of a Foundation grid −

<div class = "row">
   <div class = "small-*"></div>
   <div class = "medium-*"></div>
   <div class = "large-*"></div>
</div>

<div class = "row">
   ...
</div>
  • First, create a row class to create horizontal groups of columns.

  • Content should be placed within the columns, and only columns may be the immediate children of rows.

  • Grid columns are created by specifying the number of twelve available columns you wish to span. For example, for four equal columns we would use .large-3

The following are the three classes used in the Foundation grid system −

Sr.No. Basic Grid classes & Description
1 Large

The large-* classes is used for the large devices.

2 Medium

The medium-* class is used for the medium devices.

3 Small

small-* class is used for the small devices.

Advanced Grid

The following are the advanced grid formats used in Foundation.

Sr.No. Advanced Grids & Description
1 Combined Column/Row

The column and row classes are used on the same element to get the full width column to use as a container.

2 Nesting

We can nest the grid columns inside another columns.

3 Offsets

Using large-offset-* or small-offset-* class, you can move the columns to the right.

4 Incomplete Rows

Foundation floats the last element automatically to the right when the rows do not include columns up to 12.

5 Collapse/Uncollapse Rows

Using the media query size, the collapse and uncollapse classes are included to the row element to show the paddings.

6 Centered Columns

By including the class small-centered in the column, you can make the column at the center.

7 Source Ordering

Source ordering class is used to shift the columns between the breakpoint.

8 Block Grids

Block-grid is used to split the content.

Building Semantically

Using the set of SASS mixins, a grid CSS is generated which is used to build your own semantic grid. For more information click here

SASS Reference

The following are the SASS reference for grid used in Foundation.

Sr.No. Basic Grids & Description
1 Variables

Using the sass variables we can modify the default styles of this component.

2 Mixins

The final CSS output is build using the mixin.

Foundation - Flex Grid

The grid depends on the flex display property. It consists of a number of features that are available with the flexbox, like automatic stacking, source ordering, vertical alignment and horizontal alignment.

Browser Support

The flex grid is supported in Chrome, Firefox, Internet Explorer 10+, Safari 6+, Android 4+ and iOS 7+.

The following table describes the features of Flex Grid along with the description.

Sr.No. Features & Description
1 Importing

It includes the export mixin for the flex grid to use the default CSS.

2 Basics

The Flex grid structure is similar to that of float grid.

3 Advanced Sizing

If the sizing class is not included in the column, then it expands itself and fills the remaining space in the column.

4 Responsive Adjustments

If the explicit size of column in flex grid is not given, then it will auto-size the columns

5 Column Alignment

The flex grid columns can be aligned horizontal or vertical axis in the parent row.

6 Source Ordering

Source ordering helps to rearrange the column in different size of screens.

7 Sass Reference

SASS (Syntactically Awesome Stylesheet) is a CSS pre-processor which helps to reduce repetition with CSS and saves time.

Foundation - Forms

In this chapter, we will study about Forms. Foundation provides powerful, easy and versatile layout system for Forms, which combines form styles and grid support.

The following table lists the form elements used in Foundation.

Sr.No. Form element & Description
1 Form Basics

Creation of forms is easy and very flexible, which are built with a combination of standardized form elements and powerful grid system.

2 Help Text

It is used to notify the user about the purpose of the element and is usually placed below a field.

3 Label Positioning

You can position your labels left or right of your inputs.

4 Inline Labels and Buttons

Extra text or controls can be attached to the left/right of an input field.

5 Custom Controls

Custom controls like date pickers, switches or sliders require some attention to access it.

6 SASS Reference

You can change the styles of the components by using SASS Reference.

Foundation - Visibility Classes

Description

  • Foundation uses visibility classes to show or hide elements based upon device orientation (portrait and landscape) or screen size (small, medium, large or xlarge screen).

  • It allows a user to use elements based on the browsing environment.

The following table lists the visibility classes of Foundation, which control the elements based on their browsing environment −

Sr.No. Visibility Class & Description
1 Show by Screen Size

It shows the elements based on the device by using .show class.

2 Hide by Screen Size

It hides the elements based on the device by using .hide class.

Foundation supports some classes where you can hide the content by using the .hide and .invisible classes and displays nothing on the page.

Orientation Detection

The devices can determine different orientations by using landscape and portrait functionality. The hand held devices such as mobile phones specifies the different orientations when you rotate them. For desktop, the orientation will be landscape always.

Accessibility

The following table lists the accessibility techniques for screen readers which hides the content while making it readable by screen readers −

Sr.No. Accessibility Class & Description
1 Show for Screen Readers

It uses show-for-sr class to hide the content while preventing screen readers from reading it.

2 Hide for Screen Readers

It uses aria-hidden attribute which makes text visible but could not be read by a screen reader.

3 Creating Skip Links

Screen reader will create a skip link to get the navigation to your site's content.

Sass Reference

Foundation uses the following mixins to display CSS output, which allows building own class structure for your components −

Sr.No. Mixin & Description Parameter Type
1

show-for

By default, it hides an element and displays it above certain screen size.

$size Keyword
2

show-for-only

By default, it hides an element and displays it within breakpoint.

$size Keyword
3

hide-for

By default, it shows an element and hides it above a certain screen size.

$size Keyword
4

hide-for-only

By default, it shows an element and hides it above a certain screen size.

$size Keyword

The default value of all these mixins will be set to none.

Foundation - Base Typography

Description

Typography in Foundation defines headings, paragraphs, lists and other inline elements which create attractive and simple default styles for elements.

The following table lists the different types of typography used in Foundation −

Sr.No. Typography & Description
1 Paragraphs

Paragraph is a group of sentences defined with different font size, highlighted words, line height etc.

2 Header

It defines HTML headings from h1 to h6.

3 Links

It creates a hyperlink that opens another document when you click on the text or an image.

4 Dividers

It is used to give a break between the sections by using <hr> tag.

5 Ordered and Unordered Lists

Foundation supports ordered lists, unordered lists to list the things.

6 Definition Lists

Definition Lists are used to display name value pairs.

7 Blockquotes

It represents block of text, which defines much bigger than normal.

8 Abbreviations and Code

Abbreviation defines a shortened term of word or phrase and code represents a piece of code.

9 Keystrokes

It is used to perform a specific function.

10 Accessibility

Foundation provides some guidelines to access the content of the page.

Sass Reference

You can change the styles of the components by using the following SASS variables as listed in the table.

Sr.No. Name & Description Type Default Value
1

$header-font-family

Specifies the font family for header elements.

String or List $body-font-family
2

$header-font-weight

Specifies font weight of headers.

String $global-weight-normal
3

$header-font-style

Provides font style of headers.

String normal
4

$font-family-monospace

Font stack used for elements that use monospaced type, such as code samples.

String or List Consolas, 'Liberation Mono', Courier, monospace
5

$header-sizes

Defines screen sizes of headings and each key is a breakpoint, and each value is a map of heading sizes.

Map
small: (
   'h1': 24
   'h2': 20
   'h3': 19
   'h4': 18
   'h5': 17
   'h6': 16
)
medium: (
   'h1': 48
   'h2': 40
   'h3': 31
   'h4': 25
   'h5': 20
   'h6': 16
)
6

$header-color

Provides color of the headers.

Color inherit
7

$header-lineheight

Defines line height of headers.

Number 1.4
8

$header-margin-bottom

Provides bottom margin of headers.

Number 0.5rem
9

$header-text-rendering

Defines method for text rendering.

String optimizeLegibility
10

$small-font-size

Specifies font size for <small> elements.

Number 80%
11

$paragraph-margin-bottom

Specifies bottom margin of paragraphs.

Number 1rem
12

$paragraph-text-rendering

Methods for text rendering paragraph.

String optimizeLegibility
13

$code-color

Provides text color to code samples.

Color $black
14

$code-font-family

Provides font family to the code samples.

String or List $font-family-monospace
15

$code-border

Specifies the border around the code.

List 1px solid $medium-gray
16

$code-padding

Specifies the padding around the text.

Number or List rem-calc(2 5 1)
17

$anchor-color

Default color for links.

Color $primary-color
18

$anchor-color-hover

Specifies the default color for links on hover.

Color scale-color($anchor-color, $lightness: -14%)
19

$anchor-text-decoration

Default text decoration for links.

String none
20

$anchor-text-decoration-hover

Default text decoration for links on hover.

String none
21

$hr-width

Defines maximum width of a divider.

Number $global-width
22

$hr-border

Specifies default border for a divider.

List 1px solid $medium-gray
23

$hr-margin

Default margin for a divider.

Number or List rem-calc(20) auto
24

$list-lineheight

It defines line height for items in a list.

Number $paragraph-lineheight
25

$list-style-type

Provides bullet type for unordered lists.

String disc
26

$list-style-position

It defines positioning for bullets on unordered lists.

String outside
27

$list-side-margin

Defines left side (or right) margin.

Number 1.25rem
28

$defnlist-term-weight

Provides font weight for <dt> elements.

String $global-weight-bold
29

$defnlist-term-margin-bottom

Provides spacing between <dt> and <dd> elements.

Number 0.3rem
30

$blockquote-color

It applies text color of <blockquote> elements.

Color $dark-gray
31

$blockquote-padding

Provides padding inside a <blockquote> elements.

Number or List rem-calc(9 20 0 19)
32

$blockquote-border

It gives side border for the <blockquote> elements.

List 1px solid $medium-gray
33

$cite-font-size

Defines font size for the <cite> elements.

Number rem-calc(13)
34

$cite-color

Provides text color for <cite> elements.

Color $dark-gray
35

$keystroke-font

Defines font family for the <kbd> elements.

String or List $font-family-monospace
36

$keystroke-color

Defines text color for the <kbd> elements.

Color $black
37

$keystroke-background

Provides background color for the <kbd> elements.

Color $light-gray
38

$keystroke-padding

Specifies padding for the <kbd> elements.

Number or List rem-calc(2 4 0)
39

$keystroke-radius

Displays the border radius for the <kbd> elements.

Number or List $global-radius
40

$abbr-underline

Provides the bottom border style for the <abbr> elements.

List 1px dotted $black

Foundation - Typography Helpers

In this chapter, we will study about Typography Helpers. Typography helpers are used to format your text in semantically relevant ways. Helper classes in Foundation let you to scaffold some typographic styles quicker.

The following table lists the Typography Helpers, which are used in Foundation.

Sr.No. Typography helper & Description
1 Text Alignment

It helps in changing the element's text alignment like left, right, center and justify.

2 Subheader

Subheaders can be added to any header element by using the .subheader class.

3 Lead Paragraph

It is considerably larger block of text compared to the normal text, which can be used for advertisement or other descriptive text.

4 Un-bulleted List

By default, the <ul> is a bulleted list in Foundation. To remove the bullets, you can use .no-bullet class.

5 Statistics

Whenever you are dealing with dashboard, you need to highlight some important numbers. You can achieve this by using .stat class.

Sass Reference

Variables

The following table lists the SASS variables in the project's settings file that makes the component's default styles to get customized.

Sr.No. Name & Description Type Default Value
1

$lead-font-size

Font size for lead paragraphs by default.

Number $global-font-size * 1.25
2

$lead-lineheight

Line height for lead paragraph by default.

String 1.6
3

$subheader-lineheight

Subheader's default line height.

Number 1.4
4

$subheader-color

Subheader's default font color.

Color $dark-gray
5

$subheader-font-weight

Subheader's default font weight.

String $global-weight-normal
6

$subheader-margin-top

Subheader's default top margin.

Number 0.2rem
7

$subheader-margin-bottom

Subheader's default bottom margin.

Number 0.5rem
8

$stat-font-size

Static number's default font size

Number 2.5rem

Foundation - Basic Controls

In this chapter, we will study about basic controls. Foundation provides basic controls such as buttons, sliders and switches.

The following table lists the basic controls used in Foundation.

Sr.No. Basic control & Description
1 Button

Foundation supports many button styles that can be customized according to your needs.

2 Button Group

They are containers for corresponding action elements. It works fine when group of actions is displayed in a bar.

3 Close Button

Close button is used when you want something to go away by clicking on it.

4 Slider

Sliders are very useful for setting certain values inside a range.

5 Switch

It allows you to turn off or turn on the switch by clicking on it.

Foundation - Navigation

Description

Foundation provides a few different options for styling navigation elements. Many simple navigation patterns are bundled; it can be integrated in the form for robust responsive navigation solution.

The following table describes the different types of navigation along with the description.

Sr.No. Type & Description
1 Navigation Overview

Navigation contains links to the other section and consists of many navigation patterns.

2 Menu

Menu is used to build many navigation components.

3 Dropdown Menu

The dropdown menu plugin is used to create submenus below the main menu.

4 Drilldown Menu

The drilldown menu plugin is used to create submenus in main menu in the slider format.

5 Accordion Menu

It displays the collapsible menu with accordion effects and provides support for auto collapse using the Accordion Menu plugin.

6 Top Bar

Top bar helps to display the complex navigation bar easily on different size of the screen.

7 Responsive Navigation

Responsive menu plugin allocates the menu in different sizes of the screen.

8 Magellan

Magellan creates a navigation, which is in a fixed position; it automatically tracks the navigation list on a page, based on scroll position.

9 Pagination

Pagination, an unordered list is handled by Bootstrap like a lot of other interface elements.

10 Breadcrumbs

A breadcrumb specifies the current location for a site within navigational hierarchy.

Foundation - Containers

Foundation containers are used to make full width of the browsers at all times for the site and wrap the site contents.

The following table lists the down some of the containers used in Foundation −

Sr.No. Container & Description
1 Accordion

Accordions contain vertical tabs which are used on websites to expand and collapse large amount of data.

2 Callout

It places the content inside the component.

3 Dropdown-panes

It displays the content when you click the button.

4 Media Object

It adds media objects such as images, videos, blogs comments, etc. along with some content.

5 Off-canvas

It sets off the navigation menu from the visible area and displays the main content.

6 Reveal-Modal

Foundation allows creating modal dialogs or pop-up windows using reveal class.

7 Tables

Foundation provides layouts for displaying data in tabular format.

8 Tabs

It is a navigation based tab that displays the content into different panes without leaving the page.

Foundation - Media

In this chapter, we will study about media in Foundation. The Foundation consists of several media types like Flex Video, Label, orbit, progress bar and tooltip. The following table lists all the media types.

Sr.No. Media Type & Description
1 Flex Video

It is used to embed videos in a flex video container to keep the right aspect ratio despite the screen size.

2 Label

It can be used for inline styling which can be put into body to invoke specific section or to attach metadata.

3 Orbit

It is a powerful and responsive slider, allowing a user to swipe on touch-screen devices.

4 Progress Bar

It is used to display your progress and can be added to your layouts.

5 Tooltips

It is used to display extra information for a term or action on a page.

Foundation - Plugins

Description

Plugin is a software that provides additional functionality which was not originally completed by Foundation core functionality. Foundation Plugins can be uploaded to expand the functionality of the site. Plugins are used to make your work easier.

The following table describes the different types of Plugins along with the description.

Sr.No. Type & Description
1 Abide

Abide is used in the HTML5 form validation library with native API using the required attributes and patterns.

2 Equalizer

Equalizer is a way to create multiple content with equal heights on your page.

3 Interchange

It is used to load the responsive content according to the user's device.

4 Toggler

Toggle is used to switch from one setting to another.

5 Sticky

Sticky plugin is used to create a constant content or image in the website.

Foundation - Sass Functions

Foundation provides a set of SASS utility functions, which can be used with util, color, selector, unit, value and many more.

You can import all utility files at a time by using the following line of code −

@import 'util/util';

You can also import individual utility files as shown below −

@import 'util/color';
@import 'util/selector';
@import 'util/unit';
@import 'util/value';

Sass Reference

You can change the styles of the components by using the following SASS functions.

foreground

It provides the foreground color to the elements based on the background color. It uses the following format for assigning different types of parameters −

foreground($color, $yes, $no, $threshold)

The above parameters are specified in the following table −

Sr.No. Parameter & Description Type Default Value
1

$color

It checks the lightness of the color.

Color None
2

$yes

If the color is light, then it returns $yes color.

Color $black
3

$no

If the color is dark, then it returns $no color.

Color $white
4

$threshold

It represents the threshold of the lightness.

Percentage 60%

smart-scale

It provides appropriate color for the elements according to its lightness. It uses the following format for specifying the appropriate color −

smart-scale($color, $scale, $threshold)

The above given parameters are specified in the following table −

Sr.No. Parameter & Description Type Default Value
1

$color

It is used to scale the color.

Color None
2

$scale

It specifies the percentage to scale up or down.

Percentage 5%
3

$threshold

It represents the threshold of the lightness.

Percentage 40%

text-inputs

It creates a selector while using the text input type. It uses the following format for specifying the input types −

text-inputs($types)

It uses the parameter as specified in the following table −

Sr.No. Parameter & Description Type Default Value
1

$types

It provides a number of text input types for generating a selector.

Color -

strip-unit

It removes the unit from the value and returns only the number. It uses the following format for removing the unit from value −

strip-unit($num)

It uses the parameter as specified in the following table −

Sr.No. Parameter & Description Type Default Value
1

$num

It specifies the number when you remove the unit from the value.

Color None

rem-calc

It changes the pixel value to match the rem values. It uses the following format for converting pixel values to rem values −

rem-calc($values, $base)

It uses the following parameters as specified in the table −

Sr.No. Parameter & Description Type Default Value
1

$values

It converts the pixel values to rem values and separate them using spaces. If you are converting comma separated list, then wrap list in parentheses.

Number or List None
2

$base

It provides the base value while converting pixel to rem value. If there is null value for the base, then function uses the $base-font-size variable as the base.

Number null

has-value

It specifies the value if it is not false. The false values include null, none, 0 or an empty list. It uses the following format for specifying the value −

has-value($val)

It uses the parameter as specified in the following table −

Sr.No. Parameter & Description Type Default Value
1

$val

It checks the specified value.

Mixed None

get-side

It specifies the side of a value and defines the top/right/bottom/left values on padding, margin etc. It uses the following format for specifying the side of a value −

has-value($val)

It uses the following parameters as specified in the table −

Sr.No. Parameter & Description Type Default Value
1

$val

It specifies the side of a value.

List or Number None
2

$side

It determines on which side the (top/right/bottom/left) value should return.

Keyword None

get-border-value

It determines the border value of an element. It uses the following format for specifying the border value −

get-border-value($val, $elem)

It uses the following parameters as specified in the table −

Sr.No. Parameter & Description Type Default Value
1

$val

It finds a specific value of the border.

List None
2

$elem

It is used to extract the border component.

Keyword None

Foundation - Sass Mixins

Importing

It imports the contents of the SASS mixins which are placed under the scss/util/_mixins.scss file. You can import the SASS mixins by using the following line of code −

@import 'util/mixins';

Sass Reference

You can change the styles of the components by using the SASS functions.

Mixins

You can use the following mixins to build the CSS class structure for your components.

CSS-TRIANGLE

It is used for creating dropdown arrows, dropdown pips and many more. It uses <i>&::before</i> or <i>&::after</i> selector for attaching a triangle to an existing element. It uses the following format −

@include css-triangle($triangle-size, $triangle-color, $triangle-direction);

It uses following parameters as specified in the table −

Sr.No. Parameter & Description Type Default Value
1

$triangle-size

It defines the width of the triangle.

Number None
2

$triangle-color

It defines the color of the triangle.

Color None
3

$triangle-direction

It defines the direction of the triangle such as up, right, down or left.

Keyword None

HAMBURGER

It is used for creating menu icon with width, height, number of bars and colors. It uses the following format −

@include hamburger($color, $color-hover, $width, $height, $weight, $bars);

It uses following parameters as specified in the table −

Sr.No. Parameter & Description Type Default Value
1

$color

It defines the color for the icon.

Color None
2

$color-hover

It defines the color when you hover on the icon.

Color None
3

$width

It defines the width of the icon.

Number None
4

$height

It defines the height of the icon.

Number None
5

$weight

It defines the weight of individual bars in the icon.

Number None
6

$bars

It defines the number of bars in the icon.

Number None

BACKGROUND-TRIANGLE

It is used for specifying the background image to an element. It uses the following format −

@include background-triangle($color);

It uses the parameter as specified in the table −

Sr.No. Parameter & Description Type Default Value
1

$color

It defines the color for the triangle.

Color $black

CLEARFIX

This mixin automatically clears the children elements, so that there is no need of additional markup. It uses the following format −

@include clearfix;

AUTO-WIDTH

It automatically sizes the elements based on the number of elements present in the container. It uses the following format −

@include auto-width($max, $elem);

It uses the following parameters as specified in the table −

Sr.No. Parameter & Description Type Default Value
1

$max

It identifies the maximum number of items in the container.

Number None
2

$elem

It uses a tag for sibling selectors.

Keyword li

DISABLE-MOUSE-OUTLINE

It is used to disable the outline around the element when it identifies the mouse input action. It uses the following format −

@include disable-mouse-outline;

ELEMENT-INVISIBLE

It is used to hide the elements and can be available to keyboards and other devices. It uses the following format −

@include element-invisible;

ELEMENT-INVISIBLE-OFF

It is used to remove the invisible elements and reverses the CSS output by using the element-invisible() mixin. It uses the following format −

@include element-invisible-off;

VERTICAL-CENTER

It is used to place the elements vertically-centered inside the non-static parent element by using the following format −

@include vertical-center;

HORIZONTAL-CENTER

It is used to place the elements horizontally-centered inside the non-static parent element by using the following format −

@include horizontal-center;

ABSOLUTE-CENTER

It is used to place the elements absolutely-centered inside the non-static parent element by using the following format −

@include absolute-center;

Foundation - Motion UI

Foundation provides Motion UI library for creating UI transitions and animations and is used by Foundation components such as Toggler, Reveal and Orbit.

Installing Motion UI

You can install Motion UI library in your project by using npm or bower as shown in the following line of code −

$ npm install motion-ui --save-dev
bower install motion-ui --save-dev

You can add a path for Motion UI library in the Compass by using config.rb as shown in the following line of code −

add_import_path 'node_modules/motion-ui/src'

You can include the path in the gulp-sass using the following lines of code −

gulp.src('./src/scss/app.scss')
   .pipe(sass( {
      includePaths: ['node_modules/motion-ui/src']
   }));

Import the Motion UI library in the SASS file using the following code −

@import 'motion-ui'

Built-in Transitions

Foundation provides transition effects by using transition classes which are created by Motion UI library. Let us create one simple example using transition effects.

Custom Transitions

You can set the custom transition classes using Motion UI library. For instance, we will set custom classes for mui-hinge() transition, which rotates the element −

@include mui-hinge(
   $state: in,
   $from: right,
   $turn-origin: from-back,
   $duration: 0.5s,
   $timing: easeInOut
);

Animation

You can use Motion UI transition effects for creating CSS animations. Click this link to check how animation works on the modal using data-animation class.

Advertisements
