Excel Data Analysis - Conditional Formatting


Advertisements

In Microsoft Excel, you can use Conditional Formatting for data visualization. You have to specify formatting for a cell range based on the contents of the cell range. The cells that meet the specified conditions would be formatted as you have defined.

Example

In a range containing the sales figures of the past quarter for a set of salespersons, you can highlight those cells representing who have met the defined target, say, $2500.

You can set the condition as total sales of the person >= $2500 and specify a color code green. Excel checks each cell in the range to determine whether the condition you specified, i.e., total sales of the person >= $2500 is satisfied.

Excel applies the format you chose, i.e. the green color to all the cells that satisfy the condition. If the content of a cell does not satisfy the condition, the formatting of the cell remains unchanged. The result is as expected, only for the salespersons who have met the target, the cells are highlighted in green – a quick visualization of the analysis results.

You can specify any number of conditions for formatting by specifying Rules. You can pick up the rules that match your conditions from

  • Highlight cells rules
  • Top / Bottom rules

You can also define your own rules. You can −

  • Add a rule
  • Clear an existing rule
  • Manage the defined rules

Further, you have several formatting options in Excel to choose the ones that are appropriate for your Data Visualization −

  • Data Bars
  • Color Scales
  • Icon Sets

Conditional formatting has been promoted over the versions Excel 2007, Excel 2010, Excel 2013. The examples you find in this chapter are from Excel 2013.

In the following sections, you will understand the conditional formatting rules, formatting options and how to work with rules.

Highlight Cells Rules

You can use Highlight Cells rule to assign a format to cells whose contents meet any of the following criteria −

  • Numbers within a given numerical range −
    • Greater Than
    • Less Than
    • Between
    • Equal To
  • Text that contains a given text string.
  • Date occurring within a given range of dates relative to the current date −
    • Yesterday
    • Today
    • Tomorrow
    • In the last 7 days
    • Last week
    • This week
    • Next week
    • Last month
    • This Month
    • Next month
  • Values that are duplicate or unique.

Follow the steps to conditionally format cells −

  • Select the range to be conditionally formatted.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click Highlight Cells Rules from the drop-down menu.

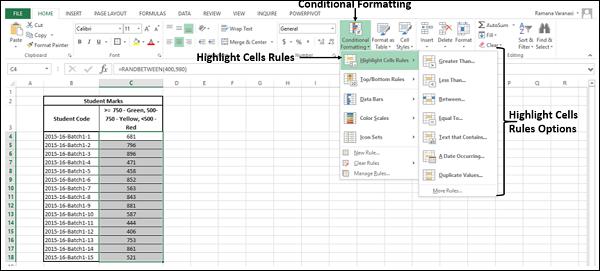

Highlight Cells Rules
  • Click Greater Than and specify >750. Choose green color.

  • Click Less Than and specify < 500. Choose red color.

  • Click Between and specify 500 and 750. Choose yellow color.

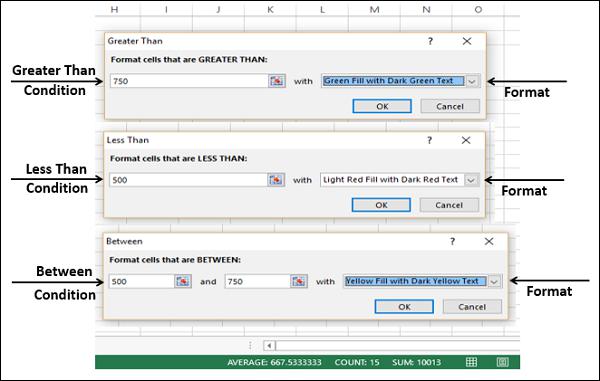

Rules

The data will be highlighted based on the given conditions and the corresponding formatting.

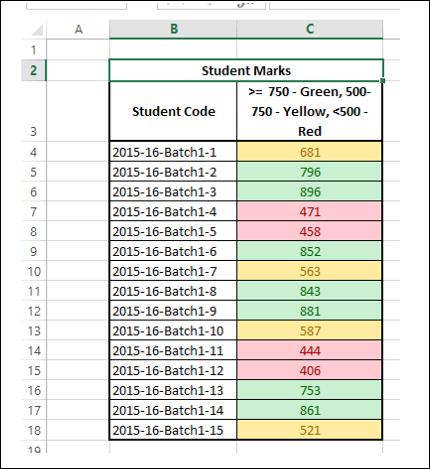

Data Highlighted

Top / Bottom Rules

You can use Top / Bottom Rules to assign a format to cells whose contents meet any of the following criteria −

  • Top 10 items − Cells that rank in the top N, where 1 <= N <= 1000.

  • Top 10% − Cells that rank in the top n%, where 1 <= n <= 100.

  • Bottom 10 items − Cells that rank in the bottom N, where 1 <= N <= 1000.

  • Bottom 10% − Cells that rank in the bottom n%, where 1 <= n <= 100.

  • Above average − Cells that are above average for the selected range.

  • Below average − Cells that are below average for the selected range.

Follow the steps given below to assign the Top/Bottom rules.

  • Select the range to be conditionally formatted.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click Top/Bottom Rules from the drop-down menu. Top/Bottom rules options appear.

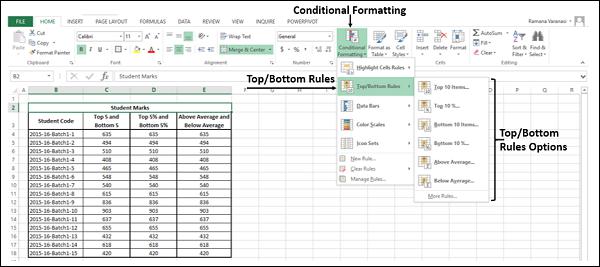

Top/Bottom Rules
  • Click Top Ten Items and specify 5. Choose green color.

  • Click Bottom Ten Items and specify 5. Choose red color.

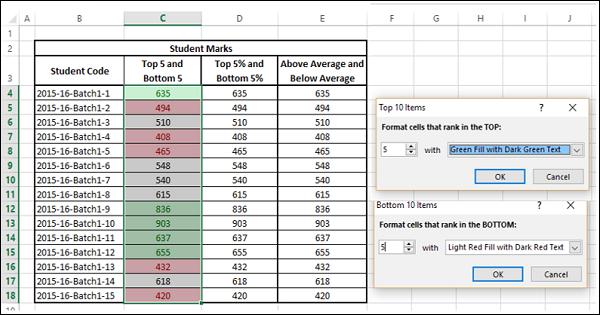

Choose Green and Red Color

The data will be highlighted based on the given conditions and the corresponding formatting.

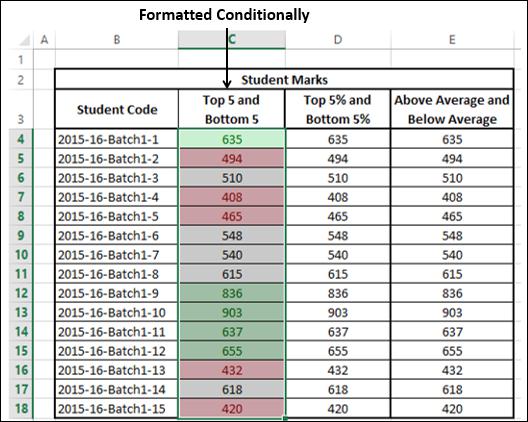

D Cell Formatted Conditionally
  • Repeat the first three steps given above.

  • Click Top Ten% and specify 5. Choose green color.

  • Click Bottom Ten% and specify 5. Choose red color.

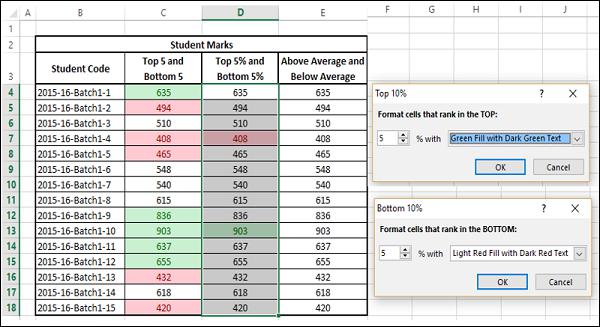

Choose Red Color for D cell

The data will be highlighted based on the given conditions and the corresponding formatting.

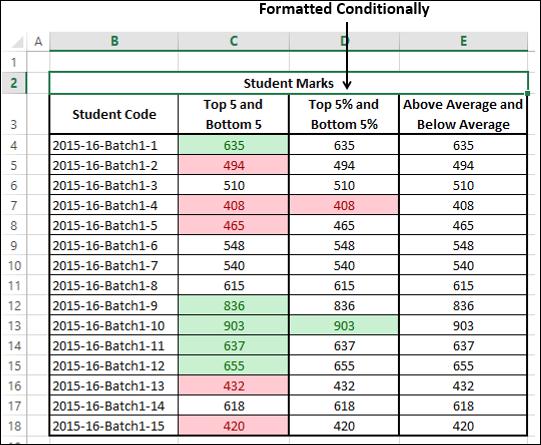

D Cell Highlighted Data
  • Repeat the first three steps given above.

  • Click Above Average. Choose green color.

  • Click Below Average. Choose red color.

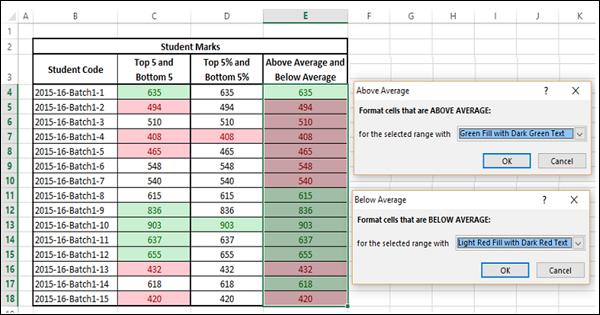

Choose Red Color for E cell

The data will be highlighted based on the given conditions and the corresponding formatting.

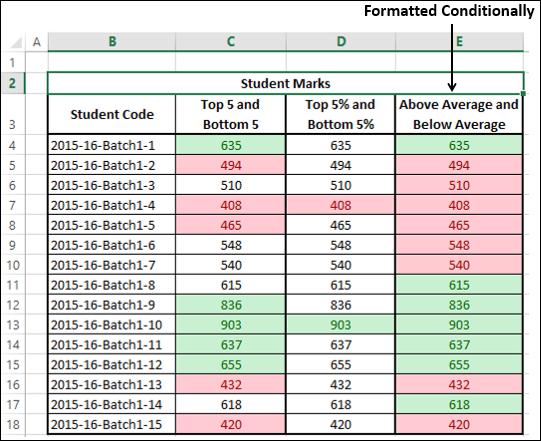

E Cell Highlighted Data

Data Bars

You can use colored Data Bars to see the value in a cell relative to the values in the other cells. The length of the data bar represents the value in the cell. A longer bar represents a higher value, and a shorter bar represents a lower value. You have six solid colors to choose from for the data bars – blue, green, red, yellow, light blue and purple.

Data bars are helpful in visualizing the higher, lower and intermediate values when you have large amounts of data. Example - Day temperatures across regions in a particular month. You can use gradient fill color bars to visualize the value in a cell relative to the values in other cells. You have six Gradient Colors to choose from for the Data Bars – Blue, Green, Red, Yellow, Light Blue and Purple.

  • Select the range to be formatted conditionally.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click Data Bars from the drop-down menu. The Gradient Fill options and Fill options appear.

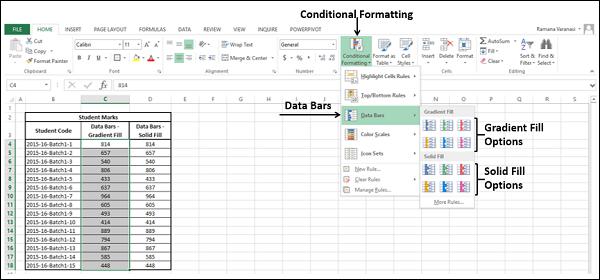

Data Bars

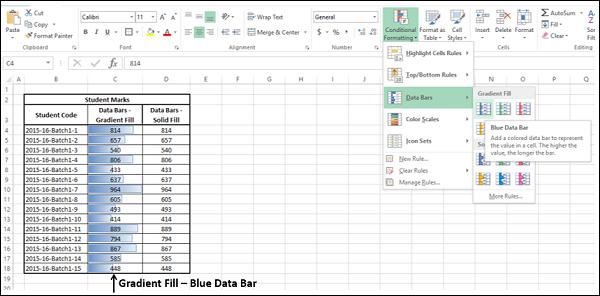

Click the blue data bar in the Gradient Fill options.

Gradient Fill
  • Repeat the first three steps.

  • Click the blue data bar in the Solid Fill options.

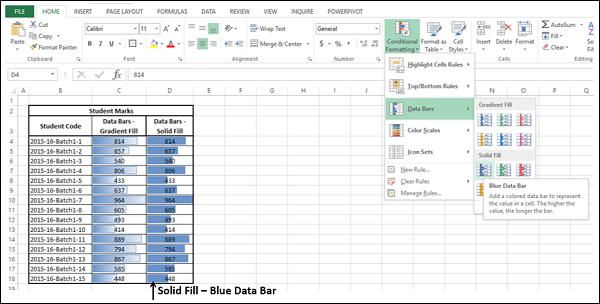

Solid Fill

You can also format data bars such that the data bar starts in the middle of the cell, and stretches to the left for negative values and stretches to the right for positive values.

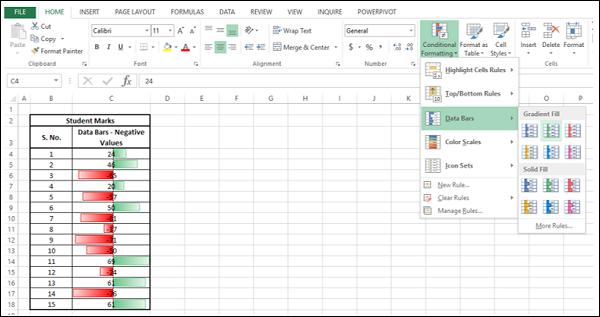

Stretches to Left and Right

Color Scales

You can use Color Scales to see the value in a cell relative to the values in the other cells in a given range. As in the case of Highlight Cells Rules, a Color Scale uses cell shading to display the differences in cell values. A color gradient will be applied to a range of cells. The color indicates where each cell value falls within that range.

You can choose from −

  • Three - Color Scale −
    • Green – Yellow – Red Color Scale
    • Red – Yellow – Green Color Scale
    • Green – White – Red Color Scale
    • Red – White – Green Color Scale
    • Blue – White – Red Color Scale
    • Red – White – Blue Color Scale
  • Two-Color Scale −
    • White – Red Color Scale
    • Red – White Color Scale
    • Green – White Color Scale
    • White – Green Color Scale
    • Green – Yellow Color Scale
    • Yellow – Green Color Scale

Follow the steps given below −

  • Select the Range to be conditionally formatted.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click Color Scales from the drop-down menu. The Color Scale options appear.

  • Click the Green – Yellow – Red Color Scale.

The Data will be highlighted based on the Green – Yellow – Red color scale in the selected range.

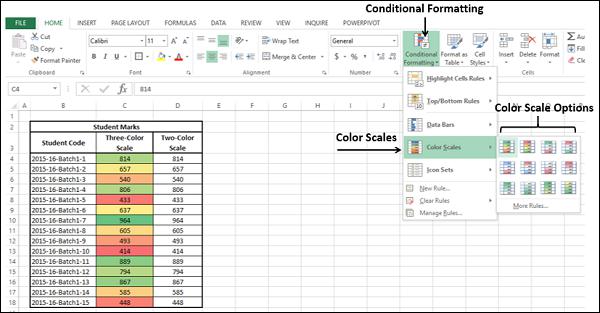

Green Yellow Red Color
  • Repeat the first three steps.
  • Click the Green – White color scale.

The data will be highlighted based on the Green – White color scale in the selected range.

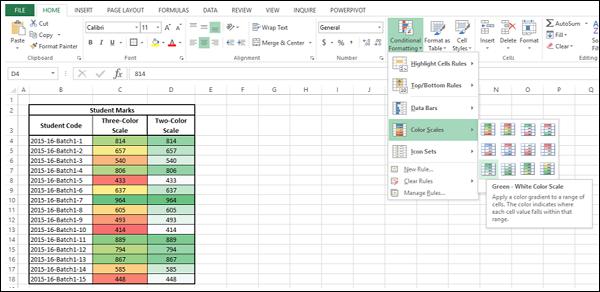

Green White Color Scale

Icon Sets

You can use the icon sets to visualize numerical differences. The following icon sets are available −

Icon Sets

As you observe, an icon set consists of three to five symbols. You can define criteria to associate an icon with each value in a cell range. For example, a red down arrow for small numbers, a green up arrow for large numbers, and a yellow horizontal arrow for intermediate values.

  • Select the range to be conditionally formatted.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click Icon Sets from the drop-down menu. The Icon Sets options appear.

  • Click the colored three arrows.

Colored Arrows appear next to the Data based on the Values in the selected range.

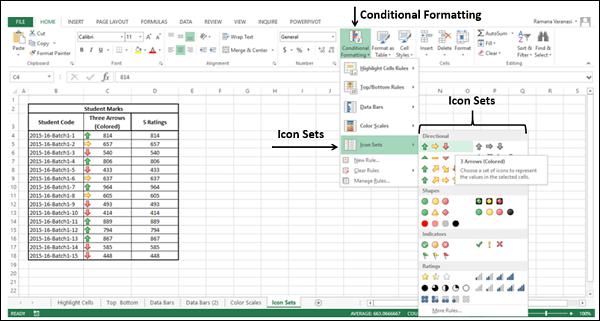

Colored Arrows
  • Repeat the first three steps. The Icon Sets options appear.

  • Select 5 Ratings. The Rating Icons appear next to the data based on the values in the selected range.

Rating Icons

New Rule

You can use New Rule to create your own formula as a condition to format a cell as you define.

There are two ways to use New Rule −

  • With New Rule option from the drop-down menu

  • With New Rule button in Manage Rules dialog box

With New Rule option from the Drop-Down Menu

  • Select the Range to be conditionally formatted.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click New Rule from the drop-down menu.

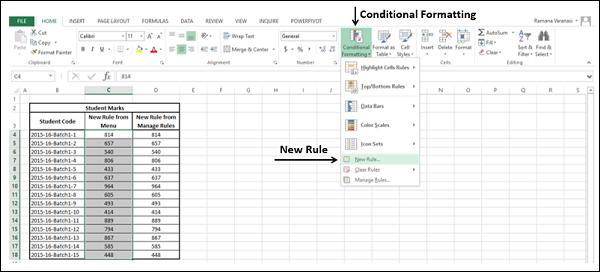

Drop Down Menu

The New Formatting Rule dialog box appears.

  • From the Select a Rule Type Box, select Use a formula to determine which cells to format. Edit the Rule Description box appears.

  • In the format values where this formula is true: type the formula.

  • Click the format button and click OK.

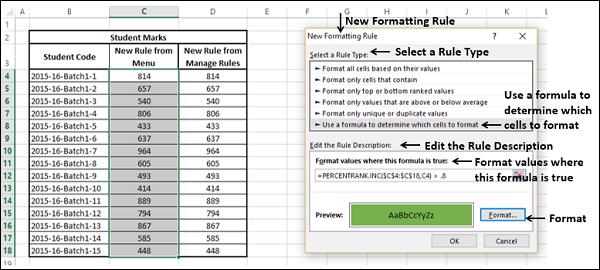

Edit Rule Description

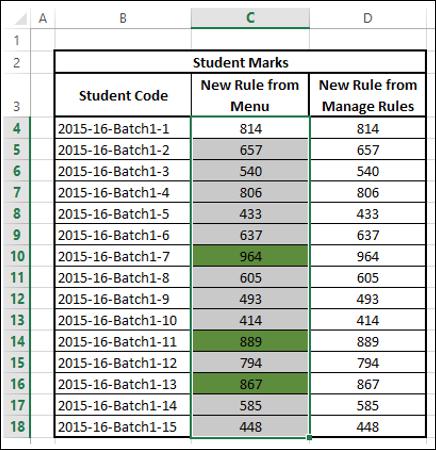

Cells that contain values with the formula TRUE, are formatted as defined.

Cells with Values

With New Rule Button in Manage Rules dialog box

  • Select the range to be conditionally formatted.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click Manage Rules from the drop-down menu.

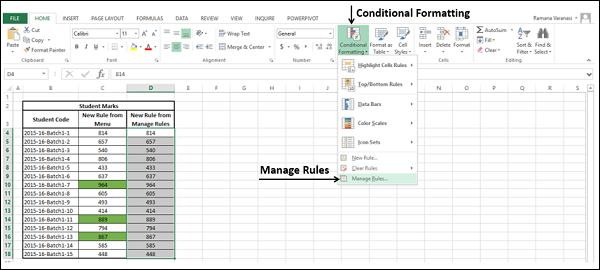

New Rule Button

The Conditional Formatting Rules Manager dialog box appears.

Click the New Rule button.

Conditional Formatting Rules Manager

The New Formatting Rule dialog box appears.

Repeat the Steps given above to define your formula and format.

Define Formula and Format

The Conditional Formatting Rules Manager dialog box appears with defined New Rule highlighted. Click the Apply button.

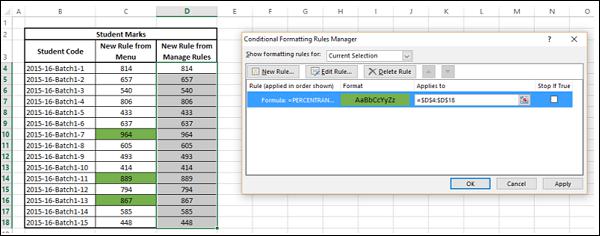

Click Apply Button

Cells that contain values with the formula TRUE, are formatted as defined.

Cells

Clear Rules

You can Clear Rules to delete all conditional formats you have created for

  • Selected cells
  • Current Worksheet
  • Selected Table
  • Selected PivotTable

Follow the given steps −

  • Select the Range / Click on a Worksheet / Click the table > PivotTable where conditional formatting rules need to be removed.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click Clear Rules from the drop-down menu. The Clear rules options appear.

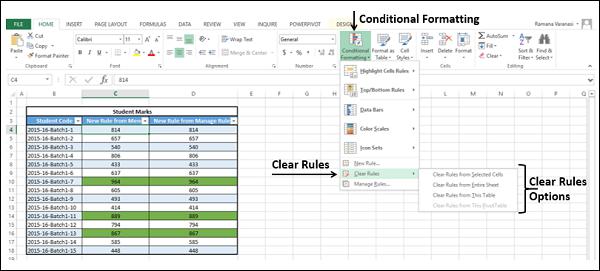

Clear Rules

Select the appropriate option. The conditional formatting is cleared from the Range / Worksheet / Table / PivotTable.

Manage Rules

You can Manage Rulesfrom the Conditional Formatting Rules Manager window. You can see formatting rules for the current selection, for the entire current worksheet, for the other worksheets in the workbook or the tables or PivotTables in the workbook.

  • Click Conditional Formatting in the Styles group under Home tab.

  • Click Manage Rules from the drop-down menu.

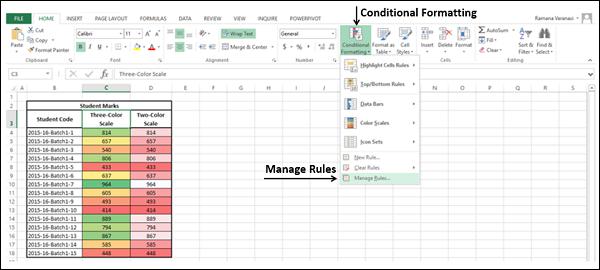

Manage Rules

The Conditional Formatting Rules Manager dialog box appears.

Click the arrow in the List Box next to Show formatting rules for Current Selection, This Worksheet and other Sheets, Tables, PivotTable if exist with Conditional Formatting Rules, appear.

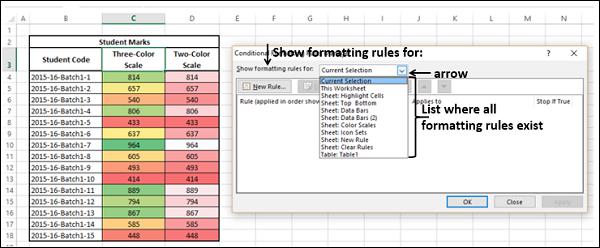

Show Formatting Rules

Select This Worksheet from the drop-down list. Formatting Rules on the current Worksheet appear in the order that they will be applied. You can change this order by using the up and down arrows.

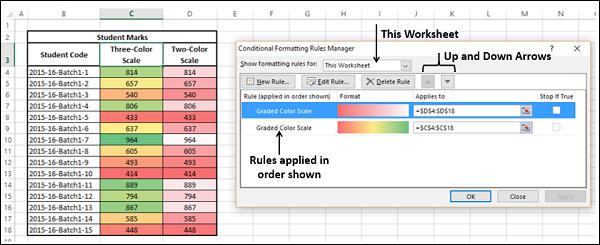

Worksheet Drop-down

You can add a New Rule, Edit a Rule and Delete a Rule.

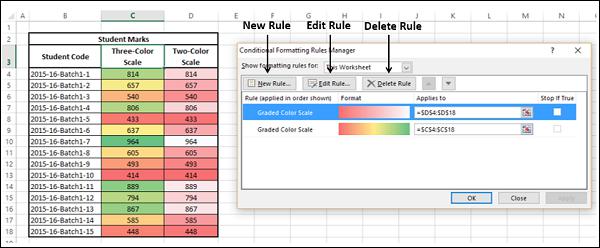

Add New Edit and Delete Rule
  • You have already seen New Rule in the earlier section. You can delete a rule by selecting the Rule and clicking Delete Rule. The highlighted Rule is deleted.

  • To edit a Rule, select the RULE and click on Edit Rule. Edit Formatting Rule dialog box appears.

  • You can

    • Select a Rule Type

    • Edit the Rule Description

    • Edit Formatting

  • Once you are done with the changes, click OK.

  • The changes for the Rule will be reflected in the Conditional Formatting Rules Manager dialog box. Click Apply.

  • The data will be highlighted based on the modified Conditional Formatting Rules.

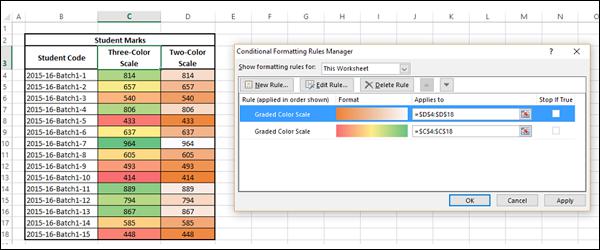

modified Conditional Formatting Rules
