Drools - Eclipse Plugin


Advertisements

Here are the prerequisites to install Drools Plugin −

  • Java 1.5 (or higher) SE JDK
  • Eclipse 4.2 (or any version) and the Drools plugin

As Drools is a BRMS (Business Rule Management System) written in Java, we will be covering how to add the desired plugins in this section. Considering maximum Java users use Eclipse, let’s see how to add the Drools 5.x.0 plugin in Eclipse.

Step 1: Download the Binaries

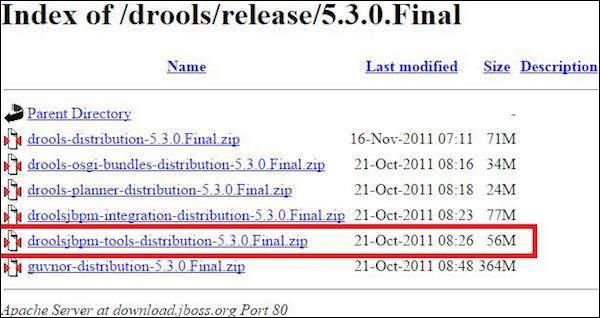

Download the binaries from the following link −

https://download.jboss.org/drools/release/5.3.0.Final/

Binaries Download

After the download is complete, extract the files to your hard disk.

Step 2: Install the Software

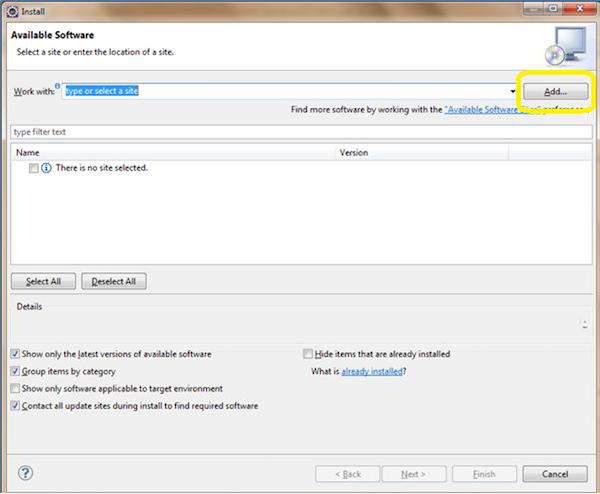

Launch Eclipse and go to help→install new software. Click on Add as shown in the following screenshot.

Available Software

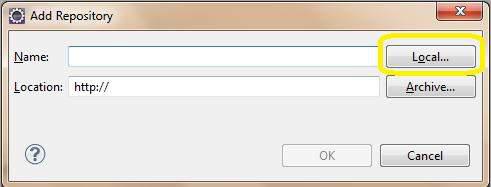

Thereafter, click on Local as shown here and select "…/binaries/org.drools.updatesite".

Add Repository

Select Drools and jBPM and click Next.

Drools and jBPM

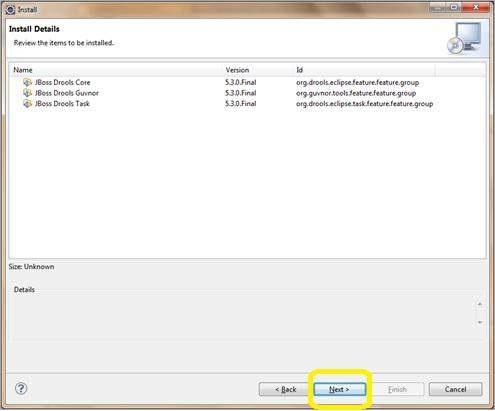

Again click Next. Thereafter, accept the terms and license agreement and click Finish.

Install Details

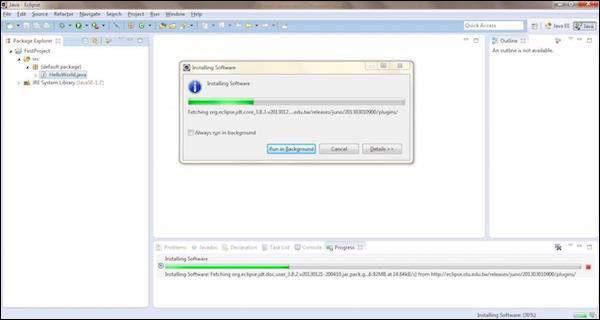

Upon clicking Finish, the software installation starts −

Installation

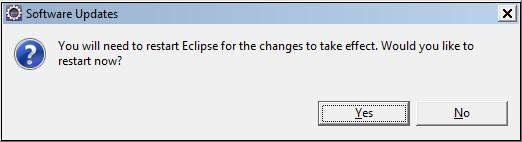

Post successful installation, you will get the following dialog box −

Software Updates

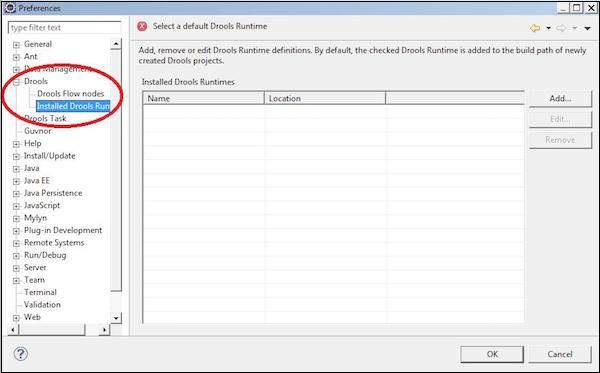

Click on yes. Once Eclipse restarts, go to Windows → Preferences

Drools Runtime

You can see Drools under your preferences. Your Drools plugin installation is complete now.
