Digital Circuits - K-Map Method
In previous chapters, we have simplified the Boolean functions using Boolean postulates and theorems. It is a time consuming process and we have to re-write the simplified expressions after each step.
To overcome this difficulty, Karnaugh introduced a method for simplification of Boolean functions in an easy way. This method is known as Karnaugh map method or K-map method. It is a graphical method, which consists of 2n cells for ‘n’ variables. The adjacent cells are differed only in single bit position.
K-Maps for 2 to 5 Variables
K-Map method is most suitable for minimizing Boolean functions of 2 variables to 5 variables. Now, let us discuss about the K-Maps for 2 to 5 variables one by one.
2 Variable K-Map

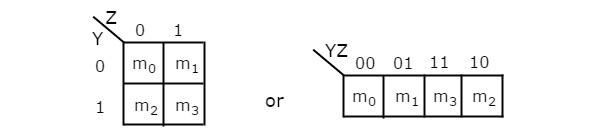

The number of cells in 2 variable K-map is four, since the number of variables is two. The following figure shows 2 variable K-Map.
There is only one possibility of grouping 4 adjacent min terms.
The possible combinations of grouping 2 adjacent min terms are {(m0, m1), (m2, m3), (m0, m2) and (m1, m3)}.
3 Variable K-Map

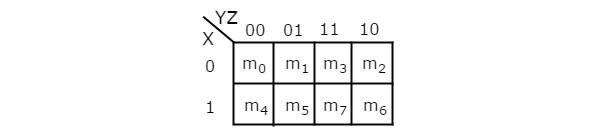

The number of cells in 3 variable K-map is eight, since the number of variables is three. The following figure shows 3 variable K-Map.
There is only one possibility of grouping 8 adjacent min terms.
The possible combinations of grouping 4 adjacent min terms are {(m0, m1, m3, m2), (m4, m5, m7, m6), (m0, m1, m4, m5), (m1, m3, m5, m7), (m3, m2, m7, m6) and (m2, m0, m6, m4)}.
The possible combinations of grouping 2 adjacent min terms are {(m0, m1), (m1, m3), (m3, m2), (m2, m0), (m4, m5), (m5, m7), (m7, m6), (m6, m4), (m0, m4), (m1, m5), (m3, m7) and (m2, m6)}.
If x=0, then 3 variable K-map becomes 2 variable K-map.
4 Variable K-Map

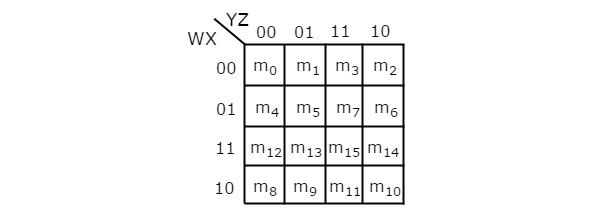

The number of cells in 4 variable K-map is sixteen, since the number of variables is four. The following figure shows 4 variable K-Map.
There is only one possibility of grouping 16 adjacent min terms.
Let R1, R2, R3 and R4 represents the min terms of first row, second row, third row and fourth row respectively. Similarly, C1, C2, C3 and C4 represents the min terms of first column, second column, third column and fourth column respectively. The possible combinations of grouping 8 adjacent min terms are {(R1, R2), (R2, R3), (R3, R4), (R4, R1), (C1, C2), (C2, C3), (C3, C4), (C4, C1)}.
If w=0, then 4 variable K-map becomes 3 variable K-map.
5 Variable K-Map

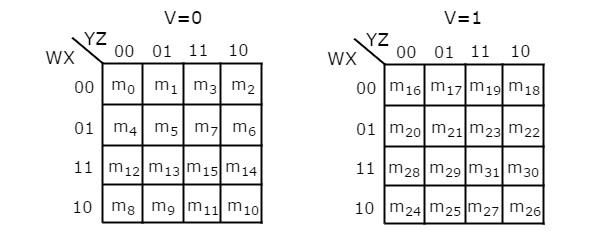

The number of cells in 5 variable K-map is thirty-two, since the number of variables is 5. The following figure shows 5 variable K-Map.
There is only one possibility of grouping 32 adjacent min terms.
There are two possibilities of grouping 16 adjacent min terms. i.e., grouping of min terms from m0 to m15 and m16 to m31.
If v=0, then 5 variable K-map becomes 4 variable K-map.
In the above all K-maps, we used exclusively the min terms notation. Similarly, you can use exclusively the Max terms notation.
Minimization of Boolean Functions using K-Maps
If we consider the combination of inputs for which the Boolean function is ‘1’, then we will get the Boolean function, which is in standard sum of products form after simplifying the K-map.
Similarly, if we consider the combination of inputs for which the Boolean function is ‘0’, then we will get the Boolean function, which is in standard product of sums form after simplifying the K-map.
Follow these rules for simplifying K-maps in order to get standard sum of products form.
Select the respective K-map based on the number of variables present in the Boolean function.
If the Boolean function is given as sum of min terms form, then place the ones at respective min term cells in the K-map. If the Boolean function is given as sum of products form, then place the ones in all possible cells of K-map for which the given product terms are valid.
Check for the possibilities of grouping maximum number of adjacent ones. It should be powers of two. Start from highest power of two and upto least power of two. Highest power is equal to the number of variables considered in K-map and least power is zero.
Each grouping will give either a literal or one product term. It is known as prime implicant. The prime implicant is said to be essential prime implicant, if atleast single ‘1’ is not covered with any other groupings but only that grouping covers.
Note down all the prime implicants and essential prime implicants. The simplified Boolean function contains all essential prime implicants and only the required prime implicants.
Note 1 − If outputs are not defined for some combination of inputs, then those output values will be represented with don’t care symbol ‘x’. That means, we can consider them as either ‘0’ or ‘1’.
Note 2 − If don’t care terms also present, then place don’t cares ‘x’ in the respective cells of K-map. Consider only the don’t cares ‘x’ that are helpful for grouping maximum number of adjacent ones. In those cases, treat the don’t care value as ‘1’.
Example
Let us simplify the following Boolean function, f(W, X, Y, Z)= WX’Y’ + WY + W’YZ’ using K-map.

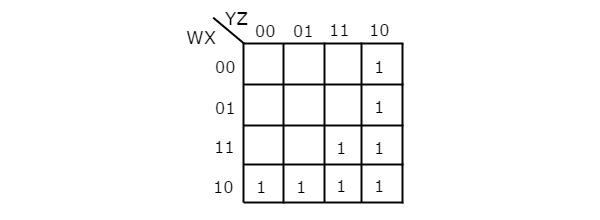

The given Boolean function is in sum of products form. It is having 4 variables W, X, Y & Z. So, we require 4 variable K-map. The 4 variable K-map with ones corresponding to the given product terms is shown in the following figure.
Here, 1s are placed in the following cells of K-map.
The cells, which are common to the intersection of Row 4 and columns 1 & 2 are corresponding to the product term, WX’Y’.
The cells, which are common to the intersection of Rows 3 & 4 and columns 3 & 4 are corresponding to the product term, WY.
The cells, which are common to the intersection of Rows 1 & 2 and column 4 are corresponding to the product term, W’YZ’.

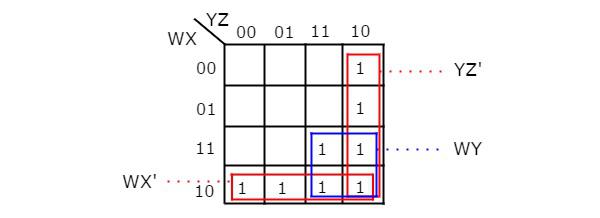

There are no possibilities of grouping either 16 adjacent ones or 8 adjacent ones. There are three possibilities of grouping 4 adjacent ones. After these three groupings, there is no single one left as ungrouped. So, we no need to check for grouping of 2 adjacent ones. The 4 variable K-map with these three groupings is shown in the following figure.
Here, we got three prime implicants WX’, WY & YZ’. All these prime implicants are essential because of following reasons.
Two ones (m8 & m9) of fourth row grouping are not covered by any other groupings. Only fourth row grouping covers those two ones.
Single one (m15) of square shape grouping is not covered by any other groupings. Only the square shape grouping covers that one.
Two ones (m2 & m6) of fourth column grouping are not covered by any other groupings. Only fourth column grouping covers those two ones.
Therefore, the simplified Boolean function is
f = WX’ + WY + YZ’
Follow these rules for simplifying K-maps in order to get standard product of sums form.
Select the respective K-map based on the number of variables present in the Boolean function.
If the Boolean function is given as product of Max terms form, then place the zeroes at respective Max term cells in the K-map. If the Boolean function is given as product of sums form, then place the zeroes in all possible cells of K-map for which the given sum terms are valid.
Check for the possibilities of grouping maximum number of adjacent zeroes. It should be powers of two. Start from highest power of two and upto least power of two. Highest power is equal to the number of variables considered in K-map and least power is zero.
Each grouping will give either a literal or one sum term. It is known as prime implicant. The prime implicant is said to be essential prime implicant, if atleast single ‘0’ is not covered with any other groupings but only that grouping covers.
Note down all the prime implicants and essential prime implicants. The simplified Boolean function contains all essential prime implicants and only the required prime implicants.
Note − If don’t care terms also present, then place don’t cares ‘x’ in the respective cells of K-map. Consider only the don’t cares ‘x’ that are helpful for grouping maximum number of adjacent zeroes. In those cases, treat the don’t care value as ‘0’.
Example
Let us simplify the following Boolean function, $f\left ( X,Y,Z \right )=\prod M\left ( 0,1,2,4 \right )$ using K-map.

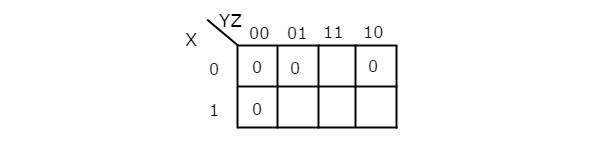

The given Boolean function is in product of Max terms form. It is having 3 variables X, Y & Z. So, we require 3 variable K-map. The given Max terms are M0, M1, M2 & M4. The 3 variable K-map with zeroes corresponding to the given Max terms is shown in the following figure.

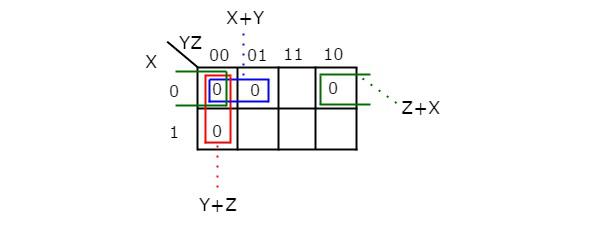

There are no possibilities of grouping either 8 adjacent zeroes or 4 adjacent zeroes. There are three possibilities of grouping 2 adjacent zeroes. After these three groupings, there is no single zero left as ungrouped. The 3 variable K-map with these three groupings is shown in the following figure.
Here, we got three prime implicants X + Y, Y + Z & Z + X. All these prime implicants are essential because one zero in each grouping is not covered by any other groupings except with their individual groupings.
Therefore, the simplified Boolean function is
f = (X + Y).(Y + Z).(Z + X)
In this way, we can easily simplify the Boolean functions up to 5 variables using K-map method. For more than 5 variables, it is difficult to simplify the functions using K-Maps. Because, the number of cells in K-map gets doubled by including a new variable.
Due to this checking and grouping of adjacent ones (min terms) or adjacent zeros (Max terms) will be complicated. We will discuss Tabular method in next chapter to overcome the difficulties of K-map method.
