To run Cucumber test with Java, following are the steps.

Step 1 − Install Java −

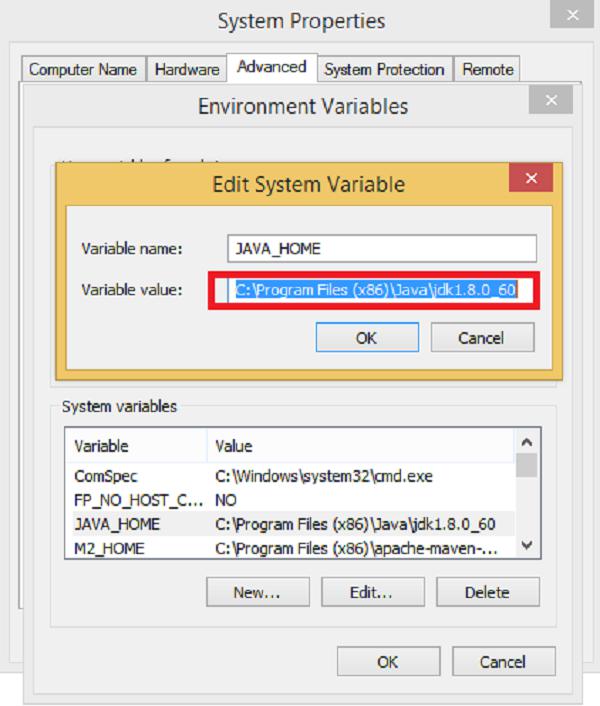

Environment Variable

Step 2 − Install Eclipse IDE −

Step 3 − Install Maven −

Apache Maven

  • Edit Path variable and include Maven.

  • Download MAVEN plugin from Eclipse

    • Open Eclipse.

    • Got to Help → Eclipse Marketplace → Search maven → Maven Integration for Eclipse →INSTALL

Step 4 − Configure Cucumber with Maven.

  • Create a Maven project.

    • Go to File → New → Others → Maven → Maven Project → Next.

    • Provide group Id (group Id will identify your project uniquely across all projects).

    • Provide artifact Id (artifact Id is the name of the jar without version. You can choose any name which is in lowercase).

    • Click on Finish.

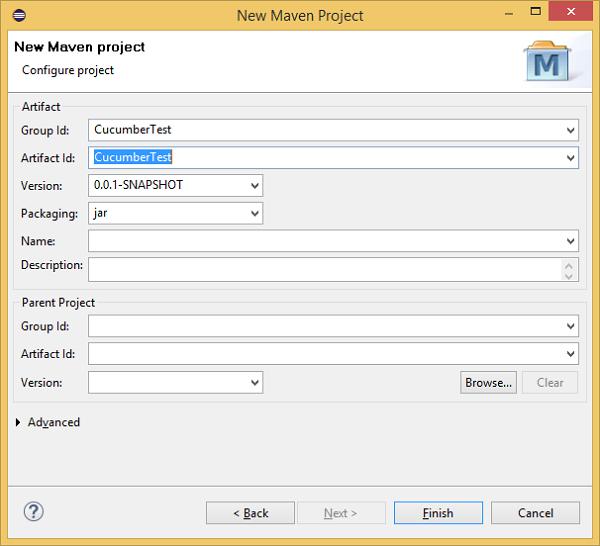

Maven Project

Step 5 − Open pom.xml −

  • Go to the package explorer on the left hand side of Eclipse.

  • Expand the project CucumberTest.

  • Locate pom.xml file.

  • Right-click and select the option, Open with “Text Editor”.

Step 6 − Add dependency for Selenium − This will indicate Maven, which Selenium jar files are to be downloaded from the central repository to the local repository.

  • Open pom.xml is in edit mode, create dependencies tag (<dependencies></dependencies>), inside the project tag.

  • Inside the dependencies tag, create dependency tag. (<dependency></dependency>)

  • Provide the following information within the dependency tag.

<dependency>
   <groupId>org.seleniumhq.selenium</groupId>
   <artifactId>selenium-java</artifactId>
   <version>2.47.1</version>
</dependency>

Step 7 − Add dependency for Cucumber-Java − This will indicate Maven, which Cucumber files are to be downloaded from the central repository to the local repository.

  • Create one more dependency tag.

  • Provide following information within the dependency tag.

<dependency>
   <groupId>info.cukes</groupId>
   <artifactId>cucumber-java</artifactId>
   <version>1.0.2</version>
   <scope>test</scope>
</dependency>

Step 8 − Add dependency for Cucumber-JUnit − This will indicate Maven, which Cucumber JUnit files are to be downloaded from the central repository to the local repository.

  • Create one more dependency tag.

  • Provide the following information within the dependency tag.

<dependency>
   <groupId>info.cukes</groupId>
   <artifactId>cucumber-junit</artifactId>
   <version>1.0.2</version>
   <scope>test</scope>
</dependency>

Step 9− Add dependency for JUnit − This will indicate Maven, which JUnit files are to be downloaded from the central repository to the local repository.

  • Create one more dependency tag.

  • Provide the following information within the dependency tag.

<dependency>
   <groupId>junit</groupId>
   <artifactId>junit</artifactId>
   <version>4.10</version>
   <scope>test</scope>
</dependency>

Step 10 − Verify binaries.

  • Once pom.xml is edited successfully, save it.

  • Go to Project → Clean − It will take a few minutes.

  • You will be able to see a Maven repository.

Step 11 − Create a package under src/test/java named as cucumberJava.

Step 12 − Create feature file

  • Select and right-click on the package outline.

  • Click on ‘New’ file.

  • Give the file a name such as cucumberJava.feature.

  • Write the following text within the file and save it.

    Feature: CucumberJava

    Scenario: Login functionality exists

    Given I have open the browser

    When I open Facebook website

    Then Login button should exits

Step 13 − Create step definition file −

  • Select and right-click on the package outline.

  • Click on ‘New’ file.

  • Give the file name a name such as annotation.java.

  • Write the following text within the file and save it.

package CucumberJava;

import org.openqa.selenium.By;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.firefox.FirefoxDriver;

import cucumber.annotation.en.Given;
import cucumber.annotation.en.Then;
import cucumber.annotation.en.When;

public class cucumberJava {
   WebDriver driver = null;

   @Given("^I have open the browser$")
   public void openBrowser() {
      driver = new FirefoxDriver();
   }

   @When("^I open Facebook website$")
   public void goToFacebook() {
      driver.navigate().to("https://www.facebook.com/");
   }

   @Then("^Login button should exits$")
   public void loginButton() {
      if(driver.findElement(By.id("u_0_v")).isEnabled()) {
         System.out.println("Test 1 Pass");
      } else {
         System.out.println("Test 1 Fail");
      }
      driver.close();
   }
}

Step 14 − Create a runner class file.

  • Select and right-click on the package outline.

  • Click on ‘New’ file.

  • Give the file name as runTest.java.

  • Write the following text within the file and save it.

package cucumberJava;

import org.junit.runner.RunWith;
import cucumber.junit.Cucumber;

@RunWith(Cucumber.class)
@Cucumber.Options(format = {"pretty", "html:target/cucumber"})

public class runTest { }

Step 15 − Run the test using option −

  • Select runTest.java file from the package explorer.

  • Right-click and select the option, Run as.

  • Select JUnit test.

You will observe the following things upon execution −

  • An instance of Firefox web browser will open.

  • It will open the Facebook login page on the browser.

  • It will detect the login button.

  • The browser will close.

  • In the JUnit window, you will see a scenario with green tick mark, which indicates success of the test execution.
