Combinational circuit is a circuit in which we combine the different gates in the circuit, for example encoder, decoder, multiplexer and demultiplexer. Some of the characteristics of combinational circuits are following −

  • The output of combinational circuit at any instant of time, depends only on the levels present at input terminals.

  • The combinational circuit do not use any memory. The previous state of input does not have any effect on the present state of the circuit.

  • A combinational circuit can have an n number of inputs and m number of outputs.

Block diagram

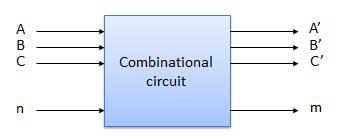

Block Diagram of combinational circuit

We're going to elaborate few important combinational circuits as follows.

Half Adder

Half adder is a combinational logic circuit with two inputs and two outputs. The half adder circuit is designed to add two single bit binary number A and B. It is the basic building block for addition of two single bit numbers. This circuit has two outputs carry and sum.

Block diagram

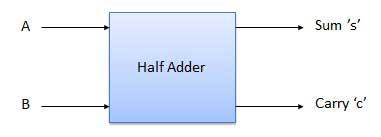

Block Diagram of Half Adder

Truth Table

Half Adder Truth Table

Circuit Diagram

Half Adder Circuit Diagram

Full Adder

Full adder is developed to overcome the drawback of Half Adder circuit. It can add two one-bit numbers A and B, and carry c. The full adder is a three input and two output combinational circuit.

Block diagram

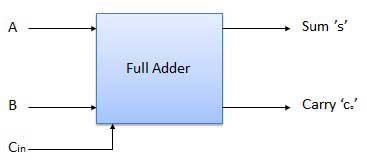

Block Diagram of Full Adder

Truth Table

Full Adder Truth Table

Circuit Diagram

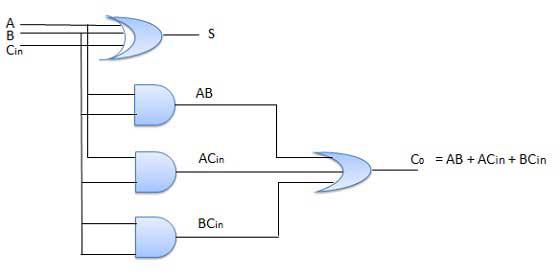

Full Adder Circuit Diagram

N-Bit Parallel Adder

The Full Adder is capable of adding only two single digit binary number along with a carry input. But in practical we need to add binary numbers which are much longer than just one bit. To add two n-bit binary numbers we need to use the n-bit parallel adder. It uses a number of full adders in cascade. The carry output of the previous full adder is connected to carry input of the next full adder.

4 Bit Parallel Adder

In the block diagram, A0 and B0 represent the LSB of the four bit words A and B. Hence Full Adder-0 is the lowest stage. Hence its Cin has been permanently made 0. The rest of the connections are exactly same as those of n-bit parallel adder is shown in fig. The four bit parallel adder is a very common logic circuit.

Block diagram

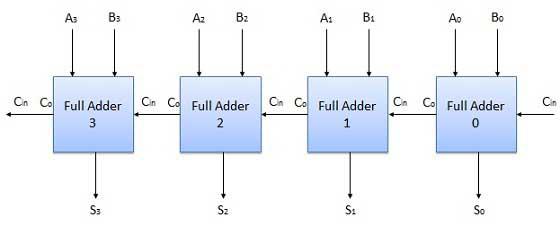

Block Diagram of Four bit Adder

N-Bit Parallel Subtractor

The subtraction can be carried out by taking the 1's or 2's complement of the number to be subtracted. For example we can perform the subtraction (A-B) by adding either 1's or 2's complement of B to A. That means we can use a binary adder to perform the binary subtraction.

4 Bit Parallel Subtractor

The number to be subtracted (B) is first passed through inverters to obtain its 1's complement. The 4-bit adder then adds A and 2's complement of B to produce the subtraction. S3 S2 S1 S0 represents the result of binary subtraction (A-B) and carry output Cout represents the polarity of the result. If A > B then Cout = 0 and the result of binary form (A-B) then Cout = 1 and the result is in the 2's complement form.

Block diagram

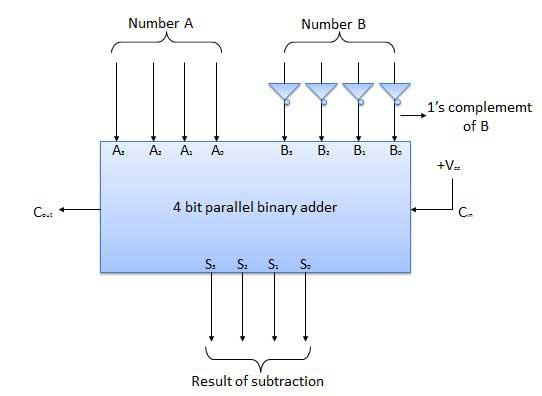

Block Diagram of Four bit Substrator

Half Subtractors

Half subtractor is a combination circuit with two inputs and two outputs (difference and borrow). It produces the difference between the two binary bits at the input and also produces an output (Borrow) to indicate if a 1 has been borrowed. In the subtraction (A-B), A is called as Minuend bit and B is called as Subtrahend bit.

Truth Table

Half Substractor Truth Table

Circuit Diagram

Half Substractor Circuit Diagram

Full Subtractors

The disadvantage of a half subtractor is overcome by full subtractor. The full subtractor is a combinational circuit with three inputs A,B,C and two output D and C'. A is the 'minuend', B is 'subtrahend', C is the 'borrow' produced by the previous stage, D is the difference output and C' is the borrow output.

Truth Table

Full Substractor Truth Table

Circuit Diagram

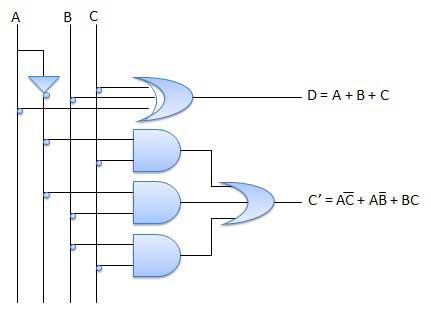

Full Substractor Circuit Diagram

Multiplexers

Multiplexer is a special type of combinational circuit. There are n-data inputs, one output and m select inputs with 2m = n. It is a digital circuit which selects one of the n data inputs and routes it to the output. The selection of one of the n inputs is done by the selected inputs. Depending on the digital code applied at the selected inputs, one out of n data sources is selected and transmitted to the single output Y. E is called the strobe or enable input which is useful for the cascading. It is generally an active low terminal that means it will perform the required operation when it is low.

Block diagram

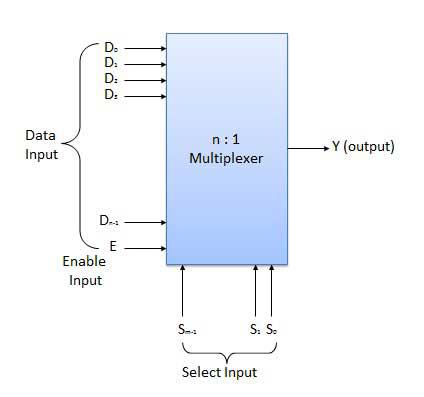

Block Diagram of n:1 Multiplexer

Multiplexers come in multiple variations

  • 2 : 1 multiplexer
  • 4 : 1 multiplexer
  • 16 : 1 multiplexer
  • 32 : 1 multiplexer

Block Diagram

2:1 Multiplexer Block Diagram

Truth Table

2:1 Multiplexer Truth Table

Demultiplexers

A demultiplexer performs the reverse operation of a multiplexer i.e. it receives one input and distributes it over several outputs. It has only one input, n outputs, m select input. At a time only one output line is selected by the select lines and the input is transmitted to the selected output line. A de-multiplexer is equivalent to a single pole multiple way switch as shown in fig.

Demultiplexers comes in multiple variations.

  • 1 : 2 demultiplexer
  • 1 : 4 demultiplexer
  • 1 : 16 demultiplexer
  • 1 : 32 demultiplexer

Block diagram

Block Diagram of 1:2 Demultiplexer

Truth Table

1:2 Demultiplexer Truth Table

Decoder

A decoder is a combinational circuit. It has n input and to a maximum m = 2n outputs. Decoder is identical to a demultiplexer without any data input. It performs operations which are exactly opposite to those of an encoder.

Block diagram

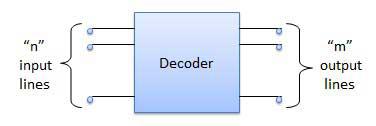

Block Diagram of Decoder

Examples of Decoders are following.

  • Code converters
  • BCD to seven segment decoders
  • Nixie tube decoders
  • Relay actuator

2 to 4 Line Decoder

The block diagram of 2 to 4 line decoder is shown in the fig. A and B are the two inputs where D through D are the four outputs. Truth table explains the operations of a decoder. It shows that each output is 1 for only a specific combination of inputs.

Block diagram

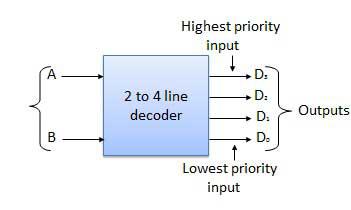

Block Diagram of 2 to 4 Decoder

Truth Table

Truth Table of 2 to 4 Decoder

Logic Circuit

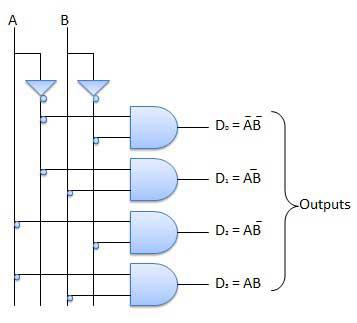

Logic Circuit of 2 to 4 Decoder

Encoder

Encoder is a combinational circuit which is designed to perform the inverse operation of the decoder. An encoder has n number of input lines and m number of output lines. An encoder produces an m bit binary code corresponding to the digital input number. The encoder accepts an n input digital word and converts it into an m bit another digital word.

Block diagram

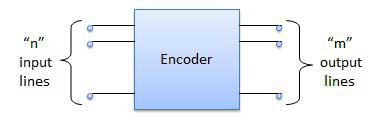

Block Diagram of encoder

Examples of Encoders are following.

  • Priority encoders
  • Decimal to BCD encoder
  • Octal to binary encoder
  • Hexadecimal to binary encoder

Priority Encoder

This is a special type of encoder. Priority is given to the input lines. If two or more input line are 1 at the same time, then the input line with highest priority will be considered. There are four input D0, D1, D2, D3 and two output Y0, Y1. Out of the four input D3 has the highest priority and D0 has the lowest priority. That means if D3 = 1 then Y1 Y1 = 11 irrespective of the other inputs. Similarly if D3 = 0 and D2 = 1 then Y1 Y0 = 10 irrespective of the other inputs.

Block diagram

Block Diagram of Priority Encoder

Truth Table

Truth Table of Priority Encoder

Logic Circuit

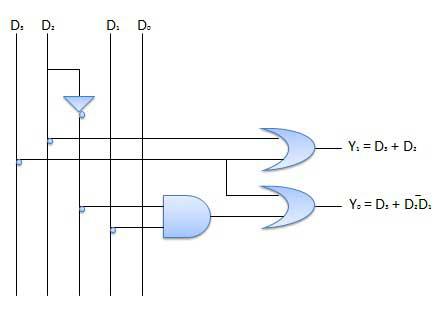

Logic Circuit of Priority Encoder
