CMMI - Maturity Levels


Advertisements

A maturity level is a well-defined evolutionary plateau toward achieving a mature software process. Each maturity level provides a layer in the foundation for continuous process improvement.

CMMI models with staged representation, have five maturity levels designated by the numbers 1 through 5. They are −

  • Initial
  • Managed
  • Defined
  • Quantitatively Managed
  • Optimizing

CMMI Staged Representation Maturity Levels

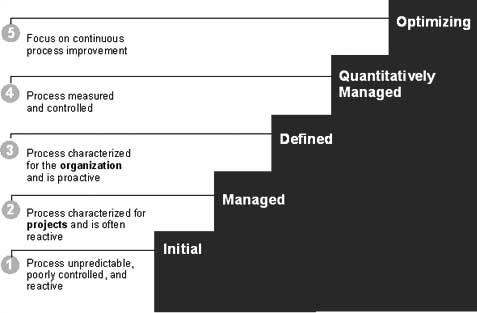

The following image shows the maturity levels in a CMMI staged representation.

CMMI Staged Approach

Now we will learn the details about each maturity level. Next section will list down all the process areas related to these maturity levels.

Maturity Level Details

Maturity levels consist of a predefined set of process areas. The maturity levels are measured by the achievement of the specific and generic goals that apply to each predefined set of process areas. The following sections describe the characteristics of each maturity level in detail.

Maturity Level 1 Initial

At maturity level 1, processes are usually ad hoc and chaotic. The organization usually does not provide a stable environment. Success in these organizations depend on the competence and heroics of the people in the organization and not on the use of proven processes.

Maturity level 1 organizations often produce products and services that work; however, they frequently exceed the budget and schedule of their projects.

Maturity level 1 organizations are characterized by a tendency to over commit, abandon processes in the time of crisis, and not be able to repeat their past successes.

Maturity Level 2 Managed

At maturity level 2, an organization has achieved all the specific and generic goals of the maturity level 2 process areas. In other words, the projects of the organization have ensured that requirements are managed and that processes are planned, performed, measured, and controlled.

The process discipline reflected by maturity level 2 helps to ensure that existing practices are retained during times of stress. When these practices are in place, projects are performed and managed according to their documented plans.

At maturity level 2, requirements, processes, work products, and services are managed. The status of the work products and the delivery of services are visible to management at defined points.

Commitments are established among relevant stakeholders and are revised as needed. Work products are reviewed with stakeholders and are controlled.

The work products and services satisfy their specified requirements, standards, and objectives.

Maturity Level 3 Defined

At maturity level 3, an organization has achieved all the specific and generic goals of the process areas assigned to maturity levels 2 and 3.

At maturity level 3, processes are well characterized and understood, and are described in standards, procedures, tools, and methods.

A critical distinction between maturity level 2 and maturity level 3 is the scope of standards, process descriptions, and procedures. At maturity level 2, the standards, process descriptions, and procedures may be quite different in each specific instance of the process (for example, on a particular project).

At maturity level 3, the standards, process descriptions, and procedures for a project are tailored from the organization's set of standard processes to suit a particular project or organizational unit. The organization's set of standard processes includes the processes addressed at maturity level 2 and maturity level 3. As a result, the processes that are performed across the organization are consistent except for the differences allowed by the tailoring guidelines.

Another critical distinction is that at maturity level 3, processes are typically described in more detail and more rigorously than at maturity level 2. At maturity level 3, processes are managed more proactively using an understanding of the interrelationships of the process activities and detailed measures of the process, its work products, and its services.

Maturity Level 4 Quantitatively Managed

At maturity level 4, an organization has achieved all the specific goals of the process areas assigned to maturity levels 2, 3, and 4 and the generic goals assigned to maturity levels 2 and 3.

At maturity level 4, sub-processes are selected that significantly contribute to the overall process performance. These selected sub-processes are controlled using statistical and other quantitative techniques.

Quantitative objectives for quality and process performance are established and used as criteria in managing the processes. Quantitative objectives are based on the needs of the customer, end users, organization, and process implementers. Quality and process performance are understood in statistical terms and are managed throughout the life of the processes.

For these processes, detailed measures of process performance are collected and statistically analyzed. Special causes of process variation are identified and, where appropriate, the sources of special causes are corrected to prevent future occurrences.

Quality and process performance measures are incorporated into the organization's measurement repository to support fact-based decision making in the future.

A critical distinction between maturity level 3 and maturity level 4 is the predictability of process performance. At maturity level 4, the performance of processes is controlled using statistical and other quantitative techniques, and is quantitatively predictable. At maturity level 3, processes are only qualitatively predictable.

Maturity Level 5 Optimizing

At maturity level 5, an organization has achieved all the specific goalsof the process areas assigned to maturity levels 2, 3, 4, and 5 and the generic goals assigned to maturity levels 2 and 3.

Processes are continually improved based on a quantitative understanding of the common causes of variation inherent in processes.

This level focuses on continually improving process performance through both incremental and innovative technological improvements.

The quantitative process-improvement objectives for the organization are established, continually revised to reflect changing business objectives, and used as criteria in managing process improvement.

The effects of deployed process improvements are measured and evaluated against the quantitative process-improvement objectives. Both the defined processes and the organization's set of standard processes are targets of measurable improvement activities.

Optimizing processes that are agile and innovative, depends on the participation of an empowered workforce aligned with the business values and objectives of the organization. The organization's ability to rapidly respond to changes and opportunities is enhanced by finding ways to accelerate and share learning. Improvement of the processes is inherently a role that everybody has to play, resulting in a cycle of continual improvement.

A critical distinction between maturity level 4 and maturity level 5 is the type of process variation addressed. At maturity level 4, processes are concerned with addressing special causes of process variation and providing statistical predictability of the results. Though processes may produce predictable results, the results may be insufficient to achieve the established objectives. At maturity level 5, processes are concerned with addressing common causes of process variation and changing the process (that is, shifting the means of the process performance) to improve process performance (while maintaining statistical predictability) to achieve the established quantitative process-improvement objectives.

Maturity Levels Should Not be Skipped

Each maturity level provides a necessary foundation for effective implementation of processes at the next level.

  • Higher level processes have less chance of success without the discipline provided by lower levels.

  • The effect of innovation can be obscured in a noisy process.

Higher maturity level processes may be performed by organizations at lower maturity levels, with the risk of not being consistently applied in a crisis.

Maturity Levels and Process Areas

Here is a list of all the corresponding process areas defined for a software organization. These process areas may be different for different organization.

This section provides the names of the related process areas. For more details about these Process Areas go through the CMMI Process Areas Chapter.

Level Focus Key Process Area Result
5

Optimizing

Continuous Process Improvement

Organizational Innovation and Deployment

Causal Analysis and Resolution

Highest Quality / Lowest Risk
4

Quantitatively Managed

Quantitatively Managed

Organizational Process Performance

Quantitative Project Management

Higher Quality / Lower Risk
3

Defined

Process Standardization

Requirements Development

Technical Solution

Product Integration

Verification

Validation

Organizational Process Focus

Organizational Process Definition

Organizational Training

Integrated Project Mgmt (with IPPD extras)

Risk Management

Decision Analysis and Resolution

Integrated Teaming (IPPD only)

Org. Environment for Integration (IPPD only)

Integrated Supplier Management (SS only)

Medium Quality / Medium Risk
2

Managed

Basic Project Management

Requirements Management

Project Planning

Project Monitoring and Control

Supplier Agreement Management

Measurement and Analysis

Process and Product Quality Assurance

Configuration Management

Low Quality / High Risk
1

Initial

Process is informal and Adhoc   Lowest Quality / Highest Risk
