Object studio is mainly used to develop the objects. Inside the object, we have different types of actions as follows −

  • the Application Modular to Spy the Elements

  • initialize page and clean up page

Creating the Object from Object Studio

After launching the Blue Prism, open Studio tab, right click on Objects and select Create Object. The screenshots clearly explain the process of creating objects −

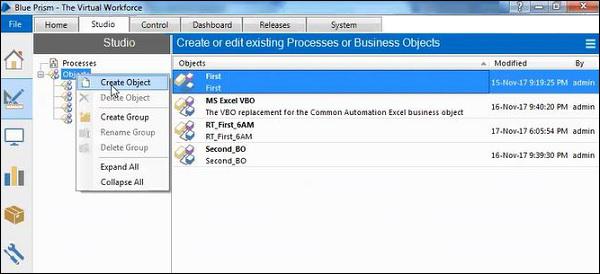

BluePrism Creating Object

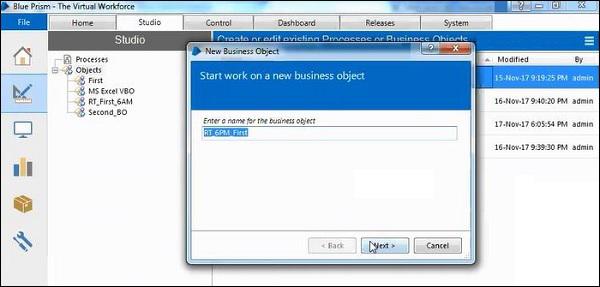

Blueprism New Business Object

Provide a name for new business object.

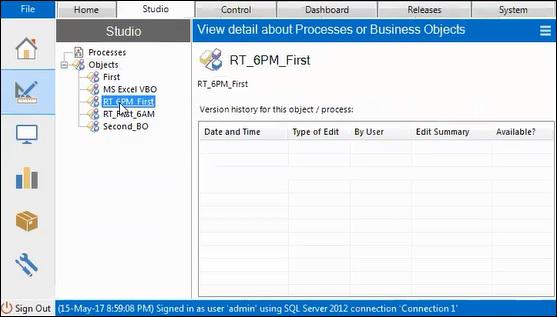

Blueprism Business Object Details

It will create an object in objects list.

Different Stages in Object Studio

The different stages in the Object Studio are listed below −

  • Link
  • Block
  • Read
  • Write
  • Navigate
  • Code
  • Wait
  • Process
  • Page
  • Action
  • Decision
  • Choice
  • Calculation
  • Multi Calculation
  • Data Item
  • Collection
  • Loop
  • Note
  • Anchor
  • End
  • Exception

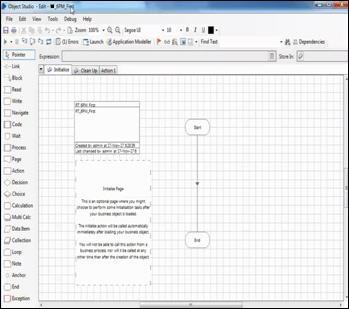

Object Studio Stages

Once you create an object, the initialize, cleanup and action pages will be created and the initialize page will be launched with the above mentioned stages.

The below Business Object (VBO) will give you more detailed explanation of how the stages can be used and how the VBO works.

Understanding Collections to Excel

Multiple values stored in the form of rows and columns are called collections.

We call add rows to collections using the below two ways −

  • Using Internal VBO as "collections".

  • Using "Utility-Collection Manipulation" VBO.

Create a Business Object

Enter the name of the business object you like to create as shown below −

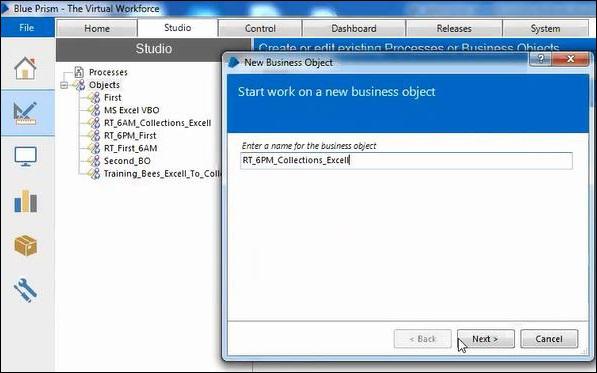

Name Business Object

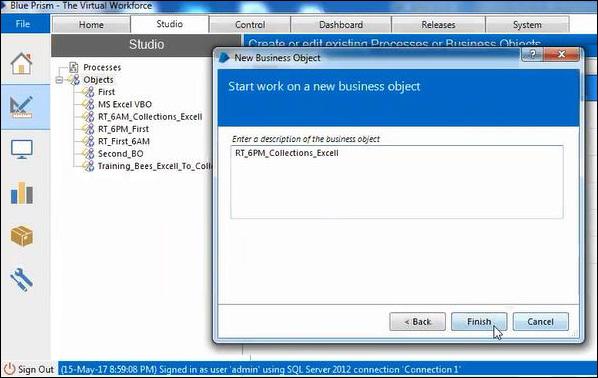

Now, enter the description of the business object as shown below −

Business Object Description

Then, click on Finish.

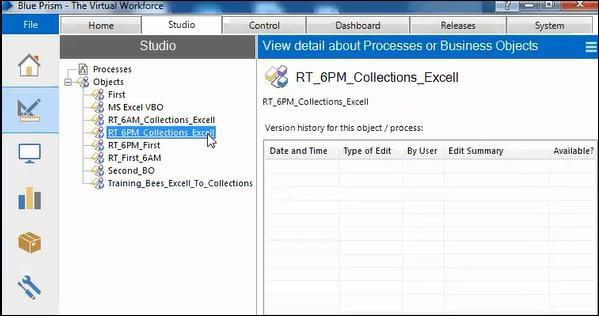

Name Business Created

Double click on newly created VBO to open it.

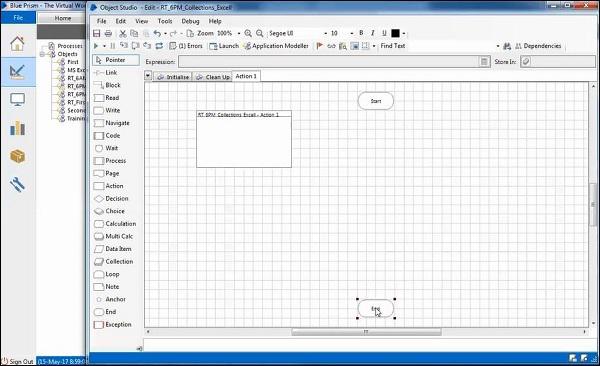

Open VBO

In the action tab, the start and end stages will be created by default with a link to them, select the link and delete, so that the actual stages can be implemented in it.

Create a collection and add rows to the collection using the internal VBO.

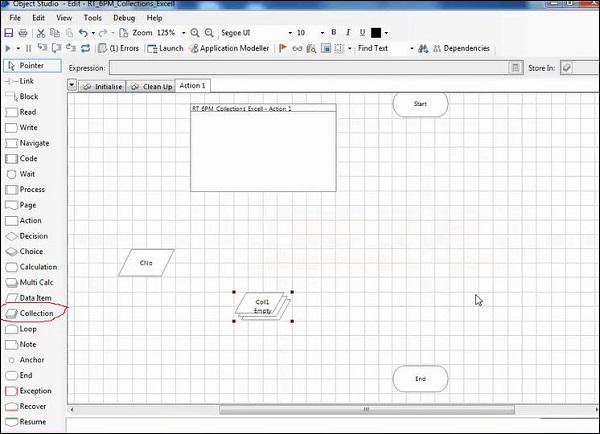

Create Collection Internal VBO

Provide the collection name, description and provide details in fields: name, type, description and fields. Use Add field to add any extra field.

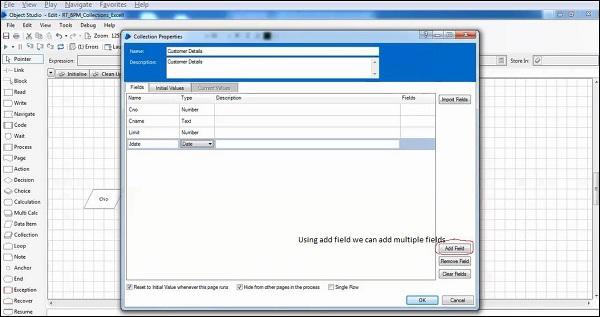

Provide Collection Details

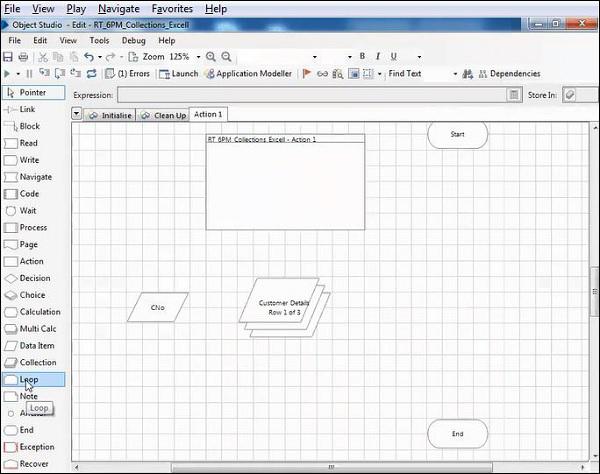

Use Add field

Use Loop Stage

Select Loop from the stages, loop will have start and end parts. It is used to execute the stages in the loop with the mentioned iterations.

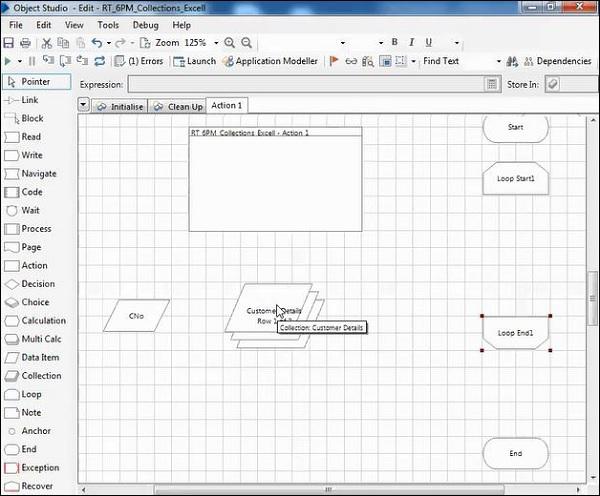

Use Loop Stage

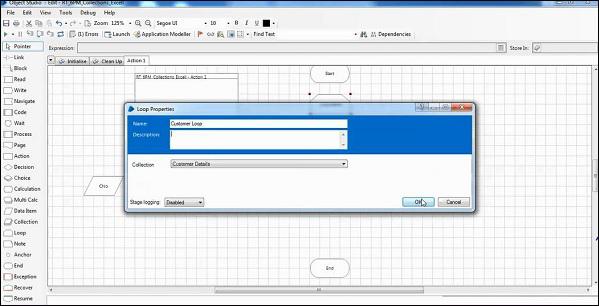

Provide the name for the loop and select the correct collection from the drop down list.

Naming Loop Select Collection

Create four date items

Using the data item stage, create four data items as given below −

  • C no
  • C name
  • Limit
  • Jdate

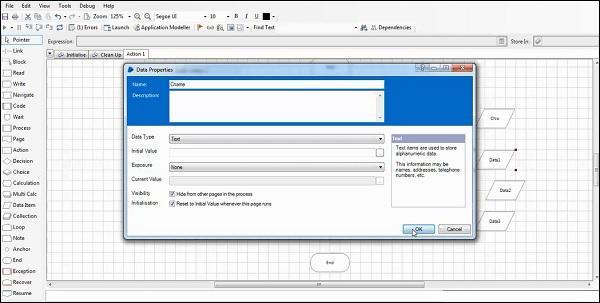

Four Date Items

Use Multi Calculation to add data to collection in the empty row.

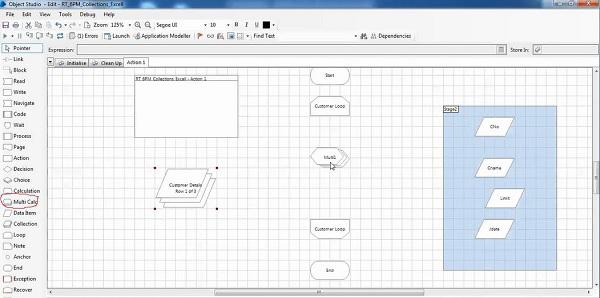

Use Multi Calculation

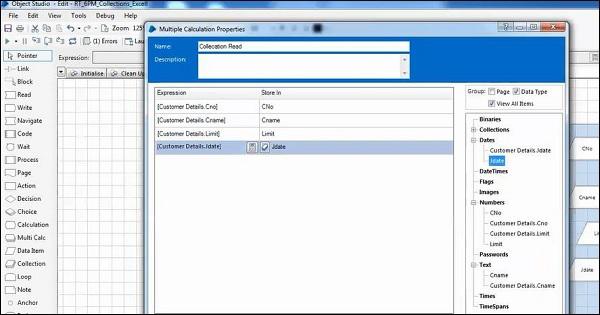

Multi Calculation Property

Provide a name to that multi calculation, drag the expression from collection list to expression, and drag the data items from the data item list to Store In values.

  • Link the stages using Link and save the Business object.

  • Execute the VBO by clicking on play button.

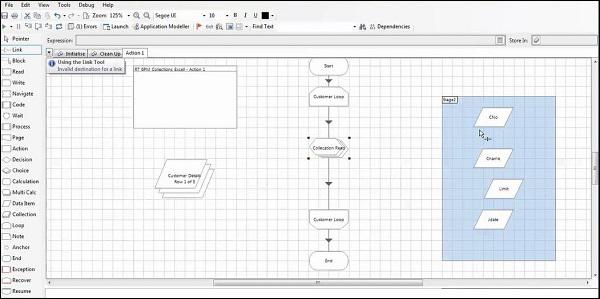

Name Multi Calculation

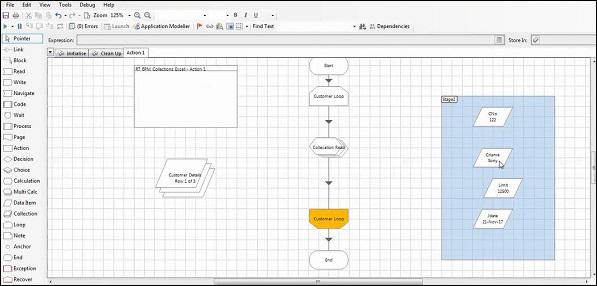

The result will be with the proper outputs which were provided in the collection as shown below −

Collection Outputs Window

We will understand the collections with Excel as shown below −

First, we need to create an instance and take the output as 'handle' then open the work book name and pass the handle as input parameters.

It will write the work book name, then perform another action get worksheet as collections.

Step 1: Create instance

Action −

Name: Create instance

Description: Create instance

Business Object −

Ms Excel VBO

Action: Create Instance

Output: Handle

Step 2: Open

Business Object: Ms Excel VBO

Action: Open workbook

Input −

Value= Handle

File Name

Output: store in workbook.

Step 3: Show

Business Object: Ms Excel VBO

Action: Show

Input −

Value = Handle

Step 4: Read data into collections

Business Object: Ms Excel VBO

Action: Get worksheet as collection (Fast)

Output: store in Customer Details.

Step 5: Loop

Go to Loop properties

Name: Read the data from collection

Description: Read the data from collection

Collection: Customer Details.

Step 6: Multi Calculation

Name: Customer data

Customer details.

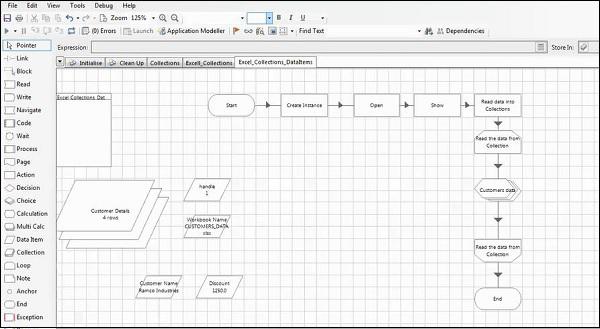

Worksheet as Collections

Understanding Choice with Collection and Excel

We need to create student Data with the given data −

  • Grade A >=90

  • Grade B >=75

  • Grade C >=60

  • Grade D >=50

Step 1: Create instance

Action −

Name: Create instance

Description: Create instance

Business Object −

Ms Excel VBO

Action: Create Instance

Output: Handle

Step 2: Open

Business Object: Ms Excel VBO

Action: Open workbook

Input −

Value= Handle

File Name

Output: store in workbook.

Step 3: Show

Business Object: Ms Excel VBO

Action: Show

Input −

Value= Handle

Step 4: Read data into collections

Business Object: Ms Excel VBO

Action: Get worksheet as collection (Fast)

Output: store in Students Details.

Step 5: Loop

Go to Loop properties

Name: Read the data from collection

Description: Read the data from collection

Collection: Student details

Step 6: Choice

Choice Name Choice Criterion
Grade A Student Details Marks>=90 and <=100
Grade B Student Details Marks>=75
Grade C Student Details Marks>=60

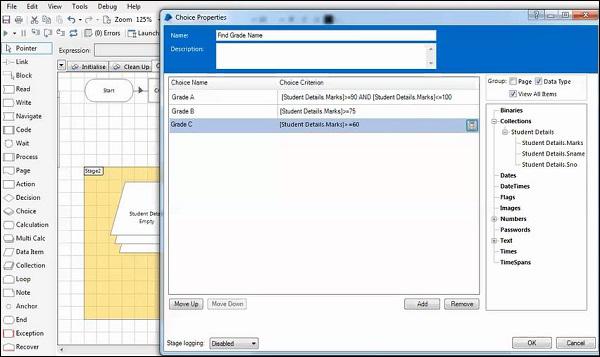

Choice with Collection-Excel

Create one data item as Grade.

Create calculation as follows −

  • Grade A
  • Grade B
  • Grade C

Before the loop, we need to configure the values.

Take the Action stage:

Name: Default Cell

Business Object: Ms Excel VB

Action: Active workbook

Then,

Perform another action - Current Cell

Business Object: Ms Excel VBO

Action: get Active Cell

Output store in Current cell.

Then,

Write the data into excel

Business Object: Ms Excel VBO

Action: Set Cell Value

Perform another action - Go to Next Cell

Business Object: Ms Excel VBO

Action: Go to Next Empty cell down

Input: store in current cell.

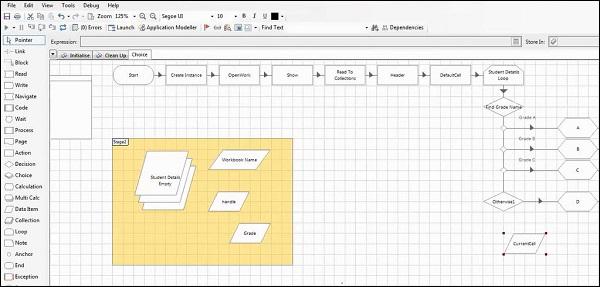

Collections Action Stage1

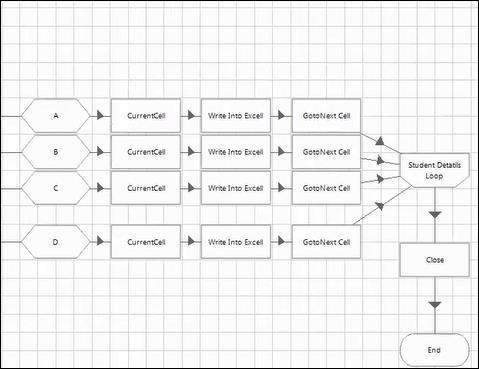

Collections Action Stage2
