Batch Script is incorporated to automate command sequences which are repetitive in nature. Scripting is a way by which one can alleviate this necessity by automating these command sequences in order to make one’s life at the shell easier and more productive. In most organizations, Batch Script is incorporated in some way or the other to automate stuff.
Some of the features of Batch Script are −
Can read inputs from users so that it can be processed further.
Has control structures such as for, if, while, switch for better automating and scripting.
Supports advanced features such as Functions and Arrays.
Supports regular expressions.
Can include other programming codes such as Perl.
Some of the common uses of Batch Script are −
Setting up servers for different purposes.
Automating housekeeping activities such as deleting unwanted files or log files.
Automating the deployment of applications from one environment to another.
Installing programs on various machines at once.
Batch scripts are stored in simple text files containing lines with commands that get executed in sequence, one after the other. These files have the special extension BAT or CMD. Files of this type are recognized and executed through an interface (sometimes called a shell) provided by a system file called the command interpreter. On Windows systems, this interpreter is known as cmd.exe.
Running a batch file is a simple matter of just clicking on it. Batch files can also be run in a command prompt or the Start-Run line. In such case, the full path name must be used unless the file's path is in the path environment. Following is a simple example of a Batch Script. This Batch Script when run deletes all files in the current directory.
:: Deletes All files in the Current Directory With Prompts and Warnings
::(Hidden, System, and Read-Only Files are Not Affected)
:: @ECHO OFF
DEL . DR
Batch Script - Environment
This chapter explains the environment related to Batch Script.
Writing and Executing
Typically, to create a batch file, notepad is used. This is the simplest tool for creation of batch files. Next is the execution environment for the batch scripts. On Windows systems, this is done via the command prompt or cmd.exe. All batch files are run in this environment.
Following are the different ways to launch cmd.exe −

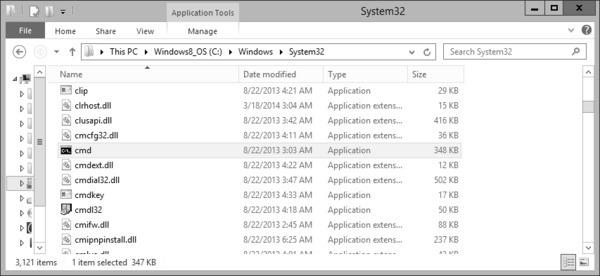

Method 1 − Go to C:\Windows\System32 and double click on the cmd file.

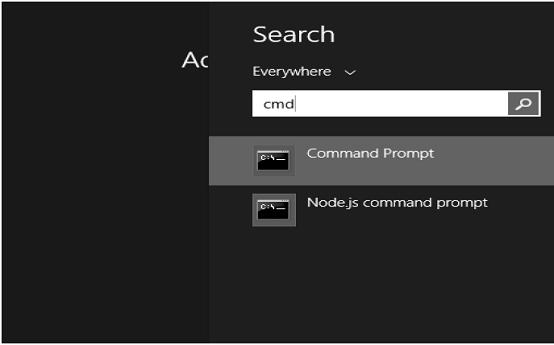

Method 2 − Via the run command – The following snapshot shows to find the command prompt(cmd.exe) on Windows server 2012.

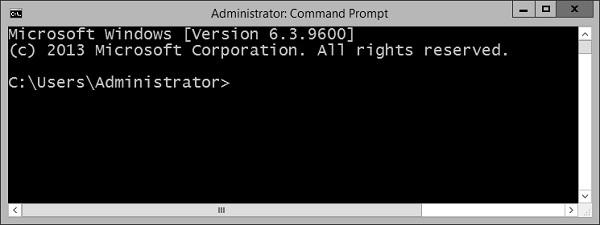

Once the cmd.exe is launched, you will be presented with the following screen. This will be your environment for executing your batch scripts.
Environment Variables
In order to run batch files from the command prompt, you either need to go to the location to where the batch file is stored or alternatively you can enter the file location in the path environment variable. Thus assuming that the batch file is stored in the location C:\Application\bin, you would need to follow these instructions for the PATH variable inclusion.
OS
Output
Windows
Append the String; C:\Application\bin to the end of the system variable PATH.
Batch Script - Commands
In this chapter, we will look at some of the frequently used batch commands.
This batch command formats a disk to use Windows-supported file system such as FAT, FAT32 or NTFS, thereby overwriting the previous content of the disk.
This batch command takes the input from a source file and sorts its contents alphabetically, from A to Z or Z to A. It prints the output on the console.
Displays the list of environment variables on the current system.
Batch Script - Files
In this chapter, we will learn how to create, save, execute, and modify batch files.
Creating Batch Files
Batch files are normally created in notepad. Hence the simplest way is to open notepad and enter the commands required for the script. For this exercise, open notepad and enter the following statements.
:: Deletes All files in the Current Directory With Prompts and Warnings
::(Hidden, System, and Read-Only Files are Not Affected)
::
@ECHO OFF
DEL .
DR
Saving Batch Files
After your batch file is created, the next step is to save your batch file. Batch files have the extension of either .bat or .cmd. Some general rules to keep in mind when naming batch files −
Try to avoid spaces when naming batch files, it sometime creates issues when they are called from other scripts.
Don’t name them after common batch files which are available in the system such as ping.cmd.

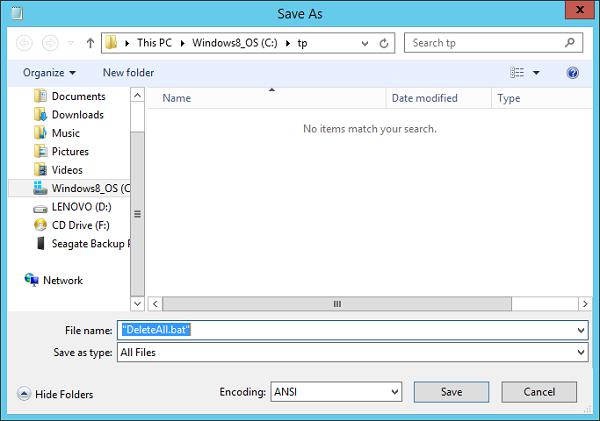

The above screenshot shows how to save the batch file. When saving your batch file a few points to keep in mind.
Remember to put the .bat or .cmd at the end of the file name.
Choose the “Save as type” option as “All Files”.
Put the entire file name in quotes “”.
Executing Batch Files
Following are the steps to execute a batch file −
Step 1 − Open the command prompt (cmd.exe).
Step 2 − Go to the location where the .bat or .cmd file is stored.

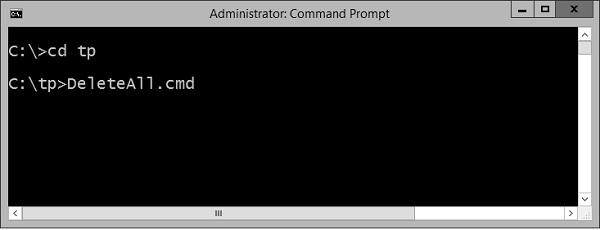

Step 3 − Write the name of the file as shown in the following image and press the Enter button to execute the batch file.
Modifying Batch Files
Following are the steps for modifying an existing batch file.
Step 1 − Open windows explorer.
Step 2 − Go to the location where the .bat or .cmd file is stored.

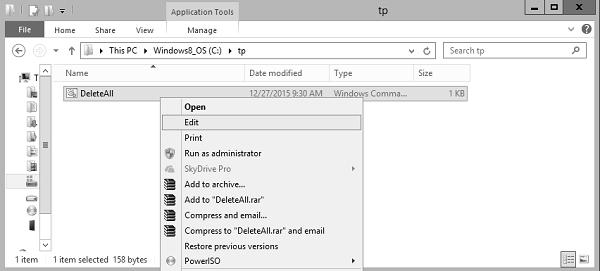

Step 3 − Right-click the file and choose the “Edit” option from the context menu. The file will open in Notepad for further editing.
Batch Script - Syntax
Normally, the first line in a batch file often consists of the following command.
ECHO Command
@echo off
By default, a batch file will display its command as it runs. The purpose of this first command is to turn off this display. The command "echo off" turns off the display for the whole script, except for the "echo off" command itself. The "at" sign "@" in front makes the command apply to itself as well.
Documentation
Very often batch files also contains lines that start with the "Rem" command. This is a way to enter comments and documentation. The computer ignores anything on a line following Rem. For batch files with increasing amount of complexity, this is often a good idea to have comments.
First Batch Script Program
Let’s construct our simple first batch script program. Open notepad and enter the following lines of code. Save the file as “List.cmd”.
The code does the following −
Uses the echo off command to ensure that the commands are not shown when the code is executed.
The Rem command is used to add a comment to say what exactly this batch file does.
The dir command is used to take the contents of the location C:\Program Files.
The ‘>’ command is used to redirect the output to the file C:\lists.txt.
Finally, the echo command is used to tell the user that the operation is completed.
@echo off
Rem This is for listing down all the files in the directory Program files
dir "C:\Program Files" > C:\lists.txt
echo "The program has completed"
When the above command is executed, the names of the files in C:\Program Files will be sent to the file C:\Lists.txt and in the command prompt the message “The program has completed” will be displayed.
Batch Script - Variables
There are two types of variables in batch files. One is for parameters which can be passed when the batch file is called and the other is done via the set command.
Command Line Arguments
Batch scripts support the concept of command line arguments wherein arguments can be passed to the batch file when invoked. The arguments can be called from the batch files through the variables %1, %2, %3, and so on.
The following example shows a batch file which accepts 3 command line arguments and echo’s them to the command line screen.
@echo off
echo %1
echo %2
echo %3
If the above batch script is stored in a file called test.bat and we were to run the batch as
Test.bat 1 2 3

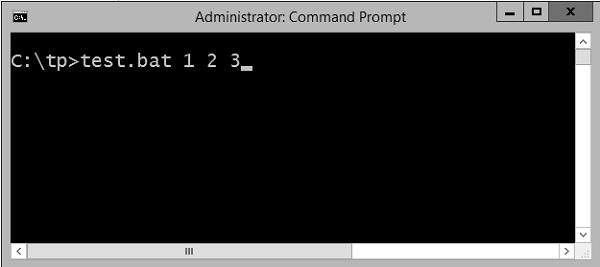

Following is a screenshot of how this would look in the command prompt when the batch file is executed.
The above command produces the following output.
1
2
3
If we were to run the batch as
Example 1 2 3 4
The output would still remain the same as above. However, the fourth parameter would be ignored.
Set Command
The other way in which variables can be initialized is via the ‘set’ command. Following is the syntax of the set command.
Syntax
set /A variable-name=value
where,
variable-name is the name of the variable you want to set.
value is the value which needs to be set against the variable.
/A – This switch is used if the value needs to be numeric in nature.
The following example shows a simple way the set command can be used.
Example
@echo off
set message=Hello World
echo %message%
In the above code snippet, a variable called message is defined and set with the value of "Hello World".
To display the value of the variable, note that the variable needs to be enclosed in the % sign.
Output
The above command produces the following output.
Hello World
Working with Numeric Values
In batch script, it is also possible to define a variable to hold a numeric value. This can be done by using the /A switch.
The following code shows a simple way in which numeric values can be set with the /A switch.
@echo off
SET /A a = 5
SET /A b = 10
SET /A c = %a% + %b%
echo %c%
We are first setting the value of 2 variables, a and b to 5 and 10 respectively.
We are adding those values and storing in the variable c.
Finally, we are displaying the value of the variable c.
The output of the above program would be 15.
All of the arithmetic operators work in batch files. The following example shows arithmetic operators can be used in batch files.
@echo off
SET /A a = 5
SET /A b = 10
SET /A c = %a% + %b%
echo %c%
SET /A c = %a% - %b%
echo %c%
SET /A c = %b% / %a%
echo %c%
SET /A c = %b% * %a%
echo %c%
The above command produces the following output.
15
-5
2
50
Local vs Global Variables
In any programming language, there is an option to mark variables as having some sort of scope, i.e. the section of code on which they can be accessed. Normally, variable having a global scope can be accessed anywhere from a program whereas local scoped variables have a defined boundary in which they can be accessed.
DOS scripting also has a definition for locally and globally scoped variables. By default, variables are global to your entire command prompt session. Call the SETLOCAL command to make variables local to the scope of your script. After calling SETLOCAL, any variable assignments revert upon calling ENDLOCAL, calling EXIT, or when execution reaches the end of file (EOF) in your script. The following example shows the difference when local and global variables are set in the script.
Example
@echo off
set globalvar = 5
SETLOCAL
set var = 13145
set /A var = %var% + 5
echo %var%
echo %globalvar%
ENDLOCAL
Few key things to note about the above program.
The ‘globalvar’ is defined with a global scope and is available throughout the entire script.
The ‘var‘ variable is defined in a local scope because it is enclosed between a ‘SETLOCAL’ and ‘ENDLOCAL’ block. Hence, this variable will be destroyed as soon the ‘ENDLOCAL’ statement is executed.
Output
The above command produces the following output.
13150
5
You will notice that the command echo %var% will not yield anything because after the ENDLOCAL statement, the ‘var’ variable will no longer exist.
Working with Environment Variables
If you have variables that would be used across batch files, then it is always preferable to use environment variables. Once the environment variable is defined, it can be accessed via the % sign. The following example shows how to see the JAVA_HOME defined on a system. The JAVA_HOME variable is a key component that is normally used by a wide variety of applications.
@echo off
echo %JAVA_HOME%
The output would show the JAVA_HOME directory which would depend from system to system. Following is an example of an output.
C:\Atlassian\Bitbucket\4.0.1\jre
Batch Script - Comments
It’s always a good practice to add comments or documentation for the scripts which are created. This is required for maintenance of the scripts to understand what the script actually does.
For example, consider the following piece of code which has no form of comments. If any average person who has not developed the following script tries to understand the script, it would take a lot of time for that person to understand what the script actually does.
ECHO OFF
IF NOT "%OS%"=="Windows_NT" GOTO Syntax
ECHO.%* | FIND "?" >NUL
IF NOT ERRORLEVEL 1 GOTO Syntax
IF NOT [%2]==[] GOTO Syntax
SETLOCAL
SET WSS=
IF NOT [%1]==[] FOR /F "tokens = 1 delims = \ " %%A IN ('ECHO.%~1') DO SET WSS = %%A
FOR /F "tokens = 1 delims = \ " %%a IN ('NET VIEW ^| FIND /I "\\%WSS%"') DO FOR /F
"tokens = 1 delims = " %%A IN ('NBTSTAT -a %%a ^| FIND /I /V "%%a" ^| FIND "<03>"')
DO ECHO.%%a %%A
ENDLOCAL
GOTO:EOF
ECHO Display logged on users and their workstations.
ECHO Usage: ACTUSR [ filter ]
IF "%OS%"=="Windows_NT" ECHO Where: filter is the first part
of the computer name^(s^) to be displayed
Comments Using the Rem Statement
There are two ways to create comments in Batch Script; one is via the Rem command. Any text which follows the Rem statement will be treated as comments and will not be executed. Following is the general syntax of this statement.
Syntax
Rem Remarks
where ‘Remarks’ is the comments which needs to be added.
The following example shows a simple way the Rem command can be used.
Example
@echo off
Rem This program just displays Hello World
set message=Hello World
echo %message%
Output
The above command produces the following output. You will notice that the line with the Rem statement will not be executed.
Hello World
Comments Using the :: Statement
The other way to create comments in Batch Script is via the :: command. Any text which follows the :: statement will be treated as comments and will not be executed. Following is the general syntax of this statement.
Syntax
:: Remarks
where ‘Remarks’ is the comment which needs to be added.
The following example shows the usage of the "::" command.
Example
@echo off
:: This program just displays Hello World
set message = Hello World
echo %message%
Output
The above command produces the following output. You will notice that the line with the :: statement will not be executed.
Hello World
Note − If you have too many lines of Rem, it could slow down the code, because in the end each line of code in the batch file still needs to be executed.
Let’s look at the example of the large script we saw at the beginning of this topic and see how it looks when documentation is added to it.
::===============================================================
:: The below example is used to find computer and logged on users
::
::===============================================================
ECHO OFF
:: Windows version check
IF NOT "%OS%"=="Windows_NT" GOTO Syntax
ECHO.%* | FIND "?" >NUL
:: Command line parameter check
IF NOT ERRORLEVEL 1 GOTO Syntax
IF NOT [%2]==[] GOTO Syntax
:: Keep variable local
SETLOCAL
:: Initialize variable
SET WSS=
:: Parse command line parameter
IF NOT [%1]==[] FOR /F "tokens = 1 delims = \ " %%A IN ('ECHO.%~1') DO SET WSS = %%A
:: Use NET VIEW and NBTSTAT to find computers and logged on users
FOR /F "tokens = 1 delims = \ " %%a IN ('NET VIEW ^| FIND /I "\\%WSS%"') DO FOR /F
"tokens = 1 delims = " %%A IN ('NBTSTAT -a %%a ^| FIND /I /V "%%a" ^| FIND
"<03>"') DO ECHO.%%a %%A
:: Done
ENDLOCAL
GOTO:EOF
:Syntax
ECHO Display logged on users and their workstations.
ECHO Usage: ACTUSR [ filter ]
IF "%OS%"=="Windows_NT" ECHO Where: filter is the first part of the
computer name^(s^) to be displayed
You can now see that the code has become more understandable to users who have not developed the code and hence is more maintainable.
Batch Script - Strings
In DOS, a string is an ordered collection of characters, such as "Hello, World!".
String interpolation is a way to construct a new String value from a mix of constants, variables, literals, and expressions by including their values inside a string literal.
You can use the set operator to concatenate two strings or a string and a character, or two characters. Following is a simple example which shows how to use string concatenation.
In DOS scripting, there is no length function defined for finding the length of a string. There are custom-defined functions which can be used for the same. Following is an example of a custom-defined function for seeing the length of a string.
A variable which has been set as string using the set variable can be converted to an integer using the /A switch which is using the set variable. The following example shows how this can be accomplished.
This is used to extract characters from the end of a string.
Batch Script - Arrays
Arrays are not specifically defined as a type in Batch Script but can be implemented. The following things need to be noted when arrays are implemented in Batch Script.
Each element of the array needs to be defined with the set command.
The ‘for’ loop would be required to iterate through the values of the array.
Creating an Array
An array is created by using the following set command.
set a[0]=1
Where 0 is the index of the array and 1 is the value assigned to the first element of the array.
Another way to implement arrays is to define a list of values and iterate through the list of values. The following example show how this can be implemented.
Example
@echo off
set list = 1 2 3 4
(for %%a in (%list%) do (
echo %%a
))
Output
The above command produces the following output.
1
2
3
4
Accessing Arrays
You can retrieve a value from the array by using subscript syntax, passing the index of the value you want to retrieve within square brackets immediately after the name of the array.
Example
@echo off
set a[0]=1
echo %a[0]%
In this example, the index starts from 0 which means the first element can be accessed using index as 0, the second element can be accessed using index as 1 and so on. Let's check the following example to create, initialize and access arrays −
@echo off
set a[0] = 1
set a[1] = 2
set a[2] = 3
echo The first element of the array is %a[0]%
echo The second element of the array is %a[1]%
echo The third element of the array is %a[2]%
The above command produces the following output.
The first element of the array is 1
The second element of the array is 2
The third element of the array is 3
Modifying an Array
To add an element to the end of the array, you can use the set element along with the last index of the array element.
Example
@echo off
set a[0] = 1
set a[1] = 2
set a[2] = 3
Rem Adding an element at the end of an array
Set a[3] = 4
echo The last element of the array is %a[3]%
The above command produces the following output.
The last element of the array is 4
You can modify an existing element of an Array by assigning a new value at a given index as shown in the following example −
@echo off
set a[0] = 1
set a[1] = 2
set a[2] = 3
Rem Setting the new value for the second element of the array
Set a[1] = 5
echo The new value of the second element of the array is %a[1]%
The above command produces the following output.
The new value of the second element of the array is 5
Iterating Over an Array
Iterating over an array is achieved by using the ‘for’ loop and going through each element of the array. The following example shows a simple way that an array can be implemented.
@echo off
setlocal enabledelayedexpansion
set topic[0] = comments
set topic[1] = variables
set topic[2] = Arrays
set topic[3] = Decision making
set topic[4] = Time and date
set topic[5] = Operators
for /l %%n in (0,1,5) do (
echo !topic[%%n]!
)
Following things need to be noted about the above program −
Each element of the array needs to be specifically defined using the set command.
The ‘for’ loop with the /L parameter for moving through ranges is used to iterate through the array.
Output
The above command produces the following output.
Comments
variables
Arrays
Decision making
Time and date
Operators
Length of an Array
The length of an array is done by iterating over the list of values in the array since there is no direct function to determine the number of elements in an array.
@echo off
set Arr[0] = 1
set Arr[1] = 2
set Arr[2] = 3
set Arr[3] = 4
set "x = 0"
:SymLoop
if defined Arr[%x%] (
call echo %%Arr[%x%]%%
set /a "x+=1"
GOTO :SymLoop
)
echo "The length of the array is" %x%
Output
Output The above command produces the following output.
The length of the array is 4
Creating Structures in Arrays
Structures can also be implemented in batch files using a little bit of an extra coding for implementation. The following example shows how this can be achieved.
Example
@echo off
set len = 3
set obj[0].Name = Joe
set obj[0].ID = 1
set obj[1].Name = Mark
set obj[1].ID = 2
set obj[2].Name = Mohan
set obj[2].ID = 3
set i = 0
:loop
if %i% equ %len% goto :eof
set cur.Name=
set cur.ID=
for /f "usebackq delims==.tokens=1-3" %%j in (`set obj[%i%]`) do (
set cur.%%k=%%l
)
echo Name = %cur.Name%
echo Value = %cur.ID%
set /a i = %i%+1
goto loop
The following key things need to be noted about the above code.
Each variable defined using the set command has 2 values associated with each index of the array.
The variable i is set to 0 so that we can loop through the structure will the length of the array which is 3.
We always check for the condition on whether the value of i is equal to the value of len and if not, we loop through the code.
We are able to access each element of the structure using the obj[%i%] notation.
Output
The above command produces the following output.
Name = Joe
Value = 1
Name = Mark
Value = 2
Name = Mohan
Value = 3
Batch Script - Decision Making
Decision-making structures require that the programmer specify one or more conditions to be evaluated or tested by the program, along with a statement or statements to be executed if the condition is determined to be true, and optionally, other statements to be executed if the condition is determined to be false.
Checks to see if the left object is less than the right operand
2 LSS 3 will give true
LEQ
Checks to see if the left object is less than or equal to the right operand
2 LEQ 3 will give true
GTR
Checks to see if the left object is greater than the right operand
3 GTR 2 will give true
GEQ
Checks to see if the left object is greater than or equal to the right operand
3 GEQ 2 will give true
Logical Operators
Logical operators are used to evaluate Boolean expressions. Following are the logical operators available.
The batch language is equipped with a full set of Boolean logic operators like AND, OR, XOR, but only for binary numbers. Neither are there any values for TRUE or FALSE. The only logical operator available for conditions is the NOT operator.
This is the bitwise “xor” or Exclusive or operator
Following is the truth table showcasing these operators.
p
q
p & q
p | q
p ^ q
0
0
0
0
0
0
1
0
1
1
1
1
1
1
0
1
0
0
1
1
Batch Script - DATE and TIME
The date and time in DOS Scripting have the following two basic commands for retrieving the date and time of the system.
DATE
This command gets the system date.
Syntax
DATE
Example
@echo off
echo %DATE%
Output
The current date will be displayed in the command prompt. For example,
Mon 12/28/2015
TIME
This command sets or displays the time.
Syntax
TIME
Example
@echo off
echo %TIME%
Output
The current system time will be displayed. For example,
22:06:52.87
Following are some implementations which can be used to get the date and time in different formats.
Date in Format Year-Month-Day
Example
@echo off
echo/Today is: %year%-%month%-%day%
goto :EOF
setlocal ENABLEEXTENSIONS
set t = 2&if "%date%z" LSS "A" set t = 1
for /f "skip=1 tokens = 2-4 delims = (-)" %%a in ('echo/^|date') do (
for /f "tokens = %t%-4 delims=.-/ " %%d in ('date/t') do (
set %%a=%%d&set %%b=%%e&set %%c=%%f))
endlocal&set %1=%yy%&set %2=%mm%&set %3=%dd%&goto :EOF
Output
The above command produces the following output.
Today is: 2015-12-30
Batch Script - Input / Output
There are three universal “files” for keyboard input, printing text on the screen and printing errors on the screen. The “Standard In” file, known as stdin, contains the input to the program/script. The “Standard Out” file, known as stdout, is used to write output for display on the screen. Finally, the “Standard Err” file, known as stderr, contains any error messages for display on the screen.
Each of these three standard files, otherwise known as the standard streams, are referenced using the numbers 0, 1, and 2. Stdin is file 0, stdout is file 1, and stderr is file 2.
Redirecting Output (Stdout and Stderr)
One common practice in batch files is sending the output of a program to a log file. The > operator sends, or redirects, stdout or stderr to another file. The following example shows how this can be done.
Dir C:\ > list.txt
In the above example, the stdout of the command Dir C:\ is redirected to the file list.txt.
If you append the number 2 to the redirection filter, then it would redirect the stderr to the file lists.txt.
Dir C:\ 2> list.txt
One can even combine the stdout and stderr streams using the file number and the ‘&’ prefix. Following is an example.
DIR C:\ > lists.txt 2>&1
Suppressing Program Output
The pseudo file NUL is used to discard any output from a program. The following example shows that the output of the command DIR is discarded by sending the output to NUL.
Dir C:\ > NUL
Stdin
To work with the Stdin, you have to use a workaround to achieve this. This can be done by redirecting the command prompt’s own stdin, called CON.
The following example shows how you can redirect the output to a file called lists.txt. After you execute the below command, the command prompt will take all the input entered by user till it gets an EOF character. Later, it sends all the input to the file lists.txt.
TYPE CON > lists.txt
Batch Script - Return Code
By default when a command line execution is completed it should either return zero when execution succeeds or non-zero when execution fails. When a batch script returns a non-zero value after the execution fails, the non-zero value will indicate what is the error number. We will then use the error number to determine what the error is about and resolve it accordingly.
Following are the common exit code and their description.
Error Code
Description
0
Program successfully completed.
1
Incorrect function. Indicates that Action has attempted to execute non-recognized command in Windows command prompt cmd.exe.
2
The system cannot find the file specified. Indicates that the file cannot be found in specified location.
3
The system cannot find the path specified. Indicates that the specified path cannot be found.
5
Access is denied. Indicates that user has no access right to specified resource.
9009
0x2331
Program is not recognized as an internal or external command, operable program or batch file. Indicates that command, application name or path has been misspelled when configuring the Action.
221225495
0xC0000017
-1073741801
Not enough virtual memory is available.
It indicates that Windows has run out of memory.
3221225786
0xC000013A
-1073741510
The application terminated as a result of a CTRL+C. Indicates that the application has been terminated either by the user's keyboard input CTRL+C or CTRL+Break or closing command prompt window.
3221225794
0xC0000142
-1073741502
The application failed to initialize properly. Indicates that the application has been launched on a Desktop to which the current user has no access rights. Another possible cause is that either gdi32.dll or user32.dll has failed to initialize.
Error Level
The environmental variable %ERRORLEVEL% contains the return code of the last executed program or script.
By default, the way to check for the ERRORLEVEL is via the following code.
Syntax
IF %ERRORLEVEL% NEQ 0 (
DO_Something
)
It is common to use the command EXIT /B %ERRORLEVEL% at the end of the batch file to return the error codes from the batch file.
EXIT /B at the end of the batch file will stop execution of a batch file.
Use EXIT /B < exitcodes > at the end of the batch file to return custom return codes.
Environment variable %ERRORLEVEL% contains the latest errorlevel in the batch file, which is the latest error codes from the last command executed. In the batch file, it is always a good practice to use environment variables instead of constant values, since the same variable get expanded to different values on different computers.
Let’s look at a quick example on how to check for error codes from a batch file.
Example
Let’s assume we have a batch file called Find.cmd which has the following code. In the code, we have clearly mentioned that we if don’t find the file called lists.txt then we should set the errorlevel to 7. Similarly, if we see that the variable userprofile is not defined then we should set the errorlevel code to 9.
if not exist c:\lists.txt exit 7
if not defined userprofile exit 9
exit 0
Let’s assume we have another file called App.cmd that calls Find.cmd first. Now, if the Find.cmd returns an error wherein it sets the errorlevel to greater than 0 then it would exit the program. In the following batch file, after calling the Find.cnd find, it actually checks to see if the errorlevel is greater than 0.
Call Find.cmd
if errorlevel gtr 0 exit
echo “Successful completion”
Output
In the above program, we can have the following scenarios as the output −
If the file c:\lists.txt does not exist, then nothing will be displayed in the console output.
If the variable userprofile does not exist, then nothing will be displayed in the console output.
If both of the above condition passes then the string “Successful completion” will be displayed in the command prompt.
Loops
In the decision making chapter, we have seen statements which have been executed one after the other in a sequential manner. Additionally, implementations can also be done in Batch Script to alter the flow of control in a program’s logic. They are then classified into flow of control statements.
There is no direct while statement available in Batch Script but we can do an implementation of this loop very easily by using the if statement and labels.
The "FOR" construct offers looping capabilities for batch files. Following is the common construct of the ‘for’ statement for working with a list of values.
Following is the classic ‘for’ statement which is available in most programming languages.
Looping through Command Line Arguments
The ‘for’ statement can also be used for checking command line arguments. The following example shows how the ‘for’ statement can be used to loop through the command line arguments.
Example
@ECHO OFF
:Loop
IF "%1"=="" GOTO completed
FOR %%F IN (%1) DO echo %%F
SHIFT
GOTO Loop
:completed
Output
Let’s assume that our above code is stored in a file called Test.bat. The above command will produce the following output if the batch file passes the command line arguments of 1,2 and 3 as Test.bat 1 2 3.
The break statement is used to alter the flow of control inside loops within any programming language. The break statement is normally used in looping constructs and is used to cause immediate termination of the innermost enclosing loop.
Batch Script - Functions
A function is a set of statements organized together to perform a specific task. In batch scripts, a similar approach is adopted to group logical statements together to form a function.
As like any other languages, functions in Batch Script follows the same procedure −
Function Declaration − It tells the compiler about a function's name, return type, and parameters.
Function Definition − It provides the actual body of the function.
Function Definition
In Batch Script, a function is defined by using the label statement. When a function is newly defined, it may take one or several values as input 'parameters' to the function, process the functions in the main body, and pass back the values to the functions as output 'return types'.
Every function has a function name, which describes the task that the function performs. To use a function, you "call" that function with its name and pass its input values (known as arguments) that matches the types of the function's parameters.
Following is the syntax of a simple function.
:function_name
Do_something
EXIT /B 0
The function_name is the name given to the function which should have some meaning to match what the function actually does.
The EXIT statement is used to ensure that the function exits properly.
Following is an example of a simple function.
Example
:Display
SET /A index=2
echo The value of index is %index%
EXIT /B 0
The listing of folder contents can be done with the dir command. This command allows you to see the available files and directories in the current directory.
Specifies the user context under which the command should execute.
3.
/P [password]
Specifies the password for the given user context. Prompts for input if omitted.
4.
/M [module]
Lists all tasks currently using the given exe/dll name. If the module name is not specified all loaded modules are displayed.
5.
/SVC
Displays services hosted in each process.
6.
/V
Displays verbose task information.
7.
/FI filter
Displays a set of tasks that match a given criteria specified by the filter.
8.
/FO format
Specifies the output format. Valid values: "TABLE", "LIST", "CSV".
9.
/NH
Specifies that the "Column Header" should not show in the output. Valid only for "TABLE" and "CSV" formats.
Examples
TASKLIST
The above command will get the list of all the processes running on your local system. Following is a snapshot of the output which is rendered when the above command is run as it is. As you can see from the following output, not only do you get the various processes running on your system, you also get the memory usage of each process.
Image Name PID Session Name Session# Mem Usage
========================= ======== ================ =========== ============
System Idle Process 0 Services 0 4 K
System 4 Services 0 272 K
smss.exe 344 Services 0 1,040 K
csrss.exe 528 Services 0 3,892 K
csrss.exe 612 Console 1 41,788 K
wininit.exe 620 Services 0 3,528 K
winlogon.exe 648 Console 1 5,884 K
services.exe 712 Services 0 6,224 K
lsass.exe 720 Services 0 9,712 K
svchost.exe 788 Services 0 10,048 K
svchost.exe 832 Services 0 7,696 K
dwm.exe 916 Console 1 117,440 K
nvvsvc.exe 932 Services 0 6,692 K
nvxdsync.exe 968 Console 1 16,328 K
nvvsvc.exe 976 Console 1 12,756 K
svchost.exe 1012 Services 0 21,648 K
svchost.exe 236 Services 0 33,864 K
svchost.exe 480 Services 0 11,152 K
svchost.exe 1028 Services 0 11,104 K
svchost.exe 1048 Services 0 16,108 K
wlanext.exe 1220 Services 0 12,560 K
conhost.exe 1228 Services 0 2,588 K
svchost.exe 1276 Services 0 13,888 K
svchost.exe 1420 Services 0 13,488 K
spoolsv.exe 1556 Services 0 9,340 K
tasklist > process.txt
The above command takes the output displayed by tasklist and saves it to the process.txt file.
tasklist /fi "memusage gt 40000"
The above command will only fetch those processes whose memory is greater than 40MB. Following is a sample output that can be rendered.
Image Name PID Session Name Session# Mem Usage
========================= ======== ================ =========== ============
dwm.exe 916 Console 1 127,912 K
explorer.exe 2904 Console 1 125,868 K
ServerManager.exe 1836 Console 1 59,796 K
WINWORD.EXE 2456 Console 1 144,504 K
chrome.exe 4892 Console 1 123,232 K
chrome.exe 4976 Console 1 69,412 K
chrome.exe 1724 Console 1 76,416 K
chrome.exe 3992 Console 1 56,156 K
chrome.exe 1168 Console 1 233,628 K
chrome.exe 816 Console 1 66,808 K
Killing a Particular Process
Allows a user running Microsoft Windows XP professional, Windows 2003, or later to kill a task from a Windows command line by process id (PID) or image name. The command used for this purpose is the TASKILL command.
title − Text for the CMD window title bar (required.)
path − Starting directory.
command − The command, batch file or executable program to run.
parameters − The parameters passed to the command.
S.No.
Options & Description
1.
/MIN
Start window Minimized
2.
/MAX
Start window maximized.
3.
/LOW
Use IDLE priority class.
4.
/NORMAL
Use NORMAL priority class.
5.
/ABOVENORMAL
Use ABOVENORMAL priority class.
6.
/BELOWNORMAL
Use BELOWNORMAL priority class.
7.
/HIGH
Use HIGH priority class.
8.
/REALTIME
Use REALTIME priority class.
Examples
START "Test Batch Script" /Min test.bat
The above command will run the batch script test.bat in a new window. The windows will start in the minimized mode and also have the title of “Test Batch Script”.
The above command will actually run Microsoft word in another process and then open the file TESTA.txt in MS Word.
Batch Script - Aliases
Aliases means creating shortcuts or keywords for existing commands. Suppose if we wanted to execute the below command which is nothing but the directory listing command with the /w option to not show all of the necessary details in a directory listing.
Dir /w
Suppose if we were to create a shortcut to this command as follows.
dw = dir /w
When we want to execute the dir /w command, we can simply type in the word dw. The word ‘dw’ has now become an alias to the command Dir /w.
Creating an Alias
Alias are managed by using the doskey command.
Syntax
DOSKEY [options] [macroname=[text]]
Wherein
macroname − A short name for the macro.
text − The commands you want to recall.
Following are the description of the options which can be presented to the DOSKEY command.
S.No.
Options & Description
1.
/REINSTALL
Installs a new copy of Doskey
2.
/LISTSIZE = size
Sets size of command history buffer.
3.
/MACROS
Displays all Doskey macros.
4.
/MACROS:ALL
Displays all Doskey macros for all executables which have Doskey macros.
5.
/MACROS:exename
Displays all Doskey macros for the given executable.
6.
/HISTORY
Displays all commands stored in memory.
7.
/INSERT
Specifies that new text you type is inserted in old text.
8.
/OVERSTRIKE
Specifies that new text overwrites old text.
9.
/EXENAME = exename
Specifies the executable.
10.
/MACROFILE = filename
Specifies a file of macros to install.
11.
macroname
Specifies a name for a macro you create.
12.
text
Specifies commands you want to record.
Example
Create a new file called keys.bat and enter the following commands in the file. The below commands creates two aliases, one if for the cd command, which automatically goes to the directory called test. And the other is for the dir command.
@echo off
doskey cd = cd/test
doskey d = dir
Once you execute the command, you will able to run these aliases in the command prompt.
Output

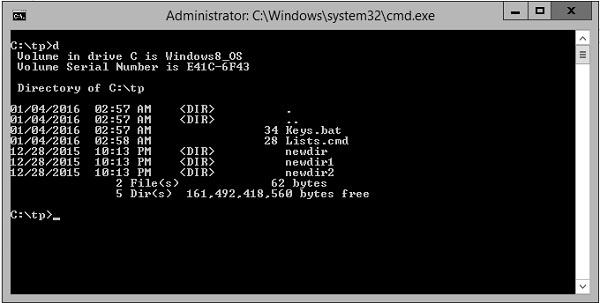

The following screenshot shows that after the above created batch file is executed, you can freely enter the ‘d’ command and it will give you the directory listing which means that your alias has been created.
Deleting an Alias
An alias or macro can be deleted by setting the value of the macro to NULL.
Example
@echo off
doskey cd = cd/test
doskey d = dir
d=
In the above example, we are first setting the macro d to d = dir. After which we are setting it to NULL. Because we have set the value of d to NULL, the macro d will deleted.
Replacing an Alias
An alias or macro can be replaced by setting the value of the macro to the new desired value.
Example
@echo off
doskey cd = cd/test
doskey d = dir
d = dir /w
In the above example, we are first setting the macro d to d = dir. After which we are setting it to dir /w. Since we have set the value of d to a new value, the alias ‘d’ will now take on the new value.
Batch Script - Devices
Windows now has an improved library which can be used in Batch Script for working with devices attached to the system. This is known as the device console – DevCon.exe.
Windows driver developers and testers can use DevCon to verify that a driver is installed and configured correctly, including the proper INF files, driver stack, driver files, and driver package. You can also use the DevCon commands (enable, disable, install, start, stop, and continue) in scripts to test the driver. DevCon is a command-line tool that performs device management functions on local computers and remote computers.
Display driver and device info DevCon can display the following properties of drivers and devices on local computers, and remote computers (running Windows XP and earlier) −
Hardware IDs, compatible IDs, and device instance IDs. These identifiers are described in detail in device identification strings.
Device setup classes.
The devices in a device setup class.
INF files and device driver files.
Details of driver packages.
Hardware resources.
Device status.
Expected driver stack.
Third-party driver packages in the driver store.
Search for devices DevCon can search for installed and uninstalled devices on a local or remote computer by hardware ID, device instance ID, or device setup class.
Change device settings DevCon can change the status or configuration of Plug and Play (PnP) devices on the local computer in the following ways −
Enable a device.
Disable a device.
Update drivers (interactive and non-interactive).
Install a device (create a devnode and install software).
Remove a device from the device tree and delete its device stack.
Rescan for Plug and Play devices.
Add, delete, and reorder the hardware IDs of root-enumerated devices.
Change the upper and lower filter drivers for a device setup class.
Add and delete third-party driver packages from the driver store.
DevCon (DevCon.exe) is included when you install the WDK, Visual Studio, and the Windows SDK for desktop apps. DevCon.exe kit is available in the following locations when installed.
/m:\\computer − Runs the command on the specified remote computer. The backslashes are required.
/r − Conditional reboot. Reboots the system after completing an operation only if a reboot is required to make a change effective.
command − Specifies a DevCon command.
To list and display information about devices on the computer, use the following commands −
DevCon HwIDs
DevCon Classes
DevCon ListClass
DevCon DriverFiles
DevCon DriverNodes
DevCon Resources
DevCon Stack
DevCon Status
DevCon Dp_enum
To search for information about devices on the computer, use the following commands −
DevCon Find
DevCon FindAll
To manipulate the device or change its configuration, use the following commands −
DevCon Enable
DevCon Disable
DevCon Update
DevCon UpdateNI
DevCon Install
DevCon Remove
DevCon Rescan
DevCon Restart
DevCon Reboot
DevCon SetHwID
DevCon ClassFilter
DevCon Dp_add
DevCon Dp_delete
Examples
Following are some examples on how the DevCon command is used.
List all driver files
The following command uses the DevCon DriverFiles operation to list the file names of drivers that devices on the system use. The command uses the wildcard character (*) to indicate all devices on the system. Because the output is extensive, the command uses the redirection character (>) to redirect the output to a reference file, driverfiles.txt.
devcon driverfiles * > driverfiles.txt
The following command uses the DevCon status operation to find the status of all devices on the local computer. It then saves the status in the status.txt file for logging or later review. The command uses the wildcard character (*) to represent all devices and the redirection character (>) to redirect the output to the status.txt file.
devcon status * > status.txt
The following command enables all printer devices on the computer by specifying the Printer setup class in a DevCon Enable command. The command includes the /r parameter, which reboots the system if it is necessary to make the enabling effective.
devcon /r enable = Printer
The following command uses the DevCon Install operation to install a keyboard device on the local computer. The command includes the full path to the INF file for the device (keyboard.inf) and a hardware ID (*PNP030b).
The following command will scan the computer for new devices.
devcon scan
The following command will rescan the computer for new devices.
devcon rescan
Batch Script - Registry
The Registry is one of the key elements on a windows system. It contains a lot of information on various aspects of the operating system. Almost all applications installed on a windows system interact with the registry in some form or the other.
The Registry contains two basic elements: keys and values. Registry keys are container objects similar to folders. Registry values are non-container objects similar to files. Keys may contain values or further keys. Keys are referenced with a syntax similar to Windows' path names, using backslashes to indicate levels of hierarchy.
This chapter looks at various functions such as querying values, adding, deleting and editing values from the registry.
Comparing registry keys is done via the REG COMPARE command.
Batch Script - Network
Batch script has the facility to work with network settings. The NET command is used to update, fix, or view the network or network settings. This chapter looks at the different options available for the net command.
Where some of the options available are the following −
/dl − Delete local printer.
/dn − Delete network printer connection.
/dd − Delete printer driver.
/e − Display printing preferences.
/f[file] − Either inf file or output file.
/F[file] − Location of an INF file that the INF file specified with /f may depend on.
/ia − Install printer driver using inf file.
/id − Install printer driver using add printer driver wizard.
/if − Install printer using inf file.
/ii − Install printer using add printer wizard with an inf file.
/il − Install printer using add printer wizard.
/in − Add network printer connection.
/ip − Install printer using network printer installation wizard.
/k − Print test page to specified printer, cannot be combined with command when installing a printer.
/l[path] − Printer driver source path.
/m[model] − Printer driver model name.
/n[name] − Printer name.
/o − Display printer queue view.
/p − Display printer properties.
/Ss − Store printer settings into a file.
/Sr − Restore printer settings from a file.
/y − Set printer as the default.
/Xg − Get printer settings.
/Xs − Set printer settings.
Testing if a Printer Exists
There can be cases wherein you might be connected to a network printer instead of a local printer. In such cases, it is always beneficial to check if a printer exists in the first place before printing.
The existence of a printer can be evaluated with the help of the RUNDLL32.EXE PRINTUI.DLL which is used to control most of the printer settings.
Example
SET PrinterName = Test Printer
SET file=%TEMP%\Prt.txt
RUNDLL32.EXE PRINTUI.DLL,PrintUIEntry /Xg /n "%PrinterName%" /f "%file%" /q
IF EXIST "%file%" (
ECHO %PrinterName% printer exists
) ELSE (
ECHO %PrinterName% printer does NOT exists
)
The above command will do the following −
It will first set the printer name and set a file name which will hold the settings of the printer.
The RUNDLL32.EXE PRINTUI.DLL commands will be used to check if the printer actually exists by sending the configuration settings of the file to the file Prt.txt
Batch Script - Debugging
Very often than not you can run into problems when running batch files and most often than not you would need to debug your batch files in some way or the other to determine the issue with the batch file itself. Following are some of the techniques that can help in debugging Batch Script files.
Error Messages
To discover the source of the message, follow these steps −
Step 1 − REM out the @ECHO OFF line, i.e. REM @ECHO OFF or :: @ECHO OFF.
Step 2 − Run the batch file with the required command line parameters, redirecting all output to a log file for later comparison.
test.bat > batch.log 2>&1
Step 3 − Search the file batch.log for the error messages
Step 4 − Check the previous line for any unexpected or invalid command, command line switch(es) or value(s); pay special attention to the values of any environment variables used in the command.
Step 5 − Correct the error and repeat this process until all error messages have disappeared.
Complex Command Lines
Another common source of errors are incorrectly redirected commands, like for example "nested" FIND or FINDSTR commands with incorrect search strings, sometimes within a FOR /F loop.
To check the validity of these complex commands, follow these steps −
Step 1 − Insert "command check lines" just before a line which uses the complex command set.
Following is an example wherein the ECHO command is inserted to mark where the output of the first TYPE command ends and the next one starts.
TYPE %Temp%.\apipaorg.reg
ECHO.================================================ TYPE %Temp%.\apipaorg.reg
| FIND
"[HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\TCPIP\Parameters\Interfaces\"
Step 2 − Follow the procedure to find error message sources described above.
Step 3 − Pay special attention to the output of the "simplified" command lines: Is the output of the expected format? Is the "token" value or position as expected?
Subroutines
Subroutines generating error messages pose an extra "challenge" in finding the cause of the error, as they may be called multiple times in the same batch file.
To help find out what causes the incorrect call to the subroutine, follow these steps −
Step 1 − Add and reset a counter variable at the beginning of the script −
SET Counter = 0
Step 2 − Increment the counter each time the subroutine is called, by inserting the following line at the beginning of the subroutine
SET /A Counter+=1
Step 3 − Insert another line right after the counter increment, containing only the SET command; this will list all environment variables and their values.
Step 4 − Follow the procedure to find error message sources described above.
Windows Versions
If you intend to distribute your batch files to other computers that may or may not run the same Windows version, you will need to test your batch files in as many Windows versions as possible.
The following example shows how to check for various operating system versions to check the relevant windows versions.
@ECHO OFF
:: Check for Windows NT 4 and later
IF NOT "%OS%"=="Windows_NT" GOTO DontRun
:: Check for Windows NT 4
VER | FIND "Windows NT" >NUL && GOTO DontRun
:: Check for Windows 2000
VER | FIND "Windows 2000" >NUL && GOTO DontRun
:: Place actual code here . . .
:: End of actual code . . .
EXIT
:DontRun
ECHO Sorry, this batch file was written for Windows XP and later versions only
Batch Script - Logging
Logging in is possible in Batch Script by using the redirection command.
Syntax
test.bat > testlog.txt 2> testerrors.txt
Example
Create a file called test.bat and enter the following command in the file.
net statistics /Server
The above command has an error because the option to the net statistics command is given in the wrong way.
Output
If the command with the above test.bat file is run as
test.bat > testlog.txt 2> testerrors.txt
And you open the file testerrors.txt, you will see the following error.
The option /SERVER is unknown.
The syntax of this command is −
NET STATISTICS
[WORKSTATION | SERVER]
More help is available by typing NET HELPMSG 3506.
If you open the file called testlog.txt, it will show you a log of what commands were executed.
