AVRO - Quick Guide

AVRO - Overview

To transfer data over a network or for its persistent storage, you need to serialize the data. Prior to the serialization APIs provided by Java and Hadoop, we have a special utility, called Avro, a schema-based serialization technique.

This tutorial teaches you how to serialize and deserialize the data using Avro. Avro provides libraries for various programming languages. In this tutorial, we demonstrate the examples using Java library.

What is Avro?

Apache Avro is a language-neutral data serialization system. It was developed by Doug Cutting, the father of Hadoop. Since Hadoop writable classes lack language portability, Avro becomes quite helpful, as it deals with data formats that can be processed by multiple languages. Avro is a preferred tool to serialize data in Hadoop.

Avro has a schema-based system. A language-independent schema is associated with its read and write operations. Avro serializes the data which has a built-in schema. Avro serializes the data into a compact binary format, which can be deserialized by any application.

Avro uses JSON format to declare the data structures. Presently, it supports languages such as Java, C, C++, C#, Python, and Ruby.

Avro Schemas

Avro depends heavily on its schema. It allows every data to be written with no prior knowledge of the schema. It serializes fast and the resulting serialized data is lesser in size. Schema is stored along with the Avro data in a file for any further processing.

In RPC, the client and the server exchange schemas during the connection. This exchange helps in the communication between same named fields, missing fields, extra fields, etc.

Avro schemas are defined with JSON that simplifies its implementation in languages with JSON libraries.

Like Avro, there are other serialization mechanisms in Hadoop such as Sequence Files, Protocol Buffers, and Thrift.

Comparison with Thrift and Protocol Buffers

Thrift and Protocol Buffers are the most competent libraries with Avro. Avro differs from these frameworks in the following ways −

Avro supports both dynamic and static types as per the requirement. Protocol Buffers and Thrift use Interface Definition Languages (IDLs) to specify schemas and their types. These IDLs are used to generate code for serialization and deserialization.
Avro is built in the Hadoop ecosystem. Thrift and Protocol Buffers are not built in Hadoop ecosystem.

Unlike Thrift and Protocol Buffer, Avro's schema definition is in JSON and not in any proprietary IDL.

Property	Avro	Thrift & Protocol Buffer
Dynamic schema	Yes	No
Built into Hadoop	Yes	No
Schema in JSON	Yes	No
No need to compile	Yes	No
No need to declare IDs	Yes	No
Bleeding edge	Yes	No

Features of Avro

Listed below are some of the prominent features of Avro −

Avro is a language-neutral data serialization system.
It can be processed by many languages (currently C, C++, C#, Java, Python, and Ruby).
Avro creates binary structured format that is both compressible and splittable. Hence it can be efficiently used as the input to Hadoop MapReduce jobs.
Avro provides rich data structures. For example, you can create a record that contains an array, an enumerated type, and a sub record. These datatypes can be created in any language, can be processed in Hadoop, and the results can be fed to a third language.
Avro schemas defined in JSON, facilitate implementation in the languages that already have JSON libraries.
Avro creates a self-describing file named Avro Data File, in which it stores data along with its schema in the metadata section.
Avro is also used in Remote Procedure Calls (RPCs). During RPC, client and server exchange schemas in the connection handshake.

General Working of Avro

To use Avro, you need to follow the given workflow −

Step 1 − Create schemas. Here you need to design Avro schema according to your data.
Step 2 − Read the schemas into your program. It is done in two ways −
- By Generating a Class Corresponding to Schema − Compile the schema using Avro. This generates a class file corresponding to the schema
- By Using Parsers Library − You can directly read the schema using parsers library.
Step 3 − Serialize the data using the serialization API provided for Avro, which is found in the package org.apache.avro.specific.
Step 4 − Deserialize the data using deserialization API provided for Avro, which is found in the package org.apache.avro.specific.

AVRO - Serialization

Data is serialized for two objectives −

For persistent storage
To transport the data over network

What is Serialization?

Serialization is the process of translating data structures or objects state into binary or textual form to transport the data over network or to store on some persisten storage. Once the data is transported over network or retrieved from the persistent storage, it needs to be deserialized again. Serialization is termed as marshalling and deserialization is termed as unmarshalling.

Serialization in Java

Java provides a mechanism, called object serialization where an object can be represented as a sequence of bytes that includes the object's data as well as information about the object's type and the types of data stored in the object.

After a serialized object is written into a file, it can be read from the file and deserialized. That is, the type information and bytes that represent the object and its data can be used to recreate the object in memory.

ObjectInputStream and ObjectOutputStream classes are used to serialize and deserialize an object respectively in Java.

Serialization in Hadoop

Generally in distributed systems like Hadoop, the concept of serialization is used for Interprocess Communication and Persistent Storage.

Interprocess Communication

To establish the interprocess communication between the nodes connected in a network, RPC technique was used.
RPC used internal serialization to convert the message into binary format before sending it to the remote node via network. At the other end the remote system deserializes the binary stream into the original message.
The RPC serialization format is required to be as follows −
- Compact − To make the best use of network bandwidth, which is the most scarce resource in a data center.
- Fast − Since the communication between the nodes is crucial in distributed systems, the serialization and deserialization process should be quick, producing less overhead.
- Extensible − Protocols change over time to meet new requirements, so it should be straightforward to evolve the protocol in a controlled manner for clients and servers.
- Interoperable − The message format should support the nodes that are written in different languages.

Persistent Storage

Persistent Storage is a digital storage facility that does not lose its data with the loss of power supply. Files, folders, databases are the examples of persistent storage.

Writable Interface

This is the interface in Hadoop which provides methods for serialization and deserialization. The following table describes the methods −

S.No.	Methods and Description
1	void readFields(DataInput in) This method is used to deserialize the fields of the given object.
2	void write(DataOutput out) This method is used to serialize the fields of the given object.

S.No.

Methods and Description

void readFields(DataInput in)

This method is used to deserialize the fields of the given object.

void write(DataOutput out)

This method is used to serialize the fields of the given object.

Writable Comparable Interface

It is the combination of Writable and Comparable interfaces. This interface inherits Writable interface of Hadoop as well as Comparable interface of Java. Therefore it provides methods for data serialization, deserialization, and comparison.

S.No.	Methods and Description
1	int compareTo(class obj) This method compares current object with the given object obj.

In addition to these classes, Hadoop supports a number of wrapper classes that implement WritableComparable interface. Each class wraps a Java primitive type. The class hierarchy of Hadoop serialization is given below −

These classes are useful to serialize various types of data in Hadoop. For instance, let us consider the IntWritable class. Let us see how this class is used to serialize and deserialize the data in Hadoop.

IntWritable Class

This class implements Writable, Comparable, and WritableComparable interfaces. It wraps an integer data type in it. This class provides methods used to serialize and deserialize integer type of data.

Constructors

S.No.	Summary
1	IntWritable()
2	IntWritable( int value)

Methods

S.No.	Summary
1	int get() Using this method you can get the integer value present in the current object.
2	void readFields(DataInput in) This method is used to deserialize the data in the given DataInput object.
3	void set(int value) This method is used to set the value of the current IntWritable object.
4	void write(DataOutput out) This method is used to serialize the data in the current object to the given DataOutput object.

Serializing the Data in Hadoop

The procedure to serialize the integer type of data is discussed below.

Instantiate IntWritable class by wrapping an integer value in it.
Instantiate ByteArrayOutputStream class.
Instantiate DataOutputStream class and pass the object of ByteArrayOutputStream class to it.
Serialize the integer value in IntWritable object using write() method. This method needs an object of DataOutputStream class.
The serialized data will be stored in the byte array object which is passed as parameter to the DataOutputStream class at the time of instantiation. Convert the data in the object to byte array.

Example

The following example shows how to serialize data of integer type in Hadoop −

import java.io.ByteArrayOutputStream;
import java.io.DataOutputStream;

import java.io.IOException;

import org.apache.hadoop.io.IntWritable;

public class Serialization {
   public byte[] serialize() throws IOException{

      //Instantiating the IntWritable object
      IntWritable intwritable = new IntWritable(12);

      //Instantiating ByteArrayOutputStream object
      ByteArrayOutputStream byteoutputStream = new ByteArrayOutputStream();

      //Instantiating DataOutputStream object
      DataOutputStream dataOutputStream = new
      DataOutputStream(byteoutputStream);

      //Serializing the data
      intwritable.write(dataOutputStream);

      //storing the serialized object in bytearray
      byte[] byteArray = byteoutputStream.toByteArray();

      //Closing the OutputStream
      dataOutputStream.close();
      return(byteArray);
   }

   public static void main(String args[]) throws IOException{
      Serialization serialization= new Serialization();
      serialization.serialize();
      System.out.println();
   }
}

Deserializing the Data in Hadoop

The procedure to deserialize the integer type of data is discussed below −

Instantiate IntWritable class by wrapping an integer value in it.
Instantiate ByteArrayOutputStream class.
Instantiate DataOutputStream class and pass the object of ByteArrayOutputStream class to it.
Deserialize the data in the object of DataInputStream using readFields() method of IntWritable class.
The deserialized data will be stored in the object of IntWritable class. You can retrieve this data using get() method of this class.

Example

The following example shows how to deserialize the data of integer type in Hadoop −

import java.io.ByteArrayInputStream;
import java.io.DataInputStream;

import org.apache.hadoop.io.IntWritable;

public class Deserialization {

   public void deserialize(byte[]byteArray) throws Exception{

      //Instantiating the IntWritable class
      IntWritable intwritable =new IntWritable();

      //Instantiating ByteArrayInputStream object
      ByteArrayInputStream InputStream = new ByteArrayInputStream(byteArray);

      //Instantiating DataInputStream object
      DataInputStream datainputstream=new DataInputStream(InputStream);

      //deserializing the data in DataInputStream
      intwritable.readFields(datainputstream);

      //printing the serialized data
      System.out.println((intwritable).get());
   }

   public static void main(String args[]) throws Exception {
      Deserialization dese = new Deserialization();
      dese.deserialize(new Serialization().serialize());
   }
}

Advantage of Hadoop over Java Serialization

Hadoop’s Writable-based serialization is capable of reducing the object-creation overhead by reusing the Writable objects, which is not possible with the Java’s native serialization framework.

Disadvantages of Hadoop Serialization

To serialize Hadoop data, there are two ways −

You can use the Writable classes, provided by Hadoop’s native library.
You can also use Sequence Files which store the data in binary format.

The main drawback of these two mechanisms is that Writables and SequenceFiles have only a Java API and they cannot be written or read in any other language.

Therefore any of the files created in Hadoop with above two mechanisms cannot be read by any other third language, which makes Hadoop as a limited box. To address this drawback, Doug Cutting created Avro, which is a language independent data structure.

AVRO - Environment Setup

Apache software foundation provides Avro with various releases. You can download the required release from Apache mirrors. Let us see, how to set up the environment to work with Avro −

Downloading Avro

To download Apache Avro, proceed with the following −

Open the web page Apache.org. You will see the homepage of Apache Avro as shown below −

Click on project → releases. You will get a list of releases.
Select the latest release which leads you to a download link.
mirror.nexcess is one of the links where you can find the list of all libraries of different languages that Avro supports as shown below −

You can select and download the library for any of the languages provided. In this tutorial, we use Java. Hence download the jar files avro-1.7.7.jar and avro-tools-1.7.7.jar.

Avro with Eclipse

To use Avro in Eclipse environment, you need to follow the steps given below −

Step 1. Open eclipse.
Step 2. Create a project.
Step 3. Right-click on the project name. You will get a shortcut menu.
Step 4. Click on Build Path. It leads you to another shortcut menu.
Step 5. Click on Configure Build Path... You can see Properties window of your project as shown below −

Step 6. Under libraries tab, click on ADD EXternal JARs... button.
Step 7. Select the jar file avro-1.77.jar you have downloaded.
Step 8. Click on OK.

Avro with Maven

You can also get the Avro library into your project using Maven. Given below is the pom.xml file for Avro.

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="   http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">

   <modelVersion>4.0.0</modelVersion>
   <groupId>Test</groupId>
   <artifactId>Test</artifactId>
   <version>0.0.1-SNAPSHOT</version>

   <build>
      <sourceDirectory>src</sourceDirectory>
      <plugins>
         <plugin>
            <artifactId>maven-compiler-plugin</artifactId>
            <version>3.1</version>

            <configuration>
               <source>1.7</source>
               <target>1.7</target>
            </configuration>

         </plugin>
      </plugins>
   </build>

   <dependencies>
      <dependency>
         <groupId>org.apache.avro</groupId>
         <artifactId>avro</artifactId>
         <version>1.7.7</version>
      </dependency>

      <dependency>
         <groupId>org.apache.avro</groupId>
         <artifactId>avro-tools</artifactId>
         <version>1.7.7</version>
      </dependency>

      <dependency>
         <groupId>org.apache.logging.log4j</groupId>
         <artifactId>log4j-api</artifactId>
         <version>2.0-beta9</version>
      </dependency>

      <dependency>
         <groupId>org.apache.logging.log4j</groupId>
         <artifactId>log4j-core</artifactId>
         <version>2.0-beta9</version>
      </dependency>

   </dependencies>

</project>

Setting Classpath

To work with Avro in Linux environment, download the following jar files −

avro-1.77.jar
avro-tools-1.77.jar
log4j-api-2.0-beta9.jar
og4j-core-2.0.beta9.jar.

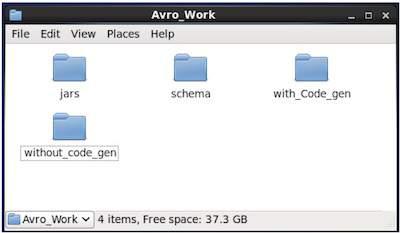

Copy these files into a folder and set the classpath to the folder, in the ./bashrc file as shown below.

#class path for Avro
export CLASSPATH=$CLASSPATH://home/Hadoop/Avro_Work/jars/*

AVRO - Schemas

Avro, being a schema-based serialization utility, accepts schemas as input. In spite of various schemas being available, Avro follows its own standards of defining schemas. These schemas describe the following details −

type of file (record by default)
location of record
name of the record
fields in the record with their corresponding data types

Using these schemas, you can store serialized values in binary format using less space. These values are stored without any metadata.

Creating Avro Schemas

The Avro schema is created in JavaScript Object Notation (JSON) document format, which is a lightweight text-based data interchange format. It is created in one of the following ways −

A JSON string
A JSON object
A JSON array

Example − The following example shows a schema, which defines a document, under the name space Howcodex, with name Employee, having fields name and age.

{
   "type" : "record",
   "namespace" : "Howcodex",
   "name" : "Employee",
   "fields" : [
      { "name" : "Name" , "type" : "string" },
      { "name" : "Age" , "type" : "int" }
   ]
}

In this example, you can observe that there are four fields for each record −

type − This field comes under the document as well as the under the field named fields.
- In case of document, it shows the type of the document, generally a record because there are multiple fields.
- When it is field, the type describes data type.

namespace − This field describes the name of the namespace in which the object resides.
name − This field comes under the document as well as the under the field named fields.
- In case of document, it describes the schema name. This schema name together with the namespace, uniquely identifies the schema within the store (Namespace.schema name). In the above example, the full name of the schema will be Howcodex.Employee.
- In case of fields, it describes name of the field.

Primitive Data Types of Avro

Avro schema is having primitive data types as well as complex data types. The following table describes the primitive data types of Avro −

Data type	Description
null	Null is a type having no value.
int	32-bit signed integer.
long	64-bit signed integer.
float	single precision (32-bit) IEEE 754 floating-point number.
double	double precision (64-bit) IEEE 754 floating-point number.
bytes	sequence of 8-bit unsigned bytes.
string	Unicode character sequence.

Complex Data Types of Avro

Along with primitive data types, Avro provides six complex data types namely Records, Enums, Arrays, Maps, Unions, and Fixed.

Record

A record data type in Avro is a collection of multiple attributes. It supports the following attributes −

name − The value of this field holds the name of the record.
namespace − The value of this field holds the name of the namespace where the object is stored.
type − The value of this attribute holds either the type of the document (record) or the datatype of the field in the schema.
fields − This field holds a JSON array, which have the list of all of the fields in the schema, each having name and the type attributes.

Example

Given below is the example of a record.

{
" type " : "record",
" namespace " : "Howcodex",
" name " : "Employee",
" fields " : [
 { "name" : " Name" , "type" : "string" },
 { "name" : "age" , "type" : "int" }
 ]
}

Enum

An enumeration is a list of items in a collection, Avro enumeration supports the following attributes −

name − The value of this field holds the name of the enumeration.
namespace − The value of this field contains the string that qualifies the name of the Enumeration.
symbols − The value of this field holds the enum's symbols as an array of names.

Example

Given below is the example of an enumeration.

{
   "type" : "enum",
   "name" : "Numbers",
   "namespace": "data",
   "symbols" : [ "ONE", "TWO", "THREE", "FOUR" ]
}

Arrays

This data type defines an array field having a single attribute items. This items attribute specifies the type of items in the array.

Example

{ " type " : " array ", " items " : " int " }

Maps

The map data type is an array of key-value pairs, it organizes data as key-value pairs. The key for an Avro map must be a string. The values of a map hold the data type of the content of map.

Example

{"type" : "map", "values" : "int"}

Unions

A union datatype is used whenever the field has one or more datatypes. They are represented as JSON arrays. For example, if a field that could be either an int or null, then the union is represented as ["int", "null"].

Example

Given below is an example document using unions −

{
   "type" : "record",
   "namespace" : "howcodex",
   "name" : "empdetails ",
   "fields" :
   [
      { "name" : "experience", "type": ["int", "null"] }, { "name" : "age", "type": "int" }
   ]
}

Fixed

This data type is used to declare a fixed-sized field that can be used for storing binary data. It has field name and data as attributes. Name holds the name of the field, and size holds the size of the field.

Example

{ "type" : "fixed" , "name" : "bdata", "size" : 1048576}

AVRO - Reference API

In the previous chapter, we described the input type of Avro, i.e., Avro schemas. In this chapter, we will explain the classes and methods used in the serialization and deserialization of Avro schemas.

SpecificDatumWriter Class

This class belongs to the package org.apache.avro.specific. It implements the DatumWriter interface which converts Java objects into an in-memory serialized format.

Constructor

S.No.	Description
1	SpecificDatumWriter(Schema schema)

Method

S.No.	Description
1	SpecificData getSpecificData() Returns the SpecificData implementation used by this writer.

SpecificDatumReader Class

This class belongs to the package org.apache.avro.specific. It implements the DatumReader interface which reads the data of a schema and determines in-memory data representation. SpecificDatumReader is the class which supports generated java classes.

Constructor

S.No.	Description
1	SpecificDatumReader(Schema schema) Construct where the writer's and reader's schemas are the same.

Methods

S.No.	Description
1	SpecificData getSpecificData() Returns the contained SpecificData.
2	void setSchema(Schema actual) This method is used to set the writer's schema.

S.No.

Description

SpecificData getSpecificData()

Returns the contained SpecificData.

void setSchema(Schema actual)

This method is used to set the writer's schema.

DataFileWriter

Instantiates DataFileWrite for emp class. This class writes a sequence serialized records of data conforming to a schema, along with the schema in a file.

Constructor

S.No.	Description
1	DataFileWriter(DatumWriter<D> dout)

Methods

S.No	Description
1	void append(D datum) Appends a datum to a file.
2	DataFileWriter<D> appendTo(File file) This method is used to open a writer appending to an existing file.

S.No

Description

void append(D datum)

Appends a datum to a file.

DataFileWriter<D> appendTo(File file)

This method is used to open a writer appending to an existing file.

Data FileReader

This class provides random access to files written with DataFileWriter. It inherits the class DataFileStream.

Constructor

S.No.	Description
1	DataFileReader(File file, DatumReader<D> reader))

Methods

S.No.	Description
1	next() Reads the next datum in the file.
2	Boolean hasNext() Returns true if more entries remain in this file.

S.No.

Description

next()

Reads the next datum in the file.

Boolean hasNext()

Returns true if more entries remain in this file.

Class Schema.parser

This class is a parser for JSON-format schemas. It contains methods to parse the schema. It belongs to org.apache.avro package.

Constructor

S.No.	Description
1	Schema.Parser()

Methods

S.No.	Description
1	parse (File file) Parses the schema provided in the given file.
2	parse (InputStream in) Parses the schema provided in the given InputStream.
3	parse (String s) Parses the schema provided in the given String.

S.No.

Description

parse (File file)

Parses the schema provided in the given file.

parse (InputStream in)

Parses the schema provided in the given InputStream.

parse (String s)

Parses the schema provided in the given String.

Interface GenricRecord

This interface provides methods to access the fields by name as well as index.

Methods

S.No.	Description
1	Object get(String key) Returns the value of a field given.
2	void put(String key, Object v) Sets the value of a field given its name.

S.No.

Description

Object get(String key)

Returns the value of a field given.

void put(String key, Object v)

Sets the value of a field given its name.

Class GenericData.Record

Constructor

S.No.	Description
1	GenericData.Record(Schema schema)

Methods

S.No.	Description
1	Object get(String key) Returns the value of a field of the given name.
2	Schema getSchema() Returns the schema of this instance.
3	void put(int i, Object v) Sets the value of a field given its position in the schema.
4	void put(String key, Object value) Sets the value of a field given its name.

AVRO - Serialization By Generating Class

One can read an Avro schema into the program either by generating a class corresponding to a schema or by using the parsers library. This chapter describes how to read the schema by generating a class and Serializing the data using Avr.

Serialization by Generating a Class

To serialize the data using Avro, follow the steps as given below −

Write an Avro schema.
Compile the schema using Avro utility. You get the Java code corresponding to that schema.
Populate the schema with the data.
Serialize it using Avro library.

Defining a Schema

Suppose you want a schema with the following details −

Field	Name	id	age	salary	address
type	String	int	int	int	string

Create an Avro schema as shown below.

Save it as emp.avsc.

{
   "namespace": "howcodex.com",
   "type": "record",
   "name": "emp",
   "fields": [
      {"name": "name", "type": "string"},
      {"name": "id", "type": "int"},
      {"name": "salary", "type": "int"},
      {"name": "age", "type": "int"},
      {"name": "address", "type": "string"}
   ]
}

Compiling the Schema

After creating an Avro schema, you need to compile the created schema using Avro tools. avro-tools-1.7.7.jar is the jar containing the tools.

Syntax to Compile an Avro Schema

java -jar <path/to/avro-tools-1.7.7.jar> compile schema <path/to/schema-file> <destination-folder>

Open the terminal in the home folder.

Create a new directory to work with Avro as shown below −

$ mkdir Avro_Work

In the newly created directory, create three sub-directories −

First named schema, to place the schema.
Second named with_code_gen, to place the generated code.
Third named jars, to place the jar files.

$ mkdir schema
$ mkdir with_code_gen
$ mkdir jars

The following screenshot shows how your Avro_work folder should look like after creating all the directories.

Now /home/Hadoop/Avro_work/jars/avro-tools-1.7.7.jar is the path for the directory where you have downloaded avro-tools-1.7.7.jar file.
/home/Hadoop/Avro_work/schema/ is the path for the directory where your schema file emp.avsc is stored.
/home/Hadoop/Avro_work/with_code_gen is the directory where you want the generated class files to be stored.

Now compile the schema as shown below −

$ java -jar /home/Hadoop/Avro_work/jars/avro-tools-1.7.7.jar compile schema /home/Hadoop/Avro_work/schema/emp.avsc /home/Hadoop/Avro/with_code_gen

After compiling, a package according to the name space of the schema is created in the destination directory. Within this package, the Java source code with schema name is created. This generated source code is the Java code of the given schema which can be used in the applications directly.

For example, in this instance a package/folder, named howcodex is created which contains another folder named com (since the name space is howcodex.com) and within it, you can observe the generated file emp.java. The following snapshot shows emp.java −

This class is useful to create data according to schema.

The generated class contains −

Default constructor, and parameterized constructor which accept all the variables of the schema.
The setter and getter methods for all variables in the schema.
Get() method which returns the schema.
Builder methods.

Creating and Serializing the Data

First of all, copy the generated java file used in this project into the current directory or import it from where it is located.

Now we can write a new Java file and instantiate the class in the generated file (emp) to add employee data to the schema.

Let us see the procedure to create data according to the schema using apache Avro.

Step 1

Instantiate the generated emp class.

emp e1=new emp( );

Step 2

Using setter methods, insert the data of first employee. For example, we have created the details of the employee named Omar.

e1.setName("omar");
e1.setAge(21);
e1.setSalary(30000);
e1.setAddress("Hyderabad");
e1.setId(001);

Similarly, fill in all employee details using setter methods.

Step 3

Create an object of DatumWriter interface using the SpecificDatumWriter class. This converts Java objects into in-memory serialized format. The following example instantiates SpecificDatumWriter class object for emp class.

DatumWriter<emp> empDatumWriter = new SpecificDatumWriter<emp>(emp.class);

Step 4

Instantiate DataFileWriter for emp class. This class writes a sequence serialized records of data conforming to a schema, along with the schema itself, in a file. This class requires the DatumWriter object, as a parameter to the constructor.

DataFileWriter<emp> empFileWriter = new DataFileWriter<emp>(empDatumWriter);

Step 5

Open a new file to store the data matching to the given schema using create() method. This method requires the schema, and the path of the file where the data is to be stored, as parameters.

In the following example, schema is passed using getSchema() method, and the data file is stored in the path − /home/Hadoop/Avro/serialized_file/emp.avro.

empFileWriter.create(e1.getSchema(),new File("/home/Hadoop/Avro/serialized_file/emp.avro"));

Step 6

Add all the created records to the file using append() method as shown below −

empFileWriter.append(e1);
empFileWriter.append(e2);
empFileWriter.append(e3);

Example – Serialization by Generating a Class

The following complete program shows how to serialize data into a file using Apache Avro −

import java.io.File;
import java.io.IOException;

import org.apache.avro.file.DataFileWriter;
import org.apache.avro.io.DatumWriter;
import org.apache.avro.specific.SpecificDatumWriter;

public class Serialize {
   public static void main(String args[]) throws IOException{

      //Instantiating generated emp class
      emp e1=new emp();

      //Creating values according the schema
      e1.setName("omar");
      e1.setAge(21);
      e1.setSalary(30000);
      e1.setAddress("Hyderabad");
      e1.setId(001);

      emp e2=new emp();

      e2.setName("ram");
      e2.setAge(30);
      e2.setSalary(40000);
      e2.setAddress("Hyderabad");
      e2.setId(002);

      emp e3=new emp();

      e3.setName("robbin");
      e3.setAge(25);
      e3.setSalary(35000);
      e3.setAddress("Hyderabad");
      e3.setId(003);

      //Instantiate DatumWriter class
      DatumWriter<emp> empDatumWriter = new SpecificDatumWriter<emp>(emp.class);
      DataFileWriter<emp> empFileWriter = new DataFileWriter<emp>(empDatumWriter);

      empFileWriter.create(e1.getSchema(), new File("/home/Hadoop/Avro_Work/with_code_gen/emp.avro"));

      empFileWriter.append(e1);
      empFileWriter.append(e2);
      empFileWriter.append(e3);

      empFileWriter.close();

      System.out.println("data successfully serialized");
   }
}

Browse through the directory where the generated code is placed. In this case, at home/Hadoop/Avro_work/with_code_gen.

In Terminal −

$ cd home/Hadoop/Avro_work/with_code_gen/

In GUI −

Now copy and save the above program in the file named Serialize.java

Compile and execute it as shown below −

$ javac Serialize.java
$ java Serialize

Output

data successfully serialized

If you verify the path given in the program, you can find the generated serialized file as shown below.

AVRO - Deserialization By Generating Class

As described earlier, one can read an Avro schema into a program either by generating a class corresponding to the schema or by using the parsers library. This chapter describes how to read the schema by generating a class and Deserialize the data using Avro.

Deserialization by Generating a Class

The serialized data is stored in the file emp.avro. You can deserialize and read it using Avro.

Follow the procedure given below to deserialize the serialized data from a file.

Step 1

Create an object of DatumReader interface using SpecificDatumReader class.

DatumReader<emp>empDatumReader = new SpecificDatumReader<emp>(emp.class);

Step 2

Instantiate DataFileReader for emp class. This class reads serialized data from a file. It requires the Dataumeader object, and path of the file where the serialized data is existing, as a parameters to the constructor.

DataFileReader<emp> dataFileReader = new DataFileReader(new File("/path/to/emp.avro"), empDatumReader);

Step 3

Print the deserialized data, using the methods of DataFileReader.

The hasNext() method will return a boolean if there are any elements in the Reader.
The next() method of DataFileReader returns the data in the Reader.

while(dataFileReader.hasNext()){

   em=dataFileReader.next(em);
   System.out.println(em);
}

Example – Deserialization by Generating a Class

The following complete program shows how to deserialize the data in a file using Avro.

import java.io.File;
import java.io.IOException;

import org.apache.avro.file.DataFileReader;
import org.apache.avro.io.DatumReader;
import org.apache.avro.specific.SpecificDatumReader;

public class Deserialize {
   public static void main(String args[]) throws IOException{

      //DeSerializing the objects
      DatumReader<emp> empDatumReader = new SpecificDatumReader<emp>(emp.class);

      //Instantiating DataFileReader
      DataFileReader<emp> dataFileReader = new DataFileReader<emp>(new
         File("/home/Hadoop/Avro_Work/with_code_genfile/emp.avro"), empDatumReader);
      emp em=null;

      while(dataFileReader.hasNext()){

         em=dataFileReader.next(em);
         System.out.println(em);
      }
   }
}

Browse into the directory where the generated code is placed. In this case, at home/Hadoop/Avro_work/with_code_gen.

$ cd home/Hadoop/Avro_work/with_code_gen/

Now, copy and save the above program in the file named DeSerialize.java. Compile and execute it as shown below −

$ javac Deserialize.java
$ java Deserialize

Output

{"name": "omar", "id": 1, "salary": 30000, "age": 21, "address": "Hyderabad"}
{"name": "ram", "id": 2, "salary": 40000, "age": 30, "address": "Hyderabad"}
{"name": "robbin", "id": 3, "salary": 35000, "age": 25, "address": "Hyderabad"}

AVRO - Serialization Using Parsers

One can read an Avro schema into a program either by generating a class corresponding to a schema or by using the parsers library. In Avro, data is always stored with its corresponding schema. Therefore, we can always read a schema without code generation.

This chapter describes how to read the schema by using parsers library and to serialize the data using Avro.

Serialization Using Parsers Library

To serialize the data, we need to read the schema, create data according to the schema, and serialize the schema using the Avro API. The following procedure serializes the data without generating any code −

Step 1

First of all, read the schema from the file. To do so, use Schema.Parser class. This class provides methods to parse the schema in different formats.

Instantiate the Schema.Parser class by passing the file path where the schema is stored.

Schema schema = new Schema.Parser().parse(new File("/path/to/emp.avsc"));

Step 2

Create the object of GenericRecord interface, by instantiating GenericData.Record class as shown below. Pass the above created schema object to its constructor.

GenericRecord e1 = new GenericData.Record(schema);

Step 3

Insert the values in the schema using the put() method of the GenericData class.

e1.put("name", "ramu");
e1.put("id", 001);
e1.put("salary",30000);
e1.put("age", 25);
e1.put("address", "chennai");

Step 4

Create an object of DatumWriter interface using the SpecificDatumWriter class. It converts Java objects into in-memory serialized format. The following example instantiates SpecificDatumWriter class object for emp class −

DatumWriter<emp> empDatumWriter = new SpecificDatumWriter<emp>(emp.class);

Step 5

Instantiate DataFileWriter for emp class. This class writes serialized records of data conforming to a schema, along with the schema itself, in a file. This class requires the DatumWriter object, as a parameter to the constructor.

DataFileWriter<emp> dataFileWriter = new DataFileWriter<emp>(empDatumWriter);

Step 6

Open a new file to store the data matching to the given schema using create() method. This method requires the schema, and the path of the file where the data is to be stored, as parameters.

In the example given below, schema is passed using getSchema() method and the data file is stored in the path

/home/Hadoop/Avro/serialized_file/emp.avro.

empFileWriter.create(e1.getSchema(), new
File("/home/Hadoop/Avro/serialized_file/emp.avro"));

Step 7

Add all the created records to the file using append( ) method as shown below.

empFileWriter.append(e1);
empFileWriter.append(e2);
empFileWriter.append(e3);

Example – Serialization Using Parsers

The following complete program shows how to serialize the data using parsers −

import java.io.File;
import java.io.IOException;

import org.apache.avro.Schema;
import org.apache.avro.file.DataFileWriter;

import org.apache.avro.generic.GenericData;
import org.apache.avro.generic.GenericDatumWriter;
import org.apache.avro.generic.GenericRecord;

import org.apache.avro.io.DatumWriter;

public class Seriali {
   public static void main(String args[]) throws IOException{

      //Instantiating the Schema.Parser class.
      Schema schema = new Schema.Parser().parse(new File("/home/Hadoop/Avro/schema/emp.avsc"));

      //Instantiating the GenericRecord class.
      GenericRecord e1 = new GenericData.Record(schema);

      //Insert data according to schema
      e1.put("name", "ramu");
      e1.put("id", 001);
      e1.put("salary",30000);
      e1.put("age", 25);
      e1.put("address", "chenni");

      GenericRecord e2 = new GenericData.Record(schema);

      e2.put("name", "rahman");
      e2.put("id", 002);
      e2.put("salary", 35000);
      e2.put("age", 30);
      e2.put("address", "Delhi");

      DatumWriter<GenericRecord> datumWriter = new GenericDatumWriter<GenericRecord>(schema);

      DataFileWriter<GenericRecord> dataFileWriter = new DataFileWriter<GenericRecord>(datumWriter);
      dataFileWriter.create(schema, new File("/home/Hadoop/Avro_work/without_code_gen/mydata.txt"));

      dataFileWriter.append(e1);
      dataFileWriter.append(e2);
      dataFileWriter.close();

      System.out.println(“data successfully serialized”);
   }
}

Browse into the directory where the generated code is placed. In this case, at home/Hadoop/Avro_work/without_code_gen.

$ cd home/Hadoop/Avro_work/without_code_gen/

Now copy and save the above program in the file named Serialize.java. Compile and execute it as shown below −

$ javac Serialize.java
$ java Serialize

Output

data successfully serialized

If you verify the path given in the program, you can find the generated serialized file as shown below.

AVRO - Deserialization Using Parsers

As mentioned earlier, one can read an Avro schema into a program either by generating a class corresponding to a schema or by using the parsers library. In Avro, data is always stored with its corresponding schema. Therefore, we can always read a serialized item without code generation.

This chapter describes how to read the schema using parsers library and Deserializing the data using Avro.

Deserialization Using Parsers Library

The serialized data is stored in the file mydata.txt. You can deserialize and read it using Avro.

Follow the procedure given below to deserialize the serialized data from a file.

Step 1

First of all, read the schema from the file. To do so, use Schema.Parser class. This class provides methods to parse the schema in different formats.

Instantiate the Schema.Parser class by passing the file path where the schema is stored.

Schema schema = new Schema.Parser().parse(new File("/path/to/emp.avsc"));

Step 2

Create an object of DatumReader interface using SpecificDatumReader class.

DatumReader<emp>empDatumReader = new SpecificDatumReader<emp>(emp.class);

Step 3

Instantiate DataFileReader class. This class reads serialized data from a file. It requires the DatumReader object, and path of the file where the serialized data exists, as a parameters to the constructor.

DataFileReader<GenericRecord> dataFileReader = new DataFileReader<GenericRecord>(new File("/path/to/mydata.txt"), datumReader);

Step 4

Print the deserialized data, using the methods of DataFileReader.

The hasNext() method returns a boolean if there are any elements in the Reader .
The next() method of DataFileReader returns the data in the Reader.

while(dataFileReader.hasNext()){

   em=dataFileReader.next(em);
   System.out.println(em);
}

Example – Deserialization Using Parsers Library

The following complete program shows how to deserialize the serialized data using Parsers library −

public class Deserialize {
   public static void main(String args[]) throws Exception{

      //Instantiating the Schema.Parser class.
      Schema schema = new Schema.Parser().parse(new File("/home/Hadoop/Avro/schema/emp.avsc"));
      DatumReader<GenericRecord> datumReader = new GenericDatumReader<GenericRecord>(schema);
      DataFileReader<GenericRecord> dataFileReader = new DataFileReader<GenericRecord>(new File("/home/Hadoop/Avro_Work/without_code_gen/mydata.txt"), datumReader);
      GenericRecord emp = null;

      while (dataFileReader.hasNext()) {
         emp = dataFileReader.next(emp);
         System.out.println(emp);
      }
      System.out.println("hello");
   }
}

Browse into the directory where the generated code is placed. In this case, it is at home/Hadoop/Avro_work/without_code_gen.

$ cd home/Hadoop/Avro_work/without_code_gen/

Now copy and save the above program in the file named DeSerialize.java. Compile and execute it as shown below −

$ javac Deserialize.java
$ java Deserialize

Output

{"name": "ramu", "id": 1, "salary": 30000, "age": 25, "address": "chennai"}
{"name": "rahman", "id": 2, "salary": 35000, "age": 30, "address": "Delhi"}

Previous Page Print Page
