This tutorial will guide you on how to prepare a development environment to start your work with Highcharts and Angular Framework. In this chapter, we will discuss the Environment Setup required for Angular 6. To install Angular 6, we require the following −

  • Nodejs
  • Npm
  • Angular CLI
  • IDE for writing your code

Nodejs has to be greater than 8.11 and npm has to be greater than 5.6.

Nodejs

To check if nodejs is installed on your system, type node -v in the terminal. This will help you see the version of nodejs currently installed on your system.

C:\>node -v
v8.11.3

If it does not print anything, install nodejs on your system. To install nodejs, go the homepage https://nodejs.org/en/download/ of nodejs and install the package based on your OS.

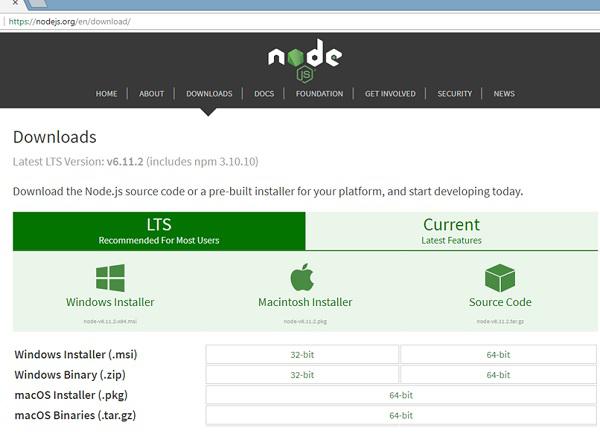

The homepage of nodejs will look like the following −

NodeJS Homepage

Based on your OS, install the required package. Once nodejs is installed, npm will also get installed along with it. To check if npm is installed or not, type npm -v in the terminal. It should display the version of the npm.

C:\>npm -v
5.6.0

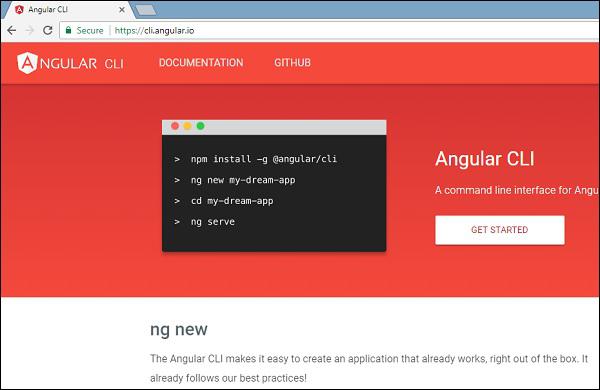

Angular 6 installations are very simple with the help of angular CLI. Visit the homepage https://cli.angular.io/ of angular to get the reference of the command.

Angular CLI

Type npm install -g @angular/cli, to install angular cli on your system.

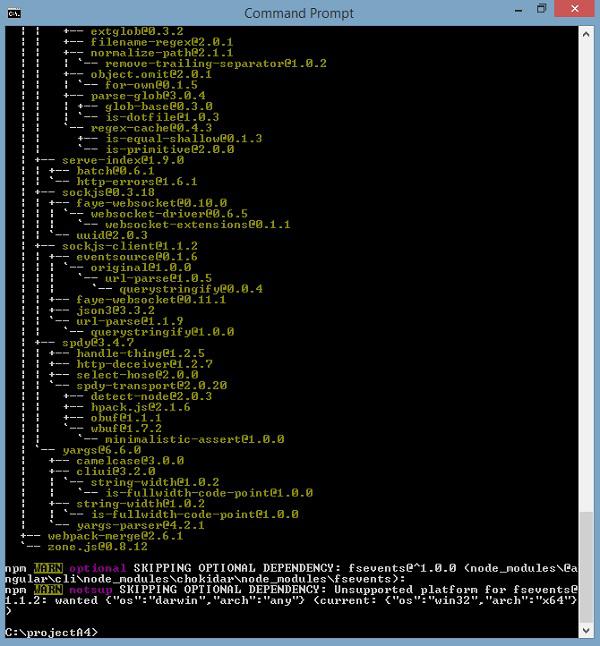

Install Angular CLI

You will get the above installation in your terminal, once Angular CLI is installed. You can use any IDE of your choice, i.e., WebStorm, Atom, Visual Studio Code, etc.

Install Highcharts

Run the following command to install highchart module in the project created.

highchartsApp>npm install highcharts --save
+ highcharts@6.2.0
added 1 package in 137.534s

Run the following command to install highchart wrapper module in the project created.

highchartsApp>npm install highcharts-angular --save
+ highcharts-angular@2.3.1
added 1 package in 20.93s

Add the following entry in highchartsApp.module.ts file

import { HighchartsChartComponent } from 'highcharts-angular';
declarations: [
   ...
   HighchartsChartComponent
],
